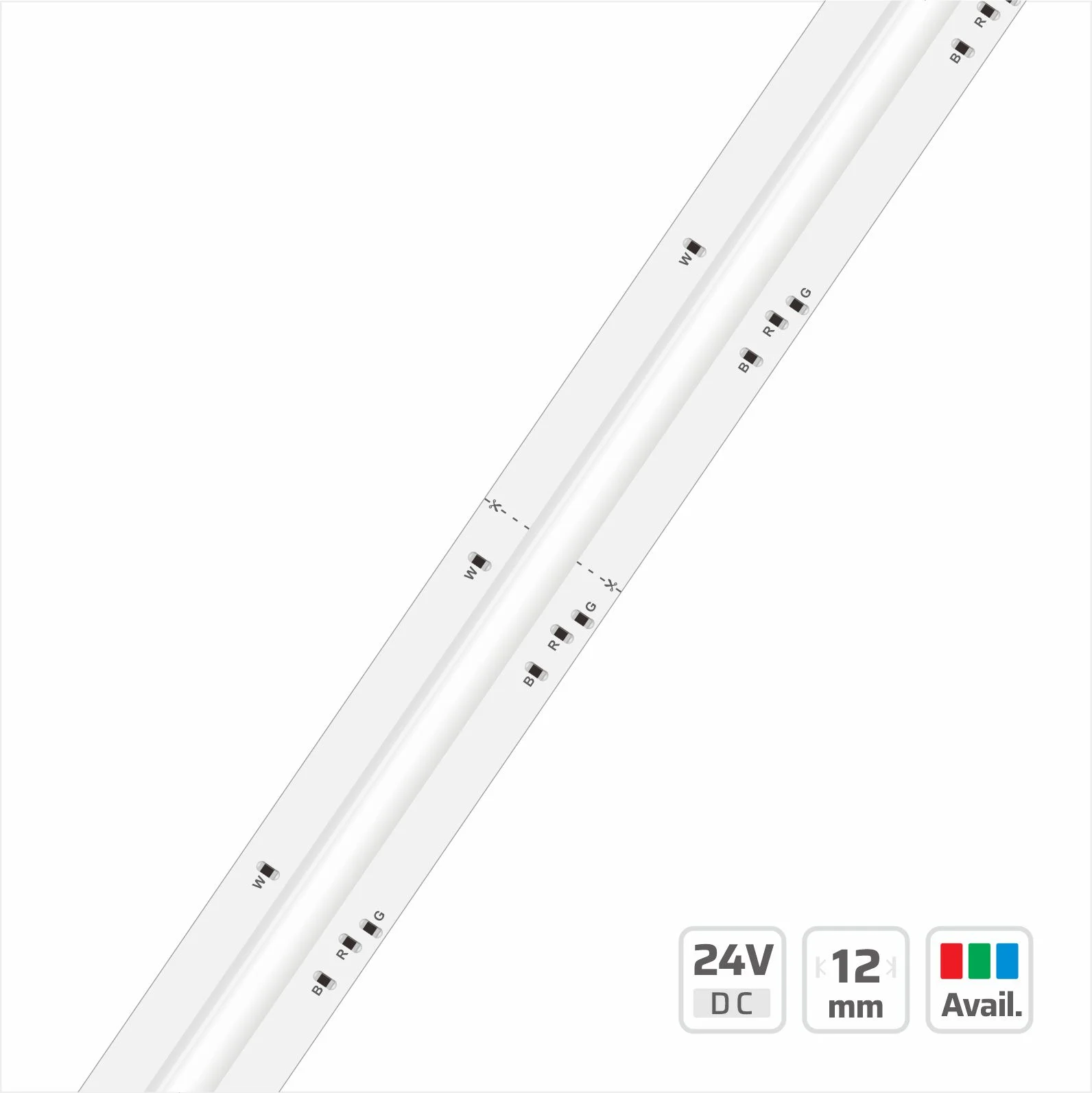

COB LED Strip Light (#840-RGBW)
12mm · 24V · 840LEDs · 33mm/cut
Model: 840-RGBW
Overview
The DENO LED 840-RGBW COB LED strip light features a high-density 840 LEDs/meter design on a 12mm PCB, offering seamless, dot-free RGBW illumination with a 24V constant voltage input. It's cuttable every 33mm, making it highly versatile for various applications such as ceiling troughs, display cases, accent lighting, staircase lighting, and architectural highlights. Boasting a 50,000-hour lifespan and a 5-year warranty, these strips are rigorously tested for quality and rel...
Description
This RGBW COB LED strip light delivers continuous dot-free color mixing across an ultra-wide 180-degree beam angle for seamless architectural lighting designs. Engineered with 840 LEDs on a 12mm 1.3oz copper PCB, the 24V constant-voltage flexible strip provides precise cut intervals every 33mm. The versatile RGBW LED strip provides dynamic color-changing illumination ideal for ceiling cove lighting, staircases, commercial sign backlighting, and display cabinet integration. Every production run undergoes comprehensive 24-hour continuous burn-in testing and thermal verification to ensure exceptional operating reliability in wholesale project supply. Factory-direct OEM options include custom FPC branding, tailored reel packaging, modified lead cables, and custom-engineered circuit widths to match exact project specifications.
Specifications
| LED QTY | 840 |
|---|---|
| PART NO | DL-COBA420V24-840-RGBW-* |
| SMD TYPE | COB |
| CUTTABLE UNIT | 33mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LIFESPAN | 50000 |
| PCB WIDTH | 12 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 180° |
| RUN LENGTH | 5m |
| COPPER FOIL | 1.3oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.
Recommended accessories & compatible parts
- DL-1201 — 25x14.5mm Wide Surface Mount LED Channel — Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
- DL-1202 — 17.3x14.5mm Surface Mount LED Channel — Deep Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
- DL-1204 — 25x7mm Wide Slim Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m: Accepts LED strips up to 12mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V4 — 12-48VDC 4-Channel * 5A RF+Push Dimming RGBW Controller | V4: Matched by input voltage range and colour channels.
Request a quotation for #840-RGBW
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Related models in this series
- COB LED Strip Light (#6702)
- COB LED Strip Light (#360-B)
- COB LED Strip Light (#6703)
- COB LED Strip Light (#360-R)
- COB LED Strip Light (#360-G)
- COB LED Strip Light (#6704)
See every model in COB LED Strip Series or narrow to Cob Multi. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the common applications for the 840-RGBW COB LED strip light?
This versatile COB LED strip is perfect for decorative lighting, backlighting, ceiling coves, staircases, walkways, billboards, and cabinet lighting within commercial and architectural projects.
Does Deno LED offer customization options for this COB LED strip series?
Yes, we provide extensive customization, including custom FPC printing, aluminum foil packaging, carton boxes, connectors, DC cables, and custom FPC designs, colors, and widths.
What are the power requirements and dimming capabilities of the 840-RGBW?
The 840-RGBW operates on a 24V constant voltage system and is fully dimmable, allowing for precise control over brightness and color output for your lighting designs.
What is the warranty and expected lifespan for this product?
The 840-RGBW COB LED strip light comes with a 5-year warranty and boasts a robust lifespan of 50,000 hours, ensuring long-term reliability for professional installations.
Which aluminum channel should I use with this COB LED strip?
Match the channel inner width to the strip PCB width — 8mm and 10mm COB strips fit DENO 10x10mm, 12x8mm and 17.5x7mm profiles. A surface mount channel suits shelves and ceilings, a recessed trimless channel suits plaster-in cove lines, and the aluminum body also acts as the heat sink the strip needs.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- RGBW COB LED Strip range — RGBW COB LED Strip — Buyer Questions
- colour changing COB LED strips — Colour Changing COB LED Strip — Buyer Questions
- LED strip engineering selection handbook
Need more than 12W/m of dot-free light? Meet the SOB upgrade
COB LED strip is the reference for seamless, dot-free lines — bare flip-chip dies sit under one shared phosphor layer, and conventional COB strip is generally limited to about 12W/m. DENO's SOB (Solder-on-Board) series builds the same continuous line from individually encapsulated SMD packages, with verified builds up to 24W/m at 24V DC (25 °C ambient, aluminum profile). Spec COB for shorter, lower-load coves and joinery; consider SOB when the output target, cut unit or package protection calls for it — run length always depends on the exact model and feed layout.
