DENO LED Lighting

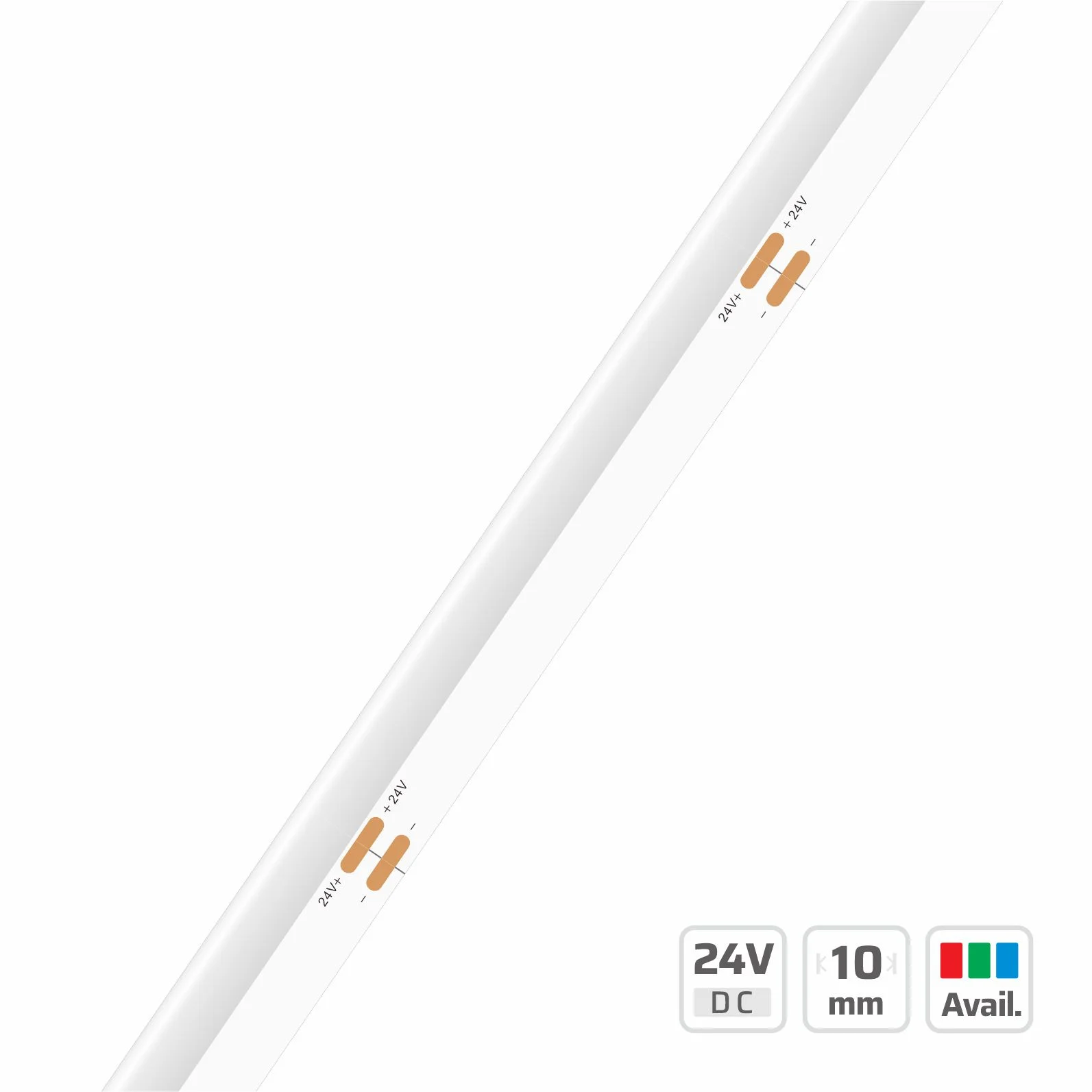

COB LED Strip Light (#6702)

10mm · 24V · 378LEDs · 55.55mm/cut

Model: 6702

6702 COB LED Strip Light | 10mm | 24V | 378LEDs | 55.55mm/cut | #6702 — 24V, cuttable every 55.6mm, 10mm FPCB width, COB LEDs, 378 LEDs/m, 2700-6500

Overview

The DENO LED Model 6702 COB LED Strip Light delivers exceptional illumination with a 10mm width and 24V input. Featuring 378 LEDs per meter and cuttable every 55.55mm, it ensures a seamless, 'no light spots, no dark shadows' effect for soft, uniform lighting. Its unique large opening and single-sided lateral illumination make it ideal for flexible light strip installations in diverse commercial applications. Compliant with RoHS environmental standards, this durable strip bo...

Description

High-density COB LED strip light packaging delivers seamless lateral illumination without dark spots or shadows across commercial installations. Engineered on a 10mm flexible PCB with 1.3oz copper foil, the 24V constant-voltage design supports reliable thermal and electrical operation. Precise cutting increments at 55.55mm intervals and full dimming compatibility enable versatile configurations for OEM custom lengths. Featuring a 90-degree beam angle, this solution is ideal for signage, exhibition booths, and decorative lighting in wholesale project supply.

Specifications

CCT (K)2700-6500
CRIRa≥90
POWER (W/M)10 W/m
LED QTY378
PART NODL-FSOBA189V24-6702-*
SMD TYPECOB
CUTTABLE UNIT55.55mm
DIMMABLEYes
IP RATINGIP20
LIFESPAN50000
PCB WIDTH10
WARRANTY3 Years
BEAM ANGLE90°
RUN LENGTH5m
COPPER FOIL1.3oz
POWER RANGE10 W/m
CIRCUIT TYPEC.V.
INPUT VOLTAGE24V
LUMINOUS FLUX42–360 lm/m
OPERATING TEMPERATURE-25~40°C;Tc：75°C（max）

Applications

  • Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
  • Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
  • Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.

Recommended accessories & compatible parts

  • DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
  • DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
  • DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
  • DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
  • DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
  • DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
  • V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #6702

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

  • Warranty: 5 years
  • Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
  • Compliance: CE · UL · RoHS
  • Bonding wire: 99.99% pure gold
  • Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Related models in this series

See every model in COB LED Strip Series or narrow to Cob Multi. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the common applications for this COB LED strip light?

This COB LED strip light is widely used in decorative lighting, signage backlighting, advertising displays, and exhibition booth illumination due to its soft, uniform light.

Does the 6702 model support dimming functionality?

Yes, the 6702 COB LED Strip Light is fully dimmable, allowing for adjustable brightness to suit various lighting requirements and ambiance settings.

What certifications does this COB LED strip light hold?

This product adheres to RoHS environmental standards, ensuring it does not contain harmful substances and is safe for various commercial applications.

Can this COB strip be easily installed in custom lengths?

Yes, the strip is designed with a cuttable increment of 55.55mm, offering significant flexibility for custom lengths and intricate installations in various projects.

Which aluminum channel should I use with this COB LED strip?

Match the channel inner width to the strip PCB width — 8mm and 10mm COB strips fit DENO 10x10mm, 12x8mm and 17.5x7mm profiles. A surface mount channel suits shelves and ceilings, a recessed trimless channel suits plaster-in cove lines, and the aluminum body also acts as the heat sink the strip needs.

Engineering & selection guide

Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.

Need more than 12W/m of dot-free light? Meet the SOB upgrade

COB LED strip is the reference for seamless, dot-free lines — bare flip-chip dies sit under one shared phosphor layer, and conventional COB strip is generally limited to about 12W/m. DENO's SOB (Solder-on-Board) series builds the same continuous line from individually encapsulated SMD packages, with verified builds up to 24W/m at 24V DC (25 °C ambient, aluminum profile). Spec COB for shorter, lower-load coves and joinery; consider SOB when the output target, cut unit or package protection calls for it — run length always depends on the exact model and feed layout.
