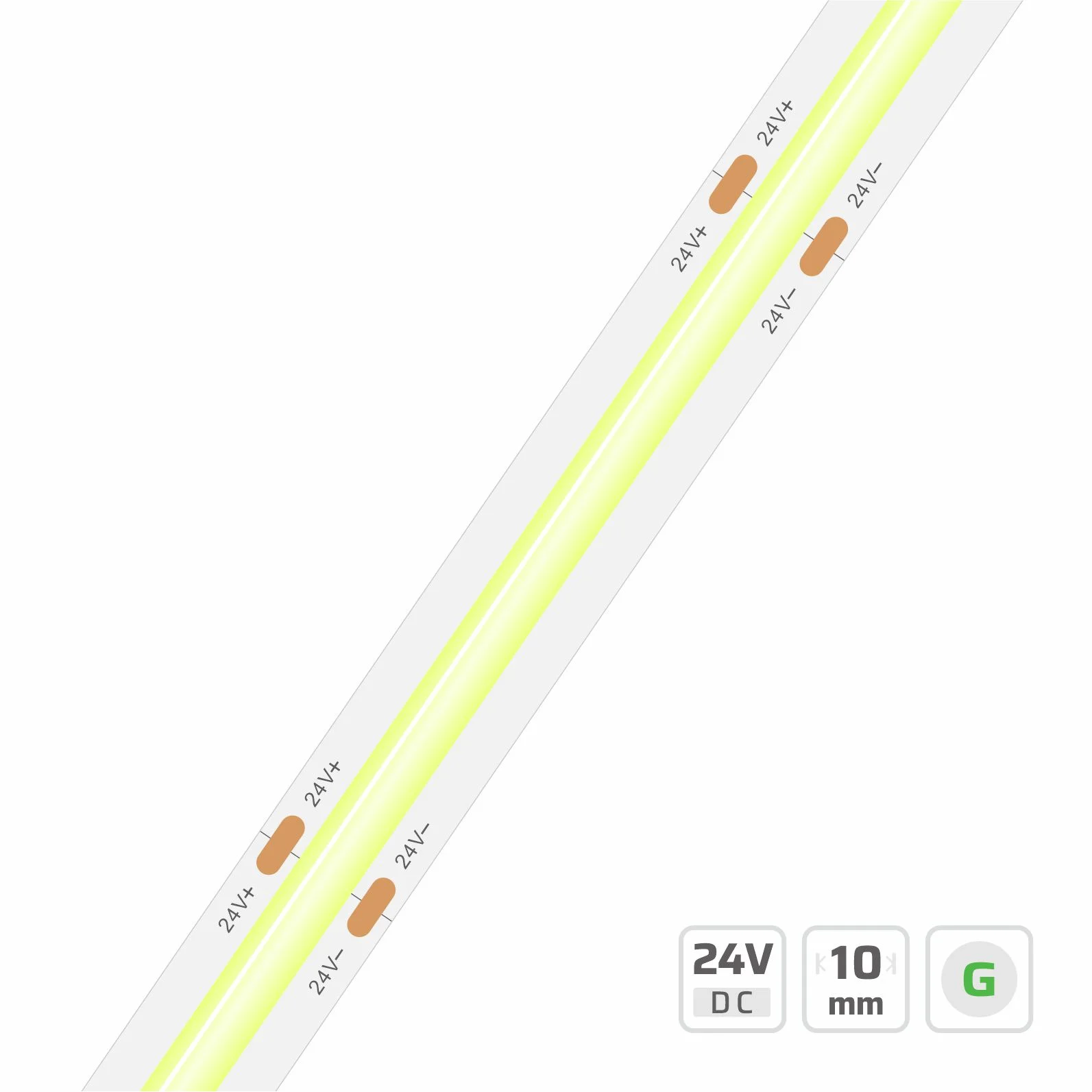

COB LED Strip Light (#360-G)
10mm · 24V · 360LEDs · 50mm/cut
Model: 360-G
Overview
The DENO LED 360-G COB LED strip light is a high-performance 24V solution designed for B2B applications. It boasts 360 LEDs per meter on a 10mm PCB, ensuring remarkable heat dissipation and consistent brightness from end to end. Its innovative design includes built-in chip protection for increased resilience against bending, and the glue surface provides uniform, anti-glare illumination, eliminating the need for additional diffusers. This makes it perfect for stage lighting...
Description
COB LED Strip Light | 10mm | 24V | 360LEDs | 50mm/cut | #360-G Better for heat dissipation, and keep the good consistent brightness from begin to end. Built-in chip protection stents, more resistant to bending. The glue on the surface make the strip provide uniform luminescence and anti-glare.No need for additionaldiffused covers .Perfect for areas withlow clearance or reflective surfaces to eliminate spot-glare. Apply to Stage lighting;Backlight of signage;Contour lighting;LED luminous characters;Landscape decoration lighting;Festival, activities, exhibition lighting, etc
Specifications
| LED QTY | 360 |
|---|---|
| PART NO | DL-COBA180V24-10mm-360G-* |
| SMD TYPE | COB |
| CUTTABLE UNIT | 50mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 180° |
| LENGTH MAX | 5m |
| COPPER FOIL | 1.3oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Request a quotation for #360-G
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Related models in this series
- COB LED Strip Light (#360-B)
- COB LED Strip Light (#6703)
- COB LED Strip Light (#360-R)
- COB LED Strip Light (#6702)
- COB LED Strip Light (#840-RGBW)
- COB LED Strip Light (#6705)
- COB LED Strip Light (#6704)
See every model in COB LED Strip Series or narrow to Cob Multi. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key benefits of using COB LED strip lights for commercial projects?
COB LED strip lights offer a continuous, dot-free illumination, superior heat dissipation, and often a wider beam angle, making them ideal for seamless lighting in B2B applications like retail displays and architectural accents.
Is the 360-G COB LED strip dimmable and what power supply is recommended?
Yes, the 360-G COB LED strip is dimmable. It operates on 24V constant voltage (CV), so a compatible 24V dimmable LED power supply is recommended for optimal performance and flicker-free dimming.
What is the maximum continuous run length for the 360-G strip without voltage drop issues?
The maximum recommended continuous run length for the 360-G is 5 meters to maintain consistent brightness and prevent noticeable voltage drop along the strip, ensuring uniform light distribution.
Does DENO LED offer customization options or bulk purchasing for the 360-G COB LED strip?
Yes, DENO LED provides customization options for specific project needs and offers competitive pricing for bulk orders of the 360-G COB LED strip. Please contact our sales team for details.
Is a COB LED strip better than an SMD strip for dot-free lighting?
Yes for continuous linear light. A COB LED strip spreads phosphor over the whole surface, so there are no visible dots even without a deep diffuser, while a standard SMD strip needs 240 LEDs/m plus a frosted cover to get close. Choose SMD only when you need higher output per watt or RGB pixel control.
Which aluminum channel should I use with this COB LED strip?
Match the channel inner width to the strip PCB width — 8mm and 10mm COB strips fit DENO 10x10mm, 12x8mm and 17.5x7mm profiles. A surface mount channel suits shelves and ceilings, a recessed trimless channel suits plaster-in cove lines, and the aluminum body also acts as the heat sink the strip needs.
10mm COB LED Strip — Buyer Questions
What is a 10mm COB LED strip used for?
The 10 mm board is the workhorse 24V COB LED strip: wide enough for 480, 528 or 576 LEDs/m and for the copper needed at 8–12W/m, and still a fit for standard 12 mm inner-width aluminium profile. It is the default for cove, ceiling perimeter and corridor lines up to about 5 m per feed.
- Series 10mm COB LED Strip range
- Related series 12mm inner width channels
- Guide cove lighting guide
- Product 360-B 10mm COB board
How many LEDs per metre does a 24V COB LED strip have?
DENO 24V COB tape is built at 360, 480, 528 and 576 LEDs/m. Higher density means a shorter cut unit and a smoother line at close range; it does not by itself mean more light, because wattage per metre is set by the drive current. Ask for the lm/m figure, not just the LED count.
- Series 10mm COB LED Strip range
- Related series high density LED strips
- Guide compare lm/m across densities
- Product 360-R density-matched board
How long can a 10mm 24V COB LED strip run from one power feed?
About 5 m at 24V on a single feed and 10 m fed from both ends before the tail dims visibly. The 48V 480 LEDs/m build extends a single run to roughly 10–12 m, and constant-current SOB boards go to 15 m from one feed if the layout cannot take a mid-feed.
- Series 10mm COB LED Strip range
- Related series long run dot-free boards
- Guide voltage drop calculator
Does a 10mm COB LED strip need a heat sink?
Above roughly 8W/m, yes — mount it in aluminium profile. The continuous phosphor line spreads heat better than discrete SMD packages, but a 12W/m run taped to plasterboard will lose lumens and shift colour over time. Aluminium channel typically buys 10–15°C of junction temperature.
- Series 10mm COB LED Strip range
- Related series aluminium profiles as heat sinks
- Guide thermal design of LED strips
What cutting unit does the 10mm COB LED strip have?
Between 27.8 mm and 50 mm depending on density and voltage — the 24V 576 LEDs/m board cuts every 27.8 mm, the 528 LEDs/m board every 45.45 mm and the 360 LEDs/m board every 50 mm. Always design joinery around the cut unit, since the shortest piece you can power equals one unit.
- Series 10mm COB LED Strip range
- Related series 22.7mm micro cut option
- Guide cut unit planning
- Product 6702 cut-unit matched board
Colour Changing COB LED Strip — Buyer Questions
What is a multi colour COB LED strip?
A multi colour COB LED strip puts two or more channels under the same continuous phosphor line, so the colour changes but the dots never appear. DENO builds CCT (dual white), RGB, RGBW and SPI addressable versions from 360 to 840 LEDs/m at 24V, all cut-to-length and all dot-free at 180°.
- Series colour changing COB LED strips
- Related series tunable white COB tape
- Related series RGB COB tape
- Product 840-RGBW colour-changing COB board
Should I choose CCT, RGB or RGBW COB LED strip?
Choose CCT when the space only needs white light that shifts from 2700K to 6500K, RGB when colour is decorative, and RGBW when one line must do both — saturated colour for events and a proper white for everyday use. RGBW costs more per metre but removes the second strip most projects otherwise install.
- Series colour changing COB LED strips
- Related series RGBW 4-in-1 COB tape
- Related series RGBW LED strip lights range
Can colour changing COB tape dim smoothly without flicker?
Yes, with a PWM driver above 3 kHz or a flicker-free constant-voltage supply. Because the phosphor line is continuous there is no stroboscopic dot pattern for a camera to catch, so DENO multi-colour COB tape is a common choice for studios and retail spaces filmed on phones.
Need more than 12W/m of dot-free light? Meet the SOB upgrade
COB LED strip is the reference for seamless, dot-free lines — but the shared phosphor layer caps most builds around 12W/m and a 5 m single feed. DENO's SOB series is the direct upgrade: the same continuous line on flip-chip dies and 105 µm copper, carrying 24W/m, CRI 95 and 15 m runs from one feed. Spec the COB range for coves and joinery; step up to SOB when the lux target or the run length says so.
