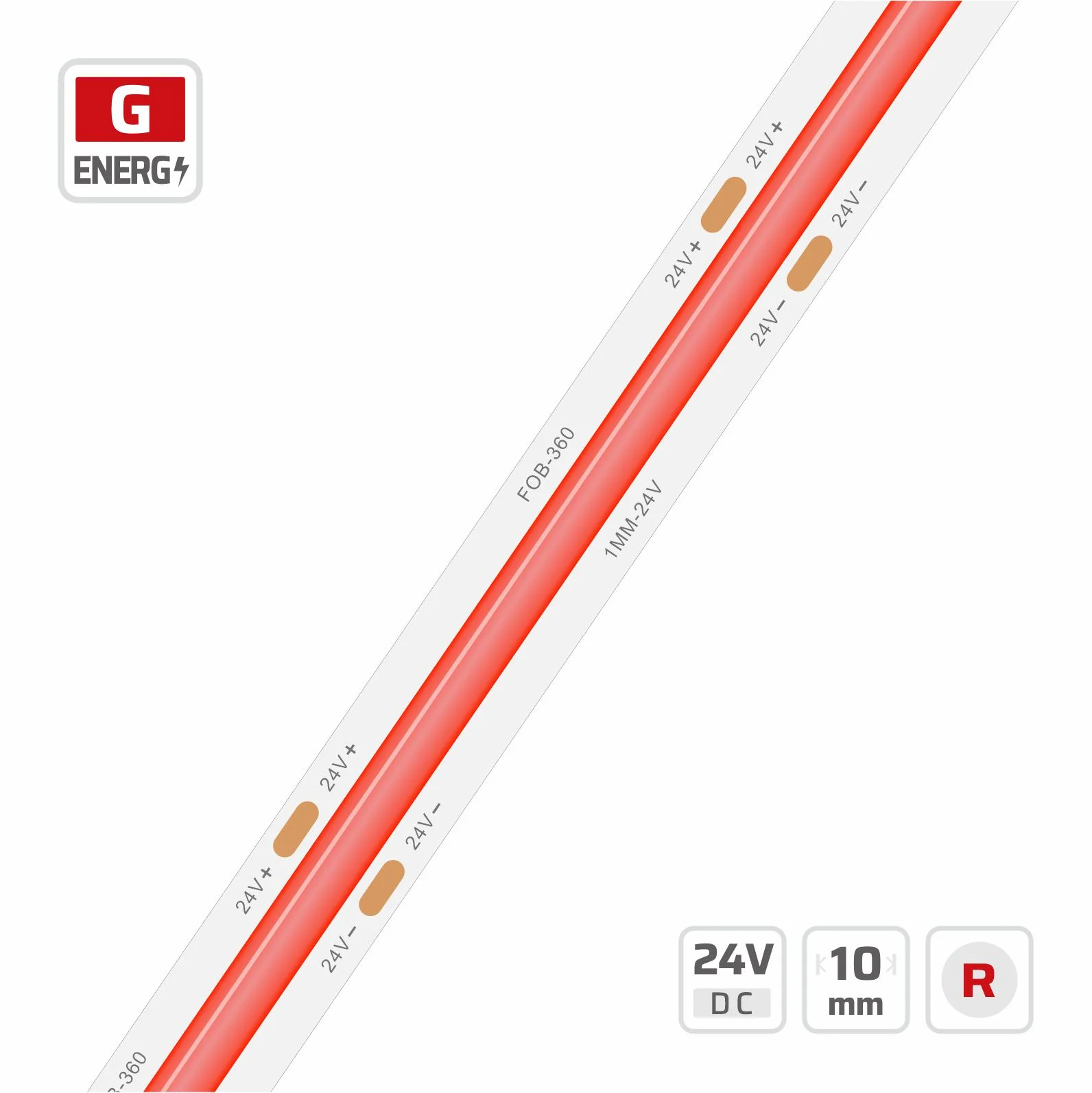

COB LED Strip Light (#360-R)
10mm · 24V · 360LEDs · 50mm/cut
Model: 360-R
Overview
The DENO LED 360-R COB LED strip light is a high-performance, flexible lighting solution designed for a wide range of B2B applications. Featuring a 10mm PCB width, 24V input, and 360 LEDs per meter, it offers superior heat dissipation and consistent brightness from end to end. Its built-in chip protection stents provide enhanced durability and resistance to bending, while the surface glue ensures uniform, anti-glare luminescence, eliminating the need for diffused covers. Wi...
Description
This 24V COB LED strip light features 360 diodes per meter on a 10mm PCB to deliver continuous, dotless illumination across a wide 180-degree beam angle. Engineered with 1.3oz copper foil and built-in chip protection stents, the durable circuit board enhances heat dissipation and resists bending damage. Uniform surface encapsulation eliminates glare and visible hotspots without requiring extra diffusion covers, making it ideal for low-clearance installations. The constant-voltage design features precise 50mm cutting sections and smooth dimming capability for tailored linear runs up to five meters. DENO offers factory-direct OEM custom lengths for commercial installations, including signage backlighting, stage lighting, and architectural contour accents.
Specifications
| CCT (K) | 2700-6500 |
|---|---|
| CRI | Ra≥90 |
| LED QTY | 360 |
| PART NO | DL-COBA180V24-10mm-360-R-* |
| SMD TYPE | COB |
| CUTTABLE UNIT | 50mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 180° |
| RUN LENGTH | 5m |
| COPPER FOIL | 1.3oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #360-R
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Related models in this series
- COB LED Strip Light (#6702)
- COB LED Strip Light (#360-B)
- COB LED Strip Light (#6703)
- COB LED Strip Light (#840-RGBW)
- COB LED Strip Light (#360-G)
- COB LED Strip Light (#6704)
See every model in COB LED Strip Series or narrow to Cob Multi. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the advantages of COB LED strip lights over traditional SMD strips for B2B projects?
COB LED strip lights like the 360-R provide a continuous, spot-free light, uniform luminescence, and superior flexibility. They are also more resistant to bending and offer better heat dissipation for longer lifespan, crucial for B2B reliability.
Can this COB LED strip light be dimmed, and what voltage does it require?
Yes, the 360-R COB LED strip light is dimmable, offering versatile control over light output. It operates on a standard 24V DC input, ensuring compatibility with common commercial LED power supplies.
What certifications does the DENO LED 360-R COB series hold?
All DENO LED products, including the 360-R series, meet industry standards. Please contact our sales team for specific certifications relevant to your project region, such as CE, RoHS, or UL.
What is the minimum order quantity (MOQ) for custom lengths or specific CCTs of this COB strip?
Our MOQ varies depending on the level of customization required. For specific inquiries regarding custom lengths or CCTs for the 360-R, please reach out directly to our sales department for a detailed quote.
Which aluminum channel should I use with this COB LED strip?
Match the channel inner width to the strip PCB width — 8mm and 10mm COB strips fit DENO 10x10mm, 12x8mm and 17.5x7mm profiles. A surface mount channel suits shelves and ceilings, a recessed trimless channel suits plaster-in cove lines, and the aluminum body also acts as the heat sink the strip needs.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- 10mm COB LED Strip range — 10mm COB LED Strip — Buyer Questions
- colour changing COB LED strips — Colour Changing COB LED Strip — Buyer Questions
- LED strip engineering selection handbook
Need more than 12W/m of dot-free light? Meet the SOB upgrade
COB LED strip is the reference for seamless, dot-free lines — bare flip-chip dies sit under one shared phosphor layer, and conventional COB strip is generally limited to about 12W/m. DENO's SOB (Solder-on-Board) series builds the same continuous line from individually encapsulated SMD packages, with verified builds up to 24W/m at 24V DC (25 °C ambient, aluminum profile). Spec COB for shorter, lower-load coves and joinery; consider SOB when the output target, cut unit or package protection calls for it — run length always depends on the exact model and feed layout.
