DENO LED Lighting

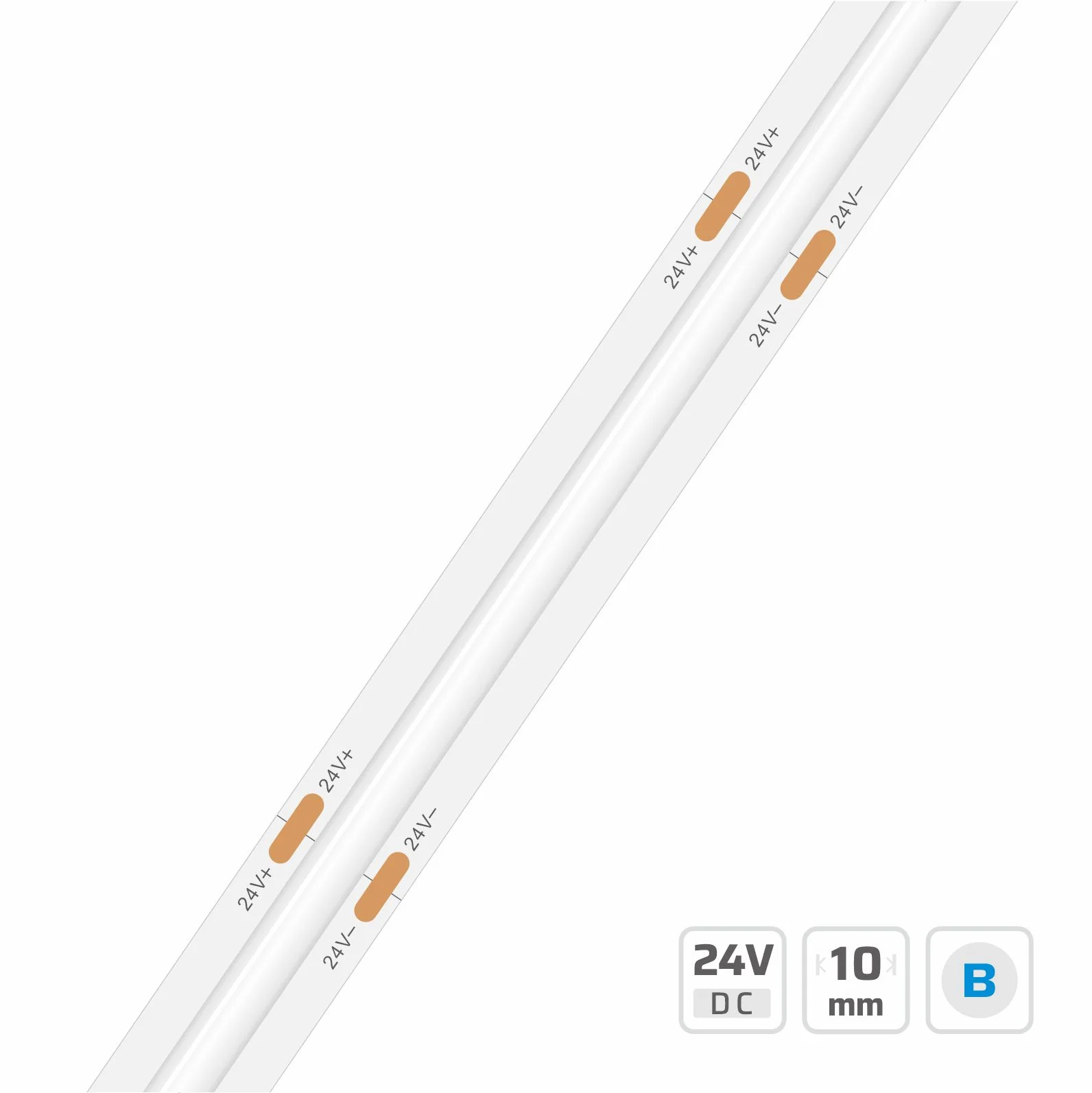

COB LED Strip Light (#360-B)

10mm · 24V · 360LEDs · 50mm/cut

Model: 360-B

360-B COB LED Strip Light | 10mm | 24V | 360LEDs | 50mm/cut | #360-B — 24V, cuttable every 50mm, 10mm FPCB width, COB LEDs, 360 LEDs/m, 2700-6500

Overview

The DENO LED 360-B COB LED strip light is a high-performance 24V solution, featuring 360 LEDs per meter and a 10mm width. Engineered for superior heat dissipation and consistent brightness from end to end, it boasts built-in chip protection for enhanced durability and bend resistance. The unique glue surface ensures uniform, anti-glare illumination, eliminating the need for diffused covers. This makes it perfect for tight spaces or reflective surfaces, preventing spot-glare...

Description

This 24V COB LED strip light delivers continuous dot-free illumination with a wide 180-degree beam angle across low-clearance or highly reflective surfaces. Engineered with a 10mm width and 1.3oz copper foil PCB, the design ensures superior thermal management and robust resistance to bending. Featuring 360 LEDs per meter, the constant voltage circuit supports smooth dimming capabilities and precise 50mm cut points for flexible configurations. Ideal for wholesale project supply, this lighting solution provides uniform illumination for signage backlighting, display contours, and commercial accent installations.

Specifications

CCT (K)2700-6500
CRIRa≥90
LED QTY360
PART NODL-COBA180V24-10mm-360-B-*
SMD TYPECOB
CUTTABLE UNIT50mm
DIMMABLEYes
IP RATINGIP20
LIFESPAN50000
PCB WIDTH10
WARRANTY5 Years
BEAM ANGLE180°
RUN LENGTH5m
COPPER FOIL1.3oz
CIRCUIT TYPEC.V.
INPUT VOLTAGE24V
OPERATING TEMPERATURE-25~40°C;Tc：75°C（max）

Applications

  • Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
  • Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
  • Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.

Recommended accessories & compatible parts

  • DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
  • DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
  • DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
  • DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
  • DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
  • DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
  • V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #360-B

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

  • Warranty: 5 years
  • Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
  • Compliance: CE · UL · RoHS
  • Bonding wire: 99.99% pure gold
  • Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Related models in this series

See every model in COB LED Strip Series or narrow to Cob Multi. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What makes the 360-B COB LED strip light glare-free?

The glue on the surface of the COB LED strip provides uniform luminescence, effectively diffusing the light and preventing any harsh spot-glare from individual LEDs, enhancing visual comfort.

Is the 360-B COB LED strip compatible with standard dimming systems?

Yes, the 360-B COB LED strip is fully dimmable, allowing for flexible light intensity control when paired with compatible 24V constant voltage dimmers and power supplies.

What applications are best suited for the 360-B COB LED strip?

It is ideal for applications requiring consistent, uniform light in low-clearance or reflective areas, such as stage lighting, signage backlighting, contour lighting, and architectural accentuation.

What is the minimum order quantity (MOQ) for custom lengths or specific CCTs?

DENO LED offers customization options for our B2B clients. Please contact our sales team to discuss specific MOQ requirements for custom lengths, color temperatures (CCTs), or other tailored solutions.

Which aluminum channel should I use with this COB LED strip?

Match the channel inner width to the strip PCB width — 8mm and 10mm COB strips fit DENO 10x10mm, 12x8mm and 17.5x7mm profiles. A surface mount channel suits shelves and ceilings, a recessed trimless channel suits plaster-in cove lines, and the aluminum body also acts as the heat sink the strip needs.

Engineering & selection guide

Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.

Need more than 12W/m of dot-free light? Meet the SOB upgrade

COB LED strip is the reference for seamless, dot-free lines — bare flip-chip dies sit under one shared phosphor layer, and conventional COB strip is generally limited to about 12W/m. DENO's SOB (Solder-on-Board) series builds the same continuous line from individually encapsulated SMD packages, with verified builds up to 24W/m at 24V DC (25 °C ambient, aluminum profile). Spec COB for shorter, lower-load coves and joinery; consider SOB when the output target, cut unit or package protection calls for it — run length always depends on the exact model and feed layout.
