Backlit Stone LED Sheet | Stone Lightbox Backlighting 480x240mm
Cuttable LED sheets for backlit stone, onyx and marble lightboxes. Even glow from 20mm shallow depth, cut precision down to one LED, 12V/24V, 480x240mm tiles.
Flexible LED Sheet models & key specifications (10)
24V Flexible LED Sheet Models (9)
6105 — 2835 · 50 LEDs/m · 24V
LED Type: 2835 · LED Density: 50 LEDs/pcs · Voltage: DC 24V · Power: 12~60W · Cutting Unit: 1LED/48*48mm · PCB Width: 240x480mm · Copper Foil: 3oz · Circuit Type: CV
6432 — 5050 · 288 LEDs/m · 24V
LED Type: 5050 · LED Density: 288 LEDs/pcs · Voltage: DC 24V · Power: 20~110W(1pcs) · Cutting Unit: 12LEDs/20*240mm · PCB Width: 240x480mm · Copper Foil: 2oz · Circuit Type: CV · IP Rating: IP20

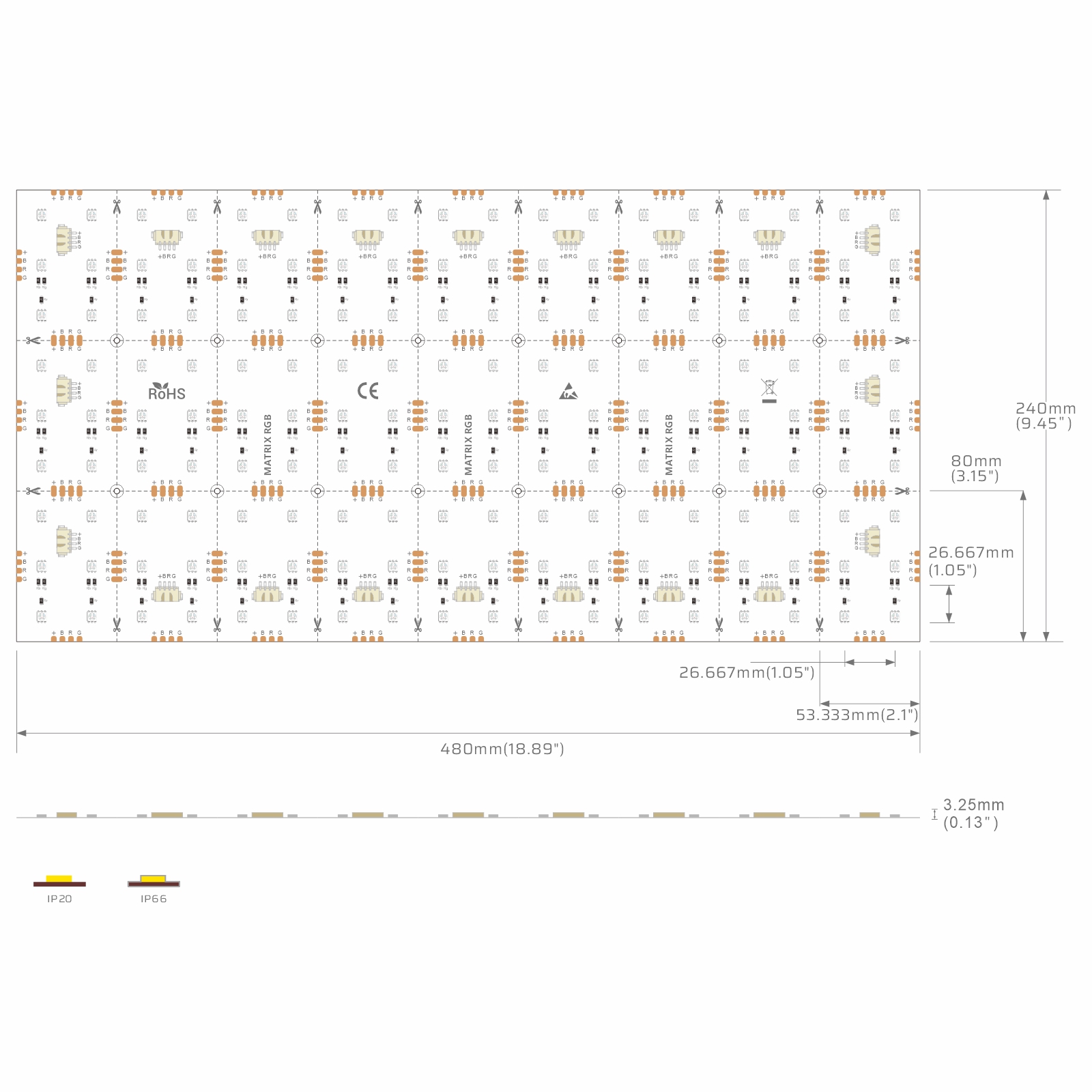

17947 — 5050 · 162 LEDs/m · 24V
LED Type: 5050 · LED Density: 162LEDs/pcs · Voltage: DC24V · Cutting Unit: 6LEDs/53.333mm · PCB Width: 480*240mm · Copper Foil: 2oz · Circuit Type: CV
6600 — 2835 · 576 LEDs/m · 24V
LED Type: 2835 · LED Density: 576 LEDs/pcs · Voltage: 24V · Power: 20~120W · Cutting Unit: 2LEDs/20*20mm · PCB Width: 240x480mm · Copper Foil: 2oz · Circuit Type: CV
6352 — 5050 · 288 LEDs/m · 24V
LED Type: 5050 · LED Density: 288 LEDs/pcs · Voltage: DC 24V · Power: 17.2~70W · Cutting Unit: 12LEDs/20*240mm · PCB Width: 240x480mm · Copper Foil: 2oz · Circuit Type: CV
6433 — 2835 · 288 LEDs/m · 24V
LED Type: 2835 · LED Density: 288 LEDs/pcs · Voltage: DC 24V · Power: 20~138W · Cutting Unit: 1LED/20*20mm · PCB Width: 240x480mm · Copper Foil: 2oz · Circuit Type: C.V.
16795 — 5050 · 98 LEDs/m · 24V
LED Type: 5050 · LED Density: 98 LEDs/pcs · Voltage: DC 24V · Power: 12~26.8W · Cutting Unit: 7LEDs/34.286*240mm · PCB Width: 240x480mm · Copper Foil: 2oz · Circuit Type: CV · IP Rating: IP20

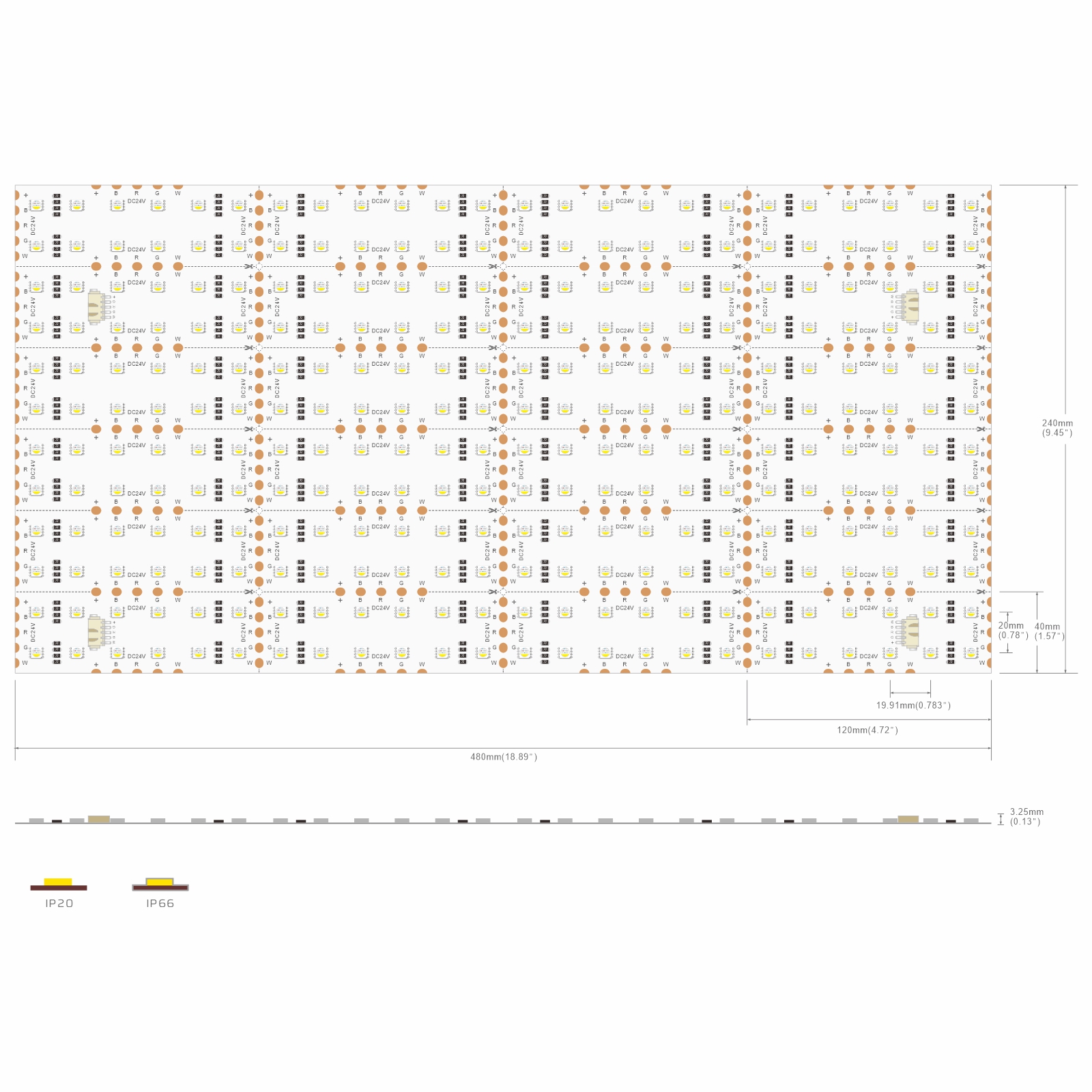

16797 — 5050 · 288 LEDs/m · 24V
LED Type: 5050 · LED Density: 288LEDs/pcs · Voltage: DC24V · Cutting Unit: 12LEDs/120mm · PCB Width: 480*240mm · Copper Foil: 2oz · Circuit Type: CV
16796 — 5050 · 162 LEDs/m · 24V
LED Type: 5050 · LED Density: 162 LEDs/pcs · Voltage: DC 24V · Power: 13~50W · Cutting Unit: 6LEDs/53.333*80mm · PCB Width: 240x480mm · Copper Foil: 2oz · Circuit Type: CV · IP Rating: IP20
12V Flexible LED Sheet Models (1)
6710 — 6060 · 50 LEDs/m · 12V
LED Type: 6060 · LED Density: 50 LEDs/pcs · CCT: 2700-6500 · CRI: Ra≥80 · Voltage: DC 12V · Power: 10~60W · Cutting Unit: 1LED/48*48mm · PCB Width: 240x480mm · Copper Foil: 2oz · Circuit Type: CV · IP Rating: IP20
How to choose an LED sheet: a buyer's decision guide
An LED sheet is specified backwards from the surface it has to light. Decide the application first, then the colour family, then the LED pitch that matches the diffuser depth you actually have, and only then the power feed and cutting grid. This guide walks that sequence for backlit stone, lightboxes, signage and colour walls, using the DENO FlexLite sheet range as the reference set.
| Application | Sheet family | Reference models | Diffuser depth | Why |
|---|---|---|---|---|
| Backlit onyx, marble or translucent quartz | Tunable white | #6600 (2700–6500 K, 234.8 lm/W) | Slab thickness only | Colour temperature is dialled in on site after the slab is installed, and the high efficacy keeps heat out of the stone. |
| Irregular shapes, logos, curved niches | Single colour | #6433 (cut every LED, 20 × 20 mm) | 15–25 mm | The finest cutting grid in the range fills almost any outline, and the offcut modules can be reconnected elsewhere. |
| Slim lightboxes and SEG fabric frames | Wide angle lens | #6105 (24 V), #6710 (12 V) | 40–60 mm | A 160–170° lens spreads 50 LEDs across the full sheet, so a shallow box stays even at a fraction of the load. |
| Backlit signage that is mostly white | RGBW / RGBWW | #16797 (288 LED), #6432 (5-in-1) | 20–40 mm | A dedicated white die renders clean white at lower power while the colour channels stay free for seasonal scenes. |
| Colour walls, stages, exhibition backdrops | RGB | #6352 (288 LED), #17947 (162 LED) | 15–25 mm / 30 mm+ | Sheets tile edge to edge; pick the density from the depth you have rather than from the brightness target. |
Step 1 — start with the surface, not the product
An LED sheet is a component, not a finished luminaire. It is a thin flexible board carrying a grid of LEDs across 480 × 240 mm, built to light a surface evenly from behind. That is why fabricators specify sheets for backlit countertops, lightboxes and signage instead of rigid panel fixtures.
Backlit stone and solid surface
Translucent stone is judged on colour, not on lumens. Use 2700–3000 K for onyx, travertine and amber-veined slabs so the minerals glow, and 4000–6500 K for white marble, quartz and solid surface so the slab does not read yellow. A tunable white sheet removes the guesswork because the setting is made with the slab already in place.
Lightboxes, SEG frames and posters
Here the constraint is depth. Each sheet lights 480 × 240 mm, so roughly nine sheets tile a square metre, and the last row is squared to the frame on the printed cutting grid. Choose 4000–6500 K to keep printed colour neutral; warmer settings shift the whole graphic.
Signage and colour surfaces
If the sign holds white most of the day, an RGBW sheet is cheaper to run and cleaner in colour than mixing white from three channels. If the surface exists to change colour — stage backdrops, exhibition walls, architectural features — an RGB sheet is the correct and lower-cost tool.
Step 2 — match LED pitch to the diffuser depth you have
Most patchy backlit surfaces are not underpowered; they are under-spaced. Dot visibility is decided by the ratio between LED pitch and the air gap in front of the board, so the density decision follows the cabinet, not the brightness target.
20 mm pitch for shallow builds
A 20 mm grid — the 288-LED RGB #6352, the 288-LED RGBW #16797 and the single-colour #6433 — blends within about 15–25 mm of opal acrylic. Halve that gap and the individual dies begin to read as dots.
Coarser pitch when depth is available
The 162-LED #17947 and 98-LED #16795 sit on wider grids, cost less and draw less current. Specify them when there is 30 mm or more behind the diffuser; below that they will show structure.
Lensed sheets for shallow, large-format boxes
A wide-angle lens spreads each emitter across 160–170°, so neighbouring beams overlap close to the board. Fifty lensed LEDs cover a full sheet and keep a slim poster box or fabric frame even from roughly 40–60 mm of depth at a much lower load than a bare-emitter grid.
Step 3 — pick the colour family deliberately
Single colour, tunable white, RGB, RGBW and 5-in-1 RGBWW all tile the same way, but they behave very differently at short diffuser distances and on the electricity bill.
Single colour and tunable white
Available in CRI 80, 90 and 95 plus a full spectrum grade, from 1800 K to 6500 K. Specify CRI 95 or full spectrum wherever stone, product or skin colour is judged at close range. The #6600 reaches 234.8 lm/W, delivering the same light as a market-standard 100 lm/W sheet for roughly 57 % less power — and correspondingly less heat behind the slab.
RGB versus RGBW
An RGB mix always carries a colour cast when asked for white and burns all three channels to produce it. RGBW adds one white die for clean, colour-correct white at lower power. The 5-in-1 #6432 goes further: red, green, blue, warm white and cool white in a single chip, so the white channel tunes from about 2700 K to 6500 K with no colour fringing at short diffuser distances.
Control gear
Any 24 V constant-voltage controller drives these sheets — PWM, RF, Wi-Fi, DMX512 decoders and SPI gateways for show control. What matters is per-channel current: match the controller to the connected load, up to 70 W per RGB sheet.
Step 4 — confirm the cutting grid and the power feed
The last two checks are the ones that cause site problems: whether the sheet can actually reach the shape you need, and how many sheets can hang off one feed before the far end visibly dims.
Cutting grids differ by family
The single-colour #6433 cuts every LED on a 20 × 20 mm square, so an irregular countertop or logo can be filled with almost no waste. The RGBW #16796 cuts on both axes of a 53.3 × 80 mm grid, which is enough to shape around bar backs and display niches. Other RGB and RGBW sheets cut on a single axis between 20 mm and 120 mm because each colour channel must stay complete. Always cut on the marked line so the reconnection pads survive.
Feeds, runs and driver sizing
Plan four sheets from a single-end feed and eight with dual-end input at 24 V; beyond that, start a new run from the driver. Size the supply at the sheet's maximum wattage — up to 138 W for the #6433 and 110 W for the 5-in-1 #6432 — plus 30 % headroom.
12 V or 24 V
12 V suits vehicle interiors, display cases and sites with an existing 12 V supply. 24 V is the default for large cabinets: half the current means less voltage drop, more sheets per feed and thinner conductors across a wide frame.
LED Sheet & LED Light Sheet — Buyer Questions
What is an LED sheet and how is it different from an LED panel light?
An LED sheet is a thin, flexible circuit board carrying a grid of LEDs across a 480×240 mm area, built to light a surface evenly from behind. A ceiling LED panel light is a rigid finished luminaire; an LED light sheet is a component you cut, tile and hide behind stone, acrylic or fabric. That is why fabricators specify sheets for backlit countertops, lightboxes and signage rather than panel fixtures.
- Guide size the driver with ProCalc
- Product 16795 LED sheet
Can an LED sheet be cut to size?
Yes — every DENO LED sheet has a printed cutting grid. The finest is the single-color #6433, which cuts every single LED on a 20×20 mm square, so an irregular countertop or logo shape can be filled with almost no waste. RGB and RGBW sheets cut in larger units (20 mm to 120 mm) because each colour channel must stay complete. Always cut on the marked line so the reconnection pads survive.
- Related series single color LED sheet cut every LED
- Product 6433 cuttable LED sheet
Which LED sheet is best for backlighting a stone countertop?
Use the tunable white #6600 for onyx, marble and translucent quartz. Its 2700–6500 K range lets you warm the light for amber onyx or cool it for white marble after the slab is installed, and at 234.8 lm/W peak efficacy it needs roughly 57 % less power than a market-standard 100 lm/W sheet — which also means less heat trapped behind the stone. For fixed-colour work, the #6433 gives the same 20 mm grid with free-cut flexibility.
- Related series tunable white LED sheet for backlit stone
- Guide custom LED sheet shapes from the factory
- Product 6600 tunable white LED sheet
How deep does a lightbox need to be behind an LED sheet?
It depends on LED pitch and lens. A bare-emitter sheet on a 20 mm grid blends within about 15–25 mm of diffuser gap. A wide-angle lens sheet such as the #6710 or #6105 spreads each LED across 160–170°, so an SEG fabric frame or slim poster box stays even from roughly 40–60 mm of depth using only 50 LEDs per sheet.
- Related series wide angle lens LED sheet for lightboxes
- Product 6710 wide angle LED sheet
How many LED sheets can be connected to one power feed?
Four sheets from a single-end feed and eight with dual-end input at 24 V. Past that the last sheet visibly dims, so start a new run from the driver. Size the supply at the sheet's maximum wattage — up to 138 W for the #6433 and 110 W for the 5-in-1 #6432 — plus 30 % headroom.
Do LED sheets come in RGB and RGBW?
Yes. RGB sheets (#6352, #17947) handle saturated colour scenes; RGBW sheets (#16795, #16796, #16797) add a dedicated white die so a sign can hold clean white by day and colour by night; and the 5-in-1 #6432 packs RGB plus warm and cool white in one chip for tunable white without colour fringing.
