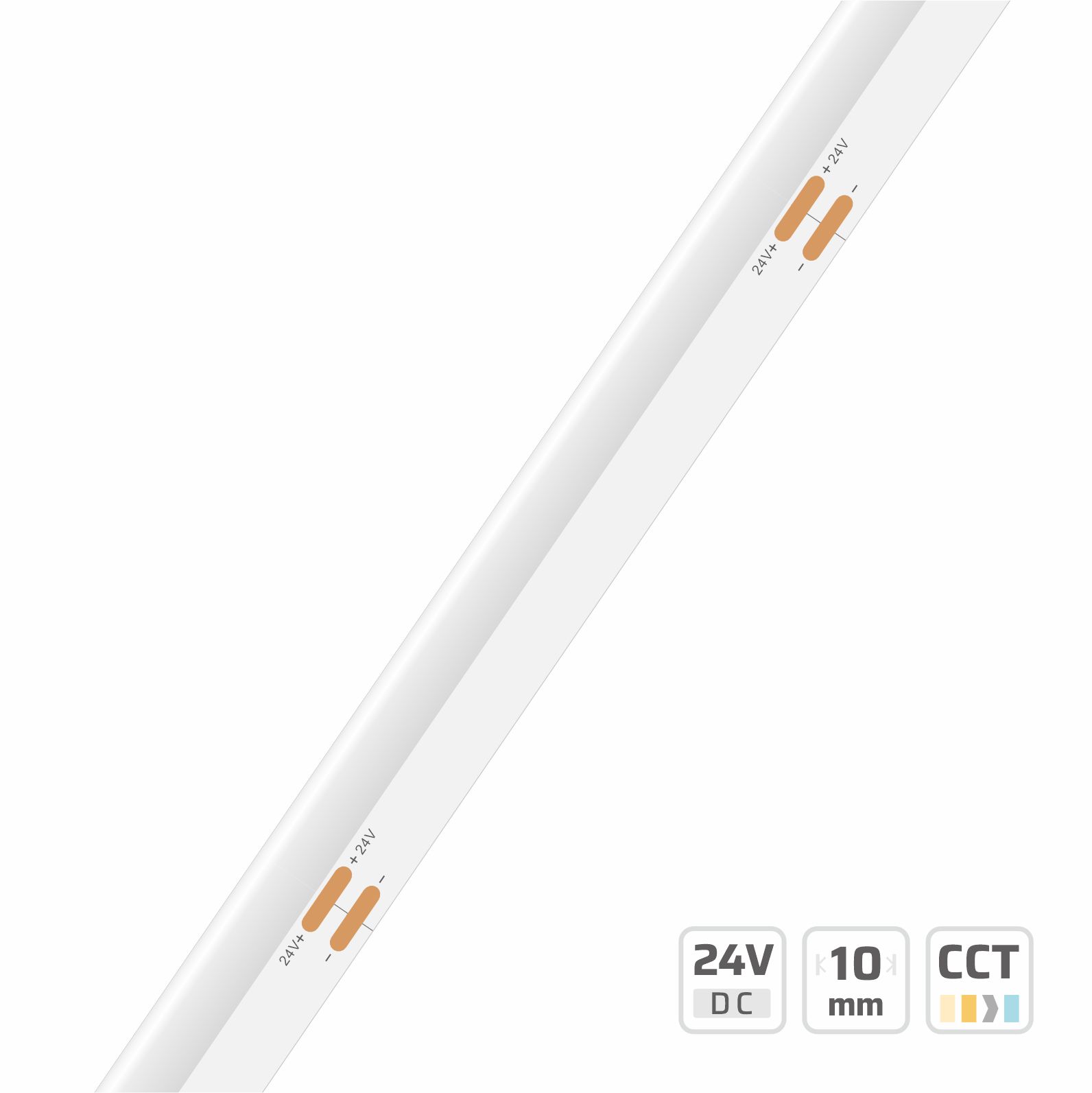

COB LED Strip Light (#6701)
10mm · 24V · 378LEDs · 55.55mm/cut
Model: 6701
Overview
The DENO LED Model 6701 COB LED Strip Light offers superior linear lighting with 378 LEDs/meter, ensuring a uniform, spot-free appearance. This 24V, 10mm wide strip is cuttable every 55.55mm, making it highly versatile for various installations. Featuring a 180° beam angle and a lifespan of 50,000 hours, it's designed for long-term performance in commercial and industrial settings. It complies with RoHS environmental standards, certifying the absence of harmful substances....
Description
COB LED Strip Light | 10mm | 24V | 378LEDs | 55.55mm/cut | #6701 No light spots, no dark shadows, soft light. Large opening, single-sided lateral illumination. Suitable for flexible light strip installation method, this product does not contain harmful substances, in line with RoHS environmental standards. Widely used in decorative lighting, signage, advertising signs, booths, etc.
Specifications
| LED QTY | 378 |
|---|---|
| PART NO | DL-FSOBA189V24-6701-* |
| SMD TYPE | COB |
| CUTTABLE UNIT | 55.55mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 180° |
| LENGTH MAX | 5m |
| COPPER FOIL | 1.3oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Request a quotation for #6701
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 51 lm/W at 4000K, Ra 80, ErP energy class G (Grade DL (2nd Tier) · 6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 38.8 lm/W | 232.8 lm/m | G | 30.3 lm/W | 182.1 lm/m | G | — | — | — |
| 2300 K | 43.1 lm/W | 258.9 lm/m | G | 33.8 lm/W | 202.5 lm/m | G | — | — | — |
| 2700 K | 43.8 lm/W | 262.6 lm/m | G | 36.5 lm/W | 219.2 lm/m | G | — | — | — |
| 3000 K | 48.5 lm/W | 291.1 lm/m | G | 38.5 lm/W | 231 lm/m | G | — | — | — |
| 3500 K | 49.4 lm/W | 296.6 lm/m | G | 39.1 lm/W | 234.7 lm/m | G | — | — | — |
| 4000 K | 51 lm/W | 305.9 lm/m | G | 40 lm/W | 240.3 lm/m | G | — | — | — |
| 5000 K | 51 lm/W | 305.9 lm/m | G | 40 lm/W | 240.3 lm/m | G | — | — | — |
| 6500 K | 45.7 lm/W | 274.3 lm/m | G | 38.4 lm/W | 230.4 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 10W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 37.7 lm/W | 377.3 lm/m | G | 29.5 lm/W | 295 lm/m | G | — | — | — |
| 2300 K | 41.9 lm/W | 419.5 lm/m | G | 32.8 lm/W | 328.2 lm/m | G | — | — | — |
| 2700 K | 42.5 lm/W | 425.5 lm/m | G | 35.5 lm/W | 355.2 lm/m | G | — | — | — |
| 3000 K | 47.2 lm/W | 471.7 lm/m | G | 37.4 lm/W | 374.3 lm/m | G | — | — | — |
| 3500 K | 48.1 lm/W | 480.7 lm/m | G | 38 lm/W | 380.3 lm/m | G | — | — | — |
| 4000 K | 49.6 lm/W | 495.7 lm/m | G | 38.9 lm/W | 389.4 lm/m | G | — | — | — |
| 5000 K | 49.6 lm/W | 495.7 lm/m | G | 38.9 lm/W | 389.4 lm/m | G | — | — | — |
| 6500 K | 44.5 lm/W | 444.6 lm/m | G | 37.3 lm/W | 373.3 lm/m | G | — | — | — |
Related models in this series
- COB LED Strip Light (#COB-512-8mm)
- COB LED Strip Light (#576-CCT-5)
- COB LED Strip Light (#528-10-24V)
- COB LED Strip Light (#576-CCT)
- MJSS-12/24V COB Ultra-Long LED Strip Light (#480d)
- COB LED Strip Light (#576-W)
- COB LED Strip Light (#360-W)
- COB LED Strip Light (#480d-L30)
See every model in COB LED Strip Series or narrow to Cob Single. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the common applications for the 6701 COB LED strip?
The 6701 COB LED strip is widely used for decorative lighting, backlighting for signage and advertising, and exhibition booth lighting due to its uniform light output.
Is the DENO LED 6701 COB strip dimmable, and what voltage does it require?
Yes, the 6701 COB LED strip is dimmable, offering flexible light control. It operates on a standard 24V input voltage, ensuring compatibility with common LED drivers.
What specific certifications does the 6701 COB LED strip hold?
The 6701 COB LED strip adheres to RoHS environmental standards, ensuring it is free from harmful substances, which is critical for many B2B projects.
Can DENO LED provide custom lengths or bulk orders for the 6701 series?
DENO LED offers flexible solutions for B2B clients, including custom lengths up to 5 meters per continuous run and competitive pricing for bulk orders of the 6701 series.
Is a COB LED strip better than an SMD strip for dot-free lighting?
Yes for continuous linear light. A COB LED strip spreads phosphor over the whole surface, so there are no visible dots even without a deep diffuser, while a standard SMD strip needs 240 LEDs/m plus a frosted cover to get close. Choose SMD only when you need higher output per watt or RGB pixel control.
Which aluminum channel should I use with this COB LED strip?
Match the channel inner width to the strip PCB width — 8mm and 10mm COB strips fit DENO 10x10mm, 12x8mm and 17.5x7mm profiles. A surface mount channel suits shelves and ceilings, a recessed trimless channel suits plaster-in cove lines, and the aluminum body also acts as the heat sink the strip needs.
10mm COB LED Strip — Buyer Questions
What is a 10mm COB LED strip used for?
The 10 mm board is the workhorse 24V COB LED strip: wide enough for 480, 528 or 576 LEDs/m and for the copper needed at 8–12W/m, and still a fit for standard 12 mm inner-width aluminium profile. It is the default for cove, ceiling perimeter and corridor lines up to about 5 m per feed.
- Series 10mm COB LED Strip range
- Related series 12mm inner width channels
- Guide cove lighting guide
- Product 480d-L30 10mm COB board
How many LEDs per metre does a 24V COB LED strip have?
DENO 24V COB tape is built at 360, 480, 528 and 576 LEDs/m. Higher density means a shorter cut unit and a smoother line at close range; it does not by itself mean more light, because wattage per metre is set by the drive current. Ask for the lm/m figure, not just the LED count.
- Series 10mm COB LED Strip range
- Related series high density LED strips
- Guide compare lm/m across densities
- Product 360-W density-matched board
How long can a 10mm 24V COB LED strip run from one power feed?
About 5 m at 24V on a single feed and 10 m fed from both ends before the tail dims visibly. The 48V 480 LEDs/m build extends a single run to roughly 10–12 m, and constant-current SOB boards go to 15 m from one feed if the layout cannot take a mid-feed.
- Series 10mm COB LED Strip range
- Related series long run dot-free boards
- Guide voltage drop calculator
- Product 480d long-run 10mm board
Does a 10mm COB LED strip need a heat sink?
Above roughly 8W/m, yes — mount it in aluminium profile. The continuous phosphor line spreads heat better than discrete SMD packages, but a 12W/m run taped to plasterboard will lose lumens and shift colour over time. Aluminium channel typically buys 10–15°C of junction temperature.
- Series 10mm COB LED Strip range
- Related series aluminium profiles as heat sinks
- Guide thermal design of LED strips
What cutting unit does the 10mm COB LED strip have?
Between 27.8 mm and 50 mm depending on density and voltage — the 24V 576 LEDs/m board cuts every 27.8 mm, the 528 LEDs/m board every 45.45 mm and the 360 LEDs/m board every 50 mm. Always design joinery around the cut unit, since the shortest piece you can power equals one unit.
- Series 10mm COB LED Strip range
- Related series 22.7mm micro cut option
- Guide cut unit planning
- Product 528-10-24V cut-unit matched board
Single Colour COB LED Strip — Buyer Questions
Which colour temperature should a single colour COB LED strip be?
Pick 2700K–3000K for hospitality and residential warmth, 4000K for offices and kitchens, and 6000K–6500K for retail, task and technical areas. DENO bins every single colour COB LED strip to SDCM ≤3 so two reels installed end to end read as one colour, and 1800K to 2400K amber options are available for façade and bar work.
- Series single colour COB LED strips
- Related series 1 SDCM tight-binned strips
- Guide choosing CRI 90, 95 or 98
How do you cut and connect a COB LED strip?
Cut only on the marked copper pads, then solder or use a clamp connector rated for the board width. Cut units on DENO COB tape run from 22.7 mm on the 4.5 mm 12V board to 50 mm on the 24V 360 LEDs/m board, so check the cutting unit before designing joinery — the shortest usable piece equals one cut unit.
- Series single colour COB LED strips
- Guide plan cut units and feed points
- Related series channels and end caps
- Product 576-CCT short cut-unit board
Which COB LED strip works best for under cabinet and shelf lighting?
A narrow 4.5 mm or 8 mm 12V/24V COB tape at 480–528 LEDs/m is the usual answer. It fits shallow aluminium channel under a cabinet or inside a shelf edge, the dot-free line hides no hardware, and the 180° beam fills the worktop evenly without the striping an SMD tape shows at close range.
- Series single colour COB LED strips
- Related series 4.5mm slim COB tape
- Related series 8mm COB tape
- Product 576-CCT-5 narrow COB board
Need more than 12W/m of dot-free light? Meet the SOB upgrade
COB LED strip is the reference for seamless, dot-free lines — but the shared phosphor layer caps most builds around 12W/m and a 5 m single feed. DENO's SOB series is the direct upgrade: the same continuous line on flip-chip dies and 105 µm copper, carrying 24W/m, CRI 95 and 15 m runs from one feed. Spec the COB range for coves and joinery; step up to SOB when the lux target or the run length says so.
