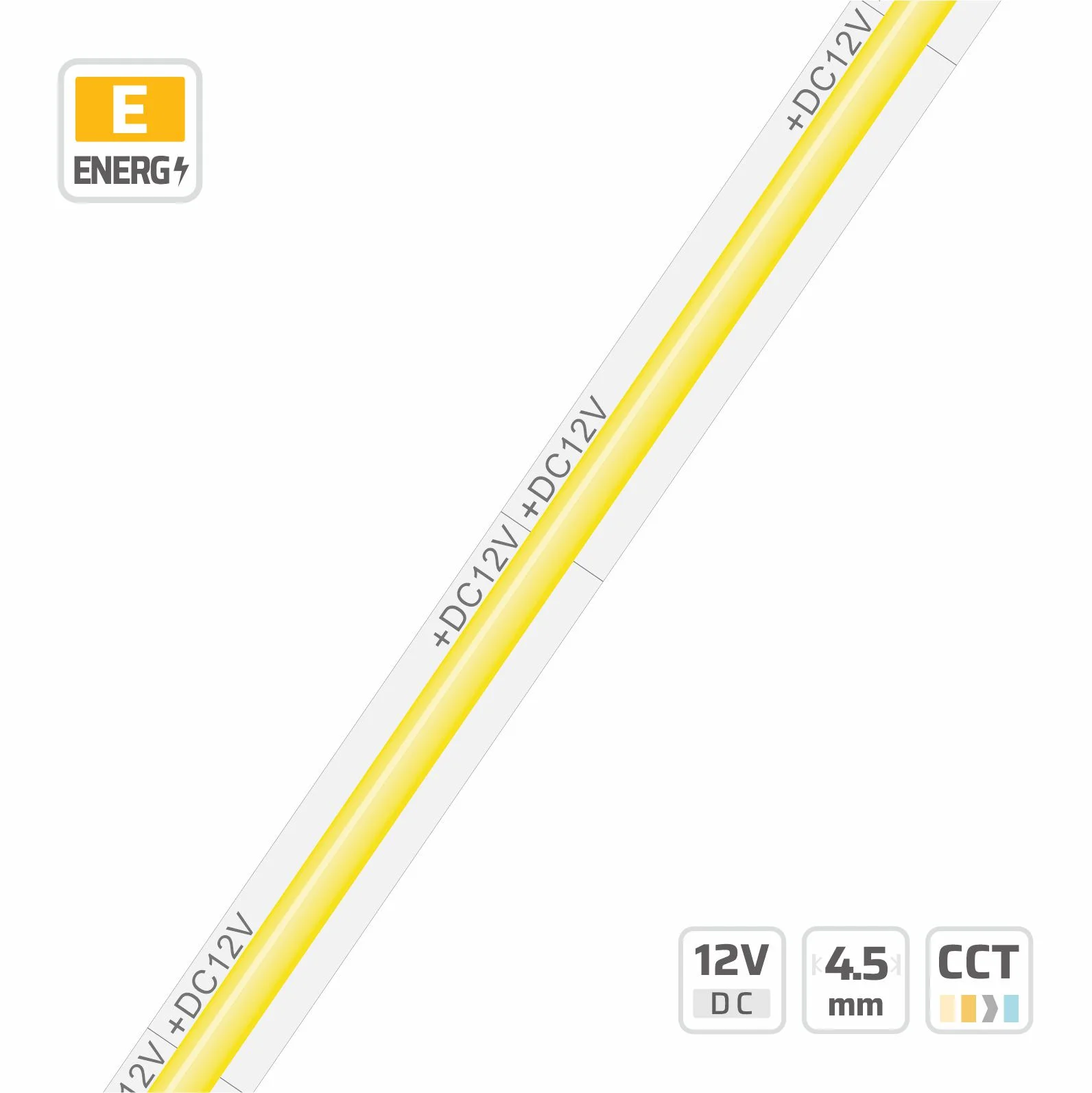

COB LED Strip Light (#528-4.5)
4.5mm · 12V · 528LEDs · 22.72mm/cut
Model: 528-4.5
Overview
The DENO LED model 528-4.5 is a high-performance COB LED strip light featuring 528 LEDs/meter on a slim 4.5mm PCB. Operating at 12V, it ensures uniform, dot-free illumination with a wide 180° beam angle, making it perfect for applications requiring seamless linear lighting without glare, such as under-cabinetry, display cases, or architectural accents. With a 5-year warranty and 50,000-hour lifespan, this IP20 rated strip is ideal for commercial installations, offering dura...
Description
COB LED Strip Light | 4.5mm | 12V | 528LEDs | 22.72mm/cut | #528-4.5 COB strip is a high-density led lighting strip made by COB encapsulation, which can reduce the thermal resistance of the high-density strip circuit system, greatly improves the life of the LED, and the light flux density is high, the glare is small, and the light is uniform and there is no dark area. Mono white, CCT, Red, Green, Blue color are available. 180° view angle high color efficiency. The lowest profile COB linear lighting without the need for additional diffused covers or accessories. Perfect for areas with low clearance or reflective surfaces to eliminate spot-glare.
Specifications
| LED QTY | 528 |
|---|---|
| PART NO | DL-COBA264V12-4.5mm-* |
| SMD TYPE | COB |
| CUTTABLE UNIT | 22.72mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 1.8mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 4.5 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 180° |
| LENGTH MAX | 5m |
| COPPER FOIL | 1.3oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 12V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Ultra-narrow 4.5mm channels & shadow gaps — Fits shadow-gap details, slim profiles and joinery grooves that cannot take a standard 8–10mm strip.
Request a quotation for #528-4.5
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 128 lm/W at 4000K, Ra 80, ErP energy class E (Grade DL (2nd Tier) · 5W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 97.5 lm/W | 487.6 lm/m | F | 77.9 lm/W | 389.5 lm/m | G | — | — | — |
| 2300 K | 108.5 lm/W | 542.7 lm/m | F | 86.8 lm/W | 434 lm/m | F | — | — | — |
| 2700 K | 113.9 lm/W | 569.7 lm/m | E | 93.9 lm/W | 469.6 lm/m | F | — | — | — |
| 3000 K | 122.1 lm/W | 610.7 lm/m | E | 98.8 lm/W | 494.1 lm/m | F | — | — | — |
| 3500 K | 123.9 lm/W | 619.7 lm/m | E | 100.5 lm/W | 502.6 lm/m | F | — | — | — |
| 4000 K | 128 lm/W | 639.8 lm/m | E | 103 lm/W | 515.1 lm/m | F | — | — | — |
| 5000 K | 127.9 lm/W | 639.3 lm/m | E | 102.9 lm/W | 514.6 lm/m | F | — | — | — |
| 6500 K | 116.8 lm/W | 584.2 lm/m | E | 98.7 lm/W | 493.6 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 10W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 94.2 lm/W | 941.5 lm/m | F | 75.2 lm/W | 752.1 lm/m | G | — | — | — |
| 2300 K | 104.8 lm/W | 1047.9 lm/m | F | 83.8 lm/W | 838.1 lm/m | G | — | — | — |
| 2700 K | 110 lm/W | 1100.1 lm/m | E | 90.7 lm/W | 906.7 lm/m | F | — | — | — |
| 3000 K | 117.9 lm/W | 1179.3 lm/m | E | 95.4 lm/W | 954.1 lm/m | F | — | — | — |
| 3500 K | 119.7 lm/W | 1196.7 lm/m | E | 97.1 lm/W | 970.5 lm/m | F | — | — | — |
| 4000 K | 123.5 lm/W | 1235.4 lm/m | E | 99.5 lm/W | 994.7 lm/m | F | — | — | — |
| 5000 K | 123.4 lm/W | 1234.4 lm/m | E | 99.4 lm/W | 993.7 lm/m | F | — | — | — |
| 6500 K | 112.8 lm/W | 1128.1 lm/m | E | 95.3 lm/W | 953.1 lm/m | F | — | — | — |
Related models in this series
- COB LED Strip Light (#COB-512-8mm)
- COB LED Strip Light (#576-CCT-5)
- COB LED Strip Light (#528-10-24V)
- COB LED Strip Light (#576-CCT)
- COB LED Strip Light (#6701)
- MJSS-12/24V COB Ultra-Long LED Strip Light (#480d)
- COB LED Strip Light (#576-W)
- COB LED Strip Light (#360-W)
See every model in COB LED Strip Series or narrow to Cob Single. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the advantages of this COB LED strip light over traditional SMD strips?
COB LED strips offer a continuous, uniform light line without visible dots, improved thermal management, and higher light density for a premium aesthetic.
Is this 12V COB LED strip light dimmable and what power supply is recommended?
Yes, this 12V COB LED strip is fully dimmable. A compatible 12V constant voltage power supply (driver) is required for optimal performance and dimming control.
What color temperatures and mono colors are available for the 528-4.5 model?
The 528-4.5 model is available in mono white (various CCTs), as well as dedicated Red, Green, and Blue options to suit diverse project requirements.
Can this COB LED strip light be customized for specific project lengths or IP ratings?
While the standard maximum run is 5m with an IP20 rating, DENO LED offers customization for specific project lengths. Higher IP ratings may be available for certain models upon request.
Is a COB LED strip better than an SMD strip for dot-free lighting?
Yes for continuous linear light. A COB LED strip spreads phosphor over the whole surface, so there are no visible dots even without a deep diffuser, while a standard SMD strip needs 240 LEDs/m plus a frosted cover to get close. Choose SMD only when you need higher output per watt or RGB pixel control.
Which aluminum channel should I use with this COB LED strip?
Match the channel inner width to the strip PCB width — 8mm and 10mm COB strips fit DENO 10x10mm, 12x8mm and 17.5x7mm profiles. A surface mount channel suits shelves and ceilings, a recessed trimless channel suits plaster-in cove lines, and the aluminum body also acts as the heat sink the strip needs.
4.5mm Slim COB LED Strip — Buyer Questions
How narrow can a COB LED strip be?
DENO's slimmest single colour COB board is 4.5 mm wide with 528 LEDs/m at 12V and a 22.72 mm cutting unit. At that width it slides into 6 mm inner-width channels, hides in a shelf lip or a mirror frame, and still produces a fully dot-free line.
- Series 4.5mm slim COB LED Strip range
- Related series 6mm inner width channels
- Related series ultra narrow LED strips
- Product 528-10-24V 4.5mm slim board
Is a 12V COB LED strip better than 24V for furniture lighting?
For runs under 3 m, yes — 12V keeps the driver small and works with existing furniture wiring and battery systems. Past 3 m the voltage drop on a 4.5 mm board becomes visible, so 24V is the safer choice for continuous cabinetry or a full mirror surround.
- Series 4.5mm slim COB LED Strip range
- Related series 24V 8mm boards for longer runs
- Guide 12V vs 24V drop comparison
- Product 576-CCT-5 12V slim board
What is the shortest cut unit on a slim COB LED strip?
22.72 mm on the 4.5 mm 12V 528 LEDs/m board. That is short enough to trim a strip to a cabinet or a stair nosing without a visible dead end. Where a project needs cuts under 5 mm, the SOB micro-cut boards go down to 3.333 mm.
- Series 4.5mm slim COB LED Strip range
- Related series micro-cut dot-free boards
- Guide cut unit planning
- Product 360-W short cut-unit board
Where is a 4.5mm dot-free LED strip normally installed?
In mirrors and vanities, display cases, shelf edges, handrails and signage returns — anywhere the channel is too small for a standard board and the light source may be glimpsed. The narrow phosphor line reads as a drawn stroke of light rather than a row of LEDs.
- Series 4.5mm slim COB LED Strip range
- Related series COB LED strip series overview
- Guide custom widths and lengths
How much power does a slim COB LED strip draw?
Typically 5–8W/m. The 4.5 mm copper cannot dissipate much more, so DENO caps the slim line there and recommends aluminium channel above 6W/m. Higher output in a narrow footprint means moving to an 8 mm board or an SOB build.
- Series 4.5mm slim COB LED Strip range
- Related series higher output dot-free line
- Related series high efficiency options
Single Colour COB LED Strip — Buyer Questions
Which colour temperature should a single colour COB LED strip be?
Pick 2700K–3000K for hospitality and residential warmth, 4000K for offices and kitchens, and 6000K–6500K for retail, task and technical areas. DENO bins every single colour COB LED strip to SDCM ≤3 so two reels installed end to end read as one colour, and 1800K to 2400K amber options are available for façade and bar work.
- Series single colour COB LED strips
- Related series 1 SDCM tight-binned strips
- Guide choosing CRI 90, 95 or 98
How do you cut and connect a COB LED strip?
Cut only on the marked copper pads, then solder or use a clamp connector rated for the board width. Cut units on DENO COB tape run from 22.7 mm on the 4.5 mm 12V board to 50 mm on the 24V 360 LEDs/m board, so check the cutting unit before designing joinery — the shortest usable piece equals one cut unit.
- Series single colour COB LED strips
- Guide plan cut units and feed points
- Related series channels and end caps
- Product 480d short cut-unit board
Which COB LED strip works best for under cabinet and shelf lighting?
A narrow 4.5 mm or 8 mm 12V/24V COB tape at 480–528 LEDs/m is the usual answer. It fits shallow aluminium channel under a cabinet or inside a shelf edge, the dot-free line hides no hardware, and the 180° beam fills the worktop evenly without the striping an SMD tape shows at close range.
- Series single colour COB LED strips
- Related series 4.5mm slim COB tape
- Related series 8mm COB tape
- Product 576-W narrow COB board
Need more than 12W/m of dot-free light? Meet the SOB upgrade
COB LED strip is the reference for seamless, dot-free lines — but the shared phosphor layer caps most builds around 12W/m and a 5 m single feed. DENO's SOB series is the direct upgrade: the same continuous line on flip-chip dies and 105 µm copper, carrying 24W/m, CRI 95 and 15 m runs from one feed. Spec the COB range for coves and joinery; step up to SOB when the lux target or the run length says so.
