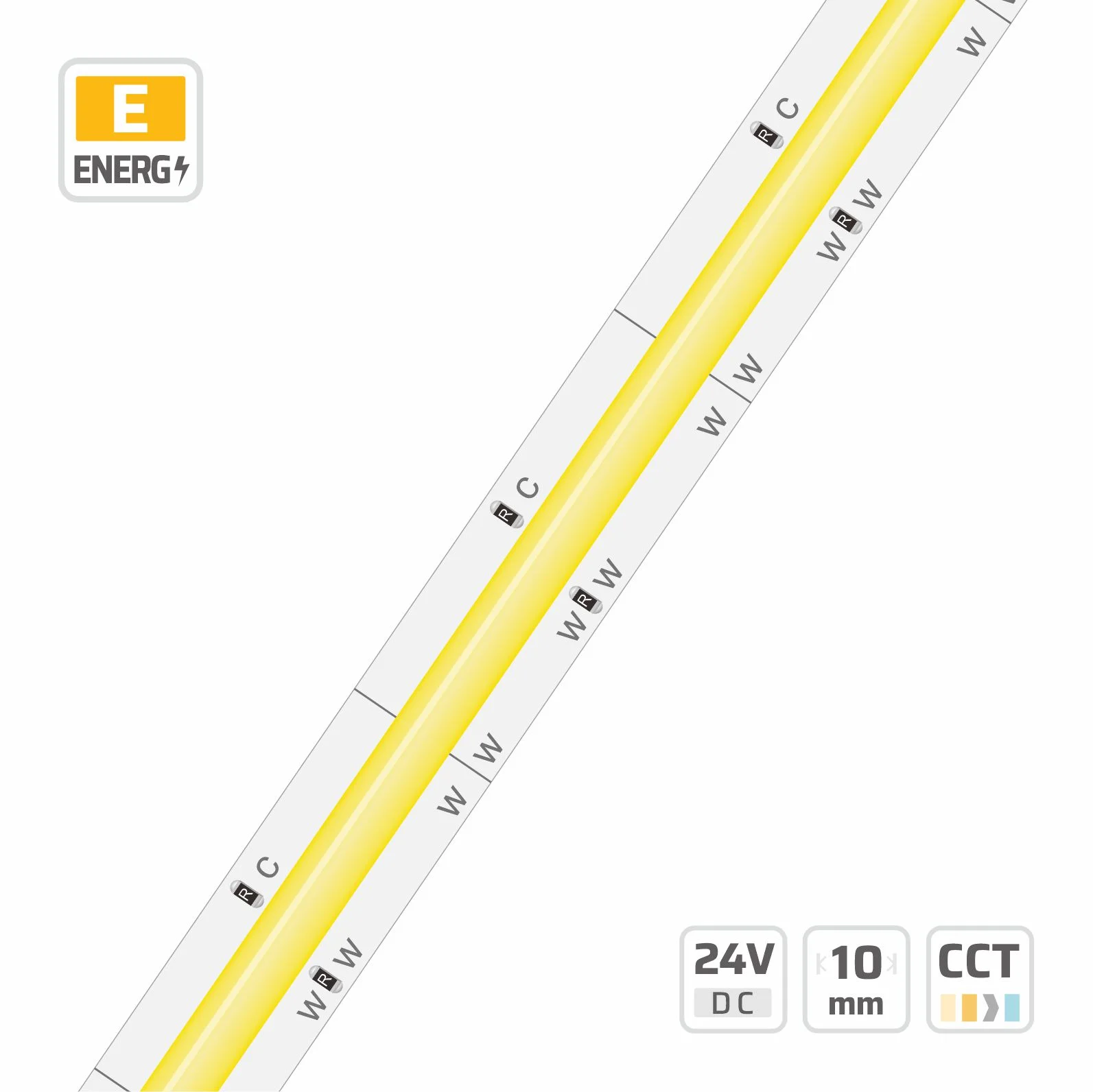

COB LED Strip Light (#576-CCT)
10mm · 24V · 576LEDs · 27.77cut
Model: 576-CCT
Overview
The DENO LED model 576-CCT COB LED strip light provides superior uniform illumination without dark spots due to its advanced COB encapsulation. This 10mm wide, 24V strip features a high density of 576 LEDs per meter and a 180° beam angle, making it ideal for professional commercial and architectural applications where aesthetics and performance are critical. Its low profile eliminates the need for diffusers, ensuring seamless lighting in areas with reflective surfaces or li...
Description
High-density COB encapsulation packs 576 LEDs per meter to deliver uniform, dot-free illumination across a wide 180-degree beam angle. Engineered on a 10mm wide PCB with 1.3oz copper foil, this 24V constant-voltage LED strip light features precise 27.77mm cutting intervals. Tunable CCT operation and smooth dimming capability make this low-profile tape ideal for low-clearance areas and architectural lighting projects. Available for factory-direct wholesale project supply, this IP20 linear solution provides spot-free illumination without requiring additional diffused covers.
Specifications
| LED QTY | 576 |
|---|---|
| PART NO | DL-COBA288V24-576-CCT-* |
| SMD TYPE | COB |
| CUTTABLE UNIT | 27.77mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 1.7mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 180° |
| RUN LENGTH | 5m |
| COPPER FOIL | 1.3oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Hotel & residential tunable-white scenes — Hotel rooms, residential living areas and meeting spaces where warm evening light and neutral daytime light are both required from one fixture.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V2 — 12-24VDC 2-Channel * 5A Color Temperature Controller | V2: Matched by input voltage range and colour channels.
Request a quotation for #576-CCT
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 174.5 lm/W at 6500K, Ra 80, ErP energy class C (Grade DL (2nd Tier) · CCT 3-Anchor · 10W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · CCT 3-Anchor · 10W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 157.2 lm/W | 785.9 lm/m | D | 127.7 lm/W | 638.4 lm/m | E | — | — | — |
| 4000 K | 158.8 lm/W | 1587.9 lm/m | D | 129 lm/W | 1289.7 lm/m | E | — | — | — |
| 6500 K | 174.5 lm/W | 872.5 lm/m | C | 141.9 lm/W | 709.4 lm/m | D | — | — | — |
Grade DL (2nd Tier) · CCT 3-Anchor · 20W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 146.5 lm/W | 1465.1 lm/m | D | 119 lm/W | 1190.2 lm/m | E | — | — | — |
| 4000 K | 148 lm/W | 2960.4 lm/m | D | 120.2 lm/W | 2404.4 lm/m | E | — | — | — |
| 6500 K | 162.7 lm/W | 1626.7 lm/m | C | 132.3 lm/W | 1322.6 lm/m | E | — | — | — |
Related models in this series
- COB LED Strip Light (#528-4.5)
- COB LED Strip Light (#576-CCT-5)
- COB LED Strip Light (#528-10-24V)
- COB LED Strip Light (#360-W)
- COB LED Strip Light (#COB-512-8mm)
- COB LED Strip Light (#6701)
- MJSS-12/24V COB Ultra-Long LED Strip Light (#480d)
- COB LED Strip Light (#576-W)
See every model in COB LED Strip Series or narrow to Cob Single. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the common applications for the 576-CCT COB LED strip light?
This COB strip is ideal for retail displays, architectural lighting, cove lighting, and under-cabinet illumination in commercial settings.
Can this COB LED strip be dimmed?
Yes, the 576-CCT COB LED strip light is fully dimmable, allowing for flexible control over light intensity to suit various environments.
What is the warranty period for this product?
The DENO LED 576-CCT COB LED strip light comes with a robust 5-year warranty, ensuring long-term reliability and performance.
What makes COB LED strips better than traditional LED strips for B2B projects?
COB strips offer seamless, uniform light without hotspots, higher density LEDs, and improved thermal performance for extended life, ideal for professional applications.
Which aluminum channel should I use with this COB LED strip?
Match the channel inner width to the strip PCB width — 8mm and 10mm COB strips fit DENO 10x10mm, 12x8mm and 17.5x7mm profiles. A surface mount channel suits shelves and ceilings, a recessed trimless channel suits plaster-in cove lines, and the aluminum body also acts as the heat sink the strip needs.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- CCT COB LED Strip range — CCT Tunable White COB LED Strip — Buyer Questions
- single colour COB LED strips — Single Colour COB LED Strip — Buyer Questions
- LED strip engineering selection handbook
Need more than 12W/m of dot-free light? Meet the SOB upgrade
COB LED strip is the reference for seamless, dot-free lines — bare flip-chip dies sit under one shared phosphor layer, and conventional COB strip is generally limited to about 12W/m. DENO's SOB (Solder-on-Board) series builds the same continuous line from individually encapsulated SMD packages, with verified builds up to 24W/m at 24V DC (25 °C ambient, aluminum profile). Spec COB for shorter, lower-load coves and joinery; consider SOB when the output target, cut unit or package protection calls for it — run length always depends on the exact model and feed layout.
