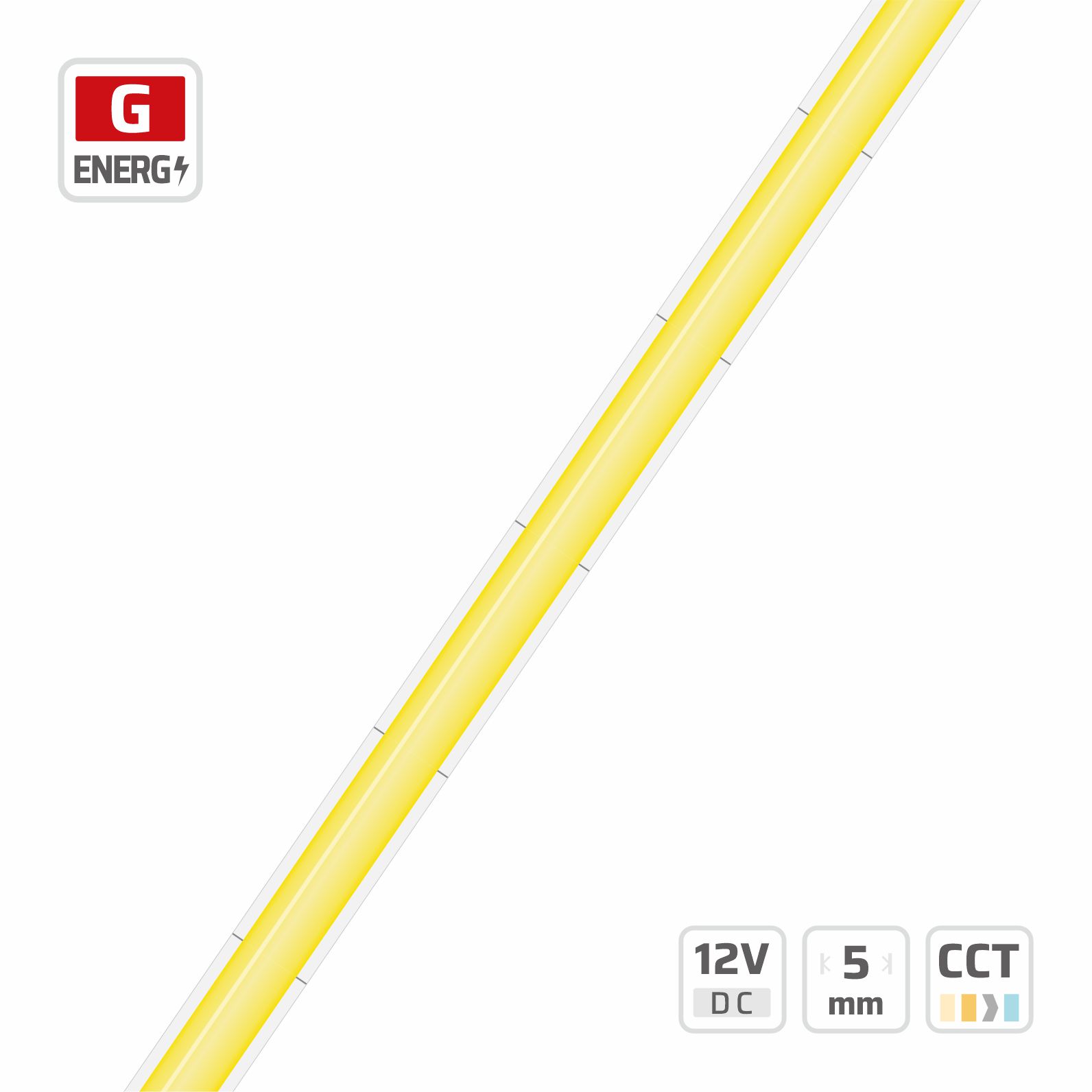

COB LED Strip Light (#576-CCT-5)
5mm · 12V · 576LEDs · 20.8mm/cut
Model: 576-CCT-5
Overview
The DENO LED model 576-CCT-5 is a high-performance 5mm COB LED strip light, featuring 576 LEDs per meter for a uniform, dot-free illumination. Operating at 12V with a low PCB width of 5mm, it offers remarkable flexibility for intricate designs. This 5-year warranty, IP20 rated strip is ideal for professional B2B applications in retail, hospitality, and architectural accent lighting. Its 1.2mm LED pitch ensures a continuous light line, suitable for showcase lighting, under-c...
Description
COB LED Strip Light | 5mm | 12V | 576LEDs | 20.8mm/cut | #576-CCT-5 Ultra-Narrow COB strip is a high-density led lighting strip made by COB encapsulation, which can reduce the thermal resistance of the high-density strip circuit system
Specifications
| LED QTY | 576 |
|---|---|
| PART NO | DL-COBA288V12-5mm-CCT-* |
| SMD TYPE | COB |
| CUTTABLE UNIT | 20.8mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 1.2mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 5 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 180° |
| LENGTH MAX | 5m |
| COPPER FOIL | 1.3oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 12V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Ultra-narrow 5mm channels & shadow gaps — Fits shadow-gap details, slim profiles and joinery grooves that cannot take a standard 8–10mm strip.
- Hotel & residential tunable-white scenes — Hotel rooms, residential living areas and meeting spaces where warm evening light and neutral daytime light are both required from one fixture.
Request a quotation for #576-CCT-5
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Related models in this series
- COB LED Strip Light (#COB-512-8mm)
- COB LED Strip Light (#528-10-24V)
- COB LED Strip Light (#576-CCT)
- COB LED Strip Light (#6701)
- MJSS-12/24V COB Ultra-Long LED Strip Light (#480d)
- COB LED Strip Light (#576-W)
- COB LED Strip Light (#360-W)
- COB LED Strip Light (#480d-L30)
See every model in COB LED Strip Series or narrow to Cob Single. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the advantages of using COB LED strips like the 576-CCT-5 for B2B applications?
COB LED strips provide a uniform, dot-free illumination, making them ideal for high-end applications where a seamless light line is required. Their flexibility and narrow profile simplify installation.
Is the 576-CCT-5 COB LED strip dimmable and what drivers are compatible?
Yes, the 576-CCT-5 is fully dimmable. It requires a compatible 12V constant voltage LED driver. DENO LED can recommend suitable drivers for optimal performance and flicker-free dimming across various control systems.
What is the expected lifespan and warranty for this 5mm COB LED strip?
This DENO LED COB strip boasts an impressive lifespan of 50,000 hours, ensuring long-term reliability for commercial installations. It is backed by a comprehensive 5-year warranty for peace of mind.
Can the 576-CCT-5 strip be cut to specific lengths for custom projects?
Yes, the 576-CCT-5 COB LED strip is cuttable every 20.8mm, offering precise customization for various project requirements. This allows for highly tailored lighting designs.
Is a COB LED strip better than an SMD strip for dot-free lighting?
Yes for continuous linear light. A COB LED strip spreads phosphor over the whole surface, so there are no visible dots even without a deep diffuser, while a standard SMD strip needs 240 LEDs/m plus a frosted cover to get close. Choose SMD only when you need higher output per watt or RGB pixel control.
Which aluminum channel should I use with this COB LED strip?
Match the channel inner width to the strip PCB width — 8mm and 10mm COB strips fit DENO 10x10mm, 12x8mm and 17.5x7mm profiles. A surface mount channel suits shelves and ceilings, a recessed trimless channel suits plaster-in cove lines, and the aluminum body also acts as the heat sink the strip needs.
CCT Tunable White COB LED Strip — Buyer Questions
What is a CCT COB LED strip?
A CCT (tunable white) COB LED strip carries two white channels — typically 2700K and 6500K — under one continuous phosphor line, so the colour temperature blends anywhere between them with no dots and no colour banding. DENO builds it at 576 LEDs/m on a 10 mm 24V board and 576 LEDs/m on a 5 mm 12V board.
- Series CCT COB LED Strip range
- Related series fixed white COB tape
- Related series tunable white strip range
- Product 576-CCT tunable white COB board
What is the difference between dual white and dim to warm?
Dual white lets you set any colour temperature independently of brightness; dim-to-warm follows the dimmer, cooling at full output and warming as it dims. Specify dual white CCT for offices, hotels and circadian schedules, and dim-to-warm where the room should feel like halogen at low level.
- Series CCT COB LED Strip range
- Related series dim to warm dot-free boards
- Related series dim to warm range
- Product 360-W white tuning board
How do you wire a tunable white COB LED strip?
Three conductors: a shared 24V (or 12V) positive and one negative per white channel, driven by a 2-channel CCT controller or a DALI DT8 gateway. Total wattage is the sum of both channels, so size the driver for full output on both, not for one.
- Series CCT COB LED Strip range
- Guide driver sizing for two channels
- Guide custom control packages
Does a CCT COB strip stay dot-free at every colour temperature?
Yes. Both channels sit under the same phosphor sheet, so a mid-point 4000K mix looks as continuous as either extreme. That is the practical advantage over an SMD CCT tape, where alternating warm and cool packages can show a faint two-tone pattern at close range.
- Series CCT COB LED Strip range
- Related series COB LED strip series overview
- Guide CRI across the tuning range
Where is tunable white COB tape specified?
Hotel rooms, meeting rooms, showrooms and homes with circadian schedules — anywhere one installed line must serve daytime task light and evening ambience. The 5 mm 12V CCT board also fits mirror and vanity work where the light must flatter skin tones at 3000K and read accurately at 5000K.
- Series CCT COB LED Strip range
- Related series 5mm slim boards
- Guide cove installation guide
- Product 528-10-24V project CCT board
Single Colour COB LED Strip — Buyer Questions
Which colour temperature should a single colour COB LED strip be?
Pick 2700K–3000K for hospitality and residential warmth, 4000K for offices and kitchens, and 6000K–6500K for retail, task and technical areas. DENO bins every single colour COB LED strip to SDCM ≤3 so two reels installed end to end read as one colour, and 1800K to 2400K amber options are available for façade and bar work.
- Series single colour COB LED strips
- Related series 1 SDCM tight-binned strips
- Guide choosing CRI 90, 95 or 98
How do you cut and connect a COB LED strip?
Cut only on the marked copper pads, then solder or use a clamp connector rated for the board width. Cut units on DENO COB tape run from 22.7 mm on the 4.5 mm 12V board to 50 mm on the 24V 360 LEDs/m board, so check the cutting unit before designing joinery — the shortest usable piece equals one cut unit.
- Series single colour COB LED strips
- Guide plan cut units and feed points
- Related series channels and end caps
- Product 480d short cut-unit board
Which COB LED strip works best for under cabinet and shelf lighting?
A narrow 4.5 mm or 8 mm 12V/24V COB tape at 480–528 LEDs/m is the usual answer. It fits shallow aluminium channel under a cabinet or inside a shelf edge, the dot-free line hides no hardware, and the 180° beam fills the worktop evenly without the striping an SMD tape shows at close range.
- Series single colour COB LED strips
- Related series 4.5mm slim COB tape
- Related series 8mm COB tape
- Product 576-W narrow COB board
Need more than 12W/m of dot-free light? Meet the SOB upgrade
COB LED strip is the reference for seamless, dot-free lines — but the shared phosphor layer caps most builds around 12W/m and a 5 m single feed. DENO's SOB series is the direct upgrade: the same continuous line on flip-chip dies and 105 µm copper, carrying 24W/m, CRI 95 and 15 m runs from one feed. Spec the COB range for coves and joinery; step up to SOB when the lux target or the run length says so.
