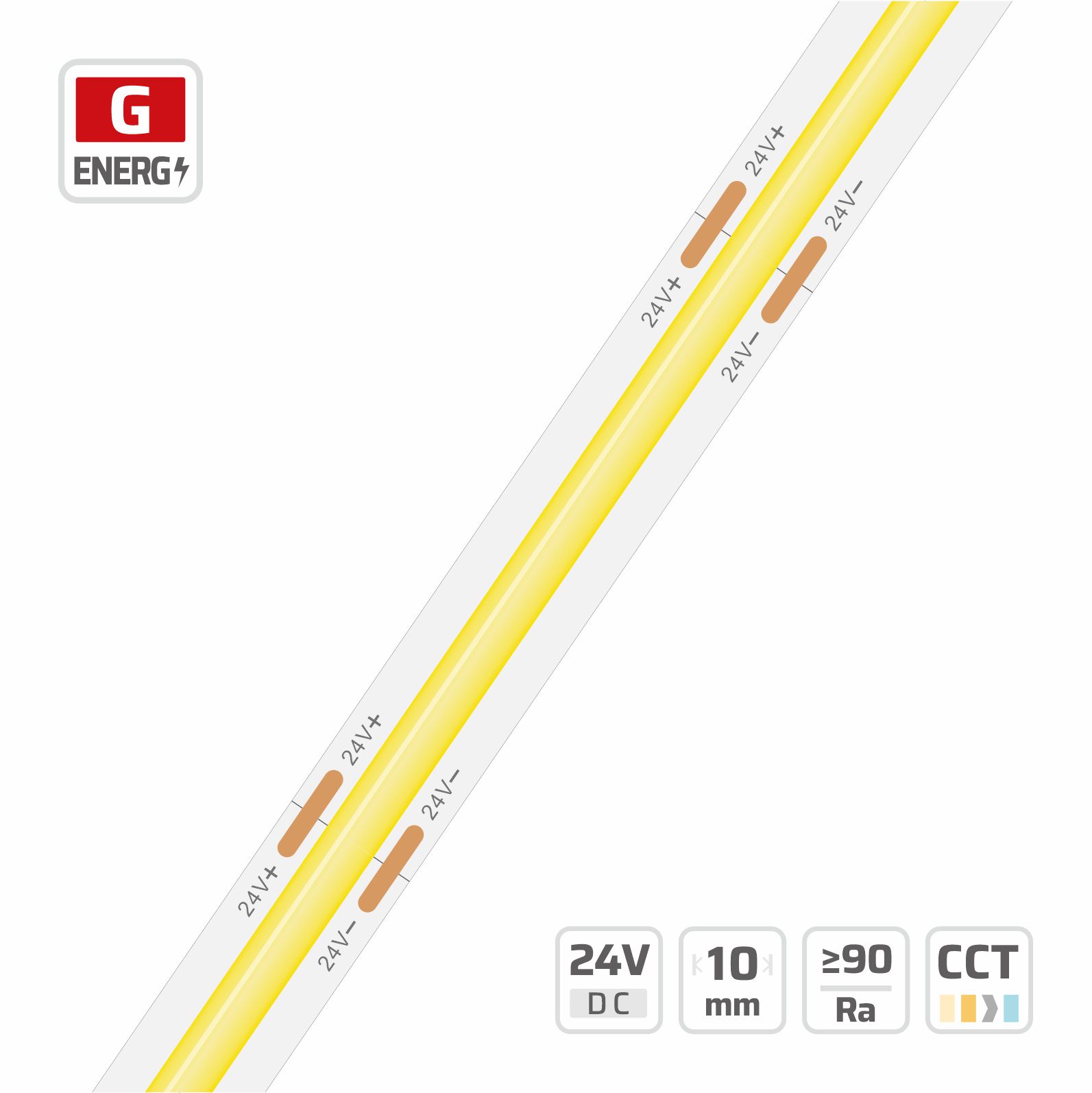

COB LED Strip Light (#360-W)
10mm · 24V · 360LEDs · 50mm/cut
Model: 360-W
Overview
The DENO LED 360-W COB LED strip light is a high-performance, 24V solution designed for commercial and architectural applications requiring seamless, uniform illumination. With 360 LEDs per meter and a 10mm width, it effectively eliminates spotting, offering a continuous line of light. Its 180° beam angle and high light flux density make it ideal for installations with reflective surfaces or low clearance. The COB encapsulation enhances LED lifespan, ensuring reliability fo...
Description
High-density COB encapsulation delivers seamless, dot-free linear illumination across a wide 180-degree beam angle without requiring specialized diffuser covers. Engineered with a 10mm PCB width and 24V constant voltage circuit, this flexible strip features 360 LEDs per meter with 50mm cut intervals. This low-profile, dimmable COB LED strip light eliminates spot glare on reflective surfaces, making it an ideal choice for compact cabinet lighting. Built with a 1.3oz copper foil PCB to reduce thermal resistance, our factory-direct manufacturing supports single continuous runs up to 15 meters.
Specifications
| LED QTY | 360 |
|---|---|
| PART NO | DL-COBA180V24-10mm-360-W-* |
| SMD TYPE | COB |
| CUTTABLE UNIT | 18LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 2.7mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 180° |
| RUN LENGTH | 15m |
| COPPER FOIL | 1.3oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #360-W
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 94.3 lm/W at 4000K, Ra 80, ErP energy class F (Grade DL (2nd Tier) · 7W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 7W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 71.8 lm/W | 502.9 lm/m | G | 57.1 lm/W | 399.6 lm/m | G | — | — | — |
| 2300 K | 79.9 lm/W | 559.6 lm/m | G | 63.5 lm/W | 444.6 lm/m | G | — | — | — |
| 2700 K | 83.2 lm/W | 582.5 lm/m | G | 68.8 lm/W | 481.5 lm/m | G | — | — | — |
| 3000 K | 90 lm/W | 629.7 lm/m | F | 72.4 lm/W | 506.6 lm/m | G | — | — | — |
| 3500 K | 91.4 lm/W | 640 lm/m | F | 73.6 lm/W | 515.4 lm/m | G | — | — | — |
| 4000 K | 94.3 lm/W | 659.9 lm/m | F | 75.4 lm/W | 527.9 lm/m | G | — | — | — |
| 5000 K | 94.2 lm/W | 659.2 lm/m | F | 75.4 lm/W | 527.9 lm/m | G | — | — | — |
| 6500 K | 85.7 lm/W | 600.2 lm/m | F | 72.4 lm/W | 506.6 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 10W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 70.3 lm/W | 703.4 lm/m | G | 55.9 lm/W | 559 lm/m | G | — | — | — |
| 2300 K | 78.3 lm/W | 782.8 lm/m | G | 62.2 lm/W | 621.9 lm/m | G | — | — | — |
| 2700 K | 81.5 lm/W | 814.8 lm/m | G | 67.3 lm/W | 673.5 lm/m | G | — | — | — |
| 3000 K | 88.1 lm/W | 880.8 lm/m | F | 70.9 lm/W | 708.6 lm/m | G | — | — | — |
| 3500 K | 89.5 lm/W | 895.2 lm/m | F | 72.1 lm/W | 720.9 lm/m | G | — | — | — |
| 4000 K | 92.3 lm/W | 923.1 lm/m | F | 73.8 lm/W | 738.5 lm/m | G | — | — | — |
| 5000 K | 92.2 lm/W | 922.1 lm/m | F | 73.8 lm/W | 738.5 lm/m | G | — | — | — |
| 6500 K | 84 lm/W | 839.6 lm/m | G | 70.9 lm/W | 708.6 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 14W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 68.4 lm/W | 957.5 lm/m | G | 54.4 lm/W | 760.9 lm/m | G | — | — | — |
| 2300 K | 76.1 lm/W | 1065.6 lm/m | G | 60.5 lm/W | 846.6 lm/m | G | — | — | — |
| 2700 K | 79.2 lm/W | 1109.1 lm/m | G | 65.5 lm/W | 916.8 lm/m | G | — | — | — |
| 3000 K | 85.6 lm/W | 1199 lm/m | F | 68.9 lm/W | 964.5 lm/m | G | — | — | — |
| 3500 K | 87 lm/W | 1218.6 lm/m | F | 70.1 lm/W | 981.4 lm/m | G | — | — | — |
| 4000 K | 89.8 lm/W | 1256.5 lm/m | F | 71.8 lm/W | 1005.2 lm/m | G | — | — | — |
| 5000 K | 89.7 lm/W | 1255.1 lm/m | F | 71.8 lm/W | 1005.2 lm/m | G | — | — | — |
| 6500 K | 81.6 lm/W | 1142.8 lm/m | G | 68.9 lm/W | 964.5 lm/m | G | — | — | — |
Related models in this series
- COB LED Strip Light (#528-4.5)
- COB LED Strip Light (#576-CCT-5)
- COB LED Strip Light (#528-10-24V)
- COB LED Strip Light (#COB-512-8mm)
- COB LED Strip Light (#576-CCT)
- COB LED Strip Light (#6701)
- MJSS-12/24V COB Ultra-Long LED Strip Light (#480d)
- COB LED Strip Light (#576-W)
See every model in COB LED Strip Series or narrow to Cob Single. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key advantages of using COB LED strip lights?
COB LED strip lights provide seamless illumination without visible dots, thanks to their high-density chip-on-board encapsulation. This results in uniform light and reduced glare.
Is the DENO LED 360-W COB strip compatible with standard dimming systems?
Yes, the 360-W COB LED strip light is dimmable, allowing for flexible control over light intensity. It is compatible with most 24V constant voltage dimming systems.
What specific applications are best suited for the 360-W COB LED strip light?
This strip is ideal for architectural lighting, retail display cases, hospitality settings, under-cabinet lighting, and any area where uniform, dot-free illumination is crucial, especially in reflective surfaces.
Does DENO LED offer customization options for this COB strip?
Custom lengths and color temperatures may be available depending on project requirements and order volume. Please contact our sales team to discuss specific customization needs for your project.
Which aluminum channel should I use with this COB LED strip?
Match the channel inner width to the strip PCB width — 8mm and 10mm COB strips fit DENO 10x10mm, 12x8mm and 17.5x7mm profiles. A surface mount channel suits shelves and ceilings, a recessed trimless channel suits plaster-in cove lines, and the aluminum body also acts as the heat sink the strip needs.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- 10mm COB LED Strip range — 10mm COB LED Strip — Buyer Questions
- single colour COB LED strips — Single Colour COB LED Strip — Buyer Questions
- LED strip engineering selection handbook
Need more than 12W/m of dot-free light? Meet the SOB upgrade
COB LED strip is the reference for seamless, dot-free lines — bare flip-chip dies sit under one shared phosphor layer, and conventional COB strip is generally limited to about 12W/m. DENO's SOB (Solder-on-Board) series builds the same continuous line from individually encapsulated SMD packages, with verified builds up to 24W/m at 24V DC (25 °C ambient, aluminum profile). Spec COB for shorter, lower-load coves and joinery; consider SOB when the output target, cut unit or package protection calls for it — run length always depends on the exact model and feed layout.
