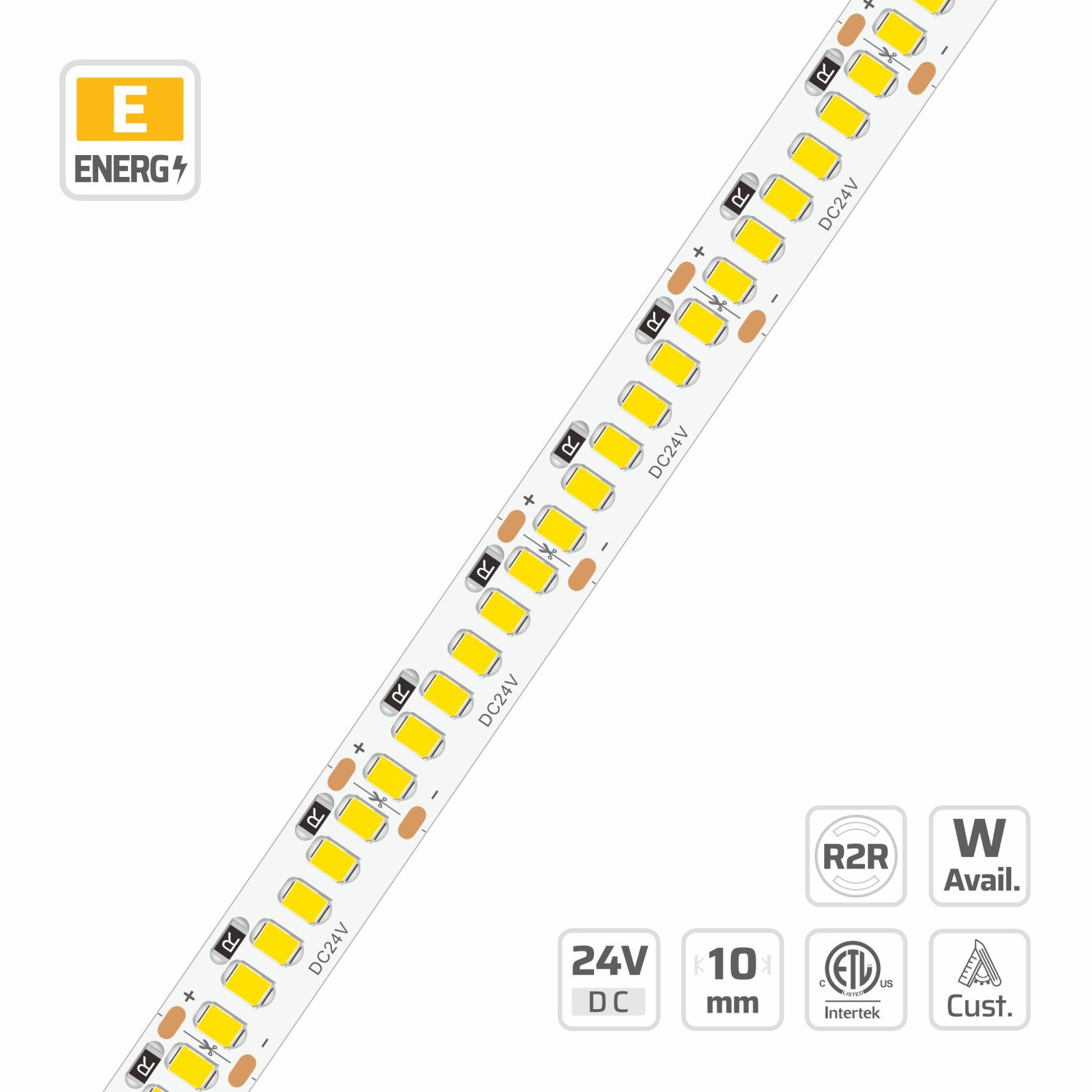

Roll-to-Roll Long Reel LED Strip Light (#16776)
10mm · 24V · 240LEDs · 25mm/cut
Model: 16776
Overview
Roll-to-Roll Long Reel LED Strip Light | 10mm | 24V | 240LEDs | 25mm/cut | #16776 is part of the DENO Roll-to-Roll SMD Strips series, engineered around roll to roll LED strip. Key specifications: 2835, 240 LEDs/m, 24V, 10 PCB, 2oz copper FPCB, cuttable 6LEDs/25mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request. This model uses DENO's electroplated, non-die-cut R2R FPCB, with no intermediate PCB splice joints inside the specified continuous length. Cutting interval, rated run length and planned feed positions remain model-specific.
Description
Built on DENO's electroplated, non-die-cut R2R FPCB, this model has no intermediate PCB splice joints within its specified continuous length. Cutting interval, rated run length and feed positions remain model-specific.\nEngineered with continuous roll-to-roll manufacturing, this 2835 LED strip light has no intermediate PCB splice joints within the reel length. Featuring 240 LEDs per meter on a 10mm 2oz copper PCB, this 24V constant voltage LED strip light delivers efficient heat dissipation and stable performance. The dense 240 LEDs per metre are placed in one uninterrupted SMT run, which keeps pitch and brightness uniform over the whole roll. The dimmable circuit design features a 120-degree beam angle and precise cutting increments every 25mm to accommodate custom architectural layout requirements. Ideal for retail displays and office lighting, our factory-direct wholesale project supply delivers continuous reels for high-end commercial installations.
Roll To Roll Led Strip built for roll-to-roll smd strips projects.
Specifications
| LED QTY | 240 LEDs/m |
|---|---|
| PART NO | DL-F28A120V24-16776-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 6LEDs/25mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 4.166mm |
| PCB WIDTH | 10 |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 2oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #16776
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 183.5 lm/W at 4000K, Ra 80, ErP energy class C (Grade DN (1st Tier) · 4.8W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 4.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 131.8 lm/W | 632.6 lm/m | E | 105.6 lm/W | 506.7 lm/m | F | — | — | — |
| 2300 K | 146.7 lm/W | 704.3 lm/m | D | 117.5 lm/W | 564.2 lm/m | E | 95.7 lm/W | 459.2 lm/m | E |
| 2700 K | 154.7 lm/W | 742.6 lm/m | D | 127.2 lm/W | 610.7 lm/m | E | 103.1 lm/W | 494.7 lm/m | F |
| 3000 K | 165.2 lm/W | 792.9 lm/m | C | 133.8 lm/W | 642.4 lm/m | E | 108.9 lm/W | 522.6 lm/m | F |
| 3500 K | 167.6 lm/W | 804.4 lm/m | C | 136.2 lm/W | 653.9 lm/m | D | 112.2 lm/W | 538.5 lm/m | E |
| 4000 K | 172.9 lm/W | 830.1 lm/m | C | 139.5 lm/W | 669.8 lm/m | D | 115.3 lm/W | 553.2 lm/m | E |
| 5000 K | 172.8 lm/W | 829.6 lm/m | C | 139.4 lm/W | 669.3 lm/m | D | 114.1 lm/W | 547.7 lm/m | E |
| 6500 K | 158.1 lm/W | 759 lm/m | D | 133.8 lm/W | 642.4 lm/m | E | 110.6 lm/W | 531.1 lm/m | E |
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 127.4 lm/W | 1223.2 lm/m | E | 102.1 lm/W | 979.9 lm/m | F | — | — | — |
| 2300 K | 141.9 lm/W | 1361.9 lm/m | D | 113.6 lm/W | 1091 lm/m | E | 92.5 lm/W | 887.9 lm/m | E |
| 2700 K | 149.6 lm/W | 1435.9 lm/m | D | 123 lm/W | 1180.9 lm/m | E | 99.6 lm/W | 956.6 lm/m | F |
| 3000 K | 159.7 lm/W | 1533.3 lm/m | D | 129.4 lm/W | 1242.3 lm/m | E | 105.3 lm/W | 1010.6 lm/m | F |
| 3500 K | 162 lm/W | 1555.5 lm/m | C | 131.7 lm/W | 1264.5 lm/m | E | 108.5 lm/W | 1041.2 lm/m | F |
| 4000 K | 167.2 lm/W | 1605.2 lm/m | C | 134.9 lm/W | 1295.2 lm/m | E | 111.4 lm/W | 1069.8 lm/m | E |
| 5000 K | 167.1 lm/W | 1604.2 lm/m | C | 134.8 lm/W | 1294.1 lm/m | E | 110.3 lm/W | 1059.1 lm/m | E |
| 6500 K | 152.9 lm/W | 1467.7 lm/m | D | 129.4 lm/W | 1242.3 lm/m | E | 107 lm/W | 1027 lm/m | E |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 123.2 lm/W | 1774 lm/m | E | 98.7 lm/W | 1421.1 lm/m | F | — | — | — |
| 2300 K | 137.2 lm/W | 1975.1 lm/m | D | 109.9 lm/W | 1582.2 lm/m | F | 89.4 lm/W | 1287.8 lm/m | F |
| 2700 K | 144.6 lm/W | 2082.5 lm/m | D | 118.9 lm/W | 1712.6 lm/m | E | 96.3 lm/W | 1387.3 lm/m | F |
| 3000 K | 154.4 lm/W | 2223.7 lm/m | D | 125.1 lm/W | 1801.6 lm/m | E | 101.8 lm/W | 1465.6 lm/m | F |
| 3500 K | 156.7 lm/W | 2255.9 lm/m | D | 127.4 lm/W | 1833.9 lm/m | E | 104.9 lm/W | 1510.1 lm/m | F |
| 4000 K | 161.7 lm/W | 2328 lm/m | C | 130.4 lm/W | 1878.4 lm/m | E | 107.7 lm/W | 1551.5 lm/m | F |
| 5000 K | 161.6 lm/W | 2326.5 lm/m | C | 130.3 lm/W | 1876.8 lm/m | E | 106.7 lm/W | 1536 lm/m | F |
| 6500 K | 147.8 lm/W | 2128.5 lm/m | D | 125.1 lm/W | 1801.6 lm/m | E | 103.4 lm/W | 1489.4 lm/m | F |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 119.1 lm/W | 2286.9 lm/m | E | 95.4 lm/W | 1831.9 lm/m | F | — | — | — |
| 2300 K | 132.6 lm/W | 2546.1 lm/m | E | 106.2 lm/W | 2039.7 lm/m | F | 86.5 lm/W | 1660.1 lm/m | F |
| 2700 K | 139.8 lm/W | 2684.6 lm/m | D | 115 lm/W | 2207.8 lm/m | E | 93.1 lm/W | 1788.4 lm/m | F |
| 3000 K | 149.3 lm/W | 2866.6 lm/m | D | 121 lm/W | 2322.6 lm/m | E | 98.4 lm/W | 1889.3 lm/m | F |
| 3500 K | 151.5 lm/W | 2908.1 lm/m | D | 123.1 lm/W | 2364.1 lm/m | E | 101.4 lm/W | 1946.7 lm/m | F |
| 4000 K | 156.3 lm/W | 3001.1 lm/m | D | 126.1 lm/W | 2421.5 lm/m | E | 104.2 lm/W | 2000.1 lm/m | F |
| 5000 K | 156.2 lm/W | 2999.1 lm/m | D | 126 lm/W | 2419.5 lm/m | E | 103.1 lm/W | 1980.1 lm/m | F |
| 6500 K | 142.9 lm/W | 2743.9 lm/m | D | 121 lm/W | 2322.6 lm/m | E | 100 lm/W | 1920.1 lm/m | F |
Grade DL (2nd Tier) · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 115.2 lm/W | 2763.9 lm/m | E | 92.2 lm/W | 2214 lm/m | F | — | — | — |
| 2300 K | 128.2 lm/W | 3077.1 lm/m | E | 102.7 lm/W | 2465 lm/m | F | 83.6 lm/W | 2006.3 lm/m | F |
| 2700 K | 135.2 lm/W | 3244.5 lm/m | D | 111.2 lm/W | 2668.3 lm/m | E | 90.1 lm/W | 2161.4 lm/m | F |
| 3000 K | 144.4 lm/W | 3464.4 lm/m | D | 117 lm/W | 2806.9 lm/m | E | 95.1 lm/W | 2283.3 lm/m | F |
| 3500 K | 146.4 lm/W | 3514.6 lm/m | D | 119 lm/W | 2857.1 lm/m | E | 98 lm/W | 2352.7 lm/m | F |
| 4000 K | 151.1 lm/W | 3627 lm/m | D | 121.9 lm/W | 2926.5 lm/m | E | 100.7 lm/W | 2417.2 lm/m | F |
| 5000 K | 151 lm/W | 3624.6 lm/m | D | 121.8 lm/W | 2924.1 lm/m | E | 99.7 lm/W | 2393 lm/m | F |
| 6500 K | 138.2 lm/W | 3316.2 lm/m | D | 117 lm/W | 2806.9 lm/m | E | 96.7 lm/W | 2320.5 lm/m | F |
Grade DN (1st Tier) · 4.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 143.9 lm/W | 690.6 lm/m | E | 121.1 lm/W | 581.2 lm/m | E | — | — | — |
| 2300 K | 156.9 lm/W | 753 lm/m | D | 135.1 lm/W | 648.5 lm/m | E | 108.6 lm/W | 521.4 lm/m | E |
| 2700 K | 169.1 lm/W | 811.5 lm/m | D | 146.3 lm/W | 702.1 lm/m | D | 118.5 lm/W | 568.6 lm/m | F |
| 3000 K | 177.5 lm/W | 852 lm/m | C | 154.4 lm/W | 740.9 lm/m | D | 125.5 lm/W | 602.5 lm/m | E |
| 3500 K | 180.1 lm/W | 864.6 lm/m | C | 157.7 lm/W | 756.8 lm/m | D | 129.9 lm/W | 623.3 lm/m | E |
| 4000 K | 183.5 lm/W | 881 lm/m | C | 158.6 lm/W | 761.2 lm/m | D | 130.9 lm/W | 628.2 lm/m | E |
| 5000 K | 183.3 lm/W | 879.9 lm/m | C | 159.6 lm/W | 766.1 lm/m | D | 129.6 lm/W | 621.9 lm/m | E |
| 6500 K | 175.7 lm/W | 843.3 lm/m | C | 152.5 lm/W | 732.2 lm/m | D | 125.6 lm/W | 603.1 lm/m | E |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 139.1 lm/W | 1335.4 lm/m | E | 117.1 lm/W | 1123.8 lm/m | F | — | — | — |
| 2300 K | 151.7 lm/W | 1456 lm/m | D | 130.6 lm/W | 1253.9 lm/m | E | 105 lm/W | 1008.3 lm/m | E |
| 2700 K | 163.5 lm/W | 1569.3 lm/m | D | 141.4 lm/W | 1357.6 lm/m | E | 114.5 lm/W | 1099.4 lm/m | F |
| 3000 K | 171.6 lm/W | 1647.6 lm/m | D | 149.2 lm/W | 1432.8 lm/m | D | 121.4 lm/W | 1165 lm/m | E |
| 3500 K | 174.2 lm/W | 1671.9 lm/m | C | 152.4 lm/W | 1463.4 lm/m | D | 125.5 lm/W | 1205.3 lm/m | E |
| 4000 K | 177.5 lm/W | 1703.7 lm/m | C | 153.3 lm/W | 1471.9 lm/m | D | 126.5 lm/W | 1214.8 lm/m | E |
| 5000 K | 177.2 lm/W | 1701.5 lm/m | C | 154.3 lm/W | 1481.4 lm/m | D | 125.3 lm/W | 1202.6 lm/m | E |
| 6500 K | 169.9 lm/W | 1630.6 lm/m | D | 147.5 lm/W | 1415.8 lm/m | D | 121.5 lm/W | 1166.2 lm/m | E |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 134.5 lm/W | 1936.7 lm/m | E | 113.2 lm/W | 1629.8 lm/m | F | — | — | — |
| 2300 K | 146.6 lm/W | 2111.6 lm/m | D | 126.3 lm/W | 1818.5 lm/m | E | 101.5 lm/W | 1462.3 lm/m | E |
| 2700 K | 158 lm/W | 2275.8 lm/m | D | 136.7 lm/W | 1968.9 lm/m | E | 110.7 lm/W | 1594.5 lm/m | F |
| 3000 K | 165.9 lm/W | 2389.4 lm/m | D | 144.3 lm/W | 2077.9 lm/m | E | 117.3 lm/W | 1689.6 lm/m | F |
| 3500 K | 168.4 lm/W | 2424.7 lm/m | D | 147.4 lm/W | 2122.4 lm/m | D | 121.4 lm/W | 1747.9 lm/m | E |
| 4000 K | 171.6 lm/W | 2470.7 lm/m | D | 148.2 lm/W | 2134.7 lm/m | D | 122.3 lm/W | 1761.7 lm/m | E |
| 5000 K | 171.4 lm/W | 2467.7 lm/m | D | 149.2 lm/W | 2148.5 lm/m | D | 121.1 lm/W | 1744.1 lm/m | E |
| 6500 K | 164.2 lm/W | 2364.9 lm/m | D | 142.6 lm/W | 2053.3 lm/m | E | 117.5 lm/W | 1691.3 lm/m | E |
Grade DN (1st Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 130 lm/W | 2496.6 lm/m | E | 109.4 lm/W | 2101 lm/m | F | — | — | — |
| 2300 K | 141.8 lm/W | 2722.2 lm/m | E | 122.1 lm/W | 2344.3 lm/m | E | 98.2 lm/W | 1885 lm/m | F |
| 2700 K | 152.8 lm/W | 2933.9 lm/m | D | 132.2 lm/W | 2538.2 lm/m | E | 107.1 lm/W | 2055.5 lm/m | F |
| 3000 K | 160.4 lm/W | 3080.3 lm/m | D | 139.5 lm/W | 2678.7 lm/m | E | 113.4 lm/W | 2178.1 lm/m | F |
| 3500 K | 162.8 lm/W | 3125.8 lm/m | D | 142.5 lm/W | 2736 lm/m | E | 117.4 lm/W | 2253.3 lm/m | F |
| 4000 K | 165.9 lm/W | 3185.1 lm/m | D | 143.3 lm/W | 2751.8 lm/m | E | 118.3 lm/W | 2271.1 lm/m | F |
| 5000 K | 165.7 lm/W | 3181.1 lm/m | D | 144.3 lm/W | 2769.7 lm/m | E | 117.1 lm/W | 2248.4 lm/m | F |
| 6500 K | 158.8 lm/W | 3048.6 lm/m | D | 137.9 lm/W | 2647 lm/m | E | 113.6 lm/W | 2180.3 lm/m | F |
Grade DN (1st Tier) · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 125.7 lm/W | 3017.3 lm/m | E | 105.8 lm/W | 2539.1 lm/m | F | — | — | — |
| 2300 K | 137.1 lm/W | 3289.9 lm/m | E | 118.1 lm/W | 2833.2 lm/m | F | 94.9 lm/W | 2278.2 lm/m | F |
| 2700 K | 147.7 lm/W | 3545.7 lm/m | D | 127.8 lm/W | 3067.5 lm/m | E | 103.5 lm/W | 2484.2 lm/m | F |
| 3000 K | 155.1 lm/W | 3722.7 lm/m | D | 134.9 lm/W | 3237.3 lm/m | E | 109.7 lm/W | 2632.4 lm/m | F |
| 3500 K | 157.4 lm/W | 3777.6 lm/m | D | 137.8 lm/W | 3306.6 lm/m | E | 113.5 lm/W | 2723.3 lm/m | F |
| 4000 K | 160.4 lm/W | 3849.4 lm/m | D | 138.6 lm/W | 3325.8 lm/m | E | 114.4 lm/W | 2744.8 lm/m | F |
| 5000 K | 160.2 lm/W | 3844.6 lm/m | D | 139.5 lm/W | 3347.3 lm/m | E | 113.2 lm/W | 2717.3 lm/m | F |
| 6500 K | 153.5 lm/W | 3684.4 lm/m | D | 133.3 lm/W | 3199 lm/m | E | 109.8 lm/W | 2635 lm/m | F |
Grade KE (3rd Tier) · 4.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 108.8 lm/W | 522.1 lm/m | F | 86.9 lm/W | 417 lm/m | F | — | — | — |
| 2300 K | 121.2 lm/W | 581.7 lm/m | E | 96.8 lm/W | 464.6 lm/m | F | 79.2 lm/W | 380.2 lm/m | F |
| 2700 K | 130.7 lm/W | 627.1 lm/m | E | 105.1 lm/W | 504.5 lm/m | F | 85.2 lm/W | 408.8 lm/m | F |
| 3000 K | 137.3 lm/W | 658.9 lm/m | D | 111 lm/W | 533 lm/m | E | 90.3 lm/W | 433.4 lm/m | F |
| 3500 K | 139.2 lm/W | 668.2 lm/m | D | 113.2 lm/W | 543.4 lm/m | E | 93.1 lm/W | 447.1 lm/m | F |
| 4000 K | 143.3 lm/W | 687.9 lm/m | D | 115.6 lm/W | 554.9 lm/m | E | 95.4 lm/W | 458 lm/m | F |
| 5000 K | 143.1 lm/W | 686.8 lm/m | D | 115.6 lm/W | 554.9 lm/m | E | 94.5 lm/W | 453.4 lm/m | F |
| 6500 K | 137.3 lm/W | 658.9 lm/m | D | 111 lm/W | 533 lm/m | E | 91.6 lm/W | 439.7 lm/m | F |
Grade KE (3rd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 105.2 lm/W | 1009.5 lm/m | F | 84 lm/W | 806.3 lm/m | G | — | — | — |
| 2300 K | 117.2 lm/W | 1124.8 lm/m | E | 93.6 lm/W | 898.4 lm/m | F | 76.6 lm/W | 735.1 lm/m | F |
| 2700 K | 126.3 lm/W | 1212.7 lm/m | E | 101.6 lm/W | 975.6 lm/m | F | 82.3 lm/W | 790.5 lm/m | G |
| 3000 K | 132.7 lm/W | 1274 lm/m | E | 107.4 lm/W | 1030.7 lm/m | F | 87.3 lm/W | 838.1 lm/m | F |
| 3500 K | 134.6 lm/W | 1292 lm/m | E | 109.5 lm/W | 1050.8 lm/m | F | 90.1 lm/W | 864.5 lm/m | F |
| 4000 K | 138.6 lm/W | 1330.1 lm/m | D | 111.8 lm/W | 1073 lm/m | E | 92.3 lm/W | 885.7 lm/m | F |
| 5000 K | 138.3 lm/W | 1328 lm/m | D | 111.8 lm/W | 1073 lm/m | E | 91.3 lm/W | 876.8 lm/m | F |
| 6500 K | 132.7 lm/W | 1274 lm/m | E | 107.4 lm/W | 1030.7 lm/m | F | 88.6 lm/W | 850.3 lm/m | F |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 101.7 lm/W | 1464 lm/m | F | 81.2 lm/W | 1169.4 lm/m | G | — | — | — |
| 2300 K | 113.3 lm/W | 1631.3 lm/m | E | 90.5 lm/W | 1302.9 lm/m | F | 74 lm/W | 1066.1 lm/m | F |
| 2700 K | 122.1 lm/W | 1758.7 lm/m | E | 98.3 lm/W | 1414.9 lm/m | F | 79.6 lm/W | 1146.4 lm/m | G |
| 3000 K | 128.3 lm/W | 1847.7 lm/m | E | 103.8 lm/W | 1494.7 lm/m | F | 84.4 lm/W | 1215.4 lm/m | G |
| 3500 K | 130.1 lm/W | 1873.8 lm/m | E | 105.8 lm/W | 1523.9 lm/m | F | 87.1 lm/W | 1253.8 lm/m | F |
| 4000 K | 134 lm/W | 1929 lm/m | E | 108.1 lm/W | 1556.1 lm/m | F | 89.2 lm/W | 1284.5 lm/m | F |
| 5000 K | 133.7 lm/W | 1926 lm/m | E | 108.1 lm/W | 1556.1 lm/m | F | 88.3 lm/W | 1271.6 lm/m | F |
| 6500 K | 128.3 lm/W | 1847.7 lm/m | E | 103.8 lm/W | 1494.7 lm/m | F | 85.6 lm/W | 1233.1 lm/m | F |
Grade KE (3rd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 98.3 lm/W | 1887.3 lm/m | F | 78.5 lm/W | 1507.5 lm/m | G | — | — | — |
| 2300 K | 109.5 lm/W | 2103 lm/m | F | 87.5 lm/W | 1679.6 lm/m | F | 71.6 lm/W | 1374.4 lm/m | F |
| 2700 K | 118.1 lm/W | 2267.2 lm/m | E | 95 lm/W | 1824 lm/m | F | 77 lm/W | 1477.8 lm/m | G |
| 3000 K | 124.1 lm/W | 2381.9 lm/m | E | 100.4 lm/W | 1926.9 lm/m | F | 81.6 lm/W | 1566.8 lm/m | G |
| 3500 K | 125.8 lm/W | 2415.5 lm/m | E | 102.3 lm/W | 1964.5 lm/m | F | 84.2 lm/W | 1616.3 lm/m | G |
| 4000 K | 129.5 lm/W | 2486.8 lm/m | E | 104.5 lm/W | 2006 lm/m | F | 86.2 lm/W | 1655.9 lm/m | F |
| 5000 K | 129.3 lm/W | 2482.8 lm/m | E | 104.5 lm/W | 2006 lm/m | F | 85.4 lm/W | 1639.3 lm/m | F |
| 6500 K | 124.1 lm/W | 2381.9 lm/m | E | 100.4 lm/W | 1926.9 lm/m | F | 82.8 lm/W | 1589.6 lm/m | F |
Grade KE (3rd Tier) · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 95 lm/W | 2280.9 lm/m | F | 75.9 lm/W | 1821.9 lm/m | G | — | — | — |
| 2300 K | 105.9 lm/W | 2541.5 lm/m | F | 84.6 lm/W | 2029.9 lm/m | G | 69.2 lm/W | 1661 lm/m | G |
| 2700 K | 114.2 lm/W | 2740 lm/m | E | 91.9 lm/W | 2204.4 lm/m | F | 74.4 lm/W | 1786 lm/m | G |
| 3000 K | 119.9 lm/W | 2878.7 lm/m | E | 97 lm/W | 2328.7 lm/m | F | 78.9 lm/W | 1893.6 lm/m | G |
| 3500 K | 121.6 lm/W | 2919.3 lm/m | E | 98.9 lm/W | 2374.2 lm/m | F | 81.4 lm/W | 1953.4 lm/m | G |
| 4000 K | 125.2 lm/W | 3005.4 lm/m | E | 101 lm/W | 2424.4 lm/m | F | 83.4 lm/W | 2001.2 lm/m | G |
| 5000 K | 125 lm/W | 3000.6 lm/m | E | 101 lm/W | 2424.4 lm/m | F | 82.5 lm/W | 1981.2 lm/m | G |
| 6500 K | 119.9 lm/W | 2878.7 lm/m | E | 97 lm/W | 2328.7 lm/m | F | 80 lm/W | 1921.1 lm/m | G |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 24W/m, 16776 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 22x12mm Recessed LED Channel with Flange · fits ≤10mm strip
- 20x15mm Wide Surface Mount LED Channel · fits ≤10mm strip
- 17x15mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm Magnetic LED Channel · fits ≤10mm strip
- 19.1x8mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm 48V Surface Mount LED Channel · fits ≤10mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- Roll-to-Roll Long Reel LED Strip Light (#16775)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 16776?
16776: 2835, 240 LEDs/m, 24V, 10 PCB, 2oz copper FPCB, cuttable 6LEDs/25mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this roll to roll LED strip different?
It is built as a roll to roll LED strip on 2oz copper FPCB with a cutting unit of 6LEDs/25mm and an LED pitch of 4.166mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this roll to roll LED strip for a project?
Yes. DENO manufactures the Roll-to-Roll SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How long can this LED strip roll run in one continuous piece?
This model ships as a continuous roll-to-roll reel with no mid-reel solder joints, so custom single runs beyond the standard 5 m are available. Keep the run within a 3% voltage drop: lower power densities support up to 20 m single-end, higher densities need a both-ends or mid-feed connection. Use the DENO ProCalc voltage-drop tool to confirm the exact limit for your length.
Why choose a roll-to-roll strip over a standard 5 m LED strip reel?
The electroplated continuous FPCB keeps copper thickness uniform along the whole reel, so resistance stays low, brightness stays even end to end, and there are no pieced solder points that can fail during bending or long-run installation.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- Roll-to-Roll LED strip rolls series — Roll-to-Roll (R2R) LED Strip — Buyer Questions
- LED strip engineering selection handbook
