2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
6mm · 24V · 128LEDs · 62.5mm/cut
Model: 19071
Overview
2835 S-Bend LED Strip High-Efficiency LED Strip Light | 6mm | 24V | 128LEDs | 62.5mm/cut | #19071 is part of the DENO S-Bend SMD Strips series, engineered around S-bend flexible LED strip. Key specifications: 2835, 128 LEDs/m, 24V, 6 PCB, 2oz copper FPCB, cuttable 8LEDs/62.5mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description

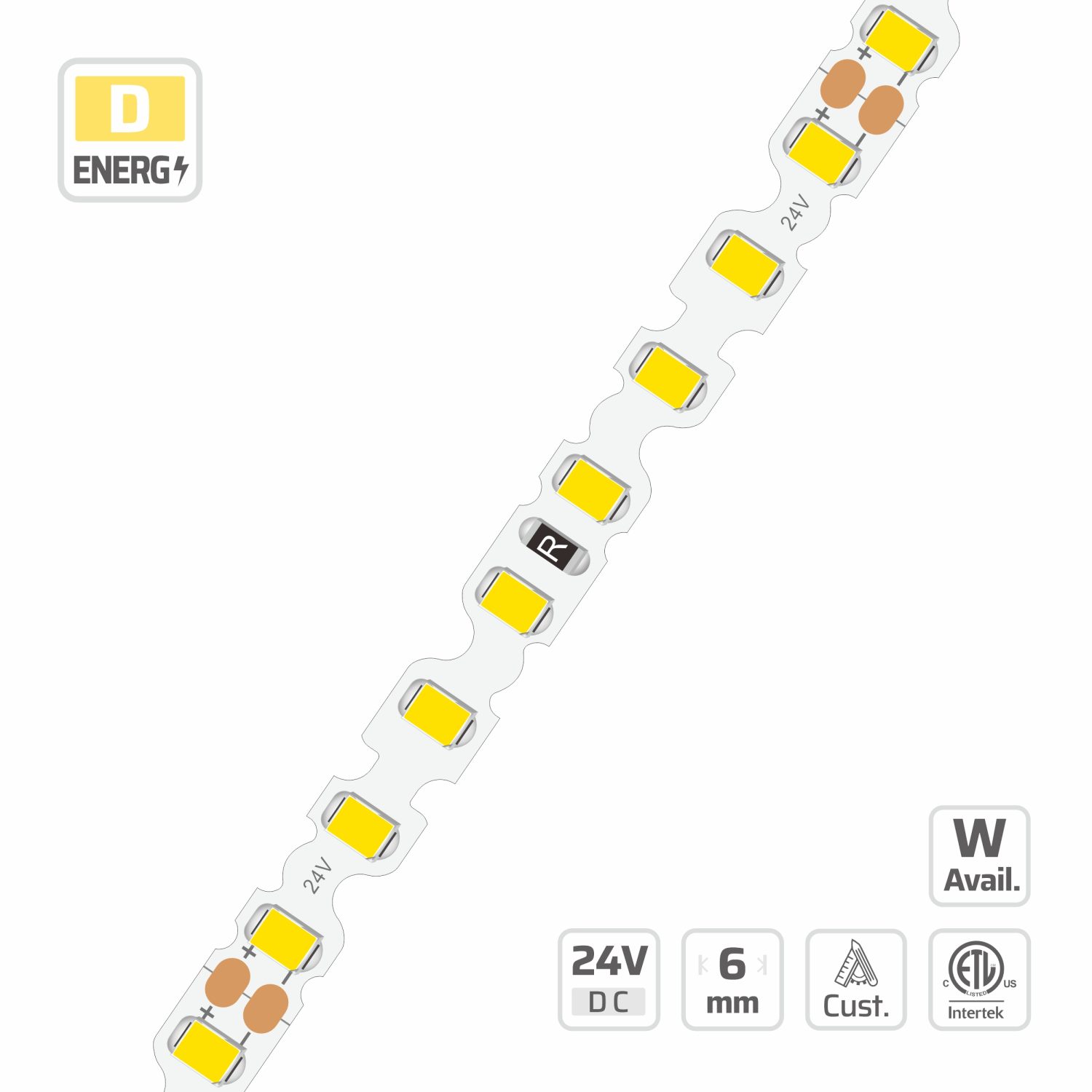

The flexible 2835 S-bend LED strip light features a zigzag pattern designed to curve smoothly around tight angles and irregular architectural contours. Built on a narrow 6mm 2oz copper PCB, this 24V constant voltage tape operates efficiently while allowing precise cuts every 62.5mm. Configured with 128 LEDs per meter and a 120-degree beam angle, it delivers uniform 95 lm/W output across continuous 5-meter runs. Fully dimmable performance makes this strip ideal for signage and light box lighting applications requiring reliable illumination in compact spaces. Engineered for wholesale project supply, this durable lighting solution maintains stable thermal performance within operating temperatures from minus 25 to 40 degrees Celsius.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| CRI | FS / Ra≥80 / Ra≥90 |
|---|---|
| POWER (W/M) | 7 W/m |
| LED QTY | 128 LEDs/m |
| PART NO | DL-F28A64V24-19071-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 8LEDs/62.5mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 7.813mm |
| PCB WIDTH | 6 |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 1.92~23W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 744–1246 lm/m |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1010 — 10x10mm Surface Mount LED Channel — U Shape Aluminum Profile for 6mm Strip: Accepts LED strips up to 6mm wide.
- DL-1010HX-F — 15.2x10.4mm Slim Recessed LED Channel with Flange — Shallow Plaster-in Aluminum Profile: Accepts LED strips up to 6mm wide.
- DL-1013 — 10x13mm Surface Mount LED Channel — Deep U Shape Aluminum Profile: Accepts LED strips up to 6mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #19071
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 193 lm/W at 4000K, Ra 80, ErP energy class C (Grade DN (1st Tier) · 7.6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 7.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 142 lm/W | 1079.2 lm/m | D | 114 lm/W | 866.5 lm/m | E | — | — | — |
| 2300 K | 158.1 lm/W | 1201.8 lm/m | D | 127 lm/W | 964.9 lm/m | E | 102.8 lm/W | 781.3 lm/m | F |
| 2700 K | 167.3 lm/W | 1271.4 lm/m | C | 137.4 lm/W | 1044.4 lm/m | D | 111.3 lm/W | 846.1 lm/m | E |
| 3000 K | 178 lm/W | 1353.1 lm/m | C | 144.6 lm/W | 1098.8 lm/m | D | 117.6 lm/W | 893.8 lm/m | E |
| 3500 K | 180.6 lm/W | 1372.8 lm/m | C | 147.2 lm/W | 1118.5 lm/m | D | 121.1 lm/W | 920.2 lm/m | E |
| 4000 K | 186.4 lm/W | 1416.7 lm/m | B | 150.8 lm/W | 1145.8 lm/m | D | 124.5 lm/W | 946 lm/m | E |
| 5000 K | 186.2 lm/W | 1415.2 lm/m | B | 150.7 lm/W | 1145 lm/m | D | 124.3 lm/W | 944.7 lm/m | E |
| 6500 K | 170.7 lm/W | 1297.1 lm/m | C | 144.5 lm/W | 1098.1 lm/m | D | 119.9 lm/W | 911.2 lm/m | E |
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 140 lm/W | 1344.1 lm/m | D | 112.4 lm/W | 1079.3 lm/m | E | — | — | — |
| 2300 K | 155.9 lm/W | 1496.8 lm/m | D | 125.2 lm/W | 1201.8 lm/m | E | 101.4 lm/W | 973.4 lm/m | F |
| 2700 K | 165 lm/W | 1583.6 lm/m | C | 135.5 lm/W | 1300.8 lm/m | D | 109.8 lm/W | 1053.8 lm/m | F |
| 3000 K | 175.6 lm/W | 1685.4 lm/m | C | 142.6 lm/W | 1368.7 lm/m | D | 116 lm/W | 1113.2 lm/m | E |
| 3500 K | 178.1 lm/W | 1709.9 lm/m | C | 145.1 lm/W | 1393.2 lm/m | D | 119.4 lm/W | 1146.2 lm/m | E |
| 4000 K | 183.8 lm/W | 1764.5 lm/m | C | 148.7 lm/W | 1427.1 lm/m | D | 122.7 lm/W | 1178.2 lm/m | E |
| 5000 K | 183.6 lm/W | 1762.7 lm/m | C | 148.6 lm/W | 1426.2 lm/m | D | 122.6 lm/W | 1177 lm/m | E |
| 6500 K | 168.3 lm/W | 1615.6 lm/m | C | 142.5 lm/W | 1367.7 lm/m | D | 118.3 lm/W | 1135.7 lm/m | E |
Grade DL (2nd Tier) · 15.3W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 134.5 lm/W | 2058.2 lm/m | E | 108 lm/W | 1652.6 lm/m | F | — | — | — |
| 2300 K | 149.8 lm/W | 2292 lm/m | D | 120.3 lm/W | 1840.2 lm/m | E | 97.4 lm/W | 1490.2 lm/m | F |
| 2700 K | 158.5 lm/W | 2424.8 lm/m | D | 130.2 lm/W | 1991.8 lm/m | E | 105.5 lm/W | 1613.6 lm/m | F |
| 3000 K | 168.7 lm/W | 2580.6 lm/m | C | 137 lm/W | 2095.7 lm/m | D | 111.4 lm/W | 1704.5 lm/m | E |
| 3500 K | 171.1 lm/W | 2618.2 lm/m | C | 139.4 lm/W | 2133.2 lm/m | D | 114.7 lm/W | 1755.1 lm/m | E |
| 4000 K | 176.6 lm/W | 2701.9 lm/m | C | 142.8 lm/W | 2185.2 lm/m | D | 117.9 lm/W | 1804.1 lm/m | E |
| 5000 K | 176.4 lm/W | 2699 lm/m | C | 142.7 lm/W | 2183.7 lm/m | D | 117.7 lm/W | 1800.8 lm/m | E |
| 6500 K | 161.7 lm/W | 2473.8 lm/m | C | 136.9 lm/W | 2094.2 lm/m | D | 113.6 lm/W | 1738.1 lm/m | E |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 130.9 lm/W | 2513 lm/m | E | 105.1 lm/W | 2017.8 lm/m | F | — | — | — |
| 2300 K | 145.8 lm/W | 2798.5 lm/m | D | 117 lm/W | 2246.9 lm/m | E | 94.8 lm/W | 1820.2 lm/m | F |
| 2700 K | 154.2 lm/W | 2960.6 lm/m | D | 126.7 lm/W | 2431.9 lm/m | E | 102.6 lm/W | 1970.2 lm/m | F |
| 3000 K | 164.1 lm/W | 3150.9 lm/m | C | 133.3 lm/W | 2558.8 lm/m | E | 108.4 lm/W | 2081.2 lm/m | F |
| 3500 K | 166.5 lm/W | 3196.7 lm/m | C | 135.7 lm/W | 2604.6 lm/m | D | 111.6 lm/W | 2142.9 lm/m | E |
| 4000 K | 171.8 lm/W | 3298.9 lm/m | C | 139 lm/W | 2668.1 lm/m | D | 114.7 lm/W | 2202.8 lm/m | E |
| 5000 K | 171.6 lm/W | 3295.4 lm/m | C | 138.9 lm/W | 2666.3 lm/m | D | 114.6 lm/W | 2200.3 lm/m | E |
| 6500 K | 157.3 lm/W | 3020.5 lm/m | D | 133.2 lm/W | 2557 lm/m | E | 110.5 lm/W | 2121.6 lm/m | E |
Grade DN (1st Tier) · 7.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 151.2 lm/W | 1148.8 lm/m | D | 127.6 lm/W | 969.4 lm/m | E | — | — | — |
| 2300 K | 164.8 lm/W | 1252.5 lm/m | D | 142.3 lm/W | 1081.4 lm/m | E | 115.3 lm/W | 876.3 lm/m | F |
| 2700 K | 177.6 lm/W | 1350.1 lm/m | C | 153.9 lm/W | 1170 lm/m | D | 124.8 lm/W | 948.2 lm/m | E |
| 3000 K | 186.6 lm/W | 1418.2 lm/m | C | 162.5 lm/W | 1235.1 lm/m | D | 132.1 lm/W | 1004.3 lm/m | E |
| 3500 K | 189.4 lm/W | 1439.4 lm/m | C | 166 lm/W | 1261.6 lm/m | D | 136.6 lm/W | 1038.3 lm/m | E |
| 4000 K | 193 lm/W | 1466.6 lm/m | C | 167 lm/W | 1269.1 lm/m | D | 137.8 lm/W | 1047.4 lm/m | E |
| 5000 K | 192.7 lm/W | 1464.4 lm/m | C | 168.1 lm/W | 1277.4 lm/m | D | 138.7 lm/W | 1054.1 lm/m | E |
| 6500 K | 184.7 lm/W | 1403.8 lm/m | C | 160.6 lm/W | 1220.7 lm/m | D | 133.3 lm/W | 1013.1 lm/m | E |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 149 lm/W | 1430.9 lm/m | D | 125.8 lm/W | 1207.5 lm/m | E | — | — | — |
| 2300 K | 162.5 lm/W | 1560 lm/m | D | 140.3 lm/W | 1347 lm/m | E | 113.7 lm/W | 1091.5 lm/m | F |
| 2700 K | 175.2 lm/W | 1681.6 lm/m | C | 151.8 lm/W | 1457.3 lm/m | D | 123 lm/W | 1181.1 lm/m | E |
| 3000 K | 184 lm/W | 1766.4 lm/m | C | 160.2 lm/W | 1538.3 lm/m | D | 130.3 lm/W | 1250.8 lm/m | E |
| 3500 K | 186.8 lm/W | 1792.8 lm/m | C | 163.7 lm/W | 1571.3 lm/m | D | 134.7 lm/W | 1293.2 lm/m | E |
| 4000 K | 190.3 lm/W | 1826.8 lm/m | C | 164.7 lm/W | 1580.7 lm/m | D | 135.9 lm/W | 1304.6 lm/m | E |
| 5000 K | 190 lm/W | 1823.9 lm/m | C | 165.7 lm/W | 1591.1 lm/m | D | 136.7 lm/W | 1312.3 lm/m | E |
| 6500 K | 182.1 lm/W | 1748.5 lm/m | C | 158.4 lm/W | 1520.4 lm/m | D | 131.5 lm/W | 1262.4 lm/m | E |
Grade DN (1st Tier) · 15.3W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 143.2 lm/W | 2190.9 lm/m | E | 120.8 lm/W | 1848.9 lm/m | E | — | — | — |
| 2300 K | 156.1 lm/W | 2388.7 lm/m | D | 134.8 lm/W | 2062.5 lm/m | E | 109.2 lm/W | 1670.8 lm/m | F |
| 2700 K | 168.3 lm/W | 2574.9 lm/m | D | 145.8 lm/W | 2231.3 lm/m | D | 118.2 lm/W | 1808.5 lm/m | F |
| 3000 K | 176.8 lm/W | 2704.8 lm/m | C | 154 lm/W | 2355.5 lm/m | D | 125.2 lm/W | 1915.3 lm/m | E |
| 3500 K | 179.4 lm/W | 2745.2 lm/m | C | 157.3 lm/W | 2406 lm/m | D | 129.4 lm/W | 1980.2 lm/m | E |
| 4000 K | 182.8 lm/W | 2797.1 lm/m | C | 158.2 lm/W | 2420.4 lm/m | D | 130.6 lm/W | 1997.5 lm/m | E |
| 5000 K | 182.5 lm/W | 2792.8 lm/m | C | 159.2 lm/W | 2436.3 lm/m | D | 131.4 lm/W | 2010.4 lm/m | E |
| 6500 K | 175 lm/W | 2677.3 lm/m | C | 152.2 lm/W | 2328.1 lm/m | D | 126.3 lm/W | 1932.4 lm/m | E |
Grade DN (1st Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 139.3 lm/W | 2675.1 lm/m | E | 117.6 lm/W | 2257.5 lm/m | F | — | — | — |
| 2300 K | 151.9 lm/W | 2916.5 lm/m | D | 131.2 lm/W | 2518.3 lm/m | E | 106.2 lm/W | 2039 lm/m | F |
| 2700 K | 163.7 lm/W | 3143.9 lm/m | D | 141.9 lm/W | 2724.5 lm/m | E | 115 lm/W | 2208.1 lm/m | F |
| 3000 K | 172 lm/W | 3302.5 lm/m | D | 149.8 lm/W | 2876 lm/m | D | 121.8 lm/W | 2338.5 lm/m | E |
| 3500 K | 174.6 lm/W | 3351.8 lm/m | C | 153 lm/W | 2937.7 lm/m | D | 125.9 lm/W | 2417.8 lm/m | E |
| 4000 K | 177.9 lm/W | 3415.3 lm/m | C | 153.9 lm/W | 2955.3 lm/m | D | 127 lm/W | 2439 lm/m | E |
| 5000 K | 177.6 lm/W | 3410 lm/m | C | 154.9 lm/W | 2974.7 lm/m | D | 127.8 lm/W | 2453.8 lm/m | E |
| 6500 K | 170.3 lm/W | 3269 lm/m | D | 148 lm/W | 2842.5 lm/m | D | 122.9 lm/W | 2359.7 lm/m | E |
Grade KE (3rd Tier) · 7.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 121.8 lm/W | 925.5 lm/m | E | 97.6 lm/W | 741.6 lm/m | F | — | — | — |
| 2300 K | 135.7 lm/W | 1031.5 lm/m | D | 108.7 lm/W | 826.4 lm/m | F | 88.1 lm/W | 669.6 lm/m | F |
| 2700 K | 146.3 lm/W | 1111.7 lm/m | D | 118 lm/W | 896.8 lm/m | E | 95.7 lm/W | 727.3 lm/m | F |
| 3000 K | 153.6 lm/W | 1167.7 lm/m | D | 124.7 lm/W | 947.5 lm/m | E | 101.4 lm/W | 770.4 lm/m | F |
| 3500 K | 155.9 lm/W | 1185.1 lm/m | D | 127.2 lm/W | 966.4 lm/m | E | 104.7 lm/W | 795.4 lm/m | F |
| 4000 K | 160.5 lm/W | 1219.9 lm/m | C | 129.8 lm/W | 986.8 lm/m | E | 107.1 lm/W | 814.3 lm/m | F |
| 5000 K | 160.2 lm/W | 1217.7 lm/m | C | 129.8 lm/W | 986.8 lm/m | E | 107.1 lm/W | 814 lm/m | F |
| 6500 K | 153.6 lm/W | 1167.7 lm/m | D | 124.7 lm/W | 947.5 lm/m | E | 103.5 lm/W | 786.6 lm/m | F |
Grade KE (3rd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 120.1 lm/W | 1152.8 lm/m | E | 96.2 lm/W | 923.7 lm/m | F | — | — | — |
| 2300 K | 133.8 lm/W | 1284.8 lm/m | E | 107.2 lm/W | 1029.3 lm/m | F | 86.8 lm/W | 833.3 lm/m | F |
| 2700 K | 144.2 lm/W | 1384.7 lm/m | D | 116.4 lm/W | 1117 lm/m | E | 94.4 lm/W | 905.8 lm/m | F |
| 3000 K | 151.5 lm/W | 1454.4 lm/m | D | 122.9 lm/W | 1180.1 lm/m | E | 100 lm/W | 959.6 lm/m | F |
| 3500 K | 153.8 lm/W | 1476.1 lm/m | D | 125.4 lm/W | 1203.7 lm/m | E | 103.2 lm/W | 990.7 lm/m | F |
| 4000 K | 158.3 lm/W | 1519.5 lm/m | D | 128 lm/W | 1229.1 lm/m | E | 105.6 lm/W | 1014.2 lm/m | F |
| 5000 K | 158 lm/W | 1516.6 lm/m | D | 128 lm/W | 1229.1 lm/m | E | 105.6 lm/W | 1013.8 lm/m | F |
| 6500 K | 151.5 lm/W | 1454.4 lm/m | D | 122.9 lm/W | 1180.1 lm/m | E | 102 lm/W | 979.2 lm/m | F |
Grade KE (3rd Tier) · 15.3W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 115.4 lm/W | 1765.2 lm/m | E | 92.4 lm/W | 1414.4 lm/m | F | — | — | — |
| 2300 K | 128.6 lm/W | 1967.2 lm/m | E | 103 lm/W | 1576.1 lm/m | F | 83.4 lm/W | 1276 lm/m | G |
| 2700 K | 138.6 lm/W | 2120.2 lm/m | D | 111.8 lm/W | 1710.3 lm/m | E | 90.7 lm/W | 1387 lm/m | F |
| 3000 K | 145.6 lm/W | 2227 lm/m | D | 118.1 lm/W | 1807 lm/m | E | 96 lm/W | 1469.3 lm/m | F |
| 3500 K | 147.7 lm/W | 2260.2 lm/m | D | 120.5 lm/W | 1843.1 lm/m | E | 99.1 lm/W | 1516.9 lm/m | F |
| 4000 K | 152.1 lm/W | 2326.6 lm/m | D | 123 lm/W | 1882.1 lm/m | E | 101.5 lm/W | 1553 lm/m | F |
| 5000 K | 151.8 lm/W | 2322.3 lm/m | D | 123 lm/W | 1882.1 lm/m | E | 101.5 lm/W | 1553 lm/m | F |
| 6500 K | 145.6 lm/W | 2227 lm/m | D | 118.1 lm/W | 1807 lm/m | E | 98 lm/W | 1499.4 lm/m | F |
Grade KE (3rd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 112.3 lm/W | 2155.2 lm/m | E | 89.9 lm/W | 1727 lm/m | F | — | — | — |
| 2300 K | 125.1 lm/W | 2402 lm/m | E | 100.2 lm/W | 1924.4 lm/m | F | 81.2 lm/W | 1559 lm/m | G |
| 2700 K | 134.8 lm/W | 2588.8 lm/m | E | 108.8 lm/W | 2088.3 lm/m | F | 88.2 lm/W | 1693.5 lm/m | F |
| 3000 K | 141.6 lm/W | 2719.2 lm/m | D | 114.9 lm/W | 2206.3 lm/m | E | 93.4 lm/W | 1794 lm/m | F |
| 3500 K | 143.7 lm/W | 2759.7 lm/m | D | 117.2 lm/W | 2250.4 lm/m | E | 96.5 lm/W | 1852.1 lm/m | F |
| 4000 K | 148 lm/W | 2840.8 lm/m | D | 119.7 lm/W | 2298 lm/m | E | 98.8 lm/W | 1896.2 lm/m | F |
| 5000 K | 147.7 lm/W | 2835.5 lm/m | D | 119.7 lm/W | 2298 lm/m | E | 98.7 lm/W | 1895 lm/m | F |
| 6500 K | 141.6 lm/W | 2719.2 lm/m | D | 114.9 lm/W | 2206.3 lm/m | E | 95.4 lm/W | 1831.7 lm/m | F |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 19.2W/m, 19071 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 6mm wide, so it needs at least 8mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 10x10mm Surface Mount LED Channel · fits ≤6mm strip
- 12x8mm Surface Mount LED Channel · fits ≤6mm strip
- 15.2x10.4mm Slim Recessed LED Channel with Flange · fits ≤6mm strip
- 16x16mm V Shape Corner LED Channel · fits ≤6mm strip
- 10x13mm Surface Mount LED Channel · fits ≤6mm strip
- 14x8mm Magnetic LED Channel · fits ≤8mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 6mm wide, so it needs a channel with at least 8mm inner width (6mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- Roll-to-Roll Long Reel LED Strip Light (#16775)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 19071?
19071: 2835, 128 LEDs/m, 24V, 6 PCB, 2oz copper FPCB, cuttable 8LEDs/62.5mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this S-bend flexible LED strip different?
It is built as a S-bend flexible LED strip on 2oz copper FPCB with a cutting unit of 8LEDs/62.5mm and an LED pitch of 7.813mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this S-bend flexible LED strip for a project?
Yes. DENO manufactures the S-Bend SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How tightly can a bendable LED strip turn a corner?
The S-shaped FPCB pattern lets the strip curve in the plane of the board, so it follows a radius of about 30 mm horizontally instead of needing a cut and a solder joint. Curved coves, circular ceilings and signage letters stay as one continuous run of flexible LED strip lights.
Which LED driver and run length suit #19071?
2835 S-Bend LED Strip High-Efficiency LED Strip Light | 6mm | 24V | 128LEDs | 62.5mm/cut | #19071 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
