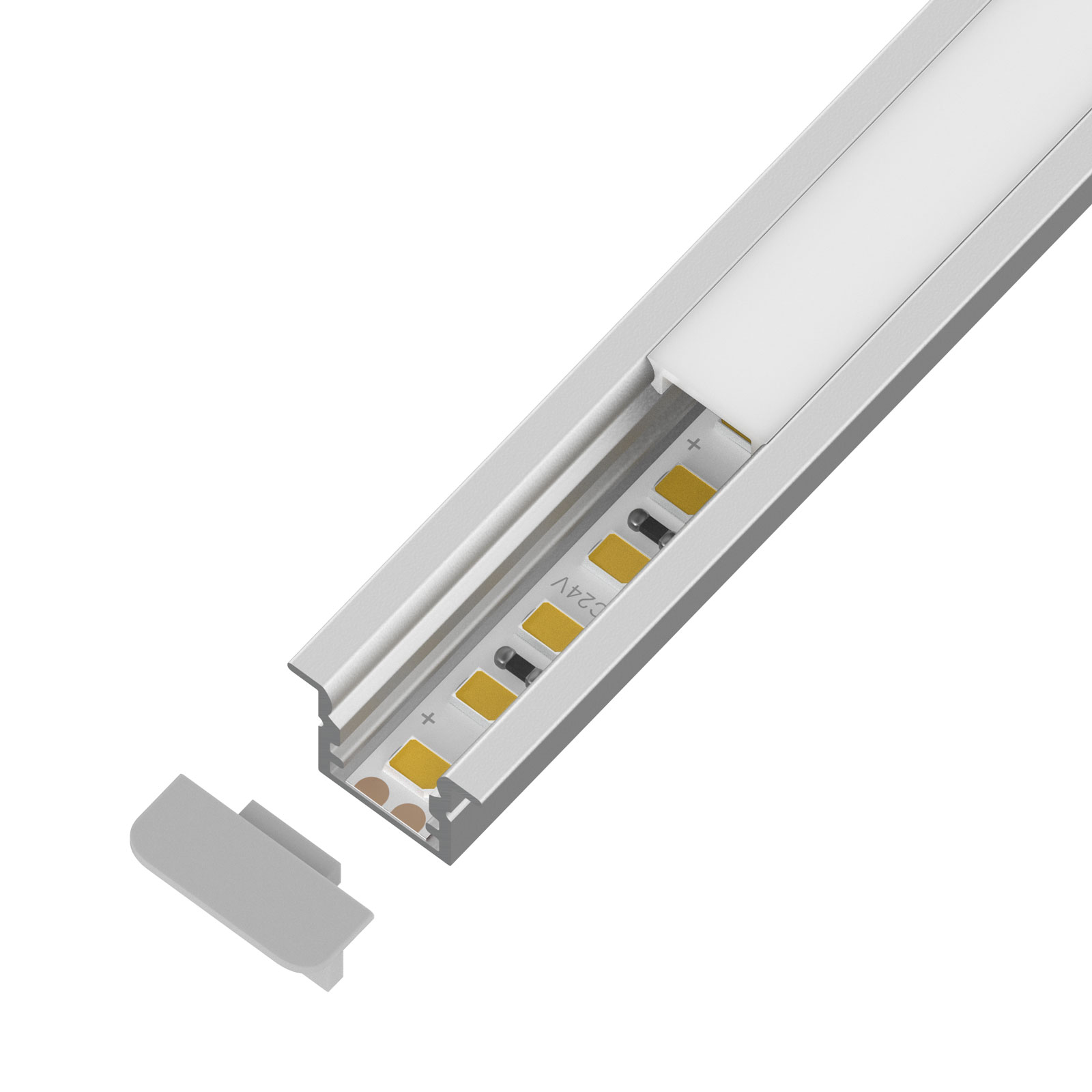

15.2x10.4mm Slim Recessed LED Channel with Flange — Shallow Plaster-in Aluminum Profile

Model: DL-1010HX-F

DL-1010HX-F 15.2x10.4mm Slim Recessed LED Channel with Flange — Shallow Plaster-in Aluminum Profile — 24V, cuttable every 35.7mm, 6mm FPCB width, 2835 LEDs, 120 LEDs/m

Overview

The 15.2x10.4mm Recessed LED Channel (model DL-1010HX-F) is a 6063 anodized aluminum LED profile — also searched as LED channel, LED extrusion or aluminum channel for LED strip lights — designed for Trimless Plaster-in installation. The housing works as a heat sink for 24V and 48V high-power LED strips, while the PC diffuser (frosted, milky or transparent) hides the LEDs and delivers dot-free, uniform light. It accepts LED strips from 5mm to 12mm PCB width and is supplied in 0.5m to 4m lengths, cut to custom sizes on request. Every channel ships with end caps, mounting clips and connectors, so installers can complete ceiling cove lighting, wall wash details and trimless architectural lines without extra hardware. Pair it with DENO high-density 240 LEDs/m SMD or COB strips for a completely spot-free line of light in architectural and commercial LED lighting projects.

Description

15.2×10.4mm With Flange Aluminum LED Strip Channel This is a professional recessed LED Strip Profilet designed for stable and long-term lighting applications. The aluminum profile features a multi-step inner cavity to securely hold LED strips of different PCB widths. A snap-in diffuser allows easy installation without glue, while the deep channel structure helps reduce spotting and improves light uniformity. With a thick aluminum body for enhanced heat dissipation, this recessed LED channel is ideal for concealed linear lighting in ceilings, walls, cabinets, and commercial spaces.

Specifications

SDCM< 3 SDCM (Single Bin)
LED QTY120leds/m or above
PART NODL-1010HX-F
SMD TYPE2835
CUTTABLE UNIT6LEDs/35.71mm
DIMMABLEYes
LED PITCH5.9mm
PCB WIDTH6mm
WARRANTY5 Years
LENGTH MAX0.5~4m
COPPER FOIL3oz
CIRCUIT TYPEC.V.
INPUT VOLTAGEDC 24V
OPERATING TEMPERATURE-25~40°C;Tc：75°C（max）

Frequently Asked Questions

What LED strip width fits the 15.2x10.4mm Recessed LED Channel?

It fits LED strips from 5mm to 12mm PCB width, with 8mm and 10mm strips being the most common choice for this recessed led channel. Check the inner channel width on the drawing before ordering, and allow 0.5mm clearance for the strip adhesive.

Which diffuser should I choose — frosted, milky or transparent?

Choose frosted for the best balance of diffusion and output, milky when you need to fully hide LED dots at short viewing distance, and transparent only when maximum lumen output matters more than glare control. Frosted covers are the default for ceiling cove lighting, wall wash details and trimless architectural lines.

How is this aluminum profile installed?

It is plastered into drywall or a ceiling slot using the side flange, then skimmed flush for a trimless finish. Cut the recess to the channel width, fix with screws or clips every 400–500mm, and install the strip before closing the diffuser.

Can this LED channel be cut to custom lengths?

Yes. Standard lengths are 0.5m to 4m and the aluminum extrusion can be cut with a miter saw on site, or pre-cut to your project dimensions at the factory. Cut the LED strip only at its marked cutting unit so every segment still lights up.

Does the aluminum profile work as a heat sink for high-power strips?

Yes. The 6063 aluminum body conducts heat away from the FPCB and keeps the LED junction temperature down, which is required for 24V and 48V strips above roughly 14W/m. Running high-power strips without a channel shortens lumen maintenance and shifts colour over time.

Will I still see LED dots through the diffuser?

No, if you match the strip density to the channel depth. Use at least 120 LEDs/m with a frosted cover; a 240 LEDs/m high-density or COB strip gives a completely dot-free line of light in this profile.

What accessories are included?

Each recessed led channel ships with end caps, mounting clips and a PC diffuser; corner connectors, magnetic clips and power feed caps are available on request for OEM and project orders.

Recessed & Plaster-In LED Channel — Buyer Questions

What is a recessed LED channel?

A recessed LED channel sits inside the ceiling or wall so only the diffuser is visible. Flanged bodies such as the 22x12mm and 14.2x9.8mm profiles rest on the plasterboard face and are the fastest to install; plaster-in versions are skimmed over for a trimless finish with no visible frame at all. Both need a routed slot slightly wider than the body so the flange can sit flat.

How much ceiling depth does a plaster-in LED profile need?

Take the profile height plus roughly 5mm of clearance for wiring. The shallow 17x7mm body only needs about 12mm behind the board, the 15.2x10.4mm slim profile about 15mm, and the deep 22x12mm body about 17mm — which is why the slim bodies are specified for suspended ceilings with limited plenum, and the deep bodies where heat dissipation matters more than depth.

Which recessed profile suits a 5mm micro LED strip?

The 8.89x7.79mm mini recessed body takes 4/5mm FPCB and is the smallest trimless housing in the range. It is the one to use for narrow shadow gaps, joinery reveals and slim wall-wash lines where a standard 10mm slot would look heavy, and it still gives the frosted cover enough gap to smooth a 120 LEDs/m tape.

Can a drywall LED channel be installed after the ceiling is finished?

A flanged body can: cut the slot, drop the profile in and the flange covers the cut edge. A true plaster-in extrusion has to go in before skimming, because the mesh wing is bedded into the compound. Plan feed points at the same time — a recessed run is far harder to re-open than a surface line, so bring the driver cable to one end or the mid-point before closing the ceiling.

What accessories come with a trimless LED profile?

Each bar ships with end caps (solid and cable-entry), a frosted PC cover as standard, and mounting clips or spring brackets depending on the body. Opal and clear covers, corner joints and continuous-run couplers are available on request, and DENO supplies the matched LED strip cut to the same length so the assembly arrives ready to install.
