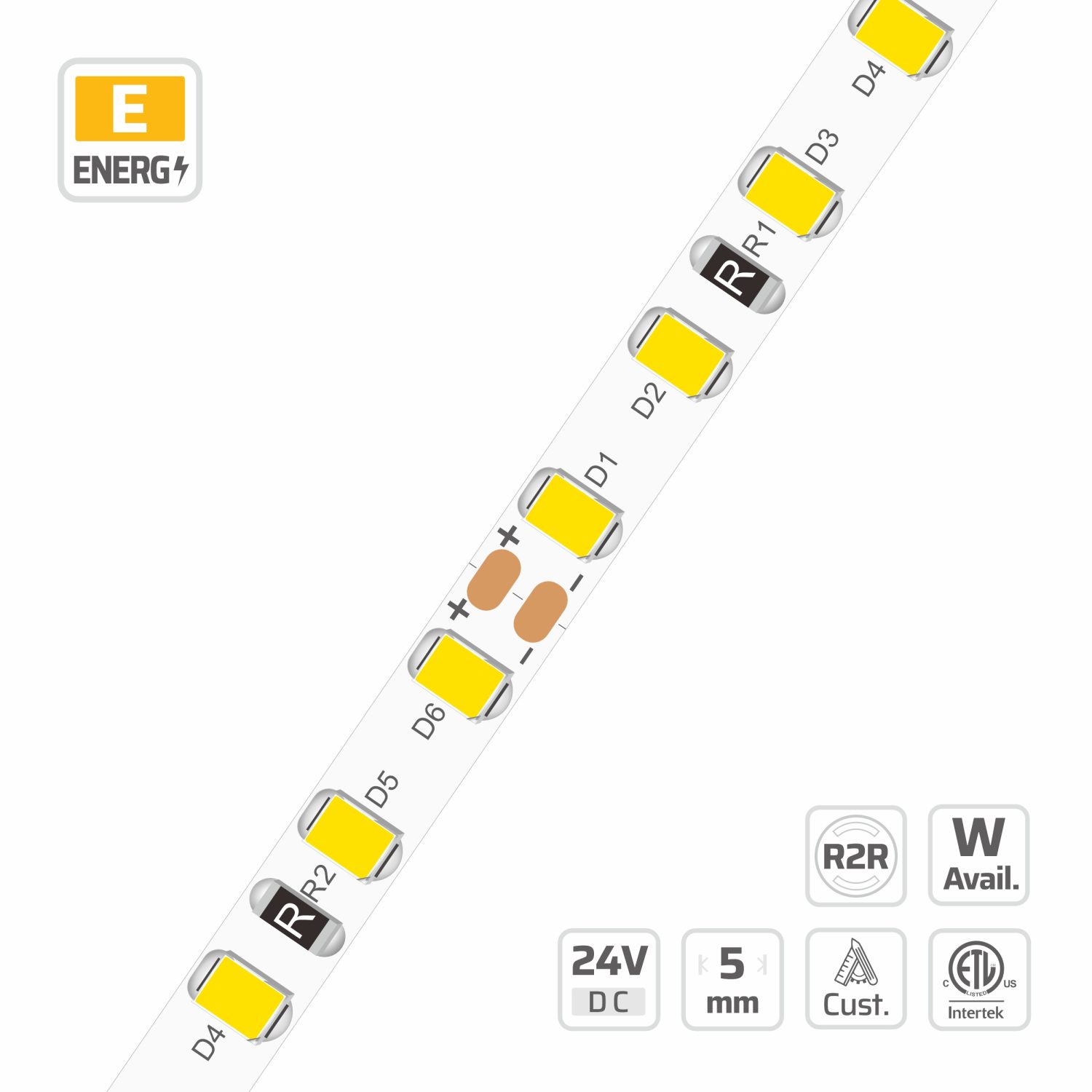

5mm | 24V | 120LEDs | 50mm/cut | #16772 | Roll-to-Roll Long Reel LED Strip
Model: 16772
Overview
The DENO LED Model 16772 is a cutting-edge roll-to-roll LED strip light designed for seamless, continuous illumination without soldering points. This 24V strip features an ultra-narrow 5mm width, 120 LEDs/m (2835 SMD type), and a 50mm cuttable section, making it highly flexible for intricate lighting designs. Built on a 2oz copper FPCB, it ensures reliable heat dissipation and durability. It's ideal for general lighting, retail displays, office environments, and hospitality...
Description
5mm | 24V | 120LEDs | 50mm/cut | #16772 | Roll-to-Roll Long Reel LED Strip The long-reel LED strip light is designed with a Reel-to-Reel one-piece structure, ensuring seamless continuity without soldering points. Using Reel-to-Reel production technology, this long-reel LED strip light is made in full rolls from SMD mounting to reflow soldering, achieving a smooth current flow and stable performance. With its ultra-narrow 5 mm width and 50 mm cutting section, the long-reel LED strip light offers flexibility for installation in compact or detailed lighting layouts. Built on a high-quality electroplated and thickened FPCB, it delivers reliable heat dissipation and durability, ideal for general lighting, retail, offices, and hotels.
Specifications
| ledQty | 120 LEDs/m |
|---|---|
| partNo | DL-F28A60V24-16772-* |
| smdType | 2835 |
| cuttable | 6LEDs/50mm |
| dimmable | Yes |
| ledPitch | 8.333mm |
| pcbWidth | 5mm |
| lengthMax | 5m |
| copperFoil | 2oz |
| powerRange | 2.4~28.8W |
| circuitType | C.V. |
| inputVoltage | DC 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What are the key advantages of a roll-to-roll LED strip light?
Roll-to-roll production ensures continuous strips without soldering points, improving current flow, performance stability, and installation efficiency for B2B projects.
Can this 24V LED strip be dimmed for varied lighting requirements?
Yes, the DL-F28A60V24-16772 LED strip is fully dimmable, allowing for flexible light intensity adjustments to suit different application needs.
What specific applications benefit most from the 5mm width of this LED strip?
Its ultra-narrow 5mm width and 50mm cut section are perfect for compact spaces, detailed accent lighting, and discreet integration in architectural or display designs.
Does DENO LED offer customization or bulk order pricing for this product?
Yes, we provide competitive bulk order pricing and can discuss customization options tailored to specific project requirements. Contact our sales team for details.
