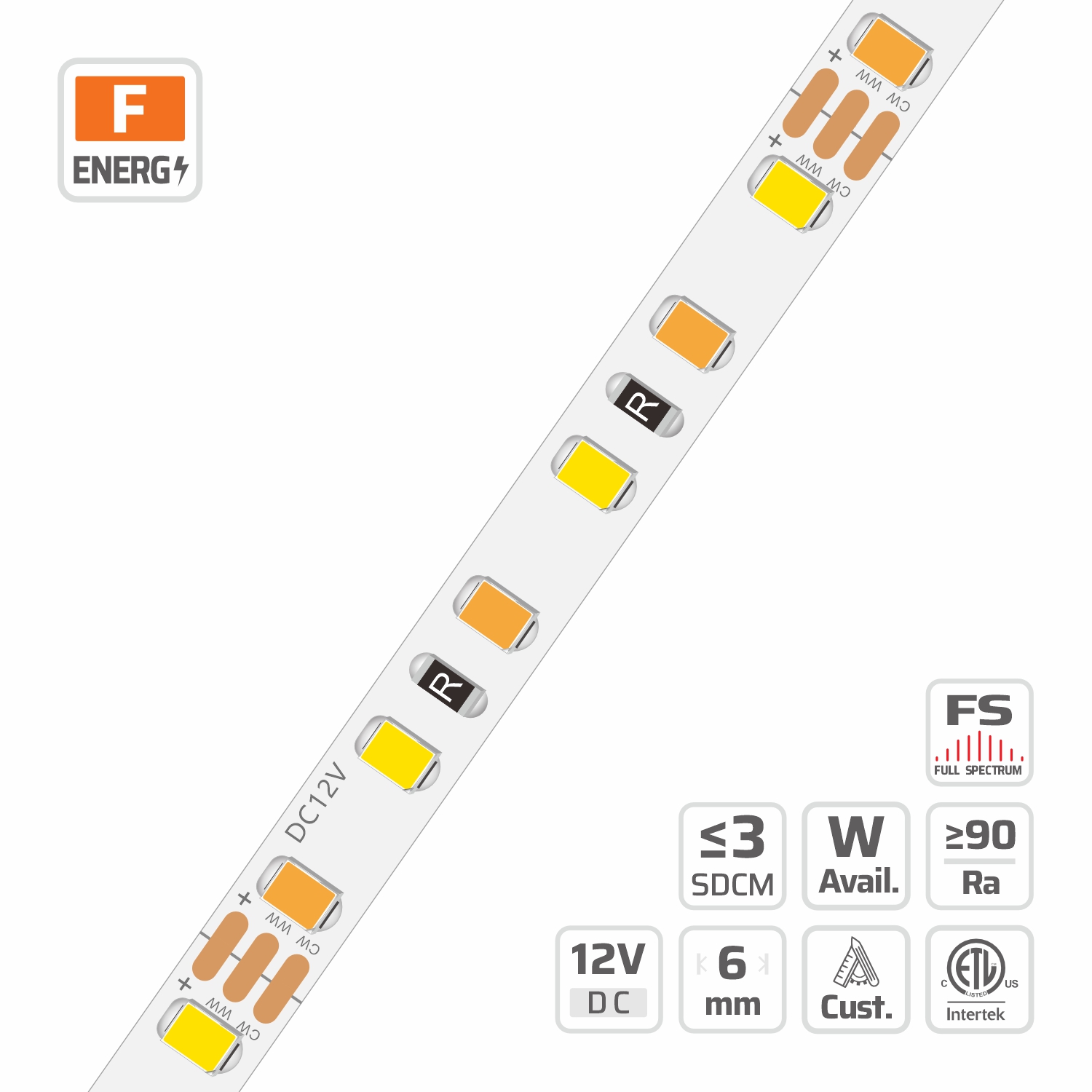

2835 CCT LED Strip Light (#1727)
6mm · 12V · 120LEDs · 50mm/cut
Model: 1727
Overview
2835 CCT LED Strip Light | 6mm | 12V | 120LEDs | 50mm/cut | #1727 is part of the DENO CCT SMD Strips series, engineered around tunable white LED strip. Key specifications: 2835, 120 LEDs/m, DC 12V, 6mm PCB, 3oz copper FPCB, cuttable 6LEDs/50mm, IP20. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This narrow 6mm 2835 CCT LED strip light features 120 LEDs per meter on a robust 3oz copper PCB for consistent linear illumination. A pure copper LED frame with 99.9% purity gold wire encapsulation protects the internal components from mechanical damage across demanding commercial installations. Engineered with a 50mm cut increment and dimming support, this DC 12V constant-voltage design integrates smoothly into slim architectural lighting channels. Rated IP20 with a 5m maximum run length, this product is manufactured for factory-direct wholesale project supply and OEM specifications.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| LED QTY | 120 LEDs/m |
|---|---|
| PART NO | DL-F28A60V12-1727-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 6LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 8.3mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 6mm |
| WARRANTY | 5 Years |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 12~24W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | DC 12V |
| OPERATING TEMPERATURE | -20°C ~ +50°C |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Hotel & residential tunable-white scenes — Hotel rooms, residential living areas and meeting spaces where warm evening light and neutral daytime light are both required from one fixture.
Recommended accessories & compatible parts
- DL-1010 — 10x10mm Surface Mount LED Channel — U Shape Aluminum Profile for 6mm Strip: Accepts LED strips up to 6mm wide.
- DL-1010HX-F — 15.2x10.4mm Slim Recessed LED Channel with Flange — Shallow Plaster-in Aluminum Profile: Accepts LED strips up to 6mm wide.
- DL-1013 — 10x13mm Surface Mount LED Channel — Deep U Shape Aluminum Profile: Accepts LED strips up to 6mm wide.
- V2 — 12-24VDC 2-Channel * 5A Color Temperature Controller | V2: Matched by input voltage range and colour channels.
Request a quotation for #1727
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 169.9 lm/W at 6500K, Ra 80, ErP energy class D (Grade DN (1st Tier) · CCT 3-Anchor · 12W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DN (1st Tier) · CCT 3-Anchor · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 153.1 lm/W | 918.8 lm/m | D | 124.3 lm/W | 745.7 lm/m | E | 96.9 lm/W | 581.7 lm/m | F |
| 4000 K | 154.6 lm/W | 1855.4 lm/m | D | 125.6 lm/W | 1506.8 lm/m | E | 97.9 lm/W | 1174.8 lm/m | F |
| 6500 K | 169.9 lm/W | 1019.7 lm/m | D | 138.1 lm/W | 828.8 lm/m | E | 107.7 lm/W | 646.1 lm/m | F |
Grade DN (1st Tier) · CCT 3-Anchor · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 150.6 lm/W | 1084.1 lm/m | D | 122.2 lm/W | 879.9 lm/m | E | 95.3 lm/W | 686.3 lm/m | F |
| 4000 K | 152 lm/W | 2189.3 lm/m | D | 123.5 lm/W | 1778 lm/m | E | 96.3 lm/W | 1386.2 lm/m | F |
| 6500 K | 167.1 lm/W | 1203.1 lm/m | D | 135.8 lm/W | 977.9 lm/m | E | 105.9 lm/W | 762.4 lm/m | F |
Grade DN (1st Tier) · CCT 3-Anchor · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 145.6 lm/W | 1397.5 lm/m | E | 118.2 lm/W | 1134.4 lm/m | F | 92.2 lm/W | 884.8 lm/m | F |
| 4000 K | 147 lm/W | 2822.3 lm/m | D | 119.4 lm/W | 2292 lm/m | E | 93.1 lm/W | 1787 lm/m | F |
| 6500 K | 161.6 lm/W | 1551 lm/m | D | 131.3 lm/W | 1260.6 lm/m | E | 102.4 lm/W | 982.8 lm/m | F |
Grade DN (1st Tier) · CCT 3-Anchor · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 140.8 lm/W | 1689 lm/m | E | 114.2 lm/W | 1370.9 lm/m | F | 89.1 lm/W | 1069.3 lm/m | G |
| 4000 K | 142.1 lm/W | 3410.9 lm/m | E | 115.4 lm/W | 2770 lm/m | F | 90 lm/W | 2159.7 lm/m | G |
| 6500 K | 156.2 lm/W | 1874.5 lm/m | D | 127 lm/W | 1523.5 lm/m | E | 99 lm/W | 1187.8 lm/m | F |
Grade DL (2nd Tier) · CCT 3-Anchor · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 129.9 lm/W | 779.6 lm/m | E | 105.3 lm/W | 632.1 lm/m | F | 82.2 lm/W | 492.9 lm/m | G |
| 4000 K | 131.3 lm/W | 1575.8 lm/m | E | 106.4 lm/W | 1277 lm/m | F | 83 lm/W | 996 lm/m | G |
| 6500 K | 144.2 lm/W | 865.1 lm/m | D | 117.1 lm/W | 702.3 lm/m | E | 91.3 lm/W | 547.8 lm/m | F |
Grade DL (2nd Tier) · CCT 3-Anchor · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 127.8 lm/W | 919.9 lm/m | E | 103.6 lm/W | 745.8 lm/m | F | 80.8 lm/W | 581.6 lm/m | G |
| 4000 K | 129.1 lm/W | 1859.3 lm/m | E | 104.6 lm/W | 1506.7 lm/m | F | 81.6 lm/W | 1175.3 lm/m | G |
| 6500 K | 141.8 lm/W | 1020.8 lm/m | D | 115.1 lm/W | 828.7 lm/m | E | 89.8 lm/W | 646.4 lm/m | F |
Grade DL (2nd Tier) · CCT 3-Anchor · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 123.5 lm/W | 1185.8 lm/m | E | 100.2 lm/W | 961.5 lm/m | F | 78.1 lm/W | 749.8 lm/m | G |
| 4000 K | 124.8 lm/W | 2396.9 lm/m | E | 101.2 lm/W | 1942.4 lm/m | F | 78.9 lm/W | 1515.1 lm/m | G |
| 6500 K | 137.1 lm/W | 1316 lm/m | D | 111.3 lm/W | 1068.3 lm/m | E | 86.8 lm/W | 833.3 lm/m | F |
Grade DL (2nd Tier) · CCT 3-Anchor · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 119.4 lm/W | 1433.1 lm/m | E | 96.8 lm/W | 1162 lm/m | F | 75.5 lm/W | 906.1 lm/m | G |
| 4000 K | 120.7 lm/W | 2896.8 lm/m | E | 97.8 lm/W | 2347.5 lm/m | F | 76.3 lm/W | 1831 lm/m | G |
| 6500 K | 132.5 lm/W | 1590.4 lm/m | E | 107.6 lm/W | 1291.1 lm/m | F | 83.9 lm/W | 1007.1 lm/m | G |
Grade KE (3rd Tier) · CCT 3-Anchor · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 104.3 lm/W | 625.7 lm/m | F | 84.3 lm/W | 505.7 lm/m | G | 65.8 lm/W | 394.6 lm/m | G |
| 4000 K | 105.3 lm/W | 1264.2 lm/m | F | 85.1 lm/W | 1021.6 lm/m | F | 66.4 lm/W | 796.8 lm/m | G |
| 6500 K | 115.7 lm/W | 694 lm/m | E | 93.6 lm/W | 561.9 lm/m | F | 73 lm/W | 438 lm/m | G |
Grade KE (3rd Tier) · CCT 3-Anchor · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 102.5 lm/W | 738.3 lm/m | F | 82.9 lm/W | 596.7 lm/m | G | 64.7 lm/W | 465.6 lm/m | G |
| 4000 K | 103.6 lm/W | 1491.7 lm/m | F | 83.7 lm/W | 1205.4 lm/m | G | 65.3 lm/W | 940.2 lm/m | G |
| 6500 K | 113.7 lm/W | 818.9 lm/m | E | 92.1 lm/W | 663 lm/m | F | 71.8 lm/W | 516.8 lm/m | G |
Grade KE (3rd Tier) · CCT 3-Anchor · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 99.1 lm/W | 951.8 lm/m | F | 80.1 lm/W | 769.2 lm/m | G | 62.5 lm/W | 600.2 lm/m | G |
| 4000 K | 100.2 lm/W | 1923 lm/m | F | 80.9 lm/W | 1553.9 lm/m | G | 63.1 lm/W | 1212 lm/m | G |
| 6500 K | 110 lm/W | 1055.7 lm/m | F | 89 lm/W | 854.6 lm/m | F | 69.4 lm/W | 666.2 lm/m | G |
Grade KE (3rd Tier) · CCT 3-Anchor · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 95.9 lm/W | 1150.3 lm/m | F | 77.5 lm/W | 929.6 lm/m | G | 60.4 lm/W | 725.4 lm/m | G |
| 4000 K | 96.8 lm/W | 2324 lm/m | F | 78.2 lm/W | 1878 lm/m | G | 61 lm/W | 1464.8 lm/m | G |
| 6500 K | 106.3 lm/W | 1275.9 lm/m | F | 86.1 lm/W | 1032.9 lm/m | F | 67.1 lm/W | 805.2 lm/m | G |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 24W/m, 1727 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 6mm wide, so it needs at least 8mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 10x10mm Surface Mount LED Channel · fits ≤6mm strip
- 12x8mm Surface Mount LED Channel · fits ≤6mm strip
- 15.2x10.4mm Slim Recessed LED Channel with Flange · fits ≤6mm strip
- 16x16mm V Shape Corner LED Channel · fits ≤6mm strip
- 10x13mm Surface Mount LED Channel · fits ≤6mm strip
- 14x8mm Magnetic LED Channel · fits ≤8mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 6mm wide, so it needs a channel with at least 8mm inner width (6mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- 2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 1727?
1727: 2835, 120 LEDs/m, DC 12V, 6mm PCB, 3oz copper FPCB, cuttable 6LEDs/50mm, IP20. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What colour temperatures and CRI options does this tunable white LED strip offer?
This model is supplied as a tunable white LED strip with high CRI options and the CCT range listed in the datasheet. DENO bins every batch for colour consistency, and custom CCT or spectrum combinations can be produced for project quantities.
Can DENO customise this tunable white LED strip for a project?
Yes. DENO manufactures the CCT SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How does a tunable white LED strip mix colour temperature?
Two LED channels, typically 2700K and 6500K, sit on the same FPCB and are dimmed against each other. Mixing the channels sweeps the white point along the black body line while total output stays even, which is how a CCT LED strip supports circadian and human centric lighting schedules.
Which LED driver and run length suit #1727?
2835 CCT LED Strip Light | 6mm | 12V | 120LEDs | 50mm/cut | #1727 is a constant-voltage DC 12V product, so pair it with a CE or UL listed DC 12V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
