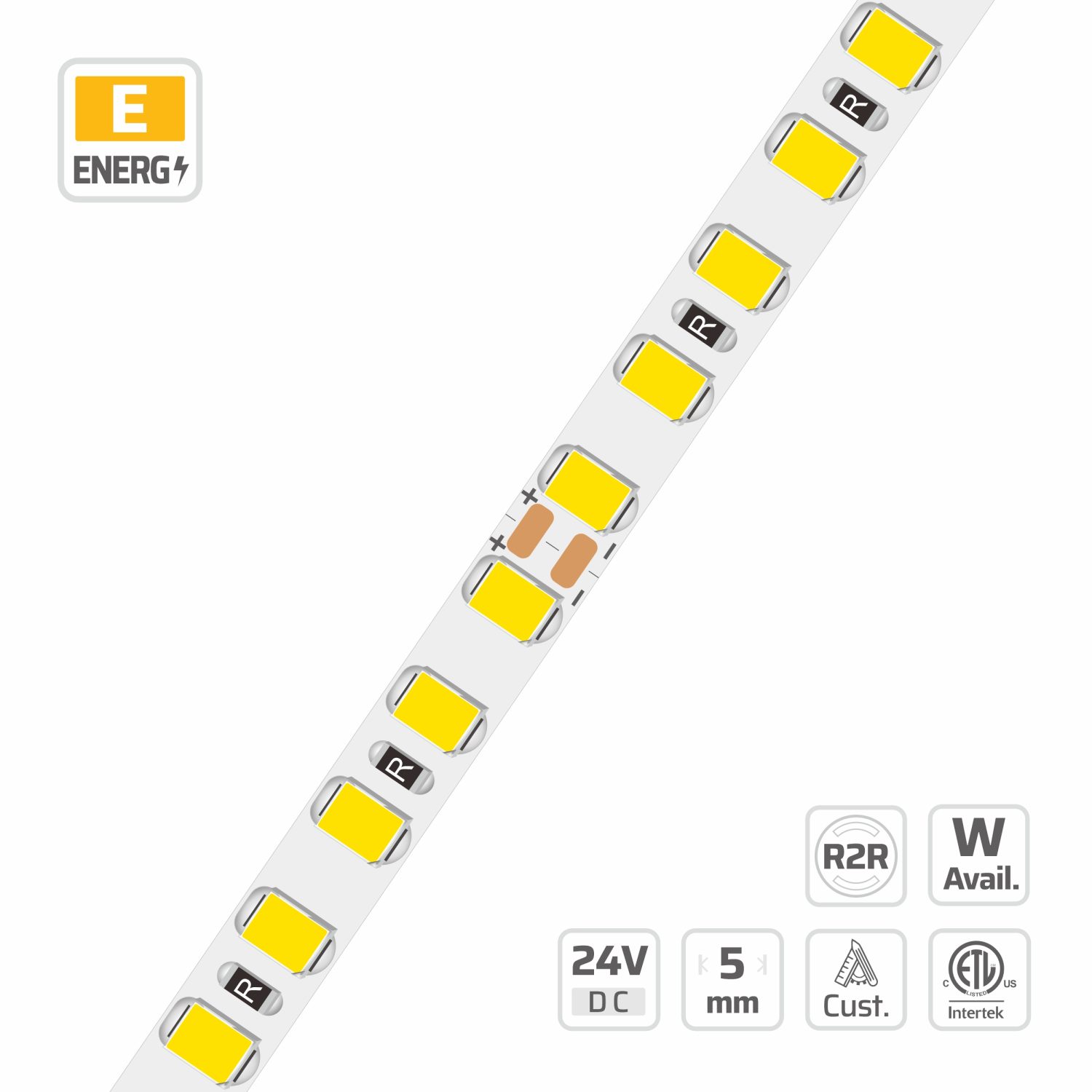

Roll-to-Roll Long Reel LED Strip Light (#16774)

5mm · 24V · 168LEDs · 35.714mm/cut

Model: 16774

Overview

Roll-to-Roll Long Reel LED Strip Light | 5mm | 24V | 168LEDs | 35.714mm/cut | #16774 is part of the DENO Roll-to-Roll SMD Strips series, engineered around roll to roll LED strip. Key specifications: 2835, 168 LEDs/m, 24V, 5 PCB, 2oz copper FPCB, cuttable 6LEDs/35.714mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request. This model uses DENO's electroplated, non-die-cut R2R FPCB, with no intermediate PCB splice joints inside the specified continuous length. Cutting interval, rated run length and planned feed positions remain model-specific.

Description

Built on DENO's electroplated, non-die-cut R2R FPCB, this model has no intermediate PCB splice joints within its specified continuous length. Cutting interval, rated run length and feed positions remain model-specific.\nRoll-to-roll manufacturing removes the periodic board-to-board solder junctions found on sheet-to-sheet tape, leaving no intermediate PCB splice joints on the reel. Engineered with a slim 5mm 2oz copper PCB, this 24V LED strip light ensures effective thermal dissipation and steady electrical performance. Featuring 168 high-density 2835 SMD LEDs per meter with precise 35.714mm cutting increments, it delivers smooth dimmable illumination with a 120-degree beam angle. A single continuous SMT pass places every LED on the roll, supporting even light output along long uninterrupted runs. Optimized for retail and commercial displays, this constant voltage LED strip light is available for wholesale project supply and OEM manufacturing requirements.

Roll To Roll Led Strip built for roll-to-roll smd strips projects.

Specifications

LED QTY	168 LEDs/m
PART NO	DL-F28A84V24-16774-*
SMD TYPE	2835
CUTTABLE UNIT	6LEDs/35.714mm
DIMMABLE	Yes
IP RATING	IP20
LED PITCH	5.952mm
PCB WIDTH	5
BEAM ANGLE	120°
RUN LENGTH	5m
COPPER FOIL	2oz
POWER RANGE	4~40W
CIRCUIT TYPE	C.V.
INPUT VOLTAGE	24V
OPERATING TEMPERATURE	-25~40°C;Tc：75°C（max）

Applications

Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Ultra-narrow 5mm channels & shadow gaps — Fits shadow-gap details, slim profiles and joinery grooves that cannot take a standard 8–10mm strip.

Recommended accessories & compatible parts

DL-0809HX-F — 8.89x7.79mm Mini Recessed LED Channel with Flange — Trimless Aluminum Profile for 5mm Strip: Accepts LED strips up to 5mm wide.
DL-0909HX-M — 9x9mm Magnetic LED Channel — Tool-Free Aluminum Profile for Shelf Lighting: Accepts LED strips up to 5mm wide.
DL-1010HX-V — 10x10mm V Shape Corner LED Channel — 45 Degree Aluminum Profile for Cabinets: Accepts LED strips up to 5mm wide.
DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #16774

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

Warranty: 5 years
Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
Compliance: CE · UL · RoHS
Bonding wire: 99.99% pure gold
Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 179.4 lm/W at 4000K, Ra 80, ErP energy class C (Grade DN (1st Tier) · 10W/m).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

Grade DL (2nd Tier) · 10W/m

Grade DL (2nd Tier) · 10W/m — measured at 10 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	130.1 lm/W	1300.7 lm/m	E	104.3 lm/W	1043.5 lm/m	F	—	—	—
2300 K	144.8 lm/W	1448.4 lm/m	D	116.2 lm/W	1162.3 lm/m	E	94.5 lm/W	945 lm/m	E
2700 K	152.9 lm/W	1529 lm/m	D	125.7 lm/W	1257.3 lm/m	E	101.9 lm/W	1018.7 lm/m	F
3000 K	163 lm/W	1630.3 lm/m	C	132.3 lm/W	1323.4 lm/m	E	107.7 lm/W	1076.5 lm/m	F
3500 K	165.5 lm/W	1655.1 lm/m	C	134.7 lm/W	1347.2 lm/m	E	110.9 lm/W	1108.5 lm/m	E
4000 K	170.8 lm/W	1707.8 lm/m	C	137.9 lm/W	1379.2 lm/m	D	113.9 lm/W	1138.5 lm/m	E
5000 K	170.6 lm/W	1705.7 lm/m	C	137.8 lm/W	1378.2 lm/m	D	112.7 lm/W	1127.1 lm/m	E
6500 K	156.3 lm/W	1563.1 lm/m	D	132.2 lm/W	1322.4 lm/m	E	109.3 lm/W	1093 lm/m	E

Grade DL (2nd Tier) · 16.8W/m

Grade DL (2nd Tier) · 16.8W/m — measured at 16.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	124 lm/W	2083.3 lm/m	E	99.5 lm/W	1671.2 lm/m	F	—	—	—
2300 K	138.1 lm/W	2319.9 lm/m	D	110.8 lm/W	1861.5 lm/m	E	90.1 lm/W	1513.5 lm/m	F
2700 K	145.8 lm/W	2449 lm/m	D	119.9 lm/W	2013.8 lm/m	E	97.1 lm/W	1631.5 lm/m	F
3000 K	155.4 lm/W	2611.1 lm/m	D	126.2 lm/W	2119.7 lm/m	E	102.6 lm/W	1724.2 lm/m	F
3500 K	157.8 lm/W	2650.8 lm/m	D	128.4 lm/W	2157.7 lm/m	E	105.7 lm/W	1775.5 lm/m	F
4000 K	162.8 lm/W	2735.2 lm/m	C	131.5 lm/W	2209 lm/m	E	108.5 lm/W	1823.5 lm/m	F
5000 K	162.6 lm/W	2731.9 lm/m	C	131.4 lm/W	2207.4 lm/m	E	107.5 lm/W	1805.2 lm/m	F
6500 K	149 lm/W	2503.6 lm/m	D	126.1 lm/W	2118 lm/m	E	104.2 lm/W	1750.5 lm/m	F

Grade DL (2nd Tier) · 24W/m

Grade DL (2nd Tier) · 24W/m — measured at 24 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	117.9 lm/W	2829.3 lm/m	E	94.6 lm/W	2269.7 lm/m	F	—	—	—
2300 K	131.3 lm/W	3150.7 lm/m	E	105.3 lm/W	2528.2 lm/m	F	85.6 lm/W	2055.5 lm/m	F
2700 K	138.6 lm/W	3326 lm/m	D	114 lm/W	2734.9 lm/m	E	92.3 lm/W	2215.8 lm/m	F
3000 K	147.8 lm/W	3546.2 lm/m	D	119.9 lm/W	2878.8 lm/m	E	97.6 lm/W	2341.7 lm/m	F
3500 K	150 lm/W	3600.1 lm/m	D	122.1 lm/W	2930.4 lm/m	E	100.5 lm/W	2411.3 lm/m	F
4000 K	154.8 lm/W	3714.7 lm/m	D	125 lm/W	3000.1 lm/m	E	103.2 lm/W	2476.5 lm/m	F
5000 K	154.6 lm/W	3710.3 lm/m	D	124.9 lm/W	2997.9 lm/m	E	102.2 lm/W	2451.7 lm/m	F
6500 K	141.7 lm/W	3400.1 lm/m	D	119.9 lm/W	2876.5 lm/m	E	99.1 lm/W	2377.4 lm/m	F

Grade DL (2nd Tier) · 30W/m

Grade DL (2nd Tier) · 30W/m — measured at 30 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	113 lm/W	3390.7 lm/m	E	90.7 lm/W	2720.1 lm/m	F	—	—	—
2300 K	125.9 lm/W	3775.8 lm/m	E	101 lm/W	3029.8 lm/m	F	82.1 lm/W	2463.3 lm/m	F
2700 K	132.9 lm/W	3985.9 lm/m	E	109.3 lm/W	3277.6 lm/m	F	88.5 lm/W	2655.5 lm/m	F
3000 K	141.7 lm/W	4249.8 lm/m	D	115 lm/W	3449.9 lm/m	E	93.5 lm/W	2806.3 lm/m	F
3500 K	143.8 lm/W	4314.4 lm/m	D	117.1 lm/W	3511.9 lm/m	E	96.3 lm/W	2889.8 lm/m	F
4000 K	148.4 lm/W	4451.8 lm/m	D	119.8 lm/W	3595.4 lm/m	E	98.9 lm/W	2967.9 lm/m	F
5000 K	148.2 lm/W	4446.4 lm/m	D	119.8 lm/W	3592.7 lm/m	E	97.9 lm/W	2938.2 lm/m	F
6500 K	135.8 lm/W	4074.7 lm/m	D	114.9 lm/W	3447.2 lm/m	E	95 lm/W	2849.1 lm/m	F

Grade DN (1st Tier) · 10W/m

Grade DN (1st Tier) · 10W/m — measured at 10 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	140.5 lm/W	1405.1 lm/m	E	118.4 lm/W	1184 lm/m	F	—	—	—
2300 K	153.2 lm/W	1532.1 lm/m	D	132.1 lm/W	1321.4 lm/m	E	106.2 lm/W	1062.4 lm/m	E
2700 K	165.2 lm/W	1652 lm/m	D	143 lm/W	1429.9 lm/m	E	115.9 lm/W	1159.2 lm/m	F
3000 K	173.5 lm/W	1734.6 lm/m	C	150.9 lm/W	1509.4 lm/m	D	122.7 lm/W	1227.4 lm/m	E
3500 K	176 lm/W	1760.5 lm/m	C	154.2 lm/W	1542.5 lm/m	D	127 lm/W	1269.7 lm/m	E
4000 K	179.4 lm/W	1793.5 lm/m	C	155.1 lm/W	1550.7 lm/m	D	128 lm/W	1280 lm/m	E
5000 K	179.1 lm/W	1791.4 lm/m	C	156.1 lm/W	1561.1 lm/m	D	126.7 lm/W	1267.2 lm/m	E
6500 K	171.7 lm/W	1717.1 lm/m	D	149.2 lm/W	1491.8 lm/m	D	122.9 lm/W	1228.8 lm/m	E

Grade DN (1st Tier) · 16.8W/m

Grade DN (1st Tier) · 16.8W/m — measured at 16.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	134 lm/W	2250.4 lm/m	E	112.9 lm/W	1896.3 lm/m	F	—	—	—
2300 K	146.1 lm/W	2453.9 lm/m	D	126 lm/W	2116.4 lm/m	E	101.3 lm/W	1701.6 lm/m	E
2700 K	157.5 lm/W	2645.9 lm/m	D	136.3 lm/W	2290.1 lm/m	E	110.5 lm/W	1856.6 lm/m	F
3000 K	165.4 lm/W	2778.2 lm/m	D	143.9 lm/W	2417.5 lm/m	E	117 lm/W	1965.8 lm/m	F
3500 K	167.8 lm/W	2819.6 lm/m	D	147.1 lm/W	2470.5 lm/m	D	121 lm/W	2033.6 lm/m	E
4000 K	171 lm/W	2872.6 lm/m	D	147.8 lm/W	2483.7 lm/m	D	122 lm/W	2050.2 lm/m	E
5000 K	170.8 lm/W	2869.3 lm/m	D	148.8 lm/W	2500.3 lm/m	D	120.8 lm/W	2029.7 lm/m	E
6500 K	163.7 lm/W	2750.1 lm/m	D	142.2 lm/W	2389.4 lm/m	E	117.2 lm/W	1968.2 lm/m	E

Grade DN (1st Tier) · 24W/m

Grade DN (1st Tier) · 24W/m — measured at 24 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	127.3 lm/W	3056.3 lm/m	E	107.3 lm/W	2575.4 lm/m	F	—	—	—
2300 K	138.9 lm/W	3332.7 lm/m	E	119.8 lm/W	2874.3 lm/m	E	96.3 lm/W	2311 lm/m	F
2700 K	149.7 lm/W	3593.4 lm/m	D	129.6 lm/W	3110.2 lm/m	E	105.1 lm/W	2521.4 lm/m	F
3000 K	157.2 lm/W	3773.2 lm/m	D	136.8 lm/W	3283.3 lm/m	E	111.2 lm/W	2669.8 lm/m	F
3500 K	159.6 lm/W	3829.4 lm/m	D	139.8 lm/W	3355.2 lm/m	E	115.1 lm/W	2761.9 lm/m	F
4000 K	162.6 lm/W	3901.3 lm/m	D	140.5 lm/W	3373.2 lm/m	E	116 lm/W	2784.4 lm/m	F
5000 K	162.4 lm/W	3896.8 lm/m	D	141.5 lm/W	3395.6 lm/m	E	114.9 lm/W	2756.5 lm/m	F
6500 K	155.6 lm/W	3735 lm/m	D	135.2 lm/W	3245.1 lm/m	E	111.4 lm/W	2673 lm/m	F

Grade DN (1st Tier) · 30W/m

Grade DN (1st Tier) · 30W/m — measured at 30 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	122.1 lm/W	3662.7 lm/m	E	102.9 lm/W	3086.4 lm/m	F	—	—	—
2300 K	133.1 lm/W	3994 lm/m	E	114.8 lm/W	3444.5 lm/m	F	92.3 lm/W	2769.6 lm/m	F
2700 K	143.5 lm/W	4306.4 lm/m	E	124.2 lm/W	3727.3 lm/m	E	100.7 lm/W	3021.7 lm/m	F
3000 K	150.7 lm/W	4521.8 lm/m	D	131.2 lm/W	3934.7 lm/m	E	106.6 lm/W	3199.5 lm/m	F
3500 K	153 lm/W	4589.1 lm/m	D	134 lm/W	4020.9 lm/m	E	110.3 lm/W	3309.9 lm/m	F
4000 K	155.8 lm/W	4675.3 lm/m	D	134.7 lm/W	4042.4 lm/m	E	111.2 lm/W	3336.8 lm/m	F
5000 K	155.7 lm/W	4669.9 lm/m	D	135.6 lm/W	4069.4 lm/m	E	110.1 lm/W	3303.5 lm/m	F
6500 K	149.2 lm/W	4476 lm/m	D	129.6 lm/W	3888.9 lm/m	E	106.8 lm/W	3203.3 lm/m	F

Grade KE (3rd Tier) · 10W/m

Grade KE (3rd Tier) · 10W/m — measured at 10 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	109.2 lm/W	1092 lm/m	F	87.4 lm/W	874 lm/m	F	—	—	—
2300 K	121.8 lm/W	1218.1 lm/m	E	97.4 lm/W	974.2 lm/m	F	79.7 lm/W	796.6 lm/m	F
2700 K	131.2 lm/W	1312.1 lm/m	E	105.7 lm/W	1056.9 lm/m	F	85.6 lm/W	856.5 lm/m	F
3000 K	137.8 lm/W	1378.2 lm/m	D	111.7 lm/W	1116.8 lm/m	E	90.8 lm/W	908.1 lm/m	F
3500 K	139.9 lm/W	1398.9 lm/m	D	113.9 lm/W	1138.5 lm/m	E	93.7 lm/W	937.1 lm/m	F
4000 K	144 lm/W	1440.2 lm/m	D	116.3 lm/W	1163.3 lm/m	E	96 lm/W	959.8 lm/m	F
5000 K	143.8 lm/W	1438.1 lm/m	D	116.3 lm/W	1163.3 lm/m	E	95 lm/W	950.2 lm/m	F
6500 K	137.8 lm/W	1378.2 lm/m	D	111.7 lm/W	1116.8 lm/m	E	92.1 lm/W	921.4 lm/m	F

Grade KE (3rd Tier) · 16.8W/m

Grade KE (3rd Tier) · 16.8W/m — measured at 16.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	104.1 lm/W	1749 lm/m	F	83.3 lm/W	1399.9 lm/m	G	—	—	—
2300 K	116.1 lm/W	1950.9 lm/m	E	92.9 lm/W	1560.4 lm/m	F	75.9 lm/W	1275.9 lm/m	F
2700 K	125.1 lm/W	2101.5 lm/m	E	100.8 lm/W	1692.8 lm/m	F	81.7 lm/W	1371.7 lm/m	G
3000 K	131.4 lm/W	2207.4 lm/m	E	106.5 lm/W	1788.7 lm/m	F	86.6 lm/W	1454.5 lm/m	F
3500 K	133.4 lm/W	2240.5 lm/m	E	108.5 lm/W	1823.5 lm/m	F	89.3 lm/W	1500.8 lm/m	F
4000 K	137.3 lm/W	2306.7 lm/m	D	110.9 lm/W	1863.2 lm/m	E	91.5 lm/W	1537.2 lm/m	F
5000 K	137.1 lm/W	2303.3 lm/m	D	110.9 lm/W	1863.2 lm/m	E	90.6 lm/W	1521.8 lm/m	F
6500 K	131.4 lm/W	2207.4 lm/m	E	106.5 lm/W	1788.7 lm/m	F	87.8 lm/W	1475.7 lm/m	F

Grade KE (3rd Tier) · 24W/m

Grade KE (3rd Tier) · 24W/m — measured at 24 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	99 lm/W	2375.4 lm/m	F	79.2 lm/W	1901.2 lm/m	G	—	—	—
2300 K	110.4 lm/W	2649.5 lm/m	E	88.3 lm/W	2119.2 lm/m	F	72.2 lm/W	1732.8 lm/m	F
2700 K	118.9 lm/W	2854 lm/m	E	95.8 lm/W	2299 lm/m	F	77.6 lm/W	1863 lm/m	G
3000 K	124.9 lm/W	2997.9 lm/m	E	101.2 lm/W	2429.3 lm/m	F	82.3 lm/W	1975.4 lm/m	G
3500 K	126.8 lm/W	3042.8 lm/m	E	103.2 lm/W	2476.5 lm/m	F	84.9 lm/W	2038.3 lm/m	G
4000 K	130.5 lm/W	3132.7 lm/m	E	105.4 lm/W	2530.4 lm/m	F	87 lm/W	2087.7 lm/m	F
5000 K	130.3 lm/W	3128.2 lm/m	E	105.4 lm/W	2530.4 lm/m	F	86.1 lm/W	2066.8 lm/m	F
6500 K	124.9 lm/W	2997.9 lm/m	E	101.2 lm/W	2429.3 lm/m	F	83.5 lm/W	2004.2 lm/m	F

Grade KE (3rd Tier) · 30W/m

Grade KE (3rd Tier) · 30W/m — measured at 30 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	94.9 lm/W	2846.7 lm/m	F	75.9 lm/W	2278.4 lm/m	G	—	—	—
2300 K	105.8 lm/W	3175.2 lm/m	F	84.7 lm/W	2539.6 lm/m	G	69.2 lm/W	2076.6 lm/m	G
2700 K	114 lm/W	3420.3 lm/m	E	91.8 lm/W	2755.1 lm/m	F	74.4 lm/W	2232.6 lm/m	G
3000 K	119.8 lm/W	3592.7 lm/m	E	97 lm/W	2911.3 lm/m	F	78.9 lm/W	2367.3 lm/m	G
3500 K	121.6 lm/W	3646.5 lm/m	E	98.9 lm/W	2967.9 lm/m	F	81.4 lm/W	2442.7 lm/m	G
4000 K	125.1 lm/W	3754.3 lm/m	E	101.1 lm/W	3032.5 lm/m	F	83.4 lm/W	2501.9 lm/m	G
5000 K	125 lm/W	3748.9 lm/m	E	101.1 lm/W	3032.5 lm/m	F	82.6 lm/W	2476.9 lm/m	G
6500 K	119.8 lm/W	3592.7 lm/m	E	97 lm/W	2911.3 lm/m	F	80.1 lm/W	2401.9 lm/m	G

High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide

At up to 30W/m, 16774 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.

Why high-wattage strips need a heat sink

Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.

Sizing rule: FPC width vs channel inner width

Channel inner width ≥ FPC width + 2mm. This strip is 5mm wide, so it needs at least 7mm of inner width.
The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.

Aluminum channels that fit this strip

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 5mm wide, so it needs a channel with at least 7mm inner width (5mm + 2mm clearance). Every profile below meets that.

Related models in this series

See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 16774?

16774: 2835, 168 LEDs/m, 24V, 5 PCB, 2oz copper FPCB, cuttable 6LEDs/35.714mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

What makes the construction of this roll to roll LED strip different?

It is built as a roll to roll LED strip on 2oz copper FPCB with a cutting unit of 6LEDs/35.714mm and an LED pitch of 5.952mm, so it holds its electrical and mechanical performance where standard strips fail.

Can DENO customise this roll to roll LED strip for a project?

Yes. DENO manufactures the Roll-to-Roll SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

How long can this LED strip roll run in one continuous piece?

This model ships as a continuous roll-to-roll reel with no mid-reel solder joints, so custom single runs beyond the standard 5 m are available. Keep the run within a 3% voltage drop: lower power densities support up to 20 m single-end, higher densities need a both-ends or mid-feed connection. Use the DENO ProCalc voltage-drop tool to confirm the exact limit for your length.

Why choose a roll-to-roll strip over a standard 5 m LED strip reel?

The electroplated continuous FPCB keeps copper thickness uniform along the whole reel, so resistance stays low, brightness stays even end to end, and there are no pieced solder points that can fail during bending or long-run installation.
