2835 High Lumen High Light Efficacy High Density LED Strip Light (#5229)
15mm · 24V · 256LEDs · 31.25mm/cut
Model: 5229
Overview

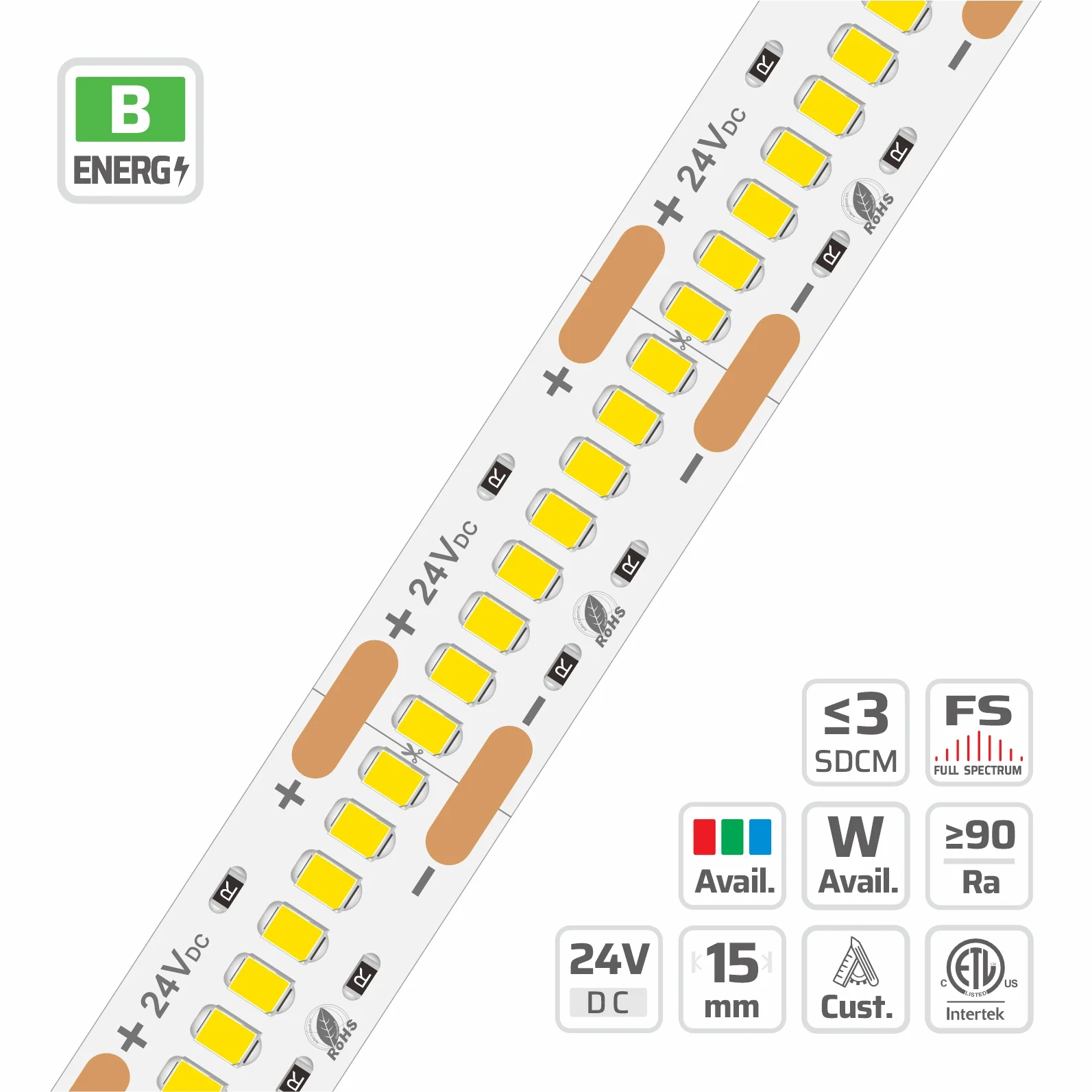

15mm | 24V | 256LEDs | 31.25mm/cut | #5229 | 2835 High Lumen High Light Efficacy High Density LED Strip Light is part of the DENO High Density LED Strips series, engineered around ultra high density LED strip. Key specifications: 2835, 256 LEDs/m, DC 24V, 15mm PCB, 3oz copper FPCB, cuttable 8LEDs/31.25mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This high density 2835 LED strip light features 256 LEDs per meter on a 15mm PCB for seamless architectural lighting. Operating on DC 24V constant voltage circuitry, the strip offers precise installation with cutting intervals of 31.25mm every eight LEDs. Engineered with 3oz copper foil and 99.9-percent pure gold wire encapsulation, the design ensures stable performance across demanding thermal environments. Providing fully dimmable output and a 120-degree beam angle, we support OEM custom lengths and factory-direct wholesale project supply.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| CCT (K) | 1900–6500K |
|---|---|
| CRI | Ra≥80 |
| POWER (W/M) | 18.6 W/m |
| LED QTY | 256 LEDs/m |
| PART NO | DL-F28A128V24-5229-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 8LEDs/31.25mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 3.9mm |
| PCB WIDTH | 15mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5M |
| COPPER FOIL | 3oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 3.8~28.8W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | DC 24V |
| LUMINOUS FLUX | 2630–3470 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-2001 — 30x9.7mm Ultra-Slim Surface LED Channel — Low Profile Aluminum Strip Housing: Accepts LED strips up to 15mm wide.
- DL-2002 — 20x02mm Ultra-Slim Surface LED Channel — Flat Aluminum LED Strip Profile: Accepts LED strips up to 15mm wide.
- DL-2010 — 20x10mm Wide Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m: Accepts LED strips up to 15mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #5229
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 216.1 lm/W at 4000K, Ra 80, ErP energy class B (Grade DN (1st Tier) · 7.7W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 7.7W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 159.7 lm/W | 1230 lm/m | D | 128.2 lm/W | 987.3 lm/m | E | — | — | — |
| 2300 K | 177.9 lm/W | 1369.6 lm/m | C | 142.9 lm/W | 1100.4 lm/m | D | 115.8 lm/W | 891.7 lm/m | E |
| 2700 K | 188.2 lm/W | 1449.4 lm/m | B | 154.6 lm/W | 1190.1 lm/m | D | 125.3 lm/W | 964.9 lm/m | E |
| 3000 K | 200.2 lm/W | 1541.7 lm/m | B | 162.7 lm/W | 1252.5 lm/m | C | 132.3 lm/W | 1018.9 lm/m | E |
| 3500 K | 203.1 lm/W | 1564.1 lm/m | B | 165.6 lm/W | 1274.9 lm/m | C | 136.2 lm/W | 1048.8 lm/m | D |
| 4000 K | 209.6 lm/W | 1614 lm/m | B | 169.6 lm/W | 1305.6 lm/m | C | 140 lm/W | 1077.9 lm/m | D |
| 5000 K | 209.4 lm/W | 1612.3 lm/m | B | 169.5 lm/W | 1304.8 lm/m | C | 139.8 lm/W | 1076.5 lm/m | D |
| 6500 K | 192 lm/W | 1478.5 lm/m | B | 162.5 lm/W | 1251.6 lm/m | C | 134.9 lm/W | 1038.7 lm/m | E |
Grade DL (2nd Tier) · 11.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 155.5 lm/W | 1788.6 lm/m | D | 124.8 lm/W | 1435.8 lm/m | E | — | — | — |
| 2300 K | 173.2 lm/W | 1991.7 lm/m | C | 139.1 lm/W | 1600.1 lm/m | D | 112.7 lm/W | 1296.1 lm/m | E |
| 2700 K | 183.3 lm/W | 2107.7 lm/m | C | 150.5 lm/W | 1730.6 lm/m | D | 122 lm/W | 1403.1 lm/m | E |
| 3000 K | 194.9 lm/W | 2241.9 lm/m | B | 158.4 lm/W | 1821.3 lm/m | D | 128.8 lm/W | 1481.7 lm/m | E |
| 3500 K | 197.8 lm/W | 2274.5 lm/m | B | 161.2 lm/W | 1853.9 lm/m | C | 132.6 lm/W | 1525.2 lm/m | E |
| 4000 K | 204.1 lm/W | 2347 lm/m | B | 165.1 lm/W | 1898.6 lm/m | C | 136.3 lm/W | 1567.5 lm/m | D |
| 5000 K | 203.9 lm/W | 2344.6 lm/m | B | 165 lm/W | 1897.4 lm/m | C | 136.1 lm/W | 1565.2 lm/m | D |
| 6500 K | 187 lm/W | 2150 lm/m | B | 158.3 lm/W | 1820.1 lm/m | D | 131.4 lm/W | 1511.1 lm/m | E |
Grade DL (2nd Tier) · 15W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 151.8 lm/W | 2276.4 lm/m | D | 121.8 lm/W | 1827.2 lm/m | E | — | — | — |
| 2300 K | 169 lm/W | 2534.8 lm/m | C | 135.8 lm/W | 2036.4 lm/m | D | 110 lm/W | 1650 lm/m | E |
| 2700 K | 178.8 lm/W | 2682.4 lm/m | C | 146.8 lm/W | 2202.5 lm/m | D | 119 lm/W | 1785.7 lm/m | E |
| 3000 K | 190.2 lm/W | 2853.1 lm/m | B | 154.5 lm/W | 2317.9 lm/m | D | 125.7 lm/W | 1885.7 lm/m | E |
| 3500 K | 193 lm/W | 2894.7 lm/m | B | 157.3 lm/W | 2359.4 lm/m | D | 129.4 lm/W | 1941.1 lm/m | E |
| 4000 K | 199.1 lm/W | 2987 lm/m | B | 161.1 lm/W | 2416.3 lm/m | C | 133 lm/W | 1994.9 lm/m | E |
| 5000 K | 198.9 lm/W | 2983.9 lm/m | B | 161 lm/W | 2414.8 lm/m | C | 132.8 lm/W | 1992 lm/m | E |
| 6500 K | 182.4 lm/W | 2736.2 lm/m | C | 154.4 lm/W | 2316.4 lm/m | D | 128.2 lm/W | 1923 lm/m | E |
Grade DN (1st Tier) · 7.7W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 169.4 lm/W | 1304.3 lm/m | D | 142.9 lm/W | 1100.2 lm/m | E | — | — | — |
| 2300 K | 184.7 lm/W | 1422 lm/m | C | 159.5 lm/W | 1227.8 lm/m | D | 129.2 lm/W | 994.8 lm/m | E |
| 2700 K | 199 lm/W | 1532.3 lm/m | C | 172.6 lm/W | 1329 lm/m | D | 139.9 lm/W | 1077.2 lm/m | E |
| 3000 K | 209 lm/W | 1609.6 lm/m | B | 182.1 lm/W | 1402.2 lm/m | C | 148.1 lm/W | 1140.5 lm/m | D |
| 3500 K | 212.1 lm/W | 1633.5 lm/m | B | 186.1 lm/W | 1432.7 lm/m | C | 153.1 lm/W | 1179.2 lm/m | D |
| 4000 K | 216.1 lm/W | 1663.9 lm/m | B | 187 lm/W | 1440.1 lm/m | C | 154.4 lm/W | 1189.1 lm/m | D |
| 5000 K | 215.8 lm/W | 1661.4 lm/m | B | 188.3 lm/W | 1450 lm/m | C | 155.4 lm/W | 1196.6 lm/m | D |
| 6500 K | 206.9 lm/W | 1593.1 lm/m | B | 180 lm/W | 1385.8 lm/m | C | 149.4 lm/W | 1150.4 lm/m | D |
Grade DN (1st Tier) · 11.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 164.9 lm/W | 1896.7 lm/m | D | 139.1 lm/W | 1599.9 lm/m | E | — | — | — |
| 2300 K | 179.8 lm/W | 2067.8 lm/m | C | 155.3 lm/W | 1785.4 lm/m | D | 125.8 lm/W | 1446.7 lm/m | E |
| 2700 K | 193.8 lm/W | 2228.2 lm/m | C | 168.1 lm/W | 1932.6 lm/m | D | 136.2 lm/W | 1566.4 lm/m | E |
| 3000 K | 203.5 lm/W | 2340.6 lm/m | B | 177.3 lm/W | 2039.1 lm/m | C | 144.2 lm/W | 1658.5 lm/m | E |
| 3500 K | 206.6 lm/W | 2375.3 lm/m | B | 181.2 lm/W | 2083.4 lm/m | C | 149.1 lm/W | 1714.8 lm/m | D |
| 4000 K | 210.4 lm/W | 2419.6 lm/m | B | 182.1 lm/W | 2094.1 lm/m | C | 150.4 lm/W | 1729.2 lm/m | D |
| 5000 K | 210.1 lm/W | 2416 lm/m | B | 183.3 lm/W | 2108.5 lm/m | C | 151.3 lm/W | 1740 lm/m | D |
| 6500 K | 201.5 lm/W | 2316.7 lm/m | B | 175.2 lm/W | 2015.1 lm/m | C | 145.4 lm/W | 1672.1 lm/m | E |
Grade DN (1st Tier) · 15W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 160.9 lm/W | 2413.8 lm/m | D | 135.7 lm/W | 2036.2 lm/m | E | — | — | — |
| 2300 K | 175.4 lm/W | 2631.6 lm/m | C | 151.5 lm/W | 2272.2 lm/m | D | 122.7 lm/W | 1840.5 lm/m | E |
| 2700 K | 189 lm/W | 2835.7 lm/m | C | 164 lm/W | 2459.5 lm/m | D | 132.9 lm/W | 1993.5 lm/m | E |
| 3000 K | 198.6 lm/W | 2978.9 lm/m | C | 173 lm/W | 2595.1 lm/m | C | 140.7 lm/W | 2110.8 lm/m | E |
| 3500 K | 201.5 lm/W | 3023 lm/m | B | 176.8 lm/W | 2651.4 lm/m | C | 145.5 lm/W | 2182.4 lm/m | E |
| 4000 K | 205.3 lm/W | 3079.4 lm/m | B | 177.7 lm/W | 2665.1 lm/m | C | 146.7 lm/W | 2200.6 lm/m | D |
| 5000 K | 205 lm/W | 3074.8 lm/m | B | 178.9 lm/W | 2683.4 lm/m | C | 147.6 lm/W | 2214 lm/m | D |
| 6500 K | 196.6 lm/W | 2948.4 lm/m | C | 171 lm/W | 2564.6 lm/m | D | 141.9 lm/W | 2128.5 lm/m | E |
Grade KE (3rd Tier) · 7.7W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 139.1 lm/W | 1071.3 lm/m | D | 111.5 lm/W | 858.9 lm/m | E | — | — | — |
| 2300 K | 155.1 lm/W | 1194.1 lm/m | D | 124.4 lm/W | 957.6 lm/m | E | 100.7 lm/W | 775.4 lm/m | F |
| 2700 K | 167.2 lm/W | 1287.1 lm/m | C | 134.9 lm/W | 1038.9 lm/m | E | 109.4 lm/W | 842.3 lm/m | F |
| 3000 K | 175.4 lm/W | 1351 lm/m | C | 142.5 lm/W | 1097 lm/m | D | 115.9 lm/W | 892.1 lm/m | E |
| 3500 K | 178.1 lm/W | 1371.7 lm/m | C | 145.3 lm/W | 1118.6 lm/m | D | 119.6 lm/W | 921.1 lm/m | E |
| 4000 K | 183.3 lm/W | 1411.5 lm/m | C | 148.4 lm/W | 1142.7 lm/m | D | 122.5 lm/W | 943.5 lm/m | E |
| 5000 K | 183.1 lm/W | 1409.9 lm/m | C | 148.4 lm/W | 1142.7 lm/m | D | 122.4 lm/W | 942.5 lm/m | E |
| 6500 K | 175.4 lm/W | 1351 lm/m | C | 142.5 lm/W | 1097 lm/m | D | 118.3 lm/W | 910.9 lm/m | E |
Grade KE (3rd Tier) · 11.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 135.5 lm/W | 1557.9 lm/m | D | 108.6 lm/W | 1248.9 lm/m | F | — | — | — |
| 2300 K | 151 lm/W | 1736.5 lm/m | D | 121.1 lm/W | 1392.5 lm/m | E | 98.1 lm/W | 1128.2 lm/m | F |
| 2700 K | 162.7 lm/W | 1871.6 lm/m | C | 131.4 lm/W | 1510.8 lm/m | E | 106.5 lm/W | 1224.8 lm/m | F |
| 3000 K | 170.8 lm/W | 1964.5 lm/m | C | 138.7 lm/W | 1595.3 lm/m | D | 112.8 lm/W | 1297.2 lm/m | E |
| 3500 K | 173.5 lm/W | 1994.7 lm/m | C | 141.4 lm/W | 1626.6 lm/m | D | 116.5 lm/W | 1339.4 lm/m | E |
| 4000 K | 178.5 lm/W | 2052.6 lm/m | C | 144.5 lm/W | 1661.6 lm/m | D | 119.3 lm/W | 1372 lm/m | E |
| 5000 K | 178.3 lm/W | 2050.2 lm/m | C | 144.5 lm/W | 1661.6 lm/m | D | 119.2 lm/W | 1370.8 lm/m | E |
| 6500 K | 170.8 lm/W | 1964.5 lm/m | C | 138.7 lm/W | 1595.3 lm/m | D | 115.1 lm/W | 1323.7 lm/m | E |
Grade KE (3rd Tier) · 15W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 132.2 lm/W | 1982.6 lm/m | E | 106 lm/W | 1589.5 lm/m | F | — | — | — |
| 2300 K | 147.3 lm/W | 2209.9 lm/m | D | 118.1 lm/W | 1772.2 lm/m | E | 95.7 lm/W | 1435.5 lm/m | F |
| 2700 K | 158.8 lm/W | 2381.9 lm/m | D | 128.2 lm/W | 1922.7 lm/m | E | 103.9 lm/W | 1558.8 lm/m | F |
| 3000 K | 166.7 lm/W | 2500.2 lm/m | C | 135.3 lm/W | 2030.2 lm/m | D | 110.1 lm/W | 1650.9 lm/m | E |
| 3500 K | 169.2 lm/W | 2538.6 lm/m | C | 138 lm/W | 2070.2 lm/m | D | 113.6 lm/W | 1704.7 lm/m | E |
| 4000 K | 174.2 lm/W | 2612.3 lm/m | C | 141 lm/W | 2114.7 lm/m | D | 116.4 lm/W | 1746.1 lm/m | E |
| 5000 K | 173.9 lm/W | 2609.2 lm/m | C | 141 lm/W | 2114.7 lm/m | D | 116.3 lm/W | 1744.5 lm/m | E |
| 6500 K | 166.7 lm/W | 2500.2 lm/m | C | 135.3 lm/W | 2030.2 lm/m | D | 112.3 lm/W | 1684.5 lm/m | E |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 15W/m, 5229 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 15mm wide, so it needs at least 17mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 20x10mm Wide Surface Mount LED Channel · fits ≤15mm strip
- 30x9.7mm Ultra-Slim Surface LED Channel · fits ≤15mm strip
- 20x02mm Ultra-Slim Surface LED Channel · fits ≤15mm strip
- 20x30mm Wide Deep LED Channel · fits ≤15mm strip
- 20x07mm 48V Surface Mount LED Channel · fits ≤17mm strip
- 20x05mm 48V Surface Mount LED Channel · fits ≤17mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 15mm wide, so it needs a channel with at least 17mm inner width (15mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 2835 Constant Current High Lumen High Light Efficacy LED Strip Light (#3410)
- 2835 Constant Current High Light Efficacy LED Strip Light (#4526)
- 2835 High Lumen High Light Efficacy High Density LED Strip Light (#5289)
- 2835 High-Efficiency Classic Stable LED Strip Light (#11586-N)
- 2835 High Light Efficacy LED Strip Light (#11076)
- 2216 Ultra-Narrow LED Strip Light (#3367)
- 2835 Hight Efficiency LED Strip Light (#16946)
- 2835 High Light Efficacy LED Strip Light (#5871)
See every model in SMD LED Strip Series or narrow to High Efficiency. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 5229?
5229: 2835, 256 LEDs/m, DC 24V, 15mm PCB, 3oz copper FPCB, cuttable 8LEDs/31.25mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra high density LED strip be?
Maximum single run for this model is 5M. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra high density LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra high density LED strip for a project?
Yes. DENO manufactures the High Density LED Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How much can a high efficacy LED strip cut energy use?
Moving from a typical 100 lm/W strip to a 180 to 200 lm/W high lumen LED strip roughly halves the wattage needed for the same lumen output. Over a long commercial run this also lowers the required driver size and helps the installation reach a better ErP energy class.
How many LEDs per metre does a dotless LED strip need?
Visible dots depend on LED pitch, diffuser distance and transmittance. Above roughly 480 LEDs/m most diffusers give a continuous line at 10 mm depth, and the 700 LEDs/m high density LED strip stays dot free even behind a shallow, highly transmissive lens.
