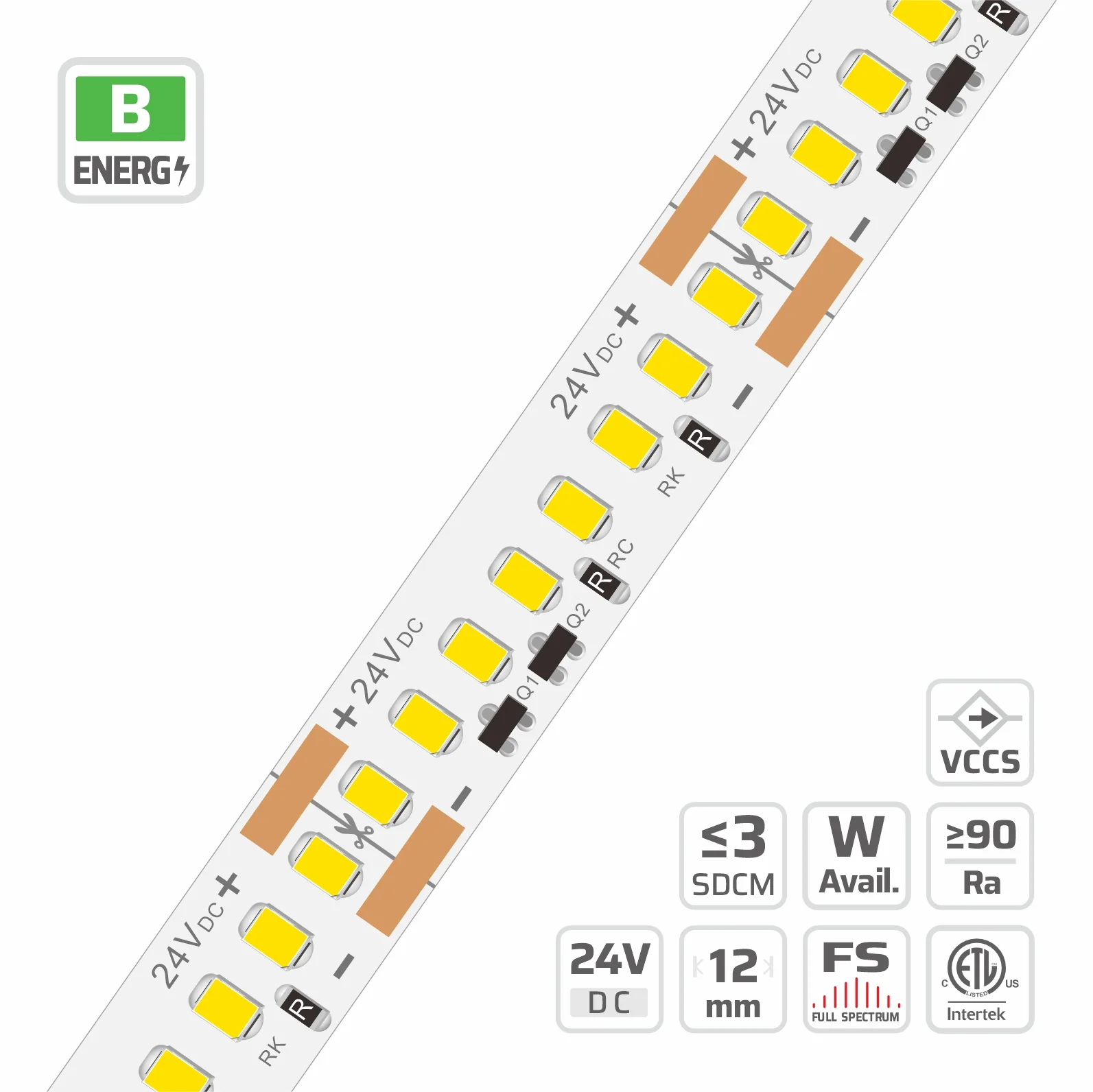

2835 High Lumen High Light Efficacy High Density LED Strip Light (#5289)
12mm · 24V · 192LEDs · 41.66cut
Model: 5289
Overview
12mm | 24V | 192LEDs | 41.66cut | #5289 | 2835 High Lumen High Light Efficacy High Density LED Strip Light is part of the DENO C.C. SMD Strips (IC Regulated) series, engineered around constant current IC LED strip. Key specifications: 2835, 192 LEDs/m, 24V, 12mm PCB, 3 oz copper FPCB, cuttable 8LEDs/41.66mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Featuring 192 LEDs per meter on a 12mm PCB, this high-density 2835 LED strip light delivers uniform illumination for architectural lighting projects. Engineered with a constant current circuit and heavy 3 oz copper foil, the 24V tape ensures stable current distribution along runs up to 5m. High-grade 2835 SMD packaging utilizes pure copper lead frames and 99.9%-purity gold wire encapsulation to enhance durability across demanding commercial environments. Each 41.66mm cutting unit containing 8 LEDs supports dimmable operation and factory-direct customization for wholesale project supply requirements. Designed with a 120-degree beam angle and a minimum 60mm bending diameter, the strip operates reliably within temperatures from -25°C to 40°C.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| CRI | Ra>80 / Ra>90 / Ra>95 |
|---|---|
| POWER (W/M) | 15.6 W/m |
| LED QTY | 192 LEDs/m |
| PART NO | DL-F28A96V24-5289-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 8LEDs/41.66mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 5.2mm |
| PCB WIDTH | 12mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3 oz |
| ON OFF TIMES | 10000（test times） |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 1845–3085 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1201 — 25x14.5mm Wide Surface Mount LED Channel — Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
- DL-1202 — 17.3x14.5mm Surface Mount LED Channel — Deep Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
- DL-1204 — 25x7mm Wide Slim Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m: Accepts LED strips up to 12mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #5289
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 208.5 lm/W at 4000K, Ra 80, ErP energy class B (Grade DN (1st Tier) · 11.5W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 11.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 149.6 lm/W | 1719.8 lm/m | D | 120.1 lm/W | 1381.1 lm/m | E | — | — | — |
| 2300 K | 166.5 lm/W | 1914.6 lm/m | C | 133.7 lm/W | 1538.1 lm/m | E | 108.3 lm/W | 1245.5 lm/m | F |
| 2700 K | 176.2 lm/W | 2026.7 lm/m | C | 144.7 lm/W | 1664.4 lm/m | D | 117.3 lm/W | 1349.2 lm/m | E |
| 3000 K | 187.4 lm/W | 2155.4 lm/m | B | 152.3 lm/W | 1751.7 lm/m | D | 123.9 lm/W | 1424.7 lm/m | E |
| 3500 K | 190.2 lm/W | 2187.3 lm/m | B | 155 lm/W | 1782.4 lm/m | D | 127.6 lm/W | 1467.2 lm/m | E |
| 4000 K | 196.3 lm/W | 2256.9 lm/m | B | 158.8 lm/W | 1826.1 lm/m | D | 131.1 lm/W | 1507.4 lm/m | E |
| 5000 K | 196 lm/W | 2254.6 lm/m | B | 158.7 lm/W | 1824.9 lm/m | D | 130.9 lm/W | 1505.4 lm/m | E |
| 6500 K | 179.8 lm/W | 2068.1 lm/m | C | 152.2 lm/W | 1750.5 lm/m | D | 126.3 lm/W | 1452.5 lm/m | E |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 146.5 lm/W | 2110.1 lm/m | D | 117.7 lm/W | 1694.5 lm/m | E | — | — | — |
| 2300 K | 163.1 lm/W | 2349.1 lm/m | C | 131 lm/W | 1887.1 lm/m | E | 106.1 lm/W | 1527.8 lm/m | F |
| 2700 K | 172.7 lm/W | 2486.7 lm/m | C | 141.8 lm/W | 2042 lm/m | D | 115 lm/W | 1655.4 lm/m | E |
| 3000 K | 183.6 lm/W | 2644.5 lm/m | C | 149.3 lm/W | 2149.2 lm/m | D | 121.4 lm/W | 1748 lm/m | E |
| 3500 K | 186.4 lm/W | 2683.6 lm/m | B | 151.9 lm/W | 2186.9 lm/m | D | 125 lm/W | 1800.2 lm/m | E |
| 4000 K | 192.3 lm/W | 2769.1 lm/m | B | 155.6 lm/W | 2240.5 lm/m | D | 128.4 lm/W | 1849.4 lm/m | E |
| 5000 K | 192.1 lm/W | 2766.2 lm/m | B | 155.5 lm/W | 2239 lm/m | D | 128.3 lm/W | 1847.5 lm/m | E |
| 6500 K | 176.2 lm/W | 2537.3 lm/m | C | 149.2 lm/W | 2147.8 lm/m | D | 123.8 lm/W | 1782.7 lm/m | E |
Grade DL (2nd Tier) · 17.3W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 143.6 lm/W | 2483.9 lm/m | D | 115.3 lm/W | 1994.7 lm/m | E | — | — | — |
| 2300 K | 159.8 lm/W | 2765.2 lm/m | D | 128.4 lm/W | 2221.4 lm/m | E | 104 lm/W | 1799.2 lm/m | F |
| 2700 K | 169.2 lm/W | 2927.2 lm/m | C | 138.9 lm/W | 2403.8 lm/m | D | 112.6 lm/W | 1948.6 lm/m | E |
| 3000 K | 179.9 lm/W | 3113 lm/m | C | 146.2 lm/W | 2530 lm/m | D | 118.9 lm/W | 2057.7 lm/m | E |
| 3500 K | 182.6 lm/W | 3159.1 lm/m | C | 148.8 lm/W | 2574.3 lm/m | D | 122.5 lm/W | 2119.1 lm/m | E |
| 4000 K | 188.4 lm/W | 3259.6 lm/m | B | 152.4 lm/W | 2637.4 lm/m | D | 125.8 lm/W | 2177.1 lm/m | E |
| 5000 K | 188.2 lm/W | 3256.2 lm/m | B | 152.4 lm/W | 2635.7 lm/m | D | 125.7 lm/W | 2174.6 lm/m | E |
| 6500 K | 172.7 lm/W | 2986.9 lm/m | C | 146.1 lm/W | 2528.3 lm/m | D | 121.3 lm/W | 2098.5 lm/m | E |
Grade DL (2nd Tier) · 23W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 137.9 lm/W | 3172.7 lm/m | D | 110.8 lm/W | 2547.8 lm/m | E | — | — | — |
| 2300 K | 153.6 lm/W | 3532 lm/m | D | 123.4 lm/W | 2837.4 lm/m | E | 99.9 lm/W | 2297.7 lm/m | F |
| 2700 K | 162.6 lm/W | 3738.9 lm/m | C | 133.5 lm/W | 3070.4 lm/m | E | 108.2 lm/W | 2489 lm/m | F |
| 3000 K | 172.9 lm/W | 3976.3 lm/m | C | 140.5 lm/W | 3231.5 lm/m | D | 114.3 lm/W | 2628.3 lm/m | E |
| 3500 K | 175.4 lm/W | 4035.1 lm/m | C | 143 lm/W | 3288.2 lm/m | D | 117.7 lm/W | 2706.7 lm/m | E |
| 4000 K | 181 lm/W | 4163.5 lm/m | C | 146.5 lm/W | 3368.7 lm/m | D | 120.9 lm/W | 2780.8 lm/m | E |
| 5000 K | 180.8 lm/W | 4159.2 lm/m | C | 146.4 lm/W | 3366.5 lm/m | D | 120.8 lm/W | 2778.4 lm/m | E |
| 6500 K | 165.9 lm/W | 3815.1 lm/m | C | 140.4 lm/W | 3229.4 lm/m | D | 116.5 lm/W | 2679.5 lm/m | E |
Grade DL (2nd Tier) · 28.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 132.4 lm/W | 3814.2 lm/m | E | 106.4 lm/W | 3062.9 lm/m | F | — | — | — |
| 2300 K | 147.4 lm/W | 4246.2 lm/m | D | 118.4 lm/W | 3411.1 lm/m | E | 95.9 lm/W | 2761.9 lm/m | F |
| 2700 K | 156.1 lm/W | 4494.9 lm/m | D | 128.2 lm/W | 3691.2 lm/m | E | 103.9 lm/W | 2992.2 lm/m | F |
| 3000 K | 166 lm/W | 4780.2 lm/m | C | 134.9 lm/W | 3884.9 lm/m | E | 109.7 lm/W | 3159.7 lm/m | F |
| 3500 K | 168.4 lm/W | 4850.9 lm/m | C | 137.3 lm/W | 3953 lm/m | D | 113 lm/W | 3254 lm/m | E |
| 4000 K | 173.8 lm/W | 5005.3 lm/m | C | 140.6 lm/W | 4049.8 lm/m | D | 116.1 lm/W | 3343 lm/m | E |
| 5000 K | 173.6 lm/W | 5000.1 lm/m | C | 140.5 lm/W | 4047.2 lm/m | D | 115.9 lm/W | 3337.9 lm/m | E |
| 6500 K | 159.3 lm/W | 4586.5 lm/m | D | 134.8 lm/W | 3882.3 lm/m | E | 111.9 lm/W | 3222.7 lm/m | E |
Grade DN (1st Tier) · 11.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 163.4 lm/W | 1879.2 lm/m | D | 137.8 lm/W | 1585.3 lm/m | E | — | — | — |
| 2300 K | 178.1 lm/W | 2048 lm/m | C | 153.8 lm/W | 1768.2 lm/m | D | 124.5 lm/W | 1431.8 lm/m | E |
| 2700 K | 192 lm/W | 2208.5 lm/m | C | 166.5 lm/W | 1914.6 lm/m | D | 134.9 lm/W | 1551 lm/m | E |
| 3000 K | 201.7 lm/W | 2319.5 lm/m | B | 175.6 lm/W | 2019.6 lm/m | C | 142.9 lm/W | 1643.1 lm/m | E |
| 3500 K | 204.7 lm/W | 2353.7 lm/m | B | 179.4 lm/W | 2063.3 lm/m | C | 147.7 lm/W | 1698.6 lm/m | D |
| 4000 K | 208.5 lm/W | 2397.4 lm/m | B | 180.4 lm/W | 2075.1 lm/m | C | 148.9 lm/W | 1712.7 lm/m | D |
| 5000 K | 208.2 lm/W | 2393.8 lm/m | B | 181.7 lm/W | 2089.3 lm/m | C | 149.9 lm/W | 1723.9 lm/m | D |
| 6500 K | 199.5 lm/W | 2294.7 lm/m | C | 173.6 lm/W | 1996 lm/m | C | 144.1 lm/W | 1657.2 lm/m | E |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 160.1 lm/W | 2305.6 lm/m | D | 135.1 lm/W | 1945 lm/m | E | — | — | — |
| 2300 K | 174.5 lm/W | 2512.7 lm/m | C | 150.7 lm/W | 2169.5 lm/m | D | 122 lm/W | 1756.8 lm/m | E |
| 2700 K | 188.2 lm/W | 2709.7 lm/m | C | 163.1 lm/W | 2349.1 lm/m | D | 132.2 lm/W | 1903 lm/m | E |
| 3000 K | 197.6 lm/W | 2845.8 lm/m | C | 172.1 lm/W | 2478 lm/m | D | 140 lm/W | 2016 lm/m | E |
| 3500 K | 200.5 lm/W | 2887.8 lm/m | B | 175.8 lm/W | 2531.5 lm/m | C | 144.7 lm/W | 2084 lm/m | E |
| 4000 K | 204.3 lm/W | 2941.4 lm/m | B | 176.8 lm/W | 2546 lm/m | C | 145.9 lm/W | 2101.4 lm/m | D |
| 5000 K | 204 lm/W | 2937 lm/m | B | 178 lm/W | 2563.4 lm/m | C | 146.9 lm/W | 2115.4 lm/m | D |
| 6500 K | 195.5 lm/W | 2815.4 lm/m | C | 170.1 lm/W | 2449 lm/m | D | 141.2 lm/W | 2033.3 lm/m | E |
Grade DN (1st Tier) · 17.3W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 156.9 lm/W | 2714.1 lm/m | D | 132.3 lm/W | 2289.6 lm/m | E | — | — | — |
| 2300 K | 171 lm/W | 2957.9 lm/m | D | 147.6 lm/W | 2553.8 lm/m | D | 119.6 lm/W | 2069.1 lm/m | E |
| 2700 K | 184.4 lm/W | 3189.7 lm/m | C | 159.8 lm/W | 2765.2 lm/m | D | 129.5 lm/W | 2240.1 lm/m | E |
| 3000 K | 193.6 lm/W | 3350 lm/m | C | 168.6 lm/W | 2917 lm/m | D | 137.2 lm/W | 2373.1 lm/m | E |
| 3500 K | 196.5 lm/W | 3399.4 lm/m | C | 172.3 lm/W | 2980 lm/m | D | 141.8 lm/W | 2453.2 lm/m | E |
| 4000 K | 200.1 lm/W | 3462.5 lm/m | B | 173.2 lm/W | 2997.1 lm/m | C | 143 lm/W | 2473.7 lm/m | E |
| 5000 K | 199.8 lm/W | 3457.4 lm/m | B | 174.4 lm/W | 3017.5 lm/m | C | 143.9 lm/W | 2489.5 lm/m | E |
| 6500 K | 191.6 lm/W | 3314.2 lm/m | C | 166.6 lm/W | 2882.9 lm/m | D | 138.3 lm/W | 2392.6 lm/m | E |
Grade DN (1st Tier) · 23W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 150.7 lm/W | 3466.7 lm/m | D | 127.2 lm/W | 2924.5 lm/m | E | — | — | — |
| 2300 K | 164.3 lm/W | 3778.1 lm/m | D | 141.8 lm/W | 3262 lm/m | E | 114.9 lm/W | 2642.7 lm/m | F |
| 2700 K | 177.1 lm/W | 4074.2 lm/m | C | 153.6 lm/W | 3532 lm/m | D | 124.4 lm/W | 2861.3 lm/m | E |
| 3000 K | 186 lm/W | 4278.9 lm/m | C | 162 lm/W | 3725.8 lm/m | D | 131.8 lm/W | 3031.2 lm/m | E |
| 3500 K | 188.8 lm/W | 4342.1 lm/m | C | 165.5 lm/W | 3806.4 lm/m | D | 136.2 lm/W | 3133.5 lm/m | E |
| 4000 K | 192.3 lm/W | 4422.6 lm/m | C | 166.4 lm/W | 3828.2 lm/m | D | 137.4 lm/W | 3159.7 lm/m | E |
| 5000 K | 192 lm/W | 4416.1 lm/m | C | 167.6 lm/W | 3854.3 lm/m | D | 138.3 lm/W | 3180.9 lm/m | E |
| 6500 K | 184.1 lm/W | 4233.2 lm/m | C | 160.1 lm/W | 3682.3 lm/m | D | 132.9 lm/W | 3056.7 lm/m | E |
Grade DN (1st Tier) · 28.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 144.7 lm/W | 4167.6 lm/m | E | 122.1 lm/W | 3515.7 lm/m | E | — | — | — |
| 2300 K | 157.7 lm/W | 4541.9 lm/m | D | 136.2 lm/W | 3921.5 lm/m | E | 110.3 lm/W | 3176.6 lm/m | F |
| 2700 K | 170.1 lm/W | 4898 lm/m | D | 147.4 lm/W | 4246.1 lm/m | D | 119.4 lm/W | 3439.8 lm/m | E |
| 3000 K | 178.6 lm/W | 5144 lm/m | C | 155.5 lm/W | 4479.1 lm/m | D | 126.5 lm/W | 3644 lm/m | E |
| 3500 K | 181.2 lm/W | 5220 lm/m | C | 158.9 lm/W | 4576 lm/m | D | 130.8 lm/W | 3767.1 lm/m | E |
| 4000 K | 184.6 lm/W | 5316.8 lm/m | C | 159.8 lm/W | 4602.2 lm/m | D | 131.9 lm/W | 3798.5 lm/m | E |
| 5000 K | 184.3 lm/W | 5309 lm/m | C | 160.9 lm/W | 4633.6 lm/m | D | 132.7 lm/W | 3821.8 lm/m | E |
| 6500 K | 176.7 lm/W | 5089.1 lm/m | C | 153.7 lm/W | 4426.8 lm/m | D | 127.6 lm/W | 3674.9 lm/m | E |
Grade KE (3rd Tier) · 11.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 129.2 lm/W | 1486.2 lm/m | E | 103.7 lm/W | 1192.5 lm/m | F | — | — | — |
| 2300 K | 144.1 lm/W | 1657.3 lm/m | D | 115.5 lm/W | 1328.2 lm/m | E | 93.5 lm/W | 1075.3 lm/m | F |
| 2700 K | 155.3 lm/W | 1785.8 lm/m | D | 125.3 lm/W | 1441.4 lm/m | E | 101.6 lm/W | 1168.9 lm/m | F |
| 3000 K | 163.1 lm/W | 1875.5 lm/m | C | 132.4 lm/W | 1522.8 lm/m | E | 107.7 lm/W | 1238.5 lm/m | F |
| 3500 K | 165.5 lm/W | 1903.8 lm/m | C | 135 lm/W | 1552.3 lm/m | E | 111.1 lm/W | 1277.5 lm/m | E |
| 4000 K | 170.4 lm/W | 1959.2 lm/m | C | 137.9 lm/W | 1585.3 lm/m | D | 113.9 lm/W | 1309.3 lm/m | E |
| 5000 K | 170.2 lm/W | 1956.9 lm/m | C | 137.9 lm/W | 1585.3 lm/m | D | 113.7 lm/W | 1307.6 lm/m | E |
| 6500 K | 163.1 lm/W | 1875.5 lm/m | C | 132.3 lm/W | 1521.6 lm/m | E | 109.8 lm/W | 1262.7 lm/m | F |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 126.6 lm/W | 1823.5 lm/m | E | 101.6 lm/W | 1463.1 lm/m | F | — | — | — |
| 2300 K | 141.2 lm/W | 2033.3 lm/m | D | 113.2 lm/W | 1629.6 lm/m | E | 91.7 lm/W | 1320.5 lm/m | F |
| 2700 K | 152.2 lm/W | 2191.1 lm/m | D | 122.8 lm/W | 1768.5 lm/m | E | 99.6 lm/W | 1434.2 lm/m | F |
| 3000 K | 159.8 lm/W | 2301.1 lm/m | D | 129.7 lm/W | 1868.4 lm/m | E | 105.5 lm/W | 1519.6 lm/m | F |
| 3500 K | 162.2 lm/W | 2335.8 lm/m | C | 132.3 lm/W | 1904.5 lm/m | E | 108.8 lm/W | 1567.3 lm/m | F |
| 4000 K | 166.9 lm/W | 2403.8 lm/m | C | 135.1 lm/W | 1945.1 lm/m | D | 111.6 lm/W | 1606.4 lm/m | E |
| 5000 K | 166.7 lm/W | 2400.9 lm/m | C | 135.1 lm/W | 1945.1 lm/m | D | 111.4 lm/W | 1604.2 lm/m | E |
| 6500 K | 159.8 lm/W | 2301.1 lm/m | D | 129.6 lm/W | 1866.9 lm/m | E | 107.6 lm/W | 1549.4 lm/m | F |
Grade KE (3rd Tier) · 17.3W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 124.1 lm/W | 2146.6 lm/m | E | 99.6 lm/W | 1722.4 lm/m | F | — | — | — |
| 2300 K | 138.4 lm/W | 2393.6 lm/m | D | 110.9 lm/W | 1918.3 lm/m | E | 89.8 lm/W | 1553.5 lm/m | F |
| 2700 K | 149.1 lm/W | 2579.3 lm/m | D | 120.3 lm/W | 2081.8 lm/m | E | 97.6 lm/W | 1688.3 lm/m | F |
| 3000 K | 156.6 lm/W | 2708.7 lm/m | D | 127.1 lm/W | 2199.4 lm/m | E | 103.4 lm/W | 1788.8 lm/m | F |
| 3500 K | 158.9 lm/W | 2749.6 lm/m | D | 129.6 lm/W | 2242 lm/m | E | 106.6 lm/W | 1845 lm/m | F |
| 4000 K | 163.6 lm/W | 2829.7 lm/m | C | 132.4 lm/W | 2289.7 lm/m | E | 109.3 lm/W | 1891 lm/m | F |
| 5000 K | 163.4 lm/W | 2826.3 lm/m | C | 132.4 lm/W | 2289.7 lm/m | E | 109.2 lm/W | 1889.2 lm/m | F |
| 6500 K | 156.6 lm/W | 2708.7 lm/m | D | 127 lm/W | 2197.7 lm/m | E | 105.4 lm/W | 1823.4 lm/m | F |
Grade KE (3rd Tier) · 23W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 119.2 lm/W | 2741.8 lm/m | E | 95.7 lm/W | 2200 lm/m | F | — | — | — |
| 2300 K | 132.9 lm/W | 3057.3 lm/m | E | 106.5 lm/W | 2450.2 lm/m | F | 86.3 lm/W | 1984.9 lm/m | F |
| 2700 K | 143.2 lm/W | 3294.5 lm/m | D | 115.6 lm/W | 2659.1 lm/m | E | 93.8 lm/W | 2156.4 lm/m | F |
| 3000 K | 150.4 lm/W | 3459.9 lm/m | D | 122.1 lm/W | 2809.2 lm/m | E | 99.3 lm/W | 2284.8 lm/m | F |
| 3500 K | 152.7 lm/W | 3512.1 lm/m | D | 124.5 lm/W | 2863.6 lm/m | E | 102.5 lm/W | 2356.6 lm/m | F |
| 4000 K | 157.1 lm/W | 3614.4 lm/m | D | 127.2 lm/W | 2924.6 lm/m | E | 105 lm/W | 2415.4 lm/m | F |
| 5000 K | 157 lm/W | 3610 lm/m | D | 127.2 lm/W | 2924.6 lm/m | E | 104.9 lm/W | 2412.7 lm/m | F |
| 6500 K | 150.4 lm/W | 3459.9 lm/m | D | 122 lm/W | 2807.1 lm/m | E | 101.3 lm/W | 2329.9 lm/m | F |
Grade KE (3rd Tier) · 28.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 114.4 lm/W | 3296.1 lm/m | E | 91.8 lm/W | 2644.8 lm/m | F | — | — | — |
| 2300 K | 127.6 lm/W | 3675.4 lm/m | E | 102.3 lm/W | 2945.6 lm/m | F | 82.8 lm/W | 2384.6 lm/m | G |
| 2700 K | 137.5 lm/W | 3960.6 lm/m | D | 111 lm/W | 3196.7 lm/m | E | 90 lm/W | 2592.4 lm/m | F |
| 3000 K | 144.4 lm/W | 4159.4 lm/m | D | 117.3 lm/W | 3377.2 lm/m | E | 95.4 lm/W | 2746.8 lm/m | F |
| 3500 K | 146.6 lm/W | 4222.2 lm/m | D | 119.5 lm/W | 3442.6 lm/m | E | 98.4 lm/W | 2833.1 lm/m | F |
| 4000 K | 150.9 lm/W | 4345.1 lm/m | D | 122.1 lm/W | 3515.9 lm/m | E | 100.8 lm/W | 2903.7 lm/m | F |
| 5000 K | 150.7 lm/W | 4339.9 lm/m | D | 122.1 lm/W | 3515.9 lm/m | E | 100.7 lm/W | 2900.2 lm/m | F |
| 6500 K | 144.4 lm/W | 4159.4 lm/m | D | 117.2 lm/W | 3374.6 lm/m | E | 97.3 lm/W | 2802.2 lm/m | F |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 28.8W/m, 5289 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 12mm wide, so it needs at least 14mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 20x08mm Surface Mount LED Channel · fits ≤12mm strip
- 18x18mm Magnetic LED Channel · fits ≤12mm strip
- 17.3x14.5mm Surface Mount LED Channel · fits ≤12mm strip
- 17.5x7mm Slim Surface Mount LED Channel · fits ≤12mm strip
- Slim Surface Aluminum Profile · 12mm PCB · fits ≤12mm strip
- 25x7mm Wide Slim Surface Mount LED Channel · fits ≤12mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 12mm wide, so it needs a channel with at least 14mm inner width (12mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 2835 Constant Current High Lumen High Light Efficacy LED Strip Light (#3410)
- 2835 Constant Current High Light Efficacy LED Strip Light (#4526)
- 2835 High-Efficiency Classic Stable LED Strip Light (#11586-N)
- 2835 High Lumen High Light Efficacy High Density LED Strip Light (#5229)
- 2835 High Light Efficacy LED Strip Light (#5871)
- 2835 High Light Efficacy LED Strip Light (#11076)
- 2216 Ultra-Narrow LED Strip Light (#3367)
- 2835 Hight Efficiency LED Strip Light (#16946)
See every model in SMD LED Strip Series or narrow to High Efficiency. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 5289?
5289: 2835, 192 LEDs/m, 24V, 12mm PCB, 3 oz copper FPCB, cuttable 8LEDs/41.66mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this constant current IC LED strip different?
It is built as a constant current IC LED strip on 3 oz copper FPCB with a cutting unit of 8LEDs/41.66mm and an LED pitch of 5.2mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this constant current IC LED strip for a project?
Yes. DENO manufactures the C.C. SMD Strips (IC Regulated) series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How much can a high efficacy LED strip cut energy use?
Moving from a typical 100 lm/W strip to a 180 to 200 lm/W high lumen LED strip roughly halves the wattage needed for the same lumen output. Over a long commercial run this also lowers the required driver size and helps the installation reach a better ErP energy class.
Does a constant current LED strip really eliminate voltage drop?
Voltage still drops along the copper, but the per-segment constant current IC holds LED current fixed until the local voltage falls below its dropout point. Brightness therefore stays even end to end, and power can be injected at one end, both ends or any mid point of the run.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- High Density LED Strips series — High Density LED Strip — Buyer Questions
- High Efficiency LED Strips series — High Efficiency LED Strip — Buyer Questions
- LED strip engineering selection handbook
