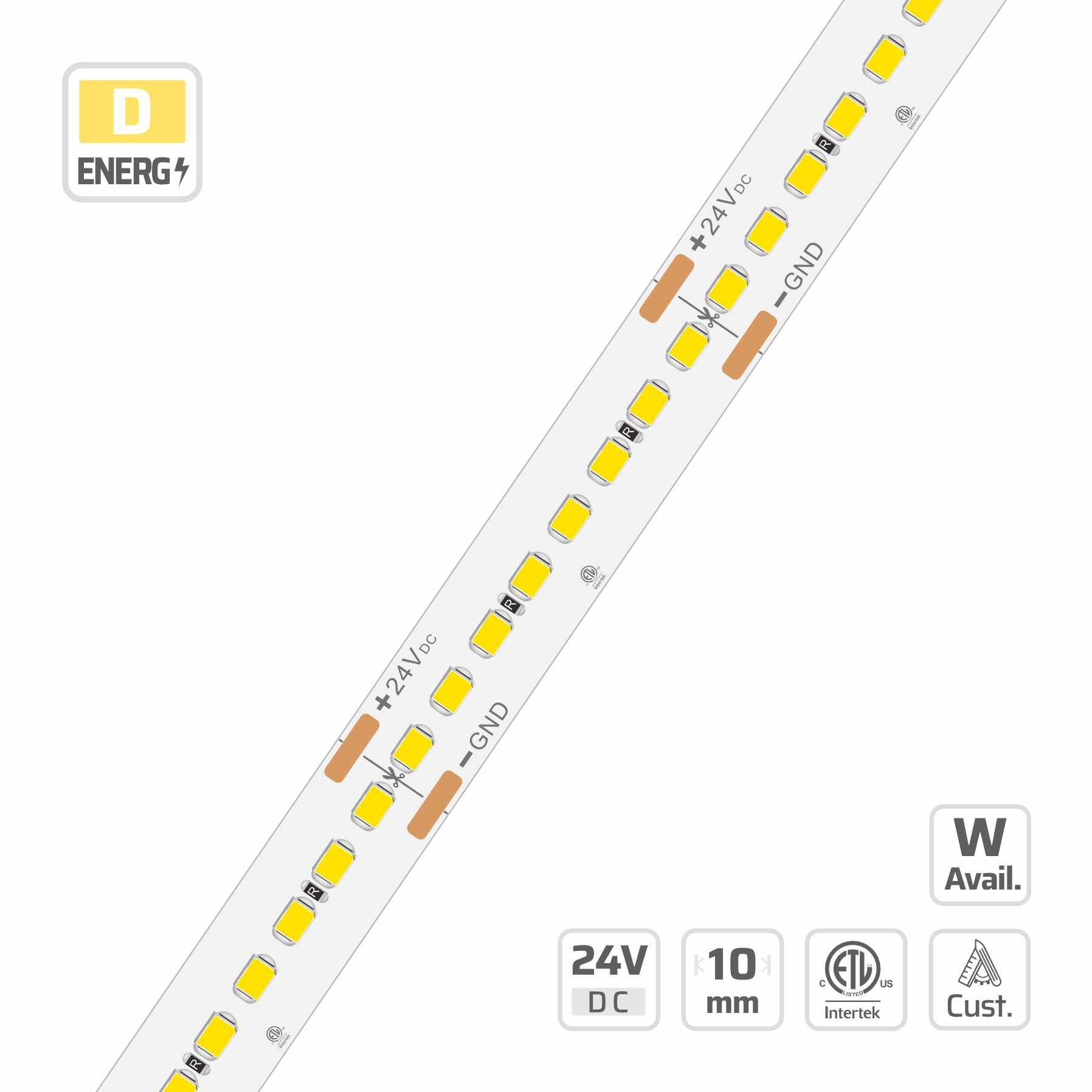

2835 High-Efficiency Classic Stable LED Strip Light (#11586-N)
10mm · 24V · 192LEDs · 41.667cut
Model: 11586-N
Overview
10mm | 24V | 192LEDs | 41.667cut | #11586-N | 2835 High-Efficiency Classic Stable LED Strip Light is part of the DENO High Density LED Strips series, engineered around ultra high density LED strip. Key specifications: 2835, 192, 24V, 10mm PCB, 3 oz copper FPCB, cuttable 8LEDs/41.667mm, IP20/IP54/IP65/IP66/IP67/IP68, CRI Ra≥80 , Ra≥90 , Ra≥95 , FS. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
10mm | 24V | 192LEDs | 41.667cut | #11586-N | 2835 High-Efficiency Classic Stable LED Strip Light High-Efficiency 2835 SMD LEDs, ensuring excellent brightness and energy efficiency. Classic stable LED chip design for long-lasting performance and reliable operation. High-density 192 LEDs per meter, providing uniform and consistent lighting. Compatible with multiple dimming systems, including PWM, DALI, and 0/1-10V, allowing flexible brightness control. Suitable for commercial building lighting, museum and art exhibition lighting, architectural decorative lighting, office and retail space lighting, hotel and restaurant lighting, and home decorative lighting.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| CCT (K) | 1800-6500 |
|---|---|
| CRI | Ra≥80 , Ra≥90 , Ra≥95 , FS |
| SDCM | < 3 SDCM (Single Bin) |
| LED QTY | 192 |
| PART NO | DL-F28A96V24-11586-N-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 8LEDs/41.667mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP54/IP65/IP66/IP67/IP68 |
| LED PITCH | 5.209mm |
| LIFESPAN | 50000h |
| PCB WIDTH | 10mm |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| LENGTH MAX | 5m |
| COPPER FOIL | 3 oz |
| ON OFF TIMES | 10000 (test times) |
| POWER RANGE | 2.8~24W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 2797 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Request a quotation for #11586-N
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 202.8 lm/W at 4000K, Ra 80, ErP energy class B (Grade DL (2nd Tier) · 11.5W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 11.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 154.5 lm/W | 1777.2 lm/m | D | 124.1 lm/W | 1426.7 lm/m | E | — | — | — |
| 2300 K | 172.1 lm/W | 1979.4 lm/m | C | 138.2 lm/W | 1589.7 lm/m | D | 112 lm/W | 1288 lm/m | E |
| 2700 K | 182.1 lm/W | 2094.6 lm/m | C | 149.5 lm/W | 1719.6 lm/m | D | 121.2 lm/W | 1393.6 lm/m | E |
| 3000 K | 193.8 lm/W | 2228.2 lm/m | B | 157.4 lm/W | 1810.3 lm/m | D | 128 lm/W | 1472 lm/m | E |
| 3500 K | 196.5 lm/W | 2260.1 lm/m | B | 160.2 lm/W | 1842.2 lm/m | C | 131.8 lm/W | 1516.1 lm/m | E |
| 4000 K | 202.8 lm/W | 2332.4 lm/m | B | 164 lm/W | 1886.3 lm/m | C | 135.5 lm/W | 1557.8 lm/m | D |
| 5000 K | 202.6 lm/W | 2330 lm/m | B | 163.9 lm/W | 1885.1 lm/m | C | 135.2 lm/W | 1554.8 lm/m | D |
| 6500 K | 185.8 lm/W | 2136.3 lm/m | B | 157.3 lm/W | 1809.1 lm/m | D | 130.6 lm/W | 1501.9 lm/m | E |
Grade DL (2nd Tier) · 17.3W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 148.4 lm/W | 2566.8 lm/m | D | 119.1 lm/W | 2060.5 lm/m | E | — | — | — |
| 2300 K | 165.3 lm/W | 2858.9 lm/m | C | 132.7 lm/W | 2295.9 lm/m | E | 107.5 lm/W | 1859.8 lm/m | F |
| 2700 K | 174.9 lm/W | 3025.3 lm/m | C | 143.6 lm/W | 2483.6 lm/m | D | 116.3 lm/W | 2012.7 lm/m | E |
| 3000 K | 186 lm/W | 3218.2 lm/m | B | 151.1 lm/W | 2614.6 lm/m | D | 122.9 lm/W | 2126 lm/m | E |
| 3500 K | 188.7 lm/W | 3264.2 lm/m | B | 153.8 lm/W | 2660.6 lm/m | D | 126.6 lm/W | 2189.7 lm/m | E |
| 4000 K | 194.7 lm/W | 3368.7 lm/m | B | 157.5 lm/W | 2724.3 lm/m | D | 130.1 lm/W | 2249.9 lm/m | E |
| 5000 K | 194.5 lm/W | 3365.1 lm/m | B | 157.4 lm/W | 2722.6 lm/m | D | 129.8 lm/W | 2245.5 lm/m | E |
| 6500 K | 178.4 lm/W | 3085.5 lm/m | C | 151 lm/W | 2612.8 lm/m | D | 125.4 lm/W | 2169.4 lm/m | E |
Grade DL (2nd Tier) · 20.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 145.4 lm/W | 2936.6 lm/m | D | 116.7 lm/W | 2357.4 lm/m | E | — | — | — |
| 2300 K | 161.9 lm/W | 3270.8 lm/m | C | 130 lm/W | 2626.8 lm/m | E | 105.3 lm/W | 2127.1 lm/m | F |
| 2700 K | 171.3 lm/W | 3461.2 lm/m | C | 140.7 lm/W | 2841.4 lm/m | D | 114 lm/W | 2302.7 lm/m | E |
| 3000 K | 182.3 lm/W | 3681.9 lm/m | C | 148.1 lm/W | 2991.3 lm/m | D | 120.4 lm/W | 2432.3 lm/m | E |
| 3500 K | 184.9 lm/W | 3734.6 lm/m | C | 150.7 lm/W | 3044 lm/m | D | 124 lm/W | 2505.2 lm/m | E |
| 4000 K | 190.8 lm/W | 3854.1 lm/m | B | 154.3 lm/W | 3116.9 lm/m | D | 127.4 lm/W | 2574.1 lm/m | E |
| 5000 K | 190.6 lm/W | 3850 lm/m | B | 154.2 lm/W | 3114.8 lm/m | D | 127.2 lm/W | 2569.4 lm/m | E |
| 6500 K | 174.8 lm/W | 3530 lm/m | C | 148 lm/W | 2989.3 lm/m | D | 122.8 lm/W | 2480.6 lm/m | E |
Grade DN (1st Tier) · 11.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 148.7 lm/W | 1709.8 lm/m | D | 125.2 lm/W | 1440.1 lm/m | E | — | — | — |
| 2300 K | 162.1 lm/W | 1864.2 lm/m | D | 139.8 lm/W | 1608.1 lm/m | E | 113.3 lm/W | 1303 lm/m | F |
| 2700 K | 174.7 lm/W | 2008.8 lm/m | C | 151.2 lm/W | 1739.2 lm/m | D | 122.6 lm/W | 1409.5 lm/m | E |
| 3000 K | 183.5 lm/W | 2110.6 lm/m | C | 159.7 lm/W | 1836 lm/m | D | 129.9 lm/W | 1494.1 lm/m | E |
| 3500 K | 186.2 lm/W | 2141.2 lm/m | C | 163.2 lm/W | 1876.5 lm/m | D | 134.3 lm/W | 1544.3 lm/m | E |
| 4000 K | 189.7 lm/W | 2181.7 lm/m | C | 164 lm/W | 1886.3 lm/m | D | 135.5 lm/W | 1557.8 lm/m | E |
| 5000 K | 189.4 lm/W | 2178 lm/m | C | 165.1 lm/W | 1898.5 lm/m | D | 136.2 lm/W | 1566.3 lm/m | E |
| 6500 K | 181.6 lm/W | 2088.5 lm/m | C | 157.8 lm/W | 1815.2 lm/m | D | 131 lm/W | 1506.5 lm/m | E |
Grade DN (1st Tier) · 17.3W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 142.7 lm/W | 2469.4 lm/m | E | 120.2 lm/W | 2080 lm/m | E | — | — | — |
| 2300 K | 155.6 lm/W | 2692.5 lm/m | D | 134.2 lm/W | 2322.5 lm/m | E | 108.7 lm/W | 1880.5 lm/m | F |
| 2700 K | 167.7 lm/W | 2901.4 lm/m | D | 145.2 lm/W | 2511.9 lm/m | E | 117.7 lm/W | 2035.7 lm/m | F |
| 3000 K | 176.2 lm/W | 3048.3 lm/m | C | 153.3 lm/W | 2651.8 lm/m | D | 124.7 lm/W | 2157.9 lm/m | E |
| 3500 K | 178.8 lm/W | 3092.5 lm/m | C | 156.7 lm/W | 2710.2 lm/m | D | 128.9 lm/W | 2230.5 lm/m | E |
| 4000 K | 182.1 lm/W | 3151 lm/m | C | 157.5 lm/W | 2724.3 lm/m | D | 130.1 lm/W | 2249.9 lm/m | E |
| 5000 K | 181.8 lm/W | 3145.6 lm/m | C | 158.5 lm/W | 2742 lm/m | D | 130.8 lm/W | 2262.8 lm/m | E |
| 6500 K | 174.4 lm/W | 3016.4 lm/m | C | 151.5 lm/W | 2621.7 lm/m | D | 125.8 lm/W | 2176.3 lm/m | E |
Grade DN (1st Tier) · 20.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 139.9 lm/W | 2825.2 lm/m | E | 117.8 lm/W | 2379.7 lm/m | F | — | — | — |
| 2300 K | 152.5 lm/W | 3080.4 lm/m | D | 131.5 lm/W | 2657.1 lm/m | E | 106.5 lm/W | 2151.3 lm/m | F |
| 2700 K | 164.3 lm/W | 3319.4 lm/m | D | 142.3 lm/W | 2873.8 lm/m | E | 115.3 lm/W | 2329 lm/m | F |
| 3000 K | 172.6 lm/W | 3487.5 lm/m | D | 150.2 lm/W | 3033.8 lm/m | D | 122.2 lm/W | 2468.8 lm/m | E |
| 3500 K | 175.2 lm/W | 3538.1 lm/m | C | 153.5 lm/W | 3100.7 lm/m | D | 126.3 lm/W | 2551.8 lm/m | E |
| 4000 K | 178.5 lm/W | 3605 lm/m | C | 154.3 lm/W | 3116.9 lm/m | D | 127.4 lm/W | 2574.1 lm/m | E |
| 5000 K | 178.2 lm/W | 3598.9 lm/m | C | 155.3 lm/W | 3137.1 lm/m | D | 128.1 lm/W | 2587.6 lm/m | E |
| 6500 K | 170.8 lm/W | 3451 lm/m | D | 148.5 lm/W | 2999.4 lm/m | D | 123.2 lm/W | 2488.6 lm/m | E |
Grade KE (3rd Tier) · 11.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 153.7 lm/W | 1767.4 lm/m | D | 123.4 lm/W | 1419.3 lm/m | E | — | — | — |
| 2300 K | 171.3 lm/W | 1969.6 lm/m | C | 137.5 lm/W | 1581.1 lm/m | D | 111.4 lm/W | 1281.1 lm/m | E |
| 2700 K | 184.6 lm/W | 2122.8 lm/m | C | 149.2 lm/W | 1715.9 lm/m | D | 121 lm/W | 1391.1 lm/m | E |
| 3000 K | 193.9 lm/W | 2229.5 lm/m | B | 157.5 lm/W | 1811.5 lm/m | D | 128.1 lm/W | 1473.2 lm/m | E |
| 3500 K | 196.7 lm/W | 2262.6 lm/m | B | 160.6 lm/W | 1847.1 lm/m | C | 132.2 lm/W | 1519.8 lm/m | E |
| 4000 K | 202.5 lm/W | 2328.7 lm/m | B | 164 lm/W | 1886.3 lm/m | C | 135.5 lm/W | 1557.8 lm/m | D |
| 5000 K | 202.2 lm/W | 2325.1 lm/m | B | 164 lm/W | 1886.3 lm/m | C | 135.3 lm/W | 1556 lm/m | D |
| 6500 K | 193.9 lm/W | 2229.5 lm/m | B | 157.5 lm/W | 1811.5 lm/m | D | 130.7 lm/W | 1503.1 lm/m | E |
Grade KE (3rd Tier) · 17.3W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 147.6 lm/W | 2552.6 lm/m | D | 118.5 lm/W | 2049.9 lm/m | E | — | — | — |
| 2300 K | 164.4 lm/W | 2844.7 lm/m | C | 132 lm/W | 2283.6 lm/m | E | 106.9 lm/W | 1849.4 lm/m | F |
| 2700 K | 177.2 lm/W | 3066 lm/m | C | 143.3 lm/W | 2478.3 lm/m | D | 116.1 lm/W | 2009.2 lm/m | E |
| 3000 K | 186.1 lm/W | 3220 lm/m | B | 151.2 lm/W | 2616.4 lm/m | D | 123 lm/W | 2127.8 lm/m | E |
| 3500 K | 188.9 lm/W | 3267.8 lm/m | B | 154.2 lm/W | 2667.7 lm/m | D | 126.9 lm/W | 2195 lm/m | E |
| 4000 K | 194.4 lm/W | 3363.4 lm/m | B | 157.5 lm/W | 2724.3 lm/m | D | 130.1 lm/W | 2249.9 lm/m | E |
| 5000 K | 194.1 lm/W | 3358.1 lm/m | B | 157.5 lm/W | 2724.3 lm/m | D | 129.9 lm/W | 2247.3 lm/m | E |
| 6500 K | 186.1 lm/W | 3220 lm/m | B | 151.2 lm/W | 2616.4 lm/m | D | 125.5 lm/W | 2171.2 lm/m | E |
Grade KE (3rd Tier) · 20.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 144.6 lm/W | 2920.4 lm/m | D | 116.1 lm/W | 2345.2 lm/m | E | — | — | — |
| 2300 K | 161.1 lm/W | 3254.6 lm/m | C | 129.3 lm/W | 2612.6 lm/m | E | 104.8 lm/W | 2117 lm/m | F |
| 2700 K | 173.7 lm/W | 3507.7 lm/m | C | 140.4 lm/W | 2835.4 lm/m | D | 113.8 lm/W | 2298.7 lm/m | E |
| 3000 K | 182.4 lm/W | 3683.9 lm/m | C | 148.2 lm/W | 2993.3 lm/m | D | 120.5 lm/W | 2434.4 lm/m | E |
| 3500 K | 185.1 lm/W | 3738.6 lm/m | B | 151.1 lm/W | 3052.1 lm/m | D | 124.3 lm/W | 2511.3 lm/m | E |
| 4000 K | 190.5 lm/W | 3848 lm/m | B | 154.3 lm/W | 3116.9 lm/m | D | 127.4 lm/W | 2574.1 lm/m | E |
| 5000 K | 190.2 lm/W | 3841.9 lm/m | B | 154.3 lm/W | 3116.9 lm/m | D | 127.3 lm/W | 2571.5 lm/m | E |
| 6500 K | 182.4 lm/W | 3683.9 lm/m | C | 148.2 lm/W | 2993.3 lm/m | D | 123 lm/W | 2484.6 lm/m | E |
