What counts as a high efficiency LED strip in lumens per watt?

In 2026 a mainstream 24V 2835 board sits around 120-140 lm/W. A high efficiency LED strip starts at roughly 160 lm/W and DENO's top binned 2835 and 2110 boards are measured at up to 200 lm/W at 4000K Ra 80, LM-79 tested at 25 degrees Celsius. The figure is light-source efficacy of the tape itself, measured without the driver, which is exactly how the ErP energy label is calculated.

What is the difference between high efficiency and high efficacy LED strip lights?

They describe the same measurement. Efficacy is the engineering term for lumens delivered per watt consumed; efficiency is how buyers and tender documents usually phrase it. DENO publishes lm/W per model so both audiences read the same number, and the ErP energy class printed on the reel is derived from it.

Which ErP energy class can a high efficiency LED strip reach?

Class C is achievable on the best-binned 2835 and 2110 boards above 180 lm/W, class D covers the 160-180 lm/W band and most well-specified architectural tape lands in class E. High-CRI 95+ and full spectrum builds drop one or two classes because phosphor conversion costs lumens. Every DENO datasheet states the measured class so it can be reproduced by a notified body.

Does a high efficiency LED strip run cooler and last longer?

Yes. Fewer watts per lumen means less heat into the FPCB, so junction temperature drops and L70 lifetime extends. Combined with 2 oz copper and a 99.9% pure copper foil the same brightness can be produced at 20-30% lower wattage, which also lets a single driver feed a longer run and keeps aluminium profiles below the touch-temperature limits used in hospitality projects.

How much energy does a high efficiency LED strip save on a large project?

Take 500 m of cove lighting at 10 hours a day. A 130 lm/W board delivering 1000 lm/m draws about 7.7 W/m; a 190 lm/W board delivers the same output at about 5.3 W/m. Across 500 m that is 1.2 kW saved, roughly 4,380 kWh a year, and it usually removes one driver and one circuit from the electrical schedule as well.

Can I get a high efficiency LED strip in 12V, 24V, 36V or 48V?

24V is the efficiency sweet spot and carries the full binned range. 12V is available where fixture space or existing drivers dictate it, at the cost of shorter single-feed runs. 36V and 48V constant-current boards keep the same lm/W while extending a single feed well past 20 m, which is where the real system efficiency gain shows up on long architectural lines.

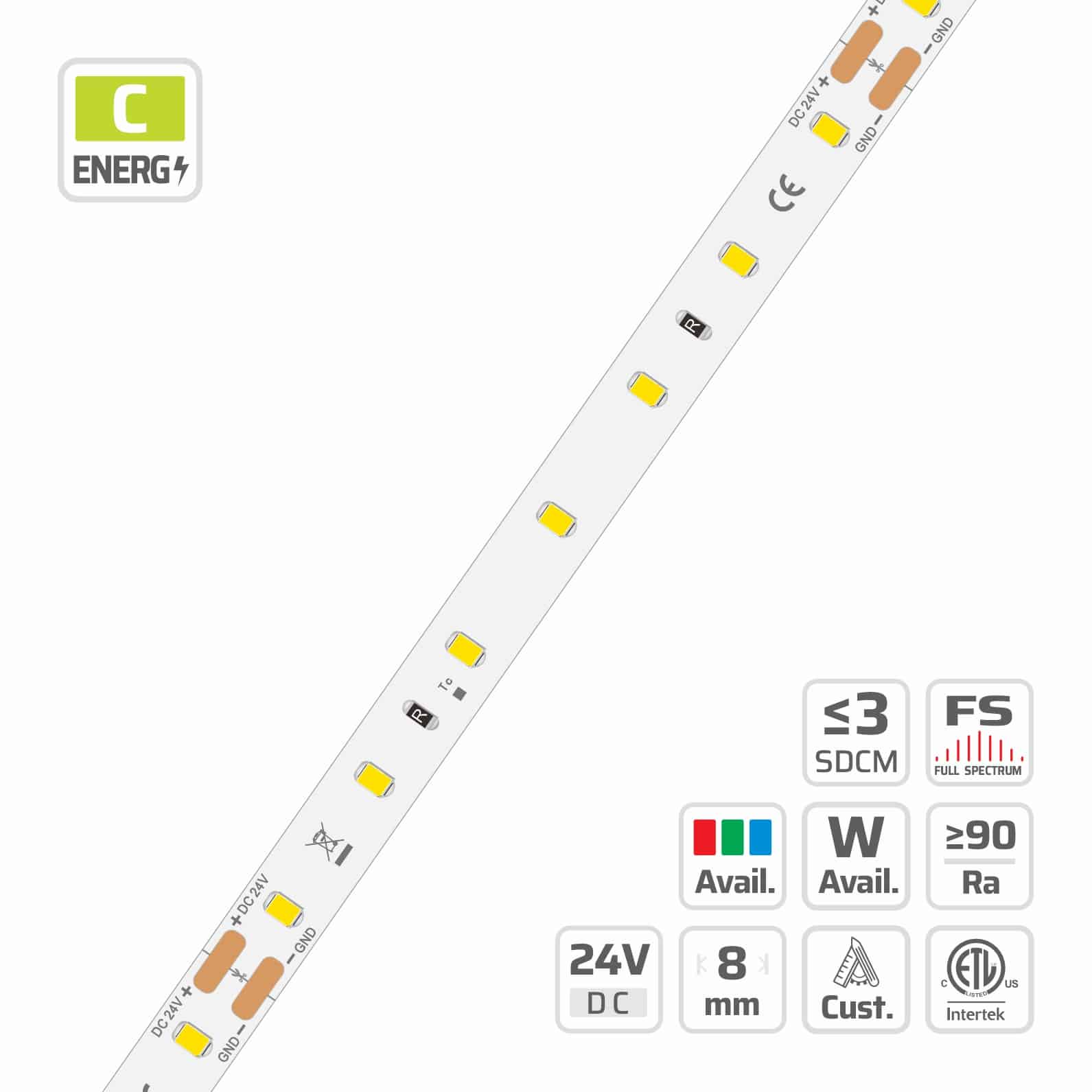

2835 High Light Efficacy LED Strip Light (#11076)

8mm · 24V · 70LEDs · 100mm/cut

Model: 11076

11076 8mm | 24V | 70LEDs | 100mm/cut | #11076 | 2835 High Light Efficacy LED Strip Light — 24V, cuttable every 100mm, 8mm FPCB width, 2835 LEDs, 70 LEDs/m, IP20

Overview

8mm | 24V | 70LEDs | 100mm/cut | #11076 | 2835 High Light Efficacy LED Strip Light is part of the DENO Classic SMD Strips series, engineered around 24V SMD LED strip lights. Key specifications: 2835, 70 LEDs/m, 24V, 8 PCB, 3oz copper FPCB, cuttable 7LEDs/100mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

Featuring high-efficacy 2835 SMD LEDs delivering up to 173 lm/W, this 24V LED strip light is ideal for energy-saving architectural lighting projects. The slim 8mm PCB is engineered with heavy-duty 3oz copper foil to ensure optimal thermal dissipation and stable constant-voltage performance. A continuous run length of 5 meters maintains uniform brightness and high luminous efficiency without noticeable voltage drop across the entire circuit. Configured with 70 LEDs per meter and 100mm cut units, DENO provides factory-direct OEM custom lengths for versatile linear fixture integration. Fully dimmable with a wide 120-degree beam angle, this flexible circuit design easily integrates into aluminum channels and tight installation spaces.

We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.

Specifications

LED QTY	70 LEDs/m
PART NO	DL-F28A35V24-11076-*
SMD TYPE	2835
CUTTABLE UNIT	7LEDs/100mm
DIMMABLE	Yes
IP RATING	IP20
LED PITCH	14.2mm
PCB WIDTH	8
BEAM ANGLE	120°
RUN LENGTH	5m
COPPER FOIL	3oz
ON OFF TIMES	10000（test times）
POWER RANGE	1.2~7.2W
CIRCUIT TYPE	C.V.
INPUT VOLTAGE	24V
MIN BEND DIAMETER	Φ60mm
OPERATING TEMPERATURE	-25~40°C;Tc：75°C（max）

Applications

Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.

Recommended accessories & compatible parts

DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #11076

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

Warranty: 5 years
Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
Compliance: CE · UL · RoHS
Bonding wire: 99.99% pure gold
Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 180.5 lm/W at 4000K, Ra 80, ErP energy class C (Grade DN (1st Tier) · 2.4W/m).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

Grade DL (2nd Tier) · 2.4W/m

Grade DL (2nd Tier) · 2.4W/m — measured at 2.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	131.4 lm/W	315.3 lm/m	E	105.3 lm/W	252.6 lm/m	F	—	—	—
2300 K	146.2 lm/W	351 lm/m	D	117.3 lm/W	281.5 lm/m	E	94.8 lm/W	227.5 lm/m	F
2700 K	154.5 lm/W	370.8 lm/m	D	127 lm/W	304.7 lm/m	E	102.9 lm/W	247 lm/m	F
3000 K	164.6 lm/W	395 lm/m	C	133.6 lm/W	320.6 lm/m	E	108.6 lm/W	260.7 lm/m	F
3500 K	167 lm/W	400.9 lm/m	C	135.9 lm/W	326.3 lm/m	D	111.9 lm/W	268.5 lm/m	E
4000 K	172.4 lm/W	413.8 lm/m	C	139.2 lm/W	334.1 lm/m	D	115 lm/W	275.9 lm/m	E
5000 K	172.2 lm/W	413.3 lm/m	C	139.2 lm/W	334.1 lm/m	D	115.3 lm/W	276.6 lm/m	E
6500 K	157.8 lm/W	378.6 lm/m	D	133.5 lm/W	320.4 lm/m	E	110.8 lm/W	265.9 lm/m	E

Grade DL (2nd Tier) · 3.6W/m

Grade DL (2nd Tier) · 3.6W/m — measured at 3.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	130.3 lm/W	468.9 lm/m	E	104.4 lm/W	375.8 lm/m	F	—	—	—
2300 K	145 lm/W	522 lm/m	D	116.3 lm/W	418.7 lm/m	E	94 lm/W	338.3 lm/m	F
2700 K	153.2 lm/W	551.5 lm/m	D	125.9 lm/W	453.3 lm/m	E	102.1 lm/W	367.4 lm/m	F
3000 K	163.2 lm/W	587.5 lm/m	C	132.5 lm/W	476.9 lm/m	E	107.7 lm/W	387.8 lm/m	F
3500 K	165.6 lm/W	596.2 lm/m	C	134.8 lm/W	485.3 lm/m	E	111 lm/W	399.4 lm/m	E
4000 K	171 lm/W	615.5 lm/m	C	138 lm/W	496.9 lm/m	D	114 lm/W	410.3 lm/m	E
5000 K	170.8 lm/W	614.8 lm/m	C	138 lm/W	496.9 lm/m	D	114.3 lm/W	411.4 lm/m	E
6500 K	156.4 lm/W	563.1 lm/m	D	132.4 lm/W	476.6 lm/m	E	109.8 lm/W	395.4 lm/m	F

Grade DL (2nd Tier) · 4.8W/m

Grade DL (2nd Tier) · 4.8W/m — measured at 4.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	129.2 lm/W	620 lm/m	E	103.5 lm/W	496.8 lm/m	F	—	—	—
2300 K	143.8 lm/W	690.2 lm/m	D	115.3 lm/W	553.6 lm/m	E	93.2 lm/W	447.3 lm/m	F
2700 K	151.9 lm/W	729.2 lm/m	D	124.9 lm/W	599.3 lm/m	E	101.2 lm/W	485.8 lm/m	F
3000 K	161.8 lm/W	776.8 lm/m	C	131.4 lm/W	630.6 lm/m	E	106.8 lm/W	512.7 lm/m	F
3500 K	164.2 lm/W	788.3 lm/m	C	133.7 lm/W	641.6 lm/m	E	110 lm/W	528.1 lm/m	E
4000 K	169.5 lm/W	813.8 lm/m	C	136.9 lm/W	657 lm/m	D	113 lm/W	542.5 lm/m	E
5000 K	169.3 lm/W	812.8 lm/m	C	136.9 lm/W	657 lm/m	D	113.3 lm/W	544 lm/m	E
6500 K	155.1 lm/W	744.5 lm/m	D	131.3 lm/W	630.1 lm/m	E	108.9 lm/W	522.8 lm/m	F

Grade DN (1st Tier) · 2.4W/m

Grade DN (1st Tier) · 2.4W/m — measured at 2.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	141.4 lm/W	339.5 lm/m	E	119.2 lm/W	286.2 lm/m	E	—	—	—
2300 K	154.2 lm/W	370 lm/m	D	133 lm/W	319.2 lm/m	E	107.5 lm/W	258 lm/m	F
2700 K	166.2 lm/W	398.9 lm/m	D	144 lm/W	345.6 lm/m	E	116.7 lm/W	280 lm/m	F
3000 K	174.6 lm/W	419 lm/m	C	151.9 lm/W	364.7 lm/m	D	123.6 lm/W	296.7 lm/m	E
3500 K	177.2 lm/W	425.3 lm/m	C	155.2 lm/W	372.5 lm/m	D	127.8 lm/W	306.7 lm/m	E
4000 K	180.5 lm/W	433.1 lm/m	C	156.1 lm/W	374.7 lm/m	D	128.8 lm/W	309.1 lm/m	E
5000 K	180.3 lm/W	432.7 lm/m	C	157.1 lm/W	377.1 lm/m	D	130.1 lm/W	312.3 lm/m	E
6500 K	172.8 lm/W	414.8 lm/m	C	150.1 lm/W	360.3 lm/m	D	124.6 lm/W	299.1 lm/m	E

Grade DN (1st Tier) · 3.6W/m

Grade DN (1st Tier) · 3.6W/m — measured at 3.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	140.3 lm/W	504.9 lm/m	E	118.2 lm/W	425.6 lm/m	F	—	—	—
2300 K	152.9 lm/W	550.4 lm/m	D	131.9 lm/W	474.7 lm/m	E	106.6 lm/W	383.8 lm/m	F
2700 K	164.8 lm/W	593.3 lm/m	D	142.8 lm/W	514 lm/m	E	115.7 lm/W	416.5 lm/m	F
3000 K	173.1 lm/W	623.2 lm/m	C	150.7 lm/W	542.4 lm/m	D	122.6 lm/W	441.3 lm/m	E
3500 K	175.7 lm/W	632.6 lm/m	C	153.9 lm/W	554 lm/m	D	126.7 lm/W	456.2 lm/m	E
4000 K	179 lm/W	644.3 lm/m	C	154.8 lm/W	557.3 lm/m	D	127.7 lm/W	459.8 lm/m	E
5000 K	178.8 lm/W	643.5 lm/m	C	155.8 lm/W	561 lm/m	D	129 lm/W	464.6 lm/m	E
6500 K	171.4 lm/W	617 lm/m	D	148.8 lm/W	535.9 lm/m	D	123.6 lm/W	444.9 lm/m	E

Grade DN (1st Tier) · 4.8W/m

Grade DN (1st Tier) · 4.8W/m — measured at 4.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	139.1 lm/W	667.6 lm/m	E	117.2 lm/W	562.7 lm/m	F	—	—	—
2300 K	151.6 lm/W	727.7 lm/m	D	130.8 lm/W	627.7 lm/m	E	105.7 lm/W	507.4 lm/m	F
2700 K	163.4 lm/W	784.5 lm/m	D	141.6 lm/W	679.6 lm/m	E	114.7 lm/W	550.7 lm/m	F
3000 K	171.6 lm/W	823.9 lm/m	D	149.4 lm/W	717.1 lm/m	D	121.5 lm/W	583.4 lm/m	E
3500 K	174.3 lm/W	836.4 lm/m	C	152.6 lm/W	732.5 lm/m	D	125.7 lm/W	603.1 lm/m	E
4000 K	177.5 lm/W	851.8 lm/m	C	153.5 lm/W	736.8 lm/m	D	126.7 lm/W	607.9 lm/m	E
5000 K	177.3 lm/W	850.8 lm/m	C	154.5 lm/W	741.7 lm/m	D	128 lm/W	614.2 lm/m	E
6500 K	169.9 lm/W	815.7 lm/m	D	147.6 lm/W	708.5 lm/m	D	122.5 lm/W	588.2 lm/m	E

Grade KE (3rd Tier) · 2.4W/m

Grade KE (3rd Tier) · 2.4W/m — measured at 2.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	110.7 lm/W	265.6 lm/m	E	88.7 lm/W	212.8 lm/m	F	—	—	—
2300 K	123.4 lm/W	296.2 lm/m	E	98.7 lm/W	237 lm/m	F	79.8 lm/W	191.5 lm/m	G
2700 K	133 lm/W	319.2 lm/m	E	107.2 lm/W	257.3 lm/m	F	86.8 lm/W	208.4 lm/m	F
3000 K	139.7 lm/W	335.3 lm/m	D	113.2 lm/W	271.7 lm/m	E	92.1 lm/W	221.1 lm/m	F
3500 K	141.8 lm/W	340.2 lm/m	D	115.5 lm/W	277.1 lm/m	E	95 lm/W	227.9 lm/m	F
4000 K	145.9 lm/W	350.2 lm/m	D	117.9 lm/W	283 lm/m	E	97.3 lm/W	233.6 lm/m	F
5000 K	145.7 lm/W	349.7 lm/m	D	117.9 lm/W	283 lm/m	E	97.6 lm/W	234.3 lm/m	F
6500 K	139.7 lm/W	335.3 lm/m	D	113.2 lm/W	271.7 lm/m	E	94 lm/W	225.5 lm/m	F

Grade KE (3rd Tier) · 3.6W/m

Grade KE (3rd Tier) · 3.6W/m — measured at 3.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	109.7 lm/W	395.1 lm/m	F	87.9 lm/W	316.5 lm/m	F	—	—	—
2300 K	122.4 lm/W	440.5 lm/m	E	97.9 lm/W	352.5 lm/m	F	79.1 lm/W	284.8 lm/m	G
2700 K	131.9 lm/W	474.7 lm/m	E	106.3 lm/W	382.7 lm/m	F	86.1 lm/W	309.9 lm/m	F
3000 K	138.5 lm/W	498.7 lm/m	D	112.3 lm/W	404.2 lm/m	E	91.3 lm/W	328.9 lm/m	F
3500 K	140.6 lm/W	506 lm/m	D	114.5 lm/W	412.2 lm/m	E	94.2 lm/W	339 lm/m	F
4000 K	144.7 lm/W	520.9 lm/m	D	116.9 lm/W	420.9 lm/m	E	96.5 lm/W	347.4 lm/m	F
5000 K	144.5 lm/W	520.2 lm/m	D	116.9 lm/W	420.9 lm/m	E	96.8 lm/W	348.5 lm/m	F
6500 K	138.5 lm/W	498.7 lm/m	D	112.3 lm/W	404.2 lm/m	E	93.2 lm/W	335.4 lm/m	F

Grade KE (3rd Tier) · 4.8W/m

Grade KE (3rd Tier) · 4.8W/m — measured at 4.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	108.8 lm/W	522.3 lm/m	F	87.2 lm/W	418.4 lm/m	F	—	—	—
2300 K	121.3 lm/W	582.5 lm/m	E	97.1 lm/W	466.1 lm/m	F	78.5 lm/W	376.6 lm/m	G
2700 K	130.8 lm/W	627.7 lm/m	E	105.4 lm/W	506 lm/m	F	85.4 lm/W	409.8 lm/m	F
3000 K	137.4 lm/W	659.4 lm/m	D	111.3 lm/W	534.4 lm/m	E	90.6 lm/W	434.8 lm/m	F
3500 K	139.4 lm/W	669 lm/m	D	113.5 lm/W	544.9 lm/m	E	93.4 lm/W	448.3 lm/m	F
4000 K	143.5 lm/W	688.8 lm/m	D	115.9 lm/W	556.5 lm/m	E	95.7 lm/W	459.3 lm/m	F
5000 K	143.3 lm/W	687.8 lm/m	D	115.9 lm/W	556.5 lm/m	E	96 lm/W	460.8 lm/m	F
6500 K	137.4 lm/W	659.4 lm/m	D	111.3 lm/W	534.4 lm/m	E	92.4 lm/W	443.5 lm/m	F

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.

Related models in this series

See every model in SMD LED Strip Series or narrow to High Efficiency. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 11076?

11076: 2835, 70 LEDs/m, 24V, 8 PCB, 3oz copper FPCB, cuttable 7LEDs/100mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

How long can a single run of this 24V SMD LED strip lights be?

Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 24V SMD LED strip lights can cover twice that length on one circuit when wired accordingly.

Can DENO customise this 24V SMD LED strip lights for a project?

Yes. DENO manufactures the Classic SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

Which SMD LED strip density should you specify?

For general cove and shelf lighting, 120 LEDs/m on a 24V LED strip is the usual baseline. Move to 180 or 240 LEDs/m when the strip sits close to a diffuser or is seen at a shallow angle, since higher density is what removes visible dots on a 2835 LED strip.

Which LED driver and run length suit #11076?
