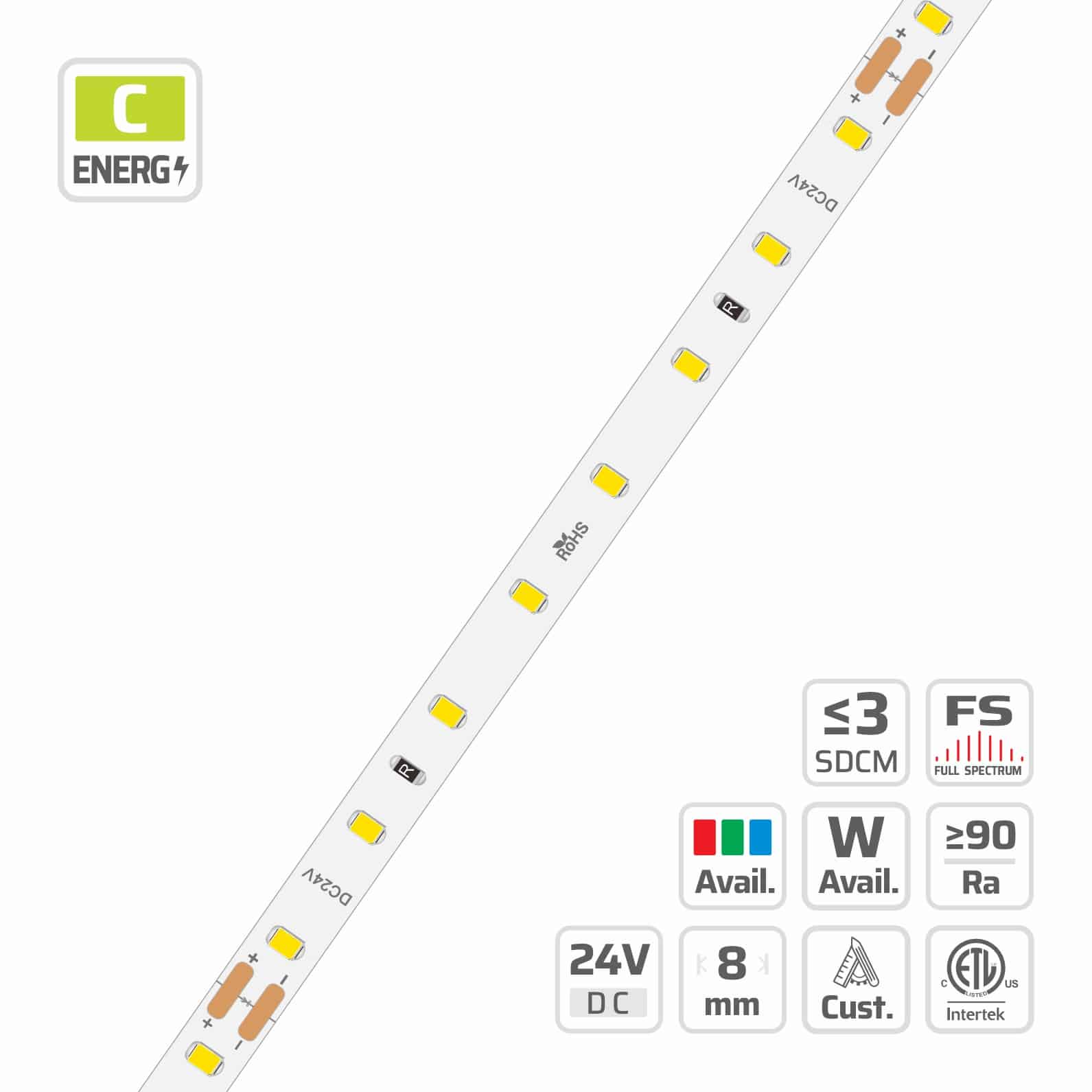

2835 High Light Efficacy LED Strip Light (#11161)

8mm · 24V · 64LEDs · 125cut

Model: 11161

11161 8mm | 24V | 64LEDs | 125cut | #11161 | 2835 High Light Efficacy LED Strip Light — 24V, cuttable every 125mm, 8mm FPCB width, 2835 LEDs, 64 LEDs/m, IP20

Overview

8mm | 24V | 64LEDs | 125cut | #11161 | 2835 High Light Efficacy LED Strip Light is part of the DENO High Light Efficacy SMD Strips series, engineered around high efficacy LED strip lights. Key specifications: 2835, 64LEDs/m, DC 24V, 8 mm PCB, 3oz copper FPCB, cuttable 8LEDs/125mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

Delivering up to 188 lm/W, this DC 24V 2835 LED strip light provides superior energy efficiency for demanding architectural lighting projects. Engineered with a narrow 8mm PCB and heavy 3oz copper foil, the circuit board ensures reliable thermal dissipation and stable electrical performance. Featuring 64 LEDs per meter with precise cut points every 125mm, this dimmable design simplifies seamless customization for commercial installations. Available for factory-direct wholesale project supply, standard 5m continuous runs maintain uniform output without visible brightness drop along the circuit.

We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.

Specifications

LED QTY	64LEDs/m
PART NO	DL-F28A32V24-11161-*
SMD TYPE	2835
CUTTABLE UNIT	8LEDs/125mm
DIMMABLE	Yes
IP RATING	IP20
LED PITCH	15.6mm
PCB WIDTH	8 mm
BEAM ANGLE	120°
RUN LENGTH	5m
COPPER FOIL	3oz
ON OFF TIMES	10000（test times）
POWER RANGE	2~12W
CIRCUIT TYPE	C.V. (Resistor Based)
INPUT VOLTAGE	DC 24V
MIN BEND DIAMETER	Φ60mm
OPERATING TEMPERATURE	-25~40°C;Tc：75°C（max）

Applications

Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.

Recommended accessories & compatible parts

DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #11161

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

Warranty: 5 years
Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
Compliance: CE · UL · RoHS
Bonding wire: 99.99% pure gold
Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 192.3 lm/W at 4000K, Ra 80, ErP energy class C (Grade DN (1st Tier) · 6.7W/m).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

Grade DL (2nd Tier) · 6.7W/m

Grade DL (2nd Tier) · 6.7W/m — measured at 6.7 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	138.9 lm/W	930.9 lm/m	D	111.4 lm/W	746.7 lm/m	E	—	—	—
2300 K	154.7 lm/W	1036.4 lm/m	D	124.2 lm/W	832.3 lm/m	E	100.6 lm/W	674 lm/m	F
2700 K	163.6 lm/W	1096 lm/m	C	134.3 lm/W	900.1 lm/m	E	108.9 lm/W	729.6 lm/m	F
3000 K	174.1 lm/W	1166.6 lm/m	C	141.4 lm/W	947.4 lm/m	D	115 lm/W	770.7 lm/m	E
3500 K	176.8 lm/W	1184.4 lm/m	C	144 lm/W	964.5 lm/m	D	118.5 lm/W	793.9 lm/m	E
4000 K	182.4 lm/W	1222.1 lm/m	C	147.4 lm/W	987.8 lm/m	D	121.7 lm/W	815.2 lm/m	E
5000 K	182.2 lm/W	1220.7 lm/m	C	147.3 lm/W	987.1 lm/m	D	121.5 lm/W	814.1 lm/m	E
6500 K	167 lm/W	1118.6 lm/m	C	141.3 lm/W	946.7 lm/m	D	117.3 lm/W	785.9 lm/m	E

Grade DL (2nd Tier) · 8.6W/m

Grade DL (2nd Tier) · 8.6W/m — measured at 8.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	137.1 lm/W	1179.1 lm/m	D	110 lm/W	945.7 lm/m	F	—	—	—
2300 K	152.6 lm/W	1312.7 lm/m	D	122.6 lm/W	1054.2 lm/m	E	99.3 lm/W	854 lm/m	F
2700 K	161.4 lm/W	1388.2 lm/m	C	132.6 lm/W	1140.1 lm/m	E	107.4 lm/W	924 lm/m	F
3000 K	171.8 lm/W	1477.6 lm/m	C	139.5 lm/W	1199.9 lm/m	D	113.5 lm/W	976.1 lm/m	E
3500 K	174.4 lm/W	1500.1 lm/m	C	142 lm/W	1221.6 lm/m	D	116.9 lm/W	1005.6 lm/m	E
4000 K	180 lm/W	1547.8 lm/m	C	145.5 lm/W	1251.1 lm/m	D	120.1 lm/W	1032.5 lm/m	E
5000 K	179.8 lm/W	1546.1 lm/m	C	145.4 lm/W	1250.3 lm/m	D	119.9 lm/W	1031.1 lm/m	E
6500 K	164.7 lm/W	1416.8 lm/m	C	139.4 lm/W	1199.1 lm/m	D	115.7 lm/W	995 lm/m	E

Grade DL (2nd Tier) · 9.6W/m

Grade DL (2nd Tier) · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	136.1 lm/W	1307 lm/m	D	109.2 lm/W	1048.3 lm/m	F	—	—	—
2300 K	151.6 lm/W	1455.1 lm/m	D	121.7 lm/W	1168.5 lm/m	E	98.6 lm/W	946.6 lm/m	F
2700 K	160.3 lm/W	1538.8 lm/m	C	131.6 lm/W	1263.7 lm/m	E	106.7 lm/W	1024.2 lm/m	F
3000 K	170.6 lm/W	1637.8 lm/m	C	138.5 lm/W	1330.1 lm/m	D	112.7 lm/W	1082 lm/m	E
3500 K	173.2 lm/W	1662.8 lm/m	C	141.1 lm/W	1354.1 lm/m	D	116.1 lm/W	1114.7 lm/m	E
4000 K	178.7 lm/W	1715.7 lm/m	C	144.5 lm/W	1386.8 lm/m	D	119.2 lm/W	1144.5 lm/m	E
5000 K	178.5 lm/W	1713.8 lm/m	C	144.4 lm/W	1385.9 lm/m	D	119.1 lm/W	1143.4 lm/m	E
6500 K	163.6 lm/W	1570.5 lm/m	C	138.4 lm/W	1329.1 lm/m	D	114.9 lm/W	1103 lm/m	E

Grade DN (1st Tier) · 6.7W/m

Grade DN (1st Tier) · 6.7W/m — measured at 6.7 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	150.7 lm/W	1009.7 lm/m	D	127.1 lm/W	851.5 lm/m	E	—	—	—
2300 K	164.3 lm/W	1100.8 lm/m	D	141.8 lm/W	950.1 lm/m	E	114.9 lm/W	769.8 lm/m	F
2700 K	177.2 lm/W	1187.2 lm/m	C	153.5 lm/W	1028.2 lm/m	D	124.4 lm/W	833.7 lm/m	E
3000 K	186.1 lm/W	1246.8 lm/m	C	162 lm/W	1085.1 lm/m	D	131.7 lm/W	882.3 lm/m	E
3500 K	188.8 lm/W	1265.3 lm/m	C	165.5 lm/W	1109.1 lm/m	D	136.2 lm/W	912.5 lm/m	E
4000 K	192.3 lm/W	1288.5 lm/m	C	166.5 lm/W	1115.2 lm/m	D	137.4 lm/W	920.7 lm/m	E
5000 K	192.1 lm/W	1287.2 lm/m	C	167.5 lm/W	1122.1 lm/m	D	138.2 lm/W	925.9 lm/m	E
6500 K	184.1 lm/W	1233.7 lm/m	C	160.1 lm/W	1072.8 lm/m	D	132.9 lm/W	890.4 lm/m	E

Grade DN (1st Tier) · 8.6W/m

Grade DN (1st Tier) · 8.6W/m — measured at 8.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	148.7 lm/W	1278.9 lm/m	D	125.4 lm/W	1078.5 lm/m	E	—	—	—
2300 K	162.1 lm/W	1394.3 lm/m	D	139.9 lm/W	1203.4 lm/m	E	113.3 lm/W	974.4 lm/m	F
2700 K	174.8 lm/W	1503.6 lm/m	C	151.4 lm/W	1302.3 lm/m	D	122.8 lm/W	1055.9 lm/m	E
3000 K	183.6 lm/W	1579.1 lm/m	C	159.8 lm/W	1374.3 lm/m	D	129.9 lm/W	1117.5 lm/m	E
3500 K	186.3 lm/W	1602.5 lm/m	C	163.3 lm/W	1404.7 lm/m	D	134.4 lm/W	1155.7 lm/m	E
4000 K	189.8 lm/W	1632 lm/m	C	164.2 lm/W	1412.5 lm/m	D	135.6 lm/W	1166.1 lm/m	E
5000 K	189.6 lm/W	1630.3 lm/m	C	165.3 lm/W	1421.2 lm/m	D	136.3 lm/W	1172.2 lm/m	E
6500 K	181.7 lm/W	1562.6 lm/m	C	158 lm/W	1358.7 lm/m	D	131.1 lm/W	1127.5 lm/m	E

Grade DN (1st Tier) · 9.6W/m

Grade DN (1st Tier) · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	147.7 lm/W	1417.6 lm/m	D	124.5 lm/W	1195.5 lm/m	E	—	—	—
2300 K	161 lm/W	1545.5 lm/m	D	139 lm/W	1333.9 lm/m	E	112.6 lm/W	1081 lm/m	F
2700 K	173.6 lm/W	1666.7 lm/m	C	150.4 lm/W	1443.6 lm/m	D	121.9 lm/W	1170.4 lm/m	E
3000 K	182.3 lm/W	1750.4 lm/m	C	158.7 lm/W	1523.4 lm/m	D	129 lm/W	1238.7 lm/m	E
3500 K	185 lm/W	1776.3 lm/m	C	162.2 lm/W	1557.1 lm/m	D	133.4 lm/W	1281 lm/m	E
4000 K	188.4 lm/W	1809 lm/m	C	163.1 lm/W	1565.7 lm/m	D	134.6 lm/W	1292.6 lm/m	E
5000 K	188.2 lm/W	1807.1 lm/m	C	164.1 lm/W	1575.3 lm/m	D	135.4 lm/W	1299.8 lm/m	E
6500 K	180.4 lm/W	1732.1 lm/m	C	156.9 lm/W	1506.1 lm/m	D	130.2 lm/W	1249.9 lm/m	E

Grade KE (3rd Tier) · 6.7W/m

Grade KE (3rd Tier) · 6.7W/m — measured at 6.7 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	121.6 lm/W	815 lm/m	E	97.4 lm/W	652.7 lm/m	F	—	—	—
2300 K	135.5 lm/W	908.2 lm/m	D	108.6 lm/W	727.4 lm/m	F	87.9 lm/W	588.9 lm/m	F
2700 K	146.1 lm/W	978.7 lm/m	D	117.9 lm/W	789.7 lm/m	E	95.5 lm/W	639.7 lm/m	F
3000 K	153.4 lm/W	1028 lm/m	D	124.5 lm/W	834.2 lm/m	E	101.2 lm/W	678 lm/m	F
3500 K	155.7 lm/W	1043.1 lm/m	D	127 lm/W	850.6 lm/m	E	104.5 lm/W	700 lm/m	F
4000 K	160.3 lm/W	1073.9 lm/m	C	129.6 lm/W	868.4 lm/m	E	107 lm/W	717.1 lm/m	F
5000 K	160.1 lm/W	1072.5 lm/m	C	129.6 lm/W	868.4 lm/m	E	106.9 lm/W	716.2 lm/m	F
6500 K	153.4 lm/W	1028 lm/m	D	124.4 lm/W	833.5 lm/m	E	103.3 lm/W	692.1 lm/m	F

Grade KE (3rd Tier) · 8.6W/m

Grade KE (3rd Tier) · 8.6W/m — measured at 8.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	120 lm/W	1032.3 lm/m	E	96.1 lm/W	826.7 lm/m	F	—	—	—
2300 K	133.8 lm/W	1150.3 lm/m	E	107.1 lm/W	921.2 lm/m	F	86.8 lm/W	746.5 lm/m	F
2700 K	144.1 lm/W	1239.6 lm/m	D	116.3 lm/W	1000.2 lm/m	E	94.2 lm/W	810.2 lm/m	F
3000 K	151.4 lm/W	1302.1 lm/m	D	122.9 lm/W	1056.6 lm/m	E	99.9 lm/W	858.8 lm/m	F
3500 K	153.6 lm/W	1321.1 lm/m	D	125.3 lm/W	1077.4 lm/m	E	103.1 lm/W	886.5 lm/m	F
4000 K	158.2 lm/W	1360.2 lm/m	D	127.9 lm/W	1099.9 lm/m	E	105.6 lm/W	908.2 lm/m	F
5000 K	158 lm/W	1358.4 lm/m	D	127.9 lm/W	1099.9 lm/m	E	105.5 lm/W	907.3 lm/m	F
6500 K	151.4 lm/W	1302.1 lm/m	D	122.8 lm/W	1055.7 lm/m	E	101.9 lm/W	876.3 lm/m	F

Grade KE (3rd Tier) · 9.6W/m

Grade KE (3rd Tier) · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	119.2 lm/W	1144.2 lm/m	E	95.5 lm/W	916.4 lm/m	F	—	—	—
2300 K	132.8 lm/W	1275 lm/m	E	106.4 lm/W	1021.2 lm/m	F	86.2 lm/W	827.5 lm/m	F
2700 K	143.1 lm/W	1374.1 lm/m	D	115.5 lm/W	1108.7 lm/m	E	93.6 lm/W	898.1 lm/m	F
3000 K	150.3 lm/W	1443.3 lm/m	D	122 lm/W	1171.2 lm/m	E	99.2 lm/W	951.9 lm/m	F
3500 K	152.5 lm/W	1464.4 lm/m	D	124.4 lm/W	1194.2 lm/m	E	102.4 lm/W	982.7 lm/m	F
4000 K	157.1 lm/W	1507.7 lm/m	D	127 lm/W	1219.2 lm/m	E	104.9 lm/W	1006.7 lm/m	F
5000 K	156.9 lm/W	1505.8 lm/m	D	127 lm/W	1219.2 lm/m	E	104.8 lm/W	1006.1 lm/m	F
6500 K	150.3 lm/W	1443.3 lm/m	D	121.9 lm/W	1170.2 lm/m	E	101.2 lm/W	971.5 lm/m	F

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.

Related models in this series

See every model in SMD LED Strip Series or narrow to High Efficiency. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 11161?

11161: 2835, 64LEDs/m, DC 24V, 8 mm PCB, 3oz copper FPCB, cuttable 8LEDs/125mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

Which environments is this high efficacy LED strip lights rated for?

Ingress protection for this model is listed in the datasheet. As a high efficacy LED strip lights it is specified for the duty listed in the datasheet, and DENO can supply alternative coatings, sleeves or IP68 potting for harsher installations.

Can DENO customise this high efficacy LED strip lights for a project?

Yes. DENO manufactures the High Light Efficacy SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

How much can a high efficacy LED strip cut energy use?

Moving from a typical 100 lm/W strip to a 180 to 200 lm/W high lumen LED strip roughly halves the wattage needed for the same lumen output. Over a long commercial run this also lowers the required driver size and helps the installation reach a better ErP energy class.

Which LED driver and run length suit #11161?

8mm | 24V | 64LEDs | 125cut | #11161 | 2835 High Light Efficacy LED Strip Light is a constant-voltage DC 24V product, so pair it with a CE or UL listed DC 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
