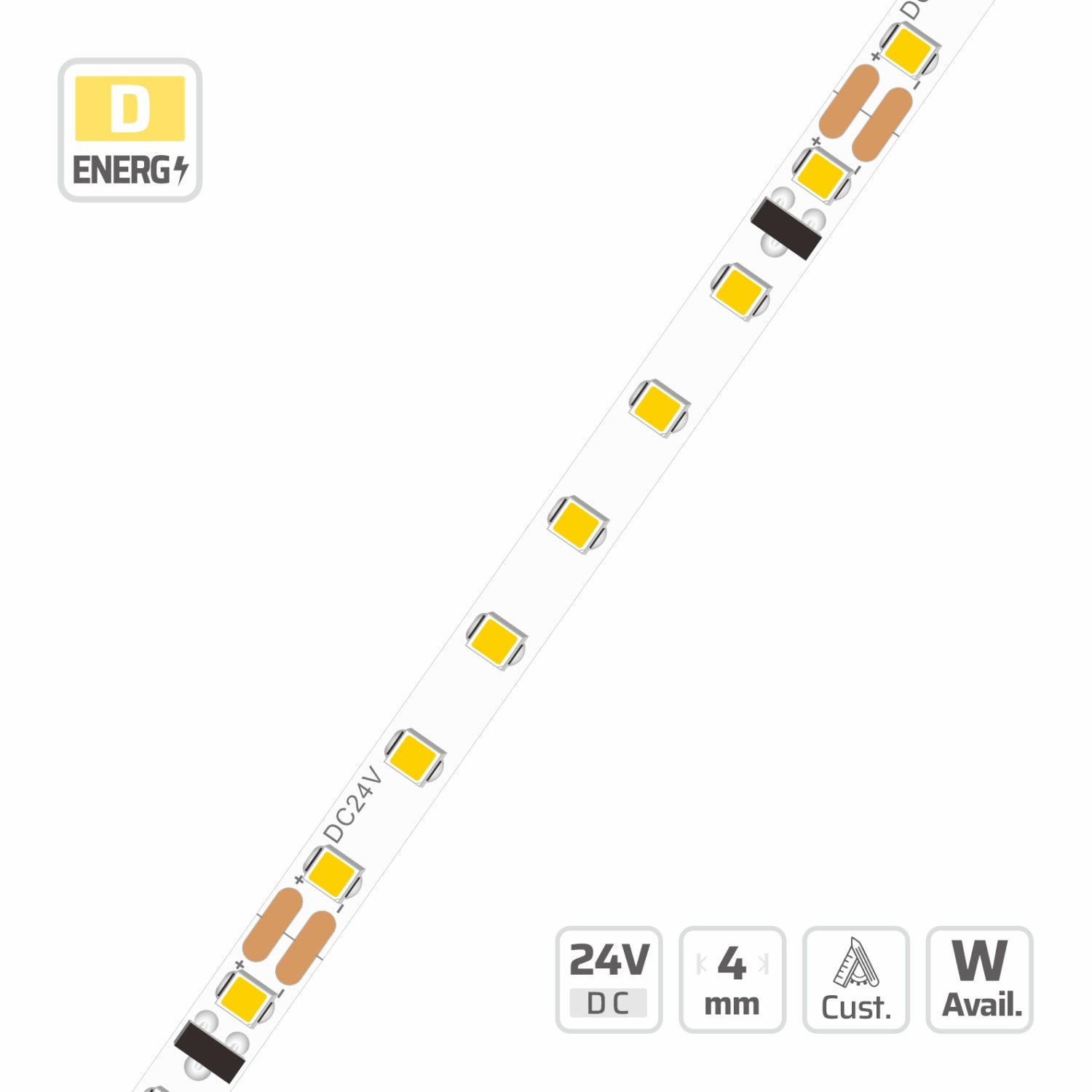

2216 Ultra-Narrow LED Strip Light (#3367)
4mm · 24V · 140LEDs · 50mm/cut
Model: 3367
Overview
4mm | 24V | 140LEDs | 50mm/cut | #2-3367 | 2216 Ultra-Narrow LED Strip Light is part of the DENO Ultra-Narrow SMD Strips series, engineered around ultra narrow LED strip. Key specifications: 2216, 140 LEDs/m, 24V, 4 PCB, 2oz copper FPCB, cuttable 7LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This ultra-narrow 4mm 2216 LED strip light integrates 140 LEDs per meter on a 2oz copper PCB for slim architectural lighting installations. Engineered with a constant current circuit and 24V input voltage, this strip operates efficiently within a 2.4W to 9.6W power range. The fully dimmable linear module features a 120-degree beam angle and a convenient 50mm cut increment for precise onsite fitting. Operating reliably from -25°C to 40°C with self-adhesive backing, this product is available for wholesale project supply in 5m maximum runs.
High Efficacy Led Strip Lights built for high light efficacy smd strips projects.
Specifications
| LED QTY | 140 LEDs/m |
|---|---|
| PART NO | DL-F20A70V24-2-3367-* |
| SMD TYPE | 2216 |
| CUTTABLE UNIT | 7LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 7.1mm |
| PCB WIDTH | 4 |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 2.4~9.6W |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Ultra-narrow 4mm channels & shadow gaps — Fits shadow-gap details, slim profiles and joinery grooves that cannot take a standard 8–10mm strip.
Recommended accessories & compatible parts
- DL-0809HX-F — 8.89x7.79mm Mini Recessed LED Channel with Flange — Trimless Aluminum Profile for 5mm Strip: Accepts LED strips up to 5mm wide.
- DL-0909HX-M — 9x9mm Magnetic LED Channel — Tool-Free Aluminum Profile for Shelf Lighting: Accepts LED strips up to 5mm wide.
- DL-1010HX-V — 10x10mm V Shape Corner LED Channel — 45 Degree Aluminum Profile for Cabinets: Accepts LED strips up to 5mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #3367
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 150.8 lm/W at 4000K, Ra 90, ErP energy class D (Grade DL (2nd Tier) · 4.8W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 4.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 114 lm/W | 547.3 lm/m | E | — | — | — |
| 2300 K | — | — | — | 127 lm/W | 609.7 lm/m | E | — | — | — |
| 2700 K | — | — | — | 137.4 lm/W | 659.4 lm/m | D | 111.4 lm/W | 534.6 lm/m | E |
| 3000 K | — | — | — | 144.6 lm/W | 694.1 lm/m | D | 117.6 lm/W | 564.3 lm/m | E |
| 3500 K | — | — | — | 147.2 lm/W | 706.7 lm/m | D | 121.1 lm/W | 581.4 lm/m | E |
| 4000 K | — | — | — | 150.8 lm/W | 723.8 lm/m | D | 124.5 lm/W | 597.5 lm/m | E |
| 5000 K | — | — | — | 150.7 lm/W | 723.3 lm/m | D | — | — | — |
| 6500 K | — | — | — | 144.5 lm/W | 693.6 lm/m | D | — | — | — |
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 112.1 lm/W | 807.2 lm/m | E | — | — | — |
| 2300 K | — | — | — | 124.9 lm/W | 899.2 lm/m | E | — | — | — |
| 2700 K | — | — | — | 135.1 lm/W | 972.6 lm/m | D | 109.5 lm/W | 788.5 lm/m | F |
| 3000 K | — | — | — | 142.2 lm/W | 1023.7 lm/m | D | 115.6 lm/W | 832.3 lm/m | E |
| 3500 K | — | — | — | 144.8 lm/W | 1042.4 lm/m | D | 119.1 lm/W | 857.5 lm/m | E |
| 4000 K | — | — | — | 148.3 lm/W | 1067.6 lm/m | D | 122.4 lm/W | 881.3 lm/m | E |
| 5000 K | — | — | — | 148.2 lm/W | 1066.9 lm/m | D | — | — | — |
| 6500 K | — | — | — | 142.1 lm/W | 1023 lm/m | D | — | — | — |
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 110.2 lm/W | 1058.2 lm/m | E | — | — | — |
| 2300 K | — | — | — | 122.8 lm/W | 1178.9 lm/m | E | — | — | — |
| 2700 K | — | — | — | 132.8 lm/W | 1275.1 lm/m | E | 107.7 lm/W | 1033.7 lm/m | F |
| 3000 K | — | — | — | 139.8 lm/W | 1342.1 lm/m | D | 113.7 lm/W | 1091.2 lm/m | E |
| 3500 K | — | — | — | 142.4 lm/W | 1366.6 lm/m | D | 117.1 lm/W | 1124.2 lm/m | E |
| 4000 K | — | — | — | 145.8 lm/W | 1399.6 lm/m | D | 120.4 lm/W | 1155.4 lm/m | E |
| 5000 K | — | — | — | 145.7 lm/W | 1398.7 lm/m | D | — | — | — |
| 6500 K | — | — | — | 139.7 lm/W | 1341.2 lm/m | D | — | — | — |
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 4mm wide, so it needs a channel with at least 6mm inner width (4mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 2835 Constant Current High Lumen High Light Efficacy LED Strip Light (#3410)
- 2835 High Lumen High Light Efficacy High Density LED Strip Light (#5289)
- 2835 Constant Current High Light Efficacy LED Strip Light (#4526)
- 2835 High-Efficiency Classic Stable LED Strip Light (#11586-N)
- 2835 High Light Efficacy LED Strip Light (#11076)
- 2835 Hight Efficiency LED Strip Light (#16946)
- 2835 High Lumen High Light Efficacy High Density LED Strip Light (#5229)
- 2835 High Light Efficacy LED Strip Light (#5871)
See every model in SMD LED Strip Series or narrow to High Efficiency. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 2-3367?
2-3367: 2216, 140 LEDs/m, 24V, 4 PCB, 2oz copper FPCB, cuttable 7LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra narrow LED strip be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra narrow LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra narrow LED strip for a project?
Yes. DENO manufactures the Ultra-Narrow SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Does a constant current LED strip really eliminate voltage drop?
Voltage still drops along the copper, but the per-segment constant current IC holds LED current fixed until the local voltage falls below its dropout point. Brightness therefore stays even end to end, and power can be injected at one end, both ends or any mid point of the run.
How narrow can a thin LED strip be?
DENO builds down to a 3 mm wide FPCB. A 3 mm LED strip fits aluminium channels, cabinet reveals, shelf edges and slim architectural slots where an 8 or 10 mm board cannot be hidden, while still carrying 2 oz copper for stable long runs.
