Surface Mount LED Channel | U Shape Aluminum Profile | DENO

Surface mounted LED channels from 10x10mm to 25x14.5mm U shape bodies. Screw or clip fixing, 48V long-run and dotless slim profiles for 6-15mm LED strips.

Surface Mount LED Channel models & key specifications (21)

48V Surface Mount LED Channel Models (3)

DL-2007 — 2835 · 120 LEDs/m · 48V

DL-2007 Surface Mount LED Channel — 48V, cuttable every 62.5mm, 20mm FPCB width, 2835 LEDs, 120 LEDs/m

LED Type: 2835 · LED Density: 120leds/m or above · Voltage: DC 48V · Cutting Unit: 16LEDs/62.5mm · PCB Width: 20mm · Copper Foil: 3oz · Circuit Type: CV

DL-2005 — 2835 · 240 LEDs/m · 48V

DL-2005 Surface Mount LED Channel — 48V, cuttable every 62.5mm, 20mm FPCB width, 2835 LEDs, 240 LEDs/m

LED Type: 2835 · LED Density: 240leds/m or above · Voltage: DC 48V · Cutting Unit: 16LEDs/62.5mm · PCB Width: 20mm · Copper Foil: 3oz · Circuit Type: CV

DL-1515 HX — 2835 · 120 LEDs/m · 48V

DL-1515 HX Surface Mount LED Channel — 48V, cuttable every 125mm, 10mm FPCB width, 2835 LEDs, 120 LEDs/m

LED Type: 2835 · LED Density: 120leds/m or above · Voltage: DC 48V · Cutting Unit: 16LEDs/125mm · PCB Width: 10mm · Copper Foil: 3oz · Circuit Type: CV

24V Surface Mount LED Channel Models (18)

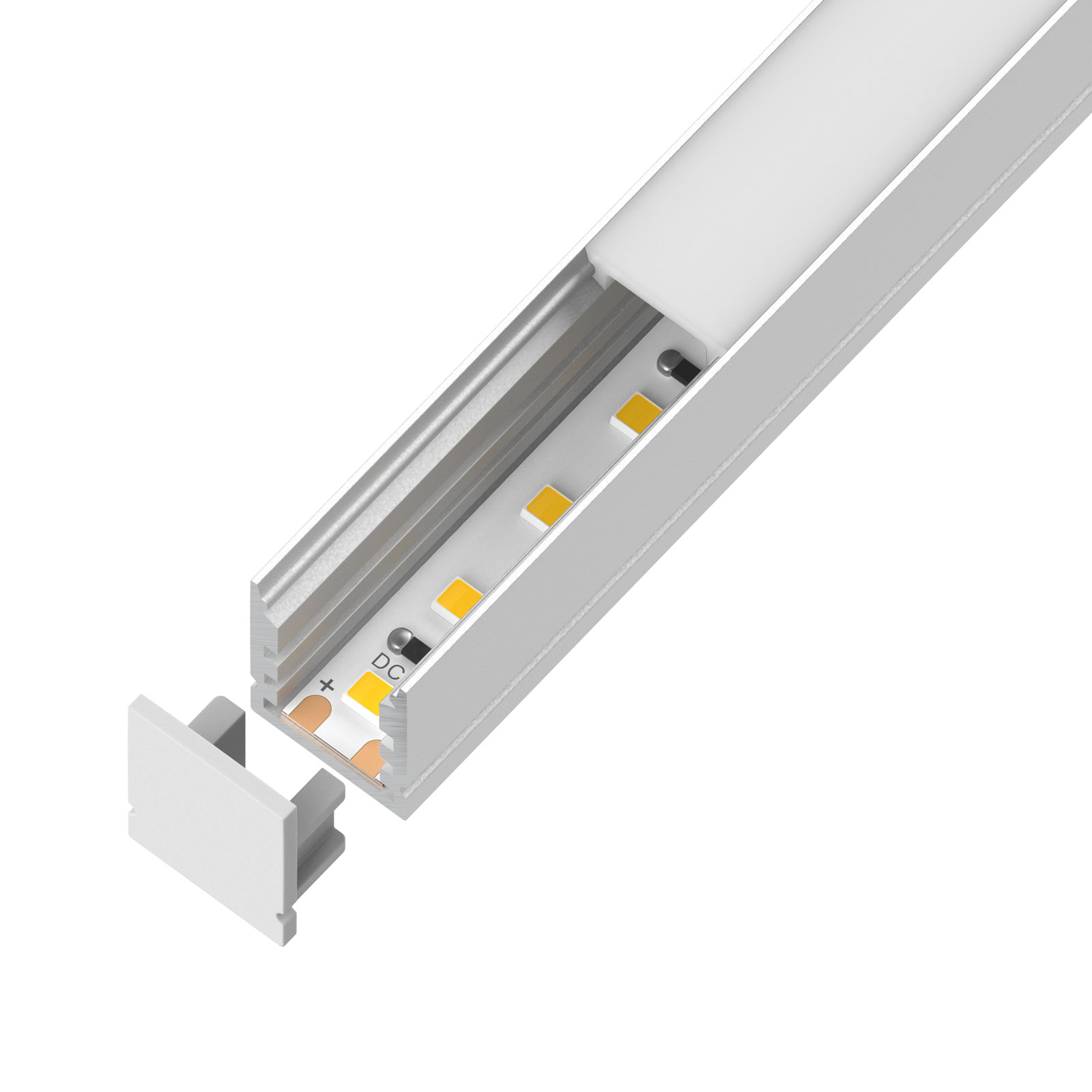

DL-1215 — 2835 · 120 LEDs/m · 24V

DL-1215 Surface Mount LED Channel — 24V, cuttable every 50mm, 8mm FPCB width, 2835 LEDs, 120 LEDs/m

LED Type: 2835 · LED Density: 120leds/m or above · Voltage: DC 24V · Cutting Unit: 6LEDs/50mm · PCB Width: 8mm · Copper Foil: 3oz · Circuit Type: CV

DL-2008 — 2835 · 120 LEDs/m · 24V

DL-2008 Surface Mount LED Channel — 24V, cuttable every 62.5mm, 20mm FPCB width, 2835 LEDs, 120 LEDs/m

LED Type: 2835 · LED Density: 120leds/m or above · Voltage: DC 24V · Cutting Unit: 16LEDs/62.5mm · PCB Width: 20mm · Copper Foil: 3oz · Circuit Type: CV

DL-2001 — 2835 · 160 LEDs/m · 24V

DL-2001 Surface Mount LED Channel — 24V, cuttable every 50mm, 15mm FPCB width, 2835 LEDs, 160 LEDs/m

LED Type: 2835 · LED Density: 160leds/m or above · Voltage: DC 24V · Cutting Unit: 8LEDs/50mm · PCB Width: 15mm · Copper Foil: 2oz · Circuit Type: CV

DL-1408 HX — 2216 · 120 LEDs/m · 24V

DL-1408 HX Surface Mount LED Channel — 24V, cuttable every 50mm, 8mm FPCB width, 2216 LEDs, 120 LEDs/m

LED Type: 2216 · LED Density: 120leds/m or above · Voltage: DC 24V · Cutting Unit: 12LEDs/50mm · PCB Width: 8mm · Copper Foil: 3oz · Circuit Type: CV

DL-1715 HX — 2835 · 120 LEDs/m · 24V

DL-1715 HX Surface Mount LED Channel — 24V, cuttable every 62.5mm, 10mm FPCB width, 2835 LEDs, 120 LEDs/m

LED Type: 2835 · LED Density: 120leds/m or above · Voltage: DC 24V · Cutting Unit: 8LEDs/62.5mm · PCB Width: 10mm · Copper Foil: 3oz · Circuit Type: CV

DL-2002 — 2835 · 160 LEDs/m · 24V

DL-2002 Surface Mount LED Channel — 24V, cuttable every 50mm, 15mm FPCB width, 2835 LEDs, 160 LEDs/m

LED Type: 2835 · LED Density: 160leds/m or above · Voltage: DC 24V · Cutting Unit: 8LEDs/50mm · PCB Width: 15mm · Copper Foil: 2oz · Circuit Type: CV

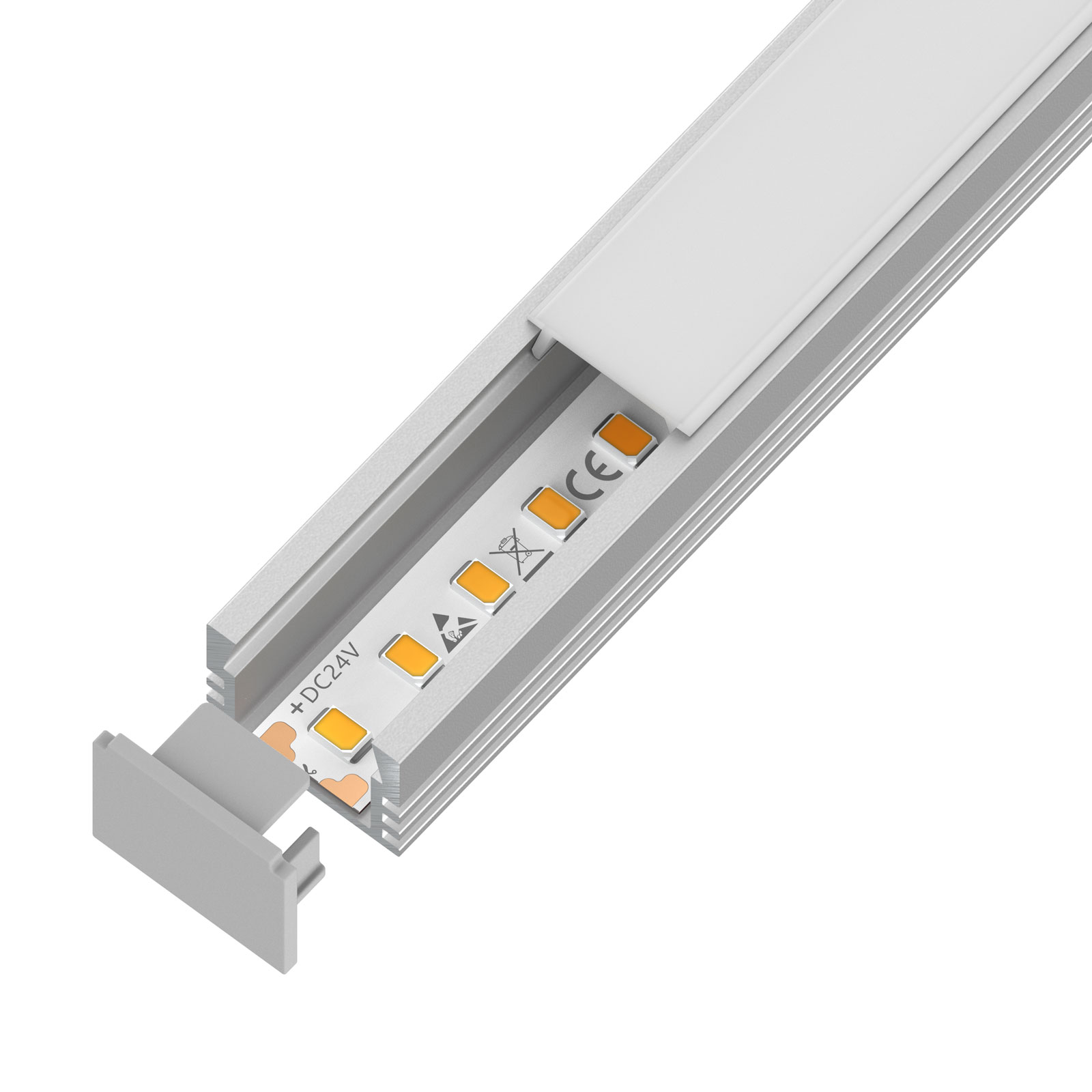

DL-1103-1 — 2835 · 120 LEDs/m · 24V

DL-1103-1 Surface Mount LED Channel — 24V, cuttable every 62.5mm, 10mm FPCB width, 2835 LEDs, 120 LEDs/m

LED Type: 2835 · LED Density: 120leds/m or above · Voltage: DC 24V · Cutting Unit: 8LEDs/62.5mm · PCB Width: 10mm · Copper Foil: 3oz · Circuit Type: CV

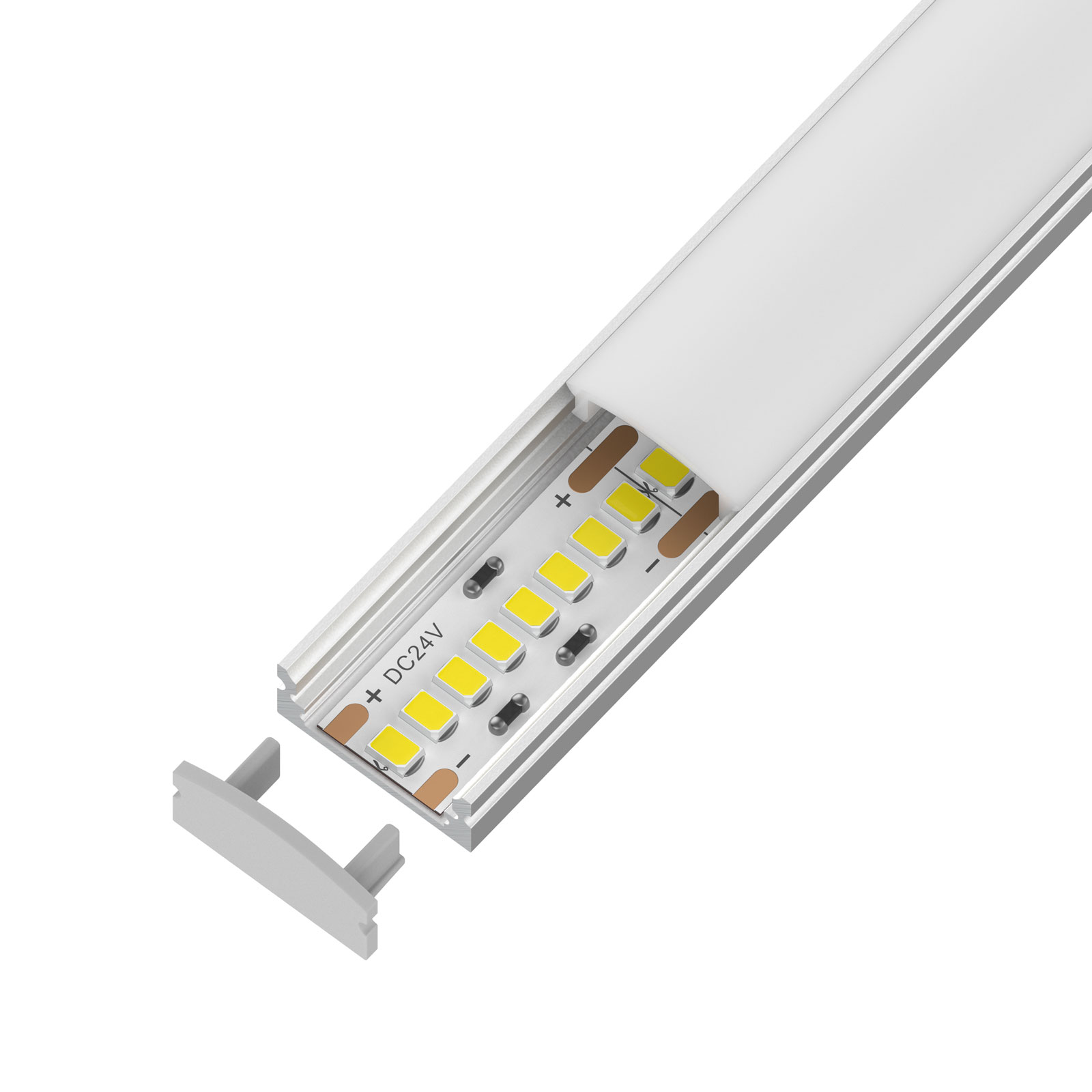

DL-1205 — 2835 · 240 LEDs/m · 24V

DL-1205 Surface Mount LED Channel — 24V, cuttable every 31.3mm, 12mm FPCB width, 2835 LEDs, 240 LEDs/m

LED Type: 2835 · LED Density: 240leds/m or above · Voltage: DC 24V · Cutting Unit: 8LEDs/31.25mm · PCB Width: 12mm · Copper Foil: 3oz · Circuit Type: CV

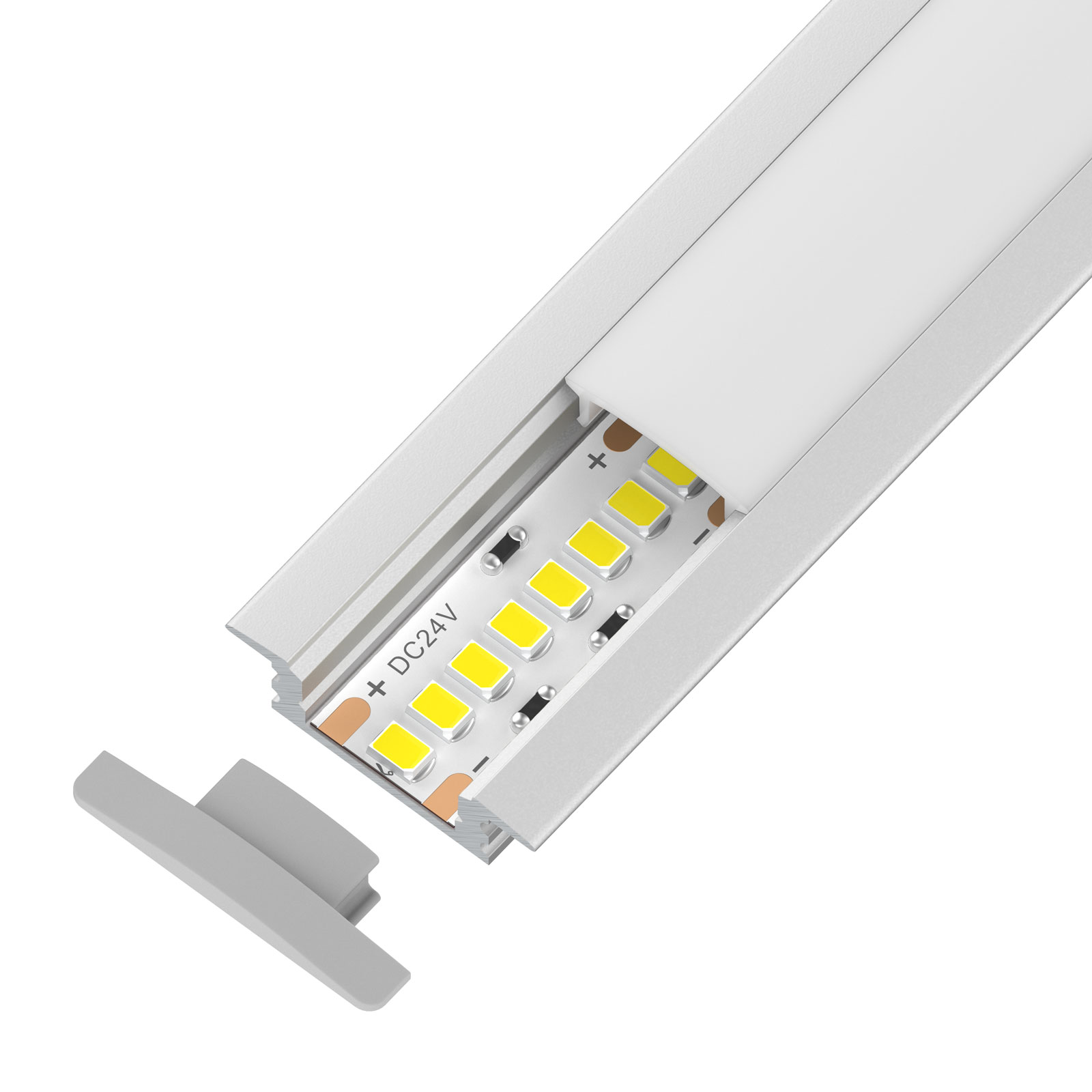

DL-1204 — 2835 · 240 LEDs/m · 24V

DL-1204 Surface Mount LED Channel — 24V, cuttable every 31.3mm, 12mm FPCB width, 2835 LEDs, 240 LEDs/m

LED Type: 2835 · LED Density: 240leds/m or above · Voltage: DC 24V · Cutting Unit: 8LEDs/31.25mm · PCB Width: 12mm · Copper Foil: 3oz · Circuit Type: CV

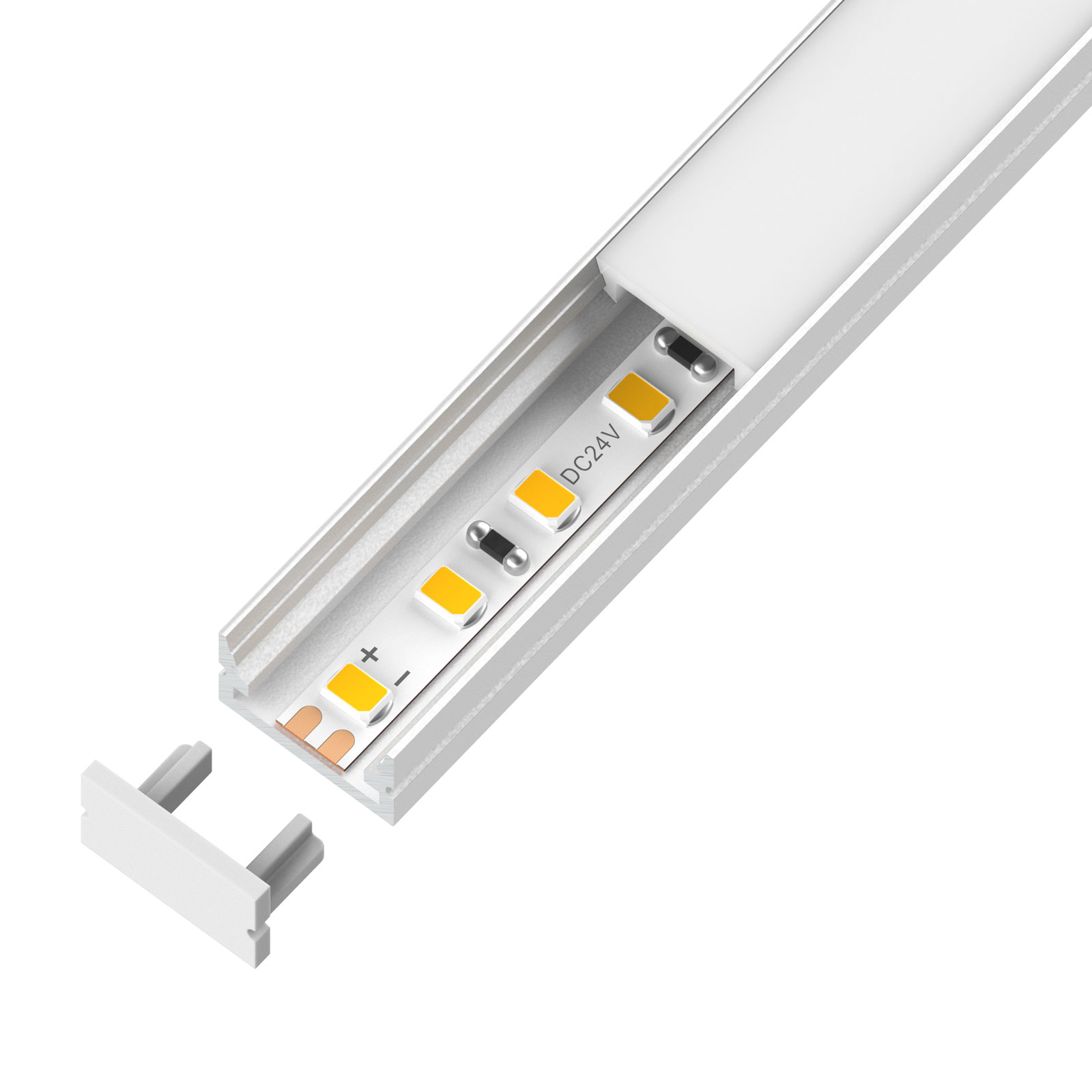

DL-1208 — 2835 · 120 LEDs/m · 24V

DL-1208 Surface Mount LED Channel — 24V, cuttable every 25mm, 6mm FPCB width, 2835 LEDs, 120 LEDs/m

LED Type: 2835 · LED Density: 120leds/m or above · Voltage: DC 24V · Cutting Unit: 6LEDs/25mm · PCB Width: 6mm · Copper Foil: 3oz · Circuit Type: CV

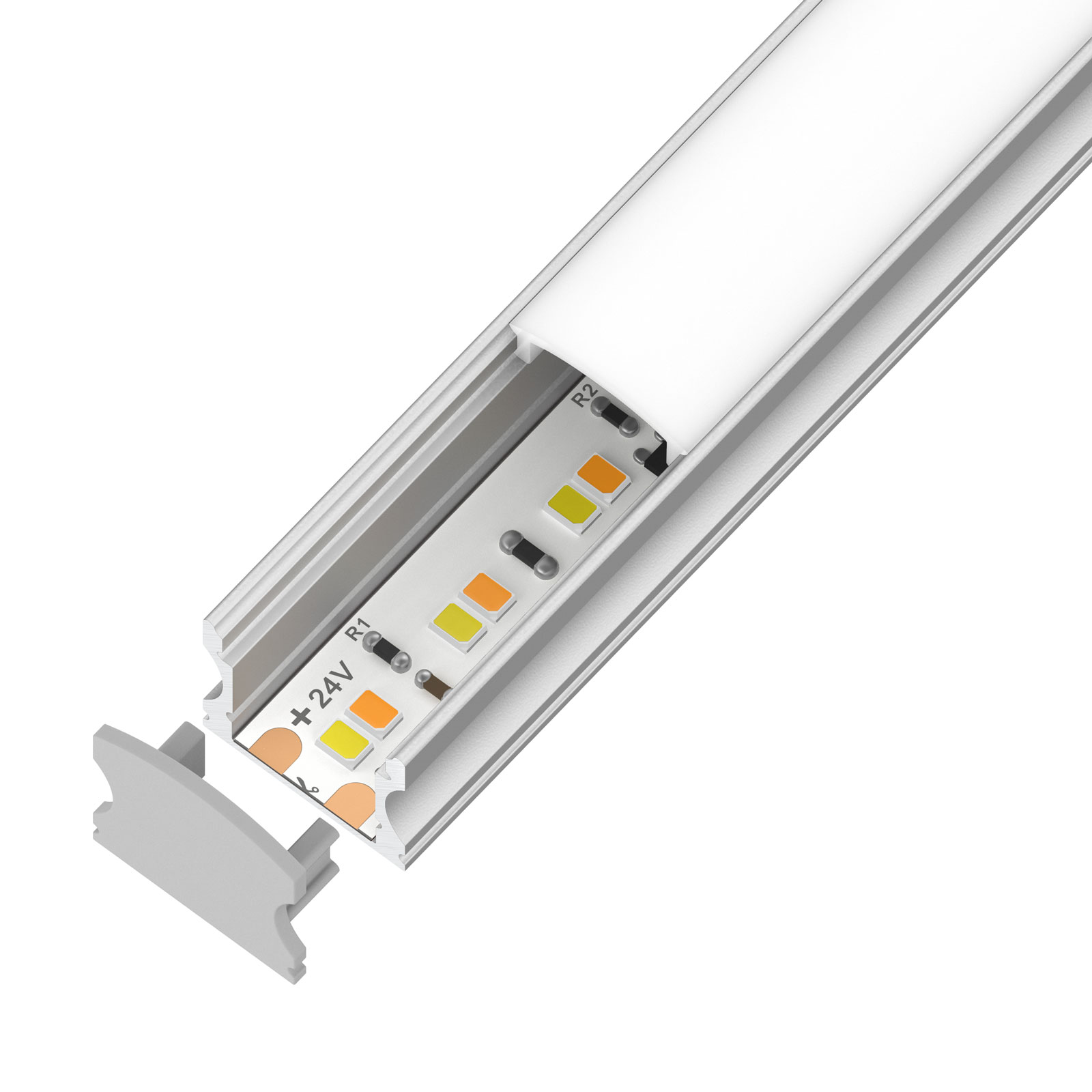

DL-1202 — 2835 · 120 LEDs/m · 24V

DL-1202 Surface Mount LED Channel — 24V, cuttable every 83.3mm, 12mm FPCB width, 2835 LEDs, 120 LEDs/m

LED Type: 2835 · LED Density: 120leds/m or above · Voltage: DC 24V · Cutting Unit: 14LEDs/83.33mm · PCB Width: 12mm · Copper Foil: 3oz · Circuit Type: CV

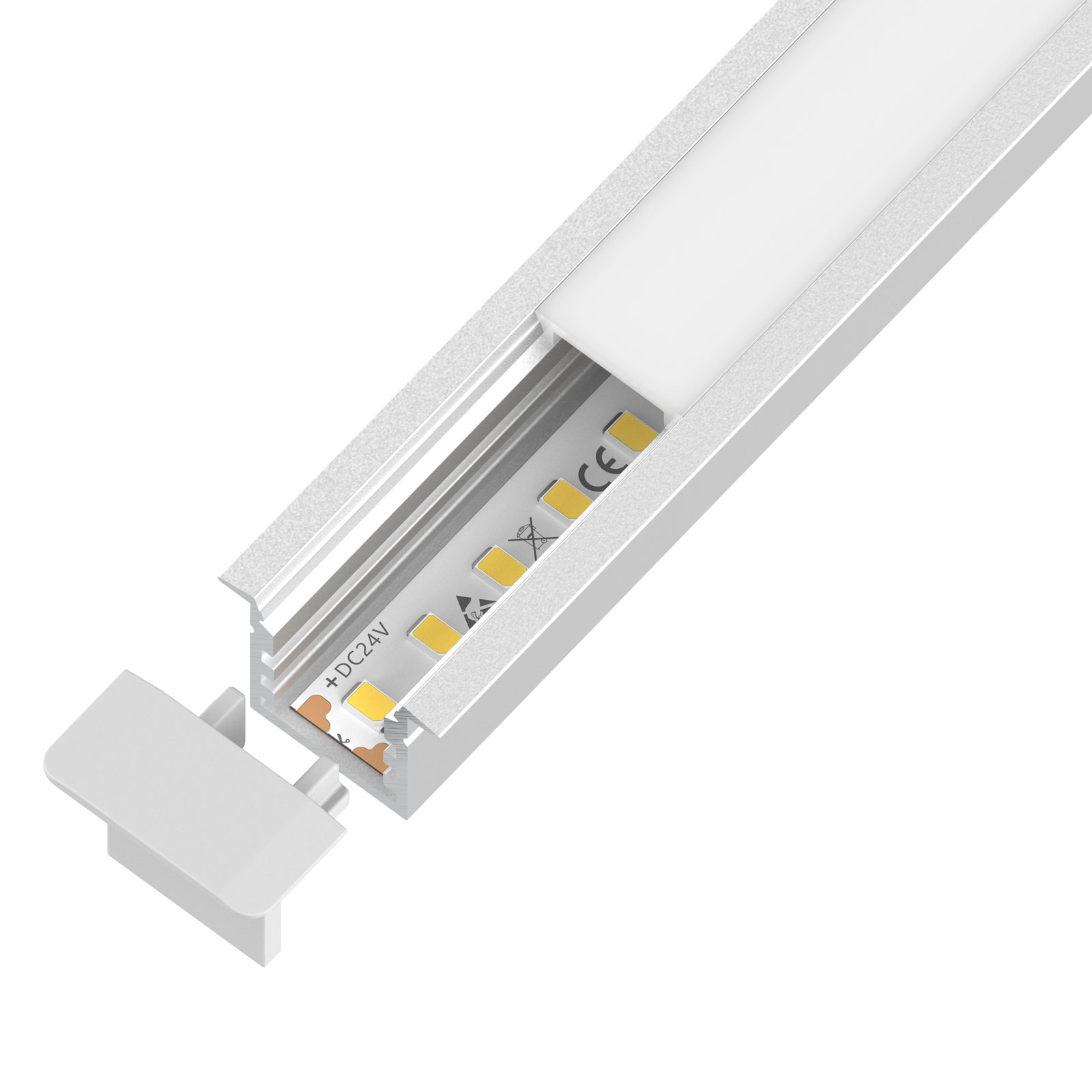

DL-2015 — 2835 · 120 LEDs/m · 24V

DL-2015 Surface Mount LED Channel — 24V, cuttable every 62.5mm, 10mm FPCB width, 2835 LEDs, 120 LEDs/m

LED Type: 2835 · LED Density: 120leds/m or above · Voltage: DC 24V · Cutting Unit: 8LEDs/62.5mm · PCB Width: 10mm · Copper Foil: 3oz · Circuit Type: CV

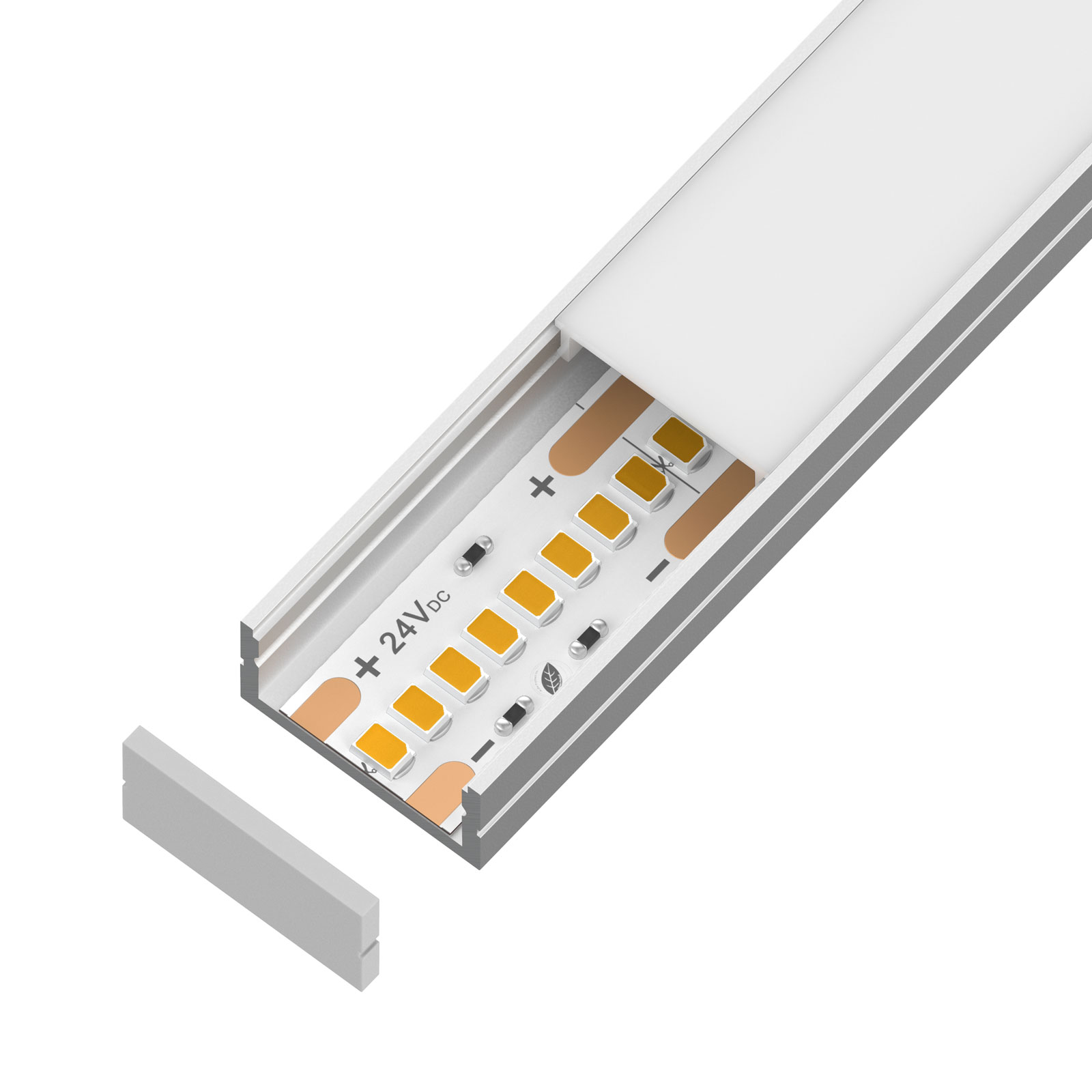

DL-2010 — 2835 · 240 LEDs/m · 24V

DL-2010 Surface Mount LED Channel — 24V, cuttable every 31.3mm, 15mm FPCB width, 2835 LEDs, 240 LEDs/m

LED Type: 2835 · LED Density: 240leds/m or above · Voltage: DC 24V · Cutting Unit: 8LEDs/31.25mm · PCB Width: 15mm · Copper Foil: 3oz · Circuit Type: CV

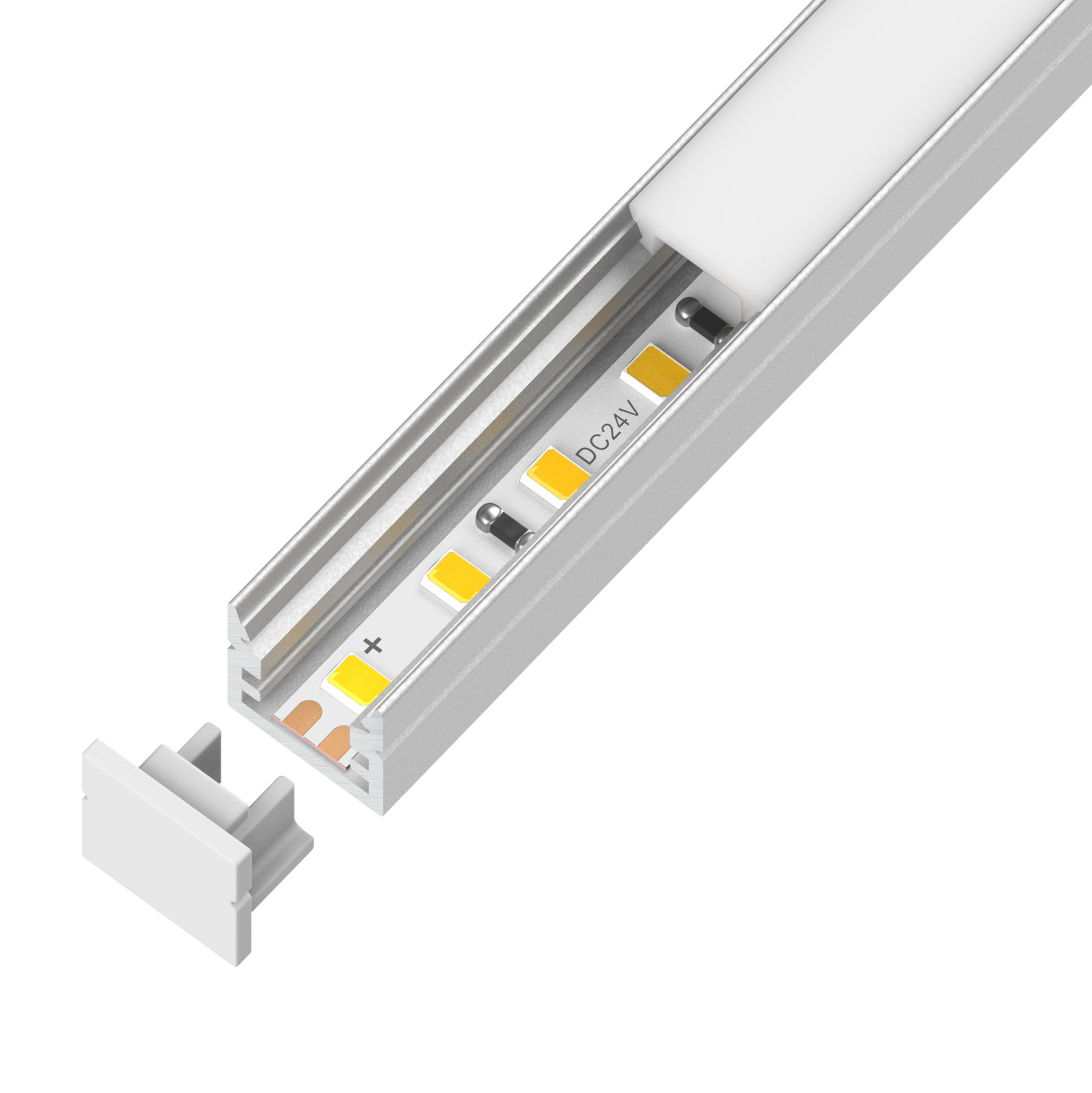

DL-1010 — 2835 · 120 LEDs/m · 24V

DL-1010 Surface Mount LED Channel — 24V, cuttable every 62.5mm, 6mm FPCB width, 2835 LEDs, 120 LEDs/m

LED Type: 2835 · LED Density: 120leds/m or above · Voltage: DC 24V · Cutting Unit: 8LEDs/62.5mm · PCB Width: 6mm · Copper Foil: 3oz · Circuit Type: CV

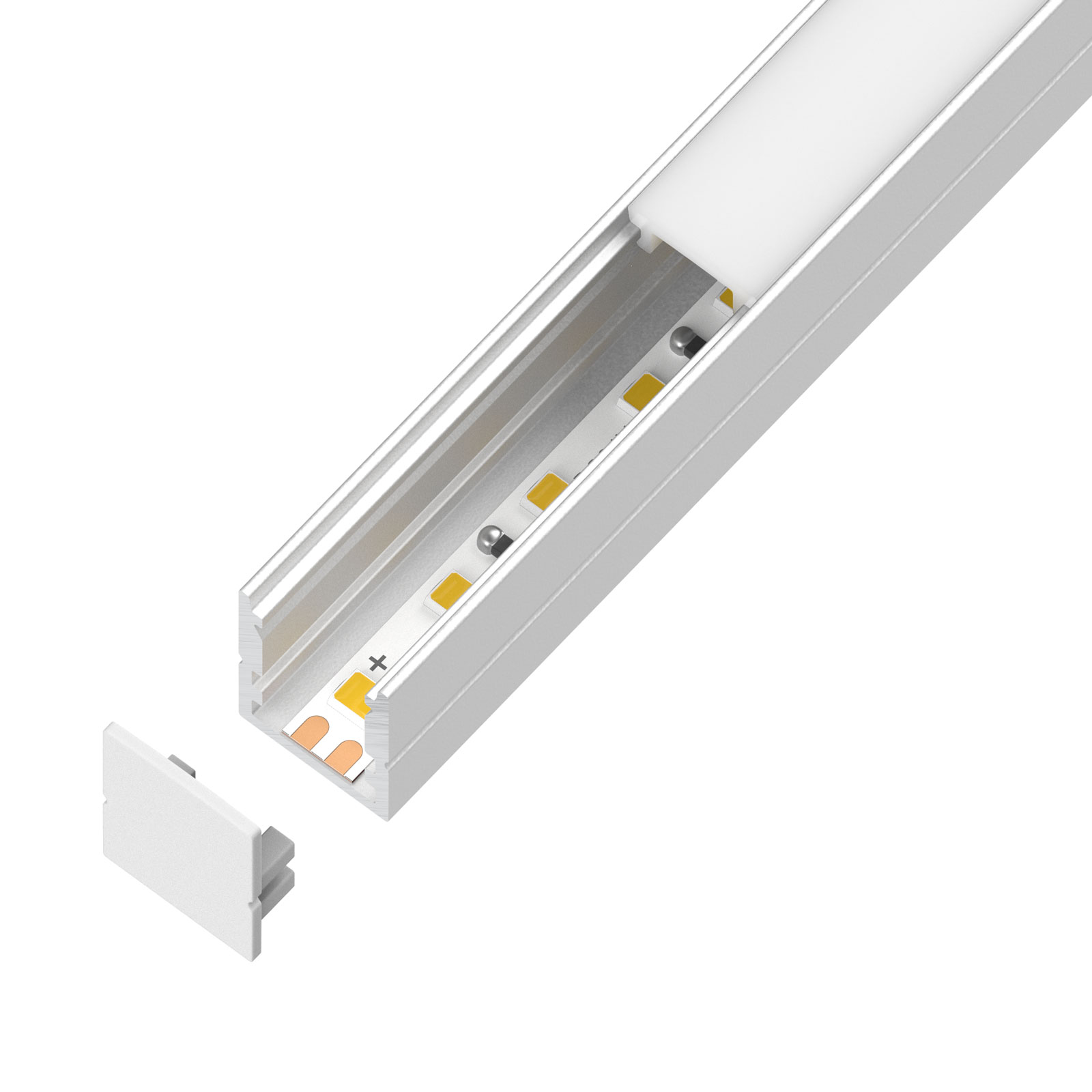

DL-1013 — 2835 · 120 LEDs/m · 24V

DL-1013 Surface Mount LED Channel — 24V, cuttable every 25mm, 6mm FPCB width, 2835 LEDs, 120 LEDs/m

LED Type: 2835 · LED Density: 120leds/m or above · Voltage: DC 24V · Cutting Unit: 6LEDs/25mm · PCB Width: 6mm · Copper Foil: 3oz · Circuit Type: CV

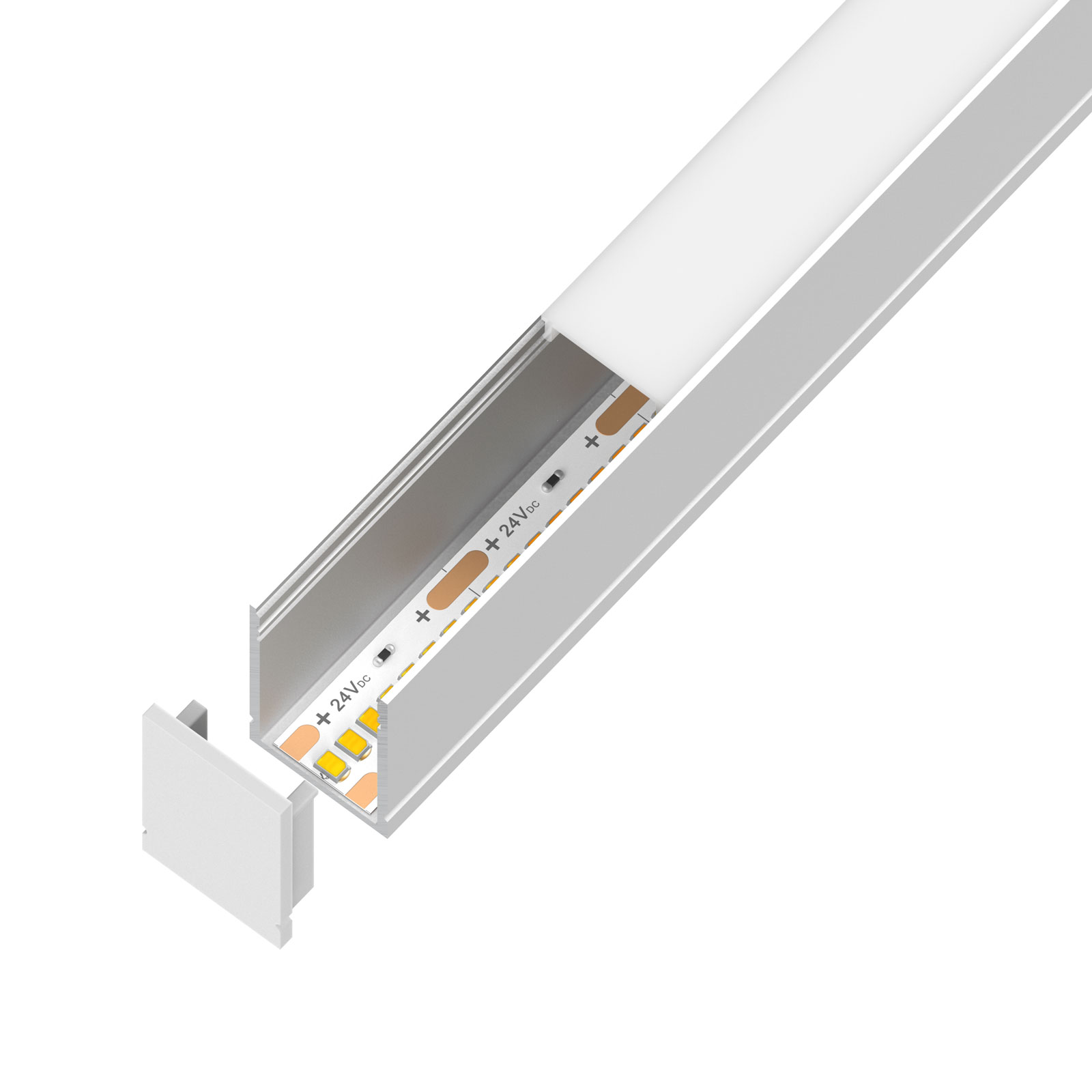

DL-2030 — 2835 · 120 LEDs/m · 24V

DL-2030 Surface Mount LED Channel — 24V, cuttable every 31.3mm, 15mm FPCB width, 2835 LEDs, 120 LEDs/m

LED Type: 2835 · LED Density: 120leds/m or above · Voltage: Dc 24V · Cutting Unit: 8LEDs/31.25mm · PCB Width: 15mm · Copper Foil: 3oz · Circuit Type: CV

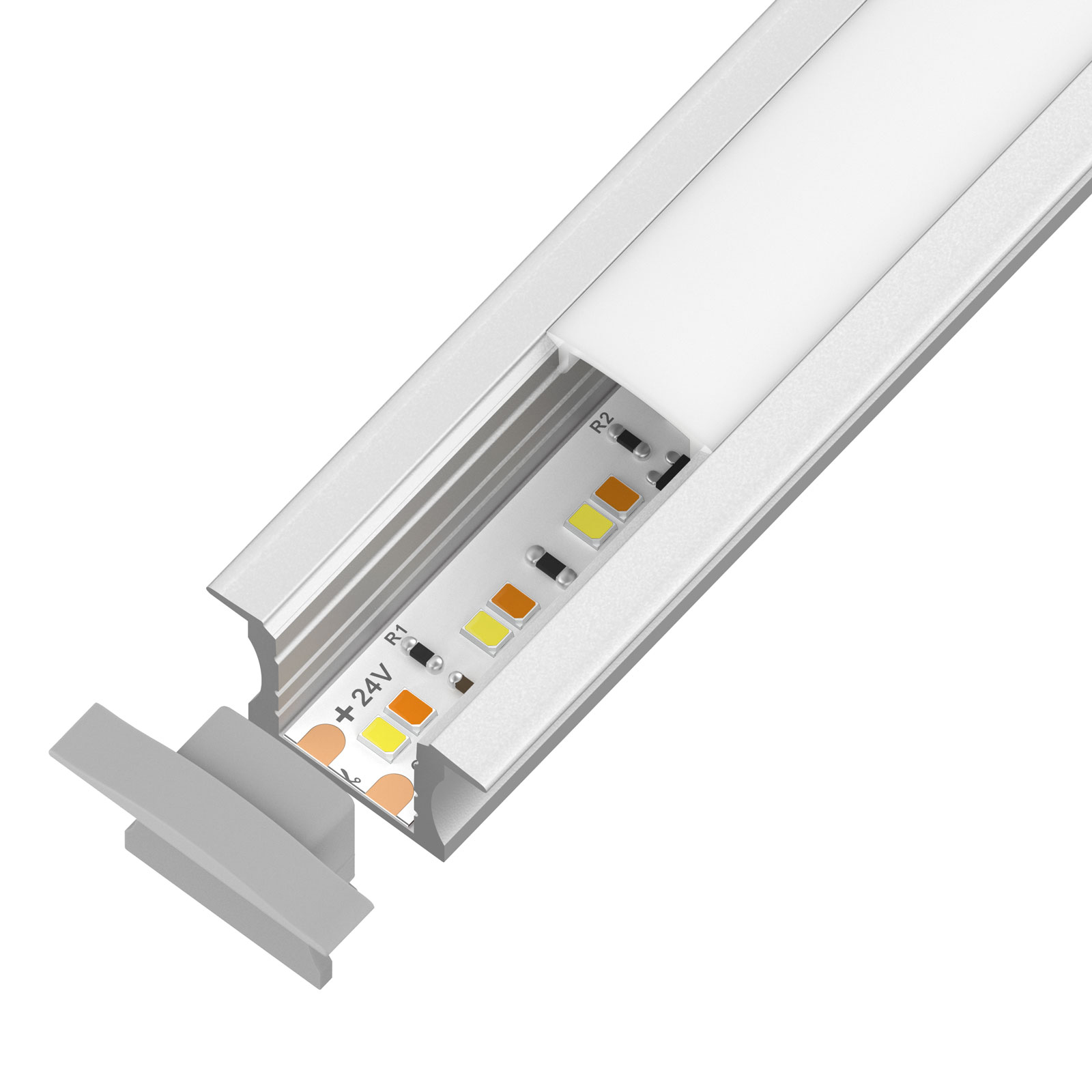

DL-1201 — 2835 · 120 LEDs/m · 24V

DL-1201 Surface Mount LED Channel — 24V, cuttable every 31.3mm, 12mm FPCB width, 2835 LEDs, 120 LEDs/m

LED Type: 2835 · LED Density: 120leds/m or above · Voltage: DC 24V · Cutting Unit: 8LEDs/31.25mm · PCB Width: 12mm · Copper Foil: 3oz · Circuit Type: CV

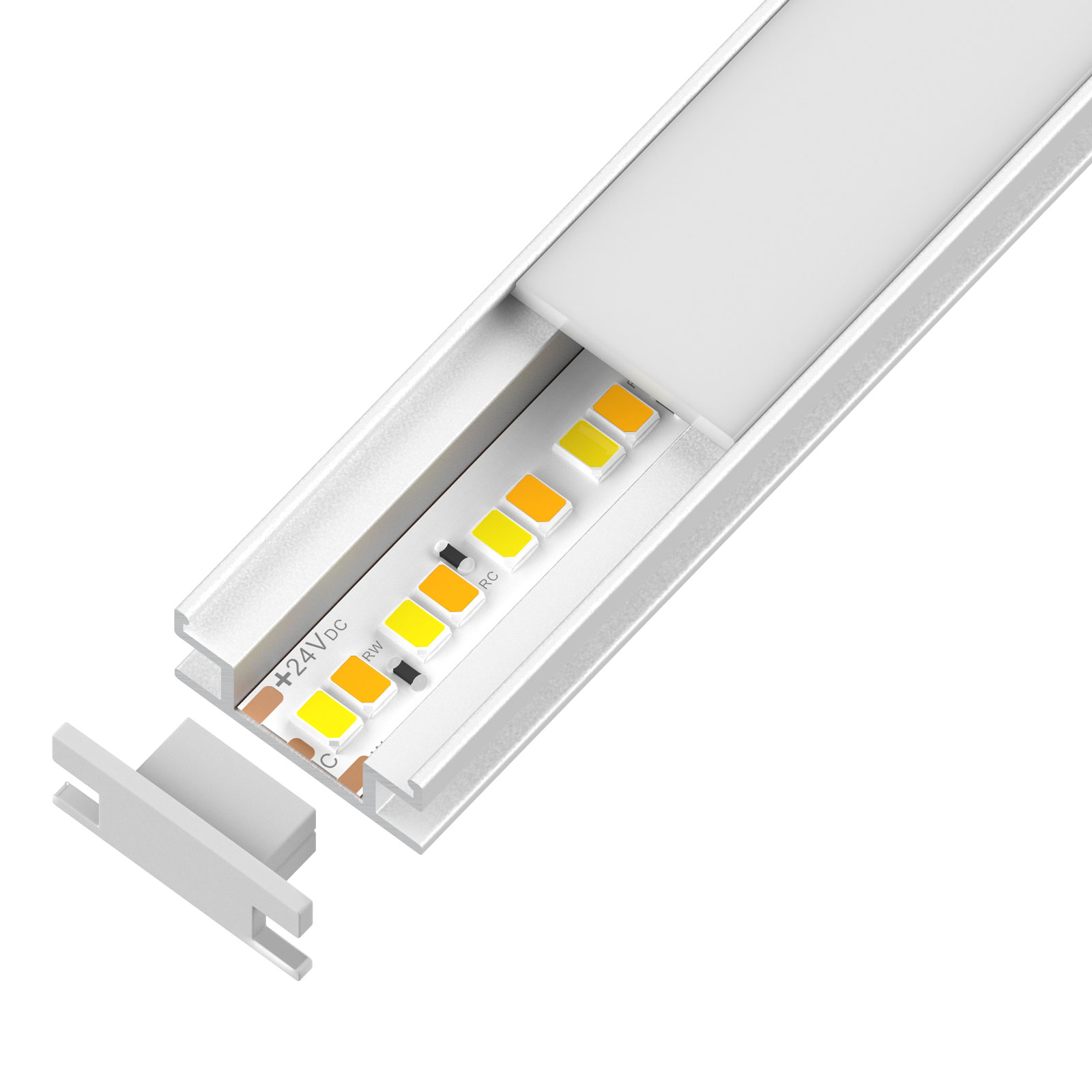

DL-1003 — 2835 · 240 LEDs/m · 24V

DL-1003 Surface Mount LED Channel — 24V, cuttable every 50mm, 10mm FPCB width, 2835 LEDs, 240 LEDs/m

LED Type: 2835 · LED Density: 240leds/m or above · Voltage: DC 24V · Cutting Unit: 12LEDs/50mm · PCB Width: 10mm · Copper Foil: 3oz · Circuit Type: CV

Surface Mount LED Channel — Buyer Questions

What is a surface mount LED channel used for?

A surface mounted LED profile screws or clips straight onto a finished ceiling, wall, shelf or cabinet carcass — no routing, no plaster work. It is the default choice for retrofits, under-cabinet lines, linear ceiling runs and workshop task lighting, and the U shape body means the tape can be replaced later without touching the building fabric.

Which LED channel width should I pick — 10mm, 15mm, 20mm or 25mm?

Size the body from the strip and the beam you want. 10x10mm and 12x8mm bodies suit 6–8mm tape in cabinets; 15x15mm and 17x15mm handle 10mm tape with real heat sinking; 20mm and 25mm bodies such as 25x14.5mm and 20x30mm take 12–15mm boards, double rows and high-output runs. A wider aperture also softens the line, which helps when the tape sits close to the cover.

Is there a 48V LED channel for long corridor runs?

Yes. The 15x15mm, 20x05mm and 20x07mm bodies are built around DENO's 48V tape, where a single feed carries far longer than a 24V run before voltage drop bites. That combination is what makes uninterrupted corridor, atrium and warehouse lines practical — one driver, one feed point, and an aluminum body that keeps the higher load cool.

Which surface profile gives a dotless line with 240 LEDs/m tape?

The slim, wide-aperture bodies do it best: 19.1x8mm, 25x7mm, 17.5x7mm and 20x10mm all pair with 240 LEDs/m SMD tape whose pitch is short enough that the frosted cover reads as one continuous band. If the sightline is under a metre — a shelf edge or a handrail — step up to a COB or SOB strip instead of adding depth.

How is a surface mounted aluminum profile fixed in place?

Three methods, all supplied: screw the base directly through the channel, snap the body onto pre-fixed spring clips for a fastener-free face, or use the flat low-profile bodies (20x01mm, 20x02mm) with structural tape where drilling is not allowed. Clip mounting is the one to specify when the run may need to come down for service.
