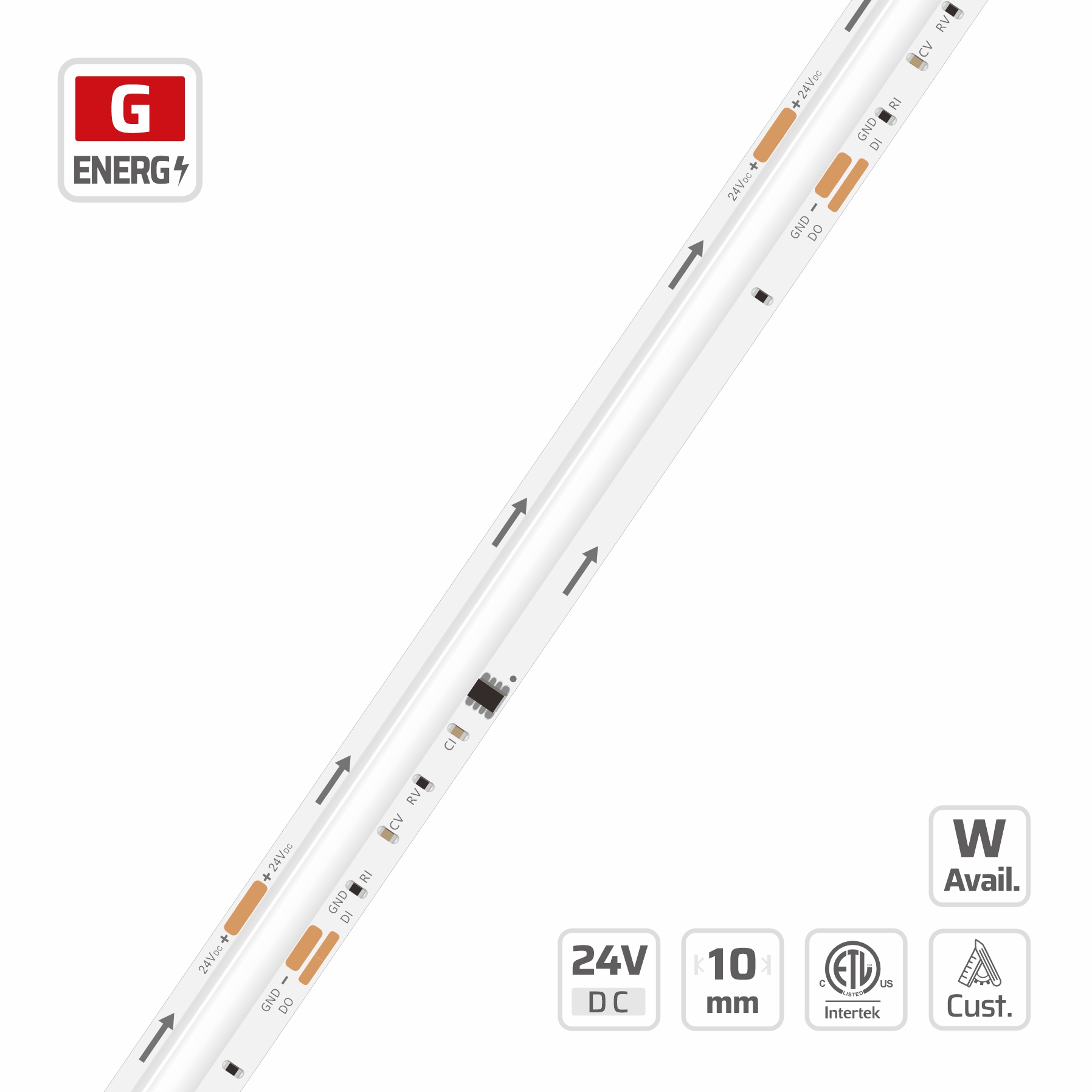

SOB White Chasing Flow (#16673)
10mm · 24V · 360LEDs · 83.333mm/cut
Model: 16673
Overview
The DENO LED Model 16673 SOB White Chasing Flow LED Strip delivers dynamic and captivating lighting effects for a wide range of B2B applications. This 10mm wide, 24V strip features 360 high-quality LEDs per meter, ensuring uniform brightness and a smooth chasing flow. With a cuttable length of 83.3mm, it's highly versatile for custom installations. Ideal for home decoration, commercial displays, restaurants, bars, and KTVs, it creates a lively and engaging atmosphere. It of...
Description
SOB White Chasing Flow | 10mm | 24V | 360LEDs | 83.333mm/cut | #16673 Chasing flow light effect design, creating dynamic lighting effects. White chasing flow enhances the ambiance. Mini LED strip controller with 6-key panel wireless remote control. Utilizes high-quality LED chips, delivering stable and uniform lighting effects. Up to 360 LEDs per meter, ensuring high density and consistent brightness. Commonly used for home decoration, commercial displays, bars, KTVs, and other venues to create a lively atmosphere.
Specifications
| LED QTY | 360 |
|---|---|
| PART NO | DL-FSOBA180V24-16673-* |
| SMD TYPE | SOB |
| CUTTABLE UNIT | 30LEDs/83.3mm |
| DIMMABLE | Yes |
| LED PITCH | 2.779mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 160° |
| LENGTH MAX | 10m |
| COPPER FOIL | 3oz |
| POWER RANGE | 8.6~35W |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Request a quotation for #16673
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 99.9 lm/W at 5000K, Ra 90, ErP energy class F (Grade DN (1st Tier) · 10W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 10W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 61.4 lm/W | 613.9 lm/m | G | — | — | — |
| 2300 K | — | — | — | 68.3 lm/W | 683.4 lm/m | G | — | — | — |
| 2700 K | — | — | — | 73.9 lm/W | 739.4 lm/m | G | — | — | — |
| 3000 K | — | — | — | 77.9 lm/W | 778.8 lm/m | G | — | — | — |
| 3500 K | — | — | — | 79.2 lm/W | 792.3 lm/m | G | — | — | — |
| 4000 K | — | — | — | 81.2 lm/W | 812 lm/m | G | — | — | — |
| 5000 K | — | — | — | 81.1 lm/W | 810.9 lm/m | G | — | — | — |
| 6500 K | — | — | — | 77.8 lm/W | 777.7 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 15W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 59.3 lm/W | 889.1 lm/m | G | — | — | — |
| 2300 K | — | — | — | 66 lm/W | 989.7 lm/m | G | — | — | — |
| 2700 K | — | — | — | 71.4 lm/W | 1070.8 lm/m | G | — | — | — |
| 3000 K | — | — | — | 75.2 lm/W | 1127.8 lm/m | G | — | — | — |
| 3500 K | — | — | — | 76.5 lm/W | 1147.4 lm/m | G | — | — | — |
| 4000 K | — | — | — | 78.4 lm/W | 1175.9 lm/m | G | — | — | — |
| 5000 K | — | — | — | 78.3 lm/W | 1174.4 lm/m | G | — | — | — |
| 6500 K | — | — | — | 75.1 lm/W | 1126.3 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 15.17W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 59.2 lm/W | 897.8 lm/m | G | — | — | — |
| 2300 K | — | — | — | 65.9 lm/W | 1000.3 lm/m | G | — | — | — |
| 2700 K | — | — | — | 71.3 lm/W | 1082.3 lm/m | G | — | — | — |
| 3000 K | — | — | — | 75.1 lm/W | 1139 lm/m | G | — | — | — |
| 3500 K | — | — | — | 76.4 lm/W | 1159.3 lm/m | G | — | — | — |
| 4000 K | — | — | — | 78.3 lm/W | 1187.2 lm/m | G | — | — | — |
| 5000 K | — | — | — | 78.2 lm/W | 1186.5 lm/m | G | — | — | — |
| 6500 K | — | — | — | 75 lm/W | 1138.3 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 20W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 57.2 lm/W | 1144.5 lm/m | G | — | — | — |
| 2300 K | — | — | — | 63.7 lm/W | 1274 lm/m | G | — | — | — |
| 2700 K | — | — | — | 68.9 lm/W | 1378.4 lm/m | G | — | — | — |
| 3000 K | — | — | — | 72.6 lm/W | 1451.9 lm/m | G | — | — | — |
| 3500 K | — | — | — | 73.9 lm/W | 1477 lm/m | G | — | — | — |
| 4000 K | — | — | — | 75.7 lm/W | 1513.8 lm/m | G | — | — | — |
| 5000 K | — | — | — | 75.6 lm/W | 1511.8 lm/m | G | — | — | — |
| 6500 K | — | — | — | 72.5 lm/W | 1450 lm/m | G | — | — | — |
Grade DN (1st Tier) · 10W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 75.7 lm/W | 757 lm/m | G | — | — | — |
| 2300 K | — | — | — | 84.4 lm/W | 844.1 lm/m | G | — | — | — |
| 2700 K | — | — | — | 91.4 lm/W | 913.6 lm/m | G | — | — | — |
| 3000 K | — | — | — | 96.5 lm/W | 965.4 lm/m | F | — | — | — |
| 3500 K | — | — | — | 98.6 lm/W | 986.2 lm/m | F | — | — | — |
| 4000 K | — | — | — | 99.2 lm/W | 992.4 lm/m | F | — | — | — |
| 5000 K | — | — | — | 99.9 lm/W | 998.6 lm/m | F | — | — | — |
| 6500 K | — | — | — | 95.4 lm/W | 954 lm/m | F | — | — | — |
Grade DN (1st Tier) · 15W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 73.1 lm/W | 1096.3 lm/m | G | — | — | — |
| 2300 K | — | — | — | 81.5 lm/W | 1222.5 lm/m | G | — | — | — |
| 2700 K | — | — | — | 88.2 lm/W | 1323.1 lm/m | G | — | — | — |
| 3000 K | — | — | — | 93.2 lm/W | 1398.2 lm/m | F | — | — | — |
| 3500 K | — | — | — | 95.2 lm/W | 1428.2 lm/m | F | — | — | — |
| 4000 K | — | — | — | 95.8 lm/W | 1437.2 lm/m | F | — | — | — |
| 5000 K | — | — | — | 96.4 lm/W | 1446.2 lm/m | F | — | — | — |
| 6500 K | — | — | — | 92.1 lm/W | 1381.6 lm/m | F | — | — | — |
Grade DN (1st Tier) · 20W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 70.6 lm/W | 1411.3 lm/m | G | — | — | — |
| 2300 K | — | — | — | 78.7 lm/W | 1573.7 lm/m | G | — | — | — |
| 2700 K | — | — | — | 85.2 lm/W | 1703.2 lm/m | G | — | — | — |
| 3000 K | — | — | — | 90 lm/W | 1799.9 lm/m | G | — | — | — |
| 3500 K | — | — | — | 91.9 lm/W | 1838.5 lm/m | F | — | — | — |
| 4000 K | — | — | — | 92.5 lm/W | 1850.1 lm/m | F | — | — | — |
| 5000 K | — | — | — | 93.1 lm/W | 1861.7 lm/m | F | — | — | — |
| 6500 K | — | — | — | 88.9 lm/W | 1778.6 lm/m | G | — | — | — |
Related models in this series
See every model in SOB LED Strip Series or narrow to Sob Chasing. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What power range is required for the 16673 SOB White Chasing Flow LED strip?
This LED strip operates within a power range of 8.6W to 35W per meter, depending on the specific configuration and load. It requires a 24V input voltage.
What are the common applications for this SOB White Chasing Flow LED strip?
The dynamic chasing flow effect makes it ideal for commercial displays, bars, KTVs, restaurants, and home accent lighting where an engaging and lively atmosphere is desired.
Is the DENO LED 16673 strip dimmable and what is its warranty period?
Yes, this SOB LED strip is dimmable, allowing for adjustable light intensity. It comes with a robust 5-year warranty, ensuring long-term reliability for your projects.
Can this LED strip be customized for specific project lengths or requirements?
The strip is cuttable every 83.3mm, offering flexibility for custom installations. For larger volume projects or specific needs, please contact DENO LED for customization options.
Is this SOB strip light also called FOB, S-COB or COB Pro strip light?
Yes. Model 16673 belongs to the DENO SOB (Spot on Board) family, which the market also calls FOB strip light, S-COB strip light or COB Pro strip light. All three names describe the same dot-free chip-on-board LED strip construction, so you can quote it under whichever term your project specification uses.
Why choose this S-COB strip light over a standard COB LED strip?
Compared with conventional COB LED strip, DENO SOB / FOB strip light supports higher power up to 24W/m instead of roughly 12W/m, CRI 95 and full-spectrum options, SDCM <=3 colour consistency, and single-end power feed at 5m, 10m and 15m without visible head-to-tail brightness loss, with higher luminous efficacy and lumen output.
Chasing LED Strip — Buyer Questions
What is a chasing LED strip and how does it differ from plain RGB?
A chasing LED strip — also called a running water or flow LED strip light, and 'running horse' tape in the older trade catalogues — splits the run into individually driven segments so light travels along the line. Plain RGB changes the whole run at once; a chasing build animates it.
- Series Chasing SOB strips
- Related series pixel addressable LED strip range
- Related series static RGB dot-free tape
- Product 13894 chasing dot-free board
Is there an addressable COB LED strip that is still dot-free?
Yes. The SPI digital SOB build carries 320 LEDs/m at 5V with a 15.625 mm cut unit, so each pixel is a short continuous bar of light rather than a visible dot. That is the point of a pixel COB LED strip dot-free: the animation reads as a moving line, not a row of marching LEDs.
- Series Chasing SOB strips
- Related series addressable pixel boards
- Guide plan data run length and injection points
Which IC and protocol do the chasing boards use — WS2811, WS2812 or SPI/DMX?
SPI boards ship with WS2811, WS2812B, WS2815 or SK6812 class ICs depending on voltage and pixel pitch, and DMX512 versions are built for stage and architectural controllers. Tell DENO the console or controller you are using and the matching IC is fitted at production.
- Series Chasing SOB strips
- Guide specify the IC for your controller
- Related series IC-regulated strip behaviour
Can I get a smooth chasing effect LED strip at 24V?
Yes — the 16673 white chasing build runs 360 LEDs/m at 24V with an 83.3 mm segment, which gives a clean flowing wipe over long architectural lines while keeping the current low enough for 10 m runs. Use 5V SPI where you need fine pixel resolution instead of long runs.
- Series Chasing SOB strips
- Guide compare 5V and 24V run lengths
- Related series long run boards for architectural lines
Is chasing tape suitable for stage, KTV, bar and event lighting?
It is the main use. DMX and SPI chasing runs sync to the lighting console for stage edges, bar fronts, KTV ceilings and event trussing, and the dot-free surface keeps close-range camera shots free of the LED dot pattern that ruins broadcast footage.
- Series Chasing SOB strips
- Guide ask about a stage or venue build
- Related series RGB options for venue work
SOB is the upgraded generation of the COB LED strip
Every SOB board on this page starts from the classic COB recipe — one continuous phosphor line, zero visible dots — and rebuilds it on flip-chip dies and thick copper. The result keeps the COB look but runs to 24W/m, holds CRI 95 and stays within SDCM ≤3 over the full reel. If your project is comfortable at 4–12W/m, the classic COB range remains the economical choice; if you need double the output or a 15 m single-feed run, you are already on the right page.
