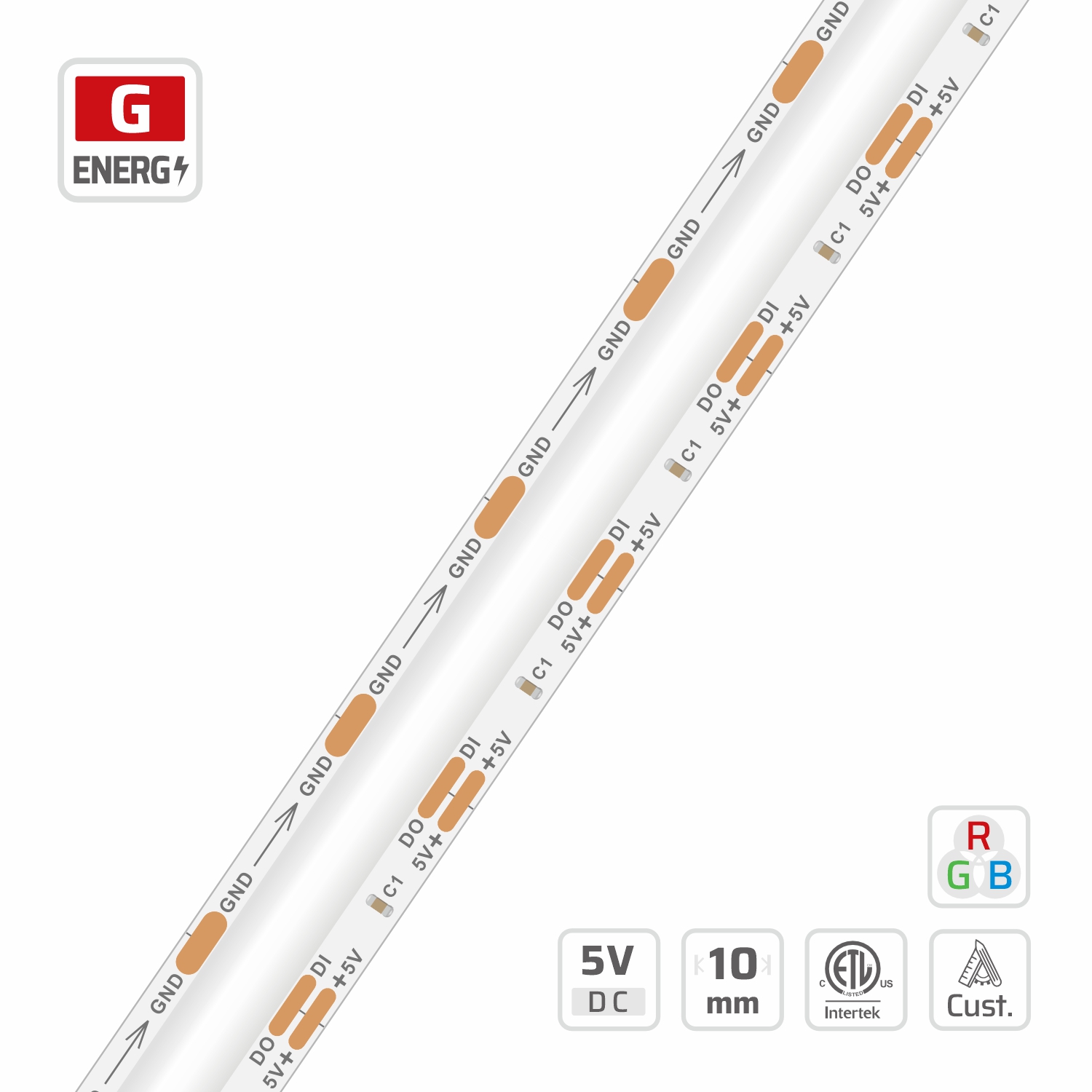

SPI Digital SOB LED Strip Light (#13894)
10mm · 5V · 320LEDs · 15.63mm/cut
Model: 13894
Overview
The DENO LED model 13894, an SPI Digital SOB LED Strip, offers superior, seamless illumination for demanding B2B applications. Featuring a 10mm width and 5V input, this strip provides 320 LEDs per meter and is cuttable every 15.63mm. Its innovative Chip-on-Board (SOB) technology eliminates visible pixel dots, delivering a smooth, glare-free light ideal for display cases, architectural accents, and backlighting. With a 5-year warranty and a 50,000-hour lifespan, it’s a robus...
Description
SPI Digital SOB LED Strip Light | 10mm | 5V | 320LEDs | 15.63mm/cut | #13894 Pixel Flexible SOB LED strip light creates a seamless line of the light from start to finish. Using a new desgin, eliminate visible LED dots (hot spots), improves thermal management and flexibility of the strip. The SOB led strips biggest advantage is no glare, beautiful appearance,soft luminous surface, without spot that compared to the classical addressable rgb pixel led strips like ws2812b,sk6812 led strips. Passing control data through a Serial Peripheral (SPI) Interface, digital LEDs offer an infinite range of fresh lighting. 3M adhensive tape on backside of non-waterproof strip. SPI Interface have the great compatibility with the controller on market. Applications like display cases and backlighting, or where reflective surfaces such as granite and tile are used.
Specifications
| LED QTY | 320 |
|---|---|
| PART NO | DL-FSOBA160V5-13894-* |
| SMD TYPE | SOB |
| CUTTABLE UNIT | 5LEDs/15.625mm |
| DIMMABLE | Yes |
| LED PITCH | 3.125mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 160° |
| LENGTH MAX | 3m |
| COPPER FOIL | 2oz |
| POWER RANGE | 24 W/m |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 5V |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.
Request a quotation for #13894
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Related models in this series
See every model in SOB LED Strip Series or narrow to Sob Chasing. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key advantages of SPI Digital SOB LED strips for B2B projects?
SPI Digital SOB LED strips offer seamless, dot-free illumination and precise control via its digital interface. This eliminates hot spots, providing a smooth light output ideal for high-end commercial and architectural applications requiring superior aesthetics.
Is the DENO LED 13894 compatible with standard control systems?
Yes, the 13894 model features an SPI interface, ensuring broad compatibility with a wide range of common digital LED controllers on the market. This simplifies integration into existing or new B2B lighting designs.
Can I get custom lengths or specific configurations for large-scale projects?
DENO LED offers flexibility for B2B clients. While standard lengths are available, we can discuss custom length requirements and specific configurations to meet the unique demands of your large-scale commercial lighting projects. Contact us for details.
What certifications are available for the DENO LED SOB LED Strip Series?
Our SOB LED Strip Series products, including the 13894 model, comply with relevant industry standards. Specific certifications vary by product and region; please contact DENO LED directly for detailed certification information pertinent to your project needs.
Is this SOB strip light also called FOB, S-COB or COB Pro strip light?
Yes. Model 13894 belongs to the DENO SOB (Spot on Board) family, which the market also calls FOB strip light, S-COB strip light or COB Pro strip light. All three names describe the same dot-free chip-on-board LED strip construction, so you can quote it under whichever term your project specification uses.
Why choose this S-COB strip light over a standard COB LED strip?
Compared with conventional COB LED strip, DENO SOB / FOB strip light supports higher power up to 24W/m instead of roughly 12W/m, CRI 95 and full-spectrum options, SDCM <=3 colour consistency, and single-end power feed at 5m, 10m and 15m without visible head-to-tail brightness loss, with higher luminous efficacy and lumen output.
Chasing LED Strip — Buyer Questions
What is a chasing LED strip and how does it differ from plain RGB?
A chasing LED strip — also called a running water or flow LED strip light, and 'running horse' tape in the older trade catalogues — splits the run into individually driven segments so light travels along the line. Plain RGB changes the whole run at once; a chasing build animates it.
- Series Chasing SOB strips
- Related series pixel addressable LED strip range
- Related series static RGB dot-free tape
- Product 16673 chasing dot-free board
Is there an addressable COB LED strip that is still dot-free?
Yes. The SPI digital SOB build carries 320 LEDs/m at 5V with a 15.625 mm cut unit, so each pixel is a short continuous bar of light rather than a visible dot. That is the point of a pixel COB LED strip dot-free: the animation reads as a moving line, not a row of marching LEDs.
- Series Chasing SOB strips
- Related series addressable pixel boards
- Guide plan data run length and injection points
Which IC and protocol do the chasing boards use — WS2811, WS2812 or SPI/DMX?
SPI boards ship with WS2811, WS2812B, WS2815 or SK6812 class ICs depending on voltage and pixel pitch, and DMX512 versions are built for stage and architectural controllers. Tell DENO the console or controller you are using and the matching IC is fitted at production.
- Series Chasing SOB strips
- Guide specify the IC for your controller
- Related series IC-regulated strip behaviour
Can I get a smooth chasing effect LED strip at 24V?
Yes — the 16673 white chasing build runs 360 LEDs/m at 24V with an 83.3 mm segment, which gives a clean flowing wipe over long architectural lines while keeping the current low enough for 10 m runs. Use 5V SPI where you need fine pixel resolution instead of long runs.
- Series Chasing SOB strips
- Guide compare 5V and 24V run lengths
- Related series long run boards for architectural lines
Is chasing tape suitable for stage, KTV, bar and event lighting?
It is the main use. DMX and SPI chasing runs sync to the lighting console for stage edges, bar fronts, KTV ceilings and event trussing, and the dot-free surface keeps close-range camera shots free of the LED dot pattern that ruins broadcast footage.
- Series Chasing SOB strips
- Guide ask about a stage or venue build
- Related series RGB options for venue work
SOB is the upgraded generation of the COB LED strip
Every SOB board on this page starts from the classic COB recipe — one continuous phosphor line, zero visible dots — and rebuilds it on flip-chip dies and thick copper. The result keeps the COB look but runs to 24W/m, holds CRI 95 and stays within SDCM ≤3 over the full reel. If your project is comfortable at 4–12W/m, the classic COB range remains the economical choice; if you need double the output or a 15 m single-feed run, you are already on the right page.
