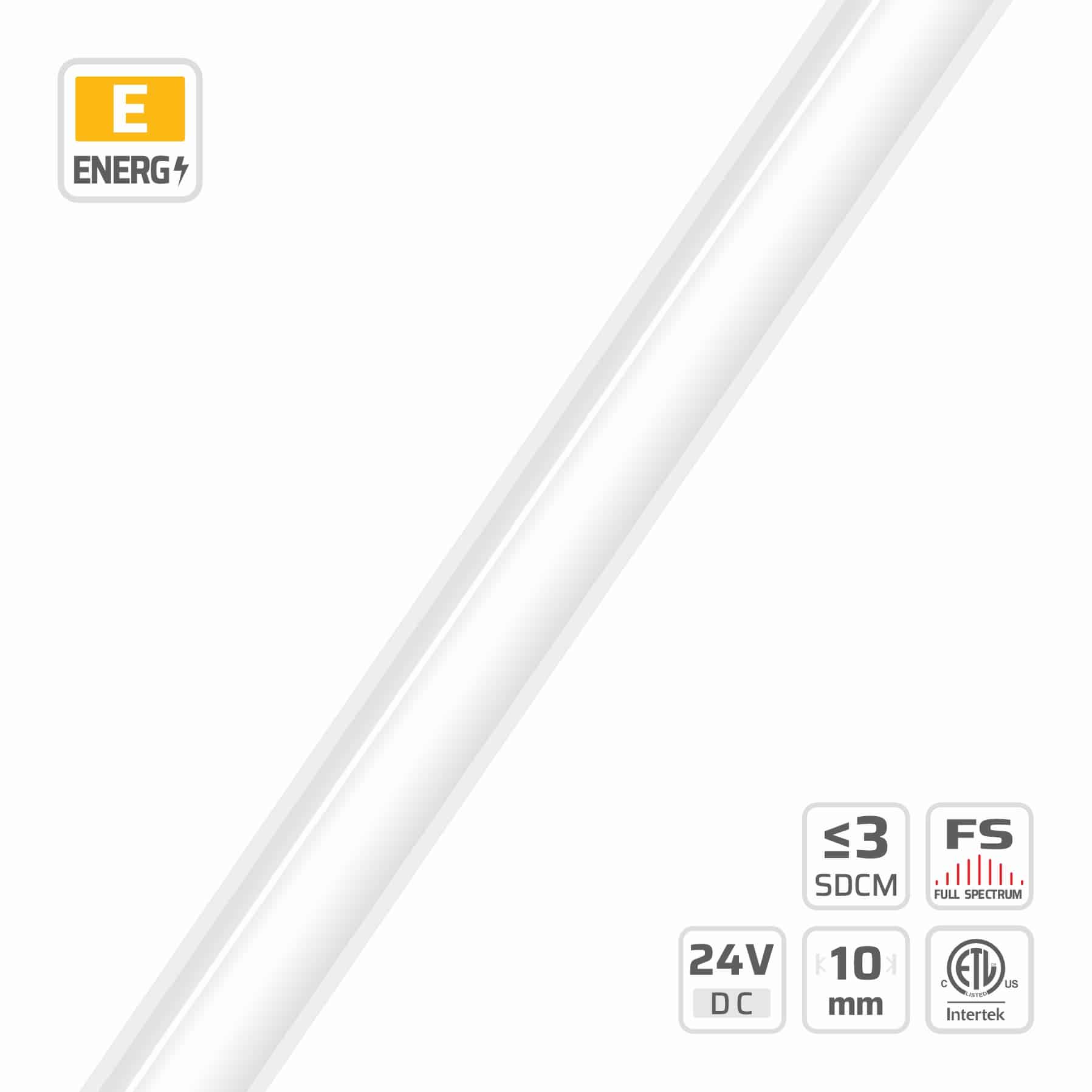

IP67 SOB LED Strip Light (#11236-IP67)
10mm · 24V · 25mm/cut
Model: 11236-IP67
Overview
The DENO LED model 11236-IP67 SOB LED Strip is a high-performance, IP67-rated waterproof lighting solution designed for demanding outdoor and indoor commercial applications. Featuring 320 LEDs/m, a wide 180° beam angle, and a 24V input, this strip offers exceptional brightness and uniform illumination. Its robust design is ideal for architectural lighting, signage, landscape accents, and various B2B installations where durability and energy efficiency are paramount. The str...
Description
IP67 SOB LED Strip Light | 10mm | 24V | 25mm/cut | #11236-IP67 High brightness and uniform light. Compact Design & cut-free. Energy Efficiency. Multiple Color Temperature Options:1800k~6500k IP67 waterproof and Dustproof desgin. Highly flexible installation, outdoor use.
Specifications
| LED QTY | 320 LEDs/m |
|---|---|
| PART NO | DL-FSOBJ160V24-11236-IP67-* |
| SMD TYPE | SOB |
| CUTTABLE UNIT | 8LEDs/25mm |
| DIMMABLE | Yes |
| LED PITCH | 3.125mm |
| PCB WIDTH | 10 |
| BEAM ANGLE | 160° |
| LENGTH MAX | 5m |
| COPPER FOIL | 2oz |
| ON OFF TIMES | 10000 (test times) |
| POWER RANGE | 4.8~19.2W |
| CIRCUIT TYPE | C.V. (Resistor Based) |
| INPUT VOLTAGE | 24V |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Request a quotation for #11236-IP67
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 164.2 lm/W at 5000K, Ra 90, ErP energy class D (Grade DN (1st Tier) · 4.8W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 4.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 109.9 lm/W | 527.5 lm/m | F | — | — | — |
| 2300 K | — | — | — | 122.4 lm/W | 587.7 lm/m | E | — | — | — |
| 2700 K | — | — | — | 132.5 lm/W | 636 lm/m | E | 107.4 lm/W | 515.7 lm/m | F |
| 3000 K | — | — | — | 139.5 lm/W | 669.4 lm/m | D | 113.4 lm/W | 544.5 lm/m | E |
| 3500 K | — | — | — | 141.9 lm/W | 681.2 lm/m | D | 116.9 lm/W | 560.9 lm/m | E |
| 4000 K | — | — | — | 145.4 lm/W | 697.7 lm/m | D | 120 lm/W | 575.8 lm/m | E |
| 5000 K | — | — | — | 145.2 lm/W | 697.2 lm/m | D | — | — | — |
| 6500 K | — | — | — | 139.4 lm/W | 668.9 lm/m | D | — | — | — |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 102.7 lm/W | 1479.3 lm/m | F | — | — | — |
| 2300 K | — | — | — | 114.4 lm/W | 1648 lm/m | E | — | — | — |
| 2700 K | — | — | — | 123.9 lm/W | 1783.5 lm/m | E | 100.4 lm/W | 1446.1 lm/m | F |
| 3000 K | — | — | — | 130.4 lm/W | 1877.3 lm/m | E | 106 lm/W | 1526.9 lm/m | F |
| 3500 K | — | — | — | 132.7 lm/W | 1910.4 lm/m | E | 109.2 lm/W | 1573 lm/m | F |
| 4000 K | — | — | — | 135.9 lm/W | 1956.6 lm/m | D | 112.1 lm/W | 1614.8 lm/m | E |
| 5000 K | — | — | — | 135.8 lm/W | 1955.1 lm/m | D | — | — | — |
| 6500 K | — | — | — | 130.3 lm/W | 1875.8 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 99.3 lm/W | 1907 lm/m | F | — | — | — |
| 2300 K | — | — | — | 110.7 lm/W | 2124.5 lm/m | E | — | — | — |
| 2700 K | — | — | — | 119.7 lm/W | 2299.2 lm/m | E | 97.1 lm/W | 1864.3 lm/m | F |
| 3000 K | — | — | — | 126 lm/W | 2420 lm/m | E | 102.5 lm/W | 1968.4 lm/m | F |
| 3500 K | — | — | — | 128.3 lm/W | 2462.8 lm/m | E | 105.6 lm/W | 2027.8 lm/m | F |
| 4000 K | — | — | — | 131.4 lm/W | 2522.2 lm/m | E | 108.4 lm/W | 2081.7 lm/m | F |
| 5000 K | — | — | — | 131.3 lm/W | 2520.4 lm/m | E | — | — | — |
| 6500 K | — | — | — | 125.9 lm/W | 2418.2 lm/m | E | — | — | — |
Grade DN (1st Tier) · 4.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 124.6 lm/W | 597.9 lm/m | E | — | — | — |
| 2300 K | — | — | — | 138.9 lm/W | 666.8 lm/m | E | — | — | — |
| 2700 K | — | — | — | 150.4 lm/W | 721.8 lm/m | D | 121.9 lm/W | 585.1 lm/m | E |
| 3000 K | — | — | — | 158.7 lm/W | 761.9 lm/m | D | 129.1 lm/W | 619.5 lm/m | E |
| 3500 K | — | — | — | 162.2 lm/W | 778.4 lm/m | D | 133.5 lm/W | 640.6 lm/m | E |
| 4000 K | — | — | — | 163.1 lm/W | 783 lm/m | D | 134.6 lm/W | 646.3 lm/m | E |
| 5000 K | — | — | — | 164.2 lm/W | 788.2 lm/m | D | — | — | — |
| 6500 K | — | — | — | 156.9 lm/W | 753.2 lm/m | D | — | — | — |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 116.4 lm/W | 1676.8 lm/m | F | — | — | — |
| 2300 K | — | — | — | 129.9 lm/W | 1870 lm/m | E | — | — | — |
| 2700 K | — | — | — | 140.6 lm/W | 2024.3 lm/m | E | 113.9 lm/W | 1640.8 lm/m | F |
| 3000 K | — | — | — | 148.4 lm/W | 2136.8 lm/m | D | 120.7 lm/W | 1737.4 lm/m | E |
| 3500 K | — | — | — | 151.6 lm/W | 2182.9 lm/m | D | 124.8 lm/W | 1796.5 lm/m | E |
| 4000 K | — | — | — | 152.5 lm/W | 2195.9 lm/m | D | 125.9 lm/W | 1812.4 lm/m | E |
| 5000 K | — | — | — | 153.5 lm/W | 2210.3 lm/m | D | — | — | — |
| 6500 K | — | — | — | 146.7 lm/W | 2112.3 lm/m | D | — | — | — |
Grade DN (1st Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 112.6 lm/W | 2161.7 lm/m | F | — | — | — |
| 2300 K | — | — | — | 125.6 lm/W | 2410.7 lm/m | E | — | — | — |
| 2700 K | — | — | — | 135.9 lm/W | 2609.6 lm/m | E | 110.2 lm/W | 2115.2 lm/m | F |
| 3000 K | — | — | — | 143.5 lm/W | 2754.6 lm/m | E | 116.7 lm/W | 2239.7 lm/m | F |
| 3500 K | — | — | — | 146.6 lm/W | 2814.1 lm/m | D | 120.6 lm/W | 2315.9 lm/m | E |
| 4000 K | — | — | — | 147.4 lm/W | 2830.8 lm/m | D | 121.7 lm/W | 2336.4 lm/m | E |
| 5000 K | — | — | — | 148.4 lm/W | 2849.4 lm/m | D | — | — | — |
| 6500 K | — | — | — | 141.8 lm/W | 2723 lm/m | E | — | — | — |
Related models in this series
- SOB Flexible Linear Light (#16614)
- Green light Flexible LED Strip Light (#8215-G)
- High Efficiency SOB LED Strip Light (#16791)
- Single-Color SOB LED Strip Light (#11236)
- SOB High Density LED Strip Light (#17000)
- SOB Ultra-Narrow LED Strip Light (#13921)
- SOB High Density LED Strip Light (#16662)
- Single-Color SOB LED Strip Light (#13922)
See every model in SOB LED Strip Series or narrow to Sob Classic. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What does the IP67 rating signify for this LED strip?
IP67 certifies the 11236-IP67 model is dust-tight and protected against temporary immersion in water up to 1 meter for 30 minutes, ideal for outdoor use.
Can this SOB LED strip be customized for specific project lengths?
Yes, the strip is cuttable every 25mm (8 LEDs/25mm), allowing for precise length adjustments to fit various installation requirements.
What is the available color temperature range for this product?
This SOB LED strip offers a broad range of color temperature options, from a warm 1800K up to a cool 6500K, for versatile lighting design.
Is specialized equipment required for dimming the 11236-IP67 LED strip?
No, the 11236-IP67 model is dimmable using standard 24V constant voltage dimmable power supplies and controllers, ensuring easy integration.
Is this SOB strip light also called FOB, S-COB or COB Pro strip light?
Yes. Model 11236-IP67 belongs to the DENO SOB (Spot on Board) family, which the market also calls FOB strip light, S-COB strip light or COB Pro strip light. All three names describe the same dot-free chip-on-board LED strip construction, so you can quote it under whichever term your project specification uses.
Why choose this S-COB strip light over a standard COB LED strip?
Compared with conventional COB LED strip, DENO SOB / FOB strip light supports higher power up to 24W/m instead of roughly 12W/m, CRI 95 and full-spectrum options, SDCM <=3 colour consistency, and single-end power feed at 5m, 10m and 15m without visible head-to-tail brightness loss, with higher luminous efficacy and lumen output.
Classic COB LED Strip Light (SOB) — Buyer Questions
What is a classic COB LED strip used for at 12W/m?
The classic dotless LED strip 24V line covers general architectural work: cove, shelf, joinery and corridor lighting between roughly 3.6W/m and 15W/m. 256 to 544 LEDs/m on an 8 mm or 10 mm board gives uniform light with no spots at any viewing angle, which is why it is the default choice for aluminium channel and profile installs.
- Series Classic SOB dot-free strips
- Related series COB LED strip for aluminium channel
- Related series compare with the classic COB range
- Product 11236 classic dotless board
How high can the LED density go on a high density COB LED strip 24V?
DENO ships classic SOB boards at 256, 320, 384, 420, 544 and 736 LEDs/m. Above roughly 500 LEDs/m the line is fully homogeneous at 10 mm from a lens, and the 736 LEDs/m build is used where the strip sits behind a shallow reveal and the eye can see the source directly.
- Series Classic SOB dot-free strips
- Related series high density LED strip options
- Guide compare density against lumen output
- Product 16662 high density dotless board
Which reel lengths ship — 5m or 10m rolls of dotless LED strip?
Standard reels are 5 m for constant-voltage classic boards and up to 15 m for the constant-current versions. Custom cut lengths per reel are available on OEM orders so an installer can pull one continuous run per bay instead of joining offcuts.
- Series Classic SOB dot-free strips
- Guide custom reel lengths for wholesale orders
- Related series longer single-feed reels
- Product 16791 standard reel build
Is there an IP67 version of the classic dot-free strip?
Yes. The 11236-IP67, 14158-IP67 and 14159-IP67 builds keep the same dot-free surface under a moulded coating for damp bathrooms, kitchens and covered outdoor lines. The coating adds a millimetre of thickness and slightly reduces the minimum bend radius, so allow for it inside narrow profiles.
- Series Classic SOB dot-free strips
- Related series special IP-rated dot-free builds
- Guide ask DENO which IP rating your site needs
Do you sell general lighting COB LED strip wholesale?
Yes — the classic range is the volume line for distributors and fixture makers. MOQ, private-label printing on the reel, custom cut units and branded packaging are all available, with CE/RoHS documentation and a 5-year warranty on every wholesale order.
SOB is the upgraded generation of the COB LED strip
Every SOB board on this page starts from the classic COB recipe — one continuous phosphor line, zero visible dots — and rebuilds it on flip-chip dies and thick copper. The result keeps the COB look but runs to 24W/m, holds CRI 95 and stays within SDCM ≤3 over the full reel. If your project is comfortable at 4–12W/m, the classic COB range remains the economical choice; if you need double the output or a 15 m single-feed run, you are already on the right page.
