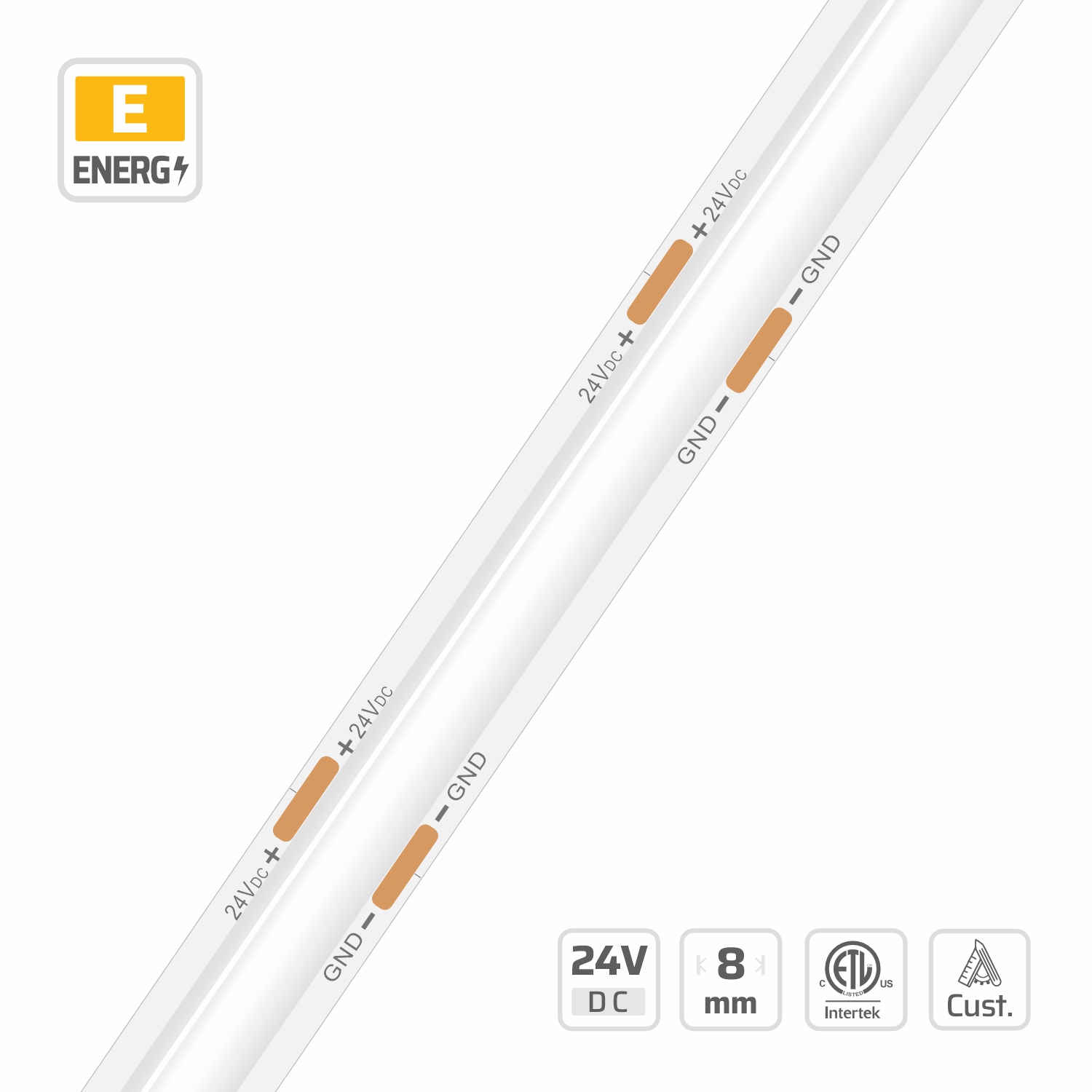

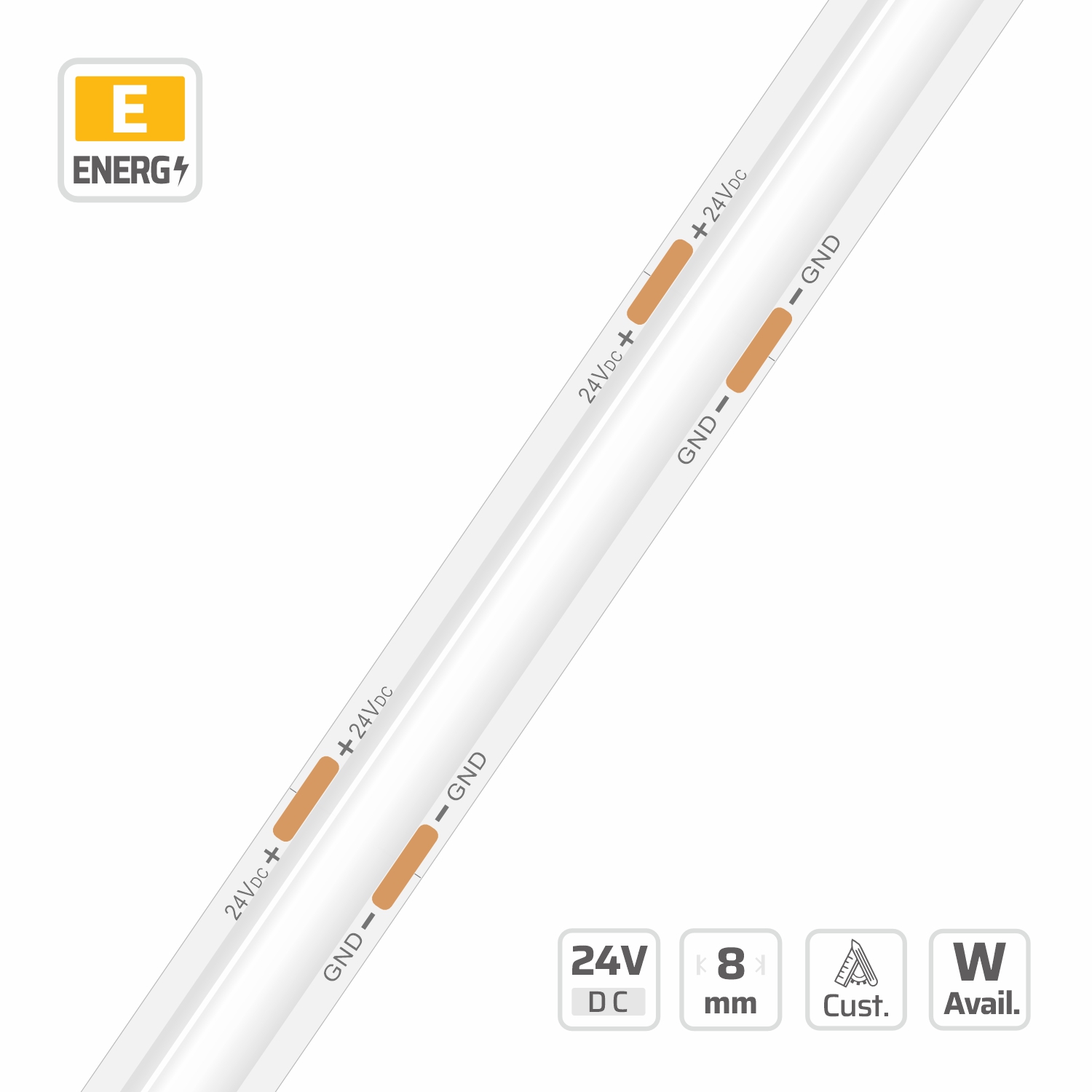

SOB High Density LED Strip Light (#17000)
8mm · 24V · 256LEDs · 31.25cut
Model: 17000
Overview
The DENO LED Model 17000 SOB High Density LED Strip is an innovative lighting solution featuring 256 LEDs/m and a low colloid height, ideal for professional linear lighting effects in various B2B applications. Operating at 24V, it supports multiple dimming modes (0-10V, DALI, PWM) and is suitable for architectural lighting, commercial spaces like bars and hotels, and high-end residential projects. This strip's integrated extrusion process ensures stability and performance,...
Description
SOB High Density LED Strip Light | 8mm | 24V | 256LEDs | 31.25cut | #17000 High-density design with 256 LEDs per meter, providing professional linear lighting effect. Lower colloid height, suitable for special installation areas. Utilizes integrated extrusion process, ensuring stable structure and performance. Supports multiple external dimming modes: 0-10V, DALI, PWM. Suitable for architectural lighting, bars, home decoration, cabinets, living rooms, bedrooms, hotels, club lighting, theaters, stores, restaurants, and home DIY lighting.
Specifications
| LED QTY | 256 LEDs/m |
|---|---|
| PART NO | DL-FSOBA128V24-17000-* |
| SMD TYPE | SOB |
| CUTTABLE UNIT | 8LEDs/31.25mm |
| DIMMABLE | Yes |
| LED PITCH | 3.907mm |
| PCB WIDTH | 8 |
| BEAM ANGLE | 160° |
| LENGTH MAX | 5M |
| COPPER FOIL | 3oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 3.8~15W |
| CIRCUIT TYPE | C.V. (Resistor Based) |
| INPUT VOLTAGE | 24V |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Request a quotation for #17000
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 145.7 lm/W at 5000K, Ra 90, ErP energy class E (Grade DN (1st Tier) · 3.8W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 3.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 95.9 lm/W | 364.3 lm/m | F | — | — | — |
| 2300 K | — | — | — | 106.9 lm/W | 406.1 lm/m | F | — | — | — |
| 2700 K | — | — | — | 115.6 lm/W | 439.3 lm/m | E | 93.6 lm/W | 355.8 lm/m | F |
| 3000 K | — | — | — | 121.7 lm/W | 462.4 lm/m | E | 99 lm/W | 376.1 lm/m | F |
| 3500 K | — | — | — | 123.8 lm/W | 470.5 lm/m | E | 101.8 lm/W | 387 lm/m | F |
| 4000 K | — | — | — | 126.8 lm/W | 481.8 lm/m | E | 104.6 lm/W | 397.6 lm/m | F |
| 5000 K | — | — | — | 126.7 lm/W | 481.4 lm/m | E | — | — | — |
| 6500 K | — | — | — | 121.6 lm/W | 462 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 92 lm/W | 883.7 lm/m | F | — | — | — |
| 2300 K | — | — | — | 102.6 lm/W | 984.9 lm/m | F | — | — | — |
| 2700 K | — | — | — | 111 lm/W | 1065.5 lm/m | E | 89.9 lm/W | 863 lm/m | F |
| 3000 K | — | — | — | 116.8 lm/W | 1121.5 lm/m | E | 95 lm/W | 912.2 lm/m | F |
| 3500 K | — | — | — | 118.9 lm/W | 1141.2 lm/m | E | 97.8 lm/W | 938.7 lm/m | F |
| 4000 K | — | — | — | 121.7 lm/W | 1168.7 lm/m | E | 100.4 lm/W | 964.3 lm/m | F |
| 5000 K | — | — | — | 121.6 lm/W | 1167.7 lm/m | E | — | — | — |
| 6500 K | — | — | — | 116.7 lm/W | 1120.5 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 15W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 88.6 lm/W | 1329.3 lm/m | F | — | — | — |
| 2300 K | — | — | — | 98.8 lm/W | 1481.6 lm/m | F | — | — | — |
| 2700 K | — | — | — | 106.9 lm/W | 1602.9 lm/m | F | 86.6 lm/W | 1298.3 lm/m | F |
| 3000 K | — | — | — | 112.5 lm/W | 1687.1 lm/m | E | 91.5 lm/W | 1372.2 lm/m | F |
| 3500 K | — | — | — | 114.4 lm/W | 1716.7 lm/m | E | 94.1 lm/W | 1412.1 lm/m | F |
| 4000 K | — | — | — | 117.2 lm/W | 1758.1 lm/m | E | 96.7 lm/W | 1450.6 lm/m | F |
| 5000 K | — | — | — | 117.1 lm/W | 1756.6 lm/m | E | — | — | — |
| 6500 K | — | — | — | 112.4 lm/W | 1685.7 lm/m | E | — | — | — |
Grade DN (1st Tier) · 3.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 110.5 lm/W | 419.8 lm/m | F | — | — | — |
| 2300 K | — | — | — | 123.3 lm/W | 468.5 lm/m | E | — | — | — |
| 2700 K | — | — | — | 133.4 lm/W | 507 lm/m | E | 108.1 lm/W | 410.9 lm/m | F |
| 3000 K | — | — | — | 140.9 lm/W | 535.3 lm/m | E | 114.5 lm/W | 435.2 lm/m | F |
| 3500 K | — | — | — | 144 lm/W | 547.1 lm/m | E | 118.5 lm/W | 450.2 lm/m | F |
| 4000 K | — | — | — | 144.7 lm/W | 549.9 lm/m | E | 119.4 lm/W | 453.9 lm/m | E |
| 5000 K | — | — | — | 145.7 lm/W | 553.6 lm/m | E | — | — | — |
| 6500 K | — | — | — | 139.2 lm/W | 528.9 lm/m | E | — | — | — |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 106.1 lm/W | 1018.3 lm/m | F | — | — | — |
| 2300 K | — | — | — | 118.4 lm/W | 1136.3 lm/m | F | — | — | — |
| 2700 K | — | — | — | 128.1 lm/W | 1229.6 lm/m | E | 103.8 lm/W | 996.7 lm/m | F |
| 3000 K | — | — | — | 135.3 lm/W | 1298.4 lm/m | E | 110 lm/W | 1055.7 lm/m | F |
| 3500 K | — | — | — | 138.2 lm/W | 1327 lm/m | E | 113.8 lm/W | 1092 lm/m | F |
| 4000 K | — | — | — | 138.9 lm/W | 1333.8 lm/m | E | 114.7 lm/W | 1100.9 lm/m | F |
| 5000 K | — | — | — | 139.9 lm/W | 1342.7 lm/m | E | — | — | — |
| 6500 K | — | — | — | 133.6 lm/W | 1282.7 lm/m | E | — | — | — |
Grade DN (1st Tier) · 15W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 102.1 lm/W | 1531.9 lm/m | F | — | — | — |
| 2300 K | — | — | — | 114 lm/W | 1709.3 lm/m | F | — | — | — |
| 2700 K | — | — | — | 123.3 lm/W | 1849.8 lm/m | E | 100 lm/W | 1499.4 lm/m | F |
| 3000 K | — | — | — | 130.2 lm/W | 1953.3 lm/m | E | 105.9 lm/W | 1588.1 lm/m | F |
| 3500 K | — | — | — | 133.1 lm/W | 1996.2 lm/m | E | 109.5 lm/W | 1642.8 lm/m | F |
| 4000 K | — | — | — | 133.8 lm/W | 2006.5 lm/m | E | 110.4 lm/W | 1656.1 lm/m | F |
| 5000 K | — | — | — | 134.7 lm/W | 2019.8 lm/m | E | — | — | — |
| 6500 K | — | — | — | 128.6 lm/W | 1929.6 lm/m | E | — | — | — |
Related models in this series
- SOB Flexible Linear Light (#16614)
- Green light Flexible LED Strip Light (#8215-G)
- Ultra Narrow SOB LED Strip Light (#16416)
- Ice Blue Flexible LED Strip Light (#8215-IB)
- High Efficiency SOB LED Strip Light (#16791)
- Single-Color SOB LED Strip Light (#11236)
- SOB Ultra-Narrow LED Strip Light (#13921)
- SOB High Density LED Strip Light (#16662)
See every model in SOB LED Strip Series or narrow to Sob Classic. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What dimming protocols are compatible with the DENO 17000 LED strip?
The DENO 17000 LED strip supports common external dimming modes including 0-10V, DALI, and PWM for flexible control.
What is the maximum continuous run length for the Model 17000?
The maximum recommended continuous run length for the DENO LED Model 17000 SOB High Density LED Strip is 5 meters.
Can this SOB LED strip be used for outdoor applications?
The provided specifications indicate an operating temperature of -25~40°C, but specific IP ratings for outdoor use are not listed for this model.
What are the key benefits of the high-density design for commercial installations?
The 256 LEDs/m high-density design ensures a seamless, professional linear lighting effect with no visible hot spots, enhancing aesthetic appeal.
Is this SOB strip light also called FOB, S-COB or COB Pro strip light?
Yes. Model 17000 belongs to the DENO SOB (Spot on Board) family, which the market also calls FOB strip light, S-COB strip light or COB Pro strip light. All three names describe the same dot-free chip-on-board LED strip construction, so you can quote it under whichever term your project specification uses.
Why choose this S-COB strip light over a standard COB LED strip?
Compared with conventional COB LED strip, DENO SOB / FOB strip light supports higher power up to 24W/m instead of roughly 12W/m, CRI 95 and full-spectrum options, SDCM <=3 colour consistency, and single-end power feed at 5m, 10m and 15m without visible head-to-tail brightness loss, with higher luminous efficacy and lumen output.
