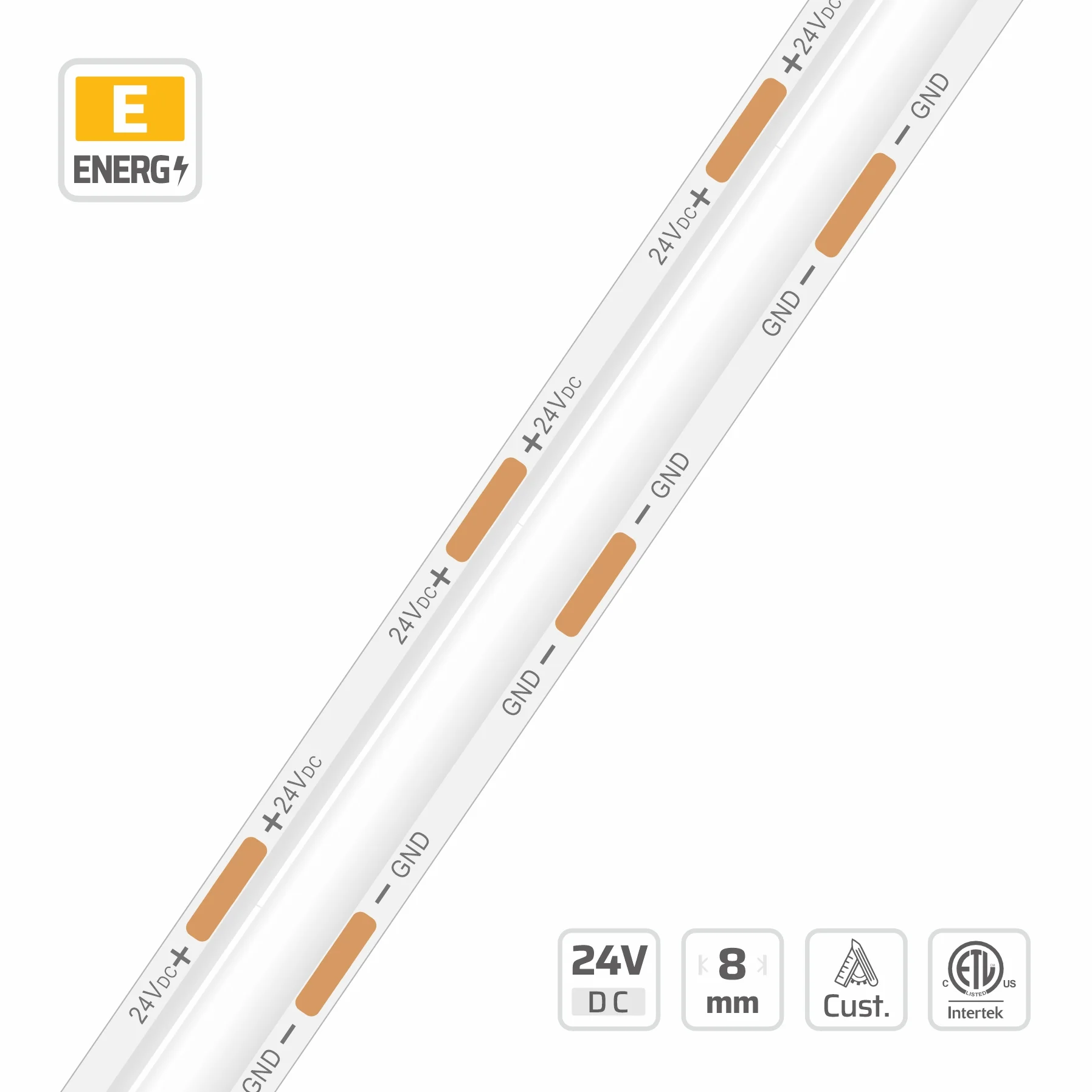

SOB Flexible Linear Light (#16614)
8mm · 24V · 384LEDs · 20.833mm/cut
Model: 16614
Overview
The DENO LED Model 16614 is a SOB Flexible Linear Light, featuring 384 LEDs/m, 24V input, and a unique design for high bending reliability. Its 1.839mm LED pitch and special surface provide uniform, anti-glare illumination, making it suitable for intricate custom lighting designs. With support for multiple dimming modes like 0-10V, DALI, and PWM, it's perfect for B2B applications including bespoke commercial, architectural, and high-end residential lighting projects requiri...
Description
Engineered with 384 LEDs per meter, this 24V SOB flexible linear light provides uniform, anti-glare illumination across a wide 160-degree beam angle. The robust 8mm PCB features 3oz copper foil and high bending reliability with a minimum bend diameter of 60mm for demanding architectural lighting. Featuring an exact 20.833mm cutting increment and 1.839mm pitch, this SOB LED strip light enables precise installations within a 5 to 23W power range. This constant voltage linear light supports smooth 0-10V, DALI, and PWM dimming modes while operating reliably between -25°C and 40°C. DENO provides factory-direct wholesale project supply and flexible configurations for premium commercial, decorative, and residential lighting installations.
Specifications
| CCT (K) | 1800–6500K |
|---|---|
| CRI | Ra≥90 |
| POWER (W/M) | 15 W/m |
| LED QTY | 384 LEDs/m |
| PART NO | DL-FSOBA192V24-16614-* |
| SMD TYPE | SOB |
| CUTTABLE UNIT | 8LEDs/20.833mm |
| DIMMABLE | Yes |
| LED PITCH | 1.839mm |
| PCB WIDTH | 8 |
| BEAM ANGLE | 160° |
| RUN LENGTH | 5M |
| COPPER FOIL | 3oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 5~23W |
| CIRCUIT TYPE | C.V. (Resistor Based) |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 1394–1886 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #16614
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 128.7 lm/W at 4000K, Ra 90, ErP energy class E (Grade DL (2nd Tier) · 12W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 97.3 lm/W | 1167.2 lm/m | F | — | — | — |
| 2300 K | — | — | — | 108.4 lm/W | 1301.2 lm/m | F | — | — | — |
| 2700 K | — | — | — | 117.3 lm/W | 1408 lm/m | E | — | — | — |
| 3000 K | — | — | — | 123.5 lm/W | 1481.8 lm/m | E | — | — | — |
| 3500 K | — | — | — | 125.6 lm/W | 1507.6 lm/m | E | — | — | — |
| 4000 K | — | — | — | 128.7 lm/W | 1544.4 lm/m | E | — | — | — |
| 5000 K | — | — | — | 128.6 lm/W | 1543.2 lm/m | E | — | — | — |
| 6500 K | — | — | — | 123.4 lm/W | 1480.5 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 15W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 95.2 lm/W | 1428.6 lm/m | F | — | — | — |
| 2300 K | — | — | — | 106.2 lm/W | 1592.5 lm/m | F | — | — | — |
| 2700 K | — | — | — | 114.9 lm/W | 1723.4 lm/m | E | — | — | — |
| 3000 K | — | — | — | 120.9 lm/W | 1813.6 lm/m | E | — | — | — |
| 3500 K | — | — | — | 123 lm/W | 1845.2 lm/m | E | — | — | — |
| 4000 K | — | — | — | 126 lm/W | 1890.3 lm/m | E | — | — | — |
| 5000 K | — | — | — | 125.9 lm/W | 1888.8 lm/m | E | — | — | — |
| 6500 K | — | — | — | 120.8 lm/W | 1812.1 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 19W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 92.6 lm/W | 1759.4 lm/m | F | — | — | — |
| 2300 K | — | — | — | 103.2 lm/W | 1961.3 lm/m | F | — | — | — |
| 2700 K | — | — | — | 111.7 lm/W | 2122.4 lm/m | E | — | — | — |
| 3000 K | — | — | — | 117.6 lm/W | 2233.6 lm/m | E | — | — | — |
| 3500 K | — | — | — | 119.6 lm/W | 2272.4 lm/m | E | — | — | — |
| 4000 K | — | — | — | 122.5 lm/W | 2328 lm/m | E | — | — | — |
| 5000 K | — | — | — | 122.4 lm/W | 2326.2 lm/m | E | — | — | — |
| 6500 K | — | — | — | 117.5 lm/W | 2231.7 lm/m | E | — | — | — |
Related models in this series
- SOB High Density LED Strip Light (#16662)
- Ultra Narrow SOB LED Strip Light (#16416)
- Single-Color SOB LED Strip Light (#13922)
- Green light Flexible LED Strip Light (#8215-G)
- Ice Blue Flexible LED Strip Light (#8215-IB)
- High Efficiency SOB LED Strip Light (#16791)
- Single-Color SOB LED Strip Light (#11236)
- SOB High Density LED Strip Light (#17000)
See every model in SOB LED Strip Series or narrow to Sob Classic. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What dimming protocols are compatible with this SOB flexible linear light?
This flexible linear light supports multiple dimming modes including 0-10V, DALI, and PWM, offering versatile integration options.
What is the minimum bending diameter for the 16614 LED strip?
The Model 16614 SOB flexible linear light is designed for a minimum bending diameter of Φ60mm, ensuring high flexibility.
Can this LED strip be used in high-temperature environments?
It operates reliably within a temperature range of -25°C to 40°C, with a maximum Tc of 75°C for sustained performance.
What are the common applications for this SOB flexible linear light?
It is highly suitable for home lighting, commercial lighting, and decorative lighting applications requiring flexibility and uniform light.
Is this SOB strip light also called FOB, S-COB or COB Pro strip light?
Yes. Model 16614 belongs to the DENO SOB (Spot on Board) family, which the market also calls FOB strip light, S-COB strip light or COB Pro strip light. All three names describe the same dot-free chip-on-board LED strip construction, so you can quote it under whichever term your project specification uses.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- Classic SOB dot-free strips — Classic COB LED Strip Light (SOB) — Buyer Questions
- LED strip engineering selection handbook
SOB is the upgraded generation of the COB LED strip
Every SOB board on this page starts from the classic COB recipe — one continuous phosphor line, zero visible dots — and rebuilds it with individually encapsulated, gold-wire-bonded packages soldered on thick copper of up to 105 µm or thicker. The result keeps the COB look while DENO has verified builds up to 24W/m at 24V DC (25 °C ambient, aluminum profile), with a standard binning target of SDCM ≤3; CRI, run length and cut unit are model-specific. For shorter, lower-load or cost-sensitive lines the classic COB range remains a practical choice — compare exact models under equal conditions.
