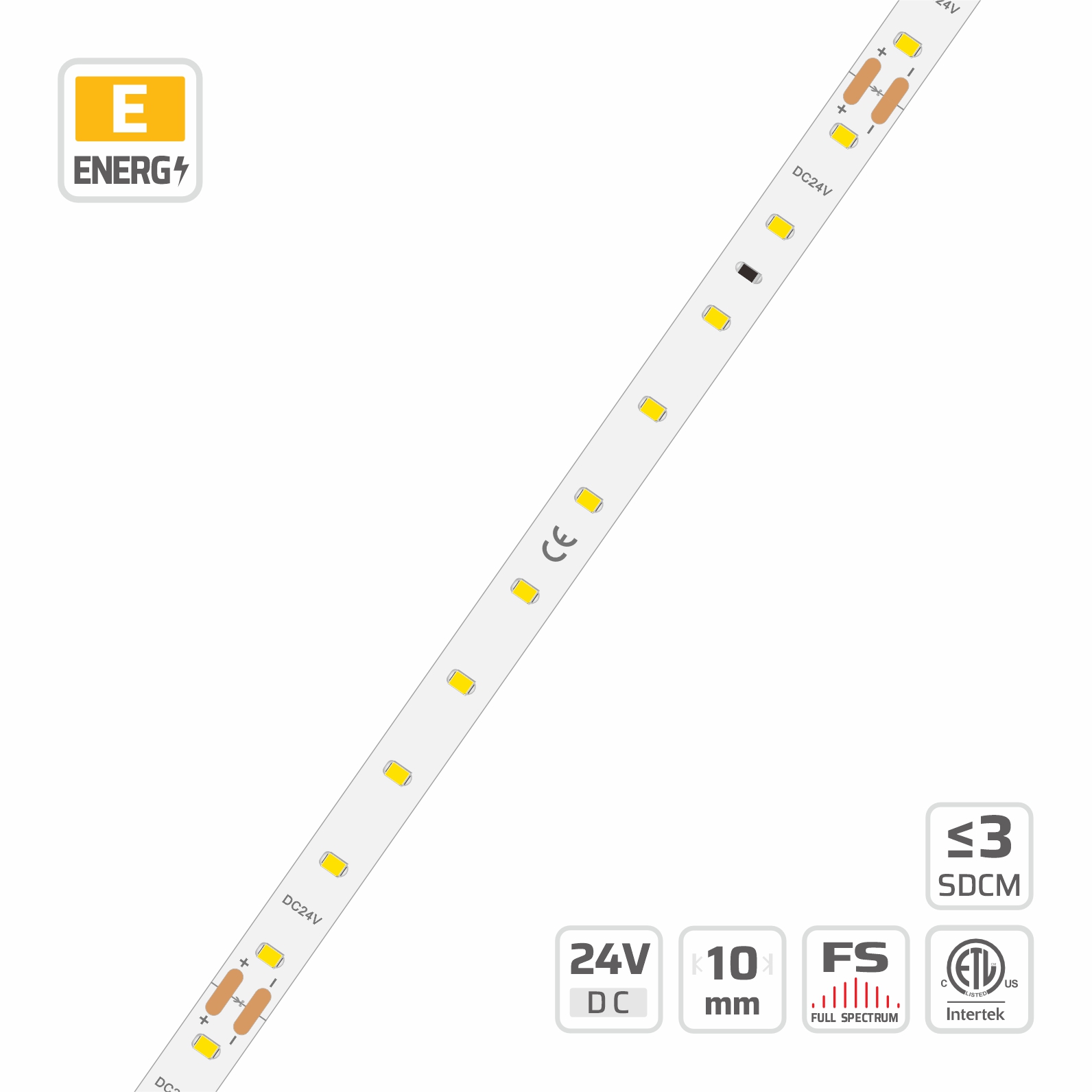

2835 Long Run LED Strip Light (#8466)
10mm · 24V · 60LEDs · 166.66cut
Model: 8466
Overview
2835 Ultra-long LED Strip Light | 10mm | 24V | 60LEDs | 166.66cut | #8466 is part of the DENO Ultra-Long SMD Strips series, engineered around ultra long run LED strip. Key specifications: 2835, 60LEDs/m, 24V, 10mm PCB, 3oz copper FPCB, cuttable 10LEDs/166.66mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with a constant-current circuit, this 24V 2835 LED strip light maintains uniform brightness across single runs up to 40 meters. The heavy-duty 10mm wide 3oz copper PCB ensures superior thermal dissipation and delivers stable power distribution over long distances. Fitted with 60 LEDs per meter at a 120-degree beam angle, the dimmable tape allows precise cutting intervals every 166.66mm. This ultra-long run design minimizes power feed points, making it ideal for seamless architectural lighting and large-scale commercial facade outlines. DENO offers factory-direct wholesale project supply with OEM custom lengths, tailored color temperatures, and versatile ingress protection options.
Ultra Long Run Led Strip built for ultra-long smd strips projects.
Specifications
| LED QTY | 60LEDs/m |
|---|---|
| PART NO | DL-F28A30V24-8466-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 10LEDs/166.66mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 6.2mm |
| PCB WIDTH | 10mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 40m |
| COPPER FOIL | 3oz |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 24V |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Long corridor & warehouse runs — Long single-feed runs on 24V cover corridors, warehouse aisles and facade lines with fewer injection points and fewer power supplies.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #8466
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 123.7 lm/W at 4000K, Ra 80, ErP energy class E (Grade DN (1st Tier)).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 93.2 lm/W | 335.5 lm/m | F | 74.4 lm/W | 267.8 lm/m | G | — | — | — |
| 2300 K | 103.6 lm/W | 373.1 lm/m | F | 82.8 lm/W | 298.2 lm/m | G | 67.1 lm/W | 241.6 lm/m | G |
| 2700 K | 108.8 lm/W | 391.6 lm/m | F | 89.7 lm/W | 322.8 lm/m | F | 72.7 lm/W | 261.7 lm/m | G |
| 3000 K | 116.7 lm/W | 420.2 lm/m | E | 94.3 lm/W | 339.5 lm/m | F | 76.7 lm/W | 276.1 lm/m | G |
| 3500 K | 118.5 lm/W | 426.7 lm/m | E | 96 lm/W | 345.6 lm/m | F | 79 lm/W | 284.5 lm/m | G |
| 4000 K | 122.2 lm/W | 440.1 lm/m | E | 98.3 lm/W | 353.9 lm/m | F | 81.1 lm/W | 292.1 lm/m | G |
| 5000 K | 122.1 lm/W | 439.7 lm/m | E | 98.3 lm/W | 353.9 lm/m | F | 81.1 lm/W | 292 lm/m | G |
| 6500 K | 111.6 lm/W | 401.7 lm/m | E | 94.3 lm/W | 339.5 lm/m | F | 78.3 lm/W | 281.9 lm/m | G |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 92.4 lm/W | 443.5 lm/m | F | 73.8 lm/W | 354.1 lm/m | G | — | — | — |
| 2300 K | 102.8 lm/W | 493.3 lm/m | F | 82.1 lm/W | 394.3 lm/m | G | 66.5 lm/W | 319.2 lm/m | G |
| 2700 K | 107.9 lm/W | 517.7 lm/m | F | 88.9 lm/W | 426.8 lm/m | F | 72.1 lm/W | 345.9 lm/m | G |
| 3000 K | 115.7 lm/W | 555.5 lm/m | E | 93.5 lm/W | 448.8 lm/m | F | 76.1 lm/W | 365.1 lm/m | G |
| 3500 K | 117.5 lm/W | 564.1 lm/m | E | 95.2 lm/W | 456.9 lm/m | F | 78.4 lm/W | 376.1 lm/m | G |
| 4000 K | 121.2 lm/W | 581.8 lm/m | E | 97.5 lm/W | 468 lm/m | F | 80.4 lm/W | 386.1 lm/m | G |
| 5000 K | 121.1 lm/W | 581.4 lm/m | E | 97.5 lm/W | 468 lm/m | F | 80.4 lm/W | 385.9 lm/m | G |
| 6500 K | 110.6 lm/W | 531.1 lm/m | E | 93.5 lm/W | 448.8 lm/m | F | 77.6 lm/W | 372.5 lm/m | G |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 90.9 lm/W | 654.2 lm/m | F | 72.5 lm/W | 522.2 lm/m | G | — | — | — |
| 2300 K | 101.1 lm/W | 727.6 lm/m | F | 80.8 lm/W | 581.5 lm/m | G | 65.4 lm/W | 470.9 lm/m | G |
| 2700 K | 106.1 lm/W | 763.6 lm/m | F | 87.4 lm/W | 629.5 lm/m | F | 70.9 lm/W | 510.2 lm/m | G |
| 3000 K | 113.8 lm/W | 819.3 lm/m | E | 91.9 lm/W | 662 lm/m | F | 74.8 lm/W | 538.5 lm/m | G |
| 3500 K | 115.6 lm/W | 832 lm/m | E | 93.6 lm/W | 674 lm/m | F | 77 lm/W | 554.7 lm/m | G |
| 4000 K | 119.2 lm/W | 858.2 lm/m | E | 95.9 lm/W | 690.2 lm/m | F | 79.1 lm/W | 569.5 lm/m | G |
| 5000 K | 119.1 lm/W | 857.4 lm/m | E | 95.9 lm/W | 690.2 lm/m | F | 79.1 lm/W | 569.5 lm/m | G |
| 6500 K | 108.8 lm/W | 783.3 lm/m | F | 91.9 lm/W | 662 lm/m | F | 76.3 lm/W | 549.4 lm/m | G |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 97 lm/W | 349 lm/m | F | 81.4 lm/W | 292.9 lm/m | G | — | — | — |
| 2300 K | 105.7 lm/W | 380.5 lm/m | F | 90.7 lm/W | 326.6 lm/m | G | 73.5 lm/W | 264.6 lm/m | G |
| 2700 K | 113.8 lm/W | 409.9 lm/m | F | 98.2 lm/W | 353.4 lm/m | F | 79.6 lm/W | 286.4 lm/m | G |
| 3000 K | 119.6 lm/W | 430.5 lm/m | E | 103.7 lm/W | 373.3 lm/m | F | 84.4 lm/W | 303.8 lm/m | G |
| 3500 K | 121.4 lm/W | 437 lm/m | E | 106 lm/W | 381.6 lm/m | F | 87.2 lm/W | 313.9 lm/m | G |
| 4000 K | 123.7 lm/W | 445.3 lm/m | E | 106.6 lm/W | 383.8 lm/m | F | 88 lm/W | 316.8 lm/m | G |
| 5000 K | 123.5 lm/W | 444.6 lm/m | E | 107.3 lm/W | 386.3 lm/m | F | 88.5 lm/W | 318.6 lm/m | G |
| 6500 K | 118.4 lm/W | 426.1 lm/m | F | 102.5 lm/W | 368.9 lm/m | F | 85.1 lm/W | 306.4 lm/m | G |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 96.1 lm/W | 461.5 lm/m | F | 80.7 lm/W | 387.3 lm/m | G | — | — | — |
| 2300 K | 104.8 lm/W | 503.1 lm/m | F | 90 lm/W | 431.8 lm/m | G | 72.9 lm/W | 349.9 lm/m | G |
| 2700 K | 112.9 lm/W | 541.9 lm/m | F | 97.3 lm/W | 467.2 lm/m | F | 78.9 lm/W | 378.6 lm/m | G |
| 3000 K | 118.6 lm/W | 569.2 lm/m | F | 102.8 lm/W | 493.5 lm/m | F | 83.7 lm/W | 401.6 lm/m | G |
| 3500 K | 120.4 lm/W | 577.8 lm/m | E | 105.1 lm/W | 504.5 lm/m | F | 86.5 lm/W | 415 lm/m | G |
| 4000 K | 122.7 lm/W | 588.8 lm/m | E | 105.7 lm/W | 507.4 lm/m | F | 87.3 lm/W | 418.9 lm/m | G |
| 5000 K | 122.5 lm/W | 587.8 lm/m | E | 106.4 lm/W | 510.8 lm/m | F | 87.8 lm/W | 421.4 lm/m | G |
| 6500 K | 117.4 lm/W | 563.4 lm/m | F | 101.6 lm/W | 487.8 lm/m | F | 84.3 lm/W | 404.6 lm/m | G |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 94.5 lm/W | 680.6 lm/m | F | 79.3 lm/W | 571.2 lm/m | G | — | — | — |
| 2300 K | 103.1 lm/W | 742 lm/m | F | 88.5 lm/W | 636.8 lm/m | G | 71.6 lm/W | 515.5 lm/m | G |
| 2700 K | 111 lm/W | 799.2 lm/m | F | 95.7 lm/W | 689.1 lm/m | F | 77.6 lm/W | 558.5 lm/m | G |
| 3000 K | 116.6 lm/W | 839.5 lm/m | F | 101.1 lm/W | 727.9 lm/m | F | 82.3 lm/W | 592.4 lm/m | G |
| 3500 K | 118.4 lm/W | 852.2 lm/m | F | 103.4 lm/W | 744.2 lm/m | F | 85 lm/W | 612.1 lm/m | G |
| 4000 K | 120.6 lm/W | 868.4 lm/m | E | 103.9 lm/W | 748.4 lm/m | F | 85.8 lm/W | 617.8 lm/m | G |
| 5000 K | 120.4 lm/W | 867 lm/m | E | 104.6 lm/W | 753.3 lm/m | F | 86.3 lm/W | 621.4 lm/m | G |
| 6500 K | 115.4 lm/W | 831 lm/m | F | 99.9 lm/W | 719.5 lm/m | F | 82.9 lm/W | 596.9 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 86.1 lm/W | 309.8 lm/m | F | 68.7 lm/W | 247.2 lm/m | G | — | — | — |
| 2300 K | 95.9 lm/W | 345.3 lm/m | F | 76.5 lm/W | 275.4 lm/m | G | 62 lm/W | 223.2 lm/m | G |
| 2700 K | 103.4 lm/W | 372.1 lm/m | F | 83 lm/W | 299 lm/m | G | 67.3 lm/W | 242.1 lm/m | G |
| 3000 K | 108.6 lm/W | 390.9 lm/m | F | 87.8 lm/W | 316 lm/m | F | 71.4 lm/W | 257 lm/m | G |
| 3500 K | 110.2 lm/W | 396.7 lm/m | E | 89.5 lm/W | 322.1 lm/m | F | 73.7 lm/W | 265.3 lm/m | G |
| 4000 K | 113.4 lm/W | 408.3 lm/m | E | 91.4 lm/W | 329 lm/m | F | 75.5 lm/W | 271.8 lm/m | G |
| 5000 K | 113.3 lm/W | 407.9 lm/m | E | 91.4 lm/W | 329 lm/m | F | 75.4 lm/W | 271.4 lm/m | G |
| 6500 K | 108.6 lm/W | 390.9 lm/m | F | 87.8 lm/W | 316 lm/m | F | 72.8 lm/W | 262.1 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 85.3 lm/W | 409.6 lm/m | F | 68.1 lm/W | 326.8 lm/m | G | — | — | — |
| 2300 K | 95.1 lm/W | 456.5 lm/m | F | 75.9 lm/W | 364.2 lm/m | G | 61.5 lm/W | 295.2 lm/m | G |
| 2700 K | 102.5 lm/W | 491.9 lm/m | F | 82.3 lm/W | 395.3 lm/m | G | 66.7 lm/W | 320.1 lm/m | G |
| 3000 K | 107.7 lm/W | 516.8 lm/m | F | 87 lm/W | 417.8 lm/m | F | 70.8 lm/W | 339.8 lm/m | G |
| 3500 K | 109.3 lm/W | 524.5 lm/m | F | 88.7 lm/W | 425.9 lm/m | F | 73.1 lm/W | 350.8 lm/m | G |
| 4000 K | 112.5 lm/W | 539.8 lm/m | E | 90.6 lm/W | 435 lm/m | F | 74.9 lm/W | 359.4 lm/m | G |
| 5000 K | 112.4 lm/W | 539.3 lm/m | E | 90.6 lm/W | 435 lm/m | F | 74.8 lm/W | 359 lm/m | G |
| 6500 K | 107.7 lm/W | 516.8 lm/m | F | 87 lm/W | 417.8 lm/m | F | 72.2 lm/W | 346.6 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 83.9 lm/W | 604.2 lm/m | G | 67 lm/W | 482.1 lm/m | G | — | — | — |
| 2300 K | 93.5 lm/W | 673.3 lm/m | F | 74.6 lm/W | 537.1 lm/m | G | 60.4 lm/W | 434.9 lm/m | G |
| 2700 K | 100.8 lm/W | 725.6 lm/m | F | 81 lm/W | 583 lm/m | G | 65.6 lm/W | 472.2 lm/m | G |
| 3000 K | 105.9 lm/W | 762.3 lm/m | F | 85.6 lm/W | 616.2 lm/m | F | 69.6 lm/W | 501.1 lm/m | G |
| 3500 K | 107.4 lm/W | 773.5 lm/m | F | 87.2 lm/W | 628.2 lm/m | F | 71.9 lm/W | 517.3 lm/m | G |
| 4000 K | 110.6 lm/W | 796.1 lm/m | E | 89.1 lm/W | 641.6 lm/m | F | 73.6 lm/W | 530.1 lm/m | G |
| 5000 K | 110.5 lm/W | 795.4 lm/m | E | 89.1 lm/W | 641.6 lm/m | F | 73.5 lm/W | 529.2 lm/m | G |
| 6500 K | 105.9 lm/W | 762.3 lm/m | F | 85.6 lm/W | 616.2 lm/m | F | 71 lm/W | 511.2 lm/m | G |
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 2835 Long Run LED Strip Light (#7910)
- 2835 Long Run LED Strip Light (#7909)
- 2216 Long Run LED Strip Light (#14512-N)
See every model in SMD LED Strip Series or narrow to Ultra Long. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 8466?
8466: 2835, 60LEDs/m, 24V, 10mm PCB, 3oz copper FPCB, cuttable 10LEDs/166.66mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra long run LED strip be?
Maximum single run for this model is 40m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra long run LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra long run LED strip for a project?
Yes. DENO manufactures the Ultra-Long SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What limits how long an LED strip run can be?
Voltage drop and conductor current, not the LED itself. A long run LED strip combines low watts per metre, 2 oz or thicker copper and a higher bus voltage such as 24V, 36V or 48V to reach 20 m or more from one feed while staying inside a 3 percent drop.
Which LED driver and run length suit #8466?
2835 Long Run LED Strip Light | 10mm | 24V | 60LEDs | 166.66cut | #8466 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 40m. 40m Single / 80m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
