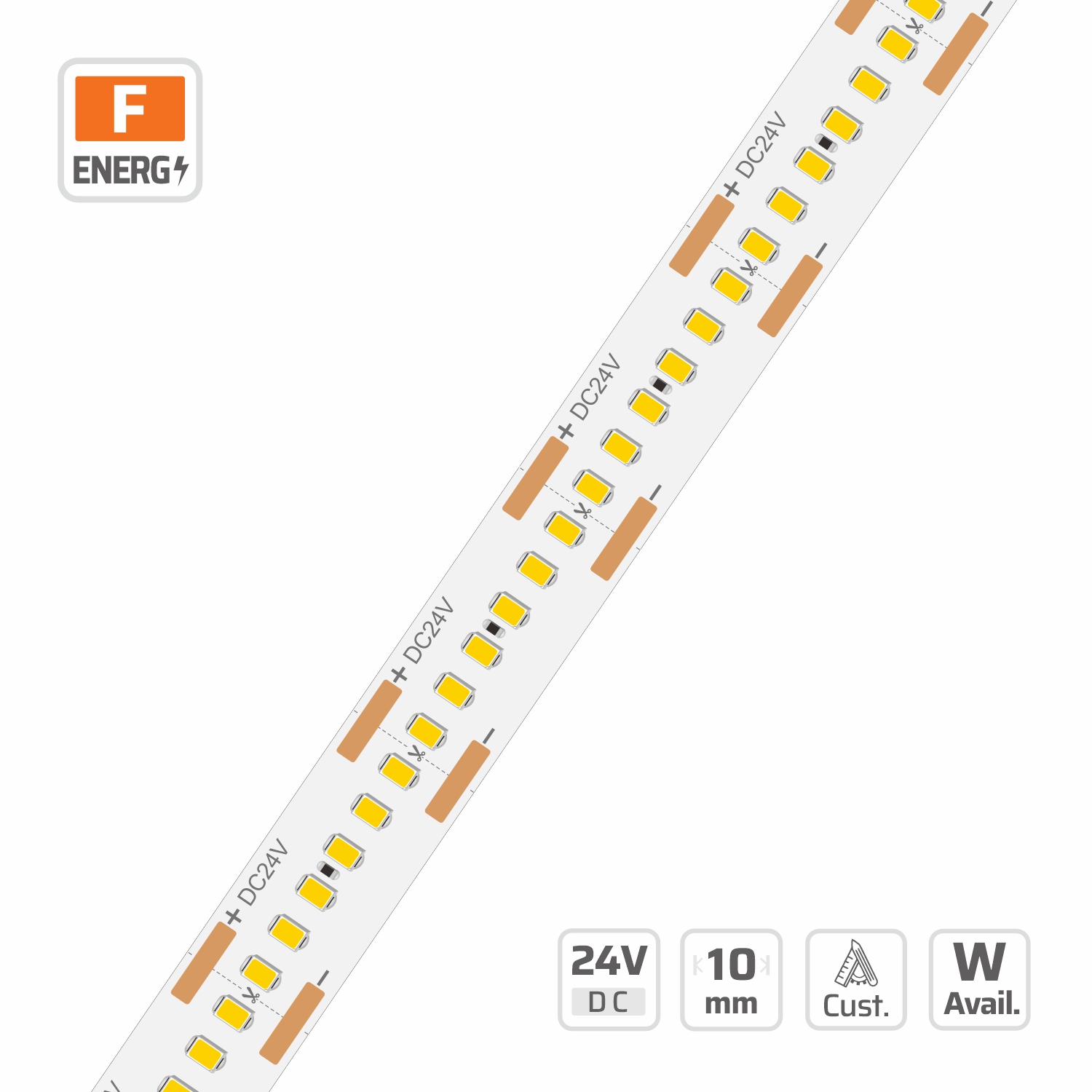

2216 Long Run LED Strip Light (#14512-N)
10mm · 24V · 20mm/cut · 300LEDs
Model: 14512-N
Overview
2216 Ultra-Long LED Strip Light | 10mm | 24V | 20mm/cut | 300LEDs | #14512-N is part of the DENO Ultra-Long SMD Strips series, engineered around ultra long run LED strip. Key specifications: 2216, 300 LEDs/m, DC24V, 10mm PCB, 3oz copper FPCB, cuttable 6LEDs/20mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This 2216 LED strip light integrates 300 LEDs per meter on a robust 10mm, 3oz copper PCB for superior thermal performance. An integrated constant-current circuit eliminates brightness taper across 5m single-feed runs, providing uniform dot-free illumination ideal for architectural cove lighting. Precision cutting sections every 20mm paired with a tight 3.334mm LED pitch deliver smooth dimmable lighting in tight installation spaces. Engineered for demanding commercial environments, the 24V strip operates reliably between -25°C and 40°C across a 6W to 24W power range. DENO offers OEM custom lengths, specialized color temperatures, and tailored environmental protection ratings for wholesale project supply.
Ultra Long Run Led Strip built for ultra-long smd strips projects.
Specifications
| CRI | Ra≥90 / Ra≥95 |
|---|---|
| LED QTY | 300 LEDs/m |
| PART NO | DL-F22A150V24-14512-N |
| SMD TYPE | 2216 |
| CUTTABLE UNIT | 6LEDs/20mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP54/IP65/IP66/IP67/IP68 |
| LED PITCH | 3.334mm |
| PCB WIDTH | 10mm |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 6~24W |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | DC24V |
| LUMINOUS FLUX | 1196 lm/m @4000K |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Long corridor & warehouse runs — Long single-feed runs on 24V cover corridors, warehouse aisles and facade lines with fewer injection points and fewer power supplies.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #14512-N
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 104 lm/W at 4000K, Ra 90, ErP energy class F (Grade DL (2nd Tier) · 6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 78.6 lm/W | 471.9 lm/m | G | — | — | — |
| 2300 K | — | — | — | 87.6 lm/W | 525.6 lm/m | F | — | — | — |
| 2700 K | — | — | — | 94.8 lm/W | 568.7 lm/m | F | — | — | — |
| 3000 K | — | — | — | 99.7 lm/W | 598.1 lm/m | F | — | — | — |
| 3500 K | — | — | — | 101.5 lm/W | 608.7 lm/m | F | — | — | — |
| 4000 K | — | — | — | 104 lm/W | 623.7 lm/m | F | — | — | — |
| 5000 K | — | — | — | 103.9 lm/W | 623.1 lm/m | F | — | — | — |
| 6500 K | — | — | — | 99.7 lm/W | 598.1 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 75.4 lm/W | 904.8 lm/m | G | — | — | — |
| 2300 K | — | — | — | 84 lm/W | 1007.9 lm/m | G | — | — | — |
| 2700 K | — | — | — | 90.9 lm/W | 1090.5 lm/m | F | — | — | — |
| 3000 K | — | — | — | 95.6 lm/W | 1146.9 lm/m | F | — | — | — |
| 3500 K | — | — | — | 97.3 lm/W | 1167.2 lm/m | F | — | — | — |
| 4000 K | — | — | — | 99.7 lm/W | 1196 lm/m | F | — | — | — |
| 5000 K | — | — | — | 99.6 lm/W | 1194.8 lm/m | F | — | — | — |
| 6500 K | — | — | — | 95.6 lm/W | 1146.9 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 18W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 72.3 lm/W | 1301.2 lm/m | G | — | — | — |
| 2300 K | — | — | — | 80.5 lm/W | 1449.4 lm/m | G | — | — | — |
| 2700 K | — | — | — | 87.1 lm/W | 1568.3 lm/m | F | — | — | — |
| 3000 K | — | — | — | 91.6 lm/W | 1649.3 lm/m | F | — | — | — |
| 3500 K | — | — | — | 93.3 lm/W | 1678.6 lm/m | F | — | — | — |
| 4000 K | — | — | — | 95.6 lm/W | 1720 lm/m | F | — | — | — |
| 5000 K | — | — | — | 95.5 lm/W | 1718.2 lm/m | F | — | — | — |
| 6500 K | — | — | — | 91.6 lm/W | 1649.3 lm/m | F | — | — | — |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 18W/m, 14512-N is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 22x12mm Recessed LED Channel with Flange · fits ≤10mm strip
- 20x15mm Wide Surface Mount LED Channel · fits ≤10mm strip
- 17x15mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm Magnetic LED Channel · fits ≤10mm strip
- 19.1x8mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm 48V Surface Mount LED Channel · fits ≤10mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 2835 Long Run LED Strip Light (#8466)
- 2835 Long Run LED Strip Light (#7910)
- 2835 Long Run LED Strip Light (#7909)
See every model in SMD LED Strip Series or narrow to Ultra Long. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 14512-N?
14512-N: 2216, 300 LEDs/m, DC24V, 10mm PCB, 3oz copper FPCB, cuttable 6LEDs/20mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra long run LED strip be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra long run LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra long run LED strip for a project?
Yes. DENO manufactures the Ultra-Long SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What limits how long an LED strip run can be?
Voltage drop and conductor current, not the LED itself. A long run LED strip combines low watts per metre, 2 oz or thicker copper and a higher bus voltage such as 24V, 36V or 48V to reach 20 m or more from one feed while staying inside a 3 percent drop.
Which LED driver and run length suit #14512-N?
2216 Long Run LED Strip Light | 10mm | 24V | 20mm/cut | 300LEDs | #14512-N is a constant-voltage DC24V product, so pair it with a CE or UL listed DC24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
