How long can a long LED strip run be on a single power feed?

A standard 24V constant-voltage tape is limited to about 5 m before the far end visibly dims. DENO's long-run boards combine 2 oz to 3 oz copper, 24V or 48V input and per-segment constant-current ICs, which takes a single feed to 20 m, and up to 50 m on 48V builds, with no measurable fall-off between the first and last metre.

What are the longest LED light strips DENO manufactures?

Standard reels ship at 5 m, 10 m, 15 m, 20 m and 30 m, and OEM orders are produced as one continuous 50 m board with no mid-reel solder joint. Roll-to-roll plating is what makes that possible: the copper is deposited continuously, so length is not capped by panel size the way it is on die-cut FPCB.

Do you supply extra long LED strip lights in 65.6 ft or 100 ft?

Yes. 65.6 ft (20 m) and 100 ft (30 m) are stock run lengths, and anything longer than 32 feet is supplied as one uncut board rather than two reels joined with a connector. Joints are the usual failure point on extra long LED strip lights, so removing them is the single biggest reliability gain on a large install.

Why do long strip lights get dimmer at the far end, and how is it fixed?

Copper resistance drops the supply voltage along the tape, so LEDs near the end of the run receive less drive current. Three fixes work together: raise the voltage (24V, 36V or 48V), raise the copper weight (2 oz or 3 oz), and add a linear constant-current IC per segment so each segment holds its current regardless of the local voltage it sees.

Which long outdoor LED strip lights are rated for wet locations?

Long outdoor LED strip lights are built IP65 silicone-coated, IP67 sleeved or IP68 fully potted, with DENO WAP™ conformal coating that stays clear instead of yellowing under UV. For facade and perimeter work the run length also has to survive thermal cycling, so outdoor boards use 3 oz copper and a wider PCB to spread heat.

What makes long lasting LED strip lights actually last?

Lifetime is decided by junction temperature and solder-joint fatigue, not by the LED bin. DENO specifies 99.9% pure electroplated copper for lower thermal resistance, gold-wire bonding, and derated drive current — L90 at 50,000 hours on standard architectural builds, backed by a 5-year warranty.

Can a long RGB or RGBIC strip run stay colour-consistent?

It can, provided each colour channel is current-regulated. On a plain long RGB LED strip the red die drops out first as voltage falls, so the far end shifts warm; a CC-regulated 24V colour board holds the mix over 15 m to 20 m. Addressable RGBIC runs additionally need data re-amplification roughly every 5 m.

Can long LED light strips be cut to an exact length for a room or kitchen?

Yes. Cut units run from 12.5 mm to 100 mm depending on voltage and density, so a run can be trimmed to a drawing dimension on site, and DENO also pre-cuts and pre-wires to length at the factory for room, cove and kitchen installations. Ask for the cut unit in the quote — it decides how closely the finished line matches the millwork.

Can you get LED strip lights longer than 32 feet in one run?

Yes — 32 feet (10 m) is where consumer tape stops, not where the physics stops. Past that the board needs constant-current regulation and 2 oz to 3 oz copper, and DENO supplies it as one uncut length with factory-fitted lead wires rather than two reels joined by a solderless connector, which would put the whole downstream current through a spring contact.

Should I specify a 65.6 ft or a 100 ft LED strip run?

65.6 ft (20 m) is the practical ceiling for a 24V constant-current board with 2 oz copper on a single-end feed, and it covers most cove and corridor jobs with one driver. 100 ft (30 m) moves to 36V or 48V with 3 oz copper, a bigger driver and usually a mid-point tap, because at 24V the current would be high enough for cable losses to matter.

When is a long RGBW LED strip better than RGB on a long run?

Whenever the same run also has to serve as everyday white light. Mixing white from three colour dies costs roughly twice the wattage for the same lux and renders skin and timber poorly — a real penalty over 20 m. RGBW adds a dedicated Ra 90+ white die at 2700K to 6500K, so white comes from a white source and the colour channels stay reserved for scenes.

Is 36V or 48V better for a long LED strip installation?

48V once a single run passes about 30 m, 36V between 20 m and 30 m or where a 48V driver is unavailable. Both stay inside SELV limits and both cut voltage drop sharply against 24V; the trade-off is the cut unit, which grows from roughly 50 mm at 24V to 100 mm at 36V and up to 166.6 mm at 48V.

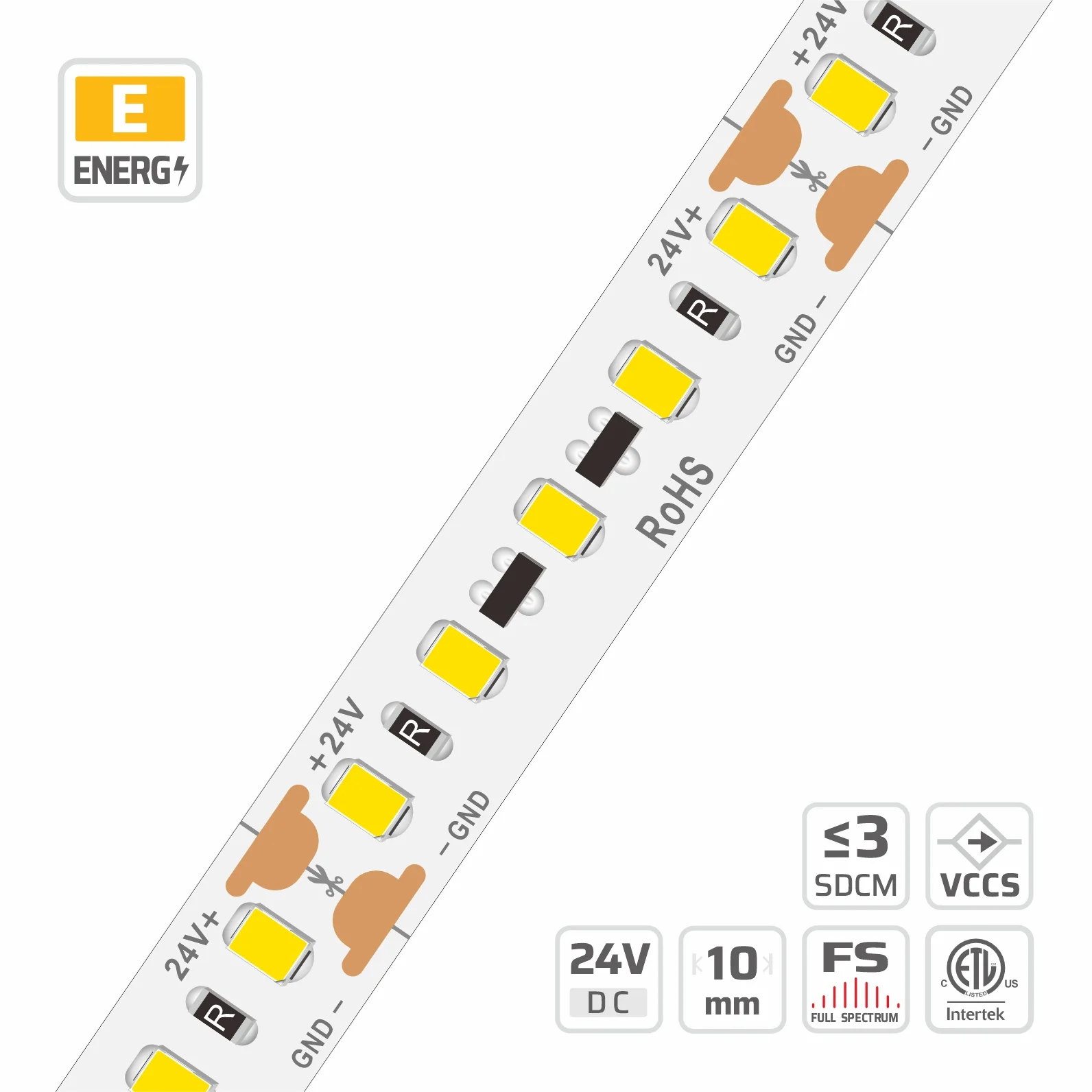

2835 Long Run LED Strip Light (#7910)

10mm · 24V · 120LEDs · 41.67cut

Model: 7910

7910 long led strip — 24V, cuttable every 41.7mm, 10mm FPCB width, 2835 LEDs, 120 LEDs/m, IP20

Overview

2835 Ultra-long LED Strip Light | 10mm | 24V | 120LEDs | 41.67cut | #7910 is part of the DENO Ultra-Long SMD Strips series, engineered around ultra long run LED strip. Key specifications: 2835, 120 LEDs/m, 24V, 10mm PCB, 3 oz copper FPCB, cuttable 5LEDs/41.67mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

Integrated constant-current circuitry enables this 2835 LED strip light to power continuous runs up to 20 meters without voltage drop. Engineered with a heavy 3 oz copper 10mm PCB and 120 LEDs per meter, the board ensures reliable heat dissipation. This 24V circuit is dimmable and cuttable every 41.67mm, offering precise on-site sizing for seamless architectural cove lighting. Featuring a 120-degree beam angle and 60mm bend diameter, the strip easily adapts to continuous retail perimeter runs. We support lighting contractors with wholesale project supply, factory-direct quotes, and OEM custom lengths to match project specifications.

We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.

Specifications

CRI	Ra>90
POWER (W/M)	9.6 W/m
LED QTY	120 LEDs/m
PART NO	DL-F28A60V24-7910-*
SMD TYPE	2835
CUTTABLE UNIT	5LEDs/41.67mm
DIMMABLE	Yes
IP RATING	IP20
LED PITCH	8.33mm
PCB WIDTH	10mm
BEAM ANGLE	120°
RUN LENGTH	20m
COPPER FOIL	3 oz
ON OFF TIMES	10000（test times）
CIRCUIT TYPE	C.C.
INPUT VOLTAGE	24V
LUMINOUS FLUX	635–900 lm/m
MIN BEND DIAMETER	Φ60mm
OPERATING TEMPERATURE	-25~40°C;Tc: 75°C (max)

Applications

Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Long corridor & warehouse runs — Long single-feed runs on 24V cover corridors, warehouse aisles and facade lines with fewer injection points and fewer power supplies.

Recommended accessories & compatible parts

DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #7910

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

Warranty: 5 years
Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
Compliance: CE · UL · RoHS
Bonding wire: 99.99% pure gold
Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 123.1 lm/W at 4000K, Ra 80, ErP energy class E (Grade DL (2nd Tier) · 8.6W/m).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

Grade DL (2nd Tier) · 8.6W/m

Grade DL (2nd Tier) · 8.6W/m — measured at 8.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	93.8 lm/W	806.3 lm/m	F	74.9 lm/W	644 lm/m	G	—	—	—
2300 K	104.4 lm/W	897.8 lm/m	F	83.4 lm/W	717.4 lm/m	G	67.6 lm/W	581.4 lm/m	G
2700 K	109.5 lm/W	941.8 lm/m	F	90.2 lm/W	776.1 lm/m	F	73.2 lm/W	629.3 lm/m	G
3000 K	117.4 lm/W	1010 lm/m	E	95 lm/W	816.7 lm/m	F	77.3 lm/W	664.7 lm/m	G
3500 K	119.3 lm/W	1025.6 lm/m	E	96.7 lm/W	831.3 lm/m	F	79.6 lm/W	684.6 lm/m	G
4000 K	123.1 lm/W	1058.4 lm/m	E	99 lm/W	851.2 lm/m	F	81.7 lm/W	702.7 lm/m	G
5000 K	123 lm/W	1057.5 lm/m	E	99 lm/W	851.2 lm/m	F	81.7 lm/W	702.6 lm/m	G
6500 K	112.3 lm/W	966 lm/m	E	95 lm/W	816.7 lm/m	F	78.8 lm/W	677.7 lm/m	G

Grade DL (2nd Tier) · 11.5W/m

Grade DL (2nd Tier) · 11.5W/m — measured at 11.5 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	91.9 lm/W	1056.4 lm/m	F	73.4 lm/W	843.8 lm/m	G	—	—	—
2300 K	102.3 lm/W	1176.3 lm/m	F	81.7 lm/W	939.9 lm/m	G	66.2 lm/W	761.3 lm/m	G
2700 K	107.3 lm/W	1234 lm/m	F	88.4 lm/W	1016.9 lm/m	F	71.7 lm/W	824.6 lm/m	G
3000 K	115.1 lm/W	1323.4 lm/m	E	93 lm/W	1070 lm/m	F	75.7 lm/W	870.9 lm/m	G
3500 K	116.8 lm/W	1343.7 lm/m	E	94.7 lm/W	1089.2 lm/m	F	78 lm/W	897 lm/m	G
4000 K	120.6 lm/W	1386.7 lm/m	E	97 lm/W	1115.3 lm/m	F	80.1 lm/W	920.7 lm/m	G
5000 K	120.5 lm/W	1385.6 lm/m	E	97 lm/W	1115.3 lm/m	F	80 lm/W	920 lm/m	G
6500 K	110.1 lm/W	1265.7 lm/m	E	93 lm/W	1070 lm/m	F	77.2 lm/W	887.8 lm/m	G

Grade DL (2nd Tier) · 14.4W/m

Grade DL (2nd Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	90 lm/W	1296.2 lm/m	F	71.9 lm/W	1035.3 lm/m	G	—	—	—
2300 K	100.2 lm/W	1443.3 lm/m	F	80.1 lm/W	1153.2 lm/m	G	64.9 lm/W	934.6 lm/m	G
2700 K	105.1 lm/W	1514.1 lm/m	F	86.6 lm/W	1247.6 lm/m	F	70.3 lm/W	1011.7 lm/m	G
3000 K	112.8 lm/W	1623.7 lm/m	E	91.2 lm/W	1312.8 lm/m	F	74.2 lm/W	1068.6 lm/m	G
3500 K	114.5 lm/W	1648.7 lm/m	E	92.8 lm/W	1336.4 lm/m	F	76.4 lm/W	1100.5 lm/m	G
4000 K	118.2 lm/W	1701.4 lm/m	E	95 lm/W	1368.3 lm/m	F	78.4 lm/W	1129.6 lm/m	G
5000 K	118.1 lm/W	1700 lm/m	E	95 lm/W	1368.3 lm/m	F	78.4 lm/W	1129 lm/m	G
6500 K	107.8 lm/W	1552.9 lm/m	F	91.2 lm/W	1312.8 lm/m	F	75.7 lm/W	1090.1 lm/m	G

Grade DL (2nd Tier) · 17.3W/m

Grade DL (2nd Tier) · 17.3W/m — measured at 17.3 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	88.2 lm/W	1525.8 lm/m	F	70.4 lm/W	1218.7 lm/m	G	—	—	—
2300 K	98.2 lm/W	1699 lm/m	F	78.5 lm/W	1357.5 lm/m	G	63.6 lm/W	1100.3 lm/m	G
2700 K	103 lm/W	1782.3 lm/m	F	84.9 lm/W	1468.6 lm/m	G	68.8 lm/W	1190.9 lm/m	G
3000 K	110.5 lm/W	1911.3 lm/m	E	89.3 lm/W	1545.4 lm/m	F	72.7 lm/W	1257.9 lm/m	G
3500 K	112.2 lm/W	1940.7 lm/m	E	90.9 lm/W	1573.2 lm/m	F	74.9 lm/W	1295.5 lm/m	G
4000 K	115.8 lm/W	2002.8 lm/m	E	93.1 lm/W	1610.8 lm/m	F	76.9 lm/W	1329.8 lm/m	G
5000 K	115.7 lm/W	2001.2 lm/m	E	93.1 lm/W	1610.8 lm/m	F	76.8 lm/W	1328.6 lm/m	G
6500 K	105.7 lm/W	1828 lm/m	F	89.3 lm/W	1545.4 lm/m	F	74.1 lm/W	1281.9 lm/m	G

Grade DL (2nd Tier) · 23W/m

Grade DL (2nd Tier) · 23W/m — measured at 23 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	84.7 lm/W	1948.9 lm/m	G	67.7 lm/W	1556.6 lm/m	G	—	—	—
2300 K	94.4 lm/W	2170.1 lm/m	F	75.4 lm/W	1734 lm/m	G	61.1 lm/W	1405.3 lm/m	G
2700 K	99 lm/W	2276.5 lm/m	F	81.6 lm/W	1875.9 lm/m	G	66.1 lm/W	1521.1 lm/m	G
3000 K	106.1 lm/W	2441.4 lm/m	F	85.8 lm/W	1973.9 lm/m	F	69.9 lm/W	1606.7 lm/m	G
3500 K	107.8 lm/W	2478.9 lm/m	F	87.4 lm/W	2009.4 lm/m	F	71.9 lm/W	1654.7 lm/m	G
4000 K	111.2 lm/W	2558.2 lm/m	E	89.5 lm/W	2057.4 lm/m	F	73.8 lm/W	1698.5 lm/m	G
5000 K	111.1 lm/W	2556.1 lm/m	E	89.5 lm/W	2057.4 lm/m	F	73.8 lm/W	1697.4 lm/m	G
6500 K	101.5 lm/W	2334.9 lm/m	F	85.8 lm/W	1973.9 lm/m	F	71.2 lm/W	1637.6 lm/m	G

Grade DN (1st Tier) · 8.6W/m

Grade DN (1st Tier) · 8.6W/m — measured at 8.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	96.4 lm/W	829.2 lm/m	F	80.9 lm/W	696.2 lm/m	G	—	—	—
2300 K	105.2 lm/W	904.3 lm/m	F	90.3 lm/W	776.5 lm/m	G	73.1 lm/W	628.7 lm/m	G
2700 K	113.3 lm/W	974.3 lm/m	F	97.7 lm/W	840.4 lm/m	F	79.1 lm/W	680.6 lm/m	G
3000 K	119 lm/W	1023.5 lm/m	E	103.2 lm/W	887.9 lm/m	F	84 lm/W	722.1 lm/m	G
3500 K	120.8 lm/W	1039.1 lm/m	E	105.5 lm/W	906.9 lm/m	F	86.8 lm/W	746.3 lm/m	G
4000 K	123 lm/W	1058.1 lm/m	E	106.1 lm/W	912.1 lm/m	F	87.6 lm/W	753.2 lm/m	G
5000 K	122.9 lm/W	1057.2 lm/m	E	106.8 lm/W	918.1 lm/m	F	88.1 lm/W	757.7 lm/m	G
6500 K	117.8 lm/W	1013.1 lm/m	F	102 lm/W	877.5 lm/m	F	84.7 lm/W	728.4 lm/m	G

Grade DN (1st Tier) · 11.5W/m

Grade DN (1st Tier) · 11.5W/m — measured at 11.5 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	94.5 lm/W	1086.4 lm/m	F	79.3 lm/W	912.1 lm/m	G	—	—	—
2300 K	103 lm/W	1184.9 lm/m	F	88.5 lm/W	1017.4 lm/m	G	71.7 lm/W	824.6 lm/m	G
2700 K	111 lm/W	1276.5 lm/m	F	95.8 lm/W	1101.1 lm/m	F	77.5 lm/W	891.8 lm/m	G
3000 K	116.6 lm/W	1341 lm/m	F	101.2 lm/W	1163.4 lm/m	F	82.3 lm/W	946.1 lm/m	G
3500 K	118.4 lm/W	1361.4 lm/m	F	103.3 lm/W	1188.3 lm/m	F	85 lm/W	977.8 lm/m	G
4000 K	120.5 lm/W	1386.3 lm/m	E	103.9 lm/W	1195.1 lm/m	F	85.8 lm/W	986.8 lm/m	G
5000 K	120.5 lm/W	1385.2 lm/m	E	104.6 lm/W	1203 lm/m	F	86.3 lm/W	992.5 lm/m	G
6500 K	115.4 lm/W	1327.5 lm/m	F	100 lm/W	1149.8 lm/m	F	83 lm/W	954.5 lm/m	G

Grade DN (1st Tier) · 14.4W/m

Grade DN (1st Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	92.6 lm/W	1332.9 lm/m	F	77.7 lm/W	1119.1 lm/m	G	—	—	—
2300 K	101 lm/W	1453.7 lm/m	F	86.7 lm/W	1248.2 lm/m	G	70.2 lm/W	1010.9 lm/m	G
2700 K	108.8 lm/W	1566.2 lm/m	F	93.8 lm/W	1351 lm/m	F	76 lm/W	1094.1 lm/m	G
3000 K	114.3 lm/W	1645.4 lm/m	F	99.1 lm/W	1427.4 lm/m	F	80.6 lm/W	1160.8 lm/m	G
3500 K	116 lm/W	1670.3 lm/m	F	101.2 lm/W	1457.9 lm/m	F	83.3 lm/W	1199.7 lm/m	G
4000 K	118.1 lm/W	1700.9 lm/m	F	101.8 lm/W	1466.2 lm/m	F	84.1 lm/W	1210.8 lm/m	G
5000 K	118 lm/W	1699.5 lm/m	F	102.5 lm/W	1476 lm/m	F	84.6 lm/W	1218.2 lm/m	G
6500 K	113.1 lm/W	1628.7 lm/m	F	98 lm/W	1410.7 lm/m	F	81.3 lm/W	1170.7 lm/m	G

Grade DN (1st Tier) · 17.3W/m

Grade DN (1st Tier) · 17.3W/m — measured at 17.3 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	90.7 lm/W	1569.1 lm/m	G	76.1 lm/W	1317.4 lm/m	G	—	—	—
2300 K	98.9 lm/W	1711.3 lm/m	F	84.9 lm/W	1469.4 lm/m	G	68.8 lm/W	1190.2 lm/m	G
2700 K	106.6 lm/W	1843.7 lm/m	F	91.9 lm/W	1590.3 lm/m	F	74.4 lm/W	1288 lm/m	G
3000 K	112 lm/W	1936.9 lm/m	F	97.1 lm/W	1680.2 lm/m	F	79 lm/W	1366.4 lm/m	G
3500 K	113.7 lm/W	1966.3 lm/m	F	99.2 lm/W	1716.2 lm/m	F	81.6 lm/W	1412.2 lm/m	G
4000 K	115.7 lm/W	2002.2 lm/m	F	99.8 lm/W	1726 lm/m	F	82.4 lm/W	1425.3 lm/m	G
5000 K	115.6 lm/W	2000.6 lm/m	F	100.4 lm/W	1737.4 lm/m	F	82.9 lm/W	1434.2 lm/m	G
6500 K	110.8 lm/W	1917.2 lm/m	F	96 lm/W	1660.6 lm/m	F	79.7 lm/W	1378.8 lm/m	G

Grade DN (1st Tier) · 23W/m

Grade DN (1st Tier) · 23W/m — measured at 23 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	87.1 lm/W	2004.2 lm/m	G	73.2 lm/W	1682.7 lm/m	G	—	—	—
2300 K	95 lm/W	2185.8 lm/m	F	81.6 lm/W	1876.9 lm/m	G	66.1 lm/W	1520.3 lm/m	G
2700 K	102.4 lm/W	2354.9 lm/m	F	88.3 lm/W	2031.3 lm/m	G	71.5 lm/W	1645.1 lm/m	G
3000 K	107.6 lm/W	2473.9 lm/m	F	93.3 lm/W	2146.2 lm/m	F	75.9 lm/W	1745.3 lm/m	G
3500 K	109.2 lm/W	2511.5 lm/m	F	95.3 lm/W	2192.1 lm/m	F	78.4 lm/W	1803.8 lm/m	G
4000 K	111.2 lm/W	2557.4 lm/m	F	95.9 lm/W	2204.6 lm/m	F	79.2 lm/W	1820.5 lm/m	G
5000 K	111.1 lm/W	2555.4 lm/m	F	96.5 lm/W	2219.2 lm/m	F	79.6 lm/W	1830.8 lm/m	G
6500 K	106.5 lm/W	2448.9 lm/m	F	92.2 lm/W	2121.1 lm/m	F	76.5 lm/W	1759.5 lm/m	G

Grade KE (3rd Tier) · 8.6W/m

Grade KE (3rd Tier) · 8.6W/m — measured at 8.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	83.6 lm/W	718.7 lm/m	G	66.6 lm/W	572.9 lm/m	G	—	—	—
2300 K	93.1 lm/W	800.7 lm/m	F	74.2 lm/W	638.5 lm/m	G	60.1 lm/W	516.9 lm/m	G
2700 K	100.4 lm/W	863.7 lm/m	F	80.6 lm/W	692.8 lm/m	G	65.3 lm/W	561.7 lm/m	G
3000 K	105.4 lm/W	906.8 lm/m	F	85.2 lm/W	732.5 lm/m	F	69.2 lm/W	595.3 lm/m	G
3500 K	107 lm/W	920.6 lm/m	F	86.9 lm/W	747.2 lm/m	F	71.5 lm/W	615.2 lm/m	G
4000 K	110.2 lm/W	947.3 lm/m	E	88.7 lm/W	762.7 lm/m	F	73.2 lm/W	629.8 lm/m	G
5000 K	110 lm/W	945.6 lm/m	F	88.7 lm/W	762.7 lm/m	F	73.2 lm/W	629.5 lm/m	G
6500 K	105.4 lm/W	906.8 lm/m	F	85.2 lm/W	732.5 lm/m	F	70.7 lm/W	608 lm/m	G

Grade KE (3rd Tier) · 11.5W/m

Grade KE (3rd Tier) · 11.5W/m — measured at 11.5 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	81.9 lm/W	941.7 lm/m	G	65.3 lm/W	750.6 lm/m	G	—	—	—
2300 K	91.2 lm/W	1049.1 lm/m	F	72.7 lm/W	836.5 lm/m	G	58.9 lm/W	677.4 lm/m	G
2700 K	98.4 lm/W	1131.6 lm/m	F	78.9 lm/W	907.8 lm/m	G	64 lm/W	735.9 lm/m	G
3000 K	103.3 lm/W	1188.1 lm/m	F	83.5 lm/W	959.8 lm/m	G	67.8 lm/W	780 lm/m	G
3500 K	104.9 lm/W	1206.2 lm/m	F	85.1 lm/W	979 lm/m	F	70.1 lm/W	806 lm/m	G
4000 K	107.9 lm/W	1241.3 lm/m	F	86.9 lm/W	999.3 lm/m	F	71.8 lm/W	825.2 lm/m	G
5000 K	107.7 lm/W	1239 lm/m	F	86.9 lm/W	999.3 lm/m	F	71.7 lm/W	824.6 lm/m	G
6500 K	103.3 lm/W	1188.1 lm/m	F	83.5 lm/W	959.8 lm/m	G	69.3 lm/W	797 lm/m	G

Grade KE (3rd Tier) · 14.4W/m

Grade KE (3rd Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	80.2 lm/W	1155.4 lm/m	G	64 lm/W	921 lm/m	G	—	—	—
2300 K	89.4 lm/W	1287.1 lm/m	F	71.3 lm/W	1026.4 lm/m	G	57.7 lm/W	830.9 lm/m	G
2700 K	96.4 lm/W	1388.4 lm/m	F	77.3 lm/W	1113.8 lm/m	G	62.7 lm/W	902.9 lm/m	G
3000 K	101.2 lm/W	1457.7 lm/m	F	81.8 lm/W	1177.6 lm/m	G	66.5 lm/W	957 lm/m	G
3500 K	102.8 lm/W	1479.9 lm/m	F	83.4 lm/W	1201.1 lm/m	G	68.7 lm/W	988.9 lm/m	G
4000 K	105.8 lm/W	1522.9 lm/m	F	85.1 lm/W	1226.1 lm/m	F	70.3 lm/W	1012.5 lm/m	G
5000 K	105.6 lm/W	1520.2 lm/m	F	85.1 lm/W	1226.1 lm/m	F	70.2 lm/W	1010.9 lm/m	G
6500 K	101.2 lm/W	1457.7 lm/m	F	81.8 lm/W	1177.6 lm/m	G	67.9 lm/W	977.8 lm/m	G

Grade KE (3rd Tier) · 17.3W/m

Grade KE (3rd Tier) · 17.3W/m — measured at 17.3 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	78.6 lm/W	1360.1 lm/m	G	62.7 lm/W	1084.1 lm/m	G	—	—	—
2300 K	87.6 lm/W	1515.2 lm/m	F	69.8 lm/W	1208.2 lm/m	G	56.6 lm/W	979.2 lm/m	G
2700 K	94.5 lm/W	1634.4 lm/m	F	75.8 lm/W	1311.1 lm/m	G	61.4 lm/W	1062.9 lm/m	G
3000 K	99.2 lm/W	1716 lm/m	F	80.1 lm/W	1386.2 lm/m	G	65.1 lm/W	1126.6 lm/m	G
3500 K	100.7 lm/W	1742.1 lm/m	F	81.7 lm/W	1413.9 lm/m	G	67.3 lm/W	1164.1 lm/m	G
4000 K	103.6 lm/W	1792.7 lm/m	F	83.4 lm/W	1443.3 lm/m	G	68.9 lm/W	1191.9 lm/m	G
5000 K	103.4 lm/W	1789.5 lm/m	F	83.4 lm/W	1443.3 lm/m	G	68.8 lm/W	1190.2 lm/m	G
6500 K	99.2 lm/W	1716 lm/m	F	80.1 lm/W	1386.2 lm/m	G	66.5 lm/W	1150.5 lm/m	G

Grade KE (3rd Tier) · 23W/m

Grade KE (3rd Tier) · 23W/m — measured at 23 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	75.5 lm/W	1737.2 lm/m	G	60.2 lm/W	1384.8 lm/m	G	—	—	—
2300 K	84.1 lm/W	1935.3 lm/m	G	67.1 lm/W	1543.3 lm/m	G	54.3 lm/W	1248.9 lm/m	G
2700 K	90.8 lm/W	2087.6 lm/m	F	72.8 lm/W	1674.6 lm/m	G	59 lm/W	1357.6 lm/m	G
3000 K	95.3 lm/W	2191.8 lm/m	F	77 lm/W	1770.6 lm/m	G	62.6 lm/W	1439 lm/m	G
3500 K	96.7 lm/W	2225.2 lm/m	F	78.5 lm/W	1806 lm/m	G	64.6 lm/W	1486.9 lm/m	G
4000 K	99.6 lm/W	2289.9 lm/m	F	80.2 lm/W	1843.6 lm/m	G	66.2 lm/W	1522.4 lm/m	G
5000 K	99.4 lm/W	2285.7 lm/m	F	80.2 lm/W	1843.6 lm/m	G	66.1 lm/W	1520.3 lm/m	G
6500 K	95.3 lm/W	2191.8 lm/m	F	77 lm/W	1770.6 lm/m	G	63.9 lm/W	1469.7 lm/m	G

High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide

At up to 23W/m, 7910 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.

Why high-wattage strips need a heat sink

Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.

Sizing rule: FPC width vs channel inner width

Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.

Aluminum channels that fit this strip

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.

Related models in this series

See every model in SMD LED Strip Series or narrow to Ultra Long. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 7910?

7910: 2835, 120 LEDs/m, 24V, 10mm PCB, 3 oz copper FPCB, cuttable 5LEDs/41.67mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

How long can a single run of this ultra long run LED strip be?

Maximum single run for this model is 20m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra long run LED strip can cover twice that length on one circuit when wired accordingly.

Can DENO customise this ultra long run LED strip for a project?

Yes. DENO manufactures the Ultra-Long SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

What limits how long an LED strip run can be?

Voltage drop and conductor current, not the LED itself. A long run LED strip combines low watts per metre, 2 oz or thicker copper and a higher bus voltage such as 24V, 36V or 48V to reach 20 m or more from one feed while staying inside a 3 percent drop.

Which LED driver and run length suit #7910?

2835 Long Run LED Strip Light | 10mm | 24V | 120LEDs | 41.67cut | #7910 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 20m. 20m Single/40m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.

Engineering & selection guide

Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.

long LED strip lights series — Long LED Strip Lights — Buyer Questions
LED strip engineering selection handbook
