2835 Long Run LED Strip Light (#7909)
8mm · 24V · 120LEDs · 41.67cut
Model: 7909
Overview

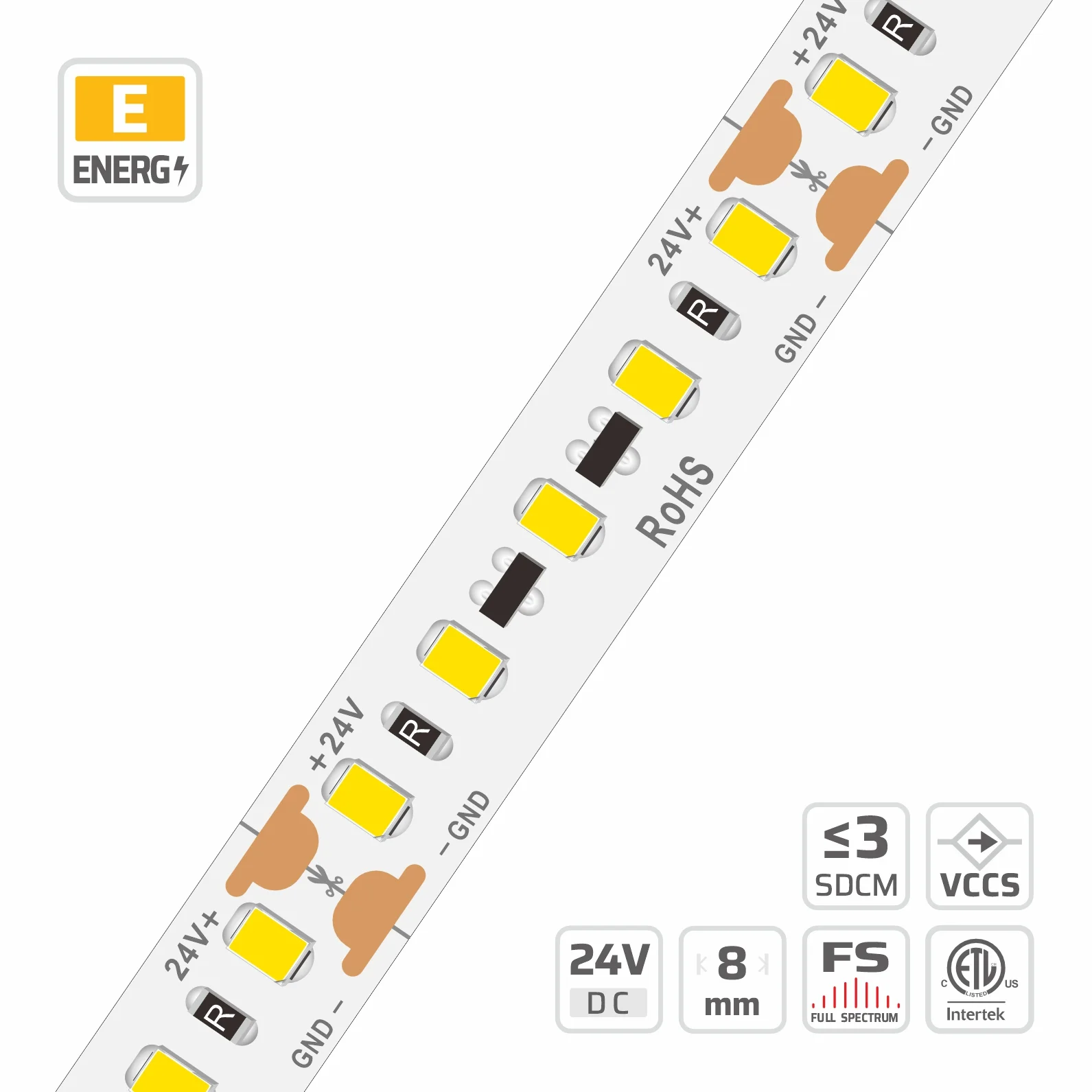

2835 Ultra-long LED Strip Light | 8mm | 24V | 120LEDs | 41.67cut | #7909 is part of the DENO Ultra-Long SMD Strips series, engineered around ultra long run LED strip. Key specifications: 2835, 120, 24V, 8 PCB, 3oz copper FPCB, cuttable 5LEDs/41.67mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This 24V 2835 LED strip light integrates 120 LEDs per meter on an 8mm wide 3oz copper PCB for reliable architectural lighting installations. Built-in constant-current circuit regulation eliminates visible voltage drop across single-feed run options of 5m, 10m, and 20m lengths. Engineered with a precise 41.67mm cutting pitch and a wide 120-degree beam angle, the dimmable design enables accurate field customization. The heavy copper board operates reliably across ambient temperatures from -25°C to 40°C while accommodating power demands from 3W to 35W. DENO provides factory-direct wholesale project supply with OEM custom lengths, specialized ingress protection, and tailored color temperatures upon request.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| CRI | Ra≥80 |
|---|---|
| POWER (W/M) | 7.2 W/m |
| LED QTY | 120 |
| PART NO | DL-F28A60V24-7909-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 5LEDs/41.67mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 8.33mm |
| PCB WIDTH | 8 |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m/10m/20m |
| COPPER FOIL | 3oz |
| POWER RANGE | 3~35W |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 650–870 lm/m |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Long corridor & warehouse runs — Long single-feed runs on 24V cover corridors, warehouse aisles and facade lines with fewer injection points and fewer power supplies.
Recommended accessories & compatible parts
- DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #7909
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 123.6 lm/W at 4000K, Ra 80, ErP energy class E (Grade DN (1st Tier) · 7.2W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade KE (3rd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 84 lm/W | 604.8 lm/m | G | 67 lm/W | 482.6 lm/m | G | — | — | — |
| 2300 K | 93.6 lm/W | 673.8 lm/m | F | 74.6 lm/W | 537.2 lm/m | G | 60.4 lm/W | 434.9 lm/m | G |
| 2700 K | 100.9 lm/W | 726.3 lm/m | F | 81 lm/W | 583.2 lm/m | G | 65.6 lm/W | 472.5 lm/m | G |
| 3000 K | 106 lm/W | 763 lm/m | F | 85.6 lm/W | 616.3 lm/m | F | 69.6 lm/W | 501.2 lm/m | G |
| 3500 K | 107.6 lm/W | 774.5 lm/m | F | 87.3 lm/W | 628.5 lm/m | F | 71.9 lm/W | 517.8 lm/m | G |
| 4000 K | 110.7 lm/W | 796.8 lm/m | E | 89.2 lm/W | 642.2 lm/m | F | 73.6 lm/W | 530 lm/m | G |
| 5000 K | 110.6 lm/W | 796.1 lm/m | E | 89.2 lm/W | 642.2 lm/m | F | 73.6 lm/W | 529.9 lm/m | G |
| 6500 K | 106 lm/W | 763 lm/m | F | 85.6 lm/W | 616.3 lm/m | F | 71 lm/W | 511.2 lm/m | G |
Grade KE (3rd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 82.6 lm/W | 792.9 lm/m | G | 65.9 lm/W | 632.6 lm/m | G | — | — | — |
| 2300 K | 92 lm/W | 883.4 lm/m | F | 73.4 lm/W | 704.3 lm/m | G | 59.4 lm/W | 570.2 lm/m | G |
| 2700 K | 99.2 lm/W | 952.3 lm/m | F | 79.7 lm/W | 764.6 lm/m | G | 64.5 lm/W | 619.4 lm/m | G |
| 3000 K | 104.2 lm/W | 1000.4 lm/m | F | 84.2 lm/W | 808 lm/m | G | 68.5 lm/W | 657.2 lm/m | G |
| 3500 K | 105.8 lm/W | 1015.4 lm/m | F | 85.8 lm/W | 824 lm/m | F | 70.7 lm/W | 678.8 lm/m | G |
| 4000 K | 108.8 lm/W | 1044.7 lm/m | F | 87.7 lm/W | 842 lm/m | F | 72.4 lm/W | 694.9 lm/m | G |
| 5000 K | 108.7 lm/W | 1043.7 lm/m | F | 87.7 lm/W | 842 lm/m | F | 72.4 lm/W | 695 lm/m | G |
| 6500 K | 104.2 lm/W | 1000.4 lm/m | F | 84.2 lm/W | 808 lm/m | G | 69.9 lm/W | 671 lm/m | G |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 79.9 lm/W | 1150 lm/m | G | 63.7 lm/W | 917.5 lm/m | G | — | — | — |
| 2300 K | 89 lm/W | 1281.2 lm/m | F | 70.9 lm/W | 1021.4 lm/m | G | 57.5 lm/W | 828 lm/m | G |
| 2700 K | 95.9 lm/W | 1381 lm/m | F | 77 lm/W | 1108.9 lm/m | G | 62.4 lm/W | 898.4 lm/m | G |
| 3000 K | 100.7 lm/W | 1450.8 lm/m | F | 81.4 lm/W | 1171.8 lm/m | G | 66.2 lm/W | 953.1 lm/m | G |
| 3500 K | 102.3 lm/W | 1472.7 lm/m | F | 83 lm/W | 1195.1 lm/m | G | 68.4 lm/W | 984.5 lm/m | G |
| 4000 K | 105.2 lm/W | 1515 lm/m | F | 84.8 lm/W | 1221.1 lm/m | G | 70 lm/W | 1007.7 lm/m | G |
| 5000 K | 105.1 lm/W | 1513.7 lm/m | F | 84.8 lm/W | 1221.1 lm/m | G | 70 lm/W | 1008 lm/m | G |
| 6500 K | 100.7 lm/W | 1450.8 lm/m | F | 81.4 lm/W | 1171.8 lm/m | G | 67.5 lm/W | 972 lm/m | G |
Grade KE (3rd Tier) · 23W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 75.2 lm/W | 1729.1 lm/m | G | 60 lm/W | 1379.5 lm/m | G | — | — | — |
| 2300 K | 83.8 lm/W | 1926.4 lm/m | G | 66.8 lm/W | 1535.8 lm/m | G | 54.1 lm/W | 1244.3 lm/m | G |
| 2700 K | 90.3 lm/W | 2076.5 lm/m | F | 72.5 lm/W | 1667.4 lm/m | G | 58.7 lm/W | 1350.8 lm/m | G |
| 3000 K | 94.8 lm/W | 2181.4 lm/m | F | 76.6 lm/W | 1762 lm/m | G | 62.3 lm/W | 1433 lm/m | G |
| 3500 K | 96.3 lm/W | 2214.3 lm/m | F | 78.1 lm/W | 1796.9 lm/m | G | 64.4 lm/W | 1480.3 lm/m | G |
| 4000 K | 99 lm/W | 2278 lm/m | F | 79.8 lm/W | 1836 lm/m | G | 65.9 lm/W | 1515.2 lm/m | G |
| 5000 K | 99 lm/W | 2275.9 lm/m | F | 79.8 lm/W | 1836 lm/m | G | 65.9 lm/W | 1515.7 lm/m | G |
| 6500 K | 94.8 lm/W | 2181.4 lm/m | F | 76.6 lm/W | 1762 lm/m | G | 63.6 lm/W | 1462.8 lm/m | G |
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 93.5 lm/W | 673.3 lm/m | F | 74.6 lm/W | 537.4 lm/m | G | — | — | — |
| 2300 K | 104.1 lm/W | 749.6 lm/m | F | 83.2 lm/W | 599.2 lm/m | G | 67.4 lm/W | 485.3 lm/m | G |
| 2700 K | 109.2 lm/W | 786.3 lm/m | F | 90 lm/W | 648.2 lm/m | F | 72.9 lm/W | 525.1 lm/m | G |
| 3000 K | 117.1 lm/W | 843.1 lm/m | E | 94.7 lm/W | 682 lm/m | F | 77 lm/W | 554.6 lm/m | G |
| 3500 K | 119 lm/W | 856.8 lm/m | E | 96.4 lm/W | 694.2 lm/m | F | 79.3 lm/W | 571.2 lm/m | G |
| 4000 K | 122.7 lm/W | 883.4 lm/m | E | 98.7 lm/W | 710.8 lm/m | F | 81.5 lm/W | 587 lm/m | G |
| 5000 K | 122.6 lm/W | 882.7 lm/m | E | 98.7 lm/W | 710.8 lm/m | F | 81.4 lm/W | 586.1 lm/m | G |
| 6500 K | 112 lm/W | 806.4 lm/m | E | 94.7 lm/W | 682 lm/m | F | 78.6 lm/W | 565.9 lm/m | G |
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 92 lm/W | 882.8 lm/m | F | 73.4 lm/W | 704.5 lm/m | G | — | — | — |
| 2300 K | 102.4 lm/W | 982.8 lm/m | F | 81.8 lm/W | 785.6 lm/m | G | 66.3 lm/W | 636.5 lm/m | G |
| 2700 K | 107.4 lm/W | 1030.9 lm/m | F | 88.5 lm/W | 849.8 lm/m | F | 71.7 lm/W | 688.5 lm/m | G |
| 3000 K | 115.1 lm/W | 1105.4 lm/m | E | 93.1 lm/W | 894.1 lm/m | F | 75.7 lm/W | 727.2 lm/m | G |
| 3500 K | 117 lm/W | 1123.3 lm/m | E | 94.8 lm/W | 910.1 lm/m | F | 78 lm/W | 748.9 lm/m | G |
| 4000 K | 120.6 lm/W | 1158.2 lm/m | E | 97.1 lm/W | 931.8 lm/m | F | 80.2 lm/W | 769.6 lm/m | G |
| 5000 K | 120.5 lm/W | 1157.2 lm/m | E | 97.1 lm/W | 931.8 lm/m | F | 80.1 lm/W | 769 lm/m | G |
| 6500 K | 110.1 lm/W | 1057.3 lm/m | E | 93.1 lm/W | 894.1 lm/m | F | 77.3 lm/W | 742.1 lm/m | G |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 88.9 lm/W | 1280.3 lm/m | F | 71 lm/W | 1021.8 lm/m | G | — | — | — |
| 2300 K | 99 lm/W | 1425.3 lm/m | F | 79.1 lm/W | 1139.4 lm/m | G | 64.1 lm/W | 923 lm/m | G |
| 2700 K | 103.8 lm/W | 1495 lm/m | F | 85.6 lm/W | 1232.4 lm/m | F | 69.3 lm/W | 998.5 lm/m | G |
| 3000 K | 111.3 lm/W | 1603.1 lm/m | E | 90 lm/W | 1296.7 lm/m | F | 73.2 lm/W | 1054.6 lm/m | G |
| 3500 K | 113.1 lm/W | 1629.1 lm/m | E | 91.7 lm/W | 1319.9 lm/m | F | 75.4 lm/W | 1086 lm/m | G |
| 4000 K | 116.6 lm/W | 1679.7 lm/m | E | 93.8 lm/W | 1351.4 lm/m | F | 77.5 lm/W | 1116.1 lm/m | G |
| 5000 K | 116.5 lm/W | 1678.3 lm/m | E | 93.8 lm/W | 1351.4 lm/m | F | 77.4 lm/W | 1114.6 lm/m | G |
| 6500 K | 106.5 lm/W | 1533.3 lm/m | F | 90 lm/W | 1296.7 lm/m | F | 74.7 lm/W | 1075.7 lm/m | G |
Grade DL (2nd Tier) · 23W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 83.7 lm/W | 1925 lm/m | G | 66.8 lm/W | 1536.3 lm/m | G | — | — | — |
| 2300 K | 93.2 lm/W | 2143 lm/m | F | 74.5 lm/W | 1713.2 lm/m | G | 60.3 lm/W | 1386.9 lm/m | G |
| 2700 K | 97.7 lm/W | 2247.9 lm/m | F | 80.6 lm/W | 1853 lm/m | G | 65.3 lm/W | 1501.3 lm/m | G |
| 3000 K | 104.8 lm/W | 2410.4 lm/m | F | 84.8 lm/W | 1949.7 lm/m | G | 68.9 lm/W | 1585.7 lm/m | G |
| 3500 K | 106.5 lm/W | 2449.4 lm/m | F | 86.3 lm/W | 1984.6 lm/m | F | 71 lm/W | 1633 lm/m | G |
| 4000 K | 109.8 lm/W | 2525.5 lm/m | F | 88.3 lm/W | 2031.9 lm/m | F | 73 lm/W | 1678.2 lm/m | G |
| 5000 K | 109.7 lm/W | 2523.5 lm/m | F | 88.3 lm/W | 2031.9 lm/m | F | 72.9 lm/W | 1676.7 lm/m | G |
| 6500 K | 100.2 lm/W | 2305.5 lm/m | F | 84.8 lm/W | 1949.7 lm/m | G | 70.4 lm/W | 1619.2 lm/m | G |
Grade DN (1st Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 96.8 lm/W | 696.9 lm/m | F | 81.2 lm/W | 584.7 lm/m | G | — | — | — |
| 2300 K | 105.6 lm/W | 760.2 lm/m | F | 90.6 lm/W | 652.3 lm/m | G | 73.4 lm/W | 528.5 lm/m | G |
| 2700 K | 113.8 lm/W | 819.2 lm/m | F | 98.1 lm/W | 706.3 lm/m | F | 79.5 lm/W | 572.5 lm/m | G |
| 3000 K | 119.5 lm/W | 860.2 lm/m | E | 103.6 lm/W | 745.8 lm/m | F | 84.3 lm/W | 607 lm/m | G |
| 3500 K | 121.3 lm/W | 873.2 lm/m | E | 105.9 lm/W | 762.4 lm/m | F | 87.1 lm/W | 627.2 lm/m | G |
| 4000 K | 123.6 lm/W | 889.7 lm/m | E | 106.5 lm/W | 766.7 lm/m | F | 87.9 lm/W | 632.9 lm/m | G |
| 5000 K | 123.4 lm/W | 888.3 lm/m | E | 107.2 lm/W | 771.7 lm/m | F | 88.4 lm/W | 636.5 lm/m | G |
| 6500 K | 118.3 lm/W | 851.6 lm/m | F | 102.4 lm/W | 737.2 lm/m | F | 85 lm/W | 612 lm/m | G |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 95.2 lm/W | 913.7 lm/m | F | 79.9 lm/W | 766.6 lm/m | G | — | — | — |
| 2300 K | 103.8 lm/W | 996.7 lm/m | F | 89.1 lm/W | 855.3 lm/m | G | 72.2 lm/W | 693.1 lm/m | G |
| 2700 K | 111.9 lm/W | 1074 lm/m | F | 96.5 lm/W | 926 lm/m | F | 78.2 lm/W | 750.6 lm/m | G |
| 3000 K | 117.5 lm/W | 1127.8 lm/m | F | 101.9 lm/W | 977.8 lm/m | F | 82.9 lm/W | 795.8 lm/m | G |
| 3500 K | 119.2 lm/W | 1144.7 lm/m | E | 104.1 lm/W | 999.5 lm/m | F | 85.7 lm/W | 822.3 lm/m | G |
| 4000 K | 121.5 lm/W | 1166.4 lm/m | E | 104.7 lm/W | 1005.2 lm/m | F | 86.4 lm/W | 829.8 lm/m | G |
| 5000 K | 121.3 lm/W | 1164.5 lm/m | E | 105.4 lm/W | 1011.8 lm/m | F | 87 lm/W | 835.2 lm/m | G |
| 6500 K | 116.3 lm/W | 1116.5 lm/m | F | 100.7 lm/W | 966.5 lm/m | F | 83.6 lm/W | 802.6 lm/m | G |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 92 lm/W | 1325.1 lm/m | F | 77.2 lm/W | 1111.8 lm/m | G | — | — | — |
| 2300 K | 100.4 lm/W | 1445.5 lm/m | F | 86.1 lm/W | 1240.3 lm/m | G | 69.8 lm/W | 1005.1 lm/m | G |
| 2700 K | 108.2 lm/W | 1557.6 lm/m | F | 93.3 lm/W | 1342.9 lm/m | F | 75.6 lm/W | 1088.6 lm/m | G |
| 3000 K | 113.6 lm/W | 1635.6 lm/m | F | 98.5 lm/W | 1418.1 lm/m | F | 80.2 lm/W | 1154.2 lm/m | G |
| 3500 K | 115.3 lm/W | 1660.2 lm/m | F | 100.7 lm/W | 1449.6 lm/m | F | 82.8 lm/W | 1192.5 lm/m | G |
| 4000 K | 117.5 lm/W | 1691.6 lm/m | F | 101.2 lm/W | 1457.8 lm/m | F | 83.6 lm/W | 1203.4 lm/m | G |
| 5000 K | 117.3 lm/W | 1688.9 lm/m | F | 101.9 lm/W | 1467.4 lm/m | F | 84.1 lm/W | 1211 lm/m | G |
| 6500 K | 112.4 lm/W | 1619.2 lm/m | F | 97.3 lm/W | 1401.7 lm/m | F | 80.8 lm/W | 1163.5 lm/m | G |
Grade DN (1st Tier) · 23W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 86.6 lm/W | 1992.5 lm/m | G | 72.7 lm/W | 1671.7 lm/m | G | — | — | — |
| 2300 K | 94.5 lm/W | 2173.4 lm/m | F | 81.1 lm/W | 1865 lm/m | G | 65.7 lm/W | 1511.1 lm/m | G |
| 2700 K | 101.8 lm/W | 2342 lm/m | F | 87.8 lm/W | 2019.2 lm/m | G | 71.2 lm/W | 1636.7 lm/m | G |
| 3000 K | 106.9 lm/W | 2459.2 lm/m | F | 92.7 lm/W | 2132.3 lm/m | F | 75.5 lm/W | 1735.4 lm/m | G |
| 3500 K | 108.5 lm/W | 2496.2 lm/m | F | 94.8 lm/W | 2179.6 lm/m | F | 78 lm/W | 1793 lm/m | G |
| 4000 K | 110.6 lm/W | 2543.5 lm/m | F | 95.3 lm/W | 2191.9 lm/m | F | 78.7 lm/W | 1809.5 lm/m | G |
| 5000 K | 110.4 lm/W | 2539.4 lm/m | F | 95.9 lm/W | 2206.3 lm/m | F | 79.1 lm/W | 1819.3 lm/m | G |
| 6500 K | 105.8 lm/W | 2434.5 lm/m | F | 91.6 lm/W | 2107.6 lm/m | G | 76.1 lm/W | 1750.3 lm/m | G |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 23W/m, 7909 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 8mm wide, so it needs at least 10mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 14x8mm Magnetic LED Channel · fits ≤8mm strip
- 13x13mm Magnetic Cabinet LED Channel · fits ≤8mm strip
- 12x15mm Surface Mount LED Channel · fits ≤8mm strip
- Slim Recessed Aluminum Profile · 8mm PCB · fits ≤8mm strip
- 14.2x9.8mm Recessed LED Channel with Flange · fits ≤8mm strip
- 14x8mm Surface Mount LED Channel · fits ≤8mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 2835 Long Run LED Strip Light (#8466)
- 2835 Long Run LED Strip Light (#7910)
- 2216 Long Run LED Strip Light (#14512-N)
See every model in SMD LED Strip Series or narrow to Ultra Long. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 7909?
7909: 2835, 120, 24V, 8 PCB, 3oz copper FPCB, cuttable 5LEDs/41.67mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra long run LED strip be?
Maximum single run for this model is 5m/10m/20m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra long run LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra long run LED strip for a project?
Yes. DENO manufactures the Ultra-Long SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What limits how long an LED strip run can be?
Voltage drop and conductor current, not the LED itself. A long run LED strip combines low watts per metre, 2 oz or thicker copper and a higher bus voltage such as 24V, 36V or 48V to reach 20 m or more from one feed while staying inside a 3 percent drop.
Which LED driver and run length suit #7909?
2835 Long Run LED Strip Light | 8mm | 24V | 120LEDs | 41.67cut | #7909 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m/10m/20m. 5m Single/10m Dual Input power | 10m Single/20m Dual Input power | 20m Single/40m Dual Input power Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- long LED strip lights series — Long LED Strip Lights — Buyer Questions
- LED strip engineering selection handbook
