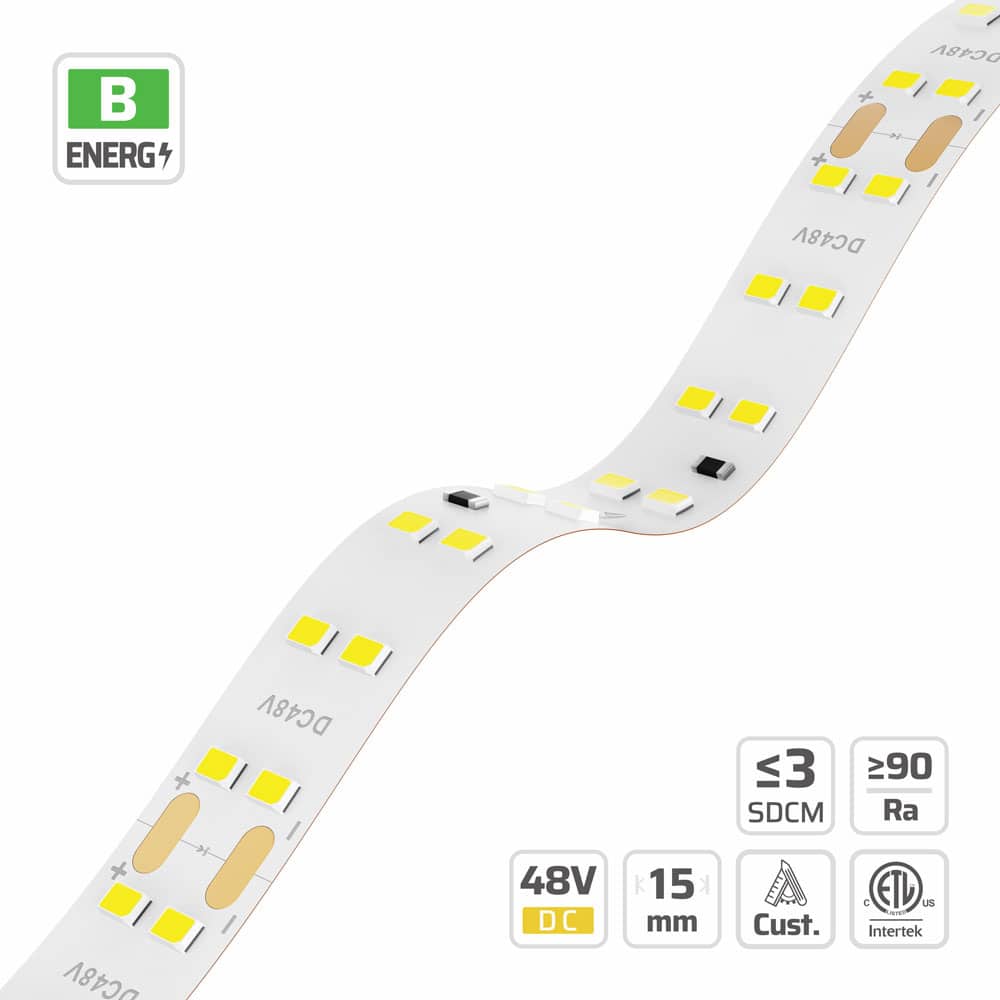

48V High Lumen LED Strip Multi-line (#5897)
15mm · 48V · 160LEDs · 100mm/cut
Model: 5897
Overview
15mm | 48V | 160LEDs | 100mm/cut | #5897 | 48V High Lumen LED Strip Multi-line is part of the DENO High Light Efficacy SMD Strips series, engineered around high efficacy LED strip lights. Key specifications: 2835, 160 LEDs/m, 48V, 15mm PCB, 3oz copper FPCB, cuttable 16LEDs/100mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with 160 2835 SMD LEDs per meter, this high lumen LED strip light delivers up to 3300lm/m for demanding architectural lighting. The 48V constant voltage circuit on a 15mm 3oz copper PCB minimizes voltage drop while providing reliable thermal management. Featuring a wide 120-degree beam angle and 12.5mm LED pitch, the multi-line configuration delivers smooth, even illumination. Conveniently cuttable every 100mm with 16 LEDs per segment, this fully dimmable strip enables precise on-site installations. DENO provides factory-direct wholesale project supply with OEM custom lengths to support global distributors and lighting contractors.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| LED QTY | 160 LEDs/m |
|---|---|
| PART NO | DL-F28A80V48-5897-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 16LEDs/100mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 12.5mm |
| PCB WIDTH | 15mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 4.8~26.4W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 48V |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Long corridor & warehouse runs — Long single-feed runs on 48V cover corridors, warehouse aisles and facade lines with fewer injection points and fewer power supplies.
Recommended accessories & compatible parts
- DL-2001 — 30x9.7mm Ultra-Slim Surface LED Channel — Low Profile Aluminum Strip Housing: Accepts LED strips up to 15mm wide.
- DL-2002 — 20x02mm Ultra-Slim Surface LED Channel — Flat Aluminum LED Strip Profile: Accepts LED strips up to 15mm wide.
- DL-2010 — 20x10mm Wide Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m: Accepts LED strips up to 15mm wide.
Request a quotation for #5897
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 204.7 lm/W at 4000K, Ra 80, ErP energy class B (Grade DN (1st Tier)).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 160.4 lm/W | 1154.9 lm/m | D | 135.2 lm/W | 973.2 lm/m | E | — | — | — |
| 2300 K | 174.9 lm/W | 1259.3 lm/m | C | 150.9 lm/W | 1086.6 lm/m | D | 121.4 lm/W | 873.8 lm/m | D |
| 2700 K | 188.5 lm/W | 1357.4 lm/m | C | 163.3 lm/W | 1175.8 lm/m | D | 132.4 lm/W | 953.2 lm/m | E |
| 3000 K | 198 lm/W | 1425.7 lm/m | C | 172.3 lm/W | 1240.9 lm/m | D | 140.2 lm/W | 1009.4 lm/m | E |
| 3500 K | 200.9 lm/W | 1446.6 lm/m | B | 176.1 lm/W | 1268.2 lm/m | C | 144.9 lm/W | 1043.2 lm/m | E |
| 4000 K | 204.7 lm/W | 1473.9 lm/m | B | 177 lm/W | 1274.6 lm/m | C | 146.2 lm/W | 1052.8 lm/m | D |
| 5000 K | 204.4 lm/W | 1471.5 lm/m | B | 178.3 lm/W | 1283.5 lm/m | C | 144.8 lm/W | 1042.3 lm/m | D |
| 6500 K | 196 lm/W | 1411.2 lm/m | C | 170.3 lm/W | 1226.4 lm/m | D | 140.4 lm/W | 1010.7 lm/m | D |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 155.1 lm/W | 1861 lm/m | D | 130.7 lm/W | 1568.3 lm/m | E | — | — | — |
| 2300 K | 169.1 lm/W | 2029.3 lm/m | D | 145.9 lm/W | 1750.9 lm/m | D | 117.3 lm/W | 1408.1 lm/m | E |
| 2700 K | 182.3 lm/W | 2187.3 lm/m | C | 157.9 lm/W | 1894.6 lm/m | D | 128 lm/W | 1535.9 lm/m | E |
| 3000 K | 191.4 lm/W | 2297.4 lm/m | C | 166.6 lm/W | 1999.5 lm/m | D | 135.5 lm/W | 1626.6 lm/m | E |
| 3500 K | 194.3 lm/W | 2331.1 lm/m | C | 170.3 lm/W | 2043.6 lm/m | D | 140.1 lm/W | 1681 lm/m | E |
| 4000 K | 197.9 lm/W | 2375.1 lm/m | C | 171.2 lm/W | 2053.9 lm/m | D | 141.4 lm/W | 1696.5 lm/m | E |
| 5000 K | 197.6 lm/W | 2371.2 lm/m | C | 172.3 lm/W | 2068.2 lm/m | D | 140 lm/W | 1679.5 lm/m | E |
| 6500 K | 189.5 lm/W | 2274.1 lm/m | C | 164.7 lm/W | 1976.2 lm/m | D | 135.7 lm/W | 1628.6 lm/m | E |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 147.4 lm/W | 2830.7 lm/m | D | 124.2 lm/W | 2385.5 lm/m | E | — | — | — |
| 2300 K | 160.8 lm/W | 3086.8 lm/m | D | 138.7 lm/W | 2663.3 lm/m | E | 111.6 lm/W | 2141.8 lm/m | E |
| 2700 K | 173.3 lm/W | 3327.1 lm/m | C | 150.1 lm/W | 2881.9 lm/m | D | 121.7 lm/W | 2336.3 lm/m | E |
| 3000 K | 182 lm/W | 3494.5 lm/m | C | 158.4 lm/W | 3041.5 lm/m | D | 128.9 lm/W | 2474.2 lm/m | E |
| 3500 K | 184.7 lm/W | 3545.8 lm/m | C | 161.9 lm/W | 3108.4 lm/m | D | 133.2 lm/W | 2556.9 lm/m | E |
| 4000 K | 188.2 lm/W | 3612.7 lm/m | C | 162.7 lm/W | 3124.2 lm/m | D | 134.4 lm/W | 2580.5 lm/m | E |
| 5000 K | 187.9 lm/W | 3606.8 lm/m | C | 163.8 lm/W | 3145.9 lm/m | D | 133.1 lm/W | 2554.7 lm/m | E |
| 6500 K | 180.2 lm/W | 3459.1 lm/m | C | 156.6 lm/W | 3006 lm/m | D | 129 lm/W | 2477.3 lm/m | E |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 144.6 lm/W | 3180.3 lm/m | E | 121.8 lm/W | 2680.2 lm/m | E | — | — | — |
| 2300 K | 157.6 lm/W | 3468 lm/m | D | 136 lm/W | 2992.2 lm/m | E | 109.4 lm/W | 2406.4 lm/m | E |
| 2700 K | 169.9 lm/W | 3738.1 lm/m | D | 147.2 lm/W | 3237.9 lm/m | D | 119.3 lm/W | 2624.8 lm/m | E |
| 3000 K | 178.5 lm/W | 3926.2 lm/m | C | 155.3 lm/W | 3417.1 lm/m | D | 126.4 lm/W | 2779.7 lm/m | E |
| 3500 K | 181.1 lm/W | 3983.7 lm/m | C | 158.7 lm/W | 3492.4 lm/m | D | 130.6 lm/W | 2872.7 lm/m | E |
| 4000 K | 184.5 lm/W | 4059 lm/m | C | 159.5 lm/W | 3510.1 lm/m | D | 131.8 lm/W | 2899.3 lm/m | E |
| 5000 K | 184.2 lm/W | 4052.3 lm/m | C | 160.7 lm/W | 3534.4 lm/m | D | 130.5 lm/W | 2870.3 lm/m | E |
| 6500 K | 176.7 lm/W | 3886.3 lm/m | C | 153.5 lm/W | 3377.3 lm/m | D | 126.5 lm/W | 2783.3 lm/m | E |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 152.2 lm/W | 1096.1 lm/m | D | 122.1 lm/W | 879.2 lm/m | E | — | — | — |
| 2300 K | 169.5 lm/W | 1220.7 lm/m | C | 136.1 lm/W | 980.1 lm/m | D | 110.7 lm/W | 797 lm/m | E |
| 2700 K | 179.3 lm/W | 1290.6 lm/m | C | 147.3 lm/W | 1060.3 lm/m | D | 119.4 lm/W | 859.4 lm/m | E |
| 3000 K | 190.8 lm/W | 1374 lm/m | B | 155 lm/W | 1115.9 lm/m | D | 126.1 lm/W | 907.8 lm/m | E |
| 3500 K | 193.6 lm/W | 1393.9 lm/m | B | 157.7 lm/W | 1135.8 lm/m | D | 129.8 lm/W | 934.8 lm/m | E |
| 4000 K | 199.9 lm/W | 1439.2 lm/m | B | 161.5 lm/W | 1162.8 lm/m | C | 133.4 lm/W | 960.2 lm/m | E |
| 5000 K | 199.6 lm/W | 1436.8 lm/m | B | 161.5 lm/W | 1162.8 lm/m | C | 132 lm/W | 950.6 lm/m | E |
| 6500 K | 183 lm/W | 1317.6 lm/m | C | 154.9 lm/W | 1115.1 lm/m | D | 128 lm/W | 921.8 lm/m | E |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 147.2 lm/W | 1766.2 lm/m | D | 118.1 lm/W | 1416.8 lm/m | E | — | — | — |
| 2300 K | 163.9 lm/W | 1967.1 lm/m | C | 131.6 lm/W | 1579.3 lm/m | E | 107 lm/W | 1284.3 lm/m | E |
| 2700 K | 173.3 lm/W | 2079.7 lm/m | C | 142.4 lm/W | 1708.6 lm/m | D | 115.4 lm/W | 1384.8 lm/m | E |
| 3000 K | 184.5 lm/W | 2214.1 lm/m | C | 149.8 lm/W | 1798.2 lm/m | D | 121.9 lm/W | 1462.9 lm/m | E |
| 3500 K | 187.2 lm/W | 2246.1 lm/m | B | 152.5 lm/W | 1830.2 lm/m | D | 125.5 lm/W | 1506.4 lm/m | E |
| 4000 K | 193.3 lm/W | 2319.1 lm/m | B | 156.1 lm/W | 1873.7 lm/m | D | 128.9 lm/W | 1547.3 lm/m | E |
| 5000 K | 192.9 lm/W | 2315.2 lm/m | B | 156.1 lm/W | 1873.7 lm/m | D | 127.7 lm/W | 1531.9 lm/m | E |
| 6500 K | 176.9 lm/W | 2123.3 lm/m | C | 149.7 lm/W | 1796.9 lm/m | D | 123.8 lm/W | 1485.4 lm/m | E |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 139.9 lm/W | 2686.5 lm/m | D | 112.2 lm/W | 2155.1 lm/m | E | — | — | — |
| 2300 K | 155.8 lm/W | 2992.2 lm/m | D | 125.1 lm/W | 2402.3 lm/m | E | 101.7 lm/W | 1953.5 lm/m | E |
| 2700 K | 164.8 lm/W | 3163.5 lm/m | C | 135.4 lm/W | 2598.9 lm/m | D | 109.7 lm/W | 2106.4 lm/m | F |
| 3000 K | 175.4 lm/W | 3367.9 lm/m | C | 142.5 lm/W | 2735.2 lm/m | D | 115.9 lm/W | 2225.1 lm/m | E |
| 3500 K | 177.9 lm/W | 3416.6 lm/m | C | 145 lm/W | 2783.9 lm/m | D | 119.3 lm/W | 2291.3 lm/m | E |
| 4000 K | 183.7 lm/W | 3527.5 lm/m | C | 148.4 lm/W | 2850 lm/m | D | 122.6 lm/W | 2353.6 lm/m | E |
| 5000 K | 183.4 lm/W | 3521.7 lm/m | C | 148.4 lm/W | 2850 lm/m | D | 121.4 lm/W | 2330.1 lm/m | E |
| 6500 K | 168.2 lm/W | 3229.7 lm/m | C | 142.4 lm/W | 2733.2 lm/m | D | 117.7 lm/W | 2259.5 lm/m | E |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 137.2 lm/W | 3018.4 lm/m | D | 110.1 lm/W | 2421.2 lm/m | E | — | — | — |
| 2300 K | 152.8 lm/W | 3361.7 lm/m | D | 122.7 lm/W | 2699 lm/m | E | 99.8 lm/W | 2194.8 lm/m | E |
| 2700 K | 161.6 lm/W | 3554.2 lm/m | C | 132.7 lm/W | 2919.9 lm/m | E | 107.6 lm/W | 2366.6 lm/m | F |
| 3000 K | 172 lm/W | 3783.9 lm/m | C | 139.7 lm/W | 3073 lm/m | D | 113.6 lm/W | 2500 lm/m | E |
| 3500 K | 174.5 lm/W | 3838.6 lm/m | C | 142.2 lm/W | 3127.7 lm/m | D | 117 lm/W | 2574.3 lm/m | E |
| 4000 K | 180.1 lm/W | 3963.2 lm/m | C | 145.5 lm/W | 3202.1 lm/m | D | 120.2 lm/W | 2644.3 lm/m | E |
| 5000 K | 179.8 lm/W | 3956.7 lm/m | C | 145.5 lm/W | 3202.1 lm/m | D | 119 lm/W | 2617.9 lm/m | E |
| 6500 K | 164.9 lm/W | 3628.6 lm/m | C | 139.6 lm/W | 3070.8 lm/m | D | 115.4 lm/W | 2538.6 lm/m | E |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 118.9 lm/W | 856.3 lm/m | E | 95.3 lm/W | 686 lm/m | F | — | — | — |
| 2300 K | 132.6 lm/W | 954.5 lm/m | E | 106.2 lm/W | 764.5 lm/m | F | 86.9 lm/W | 625.4 lm/m | F |
| 2700 K | 142.9 lm/W | 1029 lm/m | D | 115.1 lm/W | 828.9 lm/m | E | 93.3 lm/W | 671.9 lm/m | F |
| 3000 K | 150.1 lm/W | 1080.8 lm/m | D | 121.7 lm/W | 876 lm/m | E | 99 lm/W | 712.7 lm/m | F |
| 3500 K | 152.3 lm/W | 1096.5 lm/m | D | 124.1 lm/W | 893.2 lm/m | E | 102.1 lm/W | 735.5 lm/m | F |
| 4000 K | 156.8 lm/W | 1128.7 lm/m | D | 126.7 lm/W | 912.1 lm/m | E | 104.7 lm/W | 753.5 lm/m | F |
| 5000 K | 156.5 lm/W | 1127.1 lm/m | D | 126.7 lm/W | 912.1 lm/m | E | 103.6 lm/W | 746 lm/m | F |
| 6500 K | 150.1 lm/W | 1080.8 lm/m | D | 121.7 lm/W | 876 lm/m | E | 100.5 lm/W | 723.4 lm/m | F |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 115 lm/W | 1379.9 lm/m | E | 92.1 lm/W | 1105.5 lm/m | F | — | — | — |
| 2300 K | 128.2 lm/W | 1538 lm/m | E | 102.7 lm/W | 1231.9 lm/m | F | 84 lm/W | 1007.8 lm/m | F |
| 2700 K | 138.2 lm/W | 1658.2 lm/m | D | 111.3 lm/W | 1335.7 lm/m | E | 90.2 lm/W | 1082.7 lm/m | F |
| 3000 K | 145.1 lm/W | 1741.7 lm/m | D | 117.6 lm/W | 1411.5 lm/m | E | 95.7 lm/W | 1148.5 lm/m | F |
| 3500 K | 147.2 lm/W | 1767 lm/m | D | 119.9 lm/W | 1439.4 lm/m | E | 98.8 lm/W | 1185.1 lm/m | F |
| 4000 K | 151.6 lm/W | 1818.8 lm/m | D | 122.5 lm/W | 1469.7 lm/m | E | 101.2 lm/W | 1214.2 lm/m | F |
| 5000 K | 151.4 lm/W | 1816.3 lm/m | D | 122.5 lm/W | 1469.7 lm/m | E | 100.2 lm/W | 1202.1 lm/m | F |
| 6500 K | 145.1 lm/W | 1741.7 lm/m | D | 117.6 lm/W | 1411.5 lm/m | E | 97.1 lm/W | 1165.7 lm/m | F |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 109.3 lm/W | 2099 lm/m | F | 87.6 lm/W | 1681.5 lm/m | F | — | — | — |
| 2300 K | 121.8 lm/W | 2339.5 lm/m | E | 97.6 lm/W | 1873.9 lm/m | F | 79.8 lm/W | 1533 lm/m | F |
| 2700 K | 131.4 lm/W | 2522.3 lm/m | E | 105.8 lm/W | 2031.7 lm/m | F | 85.8 lm/W | 1646.9 lm/m | F |
| 3000 K | 138 lm/W | 2649.2 lm/m | D | 111.8 lm/W | 2147.1 lm/m | E | 91 lm/W | 1746.9 lm/m | F |
| 3500 K | 140 lm/W | 2687.7 lm/m | D | 114 lm/W | 2189.4 lm/m | E | 93.9 lm/W | 1802.7 lm/m | F |
| 4000 K | 144.1 lm/W | 2766.6 lm/m | D | 116.4 lm/W | 2235.6 lm/m | E | 96.2 lm/W | 1847 lm/m | F |
| 5000 K | 143.9 lm/W | 2762.7 lm/m | D | 116.4 lm/W | 2235.6 lm/m | E | 95.2 lm/W | 1828.5 lm/m | F |
| 6500 K | 138 lm/W | 2649.2 lm/m | D | 111.8 lm/W | 2147.1 lm/m | E | 92.3 lm/W | 1773.1 lm/m | F |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 107.2 lm/W | 2358.3 lm/m | F | 85.9 lm/W | 1889.2 lm/m | F | — | — | — |
| 2300 K | 119.5 lm/W | 2628.4 lm/m | E | 95.7 lm/W | 2105.3 lm/m | F | 78.3 lm/W | 1722.3 lm/m | F |
| 2700 K | 128.8 lm/W | 2833.8 lm/m | E | 103.8 lm/W | 2282.6 lm/m | F | 84.1 lm/W | 1850.3 lm/m | G |
| 3000 K | 135.3 lm/W | 2976.5 lm/m | D | 109.6 lm/W | 2412.3 lm/m | F | 89.2 lm/W | 1962.7 lm/m | F |
| 3500 K | 137.3 lm/W | 3019.7 lm/m | D | 111.8 lm/W | 2459.8 lm/m | E | 92.1 lm/W | 2025.4 lm/m | F |
| 4000 K | 141.3 lm/W | 3108.3 lm/m | D | 114.2 lm/W | 2511.7 lm/m | E | 94.3 lm/W | 2075.1 lm/m | F |
| 5000 K | 141.1 lm/W | 3104 lm/m | D | 114.2 lm/W | 2511.7 lm/m | E | 93.4 lm/W | 2054.3 lm/m | F |
| 6500 K | 135.3 lm/W | 2976.5 lm/m | D | 109.6 lm/W | 2412.3 lm/m | F | 90.5 lm/W | 1992.1 lm/m | F |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 22W/m, 5897 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 15mm wide, so it needs at least 17mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 20x10mm Wide Surface Mount LED Channel · fits ≤15mm strip
- 30x9.7mm Ultra-Slim Surface LED Channel · fits ≤15mm strip
- 20x02mm Ultra-Slim Surface LED Channel · fits ≤15mm strip
- 20x30mm Wide Deep LED Channel · fits ≤15mm strip
- 20x07mm 48V Surface Mount LED Channel · fits ≤17mm strip
- 20x05mm 48V Surface Mount LED Channel · fits ≤17mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 15mm wide, so it needs a channel with at least 17mm inner width (15mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Multi-Line Two-Row Large width LED LED Strip Light (#16707)
- 2835 High Light Efficacy Multi-Line LED Strip Light (#4944)
- 2835 4-Row LED Strip Light (#16700)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16701)
- Multi-Line Two-Row Large width LED LED Strip Light (#16702)
See every model in SMD LED Strip Series or narrow to Wide. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 5897?
5897: 2835, 160 LEDs/m, 48V, 15mm PCB, 3oz copper FPCB, cuttable 16LEDs/100mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
Which environments is this high efficacy LED strip lights rated for?
Ingress protection for this model is listed in the datasheet. As a high efficacy LED strip lights it is specified for the duty listed in the datasheet, and DENO can supply alternative coatings, sleeves or IP68 potting for harsher installations.
Can DENO customise this high efficacy LED strip lights for a project?
Yes. DENO manufactures the High Light Efficacy SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How much can a high efficacy LED strip cut energy use?
Moving from a typical 100 lm/W strip to a 180 to 200 lm/W high lumen LED strip roughly halves the wattage needed for the same lumen output. Over a long commercial run this also lowers the required driver size and helps the installation reach a better ErP energy class.
How long can a 48V LED strip run from a single feed?
A 48V LED strip typically doubles the run length of an equivalent 24V LED strip at the same power density, with 20 to 40 m single-end runs common at low wattages. The exact limit depends on watts per metre and copper weight, so confirm it with the DENO voltage drop calculator before specifying.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- High Efficiency LED Strips series — High Efficiency LED Strip — Buyer Questions
- Wide PCB LED Strips series — Wide PCB LED Strip — Brightest, High Lumen Builds
- LED strip engineering selection handbook
