What counts as a high efficiency LED strip in lumens per watt?

In 2026 a mainstream 24V 2835 board sits around 120-140 lm/W. A high efficiency LED strip starts at roughly 160 lm/W and DENO's top binned 2835 and 2110 boards are measured at up to 200 lm/W at 4000K Ra 80, LM-79 tested at 25 degrees Celsius. The figure is light-source efficacy of the tape itself, measured without the driver, which is exactly how the ErP energy label is calculated.

What is the difference between high efficiency and high efficacy LED strip lights?

They describe the same measurement. Efficacy is the engineering term for lumens delivered per watt consumed; efficiency is how buyers and tender documents usually phrase it. DENO publishes lm/W per model so both audiences read the same number, and the ErP energy class printed on the reel is derived from it.

Which ErP energy class can a high efficiency LED strip reach?

Class C is achievable on the best-binned 2835 and 2110 boards above 180 lm/W, class D covers the 160-180 lm/W band and most well-specified architectural tape lands in class E. High-CRI 95+ and full spectrum builds drop one or two classes because phosphor conversion costs lumens. Every DENO datasheet states the measured class so it can be reproduced by a notified body.

Does a high efficiency LED strip run cooler and last longer?

Yes. Fewer watts per lumen means less heat into the FPCB, so junction temperature drops and L70 lifetime extends. Combined with 2 oz copper and a 99.9% pure copper foil the same brightness can be produced at 20-30% lower wattage, which also lets a single driver feed a longer run and keeps aluminium profiles below the touch-temperature limits used in hospitality projects.

How much energy does a high efficiency LED strip save on a large project?

Take 500 m of cove lighting at 10 hours a day. A 130 lm/W board delivering 1000 lm/m draws about 7.7 W/m; a 190 lm/W board delivers the same output at about 5.3 W/m. Across 500 m that is 1.2 kW saved, roughly 4,380 kWh a year, and it usually removes one driver and one circuit from the electrical schedule as well.

Can I get a high efficiency LED strip in 12V, 24V, 36V or 48V?

24V is the efficiency sweet spot and carries the full binned range. 12V is available where fixture space or existing drivers dictate it, at the cost of shorter single-feed runs. 36V and 48V constant-current boards keep the same lm/W while extending a single feed well past 20 m, which is where the real system efficiency gain shows up on long architectural lines.

Are there super bright LED strip lights in 12V, and when should I use 24V or 48V instead?

12V super bright LED strip lights exist but are limited to short runs: at 20 W/m a 12V board pulls 1.7 A per metre, so voltage drop dims the far end after 2–3 m. For architectural work DENO builds the wide boards in 24V and 48V, where the same wattage draws half or a quarter of the current and one feed covers 5–15 m. Where the fixture is 12V-native, keep the run short and feed each section separately.

Which is brighter — a wide multi-row board or a high-density single row?

For raw output, the wide multi-row board wins: rows multiply the flux while a single row is capped by LED pitch. For a dot-free line in a shallow reveal, high density wins. The two are combined on DENO's 36 mm and 64 mm boards, which run three or four dense rows at once, giving both an ultra bright LED strip face and an even luminance across the diffuser.

Can I order a custom width bright white LED strip?

Yes — board width, row count, LED density, CCT and CRI, copper weight, cut unit, IP class and connector are all configurable. Bright white LED strip lights are usually specified 4000K–6500K at Ra 90+ for workshops, cold rooms and signage; DENO tools these on the existing wide FPCB stack-ups, so a non-standard width is a production setup rather than a new product line.

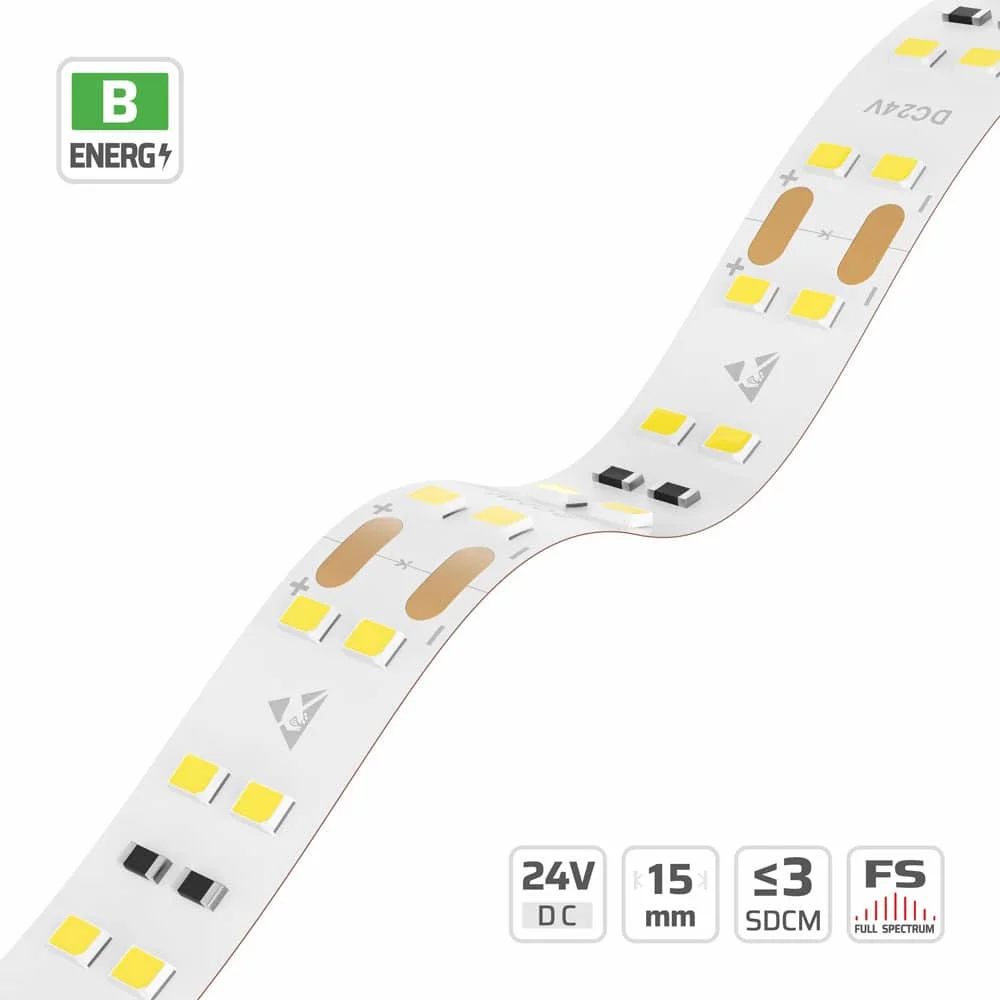

2835 High Light Efficacy Multi-Line LED Strip Light (#4944)

15mm · 24V · 160LEDs · 50mm/cut

Model: 4944

4944 wide pcb led strip — 24V, cuttable every 50mm, 15mm FPCB width, 2835 LEDs, 160 LEDs/m, 1900–6500K

Overview

15mm | 24V | 160LEDs | 50mm/cut | #4944 | 2835 High Light Efficacy Multi-Line LED Strip Light is part of the DENO High Light Efficacy SMD Strips series, engineered around high efficacy LED strip lights. Key specifications: 2835, 160 LEDs/m, 24V, 15mm PCB, 3oz copper FPCB, cuttable 8LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

Engineered with 160 LEDs per meter using high efficacy 2835 SMD chips, this multi-line LED strip light delivers a wide 120-degree beam angle. The robust 15mm PCB incorporates heavy 3oz copper foil and strong copper frames with 99.9%-purity gold wire encapsulation for enhanced electrical reliability. Operating on a 24V constant voltage circuit with precise 50mm cut intervals, this dimmable lighting solution is ideal for architectural lighting installations. Supplied in 5m continuous run lengths supporting 4.8W to 28.8W power ranges, our factory-direct team provides flexible wholesale project supply and OEM support.

We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.

Specifications

CCT (K)	1900–6500K
CRI	Ra≥80
POWER (W/M)	12 W/m
LED QTY	160 LEDs/m
PART NO	DL-F28A80V24-4944-*
SMD TYPE	2835
CUTTABLE UNIT	8LEDs/50mm
DIMMABLE	Yes
IP RATING	IP20
LED PITCH	12.5mm
PCB WIDTH	15mm
BEAM ANGLE	120°
RUN LENGTH	5m
COPPER FOIL	3oz
POWER RANGE	4.8~28.8W
CIRCUIT TYPE	C.V.
INPUT VOLTAGE	24V
LUMINOUS FLUX	1865–2460 lm/m

Applications

Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.

Recommended accessories & compatible parts

DL-2001 — 30x9.7mm Ultra-Slim Surface LED Channel — Low Profile Aluminum Strip Housing: Accepts LED strips up to 15mm wide.
DL-2002 — 20x02mm Ultra-Slim Surface LED Channel — Flat Aluminum LED Strip Profile: Accepts LED strips up to 15mm wide.
DL-2010 — 20x10mm Wide Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m: Accepts LED strips up to 15mm wide.
DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #4944

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

Warranty: 5 years
Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
Compliance: CE · UL · RoHS
Bonding wire: 99.99% pure gold
Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 207.2 lm/W at 4000K, Ra 80, ErP energy class B (Grade DN (1st Tier)).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	162.4 lm/W	1559.1 lm/m	D	137 lm/W	1314.9 lm/m	E	—	—	—
2300 K	177.1 lm/W	1699.8 lm/m	C	152.8 lm/W	1467.3 lm/m	D	123.8 lm/W	1188.5 lm/m	E
2700 K	190.8 lm/W	1831.6 lm/m	C	165.5 lm/W	1588.4 lm/m	D	134.1 lm/W	1287.5 lm/m	E
3000 K	200.4 lm/W	1923.5 lm/m	B	174.6 lm/W	1676.3 lm/m	C	142 lm/W	1362.7 lm/m	E
3500 K	203.4 lm/W	1952.8 lm/m	B	178.4 lm/W	1712.5 lm/m	C	146.8 lm/W	1409.6 lm/m	D
4000 K	207.2 lm/W	1988.9 lm/m	B	179.4 lm/W	1722.2 lm/m	C	148.1 lm/W	1421.3 lm/m	D
5000 K	206.9 lm/W	1986 lm/m	B	180.5 lm/W	1733 lm/m	C	148.9 lm/W	1429.4 lm/m	D
6500 K	198.3 lm/W	1903.9 lm/m	C	172.5 lm/W	1655.8 lm/m	D	143.2 lm/W	1374.7 lm/m	E

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	159.7 lm/W	1916.3 lm/m	D	134.7 lm/W	1616.1 lm/m	E	—	—	—
2300 K	174.1 lm/W	2089.2 lm/m	C	150.3 lm/W	1803.4 lm/m	D	121.7 lm/W	1460.4 lm/m	E
2700 K	187.6 lm/W	2251.3 lm/m	C	162.7 lm/W	1952.3 lm/m	D	131.9 lm/W	1582.5 lm/m	E
3000 K	197 lm/W	2364.1 lm/m	C	171.7 lm/W	2060.4 lm/m	D	139.6 lm/W	1674.9 lm/m	E
3500 K	200 lm/W	2400.1 lm/m	B	175.4 lm/W	2104.8 lm/m	C	144.4 lm/W	1732.6 lm/m	E
4000 K	203.7 lm/W	2444.6 lm/m	B	176.4 lm/W	2116.8 lm/m	C	145.6 lm/W	1747 lm/m	E
5000 K	203.4 lm/W	2441 lm/m	B	177.5 lm/W	2130 lm/m	C	146.4 lm/W	1756.8 lm/m	D
6500 K	195 lm/W	2340.1 lm/m	C	169.6 lm/W	2035.1 lm/m	D	140.8 lm/W	1689.6 lm/m	E

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 15 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	156.4 lm/W	2345.4 lm/m	D	131.9 lm/W	1978 lm/m	E	—	—	—
2300 K	170.5 lm/W	2557 lm/m	D	147.2 lm/W	2207.3 lm/m	D	119.2 lm/W	1788 lm/m	E
2700 K	183.7 lm/W	2755.4 lm/m	C	159.3 lm/W	2389.5 lm/m	D	129.1 lm/W	1936.9 lm/m	E
3000 K	192.9 lm/W	2893.5 lm/m	C	168.1 lm/W	2521.7 lm/m	D	136.7 lm/W	2050 lm/m	E
3500 K	195.8 lm/W	2937.6 lm/m	C	171.7 lm/W	2576.1 lm/m	D	141.4 lm/W	2120.6 lm/m	E
4000 K	199.5 lm/W	2992 lm/m	C	172.7 lm/W	2590.8 lm/m	D	142.5 lm/W	2138.2 lm/m	E
5000 K	199.2 lm/W	2987.6 lm/m	C	173.8 lm/W	2607 lm/m	C	143.4 lm/W	2151 lm/m	E
6500 K	190.9 lm/W	2864.1 lm/m	C	166.1 lm/W	2490.9 lm/m	D	137.8 lm/W	2067 lm/m	E

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 28 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	142.7 lm/W	3996 lm/m	E	120.4 lm/W	3370 lm/m	E	—	—	—
2300 K	155.6 lm/W	4356.5 lm/m	D	134.3 lm/W	3760.6 lm/m	E	108.8 lm/W	3046.4 lm/m	F
2700 K	167.7 lm/W	4694.5 lm/m	D	145.4 lm/W	4071.1 lm/m	E	117.9 lm/W	3299.9 lm/m	F
3000 K	176.1 lm/W	4929.9 lm/m	C	153.4 lm/W	4296.4 lm/m	D	124.7 lm/W	3492.7 lm/m	E
3500 K	178.7 lm/W	5005 lm/m	C	156.8 lm/W	4389.1 lm/m	D	129 lm/W	3612.9 lm/m	E
4000 K	182.1 lm/W	5097.6 lm/m	C	157.6 lm/W	4414.1 lm/m	D	130.1 lm/W	3642.9 lm/m	E
5000 K	181.8 lm/W	5090.1 lm/m	C	158.6 lm/W	4441.6 lm/m	D	130.9 lm/W	3665.2 lm/m	E
6500 K	174.3 lm/W	4879.8 lm/m	C	151.6 lm/W	4243.8 lm/m	D	125.8 lm/W	3522.4 lm/m	E

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	136.1 lm/W	1306.5 lm/m	D	109.2 lm/W	1048.1 lm/m	F	—	—	—
2300 K	151.7 lm/W	1456.2 lm/m	D	121.7 lm/W	1168.5 lm/m	E	98.6 lm/W	946.6 lm/m	F
2700 K	163.5 lm/W	1569.8 lm/m	C	132.1 lm/W	1268.3 lm/m	E	107 lm/W	1027.6 lm/m	F
3000 K	171.8 lm/W	1649 lm/m	C	139.5 lm/W	1338.8 lm/m	D	113.5 lm/W	1089.2 lm/m	E
3500 K	174.3 lm/W	1673.5 lm/m	C	142.2 lm/W	1365.2 lm/m	D	117 lm/W	1123.5 lm/m	E
4000 K	179.4 lm/W	1722.4 lm/m	C	145.3 lm/W	1394.6 lm/m	D	119.9 lm/W	1150.9 lm/m	E
5000 K	179.2 lm/W	1720.5 lm/m	C	145.3 lm/W	1394.6 lm/m	D	119.8 lm/W	1150.1 lm/m	E
6500 K	171.8 lm/W	1649 lm/m	C	139.5 lm/W	1338.8 lm/m	D	115.8 lm/W	1111.7 lm/m	E

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	133.8 lm/W	1605.8 lm/m	E	107.4 lm/W	1288.3 lm/m	F	—	—	—
2300 K	149.2 lm/W	1789.9 lm/m	D	119.7 lm/W	1436.2 lm/m	E	96.9 lm/W	1162.8 lm/m	F
2700 K	160.8 lm/W	1929.4 lm/m	C	129.9 lm/W	1558.9 lm/m	E	105.3 lm/W	1263 lm/m	F
3000 K	168.9 lm/W	2026.8 lm/m	C	137.1 lm/W	1645.5 lm/m	D	111.6 lm/W	1338.8 lm/m	E
3500 K	171.4 lm/W	2056.9 lm/m	C	139.8 lm/W	1678 lm/m	D	115.1 lm/W	1380.9 lm/m	E
4000 K	176.4 lm/W	2117.1 lm/m	C	142.8 lm/W	1714.1 lm/m	D	117.9 lm/W	1414.6 lm/m	E
5000 K	176.2 lm/W	2114.6 lm/m	C	142.8 lm/W	1714.1 lm/m	D	117.8 lm/W	1413.6 lm/m	E
6500 K	168.9 lm/W	2026.8 lm/m	C	137.1 lm/W	1645.5 lm/m	D	113.8 lm/W	1365.6 lm/m	E

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 15 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	131 lm/W	1965.4 lm/m	E	105.1 lm/W	1576.8 lm/m	F	—	—	—
2300 K	146 lm/W	2190.7 lm/m	D	117.2 lm/W	1757.8 lm/m	E	94.9 lm/W	1423.5 lm/m	F
2700 K	157.4 lm/W	2361.5 lm/m	D	127.2 lm/W	1908 lm/m	E	103.1 lm/W	1545.8 lm/m	F
3000 K	165.4 lm/W	2480.7 lm/m	C	134.3 lm/W	2014 lm/m	E	109.2 lm/W	1638.6 lm/m	F
3500 K	167.8 lm/W	2517.5 lm/m	C	136.9 lm/W	2053.8 lm/m	D	112.7 lm/W	1690.1 lm/m	E
4000 K	172.7 lm/W	2591.1 lm/m	C	139.9 lm/W	2097.9 lm/m	D	115.4 lm/W	1731.3 lm/m	E
5000 K	172.5 lm/W	2588.2 lm/m	C	139.9 lm/W	2097.9 lm/m	D	115.4 lm/W	1731 lm/m	E
6500 K	165.4 lm/W	2480.7 lm/m	C	134.3 lm/W	2014 lm/m	E	111.4 lm/W	1671 lm/m	E

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 28 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	119.6 lm/W	3348.6 lm/m	E	95.9 lm/W	2686.4 lm/m	F	—	—	—
2300 K	133.3 lm/W	3732.4 lm/m	E	107 lm/W	2994.9 lm/m	F	86.6 lm/W	2424.8 lm/m	F
2700 K	143.7 lm/W	4023.3 lm/m	D	116.1 lm/W	3250.8 lm/m	E	94.1 lm/W	2633.7 lm/m	F
3000 K	150.9 lm/W	4226.5 lm/m	D	122.5 lm/W	3431.4 lm/m	E	99.7 lm/W	2791.8 lm/m	F
3500 K	153.2 lm/W	4289.2 lm/m	D	125 lm/W	3499.1 lm/m	E	102.8 lm/W	2879.6 lm/m	F
4000 K	157.7 lm/W	4414.6 lm/m	D	127.7 lm/W	3574.4 lm/m	E	105.3 lm/W	2949.8 lm/m	F
5000 K	157.5 lm/W	4409.6 lm/m	D	127.7 lm/W	3574.4 lm/m	E	105.3 lm/W	2948.4 lm/m	F
6500 K	150.9 lm/W	4226.5 lm/m	D	122.5 lm/W	3431.4 lm/m	E	101.7 lm/W	2847.6 lm/m	F

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	157.1 lm/W	1508.5 lm/m	D	126.3 lm/W	1212.3 lm/m	E	—	—	—
2300 K	175 lm/W	1679.6 lm/m	C	140.6 lm/W	1350.1 lm/m	D	113.9 lm/W	1093.4 lm/m	E
2700 K	185.3 lm/W	1779.3 lm/m	B	152.1 lm/W	1460.6 lm/m	D	123.3 lm/W	1183.9 lm/m	E
3000 K	197 lm/W	1890.7 lm/m	B	160.2 lm/W	1537.8 lm/m	C	130.2 lm/W	1250.4 lm/m	E
3500 K	199.9 lm/W	1919.1 lm/m	B	163 lm/W	1565.2 lm/m	C	134.1 lm/W	1287.5 lm/m	E
4000 K	206.3 lm/W	1980.7 lm/m	B	166.9 lm/W	1602.3 lm/m	C	137.8 lm/W	1322.7 lm/m	D
5000 K	206 lm/W	1977.7 lm/m	B	166.8 lm/W	1601.4 lm/m	C	137.6 lm/W	1321 lm/m	D
6500 K	189 lm/W	1814.5 lm/m	B	160.1 lm/W	1536.8 lm/m	C	132.9 lm/W	1275.8 lm/m	E

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	154.5 lm/W	1854.1 lm/m	D	124.2 lm/W	1490 lm/m	E	—	—	—
2300 K	172 lm/W	2064.4 lm/m	C	138.3 lm/W	1659.4 lm/m	D	112 lm/W	1344 lm/m	E
2700 K	182.2 lm/W	2186.9 lm/m	C	149.6 lm/W	1795.2 lm/m	D	121.3 lm/W	1455.1 lm/m	E
3000 K	193.7 lm/W	2323.9 lm/m	B	157.5 lm/W	1890.1 lm/m	D	128.1 lm/W	1536.8 lm/m	E
3500 K	196.6 lm/W	2358.7 lm/m	B	160.3 lm/W	1923.8 lm/m	C	131.9 lm/W	1582.5 lm/m	E
4000 K	202.9 lm/W	2434.4 lm/m	B	164.1 lm/W	1969.4 lm/m	C	135.5 lm/W	1625.8 lm/m	D
5000 K	202.6 lm/W	2430.8 lm/m	B	164 lm/W	1968.2 lm/m	C	135.3 lm/W	1623.6 lm/m	D
6500 K	185.8 lm/W	2230.2 lm/m	B	157.4 lm/W	1888.9 lm/m	D	130.7 lm/W	1568.4 lm/m	E

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 15 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	151.3 lm/W	2269.3 lm/m	D	121.6 lm/W	1823.6 lm/m	E	—	—	—
2300 K	168.4 lm/W	2526.6 lm/m	C	135.4 lm/W	2031 lm/m	D	109.7 lm/W	1645.5 lm/m	F
2700 K	178.4 lm/W	2676.6 lm/m	C	146.5 lm/W	2197.2 lm/m	D	118.7 lm/W	1781 lm/m	E
3000 K	189.6 lm/W	2844.3 lm/m	B	154.2 lm/W	2313.4 lm/m	D	125.4 lm/W	1881 lm/m	E
3500 K	192.5 lm/W	2886.9 lm/m	B	157 lm/W	2354.6 lm/m	D	129.1 lm/W	1936.9 lm/m	E
4000 K	198.6 lm/W	2979.6 lm/m	B	160.7 lm/W	2410.4 lm/m	C	132.7 lm/W	1989.8 lm/m	E
5000 K	198.3 lm/W	2975.2 lm/m	B	160.6 lm/W	2409 lm/m	C	132.5 lm/W	1987.5 lm/m	E
6500 K	182 lm/W	2729.6 lm/m	C	154.1 lm/W	2311.9 lm/m	D	127.9 lm/W	1918.5 lm/m	E

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 28 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	138.1 lm/W	3866.3 lm/m	D	111 lm/W	3107 lm/m	E	—	—	—
2300 K	153.7 lm/W	4304.8 lm/m	D	123.6 lm/W	3460.3 lm/m	E	100.1 lm/W	2802.8 lm/m	F
2700 K	162.9 lm/W	4560.3 lm/m	C	133.7 lm/W	3743.5 lm/m	E	108.4 lm/W	3034.4 lm/m	F
3000 K	173.1 lm/W	4846 lm/m	C	140.8 lm/W	3941.4 lm/m	D	114.5 lm/W	3204.8 lm/m	E
3500 K	175.7 lm/W	4918.7 lm/m	C	143.3 lm/W	4011.6 lm/m	D	117.9 lm/W	3300 lm/m	E
4000 K	181.3 lm/W	5076.5 lm/m	C	146.7 lm/W	4106.8 lm/m	D	121.1 lm/W	3390.2 lm/m	E
5000 K	181 lm/W	5069 lm/m	C	146.6 lm/W	4104.3 lm/m	D	120.9 lm/W	3385.2 lm/m	E
6500 K	166.1 lm/W	4650.5 lm/m	C	140.7 lm/W	3938.9 lm/m	D	116.8 lm/W	3270.4 lm/m	E

High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide

At up to 28W/m, 4944 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.

Why high-wattage strips need a heat sink

Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.

Sizing rule: FPC width vs channel inner width

Channel inner width ≥ FPC width + 2mm. This strip is 15mm wide, so it needs at least 17mm of inner width.
The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.

Aluminum channels that fit this strip

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 15mm wide, so it needs a channel with at least 17mm inner width (15mm + 2mm clearance). Every profile below meets that.

Related models in this series

See every model in SMD LED Strip Series or narrow to Wide. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 4944?

4944: 2835, 160 LEDs/m, 24V, 15mm PCB, 3oz copper FPCB, cuttable 8LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

Which environments is this high efficacy LED strip lights rated for?

Ingress protection for this model is listed in the datasheet. As a high efficacy LED strip lights it is specified for the duty listed in the datasheet, and DENO can supply alternative coatings, sleeves or IP68 potting for harsher installations.

Can DENO customise this high efficacy LED strip lights for a project?

Yes. DENO manufactures the High Light Efficacy SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

How much can a high efficacy LED strip cut energy use?

Moving from a typical 100 lm/W strip to a 180 to 200 lm/W high lumen LED strip roughly halves the wattage needed for the same lumen output. Over a long commercial run this also lowers the required driver size and helps the installation reach a better ErP energy class.

Which LED driver and run length suit #4944?

15mm | 24V | 160LEDs | 50mm/cut | #4944 | 2835 High Light Efficacy Multi-Line LED Strip Light is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.

Engineering & selection guide

Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.

High Efficiency LED Strips series — High Efficiency LED Strip — Buyer Questions
Wide PCB LED Strips series — Wide PCB LED Strip — Brightest, High Lumen Builds
LED strip engineering selection handbook
