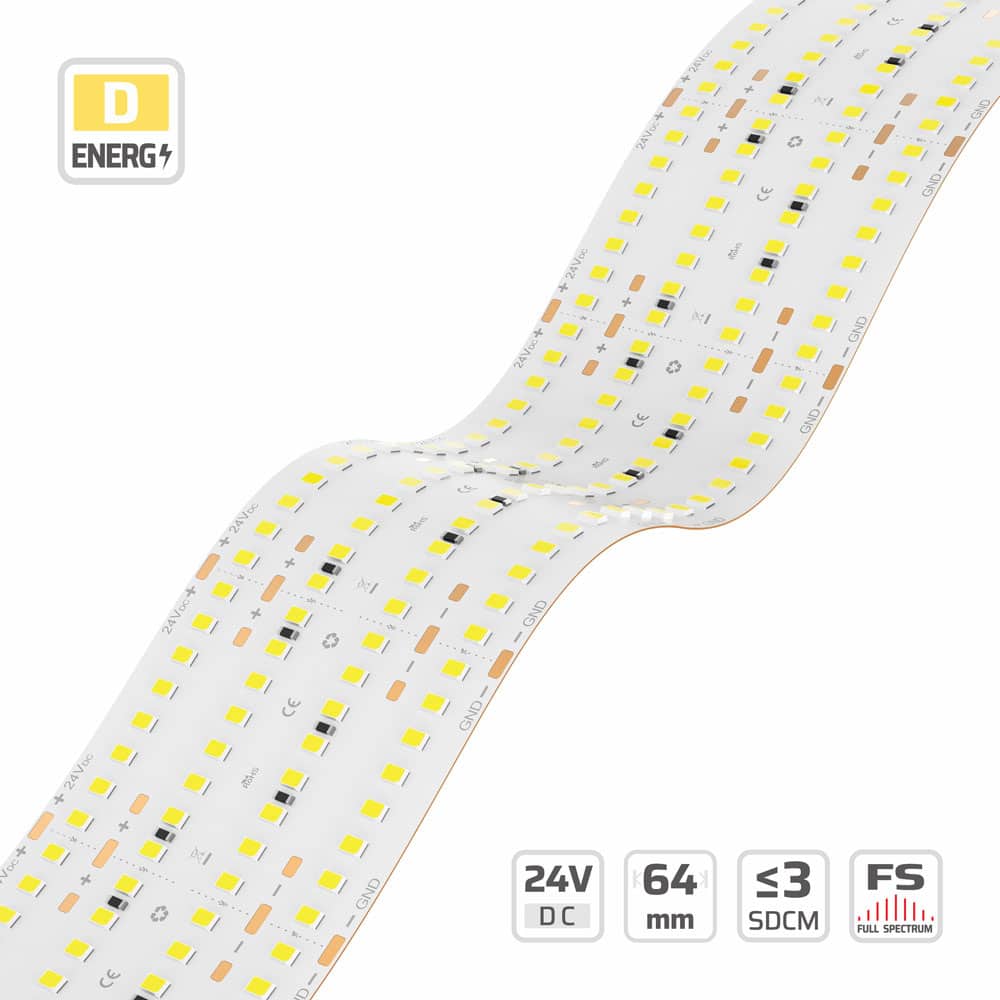

2835 4-Row LED Strip Light (#16700)

What are the key specifications of 16700?

16700: 2835, 640, 24V, 64mm PCB, 3 oz copper FPCB, cuttable 32LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

How long can a single run of this wide PCB LED strip be?

Maximum single run for this model is 7m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a wide PCB LED strip can cover twice that length on one circuit when wired accordingly.

Can DENO customise this wide PCB LED strip for a project?

Yes. DENO manufactures the Wide SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

Why use a wide LED strip PCB?

A 15 or 20 mm LED strip gives more copper area, so it dissipates heat better and carries more current. That is what allows high power builds above 25 W/m to run cooler, keep lumen maintenance high and support longer single feeds than a narrow board.

How many LEDs per metre does a dotless LED strip need?

Visible dots depend on LED pitch, diffuser distance and transmittance. Above roughly 480 LEDs/m most diffusers give a continuous line at 10 mm depth, and the 700 LEDs/m high density LED strip stays dot free even behind a shallow, highly transmissive lens.

What counts as a high density LED strip?

Anything above roughly 120 LEDs per metre is normally sold as a high density LED strip. DENO builds high-density boards from 240 up to 700 LEDs/m, which puts the LED pitch between 4.2 mm and 1.4 mm — tight enough to read as a continuous line behind a shallow diffuser instead of a row of dots.

• Series High Density LED Strips series
• Related series SCOB LED strip alternative for a fully dotless line
• Guide how LED pitch and FPCB stack-up decide dot-free output
• Product 16701 High Density LED Strips

Is a 24V high density LED strip better than 12V?

For dense boards, yes in most cases. A 24V high density LED strip draws half the current of a 12V board at the same wattage, so voltage drop is far lower and single runs of 5–10 m stay even in brightness. DENO supplies 12V, 24V, 48V and mains-voltage versions of the same high-density layout; 12V is normally reserved for short cabinet runs or low-voltage furniture requirements.

• Series High Density LED Strips series
• Guide Check voltage drop for 12V vs 24V high density runs
• Related series constant current LED strip for long 24V runs
• Product 16702 24V high density LED strip

Do you make a 5V high density LED strip?

Yes. 5V dense LED tape is built for USB-powered displays, shelving and addressable pixel projects where the controller is 5V-native. Because 5V boards lose voltage quickly, DENO limits standard runs to 1–2 m per feed, uses 2 oz or 35+70 μm copper, and adds per-segment constant-current ICs so the far end does not dim.

• Series High Density LED Strips series
• Related series Constant-current dense LED strip boards
• Related series 5V addressable pixel LED strip builds

Can a high density RGB LED strip stay dot-free?

It can, but the pitch has to be tighter than a white board because each RGB package mixes three separate dies. DENO's high density RGB and RGBW builds place emitters at 2.1 mm–4.2 mm pitch so colour mixing completes within a few millimetres of the diffuser, which removes both the dot pattern and the rainbow fringing seen on standard 60 LEDs/m RGB tape.

• Series High Density LED Strips series
• Related series Dense RGB and RGBW colour tape
• Related series RGBW LED strip lights with a dedicated white die

What is a high density addressable LED strip used for?

High density addressable LED strip (pixel tape) is used for signage, media facades, stair effects and studio lighting where each LED or short segment must be controlled individually. DENO offers addressable builds with up to 700 pixels per metre in SPI protocols such as WS2812B, WS2815 and SK6812, with breakout points every cut unit for reliable data injection on long runs.

• Series High Density LED Strips series
• Related series Pixel-addressable dense tape series
• Guide plan power and data injection for dense pixel runs

What makes the best high density LED strip lights?

Density alone is not enough. The best high density LED strip lights combine tight LED pitch with a 3-SDCM binning window, Ra 90+ (Ra 95+ for full-spectrum), 2 oz or heavier copper for thermal spreading, flicker-free constant-current drive and an FPCB rated for repeated bending. DENO ships photometric data, LM-80 chip data and a full test report with every OEM order so specifiers can verify these claims instead of trusting a datasheet number.

• Series High Density LED Strips series
• Related series Full-spectrum Ra 95+ dense boards
• Guide efficacy, flicker and ErP reference data

How dense can an ultra high density LED strip go?

DENO's ultra high density LED strip tops out at 700 LEDs per metre with a 1.4 mm pitch, drawing up to 30 W/m. Beyond that point a discrete SMD layout stops making sense thermally, and a SCOB (COB) emitter is the better route to a fully dotless line.

• Series High Density LED Strips series
• Related series Dotless SCOB alternative to ultra high density tape
• Related series ultra narrow LED strip boards from 3 mm wide

Can I order a custom high density LED strip?

Yes — LED count, pitch, CCT, CRI, PCB width from 3 mm, copper weight, cut unit and IP rating are all configurable on a custom high density LED strip. DENO is a manufacturer, not a reseller, so a non-standard density or a mixed-CCT dense board can be tooled from an existing FPCB stack-up without a new production line.

• Series High Density LED Strips series
• Related series Custom LED strip light capabilities
• Guide send a dense LED strip specification to DENO

Is high density LED tape the same as a high density LED strip?

They are the same product under two names: “high density led tape” is the common UK/EU term for what North America calls a high density LED strip. DENO ships the identical dense FPCB boards to both markets — 240 to 700 LEDs/m, 3 mm to 12 mm widths, CE/UL/RoHS documentation — so the tape you specify in a UK cove detail is the same board as the strip specified in a US one.

• Series High Density LED Strips series
• Related series micro-cut intervals on dense tape
• Related series narrow dense tape from 3 mm wide
• Product 16707 high density LED tape

Which dense LED tape suits under-cabinet lighting?

For under-cabinet work choose a dense board at 240–420 LEDs/m in a 5 mm to 8 mm width, 12V or 24V, with a short cut unit so the board matches each cabinet run exactly. At that density a 10 mm deep aluminium channel with a frosted diffuser already reads dot-free at normal worktop viewing distance.

• Series High Density LED Strips series
• Related series cabinet profile for under-cabinet dense tape
• Guide channel depth and diffuser choice for dot-free output

What power supply do I need for a dense LED strip run?

Size the driver from the board wattage: multiply the W/m figure on the datasheet by the run length, then add 20–30 % headroom, so a 20 W/m board over 5 m needs a 100 W load on a 120–130 W constant-voltage driver. Match the driver voltage exactly (24V board, 24V driver), keep it constant-voltage rather than constant-current unless the board carries its own CC ICs, and check that the dimming protocol — TRIAC, 0–10V, DALI or PWM — is supported on both sides before ordering.

• Series High Density LED Strips series
• Guide size the driver and check voltage drop before ordering
• Related series boards with on-board constant-current regulation
• Product 4944 24V dense LED strip

Does more LEDs per metre mean a brighter strip?

Not on its own. Brightness is lumens per metre, which is drive current times die count times efficacy — doubling the LED count while halving the current per die gives the same output with a smoother line, not twice the light. Read lm/m and W/m together: DENO dense boards run 8–24 W/m and 700–2600 lm/m, so pick the density for dot-free appearance and the wattage for the light level you actually need.

• Series High Density LED Strips series
• Guide how lm/m, W/m and efficacy decide perceived brightness
• Guide convert lm/m to illuminance on the work surface

Can dense LED tape run on 36V or 48V supplies?

Yes. 36V and 48V builds exist specifically for long uninterrupted runs: at 48V the same wattage draws a quarter of the current of a 12V board, so a single feed can cover 15–20 m with even brightness and far fewer injection points. They need a matching SELV driver and, in most territories, the same low-voltage installation rules as 24V; DENO supplies 36V and 48V versions of the standard dense layouts on request.

• Series High Density LED Strips series
• Related series constant-current boards for long single-feed runs
• Guide compare 12V, 24V and 48V voltage drop over distance
• Product 5897 48V dense LED strip

Why is a wide PCB LED strip the brightest LED strip option?

Brightness is limited by how many dies fit per metre and how much heat the board can shed. A wide PCB LED strip — 18 mm, 20 mm, 36 mm or 64 mm instead of the usual 8–10 mm — carries two, three or four parallel LED rows, up to 960 LEDs/m, and roughly the same multiple of copper area. That is why DENO's widest boards are the brightest LED strip builds in the catalogue: more emitters and enough 2 oz copper to keep junction temperature down at full drive.

• Series Wide PCB LED Strips series
• Related series high density LED strip boards for dot-free output
• Guide copper weight, board width and heat spreading

Are there super bright LED strip lights in 12V, and when should I use 24V or 48V instead?

12V super bright LED strip lights exist but are limited to short runs: at 20 W/m a 12V board pulls 1.7 A per metre, so voltage drop dims the far end after 2–3 m. For architectural work DENO builds the wide boards in 24V and 48V, where the same wattage draws half or a quarter of the current and one feed covers 5–15 m. Where the fixture is 12V-native, keep the run short and feed each section separately.

• Series Wide PCB LED Strips series
• Related series 48V LED strip lights for long high-output runs
• Related series constant current boards that hold output over distance

Which is brighter — a wide multi-row board or a high-density single row?

For raw output, the wide multi-row board wins: rows multiply the flux while a single row is capped by LED pitch. For a dot-free line in a shallow reveal, high density wins. The two are combined on DENO's 36 mm and 64 mm boards, which run three or four dense rows at once, giving both an ultra bright LED strip face and an even luminance across the diffuser.

• Series Wide PCB LED Strips series
• Related series narrow boards where width is the constraint
• Related series high efficiency LED strip lights series
