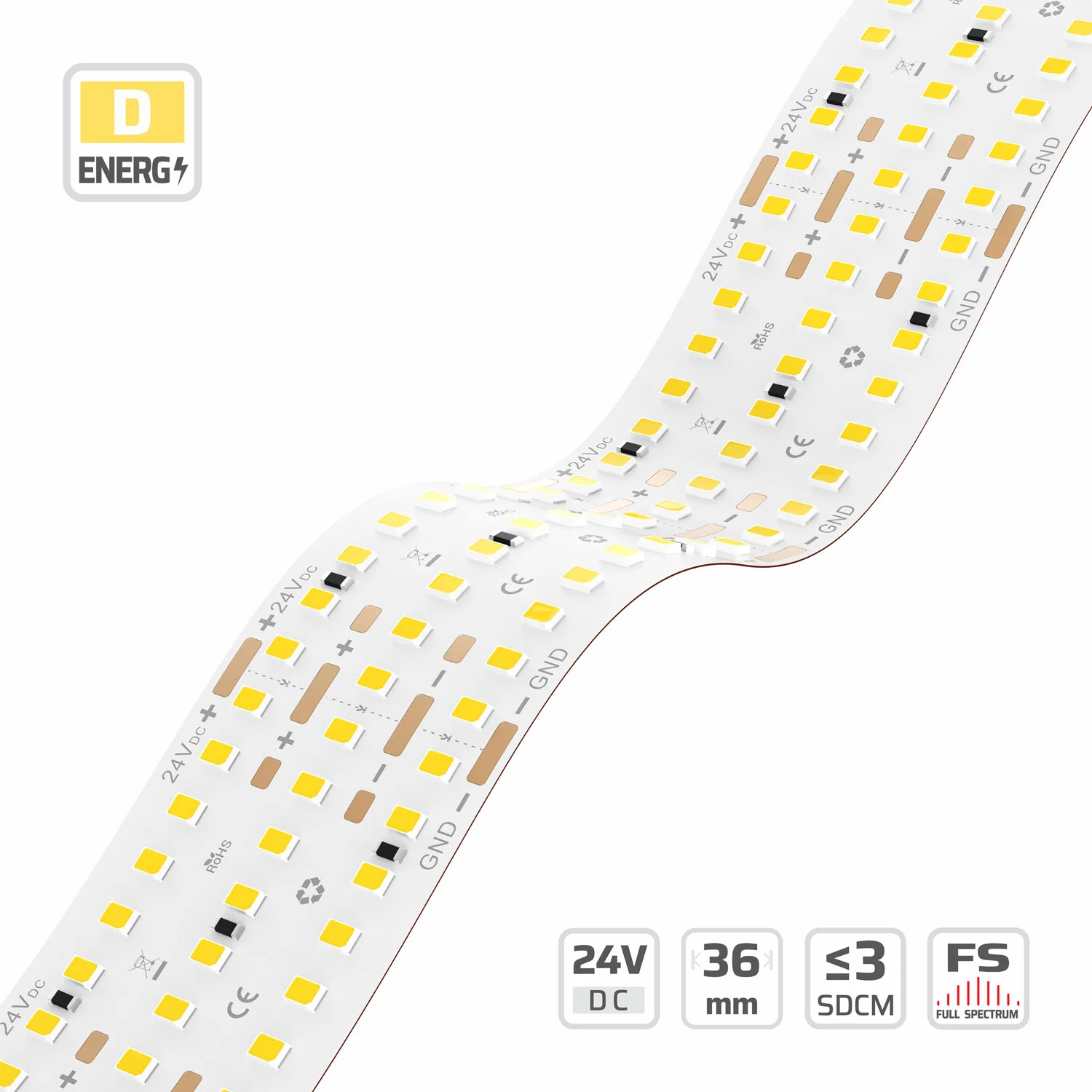

Multi-Line Three-Row High-Density LED LED Strip Light (#16701)
36mm · 24V · 480LEDs · 50mm/cut
Model: 16701
Overview
36mm | 24V | 480LEDs | 50mm/cut | #16701 | Multi-Line Three-Row High-Density LED LED Strip Light is part of the DENO Wide SMD Strips series, engineered around wide PCB LED strip. Key specifications: 2835, 480, DC 24V, 36 PCB, 3oz copper FPCB, cuttable 24LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
36mm | 24V | 480LEDs | 50mm/cut | #16701 | Multi-Line Three-Row High-Density LED LED Strip Light This Large width LED light strip features a high-density 3-row 2835 LED design with a 36mm wide FPC, delivering excellent luminous uniformity and high brightness output. It is specifically designed to pair with large-sized aluminum profiles, ensuring efficient heat dissipation and soft, even lighting effects. Applications: retail displays, hospitality environments, hotel decor, office spaces, exhibition centers, and artistic venues.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| LED QTY | 480 |
|---|---|
| PART NO | DL-F28A240V24-16701–* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 24LEDs/50mm |
| DIMMABLE | Yes |
| LED PITCH | 6.25mm |
| PCB WIDTH | 36 |
| BEAM ANGLE | 120° |
| LENGTH MAX | 7m |
| COPPER FOIL | 3oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | DC 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Request a quotation for #16701
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 214.6 lm/W at 4000K, Ra 80, ErP energy class B (Grade DN (1st Tier) · 7.2W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 156 lm/W | 1123 lm/m | D | 125 lm/W | 900 lm/m | E | — | — | — |
| 2300 K | 173.6 lm/W | 1249.9 lm/m | C | 139.2 lm/W | 1002.2 lm/m | D | 113.2 lm/W | 815 lm/m | D |
| 2700 K | 183.3 lm/W | 1319.5 lm/m | C | 150.7 lm/W | 1085.1 lm/m | D | 122.1 lm/W | 878.8 lm/m | E |
| 3000 K | 195.4 lm/W | 1406.8 lm/m | B | 158.5 lm/W | 1141.5 lm/m | D | 128.9 lm/W | 928.2 lm/m | E |
| 3500 K | 198.3 lm/W | 1427.9 lm/m | B | 161.4 lm/W | 1161.7 lm/m | C | 132.8 lm/W | 956.4 lm/m | E |
| 4000 K | 204.6 lm/W | 1472.9 lm/m | B | 165.3 lm/W | 1189.9 lm/m | C | 136.4 lm/W | 981.9 lm/m | D |
| 5000 K | 204.4 lm/W | 1472 lm/m | B | 165.1 lm/W | 1189.1 lm/m | C | 135 lm/W | 972.1 lm/m | D |
| 6500 K | 187.3 lm/W | 1348.6 lm/m | B | 158.4 lm/W | 1140.6 lm/m | D | 130.9 lm/W | 942.7 lm/m | D |
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 153.4 lm/W | 1472.2 lm/m | D | 122.9 lm/W | 1179.9 lm/m | E | — | — | — |
| 2300 K | 170.7 lm/W | 1638.7 lm/m | C | 136.9 lm/W | 1313.9 lm/m | D | 111.3 lm/W | 1068.5 lm/m | E |
| 2700 K | 180.2 lm/W | 1729.9 lm/m | C | 148.2 lm/W | 1422.6 lm/m | D | 120 lm/W | 1152.1 lm/m | E |
| 3000 K | 192.1 lm/W | 1844.4 lm/m | B | 155.9 lm/W | 1496.5 lm/m | D | 126.8 lm/W | 1216.9 lm/m | E |
| 3500 K | 195 lm/W | 1872.1 lm/m | B | 158.7 lm/W | 1523.1 lm/m | D | 130.6 lm/W | 1253.8 lm/m | E |
| 4000 K | 201.1 lm/W | 1931 lm/m | B | 162.5 lm/W | 1560.1 lm/m | C | 134.1 lm/W | 1287.3 lm/m | E |
| 5000 K | 201 lm/W | 1929.9 lm/m | B | 162.4 lm/W | 1558.9 lm/m | C | 132.8 lm/W | 1274.5 lm/m | E |
| 6500 K | 184.2 lm/W | 1768.1 lm/m | C | 155.8 lm/W | 1495.4 lm/m | D | 128.7 lm/W | 1235.9 lm/m | E |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 148.3 lm/W | 2135.1 lm/m | D | 118.8 lm/W | 1711.1 lm/m | E | — | — | — |
| 2300 K | 165 lm/W | 2376.5 lm/m | C | 132.3 lm/W | 1905.5 lm/m | E | 107.6 lm/W | 1549.6 lm/m | E |
| 2700 K | 174.2 lm/W | 2508.9 lm/m | C | 143.3 lm/W | 2063.1 lm/m | D | 116 lm/W | 1670.9 lm/m | E |
| 3000 K | 185.8 lm/W | 2674.8 lm/m | B | 150.7 lm/W | 2170.3 lm/m | D | 122.6 lm/W | 1764.8 lm/m | E |
| 3500 K | 188.5 lm/W | 2715 lm/m | B | 153.4 lm/W | 2208.9 lm/m | D | 126.3 lm/W | 1818.4 lm/m | E |
| 4000 K | 194.5 lm/W | 2800.5 lm/m | B | 157.1 lm/W | 2262.5 lm/m | D | 129.7 lm/W | 1867 lm/m | E |
| 5000 K | 194.4 lm/W | 2798.8 lm/m | B | 157 lm/W | 2260.8 lm/m | D | 128.4 lm/W | 1848.3 lm/m | E |
| 6500 K | 178.1 lm/W | 2564.2 lm/m | C | 150.6 lm/W | 2168.7 lm/m | D | 124.5 lm/W | 1792.3 lm/m | E |
Grade KE (3rd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 131.1 lm/W | 944 lm/m | E | 104.9 lm/W | 755.4 lm/m | F | — | — | — |
| 2300 K | 146.2 lm/W | 1052.4 lm/m | D | 116.9 lm/W | 841.8 lm/m | E | 95.6 lm/W | 688.4 lm/m | E |
| 2700 K | 157.6 lm/W | 1134.4 lm/m | D | 126.8 lm/W | 913.2 lm/m | E | 102.8 lm/W | 740.4 lm/m | F |
| 3000 K | 165.4 lm/W | 1190.8 lm/m | C | 134.1 lm/W | 965.2 lm/m | E | 109.1 lm/W | 785.4 lm/m | F |
| 3500 K | 167.8 lm/W | 1208.5 lm/m | C | 136.7 lm/W | 984.6 lm/m | D | 112.5 lm/W | 810 lm/m | E |
| 4000 K | 172.7 lm/W | 1243.7 lm/m | C | 139.6 lm/W | 1004.8 lm/m | D | 115.2 lm/W | 829.4 lm/m | E |
| 5000 K | 172.5 lm/W | 1242 lm/m | C | 139.6 lm/W | 1004.8 lm/m | D | 114 lm/W | 821.1 lm/m | E |
| 6500 K | 165.4 lm/W | 1190.8 lm/m | C | 134.1 lm/W | 965.2 lm/m | E | 110.6 lm/W | 796.3 lm/m | E |
Grade KE (3rd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 128.9 lm/W | 1237.7 lm/m | E | 103.2 lm/W | 990.4 lm/m | F | — | — | — |
| 2300 K | 143.7 lm/W | 1379.8 lm/m | D | 115 lm/W | 1103.6 lm/m | E | 94 lm/W | 902.6 lm/m | E |
| 2700 K | 154.9 lm/W | 1487.3 lm/m | D | 124.7 lm/W | 1197.2 lm/m | E | 101.1 lm/W | 970.7 lm/m | F |
| 3000 K | 162.6 lm/W | 1561.2 lm/m | C | 131.8 lm/W | 1265.4 lm/m | E | 107.3 lm/W | 1029.6 lm/m | F |
| 3500 K | 165 lm/W | 1584.3 lm/m | C | 134.5 lm/W | 1290.8 lm/m | E | 110.6 lm/W | 1062 lm/m | E |
| 4000 K | 169.9 lm/W | 1630.6 lm/m | C | 137.2 lm/W | 1317.4 lm/m | D | 113.3 lm/W | 1087.4 lm/m | E |
| 5000 K | 169.6 lm/W | 1628.3 lm/m | C | 137.2 lm/W | 1317.4 lm/m | D | 112.1 lm/W | 1076.6 lm/m | E |
| 6500 K | 162.6 lm/W | 1561.2 lm/m | C | 131.8 lm/W | 1265.4 lm/m | E | 108.7 lm/W | 1043.9 lm/m | E |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 124.6 lm/W | 1794.9 lm/m | E | 99.7 lm/W | 1436.3 lm/m | F | — | — | — |
| 2300 K | 139 lm/W | 2001.1 lm/m | D | 111.1 lm/W | 1600.5 lm/m | E | 90.9 lm/W | 1309 lm/m | F |
| 2700 K | 149.8 lm/W | 2156.9 lm/m | D | 120.6 lm/W | 1736.3 lm/m | E | 97.8 lm/W | 1407.8 lm/m | F |
| 3000 K | 157.2 lm/W | 2264.2 lm/m | D | 127.4 lm/W | 1835.2 lm/m | E | 103.7 lm/W | 1493.3 lm/m | F |
| 3500 K | 159.6 lm/W | 2297.7 lm/m | D | 130 lm/W | 1872 lm/m | E | 107 lm/W | 1540.2 lm/m | F |
| 4000 K | 164.2 lm/W | 2364.8 lm/m | C | 132.7 lm/W | 1910.6 lm/m | E | 109.5 lm/W | 1577.1 lm/m | F |
| 5000 K | 164 lm/W | 2361.4 lm/m | C | 132.7 lm/W | 1910.6 lm/m | E | 108.4 lm/W | 1561.3 lm/m | F |
| 6500 K | 157.2 lm/W | 2264.2 lm/m | D | 127.4 lm/W | 1835.2 lm/m | E | 105.1 lm/W | 1514 lm/m | F |
Grade DN (1st Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 168.1 lm/W | 1210.2 lm/m | D | 141.6 lm/W | 1019.8 lm/m | E | — | — | — |
| 2300 K | 183.3 lm/W | 1319.5 lm/m | C | 158 lm/W | 1137.9 lm/m | D | 127.1 lm/W | 915.2 lm/m | D |
| 2700 K | 197.6 lm/W | 1422.6 lm/m | C | 171 lm/W | 1231.4 lm/m | D | 138.7 lm/W | 998.7 lm/m | E |
| 3000 K | 207.5 lm/W | 1494 lm/m | B | 180.6 lm/W | 1300.1 lm/m | C | 146.9 lm/W | 1057.7 lm/m | D |
| 3500 K | 210.6 lm/W | 1516.1 lm/m | B | 184.5 lm/W | 1328.3 lm/m | C | 151.8 lm/W | 1093 lm/m | D |
| 4000 K | 214.6 lm/W | 1545.2 lm/m | B | 185.5 lm/W | 1335.4 lm/m | C | 153.2 lm/W | 1102.7 lm/m | D |
| 5000 K | 214.2 lm/W | 1542.5 lm/m | B | 186.7 lm/W | 1344.2 lm/m | C | 151.6 lm/W | 1091.7 lm/m | D |
| 6500 K | 205.4 lm/W | 1479.1 lm/m | B | 178.5 lm/W | 1285.1 lm/m | C | 147 lm/W | 1058.6 lm/m | D |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 165.3 lm/W | 1586.7 lm/m | D | 139.3 lm/W | 1337 lm/m | E | — | — | — |
| 2300 K | 180.2 lm/W | 1729.9 lm/m | C | 155.4 lm/W | 1491.9 lm/m | D | 125 lm/W | 1199.9 lm/m | D |
| 2700 K | 194.3 lm/W | 1865.2 lm/m | C | 168.2 lm/W | 1614.4 lm/m | D | 136.4 lm/W | 1309.3 lm/m | E |
| 3000 K | 204 lm/W | 1958.8 lm/m | B | 177.6 lm/W | 1704.5 lm/m | C | 144.5 lm/W | 1386.7 lm/m | E |
| 3500 K | 207 lm/W | 1987.6 lm/m | B | 181.4 lm/W | 1741.5 lm/m | C | 149.3 lm/W | 1433 lm/m | D |
| 4000 K | 211 lm/W | 2025.8 lm/m | B | 182.4 lm/W | 1750.7 lm/m | C | 150.6 lm/W | 1445.7 lm/m | D |
| 5000 K | 210.7 lm/W | 2022.3 lm/m | B | 183.6 lm/W | 1762.3 lm/m | C | 149.1 lm/W | 1431.2 lm/m | D |
| 6500 K | 202 lm/W | 1939.1 lm/m | B | 175.5 lm/W | 1684.9 lm/m | C | 144.6 lm/W | 1387.8 lm/m | D |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 159.8 lm/W | 2301.1 lm/m | D | 134.7 lm/W | 1939.1 lm/m | E | — | — | — |
| 2300 K | 174.2 lm/W | 2508.9 lm/m | C | 150.3 lm/W | 2163.6 lm/m | D | 120.8 lm/W | 1740.2 lm/m | E |
| 2700 K | 187.8 lm/W | 2705 lm/m | C | 162.6 lm/W | 2341.3 lm/m | D | 131.9 lm/W | 1898.8 lm/m | E |
| 3000 K | 197.3 lm/W | 2840.7 lm/m | C | 171.7 lm/W | 2472 lm/m | D | 139.7 lm/W | 2011.1 lm/m | E |
| 3500 K | 200.2 lm/W | 2882.6 lm/m | B | 175.4 lm/W | 2525.6 lm/m | C | 144.3 lm/W | 2078.2 lm/m | E |
| 4000 K | 204 lm/W | 2937.9 lm/m | B | 176.3 lm/W | 2539.1 lm/m | C | 145.6 lm/W | 2096.6 lm/m | E |
| 5000 K | 203.7 lm/W | 2932.9 lm/m | B | 177.5 lm/W | 2555.8 lm/m | C | 144.1 lm/W | 2075.6 lm/m | E |
| 6500 K | 195.3 lm/W | 2812.2 lm/m | C | 169.7 lm/W | 2443.5 lm/m | D | 139.8 lm/W | 2012.7 lm/m | E |
