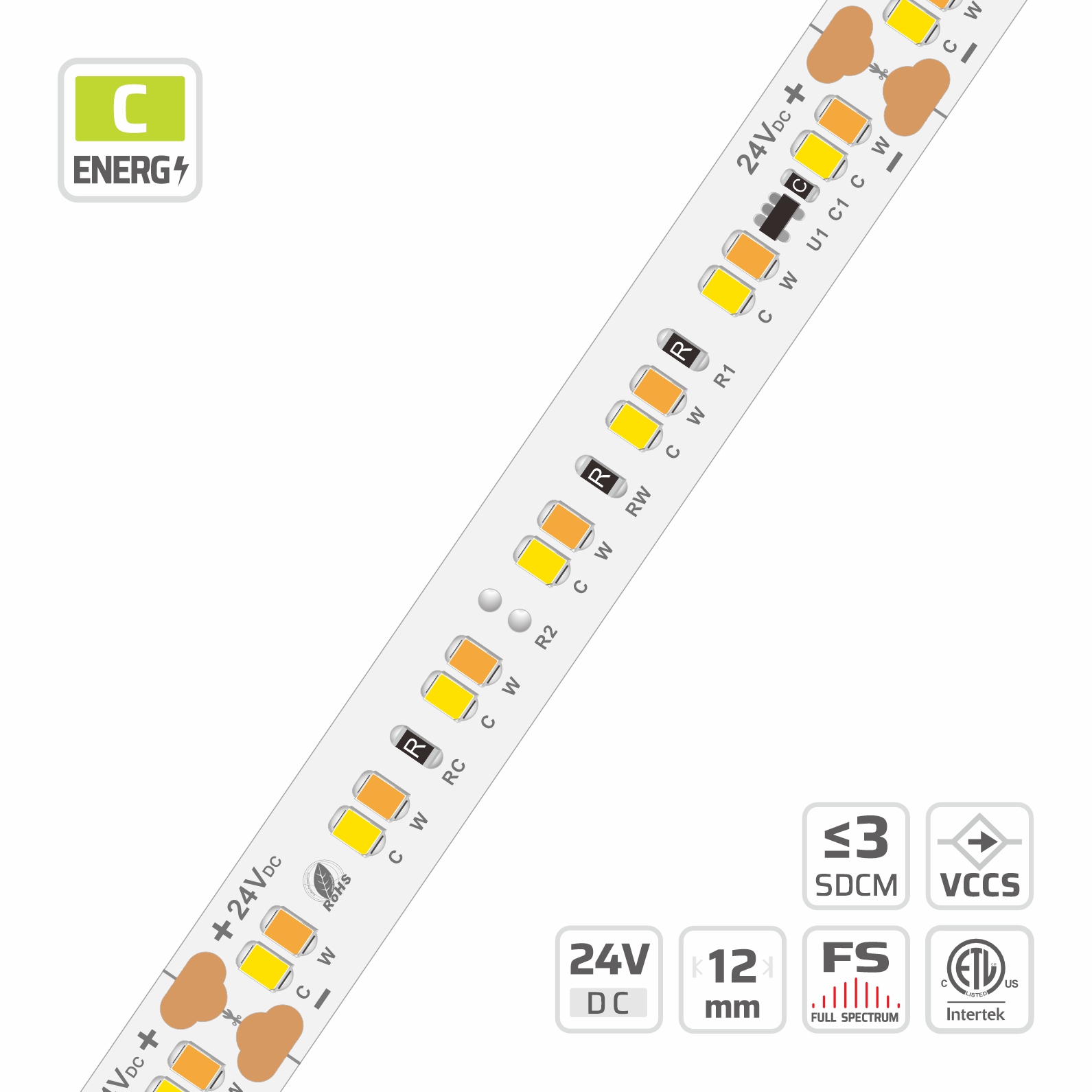

2835 Switch Controlled Tunable White LED Strip (#5214)
12mm · 24V · 168LEDs · 83.3mm/cut · No Remote
Model: 5214
Overview
2835 Switch Controlled Tunable White LED Strip | No Remote | 12mm | 24V | 168LEDs | 83.3mm/cut | #5214 is part of the DENO Special SMD Strips series, engineered around special application LED strip. Key specifications: 2835, 168, 24V, 12mm PCB, 3oz copper FPCB, cuttable 14LEDs/83.33mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
2835 Switch Controlled Tunable White LED Strip | No Remote | 12mm | 24V | 168LEDs | 83.3mm/cut | #5214 This Tunable White LED Strip requires no controller or smart system — the color temperature can be switched directly using any standard wall switch. Each on/off toggle changes the CCT in sequence (2700K → 6500K → 4000K), providing a simple and intuitive way to operate the Tunable White LED Strip. Designed as a CCT-adjustable Tunable White LED Strip, it offers flexible white-light control that is simple, user-friendly, and completely plug-and-play with zero configuration needed.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| SDCM | < 3 SDCM (Single Bin) |
|---|---|
| LED QTY | 168 |
| PART NO | DL-F28A84V24-5214-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 14LEDs/83.33mm |
| DIMMABLE | Yes |
| LED PITCH | 11.9mm |
| PCB WIDTH | 12mm |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| LENGTH MAX | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 12~35W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Hotel & residential tunable-white scenes — Hotel rooms, residential living areas and meeting spaces where warm evening light and neutral daytime light are both required from one fixture.
Request a quotation for #5214
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 180.9 lm/W at 6500K, Ra 80, ErP energy class C (Grade DN (1st Tier) · CCT 3-Anchor · 12W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DN (1st Tier) · CCT 3-Anchor · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 163.1 lm/W | 978.3 lm/m | D | 132.4 lm/W | 794.6 lm/m | E | 103.3 lm/W | 619.8 lm/m | F |
| 4000 K | 164.6 lm/W | 1975.6 lm/m | D | 133.8 lm/W | 1605.7 lm/m | E | 104.4 lm/W | 1252.2 lm/m | F |
| 6500 K | 180.9 lm/W | 1085.6 lm/m | C | 147.2 lm/W | 883 lm/m | D | 114.8 lm/W | 688.6 lm/m | F |
Grade DN (1st Tier) · CCT 3-Anchor · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 160.3 lm/W | 1154.4 lm/m | D | 130.2 lm/W | 937.6 lm/m | E | 101.6 lm/W | 731.3 lm/m | F |
| 4000 K | 161.9 lm/W | 2331 lm/m | D | 131.6 lm/W | 1894.6 lm/m | E | 102.6 lm/W | 1477.6 lm/m | F |
| 6500 K | 177.9 lm/W | 1281 lm/m | C | 144.7 lm/W | 1041.9 lm/m | E | 112.8 lm/W | 812.5 lm/m | F |
Grade DN (1st Tier) · CCT 3-Anchor · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 155 lm/W | 1488.1 lm/m | D | 125.9 lm/W | 1208.7 lm/m | E | 98.2 lm/W | 942.8 lm/m | F |
| 4000 K | 156.5 lm/W | 3005 lm/m | D | 127.2 lm/W | 2442.4 lm/m | E | 99.2 lm/W | 1904.8 lm/m | F |
| 6500 K | 172 lm/W | 1651.3 lm/m | D | 139.9 lm/W | 1343.1 lm/m | E | 109.1 lm/W | 1047.4 lm/m | F |
Grade DN (1st Tier) · CCT 3-Anchor · 22W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 152 lm/W | 1671.9 lm/m | D | 123.5 lm/W | 1358 lm/m | E | 96.3 lm/W | 1059.2 lm/m | F |
| 4000 K | 153.5 lm/W | 3376.2 lm/m | D | 124.7 lm/W | 2744.1 lm/m | E | 97.3 lm/W | 2140 lm/m | F |
| 6500 K | 168.7 lm/W | 1855.3 lm/m | D | 137.2 lm/W | 1509 lm/m | E | 107 lm/W | 1176.8 lm/m | F |
Grade DL (2nd Tier) · CCT 3-Anchor · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 140.1 lm/W | 840.7 lm/m | D | 113.7 lm/W | 682.3 lm/m | E | 88.7 lm/W | 532.1 lm/m | F |
| 4000 K | 141.6 lm/W | 1699.1 lm/m | D | 114.9 lm/W | 1378.5 lm/m | E | 89.6 lm/W | 1075.5 lm/m | F |
| 6500 K | 155.6 lm/W | 933.5 lm/m | D | 126.3 lm/W | 758 lm/m | E | 98.6 lm/W | 591.4 lm/m | F |
Grade DL (2nd Tier) · CCT 3-Anchor · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 137.8 lm/W | 992 lm/m | D | 111.8 lm/W | 805.1 lm/m | E | 87.2 lm/W | 627.8 lm/m | F |
| 4000 K | 139.2 lm/W | 2004.8 lm/m | D | 113 lm/W | 1626.5 lm/m | E | 88.1 lm/W | 1269 lm/m | F |
| 6500 K | 153 lm/W | 1101.5 lm/m | D | 124.2 lm/W | 894.4 lm/m | E | 96.9 lm/W | 697.8 lm/m | F |
Grade DL (2nd Tier) · CCT 3-Anchor · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 133.2 lm/W | 1278.8 lm/m | E | 108.1 lm/W | 1037.8 lm/m | F | 84.3 lm/W | 809.3 lm/m | G |
| 4000 K | 134.6 lm/W | 2584.5 lm/m | E | 109.2 lm/W | 2096.8 lm/m | F | 85.2 lm/W | 1636 lm/m | F |
| 6500 K | 147.9 lm/W | 1419.9 lm/m | D | 120.1 lm/W | 1153 lm/m | E | 93.7 lm/W | 899.6 lm/m | F |
Grade DL (2nd Tier) · CCT 3-Anchor · 22W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 130.6 lm/W | 1436.8 lm/m | E | 106 lm/W | 1166 lm/m | F | 82.7 lm/W | 909.3 lm/m | G |
| 4000 K | 132 lm/W | 2903.7 lm/m | E | 107.1 lm/W | 2355.8 lm/m | F | 83.5 lm/W | 1838 lm/m | G |
| 6500 K | 145 lm/W | 1595.3 lm/m | D | 117.8 lm/W | 1295.5 lm/m | E | 91.9 lm/W | 1010.7 lm/m | F |
Grade KE (3rd Tier) · CCT 3-Anchor · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 114.8 lm/W | 688.6 lm/m | E | 92.9 lm/W | 557.3 lm/m | F | 72.5 lm/W | 434.9 lm/m | G |
| 4000 K | 115.9 lm/W | 1391.1 lm/m | E | 93.8 lm/W | 1126 lm/m | F | 73.2 lm/W | 878.6 lm/m | G |
| 6500 K | 127.4 lm/W | 764.3 lm/m | E | 103.2 lm/W | 619.2 lm/m | F | 80.5 lm/W | 482.8 lm/m | G |
Grade KE (3rd Tier) · CCT 3-Anchor · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 112.8 lm/W | 812.5 lm/m | E | 91.3 lm/W | 657.6 lm/m | F | 71.3 lm/W | 513.1 lm/m | G |
| 4000 K | 114 lm/W | 1641.4 lm/m | E | 92.3 lm/W | 1328.6 lm/m | F | 72 lm/W | 1036.7 lm/m | G |
| 6500 K | 125.3 lm/W | 901.9 lm/m | E | 101.5 lm/W | 730.6 lm/m | F | 79.1 lm/W | 569.7 lm/m | G |
Grade KE (3rd Tier) · CCT 3-Anchor · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 109.1 lm/W | 1047.4 lm/m | F | 88.3 lm/W | 847.7 lm/m | F | 68.9 lm/W | 661.5 lm/m | G |
| 4000 K | 110.2 lm/W | 2116 lm/m | E | 89.2 lm/W | 1712.8 lm/m | F | 69.6 lm/W | 1336.4 lm/m | G |
| 6500 K | 121.1 lm/W | 1162.6 lm/m | E | 98.1 lm/W | 941.8 lm/m | F | 76.5 lm/W | 734.5 lm/m | G |
Grade KE (3rd Tier) · CCT 3-Anchor · 22W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 107 lm/W | 1176.8 lm/m | F | 86.6 lm/W | 952.4 lm/m | F | 67.6 lm/W | 743.2 lm/m | G |
| 4000 K | 108.1 lm/W | 2377.3 lm/m | F | 87.5 lm/W | 1924.3 lm/m | F | 68.2 lm/W | 1501.5 lm/m | G |
| 6500 K | 118.7 lm/W | 1306.2 lm/m | E | 96.2 lm/W | 1058.2 lm/m | F | 75 lm/W | 825.2 lm/m | G |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 22W/m, 5214 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 12mm wide, so it needs at least 14mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 20x08mm Surface Mount LED Channel · fits ≤12mm strip
- 20x15mm Wide Surface Mount LED Channel · fits ≤12mm strip
- 18x18mm Magnetic LED Channel · fits ≤12mm strip
- 17.3x14.5mm Surface Mount LED Channel · fits ≤12mm strip
- 17.5x7mm Slim Surface Mount LED Channel · fits ≤12mm strip
- Slim Surface Aluminum Profile · 12mm PCB · fits ≤12mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 12mm wide, so it needs a channel with at least 14mm inner width (12mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16775)
- Roll-to-Roll Long Reel LED Strip Light (#16777)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Multi-Line Hight Efficiency LED Strip Light (#17510)
- Multi-Line Four-Row High-Density LED LED Strip Light (#16705)
- 2835 Full Spectrum High Light Efficacy LED Strip Light (#5871-FS)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 5214?
5214: 2835, 168, 24V, 12mm PCB, 3oz copper FPCB, cuttable 14LEDs/83.33mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
Which environments is this special application LED strip rated for?
Ingress protection for this model is listed in the datasheet. As a special application LED strip it is specified for the duty listed in the datasheet, and DENO can supply alternative coatings, sleeves or IP68 potting for harsher installations.
Can DENO customise this special application LED strip for a project?
Yes. DENO manufactures the Special SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What can be customised on an OEM LED strip order?
FPCB width and copper weight, LED type and density, CCT and CRI bin, cut interval, reel length, connector and encapsulation can all be specified. As a direct LED strip manufacturer, DENO builds to drawing, including non-standard shapes and project-specific labelling.
How does a tunable white LED strip mix colour temperature?
Two LED channels, typically 2700K and 6500K, sit on the same FPCB and are dimmed against each other. Mixing the channels sweeps the white point along the black body line while total output stays even, which is how a CCT LED strip supports circadian and human centric lighting schedules.
