Multi-Line Four-Row High-Density LED LED Strip Light (#16705)
64mm · 24V · 960LEDs · 33.333mm/cut
Model: 16705
Overview
Multi-Line Four-Row High-Density LED LED Strip Light | 64mm | 24V | 960LEDs | 33.333mm/cut | #16705 is part of the DENO Wide SMD Strips series, engineered around wide PCB LED strip. Key specifications: 2835, 960 LEDs/m, DC 24V, 64 PCB, 3oz copper FPCB, cuttable 32LEDs/33.333mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description

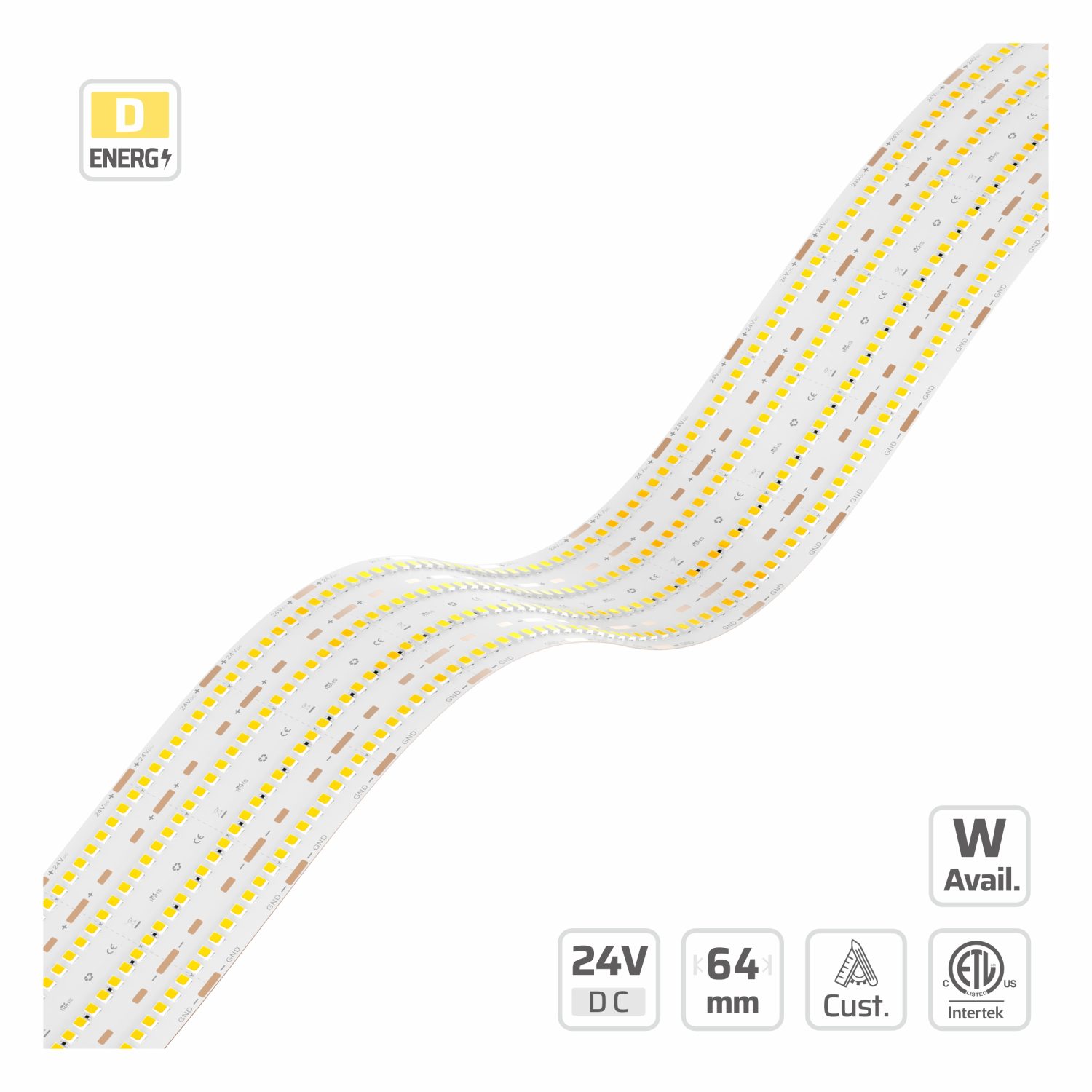

Engineered with 960 2835 SMD LEDs per meter across a four-row layout, this LED strip light delivers uniform illumination for high-standard architectural lighting. The robust 64mm wide circuit board is built with 3oz copper foil to ensure optimal heat dissipation across DC 24V constant-voltage systems. Precise cut points every 33.333mm allow accurate tailoring on site, supporting continuous max run lengths up to 7m. Featuring full dimming capability and a 120-degree beam angle, this unit operates dependably within an ambient temperature range of -25°C to 40°C. Manufactured for wholesale project supply and OEM custom configurations, this four-row strip provides an efficient solution for commercial lighting contractors.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| CRI | Ra≥90 |
|---|---|
| POWER (W/M) | 45 W/m |
| LED QTY | 960 LEDs/m |
| PART NO | DL-F28A480V24-16705–* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 32LEDs/33.333mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP66 |
| LED PITCH | 4.167mm |
| PCB WIDTH | 64 |
| BEAM ANGLE | 120° |
| RUN LENGTH | 7m |
| COPPER FOIL | 3oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | DC 24V |
| LUMINOUS FLUX | 1793–6301 lm/m |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #16705
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 235.9 lm/W at 4000K, Ra 80, ErP energy class A (Grade DN (1st Tier) · 7.2W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 172.1 lm/W | 1239.4 lm/m | C | 138.1 lm/W | 994.4 lm/m | D | — | — | — |
| 2300 K | 191.7 lm/W | 1380.3 lm/m | B | 153.9 lm/W | 1108 lm/m | D | 125.1 lm/W | 900.9 lm/m | D |
| 2700 K | 202.5 lm/W | 1458.2 lm/m | B | 166.4 lm/W | 1198.1 lm/m | C | 134.8 lm/W | 970.9 lm/m | E |
| 3000 K | 215.7 lm/W | 1553.1 lm/m | A | 175.1 lm/W | 1261 lm/m | C | 142.4 lm/W | 1025.4 lm/m | D |
| 3500 K | 219 lm/W | 1576.5 lm/m | A | 178.3 lm/W | 1283.6 lm/m | C | 146.7 lm/W | 1056.3 lm/m | D |
| 4000 K | 226 lm/W | 1627.2 lm/m | A | 182.6 lm/W | 1314.6 lm/m | C | 150.8 lm/W | 1085.4 lm/m | D |
| 5000 K | 225.7 lm/W | 1625.4 lm/m | A | 182.4 lm/W | 1313.6 lm/m | C | 149.2 lm/W | 1074.6 lm/m | D |
| 6500 K | 206.8 lm/W | 1489.2 lm/m | B | 175 lm/W | 1260.1 lm/m | C | 144.7 lm/W | 1042 lm/m | D |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 163.7 lm/W | 2356.6 lm/m | C | 131.3 lm/W | 1890.7 lm/m | E | — | — | — |
| 2300 K | 182.3 lm/W | 2624.4 lm/m | C | 146.3 lm/W | 2106.7 lm/m | D | 119 lm/W | 1713 lm/m | D |
| 2700 K | 192.5 lm/W | 2772.6 lm/m | B | 158.2 lm/W | 2278.1 lm/m | D | 128.2 lm/W | 1846 lm/m | E |
| 3000 K | 205.1 lm/W | 2952.9 lm/m | B | 166.5 lm/W | 2397.7 lm/m | C | 135.4 lm/W | 1949.6 lm/m | D |
| 3500 K | 208.2 lm/W | 2997.5 lm/m | B | 169.5 lm/W | 2440.5 lm/m | C | 139.5 lm/W | 2008.5 lm/m | D |
| 4000 K | 214.9 lm/W | 3094 lm/m | A | 173.6 lm/W | 2499.4 lm/m | C | 143.3 lm/W | 2063.8 lm/m | D |
| 5000 K | 214.6 lm/W | 3090.4 lm/m | A | 173.4 lm/W | 2497.7 lm/m | C | 141.9 lm/W | 2043.2 lm/m | D |
| 6500 K | 196.6 lm/W | 2831.5 lm/m | B | 166.4 lm/W | 2395.9 lm/m | C | 137.6 lm/W | 1981.3 lm/m | D |
Grade DL (2nd Tier) · 21.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 155.6 lm/W | 3360.6 lm/m | D | 124.8 lm/W | 2696.1 lm/m | E | — | — | — |
| 2300 K | 173.3 lm/W | 3742.5 lm/m | C | 139.1 lm/W | 3004.2 lm/m | D | 113.1 lm/W | 2442.7 lm/m | D |
| 2700 K | 183 lm/W | 3953.8 lm/m | C | 150.4 lm/W | 3248.6 lm/m | D | 121.9 lm/W | 2632.5 lm/m | E |
| 3000 K | 194.9 lm/W | 4210.9 lm/m | B | 158.3 lm/W | 3419.1 lm/m | D | 128.7 lm/W | 2780.1 lm/m | E |
| 3500 K | 197.9 lm/W | 4274.6 lm/m | B | 161.1 lm/W | 3480.2 lm/m | C | 132.6 lm/W | 2864.1 lm/m | E |
| 4000 K | 204.3 lm/W | 4412 lm/m | B | 165 lm/W | 3564.3 lm/m | C | 136.3 lm/W | 2943.1 lm/m | D |
| 5000 K | 204 lm/W | 4407 lm/m | B | 164.9 lm/W | 3561.7 lm/m | C | 134.9 lm/W | 2913.6 lm/m | D |
| 6500 K | 186.9 lm/W | 4037.8 lm/m | B | 158.2 lm/W | 3416.6 lm/m | D | 130.8 lm/W | 2825.3 lm/m | D |
Grade DL (2nd Tier) · 28.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 147.9 lm/W | 4259.8 lm/m | D | 118.7 lm/W | 3417.5 lm/m | E | — | — | — |
| 2300 K | 164.7 lm/W | 4743.9 lm/m | C | 132.2 lm/W | 3808 lm/m | E | 107.5 lm/W | 3096.4 lm/m | E |
| 2700 K | 174 lm/W | 5011.7 lm/m | C | 143 lm/W | 4117.8 lm/m | D | 115.9 lm/W | 3336.8 lm/m | E |
| 3000 K | 185.3 lm/W | 5337.7 lm/m | B | 150.5 lm/W | 4334 lm/m | D | 122.4 lm/W | 3524 lm/m | E |
| 3500 K | 188.1 lm/W | 5418.3 lm/m | B | 153.2 lm/W | 4411.5 lm/m | D | 126.1 lm/W | 3630.5 lm/m | E |
| 4000 K | 194.2 lm/W | 5592.6 lm/m | B | 156.9 lm/W | 4518 lm/m | D | 129.5 lm/W | 3730.5 lm/m | E |
| 5000 K | 194 lm/W | 5586.1 lm/m | B | 156.8 lm/W | 4514.7 lm/m | D | 128.2 lm/W | 3693.2 lm/m | E |
| 6500 K | 177.7 lm/W | 5118.2 lm/m | C | 150.4 lm/W | 4330.8 lm/m | D | 124.4 lm/W | 3581.3 lm/m | E |
Grade DL (2nd Tier) · 36W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 140.6 lm/W | 5062.1 lm/m | D | 112.8 lm/W | 4061.2 lm/m | E | — | — | — |
| 2300 K | 156.6 lm/W | 5637.4 lm/m | D | 125.7 lm/W | 4525.2 lm/m | E | 102.2 lm/W | 3679.6 lm/m | E |
| 2700 K | 165.4 lm/W | 5955.7 lm/m | C | 135.9 lm/W | 4893.4 lm/m | D | 110.1 lm/W | 3965.3 lm/m | E |
| 3000 K | 176.2 lm/W | 6343 lm/m | C | 143.1 lm/W | 5150.3 lm/m | D | 116.3 lm/W | 4187.8 lm/m | E |
| 3500 K | 178.9 lm/W | 6438.9 lm/m | C | 145.6 lm/W | 5242.4 lm/m | D | 119.8 lm/W | 4314.3 lm/m | E |
| 4000 K | 184.6 lm/W | 6646 lm/m | C | 149.1 lm/W | 5368.9 lm/m | D | 123.1 lm/W | 4433.2 lm/m | E |
| 5000 K | 184.4 lm/W | 6638.3 lm/m | C | 149 lm/W | 5365.1 lm/m | D | 121.9 lm/W | 4388.9 lm/m | E |
| 6500 K | 169 lm/W | 6082.2 lm/m | C | 143 lm/W | 5146.5 lm/m | D | 118.2 lm/W | 4255.9 lm/m | E |
Grade DN (1st Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 184.9 lm/W | 1331.5 lm/m | C | 155.8 lm/W | 1122.1 lm/m | D | — | — | — |
| 2300 K | 201.6 lm/W | 1451.6 lm/m | B | 173.8 lm/W | 1251.6 lm/m | C | 139.8 lm/W | 1006.9 lm/m | D |
| 2700 K | 217.3 lm/W | 1564.3 lm/m | B | 188.2 lm/W | 1354.9 lm/m | C | 152.5 lm/W | 1097.7 lm/m | D |
| 3000 K | 228.2 lm/W | 1643.2 lm/m | A | 198.6 lm/W | 1430 lm/m | C | 161.6 lm/W | 1163.4 lm/m | D |
| 3500 K | 231.6 lm/W | 1667.6 lm/m | A | 202.9 lm/W | 1461 lm/m | B | 167.1 lm/W | 1202.8 lm/m | D |
| 4000 K | 235.9 lm/W | 1698.6 lm/m | A | 204.1 lm/W | 1469.5 lm/m | B | 168.5 lm/W | 1213.1 lm/m | D |
| 5000 K | 235.7 lm/W | 1696.7 lm/m | A | 205.4 lm/W | 1478.9 lm/m | B | 166.8 lm/W | 1201 lm/m | D |
| 6500 K | 225.9 lm/W | 1626.3 lm/m | B | 196.3 lm/W | 1413.1 lm/m | C | 161.8 lm/W | 1164.6 lm/m | D |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 175.8 lm/W | 2531.6 lm/m | C | 148.2 lm/W | 2133.5 lm/m | D | — | — | — |
| 2300 K | 191.7 lm/W | 2760.1 lm/m | C | 165.3 lm/W | 2379.8 lm/m | D | 133 lm/W | 1914.5 lm/m | D |
| 2700 K | 206.6 lm/W | 2974.3 lm/m | B | 178.9 lm/W | 2576.2 lm/m | C | 144.9 lm/W | 2087 lm/m | E |
| 3000 K | 217 lm/W | 3124.3 lm/m | B | 188.8 lm/W | 2719 lm/m | C | 153.6 lm/W | 2212 lm/m | D |
| 3500 K | 220.2 lm/W | 3170.7 lm/m | B | 192.9 lm/W | 2778 lm/m | C | 158.8 lm/W | 2287 lm/m | D |
| 4000 K | 224.3 lm/W | 3229.6 lm/m | B | 194 lm/W | 2794 lm/m | C | 160.2 lm/W | 2306.6 lm/m | D |
| 5000 K | 224 lm/W | 3226.1 lm/m | B | 195.3 lm/W | 2811.9 lm/m | C | 158.6 lm/W | 2283.6 lm/m | D |
| 6500 K | 214.7 lm/W | 3092.2 lm/m | B | 186.6 lm/W | 2686.9 lm/m | C | 153.8 lm/W | 2214.4 lm/m | D |
Grade DN (1st Tier) · 21.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 167.1 lm/W | 3610.1 lm/m | D | 140.8 lm/W | 3042.4 lm/m | E | — | — | — |
| 2300 K | 182.2 lm/W | 3936 lm/m | C | 157.1 lm/W | 3393.7 lm/m | D | 126.4 lm/W | 2730.1 lm/m | D |
| 2700 K | 196.4 lm/W | 4241.5 lm/m | C | 170.1 lm/W | 3673.7 lm/m | D | 137.8 lm/W | 2976.2 lm/m | E |
| 3000 K | 206.3 lm/W | 4455.3 lm/m | B | 179.5 lm/W | 3877.4 lm/m | C | 146 lm/W | 3154.4 lm/m | D |
| 3500 K | 209.3 lm/W | 4521.5 lm/m | B | 183.4 lm/W | 3961.4 lm/m | C | 151 lm/W | 3261.3 lm/m | D |
| 4000 K | 213.2 lm/W | 4605.5 lm/m | B | 184.5 lm/W | 3984.3 lm/m | C | 152.3 lm/W | 3289.3 lm/m | D |
| 5000 K | 213 lm/W | 4600.4 lm/m | B | 185.6 lm/W | 4009.8 lm/m | C | 150.8 lm/W | 3256.4 lm/m | D |
| 6500 K | 204.1 lm/W | 4409.5 lm/m | B | 177.4 lm/W | 3831.6 lm/m | C | 146.2 lm/W | 3157.7 lm/m | D |
Grade DN (1st Tier) · 28.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 158.9 lm/W | 4576.1 lm/m | D | 133.9 lm/W | 3856.4 lm/m | E | — | — | — |
| 2300 K | 173.2 lm/W | 4989.1 lm/m | C | 149.4 lm/W | 4301.7 lm/m | D | 120.2 lm/W | 3460.6 lm/m | E |
| 2700 K | 186.7 lm/W | 5376.4 lm/m | C | 161.7 lm/W | 4656.7 lm/m | D | 131 lm/W | 3772.5 lm/m | E |
| 3000 K | 196.1 lm/W | 5647.5 lm/m | C | 170.7 lm/W | 4914.9 lm/m | D | 138.8 lm/W | 3998.4 lm/m | E |
| 3500 K | 199 lm/W | 5731.4 lm/m | C | 174.4 lm/W | 5021.4 lm/m | C | 143.5 lm/W | 4133.9 lm/m | E |
| 4000 K | 202.7 lm/W | 5837.9 lm/m | B | 175.4 lm/W | 5050.4 lm/m | C | 144.8 lm/W | 4169.4 lm/m | E |
| 5000 K | 202.5 lm/W | 5831.4 lm/m | B | 176.5 lm/W | 5082.7 lm/m | C | 143.3 lm/W | 4127.7 lm/m | E |
| 6500 K | 194.1 lm/W | 5589.4 lm/m | C | 168.6 lm/W | 4856.8 lm/m | D | 139 lm/W | 4002.7 lm/m | E |
Grade DN (1st Tier) · 36W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 151.1 lm/W | 5438 lm/m | D | 127.3 lm/W | 4582.8 lm/m | E | — | — | — |
| 2300 K | 164.7 lm/W | 5928.8 lm/m | D | 142 lm/W | 5112 lm/m | E | 114.2 lm/W | 4112.4 lm/m | E |
| 2700 K | 177.5 lm/W | 6389 lm/m | C | 153.7 lm/W | 5533.8 lm/m | D | 124.5 lm/W | 4483.1 lm/m | E |
| 3000 K | 186.4 lm/W | 6711.2 lm/m | C | 162.2 lm/W | 5840.6 lm/m | D | 132 lm/W | 4751.5 lm/m | E |
| 3500 K | 189.2 lm/W | 6810.9 lm/m | C | 165.8 lm/W | 5967.2 lm/m | D | 136.5 lm/W | 4912.6 lm/m | E |
| 4000 K | 192.7 lm/W | 6937.4 lm/m | C | 166.7 lm/W | 6001.7 lm/m | D | 137.6 lm/W | 4954.8 lm/m | E |
| 5000 K | 192.5 lm/W | 6929.7 lm/m | C | 167.8 lm/W | 6040 lm/m | D | 136.3 lm/W | 4905.2 lm/m | E |
| 6500 K | 184.5 lm/W | 6642.1 lm/m | C | 160.3 lm/W | 5771.6 lm/m | D | 132.1 lm/W | 4756.6 lm/m | E |
Grade KE (3rd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 145.7 lm/W | 1048.8 lm/m | D | 116.7 lm/W | 840.4 lm/m | E | — | — | — |
| 2300 K | 162.4 lm/W | 1169 lm/m | C | 130 lm/W | 936.2 lm/m | E | 106.4 lm/W | 766.1 lm/m | E |
| 2700 K | 175 lm/W | 1260.1 lm/m | C | 141.1 lm/W | 1016 lm/m | D | 114.4 lm/W | 823.5 lm/m | E |
| 3000 K | 183.9 lm/W | 1323.9 lm/m | C | 149.1 lm/W | 1073.2 lm/m | D | 121.3 lm/W | 873.2 lm/m | E |
| 3500 K | 186.6 lm/W | 1343.7 lm/m | B | 152.1 lm/W | 1094.8 lm/m | D | 125.1 lm/W | 900.5 lm/m | E |
| 4000 K | 192.1 lm/W | 1383.1 lm/m | B | 155.2 lm/W | 1117.4 lm/m | D | 128.2 lm/W | 923 lm/m | E |
| 5000 K | 191.8 lm/W | 1381.2 lm/m | B | 155.2 lm/W | 1117.4 lm/m | D | 126.9 lm/W | 913.8 lm/m | E |
| 6500 K | 183.9 lm/W | 1323.9 lm/m | C | 149.1 lm/W | 1073.2 lm/m | D | 123.1 lm/W | 886.1 lm/m | E |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 138.5 lm/W | 1994.2 lm/m | D | 111 lm/W | 1597.9 lm/m | E | — | — | — |
| 2300 K | 154.4 lm/W | 2222.7 lm/m | D | 123.6 lm/W | 1780 lm/m | E | 101.2 lm/W | 1456.6 lm/m | E |
| 2700 K | 166.4 lm/W | 2395.9 lm/m | C | 134.1 lm/W | 1931.7 lm/m | E | 108.7 lm/W | 1565.7 lm/m | F |
| 3000 K | 174.8 lm/W | 2517.3 lm/m | C | 141.7 lm/W | 2040.6 lm/m | D | 115.3 lm/W | 1660.3 lm/m | E |
| 3500 K | 177.4 lm/W | 2554.8 lm/m | C | 144.6 lm/W | 2081.7 lm/m | D | 118.9 lm/W | 1712.1 lm/m | E |
| 4000 K | 182.6 lm/W | 2629.8 lm/m | C | 147.5 lm/W | 2124.5 lm/m | D | 121.9 lm/W | 1755 lm/m | E |
| 5000 K | 182.4 lm/W | 2626.2 lm/m | C | 147.5 lm/W | 2124.5 lm/m | D | 120.7 lm/W | 1737.4 lm/m | E |
| 6500 K | 174.8 lm/W | 2517.3 lm/m | C | 141.7 lm/W | 2040.6 lm/m | D | 117 lm/W | 1684.8 lm/m | E |
Grade KE (3rd Tier) · 21.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 131.7 lm/W | 2843.8 lm/m | E | 105.5 lm/W | 2278.6 lm/m | F | — | — | — |
| 2300 K | 146.7 lm/W | 3169.6 lm/m | D | 117.5 lm/W | 2538.3 lm/m | E | 96.2 lm/W | 2077.2 lm/m | E |
| 2700 K | 158.2 lm/W | 3416.6 lm/m | D | 127.5 lm/W | 2754.7 lm/m | E | 103.4 lm/W | 2232.8 lm/m | F |
| 3000 K | 166.2 lm/W | 3589.7 lm/m | C | 134.7 lm/W | 2910 lm/m | E | 109.6 lm/W | 2367.7 lm/m | F |
| 3500 K | 168.7 lm/W | 3643.2 lm/m | C | 137.4 lm/W | 2968.5 lm/m | D | 113 lm/W | 2441.5 lm/m | E |
| 4000 K | 173.6 lm/W | 3750.1 lm/m | C | 140.3 lm/W | 3029.6 lm/m | D | 115.9 lm/W | 2502.6 lm/m | E |
| 5000 K | 173.4 lm/W | 3745 lm/m | C | 140.3 lm/W | 3029.6 lm/m | D | 114.7 lm/W | 2477.6 lm/m | E |
| 6500 K | 166.2 lm/W | 3589.7 lm/m | C | 134.7 lm/W | 2910 lm/m | E | 111.2 lm/W | 2402.5 lm/m | E |
Grade KE (3rd Tier) · 28.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 125.2 lm/W | 3604.7 lm/m | E | 100.3 lm/W | 2888.3 lm/m | F | — | — | — |
| 2300 K | 139.5 lm/W | 4017.8 lm/m | D | 111.7 lm/W | 3217.4 lm/m | E | 91.4 lm/W | 2633 lm/m | E |
| 2700 K | 150.4 lm/W | 4330.8 lm/m | D | 121.2 lm/W | 3491.7 lm/m | E | 98.3 lm/W | 2830.2 lm/m | F |
| 3000 K | 158 lm/W | 4550.2 lm/m | D | 128.1 lm/W | 3688.6 lm/m | E | 104.2 lm/W | 3001.2 lm/m | F |
| 3500 K | 160.3 lm/W | 4618 lm/m | C | 130.7 lm/W | 3762.8 lm/m | E | 107.5 lm/W | 3094.8 lm/m | F |
| 4000 K | 165.1 lm/W | 4753.5 lm/m | C | 133.3 lm/W | 3840.3 lm/m | E | 110.1 lm/W | 3172.3 lm/m | E |
| 5000 K | 164.8 lm/W | 4747.1 lm/m | C | 133.3 lm/W | 3840.3 lm/m | E | 109 lm/W | 3140.5 lm/m | E |
| 6500 K | 158 lm/W | 4550.2 lm/m | D | 128.1 lm/W | 3688.6 lm/m | E | 105.7 lm/W | 3045.4 lm/m | E |
Grade KE (3rd Tier) · 36W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 119 lm/W | 4283.6 lm/m | E | 95.3 lm/W | 3432.3 lm/m | F | — | — | — |
| 2300 K | 132.6 lm/W | 4774.5 lm/m | E | 106.2 lm/W | 3823.4 lm/m | F | 86.9 lm/W | 3128.9 lm/m | F |
| 2700 K | 143 lm/W | 5146.5 lm/m | D | 115.3 lm/W | 4149.4 lm/m | E | 93.4 lm/W | 3363.2 lm/m | F |
| 3000 K | 150.2 lm/W | 5407.3 lm/m | D | 121.8 lm/W | 4383.3 lm/m | E | 99.1 lm/W | 3566.5 lm/m | F |
| 3500 K | 152.4 lm/W | 5487.8 lm/m | D | 124.2 lm/W | 4471.5 lm/m | E | 102.2 lm/W | 3677.7 lm/m | F |
| 4000 K | 156.9 lm/W | 5648.9 lm/m | D | 126.8 lm/W | 4563.6 lm/m | E | 104.7 lm/W | 3769.8 lm/m | F |
| 5000 K | 156.7 lm/W | 5641.2 lm/m | D | 126.8 lm/W | 4563.6 lm/m | E | 103.7 lm/W | 3732.1 lm/m | F |
| 6500 K | 150.2 lm/W | 5407.3 lm/m | D | 121.8 lm/W | 4383.3 lm/m | E | 100.5 lm/W | 3619 lm/m | F |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 36W/m, 16705 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 64mm wide, so it needs at least 66mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- 2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 16705?
16705: 2835, 960 LEDs/m, DC 24V, 64 PCB, 3oz copper FPCB, cuttable 32LEDs/33.333mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this wide PCB LED strip be?
Maximum single run for this model is 7m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a wide PCB LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this wide PCB LED strip for a project?
Yes. DENO manufactures the Wide SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Why use a wide LED strip PCB?
A 15 or 20 mm LED strip gives more copper area, so it dissipates heat better and carries more current. That is what allows high power builds above 25 W/m to run cooler, keep lumen maintenance high and support longer single feeds than a narrow board.
Which LED driver and run length suit #16705?
Multi-Line Four-Row High-Density LED LED Strip Light | 64mm | 24V | 960LEDs | 33.333mm/cut | #16705 is a constant-voltage DC 24V product, so pair it with a CE or UL listed DC 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 7m. 7m Single/14m Dual Input power Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- Wide PCB LED Strips series — Wide PCB LED Strip — Brightest, High Lumen Builds
- LED strip engineering selection handbook
