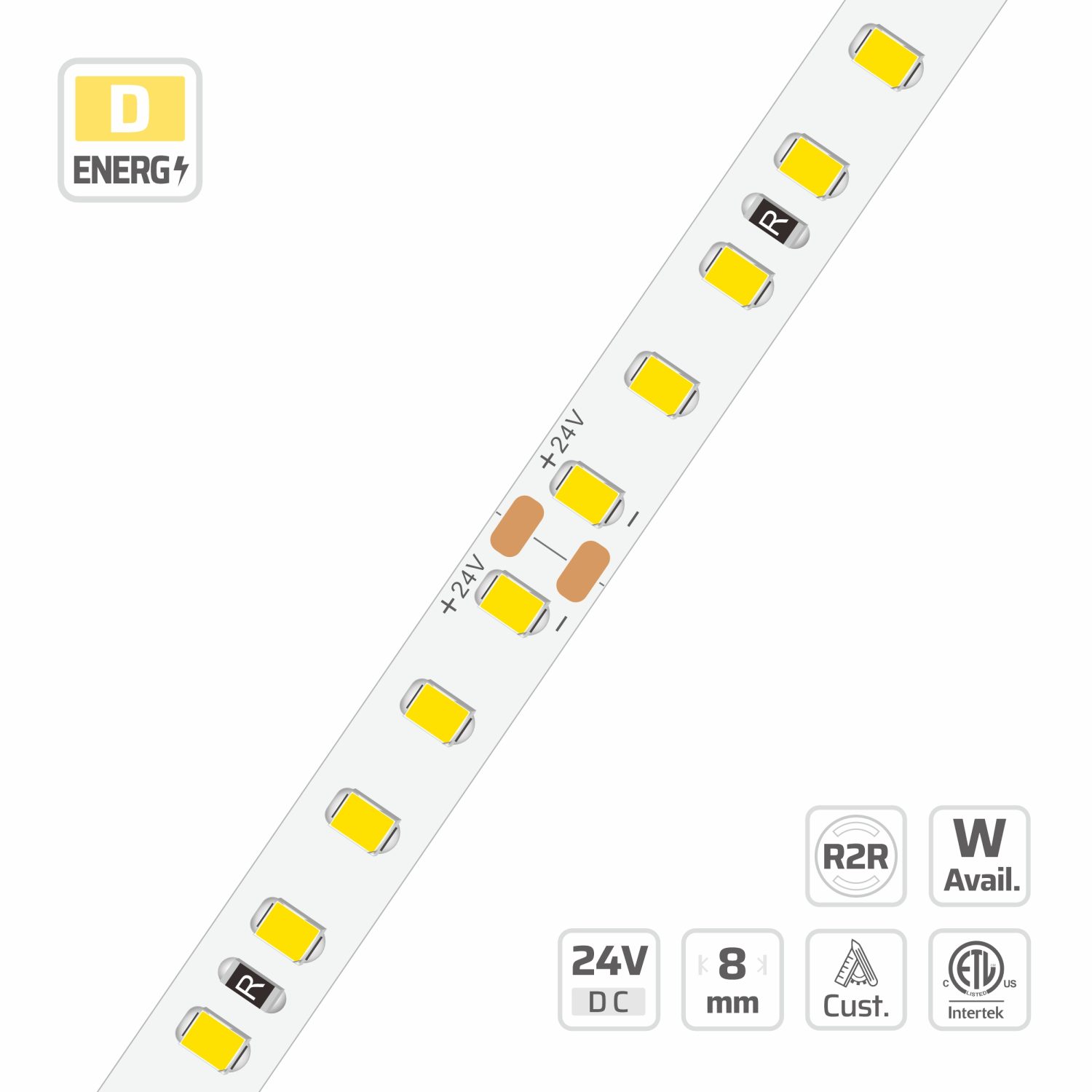

Roll-to-Roll Long Reel LED Strip Light (#16777)
8mm · 24V · 126LEDs · 55.55mm/cut
Model: 16777
Overview
Roll-to-Roll Long Reel LED Strip Light | 8mm | 24V | 126LEDs | 55.55mm/cut | #16777 is part of the DENO Roll-to-Roll SMD Strips series, engineered around roll to roll LED strip. Key specifications: 2835, 126 LEDs/m, 24V, 8 PCB, 2oz copper FPCB, cuttable 7LEDs/55.55mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request. This model uses DENO's electroplated, non-die-cut R2R FPCB, with no intermediate PCB splice joints inside the specified continuous length. Cutting interval, rated run length and planned feed positions remain model-specific.
Description
Built on DENO's electroplated, non-die-cut R2R FPCB, this model has no intermediate PCB splice joints within its specified continuous length. Cutting interval, rated run length and feed positions remain model-specific.\nContinuous roll-to-roll manufacturing produces a long-reel LED strip light with no intermediate PCB splice joints, improving electrical stability along the run. Engineered with 126 2835 SMD LEDs per meter on an 8mm 2oz copper PCB, this strip ensures efficient heat dissipation and uniform 120-degree light distribution. Operating on a 24V constant voltage circuit, the flexible tape supports smooth dimming and features precise cut points every 7 LEDs or 55.55mm. Because the whole roll is assembled in one continuous placement pass, LED alignment and solder fillets stay consistent throughout the reel. This versatile LED strip light is ideal for architectural lighting and retail displays, available for factory-direct wholesale project supply and OEM orders.
Roll To Roll Led Strip built for roll-to-roll smd strips projects.
Specifications
| LED QTY | 126 LEDs/m |
|---|---|
| PART NO | DL-F28A63V24-16777-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 7LEDs/55.55mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 7.936mm |
| PCB WIDTH | 8 |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 2oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #16777
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 179.8 lm/W at 4000K, Ra 80, ErP energy class C (Grade DN (1st Tier) · 9.6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 130.8 lm/W | 1256.1 lm/m | E | 104.9 lm/W | 1007.2 lm/m | F | — | — | — |
| 2300 K | 145.7 lm/W | 1398.6 lm/m | D | 116.9 lm/W | 1122.4 lm/m | E | 95.1 lm/W | 912.9 lm/m | E |
| 2700 K | 153.9 lm/W | 1477.6 lm/m | D | 126.5 lm/W | 1214.1 lm/m | E | 102.5 lm/W | 983.8 lm/m | F |
| 3000 K | 164 lm/W | 1574.3 lm/m | C | 133.1 lm/W | 1277.6 lm/m | E | 108.3 lm/W | 1039.4 lm/m | F |
| 3500 K | 166.4 lm/W | 1597.7 lm/m | C | 135.5 lm/W | 1301 lm/m | D | 111.5 lm/W | 1070.6 lm/m | E |
| 4000 K | 171.7 lm/W | 1648.4 lm/m | C | 138.8 lm/W | 1332.2 lm/m | D | 114.6 lm/W | 1099.9 lm/m | E |
| 5000 K | 171.5 lm/W | 1646.5 lm/m | C | 138.7 lm/W | 1331.2 lm/m | D | 113.4 lm/W | 1088.9 lm/m | E |
| 6500 K | 157.2 lm/W | 1508.9 lm/m | D | 133 lm/W | 1276.6 lm/m | E | 110 lm/W | 1055.9 lm/m | E |
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 128.7 lm/W | 1543.9 lm/m | E | 103.2 lm/W | 1238 lm/m | F | — | — | — |
| 2300 K | 143.2 lm/W | 1719 lm/m | D | 115 lm/W | 1379.5 lm/m | E | 93.5 lm/W | 1122.1 lm/m | E |
| 2700 K | 151.3 lm/W | 1816.2 lm/m | D | 124.4 lm/W | 1492.3 lm/m | E | 100.8 lm/W | 1209.2 lm/m | F |
| 3000 K | 161.2 lm/W | 1934.9 lm/m | C | 130.9 lm/W | 1570.2 lm/m | E | 106.5 lm/W | 1277.6 lm/m | F |
| 3500 K | 163.6 lm/W | 1963.7 lm/m | C | 133.3 lm/W | 1599 lm/m | E | 109.7 lm/W | 1315.9 lm/m | F |
| 4000 K | 168.8 lm/W | 2026.1 lm/m | C | 136.5 lm/W | 1637.4 lm/m | D | 112.7 lm/W | 1351.9 lm/m | E |
| 5000 K | 168.6 lm/W | 2023.7 lm/m | C | 136.4 lm/W | 1636.2 lm/m | D | 111.5 lm/W | 1338.4 lm/m | E |
| 6500 K | 154.5 lm/W | 1854.5 lm/m | D | 130.8 lm/W | 1569 lm/m | E | 108.2 lm/W | 1297.8 lm/m | E |
Grade DL (2nd Tier) · 16W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 125.1 lm/W | 2001.4 lm/m | E | 100.3 lm/W | 1604.9 lm/m | F | — | — | — |
| 2300 K | 139.3 lm/W | 2228.5 lm/m | D | 111.8 lm/W | 1788.4 lm/m | E | 90.9 lm/W | 1454.7 lm/m | F |
| 2700 K | 147.2 lm/W | 2354.5 lm/m | D | 120.9 lm/W | 1934.6 lm/m | E | 98 lm/W | 1567.6 lm/m | F |
| 3000 K | 156.8 lm/W | 2508.4 lm/m | D | 127.2 lm/W | 2035.7 lm/m | E | 103.5 lm/W | 1656.2 lm/m | F |
| 3500 K | 159.1 lm/W | 2545.7 lm/m | D | 129.6 lm/W | 2073 lm/m | E | 106.6 lm/W | 1706 lm/m | F |
| 4000 K | 164.2 lm/W | 2626.6 lm/m | C | 132.7 lm/W | 2122.7 lm/m | E | 109.5 lm/W | 1752.6 lm/m | F |
| 5000 K | 164 lm/W | 2623.5 lm/m | C | 132.6 lm/W | 2121.2 lm/m | E | 108.4 lm/W | 1735.1 lm/m | F |
| 6500 K | 150.3 lm/W | 2404.2 lm/m | D | 127.1 lm/W | 2034.1 lm/m | E | 105.2 lm/W | 1682.5 lm/m | F |
Grade DL (2nd Tier) · 21W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 120.8 lm/W | 2536.2 lm/m | E | 96.8 lm/W | 2033.7 lm/m | F | — | — | — |
| 2300 K | 134.5 lm/W | 2823.9 lm/m | E | 107.9 lm/W | 2266.3 lm/m | F | 87.8 lm/W | 1843.4 lm/m | F |
| 2700 K | 142.1 lm/W | 2983.6 lm/m | D | 116.7 lm/W | 2451.5 lm/m | E | 94.6 lm/W | 1986.4 lm/m | F |
| 3000 K | 151.4 lm/W | 3178.7 lm/m | D | 122.8 lm/W | 2579.6 lm/m | E | 99.9 lm/W | 2098.7 lm/m | F |
| 3500 K | 153.6 lm/W | 3226 lm/m | D | 125.1 lm/W | 2626.9 lm/m | E | 102.9 lm/W | 2161.8 lm/m | F |
| 4000 K | 158.5 lm/W | 3328.4 lm/m | D | 128.1 lm/W | 2689.9 lm/m | E | 105.8 lm/W | 2220.9 lm/m | F |
| 5000 K | 158.3 lm/W | 3324.5 lm/m | D | 128 lm/W | 2688 lm/m | E | 104.7 lm/W | 2198.7 lm/m | F |
| 6500 K | 145.1 lm/W | 3046.6 lm/m | D | 122.7 lm/W | 2577.6 lm/m | E | 101.5 lm/W | 2132.1 lm/m | F |
Grade DL (2nd Tier) · 26W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 116.6 lm/W | 3031.7 lm/m | E | 93.5 lm/W | 2431 lm/m | F | — | — | — |
| 2300 K | 129.8 lm/W | 3375.6 lm/m | E | 104.2 lm/W | 2709 lm/m | F | 84.7 lm/W | 2203.5 lm/m | F |
| 2700 K | 137.2 lm/W | 3566.5 lm/m | D | 112.7 lm/W | 2930.4 lm/m | E | 91.3 lm/W | 2374.5 lm/m | F |
| 3000 K | 146.1 lm/W | 3799.7 lm/m | D | 118.6 lm/W | 3083.5 lm/m | E | 96.5 lm/W | 2508.8 lm/m | F |
| 3500 K | 148.3 lm/W | 3856.2 lm/m | D | 120.8 lm/W | 3140.1 lm/m | E | 99.4 lm/W | 2584.1 lm/m | F |
| 4000 K | 153 lm/W | 3978.7 lm/m | D | 123.7 lm/W | 3215.5 lm/m | E | 102.1 lm/W | 2654.8 lm/m | F |
| 5000 K | 152.8 lm/W | 3974 lm/m | D | 123.6 lm/W | 3213.1 lm/m | E | 101.1 lm/W | 2628.3 lm/m | F |
| 6500 K | 140.1 lm/W | 3641.8 lm/m | D | 118.5 lm/W | 3081.2 lm/m | E | 98 lm/W | 2548.6 lm/m | F |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 140.9 lm/W | 1352.7 lm/m | E | 118.7 lm/W | 1139.9 lm/m | F | — | — | — |
| 2300 K | 153.6 lm/W | 1474.7 lm/m | D | 132.5 lm/W | 1271.7 lm/m | E | 106.6 lm/W | 1023.1 lm/m | E |
| 2700 K | 165.6 lm/W | 1589.9 lm/m | D | 143.4 lm/W | 1377.1 lm/m | E | 116.2 lm/W | 1115.5 lm/m | F |
| 3000 K | 173.9 lm/W | 1669.9 lm/m | C | 151.4 lm/W | 1453.2 lm/m | D | 123.1 lm/W | 1181.9 lm/m | E |
| 3500 K | 176.5 lm/W | 1694.3 lm/m | C | 154.6 lm/W | 1484.5 lm/m | D | 127.3 lm/W | 1221.9 lm/m | E |
| 4000 K | 179.8 lm/W | 1726.5 lm/m | C | 155.5 lm/W | 1493.2 lm/m | D | 128.4 lm/W | 1232.7 lm/m | E |
| 5000 K | 179.6 lm/W | 1724.6 lm/m | C | 156.6 lm/W | 1503 lm/m | D | 127.1 lm/W | 1220.3 lm/m | E |
| 6500 K | 172.2 lm/W | 1653.3 lm/m | D | 149.5 lm/W | 1435.7 lm/m | D | 123.3 lm/W | 1183.4 lm/m | E |
Grade DN (1st Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 138.6 lm/W | 1662.6 lm/m | E | 116.8 lm/W | 1401.1 lm/m | F | — | — | — |
| 2300 K | 151 lm/W | 1812.6 lm/m | D | 130.3 lm/W | 1563.1 lm/m | E | 104.8 lm/W | 1257.5 lm/m | E |
| 2700 K | 162.8 lm/W | 1954.1 lm/m | D | 141.1 lm/W | 1692.6 lm/m | E | 114.3 lm/W | 1371.1 lm/m | F |
| 3000 K | 171 lm/W | 2052.5 lm/m | D | 148.8 lm/W | 1786.2 lm/m | D | 121.1 lm/W | 1452.7 lm/m | E |
| 3500 K | 173.5 lm/W | 2082.5 lm/m | C | 152 lm/W | 1824.6 lm/m | D | 125.2 lm/W | 1501.9 lm/m | E |
| 4000 K | 176.8 lm/W | 2122.1 lm/m | C | 152.9 lm/W | 1835.4 lm/m | D | 126.3 lm/W | 1515.1 lm/m | E |
| 5000 K | 176.6 lm/W | 2119.7 lm/m | C | 153.9 lm/W | 1847.4 lm/m | D | 125 lm/W | 1499.9 lm/m | E |
| 6500 K | 169.3 lm/W | 2032.1 lm/m | D | 147 lm/W | 1764.6 lm/m | D | 121.2 lm/W | 1454.5 lm/m | E |
Grade DN (1st Tier) · 16W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 134.7 lm/W | 2155.4 lm/m | E | 113.5 lm/W | 1816.4 lm/m | F | — | — | — |
| 2300 K | 146.9 lm/W | 2349.8 lm/m | D | 126.6 lm/W | 2026.3 lm/m | E | 101.9 lm/W | 1630.2 lm/m | E |
| 2700 K | 158.3 lm/W | 2533.3 lm/m | D | 137.1 lm/W | 2194.3 lm/m | E | 111.1 lm/W | 1777.5 lm/m | F |
| 3000 K | 166.3 lm/W | 2660.8 lm/m | D | 144.7 lm/W | 2315.6 lm/m | E | 117.7 lm/W | 1883.3 lm/m | F |
| 3500 K | 168.7 lm/W | 2699.7 lm/m | D | 147.8 lm/W | 2365.3 lm/m | D | 121.7 lm/W | 1947 lm/m | E |
| 4000 K | 171.9 lm/W | 2751 lm/m | D | 148.7 lm/W | 2379.3 lm/m | D | 122.8 lm/W | 1964.1 lm/m | E |
| 5000 K | 171.7 lm/W | 2747.9 lm/m | D | 149.7 lm/W | 2394.9 lm/m | D | 121.5 lm/W | 1944.5 lm/m | E |
| 6500 K | 164.6 lm/W | 2634.4 lm/m | D | 143 lm/W | 2287.6 lm/m | E | 117.8 lm/W | 1885.6 lm/m | E |
Grade DN (1st Tier) · 21W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 130.1 lm/W | 2731.3 lm/m | E | 109.6 lm/W | 2301.7 lm/m | F | — | — | — |
| 2300 K | 141.8 lm/W | 2977.7 lm/m | E | 122.3 lm/W | 2567.8 lm/m | E | 98.4 lm/W | 2065.8 lm/m | F |
| 2700 K | 152.9 lm/W | 3210.2 lm/m | D | 132.4 lm/W | 2780.6 lm/m | E | 107.3 lm/W | 2252.5 lm/m | F |
| 3000 K | 160.6 lm/W | 3371.8 lm/m | D | 139.7 lm/W | 2934.3 lm/m | E | 113.6 lm/W | 2386.5 lm/m | F |
| 3500 K | 162.9 lm/W | 3421.1 lm/m | D | 142.7 lm/W | 2997.4 lm/m | E | 117.5 lm/W | 2467.3 lm/m | F |
| 4000 K | 166 lm/W | 3486.1 lm/m | D | 143.6 lm/W | 3015.1 lm/m | E | 118.5 lm/W | 2488.9 lm/m | F |
| 5000 K | 165.8 lm/W | 3482.1 lm/m | D | 144.5 lm/W | 3034.8 lm/m | E | 117.3 lm/W | 2464 lm/m | F |
| 6500 K | 159 lm/W | 3338.3 lm/m | D | 138 lm/W | 2898.8 lm/m | E | 113.8 lm/W | 2389.4 lm/m | F |
Grade DN (1st Tier) · 26W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 125.6 lm/W | 3264.9 lm/m | E | 105.8 lm/W | 2751.4 lm/m | F | — | — | — |
| 2300 K | 136.9 lm/W | 3559.4 lm/m | E | 118.1 lm/W | 3069.4 lm/m | F | 95 lm/W | 2469.4 lm/m | F |
| 2700 K | 147.6 lm/W | 3837.3 lm/m | D | 127.8 lm/W | 3323.8 lm/m | E | 103.6 lm/W | 2692.5 lm/m | F |
| 3000 K | 155 lm/W | 4030.5 lm/m | D | 134.9 lm/W | 3507.6 lm/m | E | 109.7 lm/W | 2852.7 lm/m | F |
| 3500 K | 157.3 lm/W | 4089.4 lm/m | D | 137.8 lm/W | 3582.9 lm/m | E | 113.4 lm/W | 2949.3 lm/m | F |
| 4000 K | 160.3 lm/W | 4167.1 lm/m | D | 138.6 lm/W | 3604.1 lm/m | E | 114.4 lm/W | 2975.2 lm/m | F |
| 5000 K | 160.1 lm/W | 4162.4 lm/m | D | 139.5 lm/W | 3627.7 lm/m | E | 113.3 lm/W | 2945.4 lm/m | F |
| 6500 K | 153.5 lm/W | 3990.5 lm/m | D | 133.3 lm/W | 3465.2 lm/m | E | 109.9 lm/W | 2856.2 lm/m | F |
Grade KE (3rd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 110.2 lm/W | 1058 lm/m | E | 88.2 lm/W | 847.1 lm/m | F | — | — | — |
| 2300 K | 122.9 lm/W | 1180 lm/m | E | 98.3 lm/W | 943.8 lm/m | F | 80.4 lm/W | 772 lm/m | F |
| 2700 K | 132.5 lm/W | 1271.7 lm/m | E | 106.7 lm/W | 1024.8 lm/m | F | 86.5 lm/W | 830.6 lm/m | F |
| 3000 K | 139.1 lm/W | 1335.1 lm/m | D | 112.7 lm/W | 1082.4 lm/m | E | 91.7 lm/W | 880.3 lm/m | F |
| 3500 K | 141.2 lm/W | 1355.6 lm/m | D | 115 lm/W | 1103.8 lm/m | E | 94.6 lm/W | 908.6 lm/m | F |
| 4000 K | 145.3 lm/W | 1394.7 lm/m | D | 117.4 lm/W | 1127.3 lm/m | E | 96.9 lm/W | 930.1 lm/m | F |
| 5000 K | 145.1 lm/W | 1392.7 lm/m | D | 117.4 lm/W | 1127.3 lm/m | E | 95.9 lm/W | 920.8 lm/m | F |
| 6500 K | 139.1 lm/W | 1335.1 lm/m | D | 112.7 lm/W | 1082.4 lm/m | E | 93 lm/W | 892.9 lm/m | F |
Grade KE (3rd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 108.4 lm/W | 1300.3 lm/m | F | 86.8 lm/W | 1041.2 lm/m | F | — | — | — |
| 2300 K | 120.9 lm/W | 1450.3 lm/m | E | 96.7 lm/W | 1160 lm/m | F | 79.1 lm/W | 948.9 lm/m | F |
| 2700 K | 130.3 lm/W | 1563.1 lm/m | E | 105 lm/W | 1259.6 lm/m | F | 85.1 lm/W | 1020.8 lm/m | F |
| 3000 K | 136.8 lm/W | 1641 lm/m | D | 110.9 lm/W | 1330.3 lm/m | E | 90.2 lm/W | 1082 lm/m | F |
| 3500 K | 138.9 lm/W | 1666.2 lm/m | D | 113.1 lm/W | 1356.7 lm/m | E | 93.1 lm/W | 1116.8 lm/m | F |
| 4000 K | 142.8 lm/W | 1714.2 lm/m | D | 115.5 lm/W | 1385.5 lm/m | E | 95.3 lm/W | 1143.2 lm/m | F |
| 5000 K | 142.6 lm/W | 1711.8 lm/m | D | 115.5 lm/W | 1385.5 lm/m | E | 94.3 lm/W | 1131.8 lm/m | F |
| 6500 K | 136.8 lm/W | 1641 lm/m | D | 110.9 lm/W | 1330.3 lm/m | E | 91.5 lm/W | 1097.5 lm/m | F |
Grade KE (3rd Tier) · 16W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 105.4 lm/W | 1685.8 lm/m | F | 84.4 lm/W | 1349.8 lm/m | G | — | — | — |
| 2300 K | 117.5 lm/W | 1880.1 lm/m | E | 94 lm/W | 1503.8 lm/m | F | 76.9 lm/W | 1230.1 lm/m | F |
| 2700 K | 126.6 lm/W | 2026.3 lm/m | E | 102.1 lm/W | 1632.9 lm/m | F | 82.7 lm/W | 1323.4 lm/m | G |
| 3000 K | 133 lm/W | 2127.4 lm/m | E | 107.8 lm/W | 1724.6 lm/m | F | 87.7 lm/W | 1402.7 lm/m | F |
| 3500 K | 135 lm/W | 2160.1 lm/m | D | 109.9 lm/W | 1758.8 lm/m | F | 90.5 lm/W | 1447.8 lm/m | F |
| 4000 K | 138.9 lm/W | 2222.3 lm/m | D | 112.3 lm/W | 1796.2 lm/m | E | 92.6 lm/W | 1482 lm/m | F |
| 5000 K | 138.7 lm/W | 2219.2 lm/m | D | 112.3 lm/W | 1796.2 lm/m | E | 91.7 lm/W | 1467.2 lm/m | F |
| 6500 K | 133 lm/W | 2127.4 lm/m | E | 107.8 lm/W | 1724.6 lm/m | F | 88.9 lm/W | 1422.7 lm/m | F |
Grade KE (3rd Tier) · 21W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 101.7 lm/W | 2136.2 lm/m | F | 81.5 lm/W | 1710.5 lm/m | G | — | — | — |
| 2300 K | 113.5 lm/W | 2382.5 lm/m | E | 90.7 lm/W | 1905.6 lm/m | F | 74.2 lm/W | 1558.8 lm/m | F |
| 2700 K | 122.3 lm/W | 2567.8 lm/m | E | 98.5 lm/W | 2069.2 lm/m | F | 79.9 lm/W | 1677 lm/m | G |
| 3000 K | 128.4 lm/W | 2695.9 lm/m | E | 104.1 lm/W | 2185.5 lm/m | F | 84.6 lm/W | 1777.5 lm/m | G |
| 3500 K | 130.3 lm/W | 2737.2 lm/m | E | 106.1 lm/W | 2228.8 lm/m | F | 87.4 lm/W | 1834.7 lm/m | F |
| 4000 K | 134.1 lm/W | 2816.1 lm/m | E | 108.4 lm/W | 2276.1 lm/m | F | 89.4 lm/W | 1878 lm/m | F |
| 5000 K | 133.9 lm/W | 2812.1 lm/m | E | 108.4 lm/W | 2276.1 lm/m | F | 88.5 lm/W | 1859.3 lm/m | F |
| 6500 K | 128.4 lm/W | 2695.9 lm/m | E | 104.1 lm/W | 2185.5 lm/m | F | 85.9 lm/W | 1802.9 lm/m | F |
Grade KE (3rd Tier) · 26W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 98.2 lm/W | 2553.5 lm/m | F | 78.6 lm/W | 2044.7 lm/m | G | — | — | — |
| 2300 K | 109.5 lm/W | 2848 lm/m | F | 87.6 lm/W | 2277.9 lm/m | F | 71.7 lm/W | 1863.3 lm/m | F |
| 2700 K | 118.1 lm/W | 3069.4 lm/m | E | 95.1 lm/W | 2473.4 lm/m | F | 77.1 lm/W | 2004.7 lm/m | G |
| 3000 K | 123.9 lm/W | 3222.5 lm/m | E | 100.5 lm/W | 2612.4 lm/m | F | 81.7 lm/W | 2124.8 lm/m | G |
| 3500 K | 125.8 lm/W | 3272 lm/m | E | 102.5 lm/W | 2664.2 lm/m | F | 84.4 lm/W | 2193.1 lm/m | G |
| 4000 K | 129.5 lm/W | 3366.2 lm/m | E | 104.6 lm/W | 2720.8 lm/m | F | 86.3 lm/W | 2244.9 lm/m | F |
| 5000 K | 129.3 lm/W | 3361.5 lm/m | E | 104.6 lm/W | 2720.8 lm/m | F | 85.5 lm/W | 2222.5 lm/m | F |
| 6500 K | 123.9 lm/W | 3222.5 lm/m | E | 100.5 lm/W | 2612.4 lm/m | F | 82.9 lm/W | 2155.1 lm/m | F |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 26W/m, 16777 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 8mm wide, so it needs at least 10mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 14x8mm Magnetic LED Channel · fits ≤8mm strip
- 13x13mm Magnetic Cabinet LED Channel · fits ≤8mm strip
- 12x15mm Surface Mount LED Channel · fits ≤8mm strip
- Slim Recessed Aluminum Profile · 8mm PCB · fits ≤8mm strip
- 14.2x9.8mm Recessed LED Channel with Flange · fits ≤8mm strip
- 14x8mm Surface Mount LED Channel · fits ≤8mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- 2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 16777?
16777: 2835, 126 LEDs/m, 24V, 8 PCB, 2oz copper FPCB, cuttable 7LEDs/55.55mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this roll to roll LED strip different?
It is built as a roll to roll LED strip on 2oz copper FPCB with a cutting unit of 7LEDs/55.55mm and an LED pitch of 7.936mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this roll to roll LED strip for a project?
Yes. DENO manufactures the Roll-to-Roll SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How long can this LED strip roll run in one continuous piece?
This model ships as a continuous roll-to-roll reel with no mid-reel solder joints, so custom single runs beyond the standard 5 m are available. Keep the run within a 3% voltage drop: lower power densities support up to 20 m single-end, higher densities need a both-ends or mid-feed connection. Use the DENO ProCalc voltage-drop tool to confirm the exact limit for your length.
Why choose a roll-to-roll strip over a standard 5 m LED strip reel?
The electroplated continuous FPCB keeps copper thickness uniform along the whole reel, so resistance stays low, brightness stays even end to end, and there are no pieced solder points that can fail during bending or long-run installation.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- Roll-to-Roll LED strip rolls series — Roll-to-Roll (R2R) LED Strip — Buyer Questions
- LED strip engineering selection handbook
