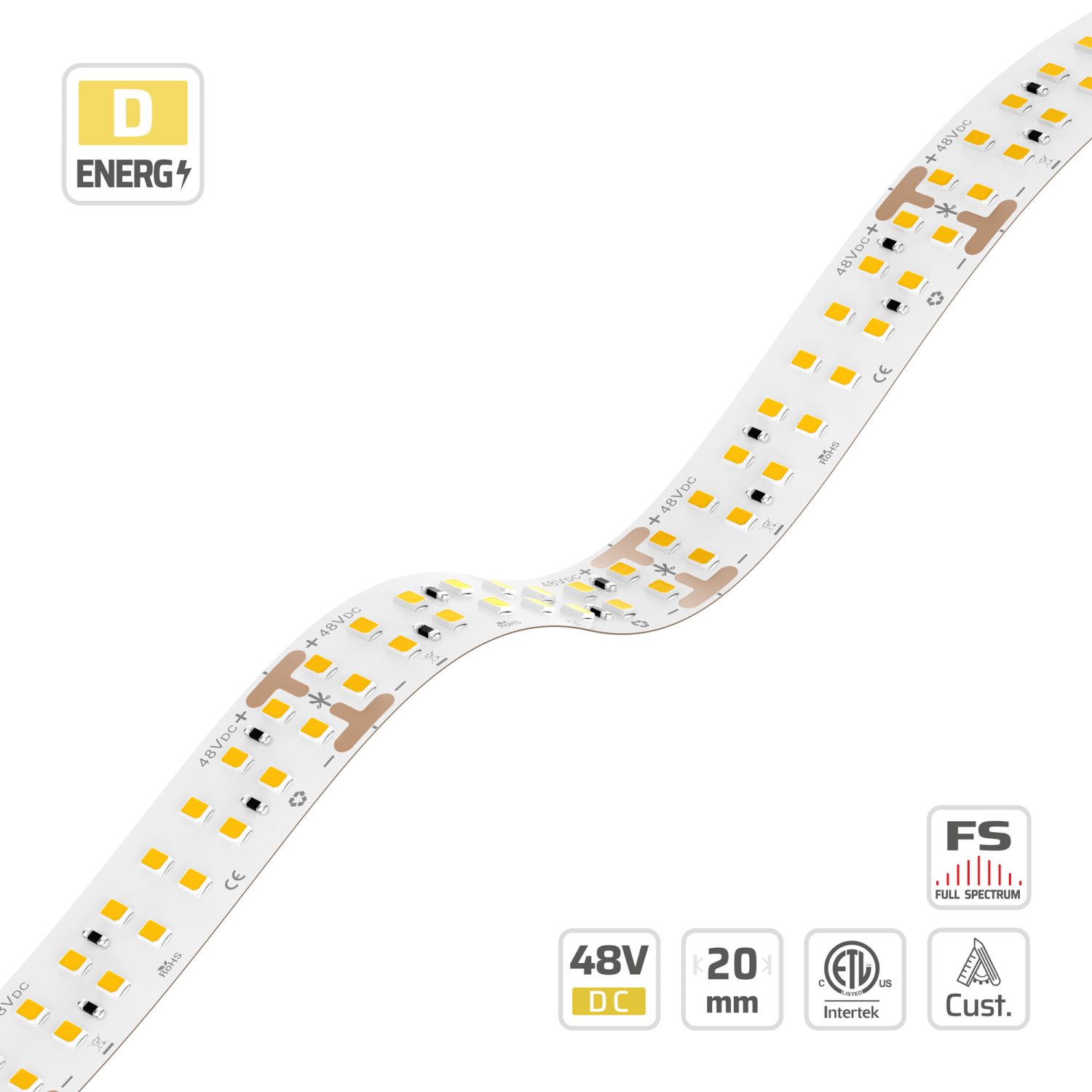

2835 Multi-Line Hight Efficiency LED Strip Light (#17510)
20mm · 48V · 256LEDs · 62.5mm/cut
Model: 17510
Overview
20mm | 48V | 256LEDs | 62.5mm/cut | #17510 | 2835 Multi-Line Hight Efficiency LED Strip Light is part of the DENO High Light Efficacy SMD Strips series, engineered around high efficacy LED strip lights. Key specifications: 2835, 256, DC 48V, 20 PCB, 3oz copper FPCB, cuttable 16LEDs/62.5mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
20mm | 48V | 256LEDs | 62.5mm/cut | #17510 | 2835 Multi-Line Hight Efficiency LED Strip Light 2-Row Large width High-Efficiency 2835 SMD LEDs, ensuring excellent brightness and energy efficiency. Classic stable LED chip design for long-lasting performance and reliable operation. High-density 256 LEDs per meter, providing uniform and consistent lighting. Compatible with multiple dimming systems, including PWM, DALI, and 0/1-10V, allowing flexible brightness control. Suitable for commercial building lighting, museum and art exhibition lighting, architectural decorative lighting, office and retail space lighting, hotel and restaurant lighting, and home decorative lighting.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| LED QTY | 256 |
|---|---|
| PART NO | DL-F28A128V24-17510-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 16LEDs/62.5mm |
| DIMMABLE | Yes |
| LED PITCH | 7.813mm |
| PCB WIDTH | 20 |
| BEAM ANGLE | 120° |
| LENGTH MAX | 15m |
| COPPER FOIL | 3oz |
| POWER RANGE | 3.8~40W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | DC 48V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Long corridor & warehouse runs — 48V feeding lets one run cover long corridors, warehouse aisles and facade lines with fewer injection points and fewer power supplies.
Request a quotation for #17510
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 192.2 lm/W at 4000K, Ra 80, ErP energy class C (Grade DN (1st Tier) · 7.68W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 7.68W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 141.2 lm/W | 1084.8 lm/m | D | 113.4 lm/W | 870.6 lm/m | E | — | — | — |
| 2300 K | 157.3 lm/W | 1208 lm/m | D | 126.3 lm/W | 970 lm/m | E | 102.3 lm/W | 785.7 lm/m | F |
| 2700 K | 166.4 lm/W | 1278.2 lm/m | C | 136.6 lm/W | 1049.3 lm/m | D | 110.8 lm/W | 850.6 lm/m | E |
| 3000 K | 177.1 lm/W | 1359.8 lm/m | C | 143.9 lm/W | 1104.8 lm/m | D | 117 lm/W | 898.3 lm/m | E |
| 3500 K | 179.7 lm/W | 1379.9 lm/m | C | 146.4 lm/W | 1124.1 lm/m | D | 120.5 lm/W | 925.3 lm/m | E |
| 4000 K | 185.4 lm/W | 1423.8 lm/m | B | 149.9 lm/W | 1151 lm/m | D | 123.8 lm/W | 950.7 lm/m | E |
| 5000 K | 185.2 lm/W | 1422.2 lm/m | B | 149.9 lm/W | 1151 lm/m | D | 123.6 lm/W | 949.2 lm/m | E |
| 6500 K | 169.8 lm/W | 1304.3 lm/m | C | 143.8 lm/W | 1104 lm/m | D | 119.3 lm/W | 916.2 lm/m | E |
Grade DL (2nd Tier) · 15.36W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 133.8 lm/W | 2055.6 lm/m | E | 107.4 lm/W | 1649.7 lm/m | F | — | — | — |
| 2300 K | 149 lm/W | 2289.2 lm/m | D | 119.7 lm/W | 1838.1 lm/m | E | 96.9 lm/W | 1488.4 lm/m | F |
| 2700 K | 157.7 lm/W | 2422.1 lm/m | D | 129.5 lm/W | 1988.4 lm/m | E | 104.9 lm/W | 1611.8 lm/m | F |
| 3000 K | 167.8 lm/W | 2576.8 lm/m | C | 136.3 lm/W | 2093.6 lm/m | D | 110.8 lm/W | 1702.3 lm/m | E |
| 3500 K | 170.2 lm/W | 2614.8 lm/m | C | 138.7 lm/W | 2130.1 lm/m | D | 114.2 lm/W | 1753.4 lm/m | E |
| 4000 K | 175.6 lm/W | 2698 lm/m | C | 142 lm/W | 2181.2 lm/m | D | 117.3 lm/W | 1801.6 lm/m | E |
| 5000 K | 175.5 lm/W | 2695.1 lm/m | C | 142 lm/W | 2181.2 lm/m | D | 117.2 lm/W | 1800.2 lm/m | E |
| 6500 K | 160.9 lm/W | 2471.7 lm/m | C | 136.2 lm/W | 2092.1 lm/m | D | 113 lm/W | 1735.7 lm/m | E |
Grade DL (2nd Tier) · 23.04W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 126.8 lm/W | 2921.5 lm/m | E | 101.8 lm/W | 2344.6 lm/m | F | — | — | — |
| 2300 K | 141.2 lm/W | 3253.5 lm/m | D | 113.4 lm/W | 2612.3 lm/m | E | 91.8 lm/W | 2115.1 lm/m | F |
| 2700 K | 149.4 lm/W | 3442.3 lm/m | D | 122.7 lm/W | 2826 lm/m | E | 99.4 lm/W | 2290.7 lm/m | F |
| 3000 K | 159 lm/W | 3662.2 lm/m | D | 129.1 lm/W | 2975.4 lm/m | E | 105 lm/W | 2419.3 lm/m | F |
| 3500 K | 161.3 lm/W | 3716.2 lm/m | C | 131.4 lm/W | 3027.3 lm/m | E | 108.2 lm/W | 2492 lm/m | F |
| 4000 K | 166.4 lm/W | 3834.4 lm/m | C | 134.5 lm/W | 3099.9 lm/m | E | 111.1 lm/W | 2560.4 lm/m | E |
| 5000 K | 166.2 lm/W | 3830.3 lm/m | C | 134.5 lm/W | 3099.9 lm/m | E | 111 lm/W | 2557.4 lm/m | E |
| 6500 K | 152.5 lm/W | 3512.8 lm/m | D | 129.1 lm/W | 2973.3 lm/m | E | 107.1 lm/W | 2467.6 lm/m | F |
Grade DL (2nd Tier) · 30.72W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 120.1 lm/W | 3690.7 lm/m | E | 96.4 lm/W | 2962 lm/m | F | — | — | — |
| 2300 K | 133.8 lm/W | 4110.1 lm/m | E | 107.4 lm/W | 3300.1 lm/m | F | 87 lm/W | 2672.6 lm/m | F |
| 2700 K | 141.6 lm/W | 4348.6 lm/m | D | 116.2 lm/W | 3570.1 lm/m | E | 94.2 lm/W | 2893.9 lm/m | F |
| 3000 K | 150.6 lm/W | 4626.5 lm/m | D | 122.4 lm/W | 3758.9 lm/m | E | 99.5 lm/W | 3056.4 lm/m | F |
| 3500 K | 152.8 lm/W | 4694.7 lm/m | D | 124.5 lm/W | 3824.4 lm/m | E | 102.5 lm/W | 3148.1 lm/m | F |
| 4000 K | 157.7 lm/W | 4844.1 lm/m | D | 127.5 lm/W | 3916.1 lm/m | E | 105.3 lm/W | 3234.6 lm/m | F |
| 5000 K | 157.5 lm/W | 4838.8 lm/m | D | 127.5 lm/W | 3916.1 lm/m | E | 105.2 lm/W | 3231.7 lm/m | F |
| 6500 K | 144.5 lm/W | 4437.8 lm/m | D | 122.3 lm/W | 3756.2 lm/m | E | 101.5 lm/W | 3118.1 lm/m | F |
Grade DL (2nd Tier) · 38.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 113.8 lm/W | 4371.1 lm/m | E | 91.4 lm/W | 3508.1 lm/m | F | — | — | — |
| 2300 K | 126.8 lm/W | 4867.8 lm/m | E | 101.8 lm/W | 3908.5 lm/m | F | 82.4 lm/W | 3164.2 lm/m | G |
| 2700 K | 134.1 lm/W | 5150.3 lm/m | E | 110.1 lm/W | 4228.3 lm/m | E | 89.3 lm/W | 3427.3 lm/m | F |
| 3000 K | 142.7 lm/W | 5479.4 lm/m | D | 115.9 lm/W | 4451.8 lm/m | E | 94.3 lm/W | 3619.8 lm/m | F |
| 3500 K | 144.8 lm/W | 5560.1 lm/m | D | 118 lm/W | 4529.4 lm/m | E | 97.1 lm/W | 3728.5 lm/m | F |
| 4000 K | 149.4 lm/W | 5737.1 lm/m | D | 120.8 lm/W | 4638.1 lm/m | E | 99.8 lm/W | 3830.9 lm/m | F |
| 5000 K | 149.2 lm/W | 5730.9 lm/m | D | 120.8 lm/W | 4638.1 lm/m | E | 99.6 lm/W | 3824.6 lm/m | F |
| 6500 K | 136.9 lm/W | 5255.9 lm/m | D | 115.9 lm/W | 4448.7 lm/m | E | 96.2 lm/W | 3694.1 lm/m | F |
Grade DN (1st Tier) · 7.68W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 150.7 lm/W | 1157.2 lm/m | D | 127 lm/W | 975.4 lm/m | E | — | — | — |
| 2300 K | 164.2 lm/W | 1261.2 lm/m | D | 141.7 lm/W | 1088.6 lm/m | E | 114.8 lm/W | 881.7 lm/m | F |
| 2700 K | 177.1 lm/W | 1359.8 lm/m | C | 153.4 lm/W | 1178 lm/m | D | 124.3 lm/W | 954.6 lm/m | E |
| 3000 K | 186 lm/W | 1428.4 lm/m | C | 161.9 lm/W | 1243.5 lm/m | D | 131.7 lm/W | 1011.6 lm/m | E |
| 3500 K | 188.7 lm/W | 1449.2 lm/m | C | 165.4 lm/W | 1270.5 lm/m | D | 136.1 lm/W | 1045.5 lm/m | E |
| 4000 K | 192.2 lm/W | 1476.2 lm/m | C | 166.3 lm/W | 1277.4 lm/m | D | 137.3 lm/W | 1054.7 lm/m | E |
| 5000 K | 192 lm/W | 1474.6 lm/m | C | 167.4 lm/W | 1285.9 lm/m | D | 138.1 lm/W | 1060.6 lm/m | E |
| 6500 K | 184.1 lm/W | 1413.8 lm/m | C | 160 lm/W | 1228.8 lm/m | D | 132.8 lm/W | 1019.9 lm/m | E |
Grade DN (1st Tier) · 15.36W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 142.8 lm/W | 2192.8 lm/m | E | 120.3 lm/W | 1848.3 lm/m | E | — | — | — |
| 2300 K | 155.6 lm/W | 2389.9 lm/m | D | 134.3 lm/W | 2062.9 lm/m | E | 108.8 lm/W | 1671.2 lm/m | F |
| 2700 K | 167.8 lm/W | 2576.8 lm/m | D | 145.3 lm/W | 2232.3 lm/m | E | 117.8 lm/W | 1808.9 lm/m | F |
| 3000 K | 176.2 lm/W | 2706.7 lm/m | C | 153.4 lm/W | 2356.4 lm/m | D | 124.8 lm/W | 1916.9 lm/m | E |
| 3500 K | 178.8 lm/W | 2746.2 lm/m | C | 156.7 lm/W | 2407.5 lm/m | D | 129 lm/W | 1981.1 lm/m | E |
| 4000 K | 182.1 lm/W | 2797.3 lm/m | C | 157.6 lm/W | 2420.6 lm/m | D | 130.1 lm/W | 1998.7 lm/m | E |
| 5000 K | 181.9 lm/W | 2794.3 lm/m | C | 158.6 lm/W | 2436.7 lm/m | D | 130.9 lm/W | 2010.6 lm/m | E |
| 6500 K | 174.4 lm/W | 2679 lm/m | C | 151.6 lm/W | 2328.6 lm/m | D | 125.8 lm/W | 1932.3 lm/m | E |
Grade DN (1st Tier) · 23.04W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 135.3 lm/W | 3116.5 lm/m | E | 114 lm/W | 2626.8 lm/m | F | — | — | — |
| 2300 K | 147.4 lm/W | 3396.6 lm/m | D | 127.3 lm/W | 2931.8 lm/m | E | 103.1 lm/W | 2375.4 lm/m | F |
| 2700 K | 159 lm/W | 3662.2 lm/m | D | 137.7 lm/W | 3172.5 lm/m | E | 111.6 lm/W | 2570.8 lm/m | F |
| 3000 K | 167 lm/W | 3846.9 lm/m | D | 145.4 lm/W | 3348.9 lm/m | E | 118.2 lm/W | 2724.4 lm/m | F |
| 3500 K | 169.4 lm/W | 3902.9 lm/m | D | 148.5 lm/W | 3421.5 lm/m | D | 122.2 lm/W | 2815.6 lm/m | E |
| 4000 K | 172.5 lm/W | 3975.5 lm/m | D | 149.3 lm/W | 3440.2 lm/m | D | 123.3 lm/W | 2840.5 lm/m | E |
| 5000 K | 172.4 lm/W | 3971.4 lm/m | D | 150.3 lm/W | 3463 lm/m | D | 124 lm/W | 2857 lm/m | E |
| 6500 K | 165.3 lm/W | 3807.5 lm/m | D | 143.6 lm/W | 3309.5 lm/m | E | 119.2 lm/W | 2746.4 lm/m | E |
Grade DN (1st Tier) · 30.72W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 128.2 lm/W | 3937.1 lm/m | E | 108 lm/W | 3318.5 lm/m | F | — | — | — |
| 2300 K | 139.7 lm/W | 4291 lm/m | E | 120.6 lm/W | 3703.8 lm/m | E | 97.7 lm/W | 3001.3 lm/m | F |
| 2700 K | 150.6 lm/W | 4626.5 lm/m | D | 130.5 lm/W | 4007.9 lm/m | E | 105.7 lm/W | 3247.7 lm/m | F |
| 3000 K | 158.2 lm/W | 4859.8 lm/m | D | 137.7 lm/W | 4230.7 lm/m | E | 112 lm/W | 3441.7 lm/m | F |
| 3500 K | 160.5 lm/W | 4930.6 lm/m | D | 140.7 lm/W | 4322.4 lm/m | E | 115.8 lm/W | 3557 lm/m | F |
| 4000 K | 163.5 lm/W | 5022.3 lm/m | D | 141.5 lm/W | 4346 lm/m | E | 116.8 lm/W | 3588.5 lm/m | F |
| 5000 K | 163.3 lm/W | 5017.1 lm/m | D | 142.4 lm/W | 4374.9 lm/m | E | 117.5 lm/W | 3609.6 lm/m | F |
| 6500 K | 156.6 lm/W | 4810 lm/m | D | 136.1 lm/W | 4180.9 lm/m | E | 113 lm/W | 3471.4 lm/m | F |
Grade DN (1st Tier) · 38.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 121.4 lm/W | 4662.9 lm/m | E | 102.4 lm/W | 3930.3 lm/m | F | — | — | — |
| 2300 K | 132.3 lm/W | 5082 lm/m | E | 114.2 lm/W | 4386.6 lm/m | F | 92.5 lm/W | 3552 lm/m | F |
| 2700 K | 142.7 lm/W | 5479.4 lm/m | E | 123.6 lm/W | 4746.7 lm/m | E | 100.2 lm/W | 3846.4 lm/m | F |
| 3000 K | 149.9 lm/W | 5755.7 lm/m | D | 130.5 lm/W | 5010.6 lm/m | E | 106.2 lm/W | 4076.2 lm/m | F |
| 3500 K | 152.1 lm/W | 5839.5 lm/m | D | 133.3 lm/W | 5119.3 lm/m | E | 109.7 lm/W | 4212.8 lm/m | F |
| 4000 K | 154.9 lm/W | 5948.2 lm/m | D | 134 lm/W | 5147.2 lm/m | E | 110.7 lm/W | 4250 lm/m | F |
| 5000 K | 154.7 lm/W | 5942 lm/m | D | 134.9 lm/W | 5181.4 lm/m | E | 111.3 lm/W | 4273.9 lm/m | F |
| 6500 K | 148.4 lm/W | 5696.7 lm/m | D | 128.9 lm/W | 4951.6 lm/m | E | 107 lm/W | 4108.8 lm/m | F |
Grade KE (3rd Tier) · 7.68W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 120.9 lm/W | 928.4 lm/m | E | 96.9 lm/W | 744.2 lm/m | F | — | — | — |
| 2300 K | 134.8 lm/W | 1035.5 lm/m | E | 108 lm/W | 829.8 lm/m | F | 87.5 lm/W | 672 lm/m | F |
| 2700 K | 145.3 lm/W | 1115.6 lm/m | D | 117.2 lm/W | 899.9 lm/m | E | 95 lm/W | 729.6 lm/m | F |
| 3000 K | 152.6 lm/W | 1171.8 lm/m | D | 123.8 lm/W | 950.7 lm/m | E | 100.7 lm/W | 773.5 lm/m | F |
| 3500 K | 154.8 lm/W | 1188.8 lm/m | D | 126.2 lm/W | 969.2 lm/m | E | 103.9 lm/W | 798.2 lm/m | F |
| 4000 K | 159.4 lm/W | 1224.2 lm/m | D | 128.9 lm/W | 990 lm/m | E | 106.4 lm/W | 817.4 lm/m | F |
| 5000 K | 159.1 lm/W | 1221.9 lm/m | D | 128.9 lm/W | 990 lm/m | E | 106.3 lm/W | 816.4 lm/m | F |
| 6500 K | 152.6 lm/W | 1171.8 lm/m | D | 123.8 lm/W | 950.7 lm/m | E | 102.7 lm/W | 788.7 lm/m | F |
Grade KE (3rd Tier) · 15.36W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 114.5 lm/W | 1759.2 lm/m | E | 91.8 lm/W | 1410.3 lm/m | F | — | — | — |
| 2300 K | 127.7 lm/W | 1962.2 lm/m | E | 102.4 lm/W | 1572.4 lm/m | F | 82.9 lm/W | 1273.3 lm/m | G |
| 2700 K | 137.6 lm/W | 2114 lm/m | D | 111 lm/W | 1705.2 lm/m | E | 90 lm/W | 1382.6 lm/m | F |
| 3000 K | 144.6 lm/W | 2220.6 lm/m | D | 117.3 lm/W | 1801.6 lm/m | E | 95.4 lm/W | 1465.8 lm/m | F |
| 3500 K | 146.7 lm/W | 2252.7 lm/m | D | 119.6 lm/W | 1836.6 lm/m | E | 98.5 lm/W | 1512.5 lm/m | F |
| 4000 K | 151 lm/W | 2319.9 lm/m | D | 122.1 lm/W | 1876 lm/m | E | 100.8 lm/W | 1549 lm/m | F |
| 5000 K | 150.7 lm/W | 2315.5 lm/m | D | 122.1 lm/W | 1876 lm/m | E | 100.8 lm/W | 1548.3 lm/m | F |
| 6500 K | 144.6 lm/W | 2220.6 lm/m | D | 117.3 lm/W | 1801.6 lm/m | E | 97.4 lm/W | 1496.1 lm/m | F |
Grade KE (3rd Tier) · 23.04W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 108.5 lm/W | 2500.3 lm/m | F | 87 lm/W | 2004.4 lm/m | F | — | — | — |
| 2300 K | 121 lm/W | 2788.7 lm/m | E | 97 lm/W | 2234.7 lm/m | F | 78.6 lm/W | 1810.9 lm/m | G |
| 2700 K | 130.4 lm/W | 3004.5 lm/m | E | 105.2 lm/W | 2423.5 lm/m | F | 85.3 lm/W | 1964.9 lm/m | F |
| 3000 K | 137 lm/W | 3155.9 lm/m | D | 111.1 lm/W | 2560.4 lm/m | E | 90.4 lm/W | 2083.2 lm/m | F |
| 3500 K | 139 lm/W | 3201.6 lm/m | D | 113.3 lm/W | 2610.2 lm/m | E | 93.3 lm/W | 2149.6 lm/m | F |
| 4000 K | 143.1 lm/W | 3297 lm/m | D | 115.7 lm/W | 2666.3 lm/m | E | 95.6 lm/W | 2201.5 lm/m | F |
| 5000 K | 142.8 lm/W | 3290.8 lm/m | D | 115.7 lm/W | 2666.3 lm/m | E | 95.5 lm/W | 2200.3 lm/m | F |
| 6500 K | 137 lm/W | 3155.9 lm/m | D | 111.1 lm/W | 2560.4 lm/m | E | 92.2 lm/W | 2124.3 lm/m | F |
Grade KE (3rd Tier) · 30.72W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 102.8 lm/W | 3158.6 lm/m | F | 82.4 lm/W | 2532.1 lm/m | G | — | — | — |
| 2300 K | 114.7 lm/W | 3523 lm/m | E | 91.9 lm/W | 2823.1 lm/m | F | 74.4 lm/W | 2285.6 lm/m | G |
| 2700 K | 123.6 lm/W | 3795.6 lm/m | E | 99.7 lm/W | 3061.6 lm/m | F | 80.8 lm/W | 2482.3 lm/m | G |
| 3000 K | 129.8 lm/W | 3986.9 lm/m | E | 105.3 lm/W | 3234.6 lm/m | F | 85.7 lm/W | 2631.7 lm/m | F |
| 3500 K | 131.7 lm/W | 4044.6 lm/m | E | 107.3 lm/W | 3297.5 lm/m | F | 88.4 lm/W | 2715.6 lm/m | F |
| 4000 K | 135.6 lm/W | 4165.2 lm/m | D | 109.6 lm/W | 3368.3 lm/m | F | 90.5 lm/W | 2781.1 lm/m | F |
| 5000 K | 135.3 lm/W | 4157.3 lm/m | D | 109.6 lm/W | 3368.3 lm/m | F | 90.5 lm/W | 2780.2 lm/m | F |
| 6500 K | 129.8 lm/W | 3986.9 lm/m | E | 105.3 lm/W | 3234.6 lm/m | F | 87.4 lm/W | 2684.9 lm/m | F |
Grade KE (3rd Tier) · 38.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 97.4 lm/W | 3740.9 lm/m | F | 78.1 lm/W | 2998.9 lm/m | G | — | — | — |
| 2300 K | 108.7 lm/W | 4172.4 lm/m | F | 87.1 lm/W | 3343.5 lm/m | F | 70.5 lm/W | 2707.2 lm/m | G |
| 2700 K | 117.1 lm/W | 4495.3 lm/m | E | 94.4 lm/W | 3626 lm/m | F | 76.6 lm/W | 2939.9 lm/m | G |
| 3000 K | 123 lm/W | 4721.9 lm/m | E | 99.8 lm/W | 3830.9 lm/m | F | 81.2 lm/W | 3116.9 lm/m | G |
| 3500 K | 124.7 lm/W | 4790.2 lm/m | E | 101.7 lm/W | 3905.4 lm/m | F | 83.8 lm/W | 3216.2 lm/m | G |
| 4000 K | 128.5 lm/W | 4933 lm/m | E | 103.9 lm/W | 3989.2 lm/m | F | 85.8 lm/W | 3293.8 lm/m | F |
| 5000 K | 128.2 lm/W | 4923.7 lm/m | E | 103.9 lm/W | 3989.2 lm/m | F | 85.7 lm/W | 3290.9 lm/m | F |
| 6500 K | 123 lm/W | 4721.9 lm/m | E | 99.8 lm/W | 3830.9 lm/m | F | 82.8 lm/W | 3179.5 lm/m | G |
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Full Spectrum High Light Efficacy LED Strip Light (#5871-FS)
- Roll-to-Roll Long Reel LED Strip Light (#16775)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- Roll-to-Roll Long Reel LED Strip Light (#16777)
- Multi-Line Four-Row High-Density LED LED Strip Light (#16705)
- Roll-to-Roll Long Reel LED Strip Light (#16770)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 17510?
17510: 2835, 256, DC 48V, 20 PCB, 3oz copper FPCB, cuttable 16LEDs/62.5mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
Which environments is this high efficacy LED strip lights rated for?
Ingress protection for this model is listed in the datasheet. As a high efficacy LED strip lights it is specified for the duty listed in the datasheet, and DENO can supply alternative coatings, sleeves or IP68 potting for harsher installations.
Can DENO customise this high efficacy LED strip lights for a project?
Yes. DENO manufactures the High Light Efficacy SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Why use a wide LED strip PCB?
A 15 or 20 mm LED strip gives more copper area, so it dissipates heat better and carries more current. That is what allows high power builds above 25 W/m to run cooler, keep lumen maintenance high and support longer single feeds than a narrow board.
How much can a high efficacy LED strip cut energy use?
Moving from a typical 100 lm/W strip to a 180 to 200 lm/W high lumen LED strip roughly halves the wattage needed for the same lumen output. Over a long commercial run this also lowers the required driver size and helps the installation reach a better ErP energy class.
How long can a 48V LED strip run from a single feed?
A 48V LED strip typically doubles the run length of an equivalent 24V LED strip at the same power density, with 20 to 40 m single-end runs common at low wattages. The exact limit depends on watts per metre and copper weight, so confirm it with the DENO voltage drop calculator before specifying.
High Efficiency LED Strip — Buyer Questions
What counts as a high efficiency LED strip in lumens per watt?
In 2026 a mainstream 24V 2835 board sits around 120-140 lm/W. A high efficiency LED strip starts at roughly 160 lm/W and DENO's top binned 2835 and 2110 boards are measured at up to 200 lm/W at 4000K Ra 80, LM-79 tested at 25 degrees Celsius. The figure is light-source efficacy of the tape itself, measured without the driver, which is exactly how the ErP energy label is calculated.
- Series High Efficiency LED Strips series
- Guide check lm/W and connected load per metre
- Related series 2835 boards with top-bin dies
What is the difference between high efficiency and high efficacy LED strip lights?
They describe the same measurement. Efficacy is the engineering term for lumens delivered per watt consumed; efficiency is how buyers and tender documents usually phrase it. DENO publishes lm/W per model so both audiences read the same number, and the ErP energy class printed on the reel is derived from it.
Which ErP energy class can a high efficiency LED strip reach?
Class C is achievable on the best-binned 2835 and 2110 boards above 180 lm/W, class D covers the 160-180 lm/W band and most well-specified architectural tape lands in class E. High-CRI 95+ and full spectrum builds drop one or two classes because phosphor conversion costs lumens. Every DENO datasheet states the measured class so it can be reproduced by a notified body.
- Series High Efficiency LED Strips series
- Related series when CRI outweighs raw lm/W
- Guide custom binning for tender energy targets
Does a high efficiency LED strip run cooler and last longer?
Yes. Fewer watts per lumen means less heat into the FPCB, so junction temperature drops and L70 lifetime extends. Combined with 2 oz copper and a 99.9% pure copper foil the same brightness can be produced at 20-30% lower wattage, which also lets a single driver feed a longer run and keeps aluminium profiles below the touch-temperature limits used in hospitality projects.
- Series High Efficiency LED Strips series
- Related series density versus watts per metre
- Related series profiles that sink heat away from the tape
- Product 16770 thick-copper efficient board
How much energy does a high efficiency LED strip save on a large project?
Take 500 m of cove lighting at 10 hours a day. A 130 lm/W board delivering 1000 lm/m draws about 7.7 W/m; a 190 lm/W board delivers the same output at about 5.3 W/m. Across 500 m that is 1.2 kW saved, roughly 4,380 kWh a year, and it usually removes one driver and one circuit from the electrical schedule as well.
Can I get a high efficiency LED strip in 12V, 24V, 36V or 48V?
24V is the efficiency sweet spot and carries the full binned range. 12V is available where fixture space or existing drivers dictate it, at the cost of shorter single-feed runs. 36V and 48V constant-current boards keep the same lm/W while extending a single feed well past 20 m, which is where the real system efficiency gain shows up on long architectural lines.
- Series High Efficiency LED Strips series
- Related series 48V boards for long efficient runs
- Related series long LED strip runs on one feed
- Product 16706 high-voltage efficient board
Wide PCB LED Strip — Brightest, High Lumen Builds
How much power does a high power LED strip need, and how is the heat handled?
Wide multi-row builds run 16 W/m to 45 W/m, so a 5 m reel can draw over 200 W — size the driver with 20% headroom and feed it from both ends or mid-feed. Thermally, the wide board is the heat sink: the extra copper spreads flux along the strip, and mounting a high power LED strip in an aluminium profile rather than on plasterboard keeps the LEDs inside their rated case temperature and protects lumen maintenance.
Are there super bright LED strip lights in 12V, and when should I use 24V or 48V instead?
12V super bright LED strip lights exist but are limited to short runs: at 20 W/m a 12V board pulls 1.7 A per metre, so voltage drop dims the far end after 2–3 m. For architectural work DENO builds the wide boards in 24V and 48V, where the same wattage draws half or a quarter of the current and one feed covers 5–15 m. Where the fixture is 12V-native, keep the run short and feed each section separately.
- Series Wide PCB LED Strips series
- Related series 48V LED strip lights for long high-output runs
- Related series constant current boards that hold output over distance
- Product 16773 24V super bright LED strip
Which is brighter — a wide multi-row board or a high-density single row?
For raw output, the wide multi-row board wins: rows multiply the flux while a single row is capped by LED pitch. For a dot-free line in a shallow reveal, high density wins. The two are combined on DENO's 36 mm and 64 mm boards, which run three or four dense rows at once, giving both an ultra bright LED strip face and an even luminance across the diffuser.
- Series Wide PCB LED Strips series
- Related series narrow boards where width is the constraint
- Related series high efficiency LED strip lights series
