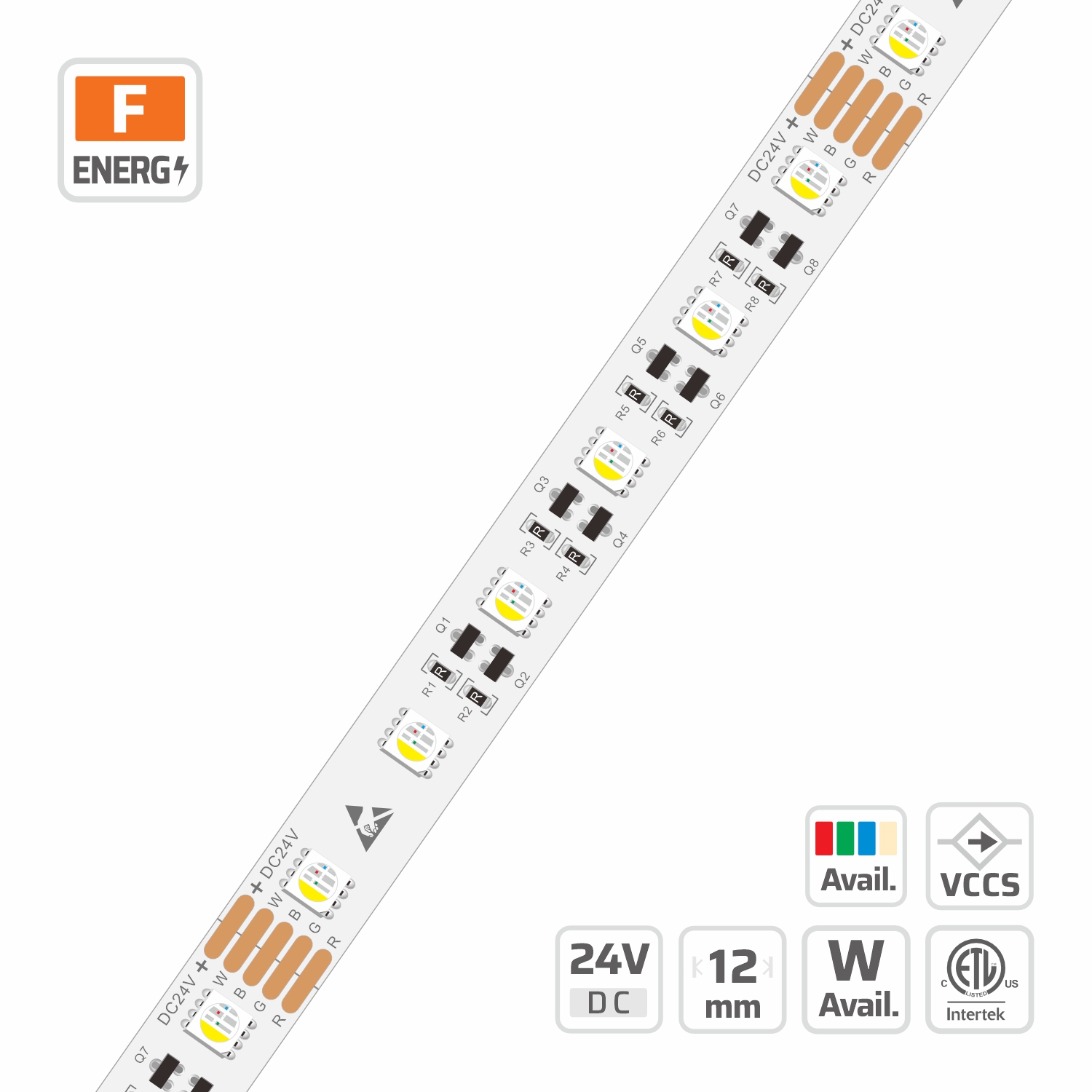

12mm | 24V | 60LEDs | 100mm/cut | #4905 | 5050 Ultra-long RGBW LED strip light
Model: 4905
Overview
The DENO LED model 4905 is a 5050 RGBW LED strip light, designed for ultra-long runs of up to 20 meters with a single power feed, eliminating voltage drop concerns. Featuring a 12mm width and 24V input, it offers 60 LEDs per meter with a cuttable increment of 100mm. Its robust construction includes pure copper wiring and a 3oz copper PCB for superior heat dissipation and extended lifespan. Ideal for architectural lighting, event spaces, and large-scale commercial projects r...
Description
12mm | 24V | 60LEDs | 100mm/cut | #4905 | 5050 Ultra-long RGBW LED strip light Adopt pure copper strong LED frame, 99.9% purity diameter> 1 mm pure golden wire encapsulation, can reduce the LED damage in different applications. Mixes RGBW 4 chip in 1 LED, with tunable fucntion combine. Up to 4 billion colors to choose from. Ultra long can be used in up to 10m,20m, runs with a single power feed with no voltage drop. Special heat resistant PCB layout, copper layer 3Oz that make sure lower voltage drop and excellent heat dissipation.
Specifications
| ledQty | 60 |
|---|---|
| partNo | DL-F50A30V24-4905-* |
| smdType | 5050 |
| cuttable | 6LEDs/100mm |
| dimmable | Yes |
| ledPitch | 16.66mm |
| lifespan | 50000 |
| pcbWidth | 12 |
| warranty | 5 Years |
| lengthMax | 20m |
| copperFoil | 3oz |
| powerRange | 4.8~19.2W |
| circuitType | CC |
| inputVoltage | 24V |
| operatingTemperature | -20°C ~ +50°C |
Frequently Asked Questions
What is the maximum continuous run length for the 4905 RGBW LED strip?
The 4905 RGBW LED strip light is engineered for ultra-long runs, supporting up to 20 meters continuously with a single power feed and no noticeable voltage drop, due to its 3oz copper PCB.
Can this RGBW LED strip be dimmed and controlled to achieve specific colors?
Yes, this 5050 RGBW LED strip light is fully dimmable and features a 4-chip-in-1 LED design, allowing for the creation of up to 4 billion tunable colors to meet diverse lighting needs.
What is the expected lifespan and warranty for the DENO LED 4905 strip?
The DENO LED 4905 RGBW strip boasts a lifespan of 50,000 hours and comes with a comprehensive 5-year warranty, ensuring long-term reliability and performance for B2B applications.
Is custom length or specific power output available for project requirements?
While standard lengths are available, DENO LED offers customization for specific project requirements, including power output and specific cut lengths. Please contact our sales team for tailored solutions and MOQ details.
