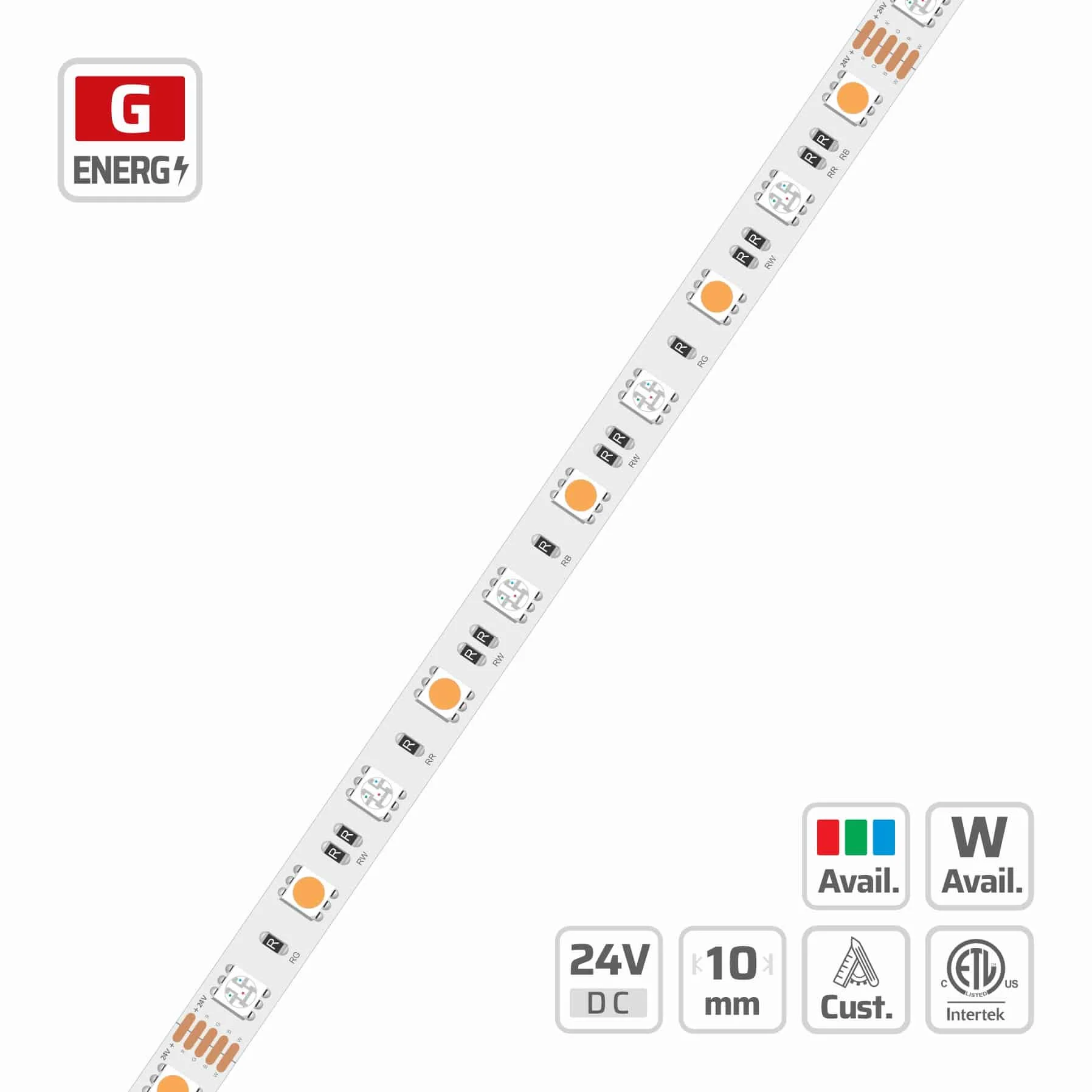

10mm | 24V | 60LEDs | 166.66mm/cut | #7828 | 5050 RGBW LED Strip Light
Model: 7828
Overview
The DENO LED Model 7828 is a high-performance 5050 RGBW LED Strip Light, specifically engineered for B2B applications demanding versatile and dynamic color control. This 24V strip features 60 LEDs per meter, a 10mm PCB width, and is cuttable every 166.66mm for precise project customization. Its pure copper strong LED frame and 99.9% pure golden wire encapsulation ensure superior durability and reduced damage in diverse environments, providing a lifespan of 50,000 hours. The...
Description
10mm | 24V | 60LEDs | 166.66mm/cut | #7828 | 5050 RGBW LED Strip Light Adopt pure copper strong LED frame, 99.9% purity diameter> 1 mm pure golden wire encapsulation, can reduce the LED damage in different applications. With the addition of white light, much brighter colors and a softer pastel range are produced to satisfy the exacting color requirements of any lighting design.
Specifications
| ledQty | 60 |
|---|---|
| partNo | DL-F50A30V24-7828-* |
| smdType | 5050 |
| cuttable | 10LEDs/166.66mm |
| dimmable | Yes |
| ledPitch | 16.66mm |
| lifespan | 50000 |
| pcbWidth | 10 |
| warranty | 5 Years |
| beamAngle | 120° |
| lengthMax | 5m |
| copperFoil | 3oz |
| powerRange | 4.3~17.2W |
| circuitType | CV |
| inputVoltage | 24V |
| operatingTemperature | -20°C ~ +50°C |
Frequently Asked Questions
What are the key advantages of this 5050 RGBW LED Strip Light?
This strip combines RGB with dedicated white, offering a wider color gamut and softer pastels than standard RGB. Its robust copper frame ensures durability.
What power requirements does the 7828 LED strip have for installation?
The Model 7828 requires a 24V constant voltage power supply. It has a power range of 4.3W to 17.2W per meter depending on color usage.
Is this LED strip suitable for outdoor or wet locations?
This product's IP rating is not specified as waterproof. For outdoor or wet locations, an appropriate IP-rated version or protective housing is recommended.
Can I customize the length and connection options for bulk orders?
Yes, for bulk orders, DENO LED can discuss custom lengths and connection solutions to meet specific project requirements. Contact our sales team for details.
