DENO LED Lighting

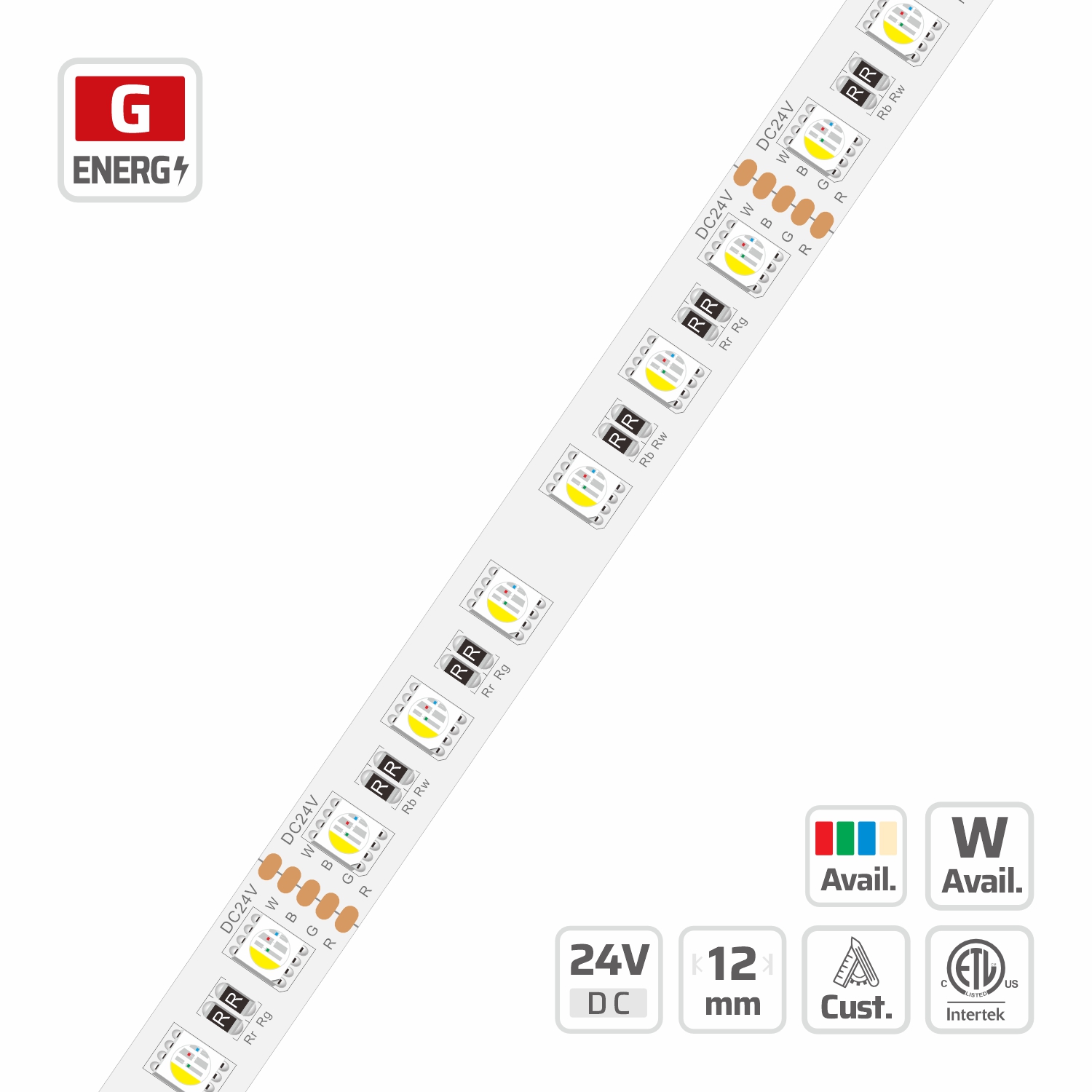

5050 RGBW LED Strip Light (#2432)

12mm · 24V · 72LEDs · 83.3mm/cut

Model: 2432

2432 rgbw led strip — 24V, cuttable every 83.3mm, 12mm FPCB width, 5050 LEDs, 72 LEDs/m, 7000K

Overview

5050 RGBW LED Strip Light | 12mm | 24V | 72LEDs | 83.3mm/cut | #2432 is part of the DENO RGBW SMD Strips series, engineered around RGBW LED strip lights. Key specifications: 5050, 72, 24V, 12 PCB, 2oz copper FPCB, cuttable 6LEDs/83.33mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

Engineered with high-grade 5050 RGBW LEDs delivering dynamic color mixing and crisp white output at a 120-degree beam angle for architectural lighting. The 12mm wide flexible circuit board utilizes 2oz copper foil and constant voltage 24V operation to ensure stable thermal dissipation. Featuring 72 LEDs per meter, this dimmable LED strip light offers precise cut intervals of 83.33mm for seamless layout customization. Available for wholesale project supply, each 5m run supports a power range of 5.8W to 23W across operating temperatures from -25°C to 40°C.

Rgbw Led Strip Lights built for rgbw smd strips projects.

Specifications

CCT (K)7000K
CRIRa≥80
POWER (W/M)24 W/m
LED QTY72
PART NODL-F50A36V24-2432-*
SMD TYPE5050
CUTTABLE UNIT6LEDs/83.33mm
DIMMABLEYes
IP RATINGIP20/IP65/IP67/IP68
LED PITCH13.8mm
LIFESPAN50000
PCB WIDTH12
WARRANTY5 Years
BEAM ANGLE120°
RUN LENGTH5m
COPPER FOIL2oz
POWER RANGE5.8~23W
CIRCUIT TYPEC.V.
INPUT VOLTAGE24V
LUMINOUS FLUX170–1425 lm/m
OPERATING TEMPERATURE-25~40°C;Tc：75°C（max）

Applications

  • Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
  • Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
  • Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
  • Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.

Recommended accessories & compatible parts

  • DL-1201 — 25x14.5mm Wide Surface Mount LED Channel — Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
  • DL-1202 — 17.3x14.5mm Surface Mount LED Channel — Deep Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
  • DL-1204 — 25x7mm Wide Slim Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m: Accepts LED strips up to 12mm wide.
  • DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
  • DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
  • DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
  • V4 — 12-48VDC 4-Channel * 5A RF+Push Dimming RGBW Controller | V4: Matched by input voltage range and colour channels.

Request a quotation for #2432

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

  • Warranty: 5 years
  • Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
  • Compliance: CE · UL · RoHS
  • Bonding wire: 99.99% pure gold
  • Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide

At up to 23W/m, 2432 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.

Why high-wattage strips need a heat sink

  • Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
  • LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
  • Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.

Sizing rule: FPC width vs channel inner width

  • Channel inner width ≥ FPC width + 2mm. This strip is 12mm wide, so it needs at least 14mm of inner width.
  • The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
  • A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.

Aluminum channels that fit this strip

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 12mm wide, so it needs a channel with at least 14mm inner width (12mm + 2mm clearance). Every profile below meets that.

Related models in this series

See every model in SMD LED Strip Series or narrow to 5050. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 2432?

2432: 5050, 72, 24V, 12 PCB, 2oz copper FPCB, cuttable 6LEDs/83.33mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

What colour temperatures and CRI options does this RGBW LED strip lights offer?

This model is supplied as a RGBW LED strip lights with high CRI options and the CCT range listed in the datasheet. DENO bins every batch for colour consistency, and custom CCT or spectrum combinations can be produced for project quantities.

Can DENO customise this RGBW LED strip lights for a project?

Yes. DENO manufactures the RGBW SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

What does the W channel add on an RGBW LED strip?

The fourth chip is a real white LED, so the strip delivers a clean 2700K to 6500K white at full efficacy instead of the pale tint produced by mixing red, green and blue. RGBCCT versions add a second white channel for tunable white control alongside colour.

Which LED driver and run length suit #2432?

5050 RGBW LED Strip Light | 12mm | 24V | 72LEDs | 83.3mm/cut | #2432 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.

Engineering & selection guide

Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
