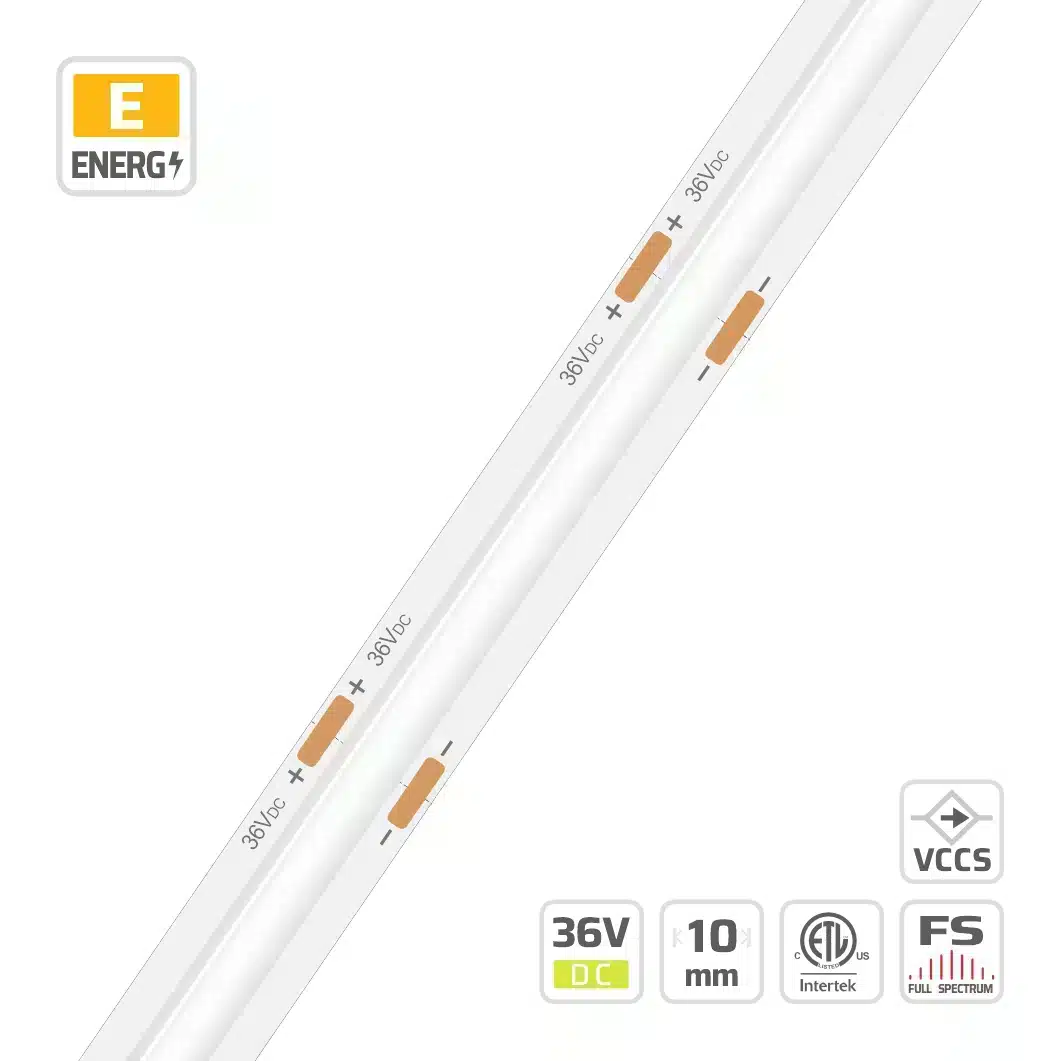

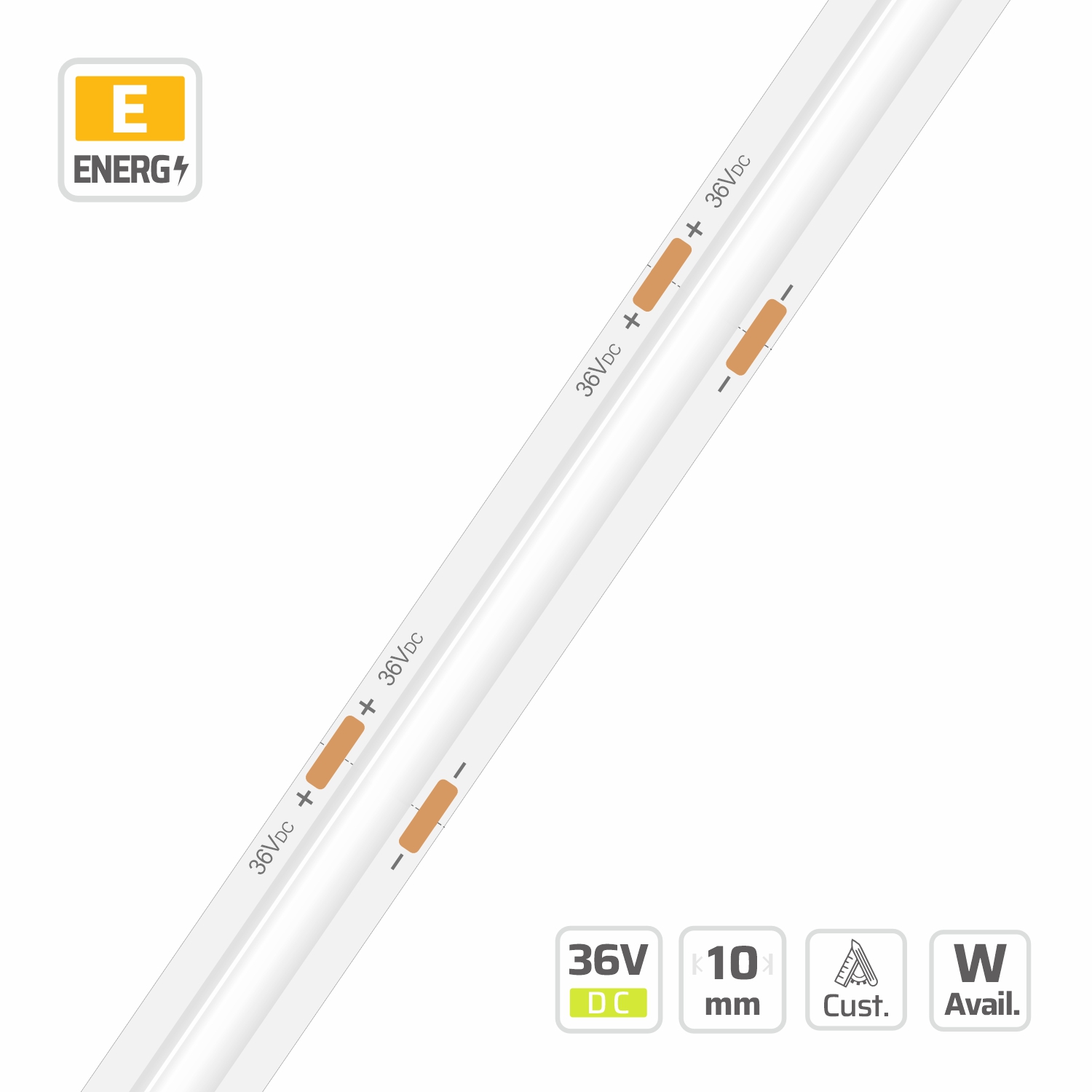

36V SOB Strip C.V. version (#15098)
10mm · 312LEDs · 38.46cut · 8m
Model: 15098
Overview
The DENO LED Model 15098 SOB LED Strip boasts exceptional bending reliability and a wide 180-degree beam angle, making it a highly versatile and durable linear lighting solution. Designed with a thicker PCB for superior heat dissipation, it ensures consistent brightness and longevity. With a 36V input and built-in chip protection stents, this strip is engineered for higher power availability and stable performance in diverse commercial and decorative applications. It offers...
Description
This DC36V SOB LED strip light delivers continuous linear illumination across a wide 160-degree beam angle with 312 LEDs per meter. Engineered with a durable 3oz copper 10mm PCB, this constant-voltage strip ensures effective heat dissipation and uniform brightness up to 8 meters. Featuring a minimum bending diameter of 60mm and 38.46mm cut segments, the flexible design facilitates seamless integration into architectural lighting layouts. Operating from 4W to 18W with dimming support, this SOB series offers factory-direct OEM customization for specialized CCT and display lighting projects.
Specifications
| LED QTY | 312LEDs/m |
|---|---|
| PART NO | DL-FSOBA156V36-15098-* |
| SMD TYPE | SOB |
| CUTTABLE UNIT | 12LEDs/38.46mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 3.205mm |
| PCB WIDTH | 10 |
| BEAM ANGLE | 160° |
| RUN LENGTH | 8m |
| COPPER FOIL | 3oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 4~18W |
| CIRCUIT TYPE | C.V. (Resistor Based) |
| INPUT VOLTAGE | DC36V |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Long corridor & warehouse runs — Long single-feed runs on 36V cover corridors, warehouse aisles and facade lines with fewer injection points and fewer power supplies.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #15098
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 114.5 lm/W at 4000K, Ra 90, ErP energy class E (Grade DL (2nd Tier) · 4.8W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 4.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 86.6 lm/W | 415.4 lm/m | F | — | — | — |
| 2300 K | — | — | — | 96.4 lm/W | 462.8 lm/m | F | — | — | — |
| 2700 K | — | — | — | 104.3 lm/W | 500.6 lm/m | F | — | — | — |
| 3000 K | — | — | — | 109.8 lm/W | 527 lm/m | F | — | — | — |
| 3500 K | — | — | — | 111.8 lm/W | 536.5 lm/m | E | — | — | — |
| 4000 K | — | — | — | 114.5 lm/W | 549.4 lm/m | E | — | — | — |
| 5000 K | — | — | — | 114.4 lm/W | 548.9 lm/m | E | — | — | — |
| 6500 K | — | — | — | 109.7 lm/W | 526.5 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 83.7 lm/W | 803.3 lm/m | G | — | — | — |
| 2300 K | — | — | — | 93.2 lm/W | 894.9 lm/m | F | — | — | — |
| 2700 K | — | — | — | 100.8 lm/W | 968.1 lm/m | F | — | — | — |
| 3000 K | — | — | — | 106.2 lm/W | 1019.1 lm/m | F | — | — | — |
| 3500 K | — | — | — | 108.1 lm/W | 1037.4 lm/m | F | — | — | — |
| 4000 K | — | — | — | 110.7 lm/W | 1062.5 lm/m | E | — | — | — |
| 5000 K | — | — | — | 110.6 lm/W | 1061.5 lm/m | E | — | — | — |
| 6500 K | — | — | — | 106.1 lm/W | 1018.1 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 18W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 78.9 lm/W | 1420 lm/m | G | — | — | — |
| 2300 K | — | — | — | 87.9 lm/W | 1581.7 lm/m | F | — | — | — |
| 2700 K | — | — | — | 95.1 lm/W | 1711.1 lm/m | F | — | — | — |
| 3000 K | — | — | — | 100.1 lm/W | 1801.3 lm/m | F | — | — | — |
| 3500 K | — | — | — | 101.9 lm/W | 1833.7 lm/m | F | — | — | — |
| 4000 K | — | — | — | 104.3 lm/W | 1878 lm/m | F | — | — | — |
| 5000 K | — | — | — | 104.2 lm/W | 1876.3 lm/m | F | — | — | — |
| 6500 K | — | — | — | 100 lm/W | 1799.6 lm/m | F | — | — | — |
Related models in this series
See every model in SOB LED Strip Series or narrow to Sob 36V. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key flexibility features of this SOB LED Strip?
This SOB LED Strip offers high bending reliability and excellent flexibility, with a minimum bend diameter of Φ60mm, ideal for curved installations.
What voltage and power range does the 15098 model support?
The 15098 model operates on DC36V (Constant Voltage) and supports a power range of 4~18W per meter, ensuring versatile application.
Can this LED strip be customized for specific project needs?
Yes, customized options are available, including special CCTs, higher CRIs, and different power requirements to meet unique project specifications.
What types of B2B applications is this SOB LED Strip best suited for?
It is ideal for decorative projects, props display items, linear architectural lighting, and other commercial applications requiring stable and flexible illumination.
Is this SOB strip light also called FOB, S-COB or COB Pro strip light?
Yes. Model 15098 belongs to the DENO SOB (Spot on Board) family, which the market also calls FOB strip light, S-COB strip light or COB Pro strip light. All three names describe the same dot-free chip-on-board LED strip construction, so you can quote it under whichever term your project specification uses.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- 36V SOB strips — 36V LED Strip — Buyer Questions
- LED strip engineering selection handbook
SOB is the upgraded generation of the COB LED strip
Every SOB board on this page starts from the classic COB recipe — one continuous phosphor line, zero visible dots — and rebuilds it with individually encapsulated, gold-wire-bonded packages soldered on thick copper of up to 105 µm or thicker. The result keeps the COB look while DENO has verified builds up to 24W/m at 24V DC (25 °C ambient, aluminum profile), with a standard binning target of SDCM ≤3; CRI, run length and cut unit are model-specific. For shorter, lower-load or cost-sensitive lines the classic COB range remains a practical choice — compare exact models under equal conditions.
