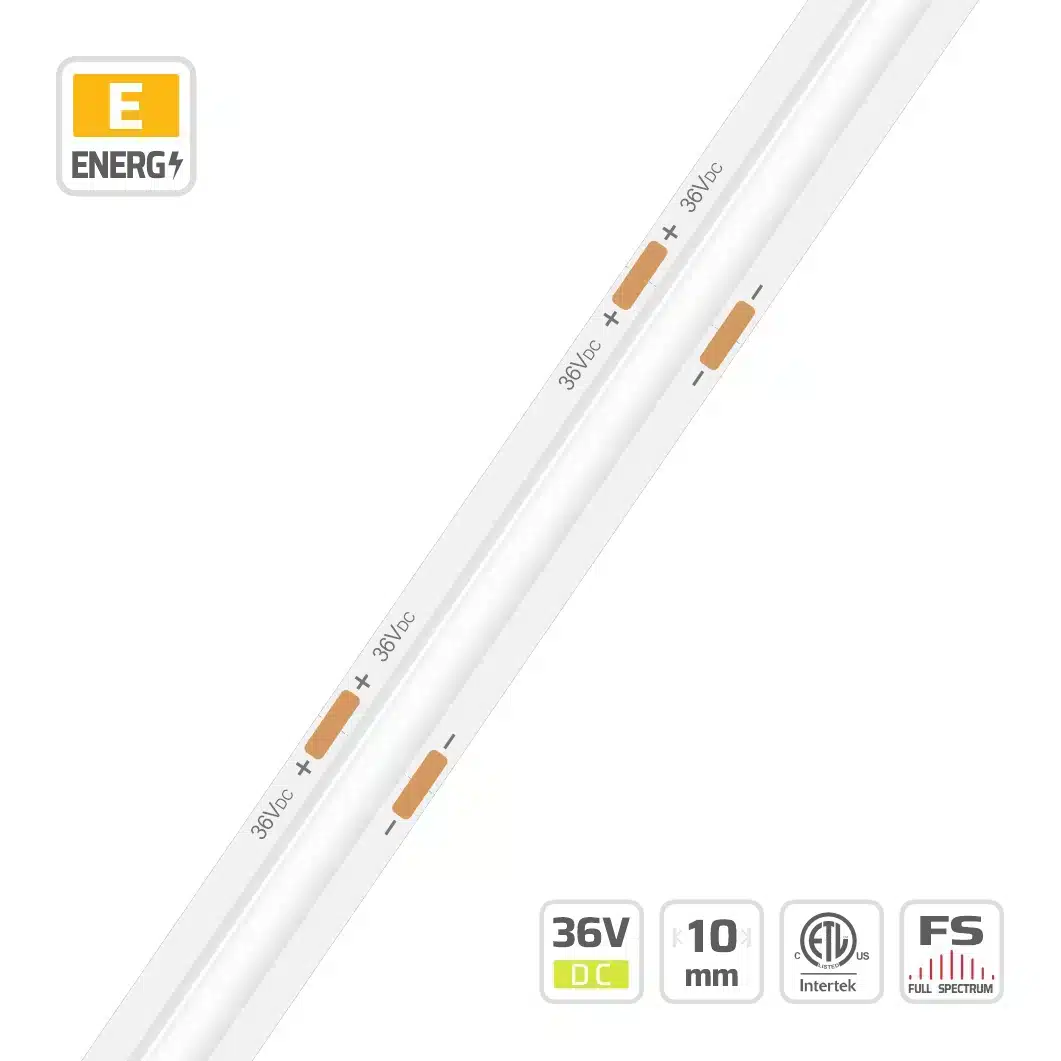

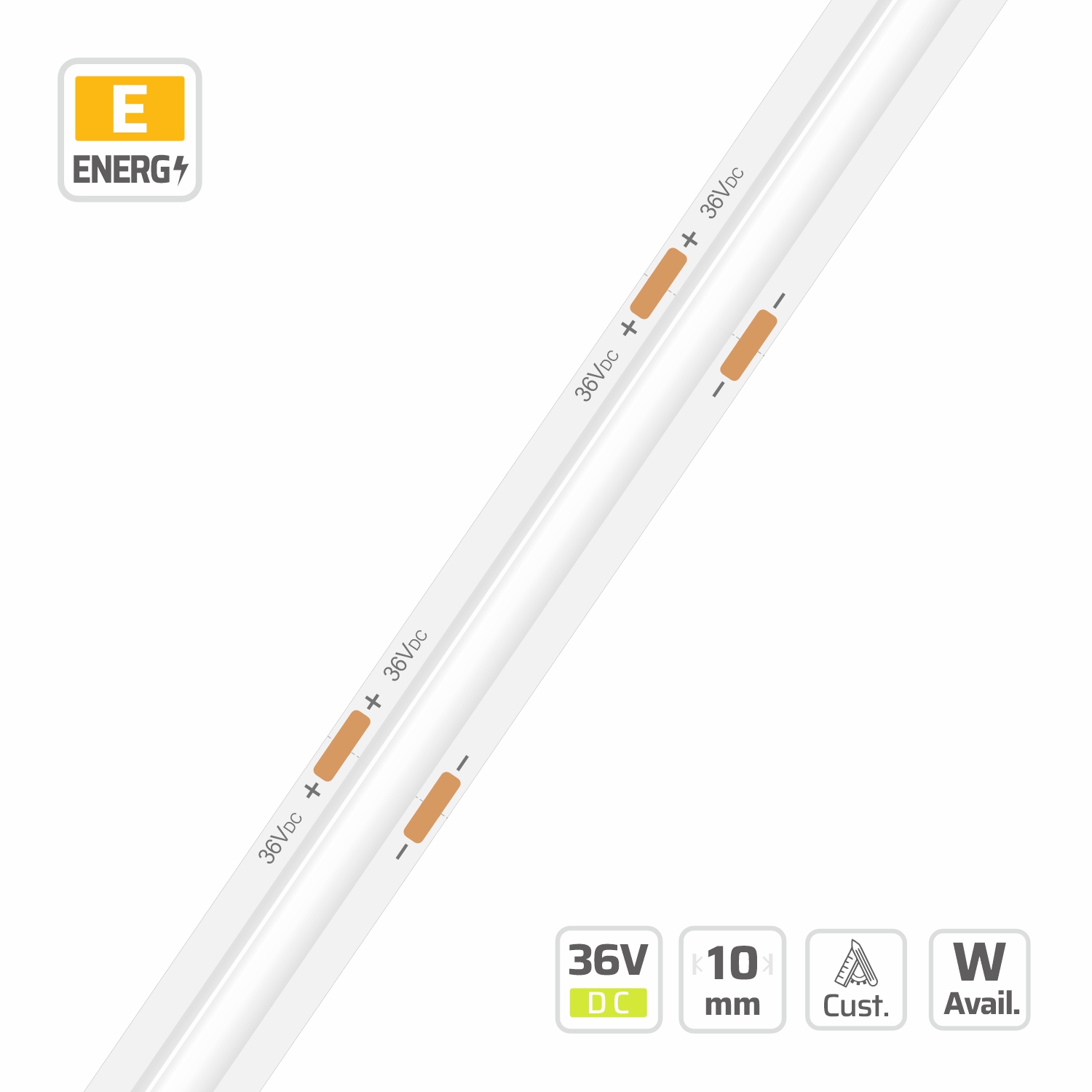

36V SOB Strip Constant Current version (#15079)
10mm · 312LEDs · 38.46mm/cut · 15m
Model: 15079
Overview
The DENO LED 15079 SOB LED Strip Series offers an exceptional lighting solution for B2B applications. This constant current (C.C.) version is designed for ultra-long continuous runs of up to 15 meters from a single power feed, significantly simplifying installation for large-scale projects. Featuring a highly flexible and durable design with a 180° beam angle and built-in chip protection, it ensures consistent brightness and reliability across its entire length. With a robu...
Description
Integrated constant current IC regulation allows this DC36V SOB LED strip light to maintain uniform brightness across single-feed continuous runs up to 15m. Engineered with a heavy 3oz copper 10mm PCB to ensure superior thermal dissipation and reliable flexibility with a minimum bend diameter of 60mm. Features 312 SOB LEDs per meter with a 160-degree beam angle, offering clean linear illumination with precise cut increments every 38.46mm. This dimmable linear lighting solution provides excellent color consistency for high-end architectural lighting, decorative projects, and commercial display installations. Factory-direct wholesale project supply includes flexible OEM customization options for operating power ranging from 4W to 20W, tailored CCT, and high CRI.
Specifications
| LED QTY | 312 |
|---|---|
| PART NO | DL-FSOBA156V36-15079-* |
| SMD TYPE | SOB |
| CUTTABLE UNIT | 12LEDs/38.46mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 3.21mm |
| PCB WIDTH | 10 |
| BEAM ANGLE | 160° |
| RUN LENGTH | 15m |
| COPPER FOIL | 3oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 4~20W |
| CIRCUIT TYPE | C.C. (IC Regulated) |
| INPUT VOLTAGE | DC36V |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Long corridor & warehouse runs — Long single-feed runs on 36V cover corridors, warehouse aisles and facade lines with fewer injection points and fewer power supplies.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #15079
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 118.3 lm/W at 4000K, Ra 90, ErP energy class E (Grade DL (2nd Tier) · 4.8W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 4.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 89.5 lm/W | 429.7 lm/m | F | — | — | — |
| 2300 K | — | — | — | 99.7 lm/W | 478.8 lm/m | F | — | — | — |
| 2700 K | — | — | — | 107.9 lm/W | 517.9 lm/m | F | — | — | — |
| 3000 K | — | — | — | 113.6 lm/W | 545.2 lm/m | E | — | — | — |
| 3500 K | — | — | — | 115.5 lm/W | 554.6 lm/m | E | — | — | — |
| 4000 K | — | — | — | 118.3 lm/W | 568 lm/m | E | — | — | — |
| 5000 K | — | — | — | 118.3 lm/W | 568 lm/m | E | — | — | — |
| 6500 K | — | — | — | 113.5 lm/W | 544.7 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 86.6 lm/W | 830.9 lm/m | F | — | — | — |
| 2300 K | — | — | — | 96.4 lm/W | 925.8 lm/m | F | — | — | — |
| 2700 K | — | — | — | 104.3 lm/W | 1001.5 lm/m | F | — | — | — |
| 3000 K | — | — | — | 109.8 lm/W | 1054.2 lm/m | F | — | — | — |
| 3500 K | — | — | — | 111.7 lm/W | 1072.4 lm/m | E | — | — | — |
| 4000 K | — | — | — | 114.4 lm/W | 1098.3 lm/m | E | — | — | — |
| 5000 K | — | — | — | 114.4 lm/W | 1098.3 lm/m | E | — | — | — |
| 6500 K | — | — | — | 109.7 lm/W | 1053.3 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 18W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 81.6 lm/W | 1468.7 lm/m | G | — | — | — |
| 2300 K | — | — | — | 90.9 lm/W | 1636.4 lm/m | F | — | — | — |
| 2700 K | — | — | — | 98.3 lm/W | 1770.2 lm/m | F | — | — | — |
| 3000 K | — | — | — | 103.5 lm/W | 1863.4 lm/m | F | — | — | — |
| 3500 K | — | — | — | 105.3 lm/W | 1895.6 lm/m | F | — | — | — |
| 4000 K | — | — | — | 107.9 lm/W | 1941.3 lm/m | F | — | — | — |
| 5000 K | — | — | — | 107.9 lm/W | 1941.3 lm/m | F | — | — | — |
| 6500 K | — | — | — | 103.4 lm/W | 1861.7 lm/m | F | — | — | — |
Related models in this series
See every model in SOB LED Strip Series or narrow to Sob 36V. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What is the maximum continuous run length for this SOB LED strip?
This SOB LED strip (Model 15079) can achieve an ultra-long continuous run of up to 15 meters with power supplied from only one end, simplifying installation.
What are the advantages of its high bending reliability and 180-degree beam angle?
The high bending reliability allows for versatile installation in complex designs, while the 180-degree beam angle provides wide, uniform illumination for various applications.
Is this LED strip dimmable, and what voltage does it require?
Yes, this constant current LED strip is dimmable and operates on a DC36V input, ensuring stable performance and consistent brightness.
Can I customize the CCT, CRI, or power output for my project needs?
Yes, DENO LED offers customizable options for CCT, higher CRI, and different power outputs to meet the specific requirements of your commercial project.
Is this SOB strip light also called FOB, S-COB or COB Pro strip light?
Yes. Model 15079 belongs to the DENO SOB (Spot on Board) family, which the market also calls FOB strip light, S-COB strip light or COB Pro strip light. All three names describe the same dot-free chip-on-board LED strip construction, so you can quote it under whichever term your project specification uses.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- 36V SOB strips — 36V LED Strip — Buyer Questions
- LED strip engineering selection handbook
SOB is the upgraded generation of the COB LED strip
Every SOB board on this page starts from the classic COB recipe — one continuous phosphor line, zero visible dots — and rebuilds it with individually encapsulated, gold-wire-bonded packages soldered on thick copper of up to 105 µm or thicker. The result keeps the COB look while DENO has verified builds up to 24W/m at 24V DC (25 °C ambient, aluminum profile), with a standard binning target of SDCM ≤3; CRI, run length and cut unit are model-specific. For shorter, lower-load or cost-sensitive lines the classic COB range remains a practical choice — compare exact models under equal conditions.
