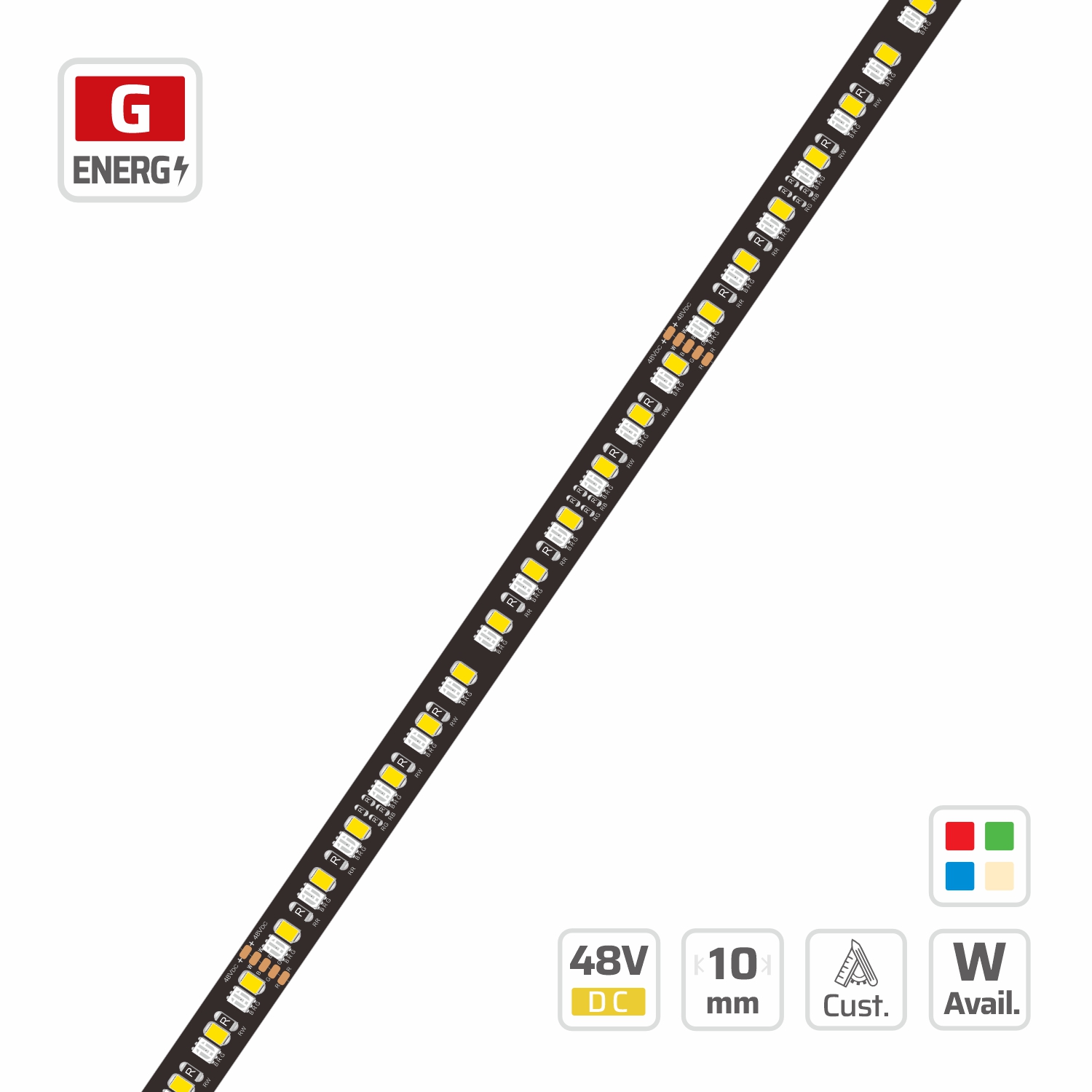

48V Mixes RGB+W LED Strip Light (#16785)
10mm · 48V · 192LEDs · 125mm/cut
Model: 16785
Overview
48V Mixes RGB+W LED Strip Light | 10mm | 48V | 192LEDs | 125mm/cut | #16785 is part of the DENO RGBW SMD Strips series, engineered around RGBW LED strip lights. Key specifications: 2835, 192, DC48V, 10mm PCB, 3oz copper FPCB, cuttable 24LEDs/125mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Features 192 SMD 2835 LEDs per meter combining RGB and white chips on a 10mm PCB for dynamic color mixing and functional illumination. Operating on DC 48V constant voltage with a heavy 3oz copper PCB, this LED strip light supports extended single runs up to 10 meters. Engineered with a 120-degree beam angle and cuttable every 125mm or 24 LEDs to ensure precise installation inside compatible standard aluminium profiles. Delivering dimmable output from 9.6W to 38.4W, it seamlessly switches between vibrant multi-color effects and clean white tones for architectural lighting projects. Available for factory-direct wholesale project supply to support hospitality, retail, and residential lighting contractors with versatile color-changing installations.
48v Led Strip Lights built for 48v smd strips projects.
Specifications
| CRI | Ra≥90 / Ra≥95 |
|---|---|
| LED QTY | 192 |
| PART NO | DL-F28+28A96V48-16785 |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 24LEDs/125mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP54/IP65/IP66/IP67/IP68 |
| LED PITCH | 10.416 |
| PCB WIDTH | 10mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 10m |
| COPPER FOIL | 3oz |
| POWER RANGE | 9.6~38.4W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | DC48V |
| LUMINOUS FLUX | 1387lm/m @RGBW |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Long corridor & warehouse runs — Long single-feed runs on 48V cover corridors, warehouse aisles and facade lines with fewer injection points and fewer power supplies.
- Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
Request a quotation for #16785
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 38.4W/m, 16785 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 22x12mm Recessed LED Channel with Flange · fits ≤10mm strip
- 20x15mm Wide Surface Mount LED Channel · fits ≤10mm strip
- 17x15mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm Magnetic LED Channel · fits ≤10mm strip
- 19.1x8mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm 48V Surface Mount LED Channel · fits ≤10mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 2835 Classic Stable 48V LED Strip Light (#18205)
- 2835 Long Run LED Strip Light (#16011)
- 2835 High-Brightness CV LED strip (#15235)
- 2835 Two-Row 48V Constant Current LED Strip Light (#19810)
See every model in SMD LED Strip Series or narrow to 48V. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 16785?
16785: 2835, 192, DC48V, 10mm PCB, 3oz copper FPCB, cuttable 24LEDs/125mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What colour temperatures and CRI options does this RGBW LED strip lights offer?
This model is supplied as a RGBW LED strip lights with high CRI options and the CCT range listed in the datasheet. DENO bins every batch for colour consistency, and custom CCT or spectrum combinations can be produced for project quantities.
Can DENO customise this RGBW LED strip lights for a project?
Yes. DENO manufactures the RGBW SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What does the W channel add on an RGBW LED strip?
The fourth chip is a real white LED, so the strip delivers a clean 2700K to 6500K white at full efficacy instead of the pale tint produced by mixing red, green and blue. RGBCCT versions add a second white channel for tunable white control alongside colour.
How long can a 48V LED strip run from a single feed?
A 48V LED strip typically doubles the run length of an equivalent 24V LED strip at the same power density, with 20 to 40 m single-end runs common at low wattages. The exact limit depends on watts per metre and copper weight, so confirm it with the DENO voltage drop calculator before specifying.
