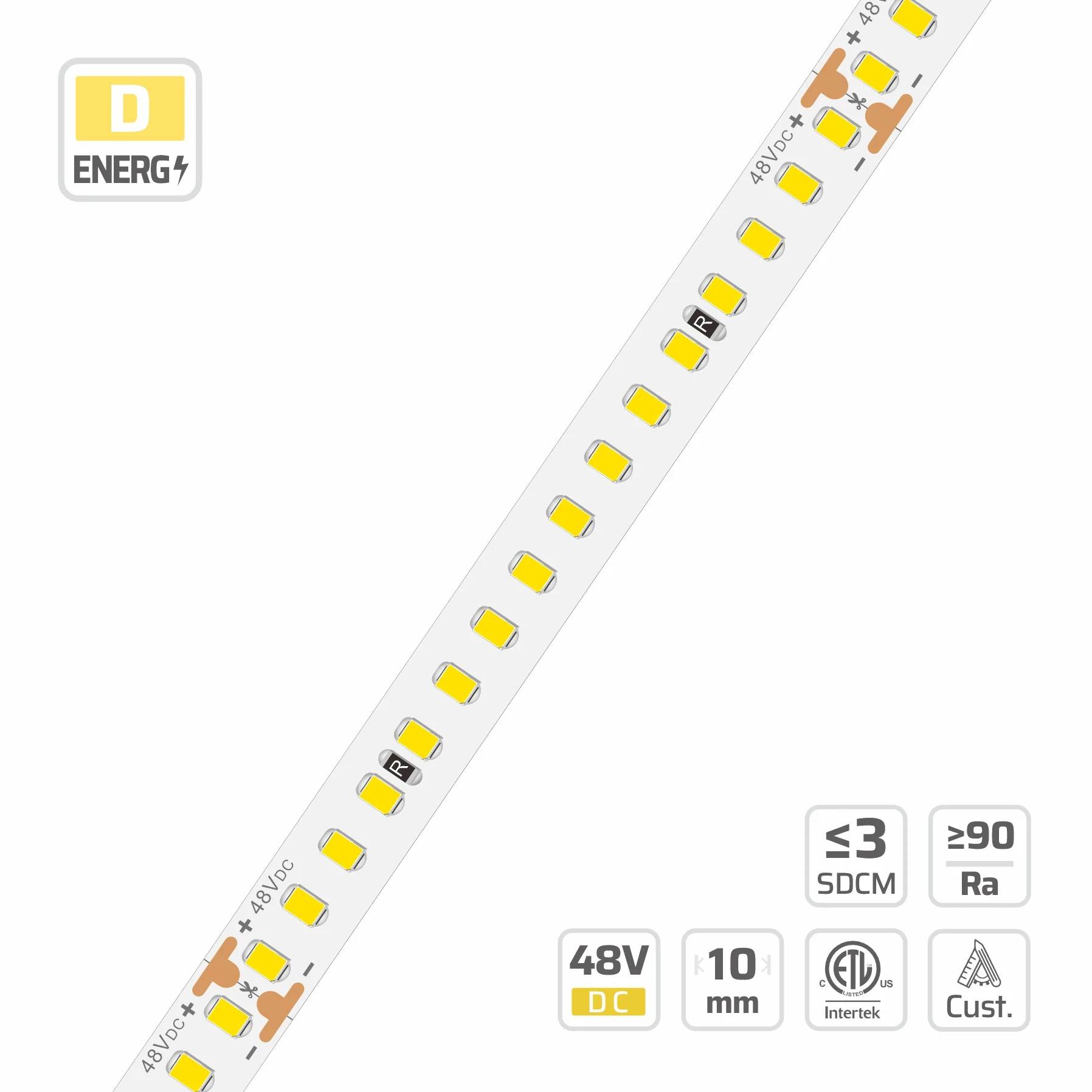

2835 High-Brightness CV LED strip (#15235)
10mm · 48V · 160LEDs · 100cut
Model: 15235
Overview
10mm | 48V | 160LEDs | 100cut | #15235 | 2835 High-Brightness CV LED strip is part of the DENO 48V SMD Strips series, engineered around 48V LED strip lights. Key specifications: 2835, 160, 48V, 10mm PCB, 3 oz copper FPCB, cuttable 16LEDs/100mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Operating on a constant voltage 48V circuit, this 2835 LED strip light maintains uniform illumination over continuous runs up to 10 meters without noticeable voltage drop. Engineered with a 10mm wide 3 oz copper PCB, this flexible strip ensures superior heat dissipation across the 2.4W to 24W power range. Featuring 160 LEDs per meter with single-bin color consistency under 3 SDCM, it delivers smooth dot-free illumination for premium architectural lighting installations. The strip offers 100mm cut intervals and fully dimmable performance, making it an ideal choice for factory-direct wholesale project supply and custom builds.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| CCT (K) | 1800–6500K |
|---|---|
| CRI | FS / Ra≥90 |
| SDCM | < 3 SDCM (Single Bin) |
| POWER (W/M) | 10 W/m |
| LED QTY | 160 |
| PART NO | DL-F28A80V48-15235-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 16LEDs/100mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP54/IP65/IP66/IP67/IP68 |
| LED PITCH | 6.25mm |
| PCB WIDTH | 10mm |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 10m |
| COPPER FOIL | 3 oz |
| ON OFF TIMES | 10000 (test times) |
| POWER RANGE | 2.4~24W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 48V |
| LUMINOUS FLUX | 1017–1376 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Long corridor & warehouse runs — Long single-feed runs on 48V cover corridors, warehouse aisles and facade lines with fewer injection points and fewer power supplies.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
Request a quotation for #15235
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 171 lm/W at 4000K, Ra 80, ErP energy class C (Grade DL (2nd Tier) · 9.6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 130.2 lm/W | 1250.3 lm/m | E | 104.5 lm/W | 1002.7 lm/m | F | — | — | — |
| 2300 K | 145 lm/W | 1391.9 lm/m | D | 116.4 lm/W | 1117.4 lm/m | E | 94.3 lm/W | 905.3 lm/m | F |
| 2700 K | 153.2 lm/W | 1470.9 lm/m | D | 125.9 lm/W | 1208.9 lm/m | E | 102 lm/W | 979.6 lm/m | F |
| 3000 K | 163.2 lm/W | 1567.2 lm/m | C | 132.5 lm/W | 1272.4 lm/m | E | 107.8 lm/W | 1034.5 lm/m | F |
| 3500 K | 165.7 lm/W | 1590.3 lm/m | C | 134.9 lm/W | 1294.6 lm/m | E | 111 lm/W | 1065.3 lm/m | E |
| 4000 K | 171 lm/W | 1641.4 lm/m | C | 138.1 lm/W | 1325.4 lm/m | D | 114 lm/W | 1094.2 lm/m | E |
| 5000 K | 170.8 lm/W | 1639.4 lm/m | C | 138.1 lm/W | 1325.4 lm/m | D | 113.9 lm/W | 1093.4 lm/m | E |
| 6500 K | 156.4 lm/W | 1501.7 lm/m | D | 132.4 lm/W | 1271.5 lm/m | E | 109.9 lm/W | 1055 lm/m | F |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 125.9 lm/W | 1813.3 lm/m | E | 101 lm/W | 1454.2 lm/m | F | — | — | — |
| 2300 K | 140.2 lm/W | 2018.6 lm/m | D | 112.5 lm/W | 1620.5 lm/m | E | 91.2 lm/W | 1313.3 lm/m | F |
| 2700 K | 148.1 lm/W | 2133.2 lm/m | D | 121.7 lm/W | 1753.2 lm/m | E | 98.7 lm/W | 1420.7 lm/m | F |
| 3000 K | 157.8 lm/W | 2272.9 lm/m | D | 128.2 lm/W | 1845.4 lm/m | E | 104.2 lm/W | 1500.3 lm/m | F |
| 3500 K | 160.2 lm/W | 2306.4 lm/m | C | 130.4 lm/W | 1877.5 lm/m | E | 107.3 lm/W | 1545 lm/m | F |
| 4000 K | 165.3 lm/W | 2380.4 lm/m | C | 133.5 lm/W | 1922.2 lm/m | E | 110.2 lm/W | 1586.9 lm/m | E |
| 5000 K | 165.1 lm/W | 2377.6 lm/m | C | 133.5 lm/W | 1922.2 lm/m | E | 110.1 lm/W | 1585.4 lm/m | E |
| 6500 K | 151.2 lm/W | 2177.9 lm/m | D | 128.1 lm/W | 1844 lm/m | E | 106.3 lm/W | 1530.7 lm/m | F |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 121.7 lm/W | 2337.5 lm/m | E | 97.6 lm/W | 1874.7 lm/m | F | — | — | — |
| 2300 K | 135.5 lm/W | 2602.2 lm/m | D | 108.8 lm/W | 2089 lm/m | F | 88.1 lm/W | 1691.5 lm/m | F |
| 2700 K | 143.2 lm/W | 2749.9 lm/m | D | 117.7 lm/W | 2260.1 lm/m | E | 95.4 lm/W | 1831.5 lm/m | F |
| 3000 K | 152.6 lm/W | 2930 lm/m | D | 123.9 lm/W | 2378.9 lm/m | E | 100.7 lm/W | 1934.1 lm/m | F |
| 3500 K | 154.9 lm/W | 2973.2 lm/m | D | 126.1 lm/W | 2420.3 lm/m | E | 103.7 lm/W | 1991.7 lm/m | F |
| 4000 K | 159.8 lm/W | 3068.7 lm/m | D | 129.1 lm/W | 2478 lm/m | E | 106.6 lm/W | 2045.8 lm/m | F |
| 5000 K | 159.6 lm/W | 3065.1 lm/m | D | 129.1 lm/W | 2478 lm/m | E | 106.5 lm/W | 2044.8 lm/m | F |
| 6500 K | 146.2 lm/W | 2807.5 lm/m | D | 123.8 lm/W | 2377.1 lm/m | E | 102.8 lm/W | 1973.8 lm/m | F |
Grade DL (2nd Tier) · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 117.7 lm/W | 2825 lm/m | E | 94.4 lm/W | 2265.7 lm/m | F | — | — | — |
| 2300 K | 131 lm/W | 3144.9 lm/m | E | 105.2 lm/W | 2524.7 lm/m | F | 85.2 lm/W | 2044.8 lm/m | F |
| 2700 K | 138.5 lm/W | 3323.4 lm/m | D | 113.8 lm/W | 2731.4 lm/m | E | 92.2 lm/W | 2213.4 lm/m | F |
| 3000 K | 147.5 lm/W | 3541.1 lm/m | D | 119.8 lm/W | 2875.1 lm/m | E | 97.4 lm/W | 2337.5 lm/m | F |
| 3500 K | 149.7 lm/W | 3593.3 lm/m | D | 121.9 lm/W | 2925.1 lm/m | E | 100.3 lm/W | 2407.1 lm/m | F |
| 4000 K | 154.5 lm/W | 3708.6 lm/m | D | 124.8 lm/W | 2994.8 lm/m | E | 103 lm/W | 2472.4 lm/m | F |
| 5000 K | 154.3 lm/W | 3704.3 lm/m | D | 124.8 lm/W | 2994.8 lm/m | E | 102.9 lm/W | 2469.6 lm/m | F |
| 6500 K | 141.4 lm/W | 3393.1 lm/m | D | 119.7 lm/W | 2872.9 lm/m | E | 99.4 lm/W | 2385.6 lm/m | F |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 124.4 lm/W | 1194.4 lm/m | E | 104.7 lm/W | 1004.7 lm/m | F | — | — | — |
| 2300 K | 135.7 lm/W | 1302.3 lm/m | E | 116.8 lm/W | 1121.2 lm/m | F | 94.6 lm/W | 908.2 lm/m | F |
| 2700 K | 146.2 lm/W | 1403.4 lm/m | D | 126.4 lm/W | 1213.7 lm/m | E | 102.4 lm/W | 983.5 lm/m | F |
| 3000 K | 153.5 lm/W | 1473.8 lm/m | D | 133.4 lm/W | 1281.1 lm/m | E | 108.6 lm/W | 1042.2 lm/m | F |
| 3500 K | 155.8 lm/W | 1495.9 lm/m | D | 136.4 lm/W | 1309 lm/m | E | 112.3 lm/W | 1077.9 lm/m | F |
| 4000 K | 158.7 lm/W | 1523.8 lm/m | D | 137.2 lm/W | 1316.8 lm/m | E | 113.2 lm/W | 1086.5 lm/m | F |
| 5000 K | 158.5 lm/W | 1521.9 lm/m | D | 138.1 lm/W | 1325.4 lm/m | E | 113.9 lm/W | 1093.4 lm/m | F |
| 6500 K | 151.9 lm/W | 1458.3 lm/m | D | 131.9 lm/W | 1266.7 lm/m | E | 109.5 lm/W | 1051.2 lm/m | F |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 120.3 lm/W | 1732.2 lm/m | E | 101.2 lm/W | 1457 lm/m | F | — | — | — |
| 2300 K | 131.2 lm/W | 1888.7 lm/m | E | 112.9 lm/W | 1626.1 lm/m | F | 91.5 lm/W | 1317.6 lm/m | G |
| 2700 K | 141.3 lm/W | 2035.4 lm/m | E | 122.2 lm/W | 1760.2 lm/m | E | 99 lm/W | 1426.3 lm/m | F |
| 3000 K | 148.4 lm/W | 2137.3 lm/m | D | 129 lm/W | 1858 lm/m | E | 105 lm/W | 1511.5 lm/m | F |
| 3500 K | 150.7 lm/W | 2169.5 lm/m | D | 131.8 lm/W | 1898.5 lm/m | E | 108.6 lm/W | 1563.2 lm/m | F |
| 4000 K | 153.5 lm/W | 2210 lm/m | D | 132.6 lm/W | 1909.6 lm/m | E | 109.4 lm/W | 1575.8 lm/m | F |
| 5000 K | 153.3 lm/W | 2207.2 lm/m | D | 133.5 lm/W | 1922.2 lm/m | E | 110.1 lm/W | 1585.4 lm/m | F |
| 6500 K | 146.9 lm/W | 2115 lm/m | D | 127.6 lm/W | 1837 lm/m | E | 105.9 lm/W | 1525 lm/m | F |
Grade DN (1st Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 116.3 lm/W | 2233.1 lm/m | F | 97.8 lm/W | 1878.3 lm/m | F | — | — | — |
| 2300 K | 126.8 lm/W | 2434.8 lm/m | E | 109.2 lm/W | 2096.2 lm/m | F | 88.4 lm/W | 1697.3 lm/m | G |
| 2700 K | 136.7 lm/W | 2623.8 lm/m | E | 118.2 lm/W | 2269.1 lm/m | F | 95.8 lm/W | 1838.7 lm/m | F |
| 3000 K | 143.5 lm/W | 2755.3 lm/m | E | 124.7 lm/W | 2395.1 lm/m | E | 101.5 lm/W | 1948.5 lm/m | F |
| 3500 K | 145.7 lm/W | 2796.7 lm/m | E | 127.5 lm/W | 2447.4 lm/m | E | 105 lm/W | 2015.2 lm/m | F |
| 4000 K | 148.4 lm/W | 2849 lm/m | D | 128.2 lm/W | 2461.8 lm/m | E | 105.8 lm/W | 2031.4 lm/m | F |
| 5000 K | 148.2 lm/W | 2845.3 lm/m | D | 129.1 lm/W | 2478 lm/m | E | 106.5 lm/W | 2044.8 lm/m | F |
| 6500 K | 142 lm/W | 2726.5 lm/m | E | 123.3 lm/W | 2368.1 lm/m | E | 102.4 lm/W | 1966.1 lm/m | F |
Grade DN (1st Tier) · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 112.4 lm/W | 2698.8 lm/m | F | 94.6 lm/W | 2270 lm/m | F | — | — | — |
| 2300 K | 122.6 lm/W | 2942.5 lm/m | E | 105.6 lm/W | 2533.4 lm/m | F | 85.5 lm/W | 2052 lm/m | G |
| 2700 K | 132.1 lm/W | 3171.1 lm/m | E | 114.3 lm/W | 2742.3 lm/m | F | 92.6 lm/W | 2222.1 lm/m | F |
| 3000 K | 138.7 lm/W | 3329.9 lm/m | E | 120.6 lm/W | 2894.7 lm/m | E | 98.1 lm/W | 2354.9 lm/m | F |
| 3500 K | 140.8 lm/W | 3380 lm/m | E | 123.2 lm/W | 2957.8 lm/m | E | 101.5 lm/W | 2435.4 lm/m | F |
| 4000 K | 143.5 lm/W | 3443.1 lm/m | E | 124 lm/W | 2975.2 lm/m | E | 102.3 lm/W | 2455 lm/m | F |
| 5000 K | 143.3 lm/W | 3438.8 lm/m | E | 124.8 lm/W | 2994.8 lm/m | E | 102.9 lm/W | 2469.6 lm/m | F |
| 6500 K | 137.3 lm/W | 3295.1 lm/m | E | 119.3 lm/W | 2862 lm/m | E | 99 lm/W | 2376 lm/m | F |
Grade KE (3rd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 129.4 lm/W | 1242.6 lm/m | E | 103.7 lm/W | 996 lm/m | F | — | — | — |
| 2300 K | 144.3 lm/W | 1385.1 lm/m | D | 115.7 lm/W | 1110.6 lm/m | E | 93.7 lm/W | 899.5 lm/m | F |
| 2700 K | 155.5 lm/W | 1493 lm/m | D | 125.5 lm/W | 1205 lm/m | E | 101.7 lm/W | 976.7 lm/m | F |
| 3000 K | 163.2 lm/W | 1567.2 lm/m | C | 132.5 lm/W | 1272.4 lm/m | E | 107.9 lm/W | 1035.5 lm/m | F |
| 3500 K | 165.8 lm/W | 1591.3 lm/m | C | 135.2 lm/W | 1297.5 lm/m | D | 111.3 lm/W | 1068.2 lm/m | E |
| 4000 K | 170.6 lm/W | 1637.5 lm/m | C | 138.1 lm/W | 1325.4 lm/m | D | 114 lm/W | 1094.2 lm/m | E |
| 5000 K | 170.4 lm/W | 1635.6 lm/m | C | 138.1 lm/W | 1325.4 lm/m | D | 113.9 lm/W | 1093.4 lm/m | E |
| 6500 K | 163.2 lm/W | 1567.2 lm/m | C | 132.5 lm/W | 1272.4 lm/m | E | 110 lm/W | 1056 lm/m | E |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 125.1 lm/W | 1802.1 lm/m | E | 100.3 lm/W | 1444.5 lm/m | F | — | — | — |
| 2300 K | 139.5 lm/W | 2008.8 lm/m | D | 111.9 lm/W | 1610.7 lm/m | E | 90.6 lm/W | 1304.6 lm/m | F |
| 2700 K | 150.4 lm/W | 2165.3 lm/m | D | 121.4 lm/W | 1747.6 lm/m | E | 98.4 lm/W | 1416.5 lm/m | F |
| 3000 K | 157.8 lm/W | 2272.9 lm/m | D | 128.2 lm/W | 1845.4 lm/m | E | 104.3 lm/W | 1501.7 lm/m | F |
| 3500 K | 160.3 lm/W | 2307.8 lm/m | C | 130.7 lm/W | 1881.7 lm/m | E | 107.6 lm/W | 1549.2 lm/m | F |
| 4000 K | 164.9 lm/W | 2374.8 lm/m | C | 133.5 lm/W | 1922.2 lm/m | E | 110.2 lm/W | 1586.9 lm/m | E |
| 5000 K | 164.7 lm/W | 2372 lm/m | C | 133.5 lm/W | 1922.2 lm/m | E | 110.1 lm/W | 1585.4 lm/m | E |
| 6500 K | 157.8 lm/W | 2272.9 lm/m | D | 128.2 lm/W | 1845.4 lm/m | E | 106.4 lm/W | 1532.2 lm/m | F |
Grade KE (3rd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 121 lm/W | 2323.1 lm/m | E | 97 lm/W | 1862.1 lm/m | F | — | — | — |
| 2300 K | 134.9 lm/W | 2589.6 lm/m | E | 108.1 lm/W | 2076.4 lm/m | F | 87.6 lm/W | 1681.9 lm/m | F |
| 2700 K | 145.4 lm/W | 2791.3 lm/m | D | 117.3 lm/W | 2252.9 lm/m | E | 95.1 lm/W | 1826.1 lm/m | F |
| 3000 K | 152.6 lm/W | 2930 lm/m | D | 123.9 lm/W | 2378.9 lm/m | E | 100.8 lm/W | 1935.9 lm/m | F |
| 3500 K | 154.9 lm/W | 2975 lm/m | D | 126.3 lm/W | 2425.7 lm/m | E | 104 lm/W | 1997.1 lm/m | F |
| 4000 K | 159.5 lm/W | 3061.5 lm/m | D | 129.1 lm/W | 2478 lm/m | E | 106.6 lm/W | 2045.8 lm/m | F |
| 5000 K | 159.3 lm/W | 3057.8 lm/m | D | 129.1 lm/W | 2478 lm/m | E | 106.5 lm/W | 2044.8 lm/m | F |
| 6500 K | 152.6 lm/W | 2930 lm/m | D | 123.9 lm/W | 2378.9 lm/m | E | 102.8 lm/W | 1973.8 lm/m | F |
Grade KE (3rd Tier) · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 117 lm/W | 2807.6 lm/m | E | 93.8 lm/W | 2250.4 lm/m | F | — | — | — |
| 2300 K | 130.4 lm/W | 3129.7 lm/m | E | 104.6 lm/W | 2509.4 lm/m | F | 84.7 lm/W | 2032.8 lm/m | G |
| 2700 K | 140.6 lm/W | 3373.5 lm/m | D | 113.4 lm/W | 2722.7 lm/m | E | 92 lm/W | 2206.9 lm/m | F |
| 3000 K | 147.5 lm/W | 3541.1 lm/m | D | 119.8 lm/W | 2875.1 lm/m | E | 97.5 lm/W | 2339.7 lm/m | F |
| 3500 K | 149.8 lm/W | 3595.5 lm/m | D | 122.2 lm/W | 2931.7 lm/m | E | 100.6 lm/W | 2413.7 lm/m | F |
| 4000 K | 154.2 lm/W | 3699.9 lm/m | D | 124.8 lm/W | 2994.8 lm/m | E | 103 lm/W | 2472.4 lm/m | F |
| 5000 K | 154 lm/W | 3695.6 lm/m | D | 124.8 lm/W | 2994.8 lm/m | E | 102.9 lm/W | 2469.6 lm/m | F |
| 6500 K | 147.5 lm/W | 3541.1 lm/m | D | 119.8 lm/W | 2875.1 lm/m | E | 99.4 lm/W | 2385.6 lm/m | F |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 24W/m, 15235 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 22x12mm Recessed LED Channel with Flange · fits ≤10mm strip
- 20x15mm Wide Surface Mount LED Channel · fits ≤10mm strip
- 17x15mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm Magnetic LED Channel · fits ≤10mm strip
- 19.1x8mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm 48V Surface Mount LED Channel · fits ≤10mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 2835 Classic Stable 48V LED Strip Light (#18205)
- 2835 Long Run LED Strip Light (#16011)
- 2835 Two-Row 48V Constant Current LED Strip Light (#19810)
- 48V Mixes RGB+W LED Strip Light (#16785)
See every model in SMD LED Strip Series or narrow to 48V. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 15235?
15235: 2835, 160, 48V, 10mm PCB, 3 oz copper FPCB, cuttable 16LEDs/100mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this 48V LED strip lights be?
Maximum single run for this model is 10m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 48V LED strip lights can cover twice that length on one circuit when wired accordingly.
Can DENO customise this 48V LED strip lights for a project?
Yes. DENO manufactures the 48V SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How long can a 48V LED strip run from a single feed?
A 48V LED strip typically doubles the run length of an equivalent 24V LED strip at the same power density, with 20 to 40 m single-end runs common at low wattages. The exact limit depends on watts per metre and copper weight, so confirm it with the DENO voltage drop calculator before specifying.
Which LED driver and run length suit #15235?
10mm | 48V | 160LEDs | 100cut | #15235 | 2835 High-Brightness CV LED strip is a constant-voltage 48V product, so pair it with a CE or UL listed 48V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 10m. 10m Single/20m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
