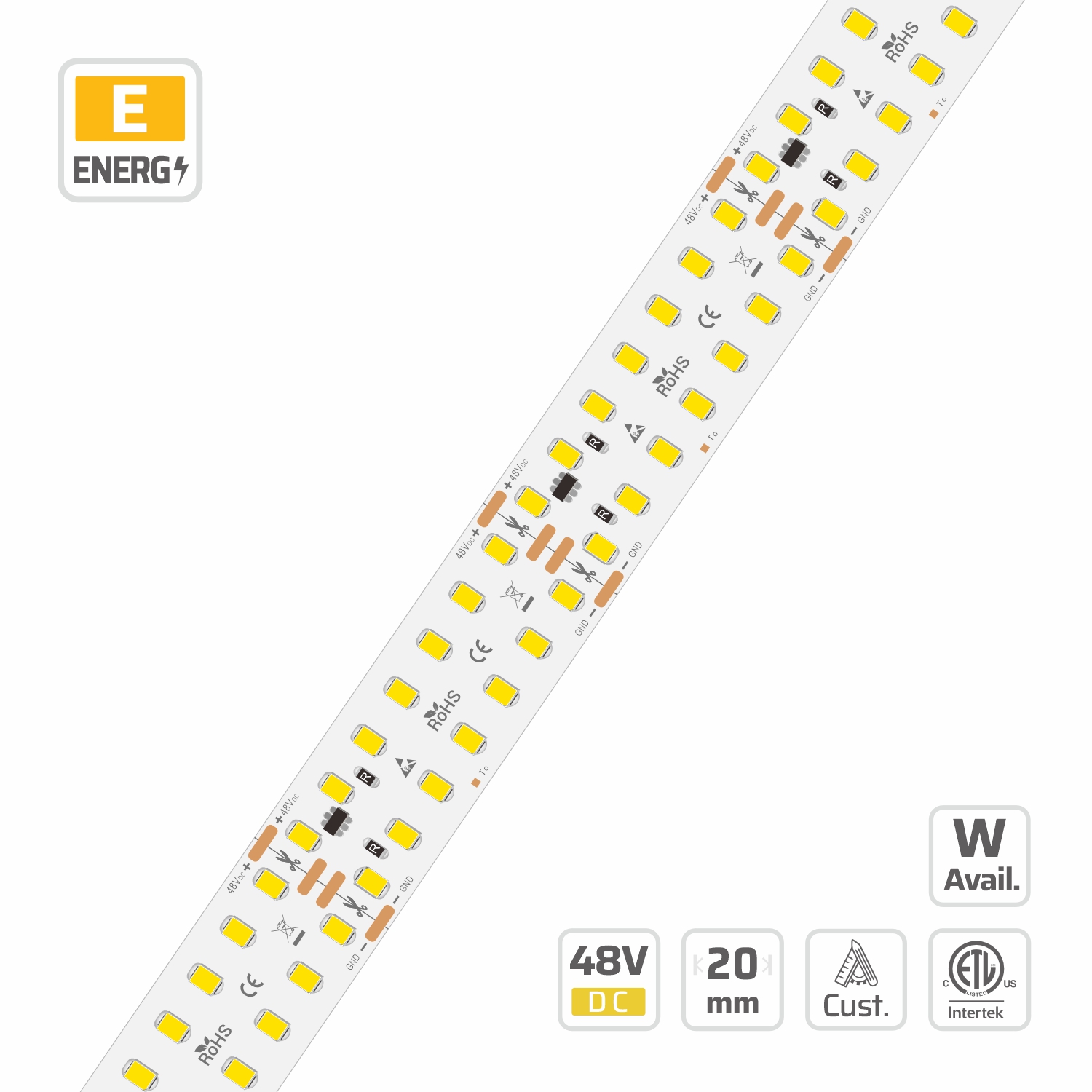

2835 Two-Row 48V Constant Current LED Strip Light (#19810)
20mm · 48V · 280LEDs · 50mm/cut
Model: 19810
Overview
20mm | 48V | 280LEDs | 50mm/cut | #19810 | 2835 Two-Row 48V Constant Current LED Strip Light is part of the DENO Wide SMD Strips series, engineered around wide PCB LED strip. Key specifications: 2835, 280, DC 48V, 20mm PCB, 3oz copper FPCB, cuttable 14LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with 280 LEDs per meter in a dual-row layout, this 2835 LED strip light delivers continuous, high-output illumination for architectural lighting applications. The integrated constant current circuit design supports DC 48V operation, enabling extended single-feed runs up to 10 meters with minimal voltage drop. Built on a heavy-duty 20mm wide PCB with 3oz copper foil, the strip ensures superior heat dissipation and stable electrical performance. Featuring precise 50mm cutting increments and full dimming compatibility, this model is available for factory-direct wholesale project supply.
48v Led Strip Lights built for 48v smd strips projects.
Specifications
| CRI | Ra≥80 / Ra≥90 / Ra≥95 |
|---|---|
| LED QTY | 280 |
| PART NO | DL-F28A140V48-19810 |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 14LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP65/IP66/IP67/IP68 |
| LED PITCH | 7.143mm |
| PCB WIDTH | 20mm |
| RUN LENGTH | 10m |
| COPPER FOIL | 3oz |
| POWER RANGE | 4.8~38W |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | DC 48V |
| LUMINOUS FLUX | 2729 lm/m @4000K |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Long corridor & warehouse runs — Long single-feed runs on 48V cover corridors, warehouse aisles and facade lines with fewer injection points and fewer power supplies.
Recommended accessories & compatible parts
- DL-2005 — 20x05mm 48V Surface Mount LED Channel — Aluminum Profile for Corridor Runs: Accepts LED strips up to 20mm wide.
- DL-2007 — 20x07mm 48V Surface Mount LED Channel — Slim Aluminum Profile for Long Runs: Accepts LED strips up to 20mm wide.
- DL-2008 — 20x08mm Surface Mount LED Channel — Wide Aluminum Profile for 12mm Strip: Accepts LED strips up to 20mm wide.
Request a quotation for #19810
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 162 lm/W at 4000K, Ra 80, ErP energy class D (Grade DN (1st Tier) · 14.4W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 115.2 lm/W | 1658.8 lm/m | E | 92.2 lm/W | 1327 lm/m | F | — | — | — |
| 2300 K | 128.2 lm/W | 1845.5 lm/m | E | 102.7 lm/W | 1478.2 lm/m | F | 83.2 lm/W | 1198.1 lm/m | G |
| 2700 K | 134.9 lm/W | 1942.7 lm/m | E | 111 lm/W | 1598.6 lm/m | E | 90 lm/W | 1296.2 lm/m | F |
| 3000 K | 144.2 lm/W | 2077 lm/m | D | 116.9 lm/W | 1683.5 lm/m | E | 95 lm/W | 1368.7 lm/m | F |
| 3500 K | 146.5 lm/W | 2109.4 lm/m | D | 118.9 lm/W | 1712.8 lm/m | E | 97.9 lm/W | 1410.4 lm/m | F |
| 4000 K | 151.1 lm/W | 2175.7 lm/m | D | 121.8 lm/W | 1754.5 lm/m | E | 100.5 lm/W | 1447.4 lm/m | F |
| 5000 K | 151 lm/W | 2174.2 lm/m | D | 121.7 lm/W | 1752.9 lm/m | E | 100.4 lm/W | 1445.8 lm/m | F |
| 6500 K | 138.1 lm/W | 1989 lm/m | D | 116.8 lm/W | 1681.9 lm/m | E | 96.9 lm/W | 1395.4 lm/m | F |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 111.4 lm/W | 2138.4 lm/m | E | 89.1 lm/W | 1710.7 lm/m | F | — | — | — |
| 2300 K | 123.9 lm/W | 2379.1 lm/m | E | 99.3 lm/W | 1905.6 lm/m | F | 80.4 lm/W | 1543.7 lm/m | G |
| 2700 K | 130.4 lm/W | 2504.4 lm/m | E | 107.3 lm/W | 2060.8 lm/m | F | 87 lm/W | 1670.9 lm/m | F |
| 3000 K | 139.5 lm/W | 2677.5 lm/m | D | 113 lm/W | 2170.2 lm/m | E | 91.9 lm/W | 1764.4 lm/m | F |
| 3500 K | 141.6 lm/W | 2719.2 lm/m | D | 115 lm/W | 2208 lm/m | E | 94.7 lm/W | 1818.1 lm/m | F |
| 4000 K | 146.1 lm/W | 2804.8 lm/m | D | 117.8 lm/W | 2261.7 lm/m | E | 97.2 lm/W | 1865.9 lm/m | F |
| 5000 K | 146 lm/W | 2802.8 lm/m | D | 117.7 lm/W | 2259.7 lm/m | E | 97.1 lm/W | 1864.3 lm/m | F |
| 6500 K | 133.5 lm/W | 2564.1 lm/m | E | 112.9 lm/W | 2168.2 lm/m | E | 93.7 lm/W | 1799 lm/m | F |
Grade DL (2nd Tier) · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 107.7 lm/W | 2584.4 lm/m | F | 86.1 lm/W | 2067.5 lm/m | F | — | — | — |
| 2300 K | 119.8 lm/W | 2875.2 lm/m | E | 96 lm/W | 2303.1 lm/m | F | 77.7 lm/W | 1864.8 lm/m | G |
| 2700 K | 126.1 lm/W | 3026.7 lm/m | E | 103.8 lm/W | 2490.6 lm/m | F | 84.1 lm/W | 2019.4 lm/m | G |
| 3000 K | 134.8 lm/W | 3235.9 lm/m | E | 109.3 lm/W | 2622.8 lm/m | F | 88.8 lm/W | 2132.4 lm/m | F |
| 3500 K | 136.9 lm/W | 3286.3 lm/m | D | 111.2 lm/W | 2668.5 lm/m | E | 91.6 lm/W | 2197.3 lm/m | F |
| 4000 K | 141.2 lm/W | 3389.7 lm/m | D | 113.9 lm/W | 2733.4 lm/m | E | 94 lm/W | 2255 lm/m | F |
| 5000 K | 141.1 lm/W | 3387.3 lm/m | D | 113.8 lm/W | 2731 lm/m | E | 93.9 lm/W | 2253.6 lm/m | F |
| 6500 K | 129.1 lm/W | 3098.8 lm/m | E | 109.2 lm/W | 2620.4 lm/m | F | 90.6 lm/W | 2174.4 lm/m | F |
Grade DL (2nd Tier) · 28.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 104.1 lm/W | 2998.4 lm/m | F | 83.3 lm/W | 2398.7 lm/m | G | — | — | — |
| 2300 K | 115.8 lm/W | 3335.9 lm/m | E | 92.8 lm/W | 2672.1 lm/m | F | 75.2 lm/W | 2165.8 lm/m | G |
| 2700 K | 121.9 lm/W | 3511.6 lm/m | E | 100.3 lm/W | 2889.6 lm/m | F | 81.4 lm/W | 2342.9 lm/m | G |
| 3000 K | 130.4 lm/W | 3754.3 lm/m | E | 105.7 lm/W | 3043 lm/m | F | 85.9 lm/W | 2474 lm/m | F |
| 3500 K | 132.4 lm/W | 3812.8 lm/m | E | 107.5 lm/W | 3096 lm/m | F | 88.5 lm/W | 2549.3 lm/m | F |
| 4000 K | 136.6 lm/W | 3932.8 lm/m | D | 110.1 lm/W | 3171.3 lm/m | E | 90.8 lm/W | 2616.3 lm/m | F |
| 5000 K | 136.5 lm/W | 3930 lm/m | D | 110 lm/W | 3168.5 lm/m | E | 90.8 lm/W | 2615 lm/m | F |
| 6500 K | 124.8 lm/W | 3595.3 lm/m | E | 105.6 lm/W | 3040.2 lm/m | F | 87.6 lm/W | 2522.9 lm/m | F |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 127 lm/W | 1828.5 lm/m | E | 106.8 lm/W | 1538.4 lm/m | F | — | — | — |
| 2300 K | 138.4 lm/W | 1993.6 lm/m | E | 119.2 lm/W | 1715.9 lm/m | E | 96.5 lm/W | 1389.6 lm/m | F |
| 2700 K | 149.3 lm/W | 2149.5 lm/m | D | 129 lm/W | 1857.8 lm/m | E | 104.6 lm/W | 1506 lm/m | F |
| 3000 K | 156.8 lm/W | 2257.5 lm/m | D | 136.2 lm/W | 1961.2 lm/m | E | 110.8 lm/W | 1595.5 lm/m | F |
| 3500 K | 159 lm/W | 2289.9 lm/m | D | 139.2 lm/W | 2004.4 lm/m | E | 114.6 lm/W | 1649.5 lm/m | F |
| 4000 K | 162 lm/W | 2333.1 lm/m | D | 139.9 lm/W | 2015.2 lm/m | E | 115.5 lm/W | 1663.4 lm/m | F |
| 5000 K | 161.8 lm/W | 2330 lm/m | D | 140.8 lm/W | 2027.6 lm/m | E | 116.2 lm/W | 1673.3 lm/m | F |
| 6500 K | 155.2 lm/W | 2234.3 lm/m | D | 134.6 lm/W | 1938.1 lm/m | E | 111.7 lm/W | 1608.5 lm/m | F |
Grade DN (1st Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 122.8 lm/W | 2357.2 lm/m | E | 103.3 lm/W | 1983.2 lm/m | F | — | — | — |
| 2300 K | 133.9 lm/W | 2570 lm/m | E | 115.2 lm/W | 2212 lm/m | F | 93.3 lm/W | 1791.4 lm/m | F |
| 2700 K | 144.3 lm/W | 2770.9 lm/m | E | 124.7 lm/W | 2395 lm/m | E | 101.1 lm/W | 1941.5 lm/m | F |
| 3000 K | 151.6 lm/W | 2910.2 lm/m | D | 131.7 lm/W | 2528.3 lm/m | E | 107.1 lm/W | 2056.8 lm/m | F |
| 3500 K | 153.7 lm/W | 2952 lm/m | D | 134.6 lm/W | 2584 lm/m | E | 110.8 lm/W | 2126.4 lm/m | F |
| 4000 K | 156.6 lm/W | 3007.7 lm/m | D | 135.3 lm/W | 2597.9 lm/m | E | 111.7 lm/W | 2144.4 lm/m | F |
| 5000 K | 156.4 lm/W | 3003.7 lm/m | D | 136.1 lm/W | 2613.8 lm/m | E | 112.3 lm/W | 2156.2 lm/m | F |
| 6500 K | 150 lm/W | 2880.4 lm/m | D | 130.1 lm/W | 2498.4 lm/m | E | 108 lm/W | 2073.6 lm/m | F |
Grade DN (1st Tier) · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 118.7 lm/W | 2848.8 lm/m | F | 99.9 lm/W | 2396.8 lm/m | F | — | — | — |
| 2300 K | 129.4 lm/W | 3106 lm/m | E | 111.4 lm/W | 2673.3 lm/m | F | 90.2 lm/W | 2164.8 lm/m | G |
| 2700 K | 139.5 lm/W | 3348.8 lm/m | E | 120.6 lm/W | 2894.5 lm/m | E | 97.8 lm/W | 2346.4 lm/m | F |
| 3000 K | 146.5 lm/W | 3517.1 lm/m | D | 127.3 lm/W | 3055.5 lm/m | E | 103.6 lm/W | 2485.8 lm/m | F |
| 3500 K | 148.7 lm/W | 3567.6 lm/m | D | 130.1 lm/W | 3122.9 lm/m | E | 107.1 lm/W | 2569.9 lm/m | F |
| 4000 K | 151.5 lm/W | 3634.9 lm/m | D | 130.8 lm/W | 3139.7 lm/m | E | 108 lm/W | 2591.6 lm/m | F |
| 5000 K | 151.3 lm/W | 3630.1 lm/m | D | 131.6 lm/W | 3158.9 lm/m | E | 108.6 lm/W | 2606.4 lm/m | F |
| 6500 K | 145 lm/W | 3481.1 lm/m | E | 125.8 lm/W | 3019.5 lm/m | E | 104.4 lm/W | 2505.6 lm/m | F |
Grade DN (1st Tier) · 28.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 114.8 lm/W | 3305.2 lm/m | F | 96.6 lm/W | 2780.8 lm/m | F | — | — | — |
| 2300 K | 125.1 lm/W | 3603.7 lm/m | E | 107.7 lm/W | 3101.6 lm/m | F | 87.2 lm/W | 2511.4 lm/m | G |
| 2700 K | 134.9 lm/W | 3885.4 lm/m | E | 116.6 lm/W | 3358.2 lm/m | F | 94.5 lm/W | 2722.3 lm/m | F |
| 3000 K | 141.7 lm/W | 4080.6 lm/m | E | 123.1 lm/W | 3545.1 lm/m | E | 100.1 lm/W | 2884 lm/m | F |
| 3500 K | 143.7 lm/W | 4139.2 lm/m | E | 125.8 lm/W | 3623.2 lm/m | E | 103.5 lm/W | 2981.7 lm/m | F |
| 4000 K | 146.4 lm/W | 4217.3 lm/m | D | 126.5 lm/W | 3642.7 lm/m | E | 104.4 lm/W | 3006.8 lm/m | F |
| 5000 K | 146.2 lm/W | 4211.7 lm/m | D | 127.3 lm/W | 3665 lm/m | E | 105 lm/W | 3024 lm/m | F |
| 6500 K | 140.2 lm/W | 4038.8 lm/m | E | 121.6 lm/W | 3503.2 lm/m | E | 101 lm/W | 2908.8 lm/m | F |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 93.7 lm/W | 1348.6 lm/m | F | 74.7 lm/W | 1075.5 lm/m | G | — | — | — |
| 2300 K | 104.4 lm/W | 1502.9 lm/m | F | 83.3 lm/W | 1199 lm/m | G | 67.4 lm/W | 970.6 lm/m | G |
| 2700 K | 112.4 lm/W | 1618.7 lm/m | E | 90.3 lm/W | 1300.8 lm/m | F | 73.2 lm/W | 1053.9 lm/m | G |
| 3000 K | 118.1 lm/W | 1700.4 lm/m | E | 95.5 lm/W | 1374.9 lm/m | F | 77.7 lm/W | 1118.7 lm/m | G |
| 3500 K | 119.9 lm/W | 1726.7 lm/m | E | 97.4 lm/W | 1402.6 lm/m | F | 80.2 lm/W | 1154.2 lm/m | G |
| 4000 K | 123.3 lm/W | 1776.1 lm/m | E | 99.4 lm/W | 1432 lm/m | F | 82.1 lm/W | 1182 lm/m | G |
| 5000 K | 123.2 lm/W | 1774.5 lm/m | E | 99.4 lm/W | 1432 lm/m | F | 82 lm/W | 1180.8 lm/m | G |
| 6500 K | 118.1 lm/W | 1700.4 lm/m | E | 95.5 lm/W | 1374.9 lm/m | F | 79.2 lm/W | 1140.5 lm/m | G |
Grade KE (3rd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 90.5 lm/W | 1738.6 lm/m | F | 72.2 lm/W | 1386.5 lm/m | G | — | — | — |
| 2300 K | 100.9 lm/W | 1937.5 lm/m | F | 80.5 lm/W | 1545.6 lm/m | G | 65.2 lm/W | 1251.8 lm/m | G |
| 2700 K | 108.7 lm/W | 2086.7 lm/m | F | 87.3 lm/W | 1676.9 lm/m | F | 70.8 lm/W | 1358.6 lm/m | G |
| 3000 K | 114.2 lm/W | 2192.1 lm/m | E | 92.3 lm/W | 1772.4 lm/m | F | 75.1 lm/W | 1442.2 lm/m | G |
| 3500 K | 115.9 lm/W | 2225.9 lm/m | E | 94.2 lm/W | 1808.2 lm/m | F | 77.5 lm/W | 1487.9 lm/m | G |
| 4000 K | 119.2 lm/W | 2289.6 lm/m | E | 96.1 lm/W | 1846 lm/m | F | 79.4 lm/W | 1523.7 lm/m | G |
| 5000 K | 119.1 lm/W | 2287.6 lm/m | E | 96.1 lm/W | 1846 lm/m | F | 79.3 lm/W | 1522.6 lm/m | G |
| 6500 K | 114.2 lm/W | 2192.1 lm/m | E | 92.3 lm/W | 1772.4 lm/m | F | 76.6 lm/W | 1470.7 lm/m | G |
Grade KE (3rd Tier) · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 87.5 lm/W | 2101.1 lm/m | F | 69.8 lm/W | 1675.6 lm/m | G | — | — | — |
| 2300 K | 97.6 lm/W | 2341.5 lm/m | F | 77.8 lm/W | 1867.9 lm/m | G | 63 lm/W | 1512 lm/m | G |
| 2700 K | 105.1 lm/W | 2521.8 lm/m | F | 84.4 lm/W | 2026.6 lm/m | G | 68.4 lm/W | 1642 lm/m | G |
| 3000 K | 110.4 lm/W | 2649.3 lm/m | E | 89.3 lm/W | 2142 lm/m | F | 72.6 lm/W | 1742.9 lm/m | G |
| 3500 K | 112.1 lm/W | 2690.1 lm/m | E | 91.1 lm/W | 2185.3 lm/m | F | 74.9 lm/W | 1798.2 lm/m | G |
| 4000 K | 115.3 lm/W | 2767.1 lm/m | E | 93 lm/W | 2231 lm/m | F | 76.7 lm/W | 1841.5 lm/m | G |
| 5000 K | 115.2 lm/W | 2764.7 lm/m | E | 93 lm/W | 2231 lm/m | F | 76.7 lm/W | 1840.8 lm/m | G |
| 6500 K | 110.4 lm/W | 2649.3 lm/m | E | 89.3 lm/W | 2142 lm/m | F | 74.1 lm/W | 1778.4 lm/m | G |
Grade KE (3rd Tier) · 28.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 84.6 lm/W | 2437.8 lm/m | G | 67.5 lm/W | 1944.1 lm/m | G | — | — | — |
| 2300 K | 94.3 lm/W | 2716.7 lm/m | F | 75.3 lm/W | 2167.2 lm/m | G | 61 lm/W | 1756.8 lm/m | G |
| 2700 K | 101.6 lm/W | 2925.9 lm/m | F | 81.6 lm/W | 2351.3 lm/m | G | 66.1 lm/W | 1905 lm/m | G |
| 3000 K | 106.7 lm/W | 3073.7 lm/m | F | 86.3 lm/W | 2485.2 lm/m | F | 70.2 lm/W | 2022.2 lm/m | G |
| 3500 K | 108.4 lm/W | 3121.1 lm/m | F | 88 lm/W | 2535.4 lm/m | F | 72.4 lm/W | 2086.3 lm/m | G |
| 4000 K | 111.5 lm/W | 3210.4 lm/m | E | 89.9 lm/W | 2588.4 lm/m | F | 74.2 lm/W | 2136.5 lm/m | G |
| 5000 K | 111.4 lm/W | 3207.6 lm/m | E | 89.9 lm/W | 2588.4 lm/m | F | 74.1 lm/W | 2134.1 lm/m | G |
| 6500 K | 106.7 lm/W | 3073.7 lm/m | F | 86.3 lm/W | 2485.2 lm/m | F | 71.6 lm/W | 2062.1 lm/m | G |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 28.8W/m, 19810 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 20mm wide, so it needs at least 22mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Related models in this series
- 2835 Classic Stable 48V LED Strip Light (#18205)
- 2835 Long Run LED Strip Light (#16011)
- 2835 High-Brightness CV LED strip (#15235)
- 48V Mixes RGB+W LED Strip Light (#16785)
See every model in SMD LED Strip Series or narrow to 48V. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 19810?
19810: 2835, 280, DC 48V, 20mm PCB, 3oz copper FPCB, cuttable 14LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this wide PCB LED strip be?
Maximum single run for this model is 10m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a wide PCB LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this wide PCB LED strip for a project?
Yes. DENO manufactures the Wide SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How long can a 48V LED strip run from a single feed?
A 48V LED strip typically doubles the run length of an equivalent 24V LED strip at the same power density, with 20 to 40 m single-end runs common at low wattages. The exact limit depends on watts per metre and copper weight, so confirm it with the DENO voltage drop calculator before specifying.
Why use a wide LED strip PCB?
A 15 or 20 mm LED strip gives more copper area, so it dissipates heat better and carries more current. That is what allows high power builds above 25 W/m to run cooler, keep lumen maintenance high and support longer single feeds than a narrow board.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- Wide PCB LED Strips series — Wide PCB LED Strip — Brightest, High Lumen Builds
- constant current LED strip series — Constant Current LED Strip — Buyer Questions
- LED strip engineering selection handbook
