2835 Long Run LED Strip Light (#16011)
12mm · 48V · 144LEDs · 166.6mm/cut
Model: 16011
Overview

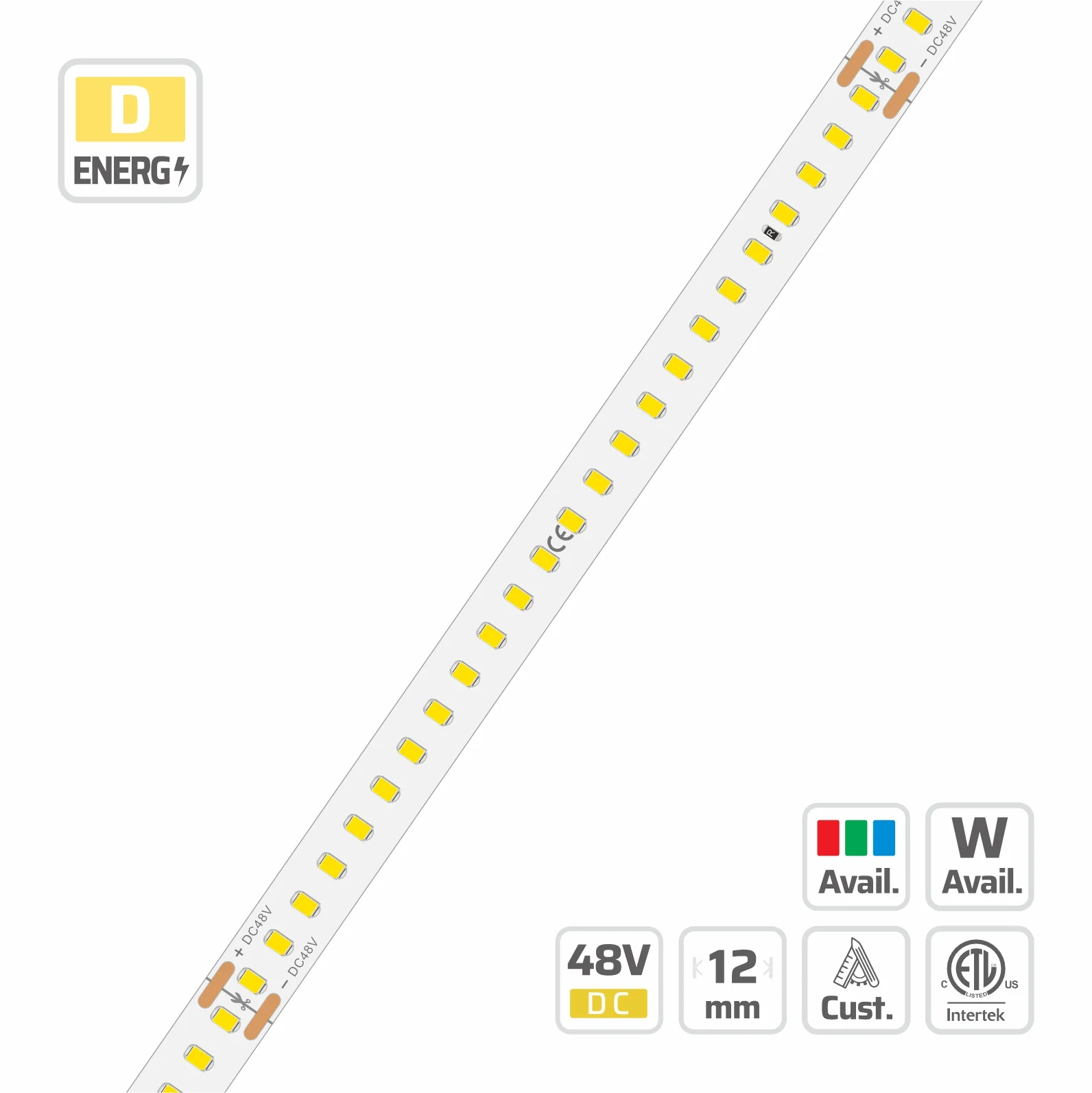

12mm | 48V | 144LEDs | 166.6mm/cut | #16011 | 2835 Ultra-long LED Strip Light is part of the DENO Ultra-Long SMD Strips series, engineered around ultra long run LED strip. Key specifications: 2835, 144, 48V, 12mm PCB, 3oz copper FPCB, cuttable 24LEDs/166.66mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
2835 48V long LED strip lights — 48V DC, 144 LEDs/m on a 12mm, 3 oz copper board, cuttable every 166.6mm, constant-current circuit. Buyer decision: at 48V the board carries half the current of a 24V design, so a single feed drives 50 m (164 ft) and dual feeds reach 100 m — among the longest single-board runs available from any manufacturer. One power point can light an entire facade or warehouse aisle. Custom CCT, IP and length — request a factory quote.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| LED QTY | 144 |
|---|---|
| PART NO | DL-F28A72V48-16011-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 24LEDs/166.66mm |
| DIMMABLE | Yes |
| LED PITCH | 6.9mm |
| PCB WIDTH | 12mm |
| BEAM ANGLE | 120° |
| LENGTH MAX | 50m |
| COPPER FOIL | 3oz |
| POWER RANGE | 2.8~17.3W |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 48V |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Long corridor & warehouse runs — 48V feeding lets one run cover long corridors, warehouse aisles and facade lines with fewer injection points and fewer power supplies.
Request a quotation for #16011
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 146.1 lm/W at 4000K, Ra 80, ErP energy class D (Grade DL (2nd Tier)).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 110.2 lm/W | 639.2 lm/m | F | 92.6 lm/W | 537.1 lm/m | F | — | — | — |
| 2300 K | 120.1 lm/W | 696.7 lm/m | E | 103.3 lm/W | 599.2 lm/m | F | 83.7 lm/W | 485.5 lm/m | G |
| 2700 K | 129.4 lm/W | 750.7 lm/m | E | 111.8 lm/W | 648.5 lm/m | F | 90.6 lm/W | 525.4 lm/m | G |
| 3000 K | 135.9 lm/W | 788.5 lm/m | E | 118.1 lm/W | 685.1 lm/m | F | 96 lm/W | 556.8 lm/m | F |
| 3500 K | 138 lm/W | 800.6 lm/m | E | 120.6 lm/W | 699.6 lm/m | E | 99.3 lm/W | 576 lm/m | F |
| 4000 K | 140.6 lm/W | 815.7 lm/m | E | 121.3 lm/W | 703.7 lm/m | E | 100.2 lm/W | 581.2 lm/m | F |
| 5000 K | 140.4 lm/W | 814.6 lm/m | E | 122.1 lm/W | 708.3 lm/m | E | 100.8 lm/W | 584.6 lm/m | F |
| 6500 K | 134.6 lm/W | 780.9 lm/m | E | 116.7 lm/W | 677 lm/m | F | 96.9 lm/W | 562 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 109.1 lm/W | 785.8 lm/m | F | 91.7 lm/W | 660.2 lm/m | G | — | — | — |
| 2300 K | 118.9 lm/W | 856.4 lm/m | E | 102.3 lm/W | 736.5 lm/m | F | 82.9 lm/W | 596.9 lm/m | G |
| 2700 K | 128.2 lm/W | 922.8 lm/m | E | 110.7 lm/W | 797.2 lm/m | F | 89.7 lm/W | 645.9 lm/m | G |
| 3000 K | 134.6 lm/W | 969.2 lm/m | E | 117 lm/W | 842.2 lm/m | F | 95.1 lm/W | 684.4 lm/m | F |
| 3500 K | 136.7 lm/W | 984.2 lm/m | E | 119.4 lm/W | 860 lm/m | E | 98.3 lm/W | 708 lm/m | F |
| 4000 K | 139.3 lm/W | 1002.7 lm/m | E | 120.1 lm/W | 865 lm/m | E | 99.2 lm/W | 714.4 lm/m | F |
| 5000 K | 139.1 lm/W | 1001.3 lm/m | E | 120.9 lm/W | 870.7 lm/m | E | 99.8 lm/W | 718.6 lm/m | F |
| 6500 K | 133.3 lm/W | 959.9 lm/m | E | 115.6 lm/W | 832.2 lm/m | F | 95.9 lm/W | 690.5 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 107 lm/W | 1070.1 lm/m | F | 89.9 lm/W | 899 lm/m | G | — | — | — |
| 2300 K | 116.6 lm/W | 1166.3 lm/m | F | 100.3 lm/W | 1003 lm/m | F | 81.2 lm/W | 812 lm/m | G |
| 2700 K | 125.7 lm/W | 1256.7 lm/m | E | 108.6 lm/W | 1085.6 lm/m | F | 88 lm/W | 879.6 lm/m | G |
| 3000 K | 132 lm/W | 1319.9 lm/m | E | 114.7 lm/W | 1146.9 lm/m | F | 93.2 lm/W | 932.1 lm/m | F |
| 3500 K | 134 lm/W | 1340.3 lm/m | E | 117.1 lm/W | 1171.2 lm/m | F | 96.4 lm/W | 964.2 lm/m | F |
| 4000 K | 136.6 lm/W | 1365.6 lm/m | E | 117.8 lm/W | 1178 lm/m | F | 97.3 lm/W | 972.9 lm/m | F |
| 5000 K | 136.4 lm/W | 1363.6 lm/m | E | 118.6 lm/W | 1185.8 lm/m | F | 97.8 lm/W | 978 lm/m | F |
| 6500 K | 130.7 lm/W | 1307.2 lm/m | E | 113.3 lm/W | 1133.3 lm/m | F | 94.1 lm/W | 941 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 103.8 lm/W | 1494 lm/m | F | 87.2 lm/W | 1255.2 lm/m | G | — | — | — |
| 2300 K | 113.1 lm/W | 1628.4 lm/m | F | 97.3 lm/W | 1400.4 lm/m | F | 78.8 lm/W | 1134.7 lm/m | G |
| 2700 K | 121.8 lm/W | 1754.6 lm/m | E | 105.3 lm/W | 1515.8 lm/m | F | 85.3 lm/W | 1228.1 lm/m | G |
| 3000 K | 128 lm/W | 1842.8 lm/m | E | 111.2 lm/W | 1601.2 lm/m | F | 90.4 lm/W | 1301.3 lm/m | G |
| 3500 K | 129.9 lm/W | 1871.3 lm/m | E | 113.6 lm/W | 1635.2 lm/m | F | 93.5 lm/W | 1346.1 lm/m | F |
| 4000 K | 132.4 lm/W | 1906.6 lm/m | E | 114.2 lm/W | 1644.7 lm/m | F | 94.3 lm/W | 1358.3 lm/m | F |
| 5000 K | 132.2 lm/W | 1903.8 lm/m | E | 115 lm/W | 1655.5 lm/m | F | 94.8 lm/W | 1365.1 lm/m | F |
| 6500 K | 126.7 lm/W | 1825.1 lm/m | E | 109.9 lm/W | 1582.2 lm/m | F | 91.2 lm/W | 1313.3 lm/m | G |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 111.3 lm/W | 645.6 lm/m | E | 89.1 lm/W | 516.7 lm/m | F | — | — | — |
| 2300 K | 123.9 lm/W | 718.8 lm/m | E | 99.3 lm/W | 575.9 lm/m | F | 80.4 lm/W | 466.3 lm/m | G |
| 2700 K | 130.5 lm/W | 757.1 lm/m | E | 107.4 lm/W | 623 lm/m | F | 87.1 lm/W | 505.1 lm/m | F |
| 3000 K | 139.5 lm/W | 809.3 lm/m | D | 113 lm/W | 655.5 lm/m | E | 92 lm/W | 533.6 lm/m | F |
| 3500 K | 141.6 lm/W | 821.5 lm/m | D | 115.1 lm/W | 667.7 lm/m | E | 94.7 lm/W | 549.2 lm/m | F |
| 4000 K | 146.1 lm/W | 847.7 lm/m | D | 117.8 lm/W | 683.4 lm/m | E | 97.3 lm/W | 564.3 lm/m | F |
| 5000 K | 145.9 lm/W | 846.5 lm/m | D | 117.8 lm/W | 683.4 lm/m | E | 97.2 lm/W | 563.8 lm/m | F |
| 6500 K | 133.6 lm/W | 775.1 lm/m | E | 113 lm/W | 655.5 lm/m | E | 93.8 lm/W | 544 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 110.2 lm/W | 793.6 lm/m | E | 88.2 lm/W | 635.2 lm/m | F | — | — | — |
| 2300 K | 122.7 lm/W | 883.5 lm/m | E | 98.3 lm/W | 708 lm/m | F | 79.6 lm/W | 573.1 lm/m | G |
| 2700 K | 129.3 lm/W | 930.6 lm/m | E | 106.4 lm/W | 765.8 lm/m | F | 86.2 lm/W | 620.9 lm/m | F |
| 3000 K | 138.2 lm/W | 994.9 lm/m | D | 111.9 lm/W | 805.7 lm/m | E | 91.1 lm/W | 655.9 lm/m | F |
| 3500 K | 140.3 lm/W | 1009.9 lm/m | D | 114 lm/W | 820.7 lm/m | E | 93.8 lm/W | 675.1 lm/m | F |
| 4000 K | 144.7 lm/W | 1042 lm/m | D | 116.7 lm/W | 840 lm/m | E | 96.3 lm/W | 693.7 lm/m | F |
| 5000 K | 144.5 lm/W | 1040.5 lm/m | D | 116.7 lm/W | 840 lm/m | E | 96.3 lm/W | 693.4 lm/m | F |
| 6500 K | 132.3 lm/W | 952.8 lm/m | E | 111.9 lm/W | 805.7 lm/m | E | 92.9 lm/W | 668.9 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 108.1 lm/W | 1080.8 lm/m | F | 86.5 lm/W | 865 lm/m | F | — | — | — |
| 2300 K | 120.3 lm/W | 1203.2 lm/m | E | 96.4 lm/W | 964.1 lm/m | F | 78.1 lm/W | 781 lm/m | G |
| 2700 K | 126.7 lm/W | 1267.4 lm/m | E | 104.3 lm/W | 1042.9 lm/m | F | 84.6 lm/W | 845.6 lm/m | G |
| 3000 K | 135.5 lm/W | 1354.9 lm/m | D | 109.7 lm/W | 1097.3 lm/m | F | 89.3 lm/W | 893.2 lm/m | F |
| 3500 K | 137.5 lm/W | 1375.3 lm/m | D | 111.8 lm/W | 1117.7 lm/m | E | 91.9 lm/W | 919.4 lm/m | F |
| 4000 K | 141.9 lm/W | 1419 lm/m | D | 114.4 lm/W | 1143.9 lm/m | E | 94.5 lm/W | 944.7 lm/m | F |
| 5000 K | 141.7 lm/W | 1417.1 lm/m | D | 114.4 lm/W | 1143.9 lm/m | E | 94.4 lm/W | 944 lm/m | F |
| 6500 K | 129.8 lm/W | 1297.5 lm/m | E | 109.7 lm/W | 1097.3 lm/m | F | 91.1 lm/W | 911 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 104.8 lm/W | 1508.9 lm/m | F | 83.9 lm/W | 1207.7 lm/m | G | — | — | — |
| 2300 K | 116.7 lm/W | 1679.9 lm/m | E | 93.5 lm/W | 1346.1 lm/m | F | 75.7 lm/W | 1090.1 lm/m | G |
| 2700 K | 122.9 lm/W | 1769.5 lm/m | E | 101.1 lm/W | 1456 lm/m | F | 82 lm/W | 1180.6 lm/m | G |
| 3000 K | 131.4 lm/W | 1891.6 lm/m | E | 106.4 lm/W | 1532 lm/m | F | 86.6 lm/W | 1247.1 lm/m | F |
| 3500 K | 133.3 lm/W | 1920.1 lm/m | E | 108.4 lm/W | 1560.5 lm/m | F | 89.1 lm/W | 1283.7 lm/m | F |
| 4000 K | 137.6 lm/W | 1981.2 lm/m | D | 110.9 lm/W | 1597.1 lm/m | E | 91.6 lm/W | 1319 lm/m | F |
| 5000 K | 137.4 lm/W | 1978.5 lm/m | D | 110.9 lm/W | 1597.1 lm/m | E | 91.5 lm/W | 1317.6 lm/m | F |
| 6500 K | 125.8 lm/W | 1811.5 lm/m | E | 106.4 lm/W | 1532 lm/m | F | 88.3 lm/W | 1271.5 lm/m | F |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 98.9 lm/W | 573.6 lm/m | F | 79.1 lm/W | 458.7 lm/m | G | — | — | — |
| 2300 K | 110.2 lm/W | 639.2 lm/m | E | 88.1 lm/W | 510.9 lm/m | F | 71.4 lm/W | 414.1 lm/m | G |
| 2700 K | 118.8 lm/W | 689.1 lm/m | E | 95.6 lm/W | 554.4 lm/m | F | 77.5 lm/W | 449.4 lm/m | G |
| 3000 K | 124.8 lm/W | 724 lm/m | E | 101 lm/W | 585.8 lm/m | F | 82.2 lm/W | 476.7 lm/m | G |
| 3500 K | 126.6 lm/W | 734.4 lm/m | E | 103 lm/W | 597.4 lm/m | F | 84.8 lm/W | 491.7 lm/m | G |
| 4000 K | 130.3 lm/W | 755.9 lm/m | E | 105.2 lm/W | 610.2 lm/m | F | 86.9 lm/W | 503.9 lm/m | F |
| 5000 K | 130.1 lm/W | 754.7 lm/m | E | 105.2 lm/W | 610.2 lm/m | F | 86.8 lm/W | 503.4 lm/m | F |
| 6500 K | 124.8 lm/W | 724 lm/m | E | 101 lm/W | 585.8 lm/m | F | 83.8 lm/W | 486 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 97.9 lm/W | 705.1 lm/m | F | 78.3 lm/W | 563.8 lm/m | G | — | — | — |
| 2300 K | 109.1 lm/W | 785.7 lm/m | F | 87.2 lm/W | 628 lm/m | F | 70.7 lm/W | 509 lm/m | G |
| 2700 K | 117.7 lm/W | 847.1 lm/m | E | 94.7 lm/W | 681.5 lm/m | F | 76.7 lm/W | 552.4 lm/m | G |
| 3000 K | 123.6 lm/W | 889.9 lm/m | E | 100 lm/W | 720.1 lm/m | F | 81.4 lm/W | 585.9 lm/m | G |
| 3500 K | 125.4 lm/W | 902.8 lm/m | E | 102 lm/W | 734.4 lm/m | F | 84 lm/W | 604.5 lm/m | G |
| 4000 K | 129.1 lm/W | 929.2 lm/m | E | 104.2 lm/W | 750.1 lm/m | F | 86 lm/W | 619.5 lm/m | F |
| 5000 K | 128.9 lm/W | 927.8 lm/m | E | 104.2 lm/W | 750.1 lm/m | F | 85.9 lm/W | 618.5 lm/m | F |
| 6500 K | 123.6 lm/W | 889.9 lm/m | E | 100 lm/W | 720.1 lm/m | F | 83 lm/W | 597.6 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 96 lm/W | 960.2 lm/m | F | 76.8 lm/W | 767.8 lm/m | G | — | — | — |
| 2300 K | 107 lm/W | 1070.1 lm/m | F | 85.5 lm/W | 855.3 lm/m | F | 69.3 lm/W | 693 lm/m | G |
| 2700 K | 115.4 lm/W | 1153.6 lm/m | E | 92.8 lm/W | 928.2 lm/m | F | 75.2 lm/W | 752.2 lm/m | G |
| 3000 K | 121.2 lm/W | 1211.9 lm/m | E | 98.1 lm/W | 980.6 lm/m | F | 79.8 lm/W | 797.9 lm/m | G |
| 3500 K | 122.9 lm/W | 1229.4 lm/m | E | 100 lm/W | 1000.1 lm/m | F | 82.3 lm/W | 823.2 lm/m | G |
| 4000 K | 126.5 lm/W | 1265.4 lm/m | E | 102.1 lm/W | 1021.5 lm/m | F | 84.4 lm/W | 843.6 lm/m | G |
| 5000 K | 126.3 lm/W | 1263.5 lm/m | E | 102.1 lm/W | 1021.5 lm/m | F | 84.3 lm/W | 843 lm/m | G |
| 6500 K | 121.2 lm/W | 1211.9 lm/m | E | 98.1 lm/W | 980.6 lm/m | F | 81.4 lm/W | 814 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 93.1 lm/W | 1340.6 lm/m | F | 74.4 lm/W | 1072 lm/m | G | — | — | — |
| 2300 K | 103.7 lm/W | 1494 lm/m | F | 82.9 lm/W | 1194.1 lm/m | G | 67.2 lm/W | 967.7 lm/m | G |
| 2700 K | 111.9 lm/W | 1610.7 lm/m | E | 90 lm/W | 1295.9 lm/m | F | 72.9 lm/W | 1050.3 lm/m | G |
| 3000 K | 117.5 lm/W | 1692.1 lm/m | E | 95.1 lm/W | 1369.1 lm/m | F | 77.4 lm/W | 1114 lm/m | G |
| 3500 K | 119.2 lm/W | 1716.5 lm/m | E | 97 lm/W | 1396.3 lm/m | F | 79.8 lm/W | 1149.3 lm/m | G |
| 4000 K | 122.7 lm/W | 1766.7 lm/m | E | 99 lm/W | 1426.1 lm/m | F | 81.8 lm/W | 1177.8 lm/m | G |
| 5000 K | 122.5 lm/W | 1764 lm/m | E | 99 lm/W | 1426.1 lm/m | F | 81.7 lm/W | 1176.5 lm/m | G |
| 6500 K | 117.5 lm/W | 1692.1 lm/m | E | 95.1 lm/W | 1369.1 lm/m | F | 78.9 lm/W | 1136.2 lm/m | G |
Related models in this series
- 2835 Classic Stable 48V LED Strip Light (#18205)
- 2835 High-Brightness CV LED strip (#15235)
- 2835 Two-Row 48V Constant Current LED Strip Light (#19810)
- 48V Mixes RGB+W LED Strip Light (#16785)
See every model in SMD LED Strip Series or narrow to 48V. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 16011?
16011: 2835, 144, 48V, 12mm PCB, 3oz copper FPCB, cuttable 24LEDs/166.66mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra long run LED strip be?
Maximum single run for this model is 50m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra long run LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra long run LED strip for a project?
Yes. DENO manufactures the Ultra-Long SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What limits how long an LED strip run can be?
Voltage drop and conductor current, not the LED itself. A long run LED strip combines low watts per metre, 2 oz or thicker copper and a higher bus voltage such as 24V, 36V or 48V to reach 20 m or more from one feed while staying inside a 3 percent drop.
How long can a 48V LED strip run from a single feed?
A 48V LED strip typically doubles the run length of an equivalent 24V LED strip at the same power density, with 20 to 40 m single-end runs common at low wattages. The exact limit depends on watts per metre and copper weight, so confirm it with the DENO voltage drop calculator before specifying.
Long LED Strip Lights — Buyer Questions
How long can a long LED strip run be on a single power feed?
A standard 24V constant-voltage tape is limited to about 5 m before the far end visibly dims. DENO's long-run boards combine 2 oz to 3 oz copper, 24V or 48V input and per-segment constant-current ICs, which takes a single feed to 20 m, and up to 50 m on 48V builds, with no measurable fall-off between the first and last metre.
What are the longest LED light strips DENO manufactures?
Standard reels ship at 5 m, 10 m, 15 m, 20 m and 30 m, and OEM orders are produced as one continuous 50 m board with no mid-reel solder joint. Roll-to-roll plating is what makes that possible: the copper is deposited continuously, so length is not capped by panel size the way it is on die-cut FPCB.
- Series long LED strip lights series
- Guide roll-to-roll process behind continuous long boards
- Related series roll-to-roll LED strip series
- Product 19810 long LED strip reel
Do you supply extra long LED strip lights in 65.6 ft or 100 ft?
Yes. 65.6 ft (20 m) and 100 ft (30 m) are stock run lengths, and anything longer than 32 feet is supplied as one uncut board rather than two reels joined with a connector. Joints are the usual failure point on extra long LED strip lights, so removing them is the single biggest reliability gain on a large install.
Why do long strip lights get dimmer at the far end, and how is it fixed?
Copper resistance drops the supply voltage along the tape, so LEDs near the end of the run receive less drive current. Three fixes work together: raise the voltage (24V, 36V or 48V), raise the copper weight (2 oz or 3 oz), and add a linear constant-current IC per segment so each segment holds its current regardless of the local voltage it sees.
- Series long LED strip lights series
- Related series constant current LED strip boards
- Guide copper weight and voltage drop explained
- Product 18205 constant current long-run LED strip
Which long outdoor LED strip lights are rated for wet locations?
Long outdoor LED strip lights are built IP65 silicone-coated, IP67 sleeved or IP68 fully potted, with DENO WAP™ conformal coating that stays clear instead of yellowing under UV. For facade and perimeter work the run length also has to survive thermal cycling, so outdoor boards use 3 oz copper and a wider PCB to spread heat.
- Series long LED strip lights series
- Related series marine grade LED strip for exposed runs
- Related series DENO WAP™ conformal coating explained
What makes long lasting LED strip lights actually last?
Lifetime is decided by junction temperature and solder-joint fatigue, not by the LED bin. DENO specifies 99.9% pure electroplated copper for lower thermal resistance, gold-wire bonding, and derated drive current — L90 at 50,000 hours on standard architectural builds, backed by a 5-year warranty.
Can a long RGB or RGBIC strip run stay colour-consistent?
It can, provided each colour channel is current-regulated. On a plain long RGB LED strip the red die drops out first as voltage falls, so the far end shifts warm; a CC-regulated 24V colour board holds the mix over 15 m to 20 m. Addressable RGBIC runs additionally need data re-amplification roughly every 5 m.
- Series long LED strip lights series
- Related series RGB LED strip lights series
- Related series pixel addressable LED strip for long data runs
- Product 16785 long RGB LED strip
Can long LED light strips be cut to an exact length for a room or kitchen?
Yes. Cut units run from 12.5 mm to 100 mm depending on voltage and density, so a run can be trimmed to a drawing dimension on site, and DENO also pre-cuts and pre-wires to length at the factory for room, cove and kitchen installations. Ask for the cut unit in the quote — it decides how closely the finished line matches the millwork.
- Series long LED strip lights series
- Related series micro cut LED strip for exact lengths
- Guide send a cut-to-length specification to DENO
Can you get LED strip lights longer than 32 feet in one run?
Yes — 32 feet (10 m) is where consumer tape stops, not where the physics stops. Past that the board needs constant-current regulation and 2 oz to 3 oz copper, and DENO supplies it as one uncut length with factory-fitted lead wires rather than two reels joined by a solderless connector, which would put the whole downstream current through a spring contact.
- Series long LED strip lights series
- Related series 48V boards for runs past 32 feet
- Guide OEM cut-to-length production
Should I specify a 65.6 ft or a 100 ft LED strip run?
65.6 ft (20 m) is the practical ceiling for a 24V constant-current board with 2 oz copper on a single-end feed, and it covers most cove and corridor jobs with one driver. 100 ft (30 m) moves to 36V or 48V with 3 oz copper, a bigger driver and usually a mid-point tap, because at 24V the current would be high enough for cable losses to matter.
- Series long LED strip lights series
- Guide driver sizing and current per metre
- Related series high efficacy boards for long runs
When is a long RGBW LED strip better than RGB on a long run?
Whenever the same run also has to serve as everyday white light. Mixing white from three colour dies costs roughly twice the wattage for the same lux and renders skin and timber poorly — a real penalty over 20 m. RGBW adds a dedicated Ra 90+ white die at 2700K to 6500K, so white comes from a white source and the colour channels stay reserved for scenes.
- Series long LED strip lights series
- Related series RGBW boards with a dedicated white die
- Related series tunable white for long architectural runs
Is 36V or 48V better for a long LED strip installation?
48V once a single run passes about 30 m, 36V between 20 m and 30 m or where a 48V driver is unavailable. Both stay inside SELV limits and both cut voltage drop sharply against 24V; the trade-off is the cut unit, which grows from roughly 50 mm at 24V to 100 mm at 36V and up to 166.6 mm at 48V.
